刚入职新公司，接手的第一个项目中就有之前没有做过的视频监控的问题，内心是有点期待也有些无奈的，毕竟要给领导留个好印象却又害怕做不好。
根据同事的介绍得知这个视频插件用的是海康威视的插件，下面就跟大家说一下海康威视插件的用法：
<script src="jquery-1.12.4.min.js"></script>
<script src="jsencrypt.min.js"></script>
<script src="jsWebControl-1.0.0.min.js"></script>html部分：
<div id="playWnd" class="playWnd"></div>
<div id="operate" class="operate">
<div class="module">
<div class="item"><span class="label">appkey:</span><input id="appkey" type="text"></div>
<div class="item"><span class="label">secret:</span><input id="secret" type="text"></div>
<div class="item"><span class="label">API网关IP地址:</span><input id="ip" type="text"></div>
<div class="item">
<span class="label">是否启用HTTPS协议</span>
<select id="isHttps" onchange="UpdateValue()" value="不启用">
<option value="0" selected>不启用</option>
<option value="1">启用</option>
</select>
</div>
<div class="item"><span class="label">API网关端口:</span><input id="port" value="80" type="text"></div>
<div class="item"><span class="label">抓图存储路径:</span><input id="snapDir" type="text" value="D:\SnapDir"></div>
<div class="item">
<span class="label">初始化布局:</span>
<select id="layout" value="2x2">
<option value="1x1">1x1</option>
<option value="2x2" selected>2x2</option>
<option value="3x3">3x3</option>
<option value="4x4">4x4</option>
</select>
</div>
<div class="item">
<span class="label">加密字段:</span>
<div style="display: inline-block; vertical-align: top;">
<label><input type="checkbox" value="secret" disabled checked>secret</label><br>
<label><input class="encryptedFields" type="checkbox" value="appkey">appkey</label><br>
<label><input class="encryptedFields" type="checkbox" value="ip">ip</label><br>
<label><input class="encryptedFields" type="checkbox" value="snapDir">抓图路径</label><br>
<label><input class="encryptedFields" type="checkbox" value="layout">布局</label>
</div>
</div>
<div class="item"><button id="init" class="btn">初始化</button></div>
</div>
<div class="module">
<div class="item"><span class="label">监控点编号：</span><input id="cameraIndexCode" type="text"></div>
<div class="item">
<span class="label">主子码流标识：</span>
<select id="streamMode" value="0">
<option value="0">主码流</option>
<option value="1">子码流</option>
</select>
</div>
<div class="item">
<span class="label">传输协议：</span>
<select id="transMode" value="1">
<option value="1">TCP</option>
<option value="0">UDP</option>
</select>
</div>
<div class="item">
<span class="label">是否启用GPU硬解：</span>
<select id="gpuMode" value="0">
<option value="0">不启用</option>
<option value="1">启用</option>
</select>
</div>
<div class="item"><button id="startPreview" class="btn">预览</button></div>
<div class="item"><button id="stopAllPreview" class="btn">停止全部预览</button></div>
<div class="item"><button id="uninit" class="btn">反初始化</button></div>
</div>
<fieldset class="cbInfoDiv">
<legend>返回值信息</legend>
<div id="cbInfo" class="cbInfo"></div>
<button id="clear">清空</button>
</fieldset>
</div>
js部分：
var oWebControl = null;// 插件对象
var bIE = (!!window.ActiveXObject || 'ActiveXObject' in window);// 是否为IE浏览器
var pubKey = '';
var iLastCoverLeft = 0;
var iLastCoverTop = 0;
var iLastCoverRight = 0;
var iLastCoverBottom = 0;
var initCount = 0;
console.log('1')
// 标签关闭
$(window).unload(function () {
if (oWebControl != null){
oWebControl.JS_Disconnect().then(function(){}, function() {});
}
});
// 窗口resize
$(window).resize(function () {
if (oWebControl != null) {
oWebControl.JS_Resize(600, 400);
setWndCover();
}
});
// 滚动条scroll
$(window).scroll(function () {
if (oWebControl != null) {
oWebControl.JS_Resize(600, 400);
setWndCover();
}
});
// 设置窗口遮挡
function setWndCover() {
console.log('设置窗口遮挡')
var iWidth = $(window).width();
var iHeight = $(window).height();
var oDivRect = $("#playWnd").get(0).getBoundingClientRect();
var iCoverLeft = (oDivRect.left < 0) ? Math.abs(oDivRect.left): 0;
var iCoverTop = (oDivRect.top < 0) ? Math.abs(oDivRect.top): 0;
var iCoverRight = (oDivRect.right - iWidth > 0) ? Math.round(oDivRect.right - iWidth) : 0;
var iCoverBottom = (oDivRect.bottom - iHeight > 0) ? Math.round(oDivRect.bottom - iHeight) : 0;
iCoverLeft = (iCoverLeft > 600) ? 600 : iCoverLeft;
iCoverTop = (iCoverTop > 400) ? 400 : iCoverTop;
iCoverRight = (iCoverRight > 600) ? 600 : iCoverRight;
iCoverBottom = (iCoverBottom > 400) ? 400 : iCoverBottom;
if (iLastCoverLeft != iCoverLeft) {
console.log("iCoverLeft: " + iCoverLeft);
iLastCoverLeft = iCoverLeft;
oWebControl.JS_SetWndCover("left", iCoverLeft);
}
if (iLastCoverTop != iCoverTop) {
console.log("iCoverTop: " + iCoverTop);
iLastCoverTop = iCoverTop;
oWebControl.JS_SetWndCover("top", iCoverTop);
}
if (iLastCoverRight != iCoverRight) {
console.log("iCoverRight: " + iCoverRight);
iLastCoverRight = iCoverRight;
oWebControl.JS_SetWndCover("right", iCoverRight);
}
if (iLastCoverBottom != iCoverBottom) {
console.log("iCoverBottom: " + iCoverBottom);
iLastCoverBottom = iCoverBottom;
oWebControl.JS_SetWndCover("bottom", iCoverBottom);
}
}
function UpdateValue()
{
var sel = document.getElementById("isHttps");
var selectedId = sel.selectedIndex;
var v = sel.options[selectedId].value;
if (0 == v)
{
document.getElementById("port").value = 80;
}
else
{
document.getElementById("port").value = 443;
}
}
// 初始化插件
function initPlugin () {
console.log('初始化插件')
$("#init").attr('disabled', false);
$("#startPreview").attr('disabled', false);
$("#stopAllPreview").attr('disabled', false);
$("#uninit").attr('disabled', false);
oWebControl = new WebControl({
szPluginContainer: "playWnd",
iServicePortStart: 15900,
iServicePortEnd: 15909,
cbConnectSuccess: function () {
setCallbacks();
console.log('初始化插件setCallbacks')
oWebControl.JS_StartService("window", {
dllPath: "./VideoPluginConnect.dll"
//dllPath: "./DllForTest-Win32.dll"
}).then(function () {
oWebControl.JS_CreateWnd("playWnd", 600, 400).then(function () {
// console.log('初始化插件setCallbacks')
console.log("JS_CreateWnd success");
$("#init").attr('disabled', false);
$("#startPreview").attr('disabled', false);
$("#stopAllPreview").attr('disabled', false);
$("#uninit").attr('disabled', false);
});
}, function () {
});
},
cbConnectError: function () {
console.log("cbConnectError");
oWebControl = null;
$("#playWnd").html("插件未启动，正在尝试启动，请稍候...");
WebControl.JS_WakeUp("VideoWebPlugin://");
initCount ++;
if (initCount < 3) {
setTimeout(function () {
initPlugin();
}, 3000)
} else {
$("#playWnd").html("插件启动失败，请检查插件是否安装！");
}
},
cbConnectClose: function () {
console.log("cbConnectClose");
oWebControl = null;
}
});
}
initPlugin();
// 获取公钥
function getPubKey (callback) {
oWebControl.JS_RequestInterface({
funcName: "getRSAPubKey",
argument: JSON.stringify({
keyLength: 1024
})
}).then(function (oData) {
console.log(oData)
if (oData.responseMsg.data) {
pubKey = oData.responseMsg.data
callback()
}
})
}
// 设置窗口控制回调
function setCallbacks() {
oWebControl.JS_SetWindowControlCallback({
cbIntegrationCallBack: cbIntegrationCallBack
});
}
// 推送消息
function cbIntegrationCallBack(oData) {
showCBInfo(JSON.stringify(oData.responseMsg));
}
// RSA加密
function setEncrypt (value) {
var encrypt = new JSEncrypt();
encrypt.setPublicKey(pubKey);
return encrypt.encrypt(value);
}
// 初始化
$("#init").click(function () {
getPubKey(function () {
console.log('初始化')
var appkey = $("#appkey").val();
var secret = setEncrypt($("#secret").val());
var ip = $("#ip").val();
var port = parseInt($("#port").val());
var snapDir = $("#snapDir").val();
var layout = $("#layout").val();
var encryptedFields = ['secret'];
var enableHttps = parseInt($("#isHttps").val());
$(".encryptedFields").each(function (index, item) {
var $item = $(item);
if ($item.prop('checked')) {
var value = $item.val();
if (value !== 'secret') {
encryptedFields.push(value);
}
// secret固定加密，其它根据用户勾选加密
if (value == 'ip') {
ip = setEncrypt(ip)
}
if (value == 'appkey') {
appkey = setEncrypt(appkey)
}
if (value == 'snapDir') {
snapDir = setEncrypt(snapDir)
}
if (value == 'layout') {
layout = setEncrypt(layout)
}
}
})
encryptedFields = encryptedFields.join(",");
if (!appkey) {
showCBInfo("appkey不能为空！", 'error');
return
}
if (!$("#secret").val()) {
showCBInfo("secret不能为空！", 'error');
return
}
if (!ip) {
showCBInfo("ip不能为空！", 'error');
return
}
if (!$("#port").val()) {
showCBInfo("端口不能为空！", 'error');
return
} else if (!/^([0-9]|[1-9]\d{1,3}|[1-5]\d{4}|6[0-5]{2}[0-3][0-5])$/.test($("#port").val())) {
showCBInfo("端口填写有误！", 'error');
return
}
console.log({
appkey: appkey,
secret: secret,
ip: ip,
playMode: 0, // 预览
port: port,
snapDir: snapDir,
layout: layout,
enableHTTPS: enableHttps,
encryptedFields: encryptedFields
})
oWebControl.JS_RequestInterface({
funcName: "init",
argument: JSON.stringify({
appkey: appkey,
secret: secret,
ip: ip,
playMode: 0, // 预览
port: port,
snapDir: snapDir,
layout: layout,
enableHTTPS: enableHttps,
encryptedFields: encryptedFields
})
}).then(function (oData) {
showCBInfo(JSON.stringify(oData ? oData.responseMsg : ''));
});
})
});
// 视频预览
$("#startPreview").click(function () {
var cameraIndexCode = $("#cameraIndexCode ").val();
var streamMode = +$("#streamMode").val();
var transMode = +$("#transMode").val();
var gpuMode = +$("#gpuMode").val();
if (!cameraIndexCode ) {
showCBInfo("监控点编号不能为空！", 'error');
return
}
oWebControl.JS_RequestInterface({
funcName: "startPreview",
argument: JSON.stringify({
cameraIndexCode : cameraIndexCode ,
streamMode: streamMode,
transMode: transMode,
gpuMode: gpuMode
})
}).then(function (oData) {
showCBInfo(JSON.stringify(oData ? oData.responseMsg : ''));
});
});
// 停止预览
$("#stopAllPreview").click(function () {
oWebControl.JS_RequestInterface({
funcName: "stopAllPreview"
}).then(function (oData) {
showCBInfo(JSON.stringify(oData ? oData.responseMsg : ''));
});
})
// 反初始化
function uninit (cbFunc) {
oWebControl.JS_RequestInterface({
funcName: "uninit"
}).then(function (oData) {
showCBInfo(JSON.stringify(oData ? oData.responseMsg : ''));
cbFunc && cbFunc();
});
}
$("#uninit").click(uninit)
// 显示回调信息
function showCBInfo(szInfo, type) {
if (type === 'error') {
szInfo = "<div style='color: red;'>" + dateFormat(new Date(), "yyyy-MM-dd hh:mm:ss") + " " + szInfo + "</div>";
} else {
szInfo = "<div>" + dateFormat(new Date(), "yyyy-MM-dd hh:mm:ss") + " " + szInfo + "</div>";
}
$("#cbInfo").html(szInfo + $("#cbInfo").html());
}
$("#clear").click(function() {
$("#cbInfo").html('');
})
// 格式化时间
function dateFormat(oDate, fmt) {
var o = {
"M+": oDate.getMonth() + 1, //月份
"d+": oDate.getDate(), //日
"h+": oDate.getHours(), //小时
"m+": oDate.getMinutes(), //分
"s+": oDate.getSeconds(), //秒
"q+": Math.floor((oDate.getMonth() + 3) / 3), //季度
"S": oDate.getMilliseconds()//毫秒
};
if (/(y+)/.test(fmt)) {
fmt = fmt.replace(RegExp.$1, (oDate.getFullYear() + "").substr(4 - RegExp.$1.length));
}
for (var k in o) {
if (new RegExp("(" + k + ")").test(fmt)) {
fmt = fmt.replace(RegExp.$1, (RegExp.$1.length == 1) ? (o[k]) : (("00" + o[k]).substr(("" + o[k]).length)));
}
}
return fmt;

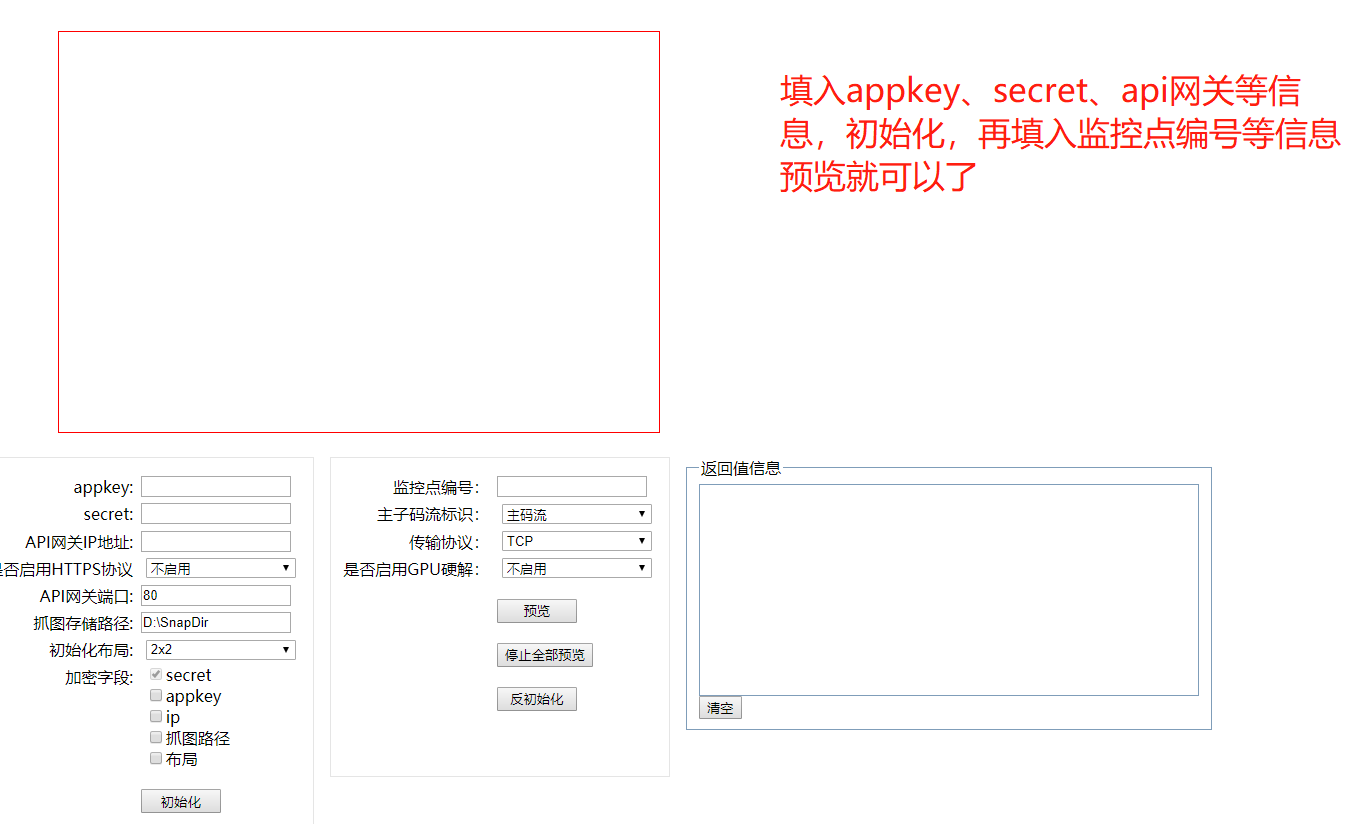

}以上是最原始的demo.html，有兴趣的朋友可以看一下。当然需要提前和你们公司的同事获取一些参数值
好了，完事。
可以从下面的链接中下载插件中的js文件
