iOS 短视频断点录制分段回删

前言

目前是准备做一个美颜相机类的项目,这篇将介绍视频录制的一些思路。

代码已上传MagicCamera,你的star和fork是对我最好的支持和动力。

方案

大致分为两种:

  • 方案一:录制成一个视频文件
  •      优点:  单个视频文件,方便处理
         缺点:不支持分段回删
    复制代码
  • 方案二:录制成多个文件
  •             优点:支持分段回删
                缺点:需要考虑视频合成步骤
                注:视频合成有多种途径
    复制代码

方案一

思路:计算暂停时间

GPUImageMovieWriter 中采用的就是这一种方式,大致思路如下:

// 设置暂停
- (void)setPaused:(BOOL)newValue {
  if (_paused != newValue) {
      _paused = newValue;

      if (_paused) {
          discont = YES;
      }
  }
}

// 新的一帧数据
if (!isRecording || _paused)    // 如果是暂停状态则放弃写入
{
  [firstInputFramebuffer unlock];
  return;
}

if (discont) {                  // 恢复录制时,判断是否暂停过,重新计算时间
  discont = NO;
  CMTime current;

  if (offsetTime.value > 0) {
      current = CMTimeSubtract(frameTime, offsetTime);
  } else {
      current = frameTime;
  }

  CMTime offset  = CMTimeSubtract(current, previousFrameTime);

  if (offsetTime.value == 0) {
      offsetTime = offset;
  } else {
      offsetTime = CMTimeAdd(offsetTime, offset);
  }
}

if (offsetTime.value > 0) {
  frameTime = CMTimeSubtract(frameTime, offsetTime);
}
复制代码

方案二

思路:采用AVAssetWriter 生成多个视频文件,如果不需要对帧数据进行处理也可以采用AVCaptureMovieFileOutput

合成方式:

  • 采用AVFoundation (合成时间不乐观)
  • 采用FFmpeg(尚未尝试,速度应该会快一点,但是同样避免不了量级上的处理时间)
  • 不合成(尝试中,在后续短视频编辑文章,会详细介绍)

基础 本文采用方案二

下面介绍一下视频录制需要用到的类:

  • AVCaptureSession -- 是AVFoundation捕捉视频类的中心枢纽
  • AVCaptureVideoPreviewLayer -- 是CoreAnimation里面layer的一个子类,用来做为AVCaptureSession预览视频输出
  • AVCaptureDevice -- 每个实例对应一个设备,如摄像头或麦克风。
  • AVCaptureDeviceInput -- 是AVCaptureSession输入源,提供媒体数据从设备连接到系统
  • AVCaptureConnection -- 代表AVCaptureInputPort或端口之间的连接,和一个AVCaptureOutput或AVCaptureVideoPreviewLayer在AVCaptureSession中的呈现
  • AVCaptureMovieFileOutput -- AVCaptureMovieFileOutput是AVCaptureFileOutput的子类,用来写入QuickTime视频类型的媒体文件
  • AVCaptureVideoDataOutput -- 是AVCaptureOutput一个子类,可以用于用来输出未压缩或压缩的视频捕获的帧
  • AVCaptureAudioDataOutput -- 是AVCaptureOutput的子类,可用于用来输出捕获来的非压缩或压缩的音频样本
  • AVAssetWriter -- 为写入媒体数据到一个新的文件提供服务,AVAssetWriter的实例可以规定写入媒体文件的格式,如QuickTime电影文件格式或MPEG-4文件格式等等
  • AVAssetWriterInput 去拼接一个多媒体样本类型为CMSampleBuffer的实例到AVAssetWriter对象的输出文件的一个轨道

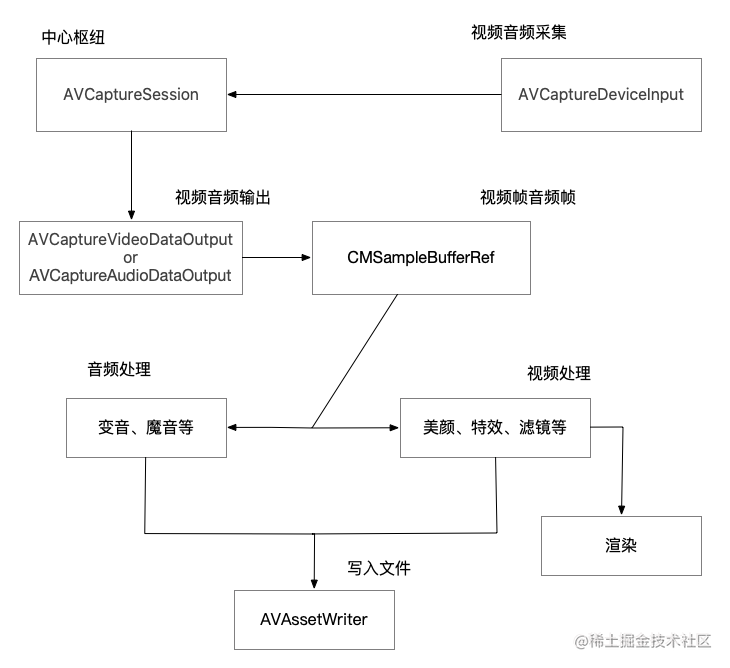

框架

实现

摄像头采集、渲染等借鉴于GPUImage,这部分可以直接采用GPUImage,文件写入部分需要自定义或者在GPUImage的基础上重新实现 GPUImageMovieWriter

视频处理 (实现部分视频特效处理,音频暂时未处理)

- (void)processVideoSampleBuffer:(CMSampleBufferRef)sampleBuffer
{
    CVImageBufferRef pixelBuffer = CMSampleBufferGetImageBuffer(sampleBuffer);

    int bufferWidth = (int) CVPixelBufferGetWidth(pixelBuffer);
    int bufferHeight = (int) CVPixelBufferGetHeight(pixelBuffer);

    CMTime currentTime = CMSampleBufferGetPresentationTimeStamp(sampleBuffer);

    CFTypeRef colorAttachments = CVBufferGetAttachment(pixelBuffer, kCVImageBufferYCbCrMatrixKey, NULL);

    if (colorAttachments == kCVImageBufferYCbCrMatrix_ITU_R_601_4) {
        if (isFullYUVRange) {
            _preferredConversion = kMKColorConversion601FullRange;
        }
        else {
            _preferredConversion = kMKColorConversion601;
        }
    }
    else {
        _preferredConversion = kMKColorConversion709;
    }

    // 这部分创建采集纹理,参考GPUImage。(自己实现的过程中会出现黑屏, 报错等 CVOpenGLESTextureCacheCreateTextureFromImage failed (error: -6683))
    [_myContext useAsCurrentContext];

    if ([MKGPUImageContext supportsFastTextureUpload]) {

        if (CVPixelBufferGetPlaneCount(pixelBuffer) > 0) { // Check for YUV planar inputs to do RGB conversion
            CVPixelBufferLockBaseAddress(pixelBuffer, 0);

            CVOpenGLESTextureRef _luminanceTextureRef;
            CVOpenGLESTextureRef _chrominanceTextureRef;

            if ( (imageBufferWidth != bufferWidth) && (imageBufferHeight != bufferHeight) )
            {
                imageBufferWidth = bufferWidth;
                imageBufferHeight = bufferHeight;
            }

            CVReturn err;

            // Y-plane
            glActiveTexture(GL_TEXTURE4);
            err = CVOpenGLESTextureCacheCreateTextureFromImage(kCFAllocatorDefault, [_myContext coreVideoTextureCache], pixelBuffer, NULL, GL_TEXTURE_2D, GL_LUMINANCE, bufferWidth, bufferHeight, GL_LUMINANCE, GL_UNSIGNED_BYTE, 0, &_luminanceTextureRef);

            if (err)
            {
                NSLog(@"Error at CVOpenGLESTextureCacheCreateTextureFromImage %d", err);
            }

            luminanceTexture = CVOpenGLESTextureGetName(_luminanceTextureRef);
            glBindTexture(GL_TEXTURE_2D, luminanceTexture);
            glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
            glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);

            // UV-plane
            glActiveTexture(GL_TEXTURE5);
            err = CVOpenGLESTextureCacheCreateTextureFromImage(kCFAllocatorDefault, [_myContext coreVideoTextureCache], pixelBuffer, NULL, GL_TEXTURE_2D, GL_LUMINANCE_ALPHA, bufferWidth/2, bufferHeight/2, GL_LUMINANCE_ALPHA, GL_UNSIGNED_BYTE, 1, &_chrominanceTextureRef);

            if (err)
            {
                NSLog(@"Error at CVOpenGLESTextureCacheCreateTextureFromImage %d", err);
            }

            chrominanceTexture = CVOpenGLESTextureGetName(_chrominanceTextureRef);
            glBindTexture(GL_TEXTURE_2D, chrominanceTexture);
            glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
            glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);

            [self convertYUVToRGBOutput];

            if (MKGPUImageRotationSwapsWidthAndHeight(internalRotation))
            {
                imageBufferWidth = bufferHeight;
                imageBufferHeight = bufferWidth;
            }

            CVPixelBufferUnlockBaseAddress(pixelBuffer, 0);
            CFRelease(_luminanceTextureRef);
            CFRelease(_chrominanceTextureRef);
            textureId = [_outputFramebuffer texture];
        }

    } else {

        CVPixelBufferLockBaseAddress(pixelBuffer, 0);
        int bytesPerRow = (int) CVPixelBufferGetBytesPerRow(pixelBuffer);
        MKGPUTextureOptions options;
        options.minFilter = GL_LINEAR;
        options.magFilter = GL_LINEAR;
        options.wrapS = GL_CLAMP_TO_EDGE;
        options.wrapT = GL_CLAMP_TO_EDGE;
        options.internalFormat = GL_RGBA;
        options.format = GL_BGRA;
        options.type = GL_UNSIGNED_BYTE;

        _outputFramebuffer = [[_myContext framebufferCache] fetchFramebufferForSize:CGSizeMake(bytesPerRow/4, bufferHeight) textureOptions:options missCVPixelBuffer:YES];
        [_outputFramebuffer activateFramebuffer];

        glBindTexture(GL_TEXTURE_2D, [_outputFramebuffer texture]);

        glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, bytesPerRow / 4, bufferHeight, 0, GL_BGRA, GL_UNSIGNED_BYTE, CVPixelBufferGetBaseAddress(pixelBuffer));
        textureId = [_outputFramebuffer texture];

        imageBufferWidth = bytesPerRow / 4;
        imageBufferHeight = bufferHeight;

        CVPixelBufferUnlockBaseAddress(pixelBuffer, 0);
    }

    int rotatedImageBufferWidth = bufferWidth, rotatedImageBufferHeight = bufferHeight;
    if (GPUImageRotationSwapsWidthAndHeight(internalRotation))
    {
        rotatedImageBufferWidth = bufferHeight;
        rotatedImageBufferHeight = bufferWidth;
    }

    // 特效处理
    if ([self.delegate respondsToSelector:@selector(effectsProcessingTexture:inputSize:rotateMode:)]) {
        [self.delegate effectsProcessingTexture:textureId inputSize:CGSizeMake(imageBufferWidth, imageBufferHeight) rotateMode:outputRotation];
    }

    // 写入处理过的视频帧
    [_segmentMovieWriter processVideoTextureId:textureId AtRotationMode:outputRotation AtTime:currentTime];

    // 渲染
    if ([self.delegate respondsToSelector:@selector(renderTexture:inputSize:rotateMode:)]) {
        [self.delegate renderTexture:textureId inputSize:CGSizeMake(rotatedImageBufferWidth, rotatedImageBufferHeight) rotateMode:outputRotation];
    }

    [_outputFramebuffer unlock];
    _outputFramebuffer = nil;
}
复制代码

文件写入

- (void)startWriting {

    dispatch_async(dispatch_get_global_queue(0, 0), ^{

        NSError *error = nil;

        NSString *fileType = AVFileTypeQuickTimeMovie;
        self.assetWriter = [AVAssetWriter assetWriterWithURL:[self outputURL]
                                                    fileType:fileType
                                                       error:&error];

        if (!self.assetWriter || error) {
            NSString *formatString = @"Could not create AVAssetWriter: %@";
            NSLog(@"%@", [NSString stringWithFormat:formatString, error]);
            return;
        }

        // use default output settings if none specified
        if (_videoSettings == nil) {
            NSMutableDictionary *settings = [[NSMutableDictionary alloc] init];
            [settings setObject:AVVideoCodecH264 forKey:AVVideoCodecKey];
            [settings setObject:[NSNumber numberWithInt:videoSize.width] forKey:AVVideoWidthKey];
            [settings setObject:[NSNumber numberWithInt:videoSize.height] forKey:AVVideoHeightKey];
            _videoSettings = settings;
        } else {    // custom output settings specified
            __unused NSString *videoCodec = [_videoSettings objectForKey:AVVideoCodecKey];
            __unused NSNumber *width = [_videoSettings objectForKey:AVVideoWidthKey];
            __unused NSNumber *height = [_videoSettings objectForKey:AVVideoHeightKey];

            NSAssert(videoCodec && width && height, @"OutputSettings is missing required parameters.");

            if( [_videoSettings objectForKey:@"EncodingLiveVideo"] ) {
                NSMutableDictionary *tmp = [_videoSettings mutableCopy];
                [tmp removeObjectForKey:@"EncodingLiveVideo"];
                _videoSettings = tmp;
            }
        }

        self.assetWriterVideoInput =  [[AVAssetWriterInput alloc] initWithMediaType:AVMediaTypeVideo
                                                                     outputSettings:self.videoSettings];
        self.assetWriterVideoInput.expectsMediaDataInRealTime = YES;

        NSDictionary *sourcePixelBufferAttributesDictionary = [NSDictionary dictionaryWithObjectsAndKeys: [NSNumber numberWithInt:kCVPixelFormatType_32BGRA], kCVPixelBufferPixelFormatTypeKey,
                                                               [NSNumber numberWithInt:videoSize.width], kCVPixelBufferWidthKey,
                                                               [NSNumber numberWithInt:videoSize.height], kCVPixelBufferHeightKey,
                                                               nil];
        self.assetWriterInputPixelBufferAdaptor = [[AVAssetWriterInputPixelBufferAdaptor alloc] initWithAssetWriterInput:self.assetWriterVideoInput sourcePixelBufferAttributes:sourcePixelBufferAttributesDictionary];

        if ([self.assetWriter canAddInput:self.assetWriterVideoInput]) {
            [self.assetWriter addInput:self.assetWriterVideoInput];
        } else {
            NSLog(@"Unable to add video input.");
            return;
        }

        self.assetWriterAudioInput =
        [[AVAssetWriterInput alloc] initWithMediaType:AVMediaTypeAudio
                                       outputSettings:self.audioSettings];

        self.assetWriterAudioInput.expectsMediaDataInRealTime = YES;

        if ([self.assetWriter canAddInput:self.assetWriterAudioInput]) {
            [self.assetWriter addInput:self.assetWriterAudioInput];
        } else {
            NSLog(@"Unable to add audio input.");
        }

        runMSynchronouslyOnContextQueue(myContext, ^{
            [self.assetWriter startWriting];
        });
        self.isWriting = YES;
        self.firstSample = YES;
    });
}
复制代码

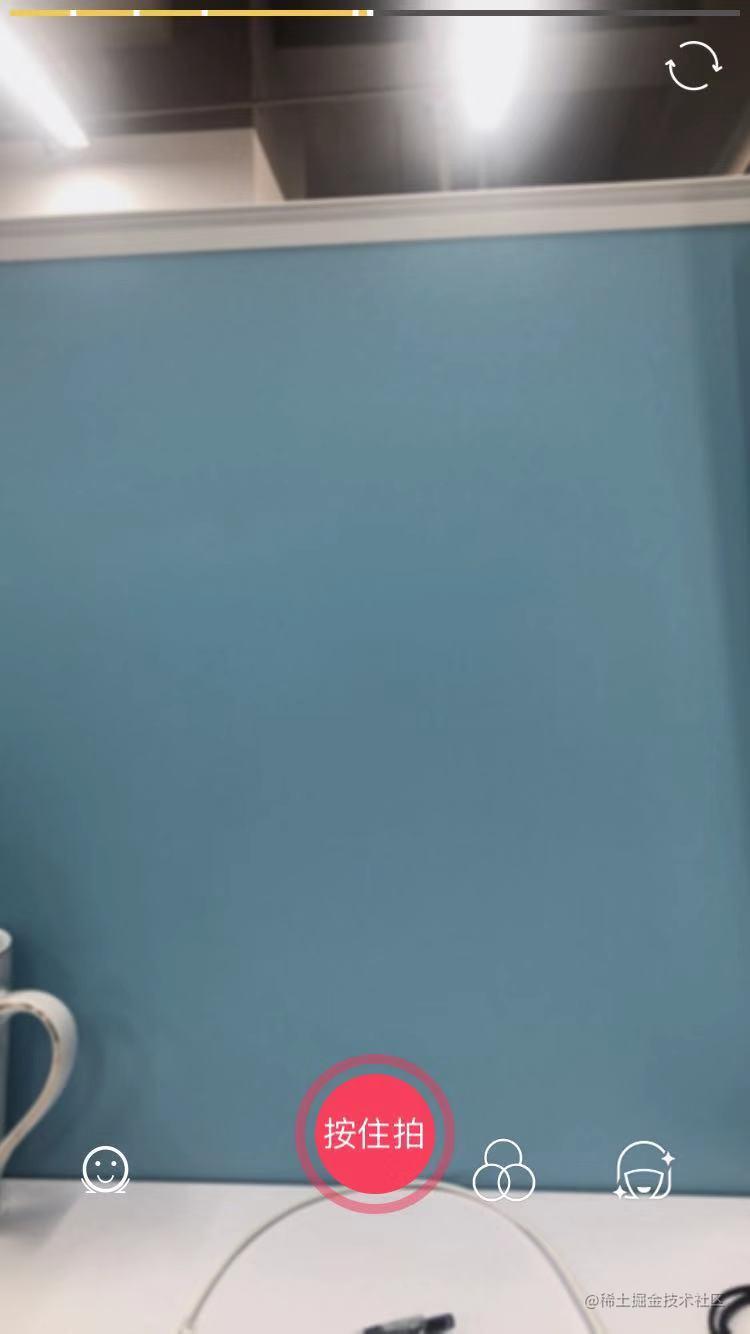

效果图
