Android 系统9.0.0 启动-zygote
1. 进入app_process 的main函数,开始启动zygote
//位于framework/cmds/app_process/app_main.cpp
int main(int argc, char* const argv[])
{
...
if (startSystemServer) {
args.add(String8("start-system-server"));
}
...
//启动zygote 后将会启动SystemServer进程
if (zygote) {
runtime.start("com.android.internal.os.ZygoteInit", args, zygote);
} else if (className) {
runtime.start("com.android.internal.os.RuntimeInit", args, zygote);
} else {
fprintf(stderr, "Error: no class name or --zygote supplied.\n");
app_usage();
LOG_ALWAYS_FATAL("app_process: no class name or --zygote supplied.");
}
}
2.AndroidRuntime.start
frameworks/base/core/jni/AndroidRuntime.cpp
void AndroidRuntime::start(const char* className, const Vector<String8>& options, bool zygote)
{
...
static const String8 startSystemServer("start-system-server");
const char* rootDir = getenv("ANDROID_ROOT");
...
/* start the virtual machine */
JniInvocation jni_invocation;
jni_invocation.Init(NULL);
JNIEnv* env;
//启动java DVM
if (startVm(&mJavaVM, &env, zygote) != 0) {
return;
}
onVmCreated(env);
/*
* Register android functions.
* 给DVM注册JNI
*/
if (startReg(env) < 0) {
ALOGE("Unable to register all android natives\n");
return;
}
...
/*
* Start VM. This thread becomes the main thread of the VM, and will
* not return until the VM exits.
*/
char* slashClassName = toSlashClassName(className != NULL ? className : "");
jclass startClass = env->FindClass(slashClassName);
if (startClass == NULL) {
ALOGE("JavaVM unable to locate class '%s'\n", slashClassName);
/* keep going */
} else {
//找到ZygoteInit的main函数
jmethodID startMeth = env->GetStaticMethodID(startClass, "main",
"([Ljava/lang/String;)V");
if (startMeth == NULL) {
ALOGE("JavaVM unable to find main() in '%s'\n", className);
/* keep going */
} else {
//通过JNI调用ZygoteInit的main函数
env->CallStaticVoidMethod(startClass, startMeth, strArray);
}
...
}
3. Zygote Java框架层
通过JNI调用ZygoteInit的main函数
frameworks/base/core/java/com/android/internal/os/ZygoteInit.java
public static void main(String argv[]) {
ZygoteServer zygoteServer = new ZygoteServer();
...
try {
...
//注册Zygote用的Socket 创建一个Server端的Socket
zygoteServer.registerServerSocketFromEnv(socketName);
// In some configurations, we avoid preloading resources and classes eagerly.
// In such cases, we will preload things prior to our first fork.
if (!enableLazyPreload) {
bootTimingsTraceLog.traceBegin("ZygotePreload");
EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_START,
SystemClock.uptimeMillis());
//预加载类和资源
preload(bootTimingsTraceLog);
EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_END,
SystemClock.uptimeMillis());
bootTimingsTraceLog.traceEnd(); // ZygotePreload
} else {
Zygote.resetNicePriority();
}
...
//启动SystemServer进程
if (startSystemServer) {
Runnable r = forkSystemServer(abiList, socketName, zygoteServer);
// {@code r == null} in the parent (zygote) process, and {@code r != null} in the
// child (system_server) process.
if (r != null) {
r.run();
return;
}
}
...
// The select loop returns early in the child process after a fork and
// loops forever in the zygote.
//等待客户端请求 等待ActivityManagerService请求Zygote进程来创建新的应用程序进程
caller = zygoteServer.runSelectLoop(abiList);
} catch (Throwable ex) {
Log.e(TAG, "System zygote died with exception", ex);
throw ex;
} finally {
zygoteServer.closeServerSocket();
}
// We're in the child process and have exited the select loop. Proceed to execute the
// command.
if (caller != null) {
caller.run();
}
}
Zygote: 注册socket
/**
* Registers a server socket for zygote command connections. This locates the server socket
* file descriptor through an ANDROID_SOCKET_ environment variable.
* @throws RuntimeException when open fails
*/
void registerServerSocketFromEnv(String socketName) {
if (mServerSocket == null) {
int fileDesc;
final String fullSocketName = ANDROID_SOCKET_PREFIX + socketName;
try {
String env = System.getenv(fullSocketName);
fileDesc = Integer.parseInt(env);
} catch (RuntimeException ex) {
throw new RuntimeException(fullSocketName + " unset or invalid", ex);
}
try {
FileDescriptor fd = new FileDescriptor();
fd.setInt$(fileDesc);
//等待ActivityManagerService请求Zygote进程来创建新的应用程序进程
mServerSocket = new LocalServerSocket(fd);
mCloseSocketFd = true;
} catch (IOException ex) {
throw new RuntimeException(
"Error binding to local socket '" + fileDesc + "'", ex);
}
}
}
Zygote: 启动systemserver 进程
/**
* Prepare the arguments and forks for the system server process.
* Returns an {@code Runnable} that provides an entrypoint into system_server code in the
* child process, and {@code null} in the parent.
*/
private static Runnable forkSystemServer(String abiList, String socketName,
ZygoteServer zygoteServer) {
...
// 创建args数组，这个数组用来保存启动SystemServer的启动参数
/* Hardcoded command line to start the system server */
String args[] = {
"--setuid=1000", //用户id
"--setgid=1000", //用户组id
"--setgroups=1001,1002,1003,1004,1005,1006,1007,1008,1009,1010,1018,1021,1023,1024,1032,1065,3001,3002,3003,3006,3007,3009,3010",//权限
"--capabilities=" + capabilities + "," + capabilities,
"--nice-name=system_server",//进程名
"--runtime-args",
"--target-sdk-version=" + VMRuntime.SDK_VERSION_CUR_DEVELOPMENT,
"com.android.server.SystemServer",//启动类名
};
...
int pid;
try {
...
/* Request to fork the system server process */
//在当前进程创建一个子进程
pid = Zygote.forkSystemServer(
parsedArgs.uid, parsedArgs.gid,
parsedArgs.gids,
parsedArgs.runtimeFlags,
null,
parsedArgs.permittedCapabilities,
parsedArgs.effectiveCapabilities);
} catch (IllegalArgumentException ex) {
throw new RuntimeException(ex);
}
/* For child process */
// pid 为0，也就是表示在新创建的子进程中执行
if (pid == 0) {
if (hasSecondZygote(abiList)) {
waitForSecondaryZygote(socketName);
}
//关闭socket
zygoteServer.closeServerSocket();
//启动SystemServer进程
return handleSystemServerProcess(parsedArgs);
}
return null;
}
Zygote: 等待客户端请求启动应用进程
/**
* Runs the zygote process's select loop. Accepts new connections as
* they happen, and reads commands from connections one spawn-request's
* worth at a time.
*/
Runnable runSelectLoop(String abiList) {
ArrayList<FileDescriptor> fds = new ArrayList<FileDescriptor>();
ArrayList<ZygoteConnection> peers = new ArrayList<ZygoteConnection>();
//加到fd列表fds中
fds.add(mServerSocket.getFileDescriptor());
peers.add(null);
while (true) {
StructPollfd[] pollFds = new StructPollfd[fds.size()];
//通过遍历将fds存储的信息转移到pollFds数组中
for (int i = 0; i < pollFds.length; ++i) {
pollFds[i] = new StructPollfd();
pollFds[i].fd = fds.get(i);
pollFds[i].events = (short) POLLIN;
}
try {
Os.poll(pollFds, -1);
} catch (ErrnoException ex) {
throw new RuntimeException("poll failed", ex);
}
// 对pollFds进行遍历，如果i==0则说明服务端Socket与客户端连接上
for (int i = pollFds.length - 1; i >= 0; --i) {
if ((pollFds[i].revents & POLLIN) == 0) {
continue;
}
//如果i==0则说明服务端Socket与客户端连接上
//也就是当前Zygote进程与ActivityManagerService建立了连接
if (i == 0) {
ZygoteConnection newPeer = acceptCommandPeer(abiList);
peers.add(newPeer);
fds.add(newPeer.getFileDesciptor());
} else {
//如果i的值大于0，说明ActivityManagerService向Zygote进程发送一个创建应用进程的请求
try {
ZygoteConnection connection = peers.get(i);
final Runnable command = connection.processOneCommand(this);
if (mIsForkChild) {
if (command == null) {
throw new IllegalStateException("command == null");
}
return command;
} else {
if (command != null) {
throw new IllegalStateException("command != null");
}
// a regular POLLIN event in our regular processing loop.
if (connection.isClosedByPeer()) {
connection.closeSocket();
peers.remove(i);
fds.remove(i);
}
}
} catch (Exception e) {
if (!mIsForkChild) {
ZygoteConnection conn = peers.remove(i);
conn.closeSocket();
fds.remove(i);
} else {
throw e;
}
} finally {
mIsForkChild = false;
}
}
}
}
}
}

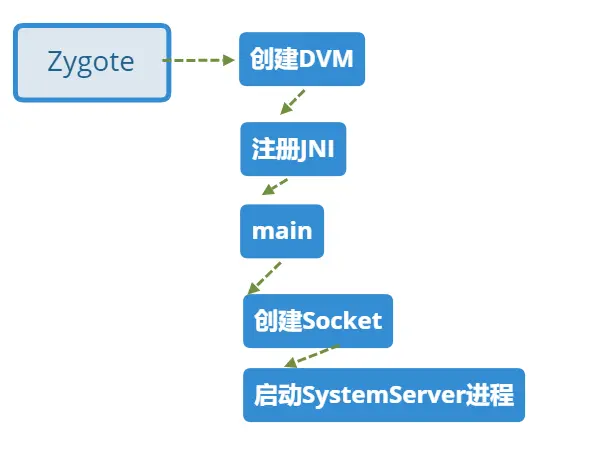

总体流程
- 创建AppRuntime并调用其start方法，启动Zygote进程。
- 创建DVM并为DVM注册JNI.
- 通过JNI调用ZygoteInit的main函数进入Zygote的Java框架层。
- 通过registerZygoteSocket函数创建服务端Socket，并通过runSelectLoop函数等待ActivityManagerService的请求来创建新的应用程序进程。
- 启动SystemServer进程。
