UI绘制流程三(measure测量)

297 阅读12分钟
回顾:上篇我们总结了,UI绘制入口,最终进入到DecorView相关的ViewRootImpl类中,调用questLayout()方法,最终调用performMeasure,performLayout,performDraw实现布局绘制,那么我们先来分析performMeasure
if (focusChangedDueToTouchMode || mWidth != host.getMeasuredWidth()
                        || mHeight != host.getMeasuredHeight() || contentInsetsChanged ||
                        updatedConfiguration) {
                    int childWidthMeasureSpec = getRootMeasureSpec(mWidth, lp.width);
                    int childHeightMeasureSpec = getRootMeasureSpec(mHeight, lp.height);

                    if (DEBUG_LAYOUT) Log.v(mTag, "Ooops, something changed!  mWidth="
                            + mWidth + " measuredWidth=" + host.getMeasuredWidth()
                            + " mHeight=" + mHeight
                            + " measuredHeight=" + host.getMeasuredHeight()
                            + " coveredInsetsChanged=" + contentInsetsChanged);

                     // Ask host how big it wants to be
                    performMeasure(childWidthMeasureSpec, childHeightMeasureSpec);

                    // Implementation of weights from WindowManager.LayoutParams
                    // We just grow the dimensions as needed and re-measure if
                    // needs be
                    int width = host.getMeasuredWidth();
                    int height = host.getMeasuredHeight();

可以看到performMeasure传进来宽、高的参数,我们跟进

 mView.measure(childWidthMeasureSpec, childHeightMeasureSpec);

继续跟进发现已经进入View的measure方法

public final void measure(int widthMeasureSpec, int heightMeasureSpec) {
        boolean optical = isLayoutModeOptical(this);
        if (optical != isLayoutModeOptical(mParent)) {
            Insets insets = getOpticalInsets();
            int oWidth  = insets.left + insets.right;
            int oHeight = insets.top  + insets.bottom;
            widthMeasureSpec  = MeasureSpec.adjust(widthMeasureSpec,  optical ? -oWidth  : oWidth);
            heightMeasureSpec = MeasureSpec.adjust(heightMeasureSpec, optical ? -oHeight : oHeight);
        }

        // Suppress sign extension for the low bytes
        long key = (long) widthMeasureSpec << 32 | (long) heightMeasureSpec & 0xffffffffL;
        if (mMeasureCache == null) mMeasureCache = new LongSparseLongArray(2);

        final boolean forceLayout = (mPrivateFlags & PFLAG_FORCE_LAYOUT) == PFLAG_FORCE_LAYOUT;

        // Optimize layout by avoiding an extra EXACTLY pass when the view is
        // already measured as the correct size. In API 23 and below, this
        // extra pass is required to make LinearLayout re-distribute weight.
        final boolean specChanged = widthMeasureSpec != mOldWidthMeasureSpec
                || heightMeasureSpec != mOldHeightMeasureSpec;
        final boolean isSpecExactly = MeasureSpec.getMode(widthMeasureSpec) == MeasureSpec.EXACTLY
                && MeasureSpec.getMode(heightMeasureSpec) == MeasureSpec.EXACTLY;
        final boolean matchesSpecSize = getMeasuredWidth() == MeasureSpec.getSize(widthMeasureSpec)
                && getMeasuredHeight() == MeasureSpec.getSize(heightMeasureSpec);
        final boolean needsLayout = specChanged
                && (sAlwaysRemeasureExactly || !isSpecExactly || !matchesSpecSize);

        if (forceLayout || needsLayout) {
            // first clears the measured dimension flag
            mPrivateFlags &= ~PFLAG_MEASURED_DIMENSION_SET;

            resolveRtlPropertiesIfNeeded();

            int cacheIndex = forceLayout ? -1 : mMeasureCache.indexOfKey(key);
            if (cacheIndex < 0 || sIgnoreMeasureCache) {
                // measure ourselves, this should set the measured dimension flag back
                onMeasure(widthMeasureSpec, heightMeasureSpec);
                mPrivateFlags3 &= ~PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
            } else {
                long value = mMeasureCache.valueAt(cacheIndex);
                // Casting a long to int drops the high 32 bits, no mask needed
                setMeasuredDimensionRaw((int) (value >> 32), (int) value);
                mPrivateFlags3 |= PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
            }

            // flag not set, setMeasuredDimension() was not invoked, we raise
            // an exception to warn the developer
            if ((mPrivateFlags & PFLAG_MEASURED_DIMENSION_SET) != PFLAG_MEASURED_DIMENSION_SET) {
                throw new IllegalStateException("View with id " + getId() + ": "
                        + getClass().getName() + "#onMeasure() did not set the"
                        + " measured dimension by calling"
                        + " setMeasuredDimension()");
            }

            mPrivateFlags |= PFLAG_LAYOUT_REQUIRED;
        }

        mOldWidthMeasureSpec = widthMeasureSpec;
        mOldHeightMeasureSpec = heightMeasureSpec;

        mMeasureCache.put(key, ((long) mMeasuredWidth) << 32 |
                (long) mMeasuredHeight & 0xffffffffL); // suppress sign extension
    }

这里面我们看到cacheIndex先去缓存里去找有没有这个值

int cacheIndex = forceLayout ? -1 : mMeasureCache.indexOfKey(key);
if (cacheIndex < 0 || sIgnoreMeasureCache) {
                // measure ourselves, this should set the measured dimension flag back
                onMeasure(widthMeasureSpec, heightMeasureSpec);
                mPrivateFlags3 &= ~PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
            } else {
                long value = mMeasureCache.valueAt(cacheIndex);
                // Casting a long to int drops the high 32 bits, no mask needed
                setMeasuredDimensionRaw((int) (value >> 32), (int) value);
                mPrivateFlags3 |= PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
            }

这里判断没有key值的话执行onMeasure方法,有值的话执行setMeasuredDimensionRaw方法,我们看下onMeasure方法

protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        setMeasuredDimension(getDefaultSize(getSuggestedMinimumWidth(), widthMeasureSpec),
                getDefaultSize(getSuggestedMinimumHeight(), heightMeasureSpec));
    }

发现里面根据测量规则,获取宽高,最终调用了setMeasuredDimension方法,继续跟进

protected final void setMeasuredDimension(int measuredWidth, int measuredHeight) {
        boolean optical = isLayoutModeOptical(this);
        if (optical != isLayoutModeOptical(mParent)) {
            Insets insets = getOpticalInsets();
            int opticalWidth  = insets.left + insets.right;
            int opticalHeight = insets.top  + insets.bottom;

            measuredWidth  += optical ? opticalWidth  : -opticalWidth;
            measuredHeight += optical ? opticalHeight : -opticalHeight;
        }
        setMeasuredDimensionRaw(measuredWidth, measuredHeight);
    }

发现最终还是调用了setMeasuredDimensionRaw方法,最终测量结束,但是这是在View中,我们的布局可能是ViewGroup,我们看一下DecorView,他的父类是FrameLayout,我们看一下onMeasure方法

 @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        int count = getChildCount();
        ...
        for (int i = 0; i < count; i++) {
            final View child = getChildAt(i);
            if (mMeasureAllChildren || child.getVisibility() != GONE) {
                measureChildWithMargins(child, widthMeasureSpec, 0, heightMeasureSpec, 0);
            }
        }
        ...
        setMeasuredDimension(resolveSizeAndState(maxWidth, widthMeasureSpec, childState),
                resolveSizeAndState(maxHeight, heightMeasureSpec,
                        childState << MEASURED_HEIGHT_STATE_SHIFT));

        ...
        count = mMatchParentChildren.size();
        if (count > 1) {
            for (int i = 0; i < count; i++) {
            ...
            child.measure(childWidthMeasureSpec, childHeightMeasureSpec);
            }
        }
    }

发现是遍历子View然后测量,接下来详细分析如何测量,首先我们去看一个类MeasureSpec

ublic static class MeasureSpec {

        private static final int MODE_SHIFT = 30;
        //3左移30位
        private static final int MODE_MASK  = 0x3 << MODE_SHIFT;
        /**
         * Measure specification mode: The parent has not imposed any constraint
         * on the child. It can be whatever size it wants.
         */
         //0左移30位
        public static final int UNSPECIFIED = 0 << MODE_SHIFT;

        /**
         * Measure specification mode: The parent has determined an exact size
         * for the child. The child is going to be given those bounds regardless
         * of how big it wants to be.
         */
         //1左移30位
        public static final int EXACTLY     = 1 << MODE_SHIFT;

        /**
         * Measure specification mode: The child can be as large as it wants up
         * to the specified size.
         */
         //2左移30位
        public static final int AT_MOST     = 2 << MODE_SHIFT;

        //生成测量规则打包结果包含测量规则和size
        public static int makeMeasureSpec(@IntRange(from = 0, to = (1 << MeasureSpec.MODE_SHIFT) - 1) int size,
                                          @MeasureSpecMode int mode) {
            if (sUseBrokenMakeMeasureSpec) {
                return size + mode;
            } else {
                return (size & ~MODE_MASK) | (mode & MODE_MASK);
            }
        }

        //获取测量规则
        public static int getMode(int measureSpec) {
            //noinspection ResourceType
            return (measureSpec & MODE_MASK);
        }

        public static int getSize(int measureSpec) {
            return (measureSpec & ~MODE_MASK);
        }
}

下面我们分析他们如何计算

MODE_MASK:     11000000000000000000000000000000
UNSPECIFIED:   00000000000000000000000000000000
EXACTLY:       01000000000000000000000000000000
AT_MOST:       10000000000000000000000000000000

看到它们是32位的二进制数,前面两位代表测量模式,后面30位代表测量的size,我们看下如何生成测量规则

            // Older apps may need this compatibility hack for measurement.
            sUseBrokenMakeMeasureSpec = targetSdkVersion <= Build.VERSION_CODES.JELLY_BEAN_MR1;
            //这里就是判断当前的版本号<= 17(android4.2)
            if (sUseBrokenMakeMeasureSpec) {
                return size + mode;
            } else {
                return (size & ~MODE_MASK) | (mode & MODE_MASK);
            }

size + mode,比如测量规则为AT_MOST,size大小为16表示为二进制为1100,转为32位二进制就是00000000000000000000000000001100

size:       00000000000000000000000000001100
AT_MOST:    10000000000000000000000000000000
//下面就是size+mode相加的值 前面两位10就是测量规则,后面30位就是测量的大小
value:      10000000000000000000000000001100

我们看下(size & ~MODE_MASK) | (mode & MODE_MASK)如何计算以及计算结果mode = AT_MOST

size:           00000000000000000000000000001100
MODE_MASK:      11000000000000000000000000000000
~MODE_MASK:    00111111111111111111111111111111
AT_MOST:        10000000000000000000000000000000
//size & ~MODE_MASK 与运算只有相同位置都为1则结果为1
value1:         00000000000000000000000000001100
//mode & MODE_MASK
value2:         10000000000000000000000000000000
// value1 | value2 或运算相同位置只要有1就为1
endValue:       10000000000000000000000000001100

对比上面我们发现两种方式获取的结果都为10000000000000000000000000001100, 我们再看下解包方法getModemeasureSpec & MODE_MASK最终获取测量规则Mode

MODE_MASK:      11000000000000000000000000000000
MeasureSpec:    10000000000000000000000000001100
//measureSpec & MODE_MASK
value:          10000000000000000000000000000000

最终测量模式Mode就是10000000000000000000000000000000,然后我们看getSize方法measureSpec & ~MODE_MASK

MeasureSpec:    10000000000000000000000000001100
~MODE_MASK:    00111111111111111111111111111111
//measureSpec & ~MODE_MASK
value:          00000000000000000000000000001100

最终我们拿到的size值为00000000000000000000000000001100。现在我们了解到最终32位的二进制前两位代表测量规则,后两位代表测量的size,size最大值为111111111111111111111111111111=1073741823,但实际中我们用不到,我们看下View里面的

//该16进制转化为二进制
public static final int MEASURED_SIZE_MASK = 0x00ffffff;
public final int getMeasuredWidth() {
        return mMeasuredWidth & MEASURED_SIZE_MASK;
    }
0x00ffffff:    00000000111111111111111111111111

该值为16777215,就是我们现在Android使用的最大值,前面预留了6位可以扩容位。然后我们回到ViewRootImpl类中找到我们的performMeasure传参

                //mWidth、mHeight表示屏幕的尺寸lp.width、lp.height表示decorView自己的尺寸
                    int childWidthMeasureSpec = getRootMeasureSpec(mWidth, lp.width);
                    int childHeightMeasureSpec = getRootMeasureSpec(mHeight, lp.height);

                    if (DEBUG_LAYOUT) Log.v(mTag, "Ooops, something changed!  mWidth="
                            + mWidth + " measuredWidth=" + host.getMeasuredWidth()
                            + " mHeight=" + mHeight
                            + " measuredHeight=" + host.getMeasuredHeight()
                            + " coveredInsetsChanged=" + contentInsetsChanged);

                     // Ask host how big it wants to be
                    performMeasure(childWidthMeasureSpec, childHeightMeasureSpec);

我们看一下getRootMeasureSpec方法

private static int getRootMeasureSpec(int windowSize, int rootDimension) {
        int measureSpec;
        switch (rootDimension) {
        //这里发现如果布局为MATCH_PARENT对应的模式为EXACTLY
        case ViewGroup.LayoutParams.MATCH_PARENT:
            // Window can't resize. Force root view to be windowSize.
            measureSpec = MeasureSpec.makeMeasureSpec(windowSize, MeasureSpec.EXACTLY);
            break;
        //如果布局为WRAP_CONTENT,对应的模式为AT_MOST
        case ViewGroup.LayoutParams.WRAP_CONTENT:
            // Window can resize. Set max size for root view.
            measureSpec = MeasureSpec.makeMeasureSpec(windowSize, MeasureSpec.AT_MOST);
            break;
        default:
        //默认为EXACTLY
            // Window wants to be an exact size. Force root view to be that size.
            measureSpec = MeasureSpec.makeMeasureSpec(rootDimension, MeasureSpec.EXACTLY);
            break;
        }
        return measureSpec;
    }

然后我们继续进入performMeasure方法,最终进入measure方法

public final void measure(int widthMeasureSpec, int heightMeasureSpec) {
        boolean optical = isLayoutModeOptical(this);
        if (optical != isLayoutModeOptical(mParent)) {
            Insets insets = getOpticalInsets();
            int oWidth  = insets.left + insets.right;
            int oHeight = insets.top  + insets.bottom;
            //这里判断view的偏移量
            widthMeasureSpec  = MeasureSpec.adjust(widthMeasureSpec,  optical ? -oWidth  : oWidth);
            heightMeasureSpec = MeasureSpec.adjust(heightMeasureSpec, optical ? -oHeight : oHeight);
        }

        // Suppress sign extension for the low bytes
        //这里的key是从mMeasureCache取数据
        long key = (long) widthMeasureSpec << 32 | (long) heightMeasureSpec & 0xffffffffL;
        if (mMeasureCache == null) mMeasureCache = new LongSparseLongArray(2);

        final boolean forceLayout = (mPrivateFlags & PFLAG_FORCE_LAYOUT) == PFLAG_FORCE_LAYOUT;

        // Optimize layout by avoiding an extra EXACTLY pass when the view is
        // already measured as the correct size. In API 23 and below, this
        // extra pass is required to make LinearLayout re-distribute weight.
        final boolean specChanged = widthMeasureSpec != mOldWidthMeasureSpec
                || heightMeasureSpec != mOldHeightMeasureSpec;
        final boolean isSpecExactly = MeasureSpec.getMode(widthMeasureSpec) == MeasureSpec.EXACTLY
                && MeasureSpec.getMode(heightMeasureSpec) == MeasureSpec.EXACTLY;
        final boolean matchesSpecSize = getMeasuredWidth() == MeasureSpec.getSize(widthMeasureSpec)
                && getMeasuredHeight() == MeasureSpec.getSize(heightMeasureSpec);
        final boolean needsLayout = specChanged
                && (sAlwaysRemeasureExactly || !isSpecExactly || !matchesSpecSize);

        if (forceLayout || needsLayout) {
            // first clears the measured dimension flag
            mPrivateFlags &= ~PFLAG_MEASURED_DIMENSION_SET;

            resolveRtlPropertiesIfNeeded();

            int cacheIndex = forceLayout ? -1 : mMeasureCache.indexOfKey(key);
            if (cacheIndex < 0 || sIgnoreMeasureCache) {
                // measure ourselves, this should set the measured dimension flag back
                onMeasure(widthMeasureSpec, heightMeasureSpec);
                mPrivateFlags3 &= ~PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
            } else {
                long value = mMeasureCache.valueAt(cacheIndex);
                // Casting a long to int drops the high 32 bits, no mask needed
                setMeasuredDimensionRaw((int) (value >> 32), (int) value);
                mPrivateFlags3 |= PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
            }

            // flag not set, setMeasuredDimension() was not invoked, we raise
            // an exception to warn the developer
            if ((mPrivateFlags & PFLAG_MEASURED_DIMENSION_SET) != PFLAG_MEASURED_DIMENSION_SET) {
                throw new IllegalStateException("View with id " + getId() + ": "
                        + getClass().getName() + "#onMeasure() did not set the"
                        + " measured dimension by calling"
                        + " setMeasuredDimension()");
            }

            mPrivateFlags |= PFLAG_LAYOUT_REQUIRED;
        }

        mOldWidthMeasureSpec = widthMeasureSpec;
        mOldHeightMeasureSpec = heightMeasureSpec;

        mMeasureCache.put(key, ((long) mMeasuredWidth) << 32 |
                (long) mMeasuredHeight & 0xffffffffL); // suppress sign extension
    }

这里我们分析keylong key = (long) widthMeasureSpec << 32 | (long) heightMeasureSpec & 0xffffffffL这里就是将widthMeasureSpec往前移动32位然后再把heightMeasureSpec添加到后面的32位组成一个64位的long类型, 然后mMeasureCache.put(key, ((long) mMeasuredWidth) << 32 |(long) mMeasuredHeight & 0xffffffffL);存放的时候跟key的算法一样,然后去值的时候setMeasuredDimensionRaw((int) (value >> 32), (int) value) 把该值(64位long类型)往后移动32位然后转换成int类型获取到宽,然后把原来的值直接转换为int,前面32位就没了,就获取到height值,这样就用一个long值就存储了宽和高。

子View测量相关

我们发现measure方法是一个final修饰的方法,所以不能被重写,那么我们只能重写onMeasure方法。因为不同控件布局不同所以我们自定义View要重写onMeasure方法。

protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        setMeasuredDimension(getDefaultSize(getSuggestedMinimumWidth(), widthMeasureSpec),
                getDefaultSize(getSuggestedMinimumHeight(), heightMeasureSpec));
    }

这里通过getDefaultSize(getSuggestedMinimumWidth(), widthMeasureSpec)我们分析下getSuggestedMinimumWidth

protected int getSuggestedMinimumWidth() {
        //这里会让控件和背景比较哪个值大返回谁
        return (mBackground == null) ? mMinWidth : max(mMinWidth, mBackground.getMinimumWidth());
    }

再来看下getDefaultSize方法

public static int getDefaultSize(int size, int measureSpec) {
        //这里的size是子View大小
        int result = size;
        int specMode = MeasureSpec.getMode(measureSpec);
        int specSize = MeasureSpec.getSize(measureSpec);

        switch (specMode) {
        //判断如果父类的测量模式是无规则的则返回子View的大小
        case MeasureSpec.UNSPECIFIED:
            result = size;
            break;
        //判断如果父容器的测量模式是AT_MOST、EXACTLY则返回父View的测量值
        case MeasureSpec.AT_MOST:
        case MeasureSpec.EXACTLY:
            result = specSize;
            break;
        }
        return result;
    }

但是到目前我们发现只是View在测量,那么它的父类做了哪些操作呢。我们进入FrameLayout查看onMeasure方法

@Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        int count = getChildCount();

        //看到在ViewGroup的onMeasure中判断如果父容器的测量规则有一个不为EXACTLY则为false
        final boolean measureMatchParentChildren =
                MeasureSpec.getMode(widthMeasureSpec) != MeasureSpec.EXACTLY ||
                MeasureSpec.getMode(heightMeasureSpec) != MeasureSpec.EXACTLY;
        mMatchParentChildren.clear();

        int maxHeight = 0;
        int maxWidth = 0;
        int childState = 0;

        for (int i = 0; i < count; i++) {
            final View child = getChildAt(i);
            if (mMeasureAllChildren || child.getVisibility() != GONE) {
                //子View测量完
                measureChildWithMargins(child, widthMeasureSpec, 0, heightMeasureSpec, 0);
                final LayoutParams lp = (LayoutParams) child.getLayoutParams();
                maxWidth = Math.max(maxWidth,
                        child.getMeasuredWidth() + lp.leftMargin + lp.rightMargin);
                maxHeight = Math.max(maxHeight,
                        child.getMeasuredHeight() + lp.topMargin + lp.bottomMargin);
                childState = combineMeasuredStates(childState, child.getMeasuredState());
                if (measureMatchParentChildren) {
                //这里子View如果用到MATCH_PARENT会添加到集合中
                    if (lp.width == LayoutParams.MATCH_PARENT ||
                            lp.height == LayoutParams.MATCH_PARENT) {
                        mMatchParentChildren.add(child);
                    }
                }
            }
        }

       。。。
       //这里去遍历集合,再去测量子View
       count = mMatchParentChildren.size();
        if (count > 1) {
            for (int i = 0; i < count; i++) {
            ...
            child.measure(childWidthMeasureSpec, childHeightMeasureSpec);
            }
        }
    }

上面我们发现for循环获取当前子View然后measureChildWithMargins去测量,然后再去判断子View是否用到MATCH_PARENT,如果用到了并且父View的测量规则都不是EXACTLY,那么再去第二次测量子View,所以这里我们要注意,尽量避免子View二次测量,下面我们看下子View第一次测量

protected void measureChildWithMargins(View child,
            int parentWidthMeasureSpec, int widthUsed,
            int parentHeightMeasureSpec, int heightUsed) {
            //获取子View的MarginLayoutParams
        final MarginLayoutParams lp = (MarginLayoutParams) child.getLayoutParams();
        //这里拿到父View的pading值以及子View的Margin值去获取对应的测量宽高parentWidthMeasureSpec是父View的测量值
        final int childWidthMeasureSpec = getChildMeasureSpec(parentWidthMeasureSpec,
                mPaddingLeft + mPaddingRight + lp.leftMargin + lp.rightMargin
                        + widthUsed, lp.width);
        final int childHeightMeasureSpec = getChildMeasureSpec(parentHeightMeasureSpec,
                mPaddingTop + mPaddingBottom + lp.topMargin + lp.bottomMargin
                        + heightUsed, lp.height);

        child.measure(childWidthMeasureSpec, childHeightMeasureSpec);
    }

我们进入getChildMeasureSpec

public static int getChildMeasureSpec(int spec, int padding, int childDimension) {
//  这里拿到父容器的测量模式和父容器大小
        int specMode = MeasureSpec.getMode(spec);
        int specSize = MeasureSpec.getSize(spec);
        //父View大小减去padding就是子View大小
        int size = Math.max(0, specSize - padding);

        int resultSize = 0;
        int resultMode = 0;

        switch (specMode) {
        // Parent has imposed an exact size on us
        //父容器为EXACTLY
        case MeasureSpec.EXACTLY:
            if (childDimension >= 0) {
                resultSize = childDimension;
                resultMode = MeasureSpec.EXACTLY;
            } else if (childDimension == LayoutParams.MATCH_PARENT) {
                // Child wants to be our size. So be it.
                resultSize = size;
                resultMode = MeasureSpec.EXACTLY;
            }
            //子容器为WRAP_CONTENT,则返回值大小为父容器大小,测量规则为AT_MOST
            else if (childDimension == LayoutParams.WRAP_CONTENT) {
                // Child wants to determine its own size. It can't be
                // bigger than us.
                resultSize = size;
                resultMode = MeasureSpec.AT_MOST;
            }
            break;

        // Parent has imposed a maximum size on us
        //父容器为AT_MOST
        case MeasureSpec.AT_MOST:
            if (childDimension >= 0) {
                // Child wants a specific size... so be it
                resultSize = childDimension;
                resultMode = MeasureSpec.EXACTLY;
            } else if (childDimension == LayoutParams.MATCH_PARENT) {
                // Child wants to be our size, but our size is not fixed.
                // Constrain child to not be bigger than us.
                resultSize = size;
                resultMode = MeasureSpec.AT_MOST;
            } else if (childDimension == LayoutParams.WRAP_CONTENT) {
                // Child wants to determine its own size. It can't be
                // bigger than us.
                resultSize = size;
                resultMode = MeasureSpec.AT_MOST;
            }
            break;

        // Parent asked to see how big we want to be
        case MeasureSpec.UNSPECIFIED:
            if (childDimension >= 0) {
                // Child wants a specific size... let him have it
                resultSize = childDimension;
                resultMode = MeasureSpec.EXACTLY;
            } else if (childDimension == LayoutParams.MATCH_PARENT) {
                // Child wants to be our size... find out how big it should
                // be
                resultSize = View.sUseZeroUnspecifiedMeasureSpec ? 0 : size;
                resultMode = MeasureSpec.UNSPECIFIED;
            } else if (childDimension == LayoutParams.WRAP_CONTENT) {
                // Child wants to determine its own size.... find out how
                // big it should be
                resultSize = View.sUseZeroUnspecifiedMeasureSpec ? 0 : size;
                resultMode = MeasureSpec.UNSPECIFIED;
            }
            break;
        }
        //noinspection ResourceType
        return MeasureSpec.makeMeasureSpec(resultSize, resultMode);
    }

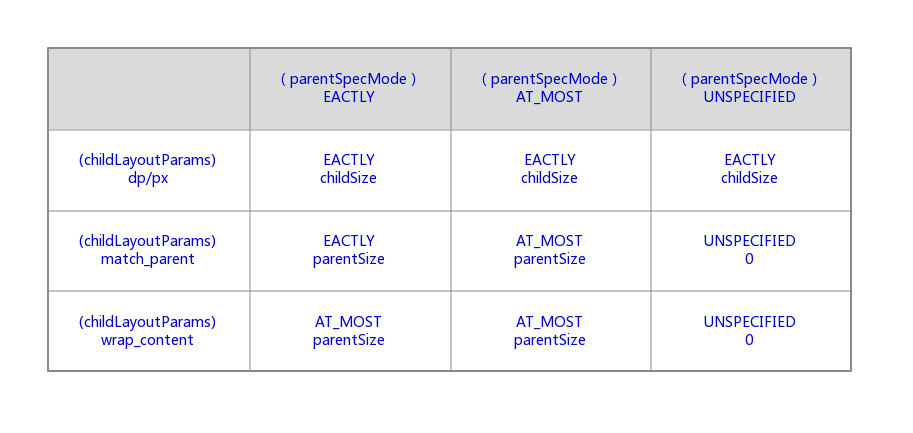

根据上面我们总结View的测量规则是由父容器的MeasureSpec和自身的LayoutParams决定

最终再去测量父容器的宽高设值,最终完成测量
