Spring 4.2.2以上版本和swagger集成方案和踩过的坑

因为公司使用的spring版本太高，在集成swagger的时候会存在一些问题，而网上的很多实例大多都是版本比较低的，为了是朋友们少才坑，我这边将集成的过程记录一下：

1. 引入spring、swagger的相关jar包（springfox-swagger2、springfox-swagger-ui），在pom.xml中配置：

Xml代码

1. <dependency>
2. <groupId>io.springfox</groupId>
3. <artifactId>springfox-swagger2</artifactId>
4. <version>2.4.0</version>
5. <exclusions>
6. <exclusion>
7. <groupId>org.springframework</groupId>
8. <artifactId>spring-core</artifactId>
9. </exclusion>
10. <exclusion>
11. <groupId>org.springframework</groupId>
12. <artifactId>spring-beans</artifactId>
13. </exclusion>
14. <exclusion>
15. <groupId>org.springframework</groupId>
16. <artifactId>spring-context</artifactId>
17. </exclusion>
18. <exclusion>
19. <groupId>org.springframework</groupId>
20. <artifactId>spring-context-support</artifactId>
21. </exclusion>
22. <exclusion>
23. <groupId>org.springframework</groupId>
24. <artifactId>spring-aop</artifactId>
25. </exclusion>
26. <exclusion>
27. <groupId>org.springframework</groupId>
28. <artifactId>spring-tx</artifactId>
29. </exclusion>
30. <exclusion>
31. <groupId>org.springframework</groupId>
32. <artifactId>spring-orm</artifactId>
33. </exclusion>
34. <exclusion>
35. <groupId>org.springframework</groupId>
36. <artifactId>spring-jdbc</artifactId>
37. </exclusion>
38. <exclusion>
39. <groupId>org.springframework</groupId>
40. <artifactId>spring-web</artifactId>
41. </exclusion>
42. <exclusion>
43. <groupId>org.springframework</groupId>
44. <artifactId>spring-webmvc</artifactId>
45. </exclusion>
46. <exclusion>
47. <groupId>org.springframework</groupId>
48. <artifactId>spring-oxm</artifactId>
49. </exclusion>
50. </exclusions>
51. </dependency>
52. <dependency>
53. <groupId>io.springfox</groupId>
54. <artifactId>springfox-swagger-ui</artifactId>
55. <version>2.4.0</version>
56. </dependency>

提醒： 特别注意，springfox-swagger2在集成的时候，已经引入了spring的相关jar，特别是spring-context、spring-context-support的版本和项目中使用的版本完全不一致，项目在启动的时候出现很多包冲突的问题，这边在引入pom.xml文件的时候过滤掉了spring的相关jar包，如绿色标志。

2. 编写Swagger的配置类：

Java代码

1. package com.ml.honghu.swagger.web;
3. import org.springframework.context.annotation.Bean;
4. import org.springframework.context.annotation.ComponentScan;
5. import org.springframework.context.annotation.Configuration;
6. import org.springframework.web.servlet.config.annotation.EnableWebMvc;
8. import springfox.documentation.builders.ApiInfoBuilder;
9. import springfox.documentation.builders.PathSelectors;
10. import springfox.documentation.builders.RequestHandlerSelectors;
11. import springfox.documentation.service.ApiInfo;
12. import springfox.documentation.service.Contact;
13. import springfox.documentation.spi.DocumentationType;
14. import springfox.documentation.spring.web.plugins.Docket;
15. import springfox.documentation.swagger2.annotations.EnableSwagger2;
17. @EnableWebMvc
18. @EnableSwagger2
19. @Configuration
20. @ComponentScan(basePackages ={"com.ml.honghu.**.rest"})
21. public class SwaggerConfig {
22. @Bean
23. public Docket createRestApi() {
24. return new Docket(DocumentationType.SWAGGER_2)
25. .apiInfo(apiInfo())
26. .select()
27. .apis(RequestHandlerSelectors.basePackage("com.ml.honghu"))
28. .paths(PathSelectors.any())
29. .build();
30. }
32. private ApiInfo apiInfo() {
33. return new ApiInfoBuilder()
34. .title("接口列表 v1.0")
35. .description("接口信息")
36. .termsOfServiceUrl("http://honghu.com")
37. .contact(new Contact("", "", "HongHu"))
38. .version("1.1.0")
39. .build();
40. }
41. }

提醒：注意红色标注的地方

3. 在spring-mvc.xml文件中进行过滤器的配置，过滤掉swagger的相关访问配置：

Java代码

1. <mvc:exclude-mapping path="/swagger*/**"/>
2. <mvc:exclude-mapping path="/v2/**"/>
3. <mvc:exclude-mapping path="/webjars/**"/>

4. 服务配置项

Java代码

1. <span style="color: #ff0000;">@Api("区域服务")</span>
2. @RestController
3. @RequestMapping(value = "/rest/area")
4. public class AreaService {
6. @Autowired
7. private AreaService areaService;
9. <span style="color: #ff0000;">@ApiOperation(value = "区域列表", httpMethod = "GET", notes = "区域列表")</span>
10. @IsLogin
11. @ResponseBody
12. @RequestMapping(value = "treeData", method = RequestMethod.GET)
13. public List<Map<String, Object>> treeData(
14. <span style="color: #ff0000;">@ApiParam(required = true, value = "区域ID")</span> @RequestParam(required=false) String extId, HttpServletResponse response) {
15. List<Map<String, Object>> mapList = Lists.newArrayList();
16. List<Area> list = areaService.findAll();
17. for (int i=0; i<list.size(); i++){
18. Area e = list.get(i);
19. if (StringUtils.isBlank(extId) || (extId!=null && !extId.equals(e.getId()) && e.getParentIds().indexOf(","+extId+",")==-1)){
20. Map<String, Object> map = Maps.newHashMap();
21. map.put("id", e.getId());
22. map.put("pId", e.getParentId());
23. map.put("name", e.getName());
24. mapList.add(map);
25. }
26. }
27. return mapList;
28. }
29. }

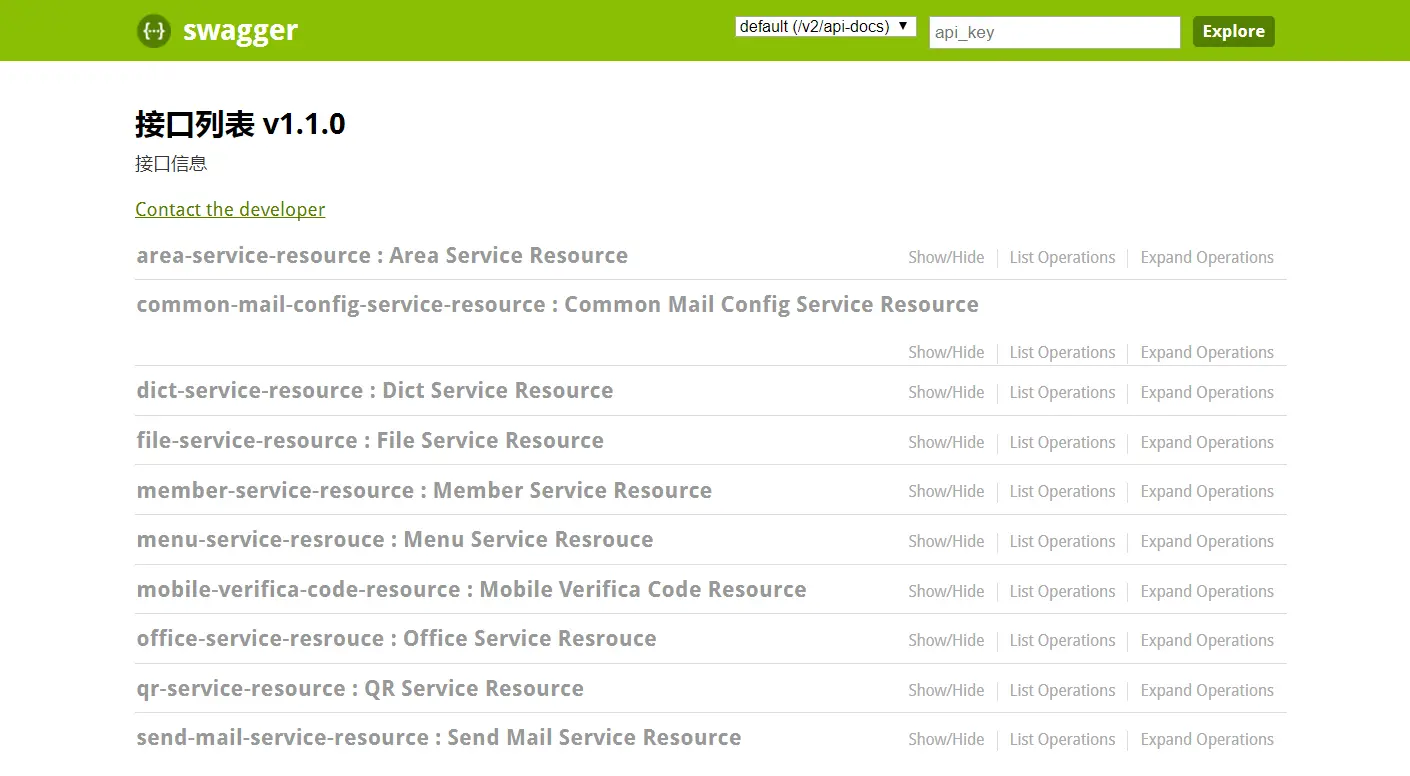

4. 启动项目，查看结果：

到此结束！！
