Scaffold是一个路由页的骨架，通过它我们可以很容易的拼装出一个完整的页面
const Scaffold({
Key key,
this.appBar,
this.body,
this.floatingActionButton,
this.floatingActionButtonLocation,
this.floatingActionButtonAnimator,
this.persistentFooterButtons,
this.drawer,
this.endDrawer,
this.bottomNavigationBar,
this.bottomSheet,
this.backgroundColor,
this.resizeToAvoidBottomPadding = true,
this.primary = true,
})
- appBar：显示在界面顶部的一个appBar
- body：当前界面所显示的主要内容widget
- floatingActionButton：materialDesign中所设定的FAB，界面的主要功能按钮
- floatingActionButtonLocation：用于确定上面FAB的位置，默认为FloatingActionBttonLocation.endFloat
- floatingActionButtonAnimator：用于将FAB移动到新的位置时所采用的动画，默认为scaling
- persistentFooterButtons：一组显示在Scaffold底部的按钮，通常是FlatButton的集合。这些按钮是一直显示的，即使Scaffold的body是可以滚动的，这就类似于RelativeLayout中设置alignParentBottom。他显示在bottomNavigationBar的上方，但是在body的下方，这些button将会包装到ButtonBar中
- drawer：侧边栏控件(一般在左边)，通常我们会使用Drawer这个statelessWidget
- endDrawer：与drawer位置相反，其他一样
- bottomNavigationBar：底部导航栏
- bottomSheet：
- backgroundColor：内容的背景色，默认使用的是ThemeData.scaffoldBackgroundColor
- resizeToAvoidBottomPadding：控制界面内容body是否重新布局来避免底部被覆盖了，比如当键盘显示的时候重新布局，避免被键盘挡住

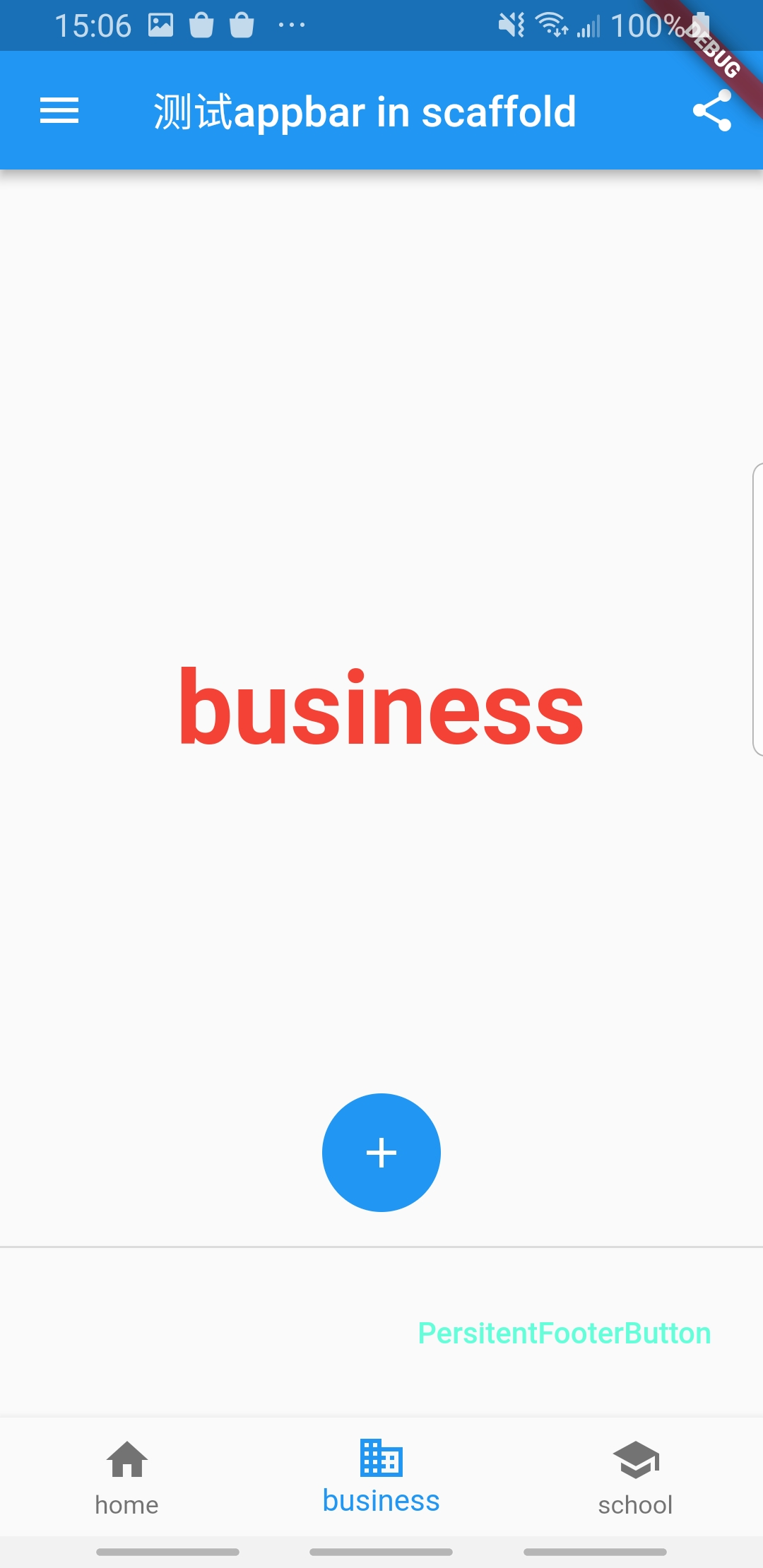

下面我们就来实现一个Scaffold，这里用到了上面提到的大部分属性
class ScaffoldDemo extends StatefulWidget {
@override
State<StatefulWidget> createState() {
return _ScaffoldDemoState();
}
}
class _ScaffoldDemoState extends State<ScaffoldDemo> {
int _selectedIndex = 0;
List<Widget> _list = List();
@override
void initState() {
// TODO: implement initState
super.initState();
_list.add(buildDefaultPage("home"));
_list.add(buildDefaultPage("business"));
_list.add(buildDefaultPage("school"));
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text("测试appbar in scaffold"),
actions: <Widget>[
IconButton(
icon: Icon(Icons.share),
onPressed: () {},
)
],
),
floatingActionButton: FloatingActionButton(
onPressed: _onFABPressed(),
child: Icon(Icons.add),
),
floatingActionButtonLocation: FloatingActionButtonLocation.centerFloat,
persistentFooterButtons: <Widget>[
ButtonBar(
children: <Widget>[
Row(
children: <Widget>[
FlatButton(
onPressed: () {},
child: Text(
"PersitentFooterButton",
style: TextStyle(color: Colors.tealAccent),
),
)
],
)
],
)
],

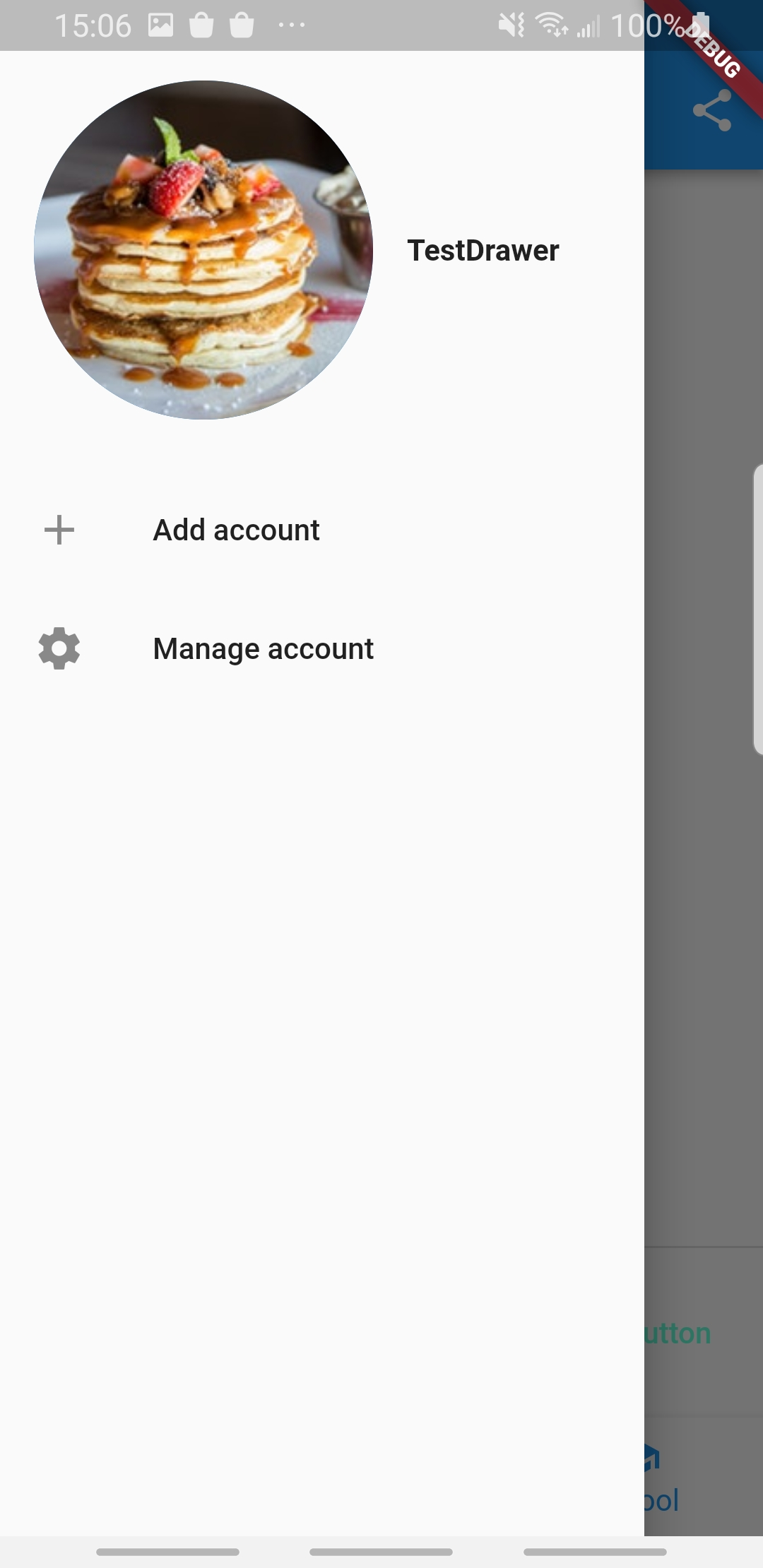

drawer: Drawer(
child: MediaQuery.removePadding(
context: context,
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: <Widget>[
Padding(
padding: EdgeInsets.only(top: 38.0),
child: Row(
children: <Widget>[
Padding(
padding: EdgeInsets.symmetric(horizontal: 16.0),
child: CircleAvatar(
radius: 80,
backgroundImage: AssetImage("images/food01.jpeg"),
// child: Image.asset(
// "images/food01.jpeg",
// width: 80,
// ),
),
),
Text(
"TestDrawer",
style: TextStyle(fontWeight: FontWeight.bold),
)
],
),
),
Expanded(
child: ListView(
children: <Widget>[
ListTile(
leading: const Icon(Icons.add),
title: const Text("Add account"),
),
ListTile(
leading: const Icon(Icons.settings),
title: const Text("Manage account"),
)
],
),
)
],
)),
),
body: IndexedStack(
children: _list,
index: _selectedIndex,
),
bottomNavigationBar: BottomNavigationBar(
items: <BottomNavigationBarItem>[
BottomNavigationBarItem(icon: Icon(Icons.home), title: Text("home")),
BottomNavigationBarItem(
icon: Icon(Icons.business), title: Text("business")),
BottomNavigationBarItem(
icon: Icon(Icons.school), title: Text("school")),
],
currentIndex: _selectedIndex,
onTap: (int currIndex) {
_changeIndex(currIndex);
},
fixedColor: Theme.of(context).primaryColor,
type: BottomNavigationBarType.fixed,
),
);
}
_onFABPressed() {}
void _changeIndex(int currIndex) {
setState(() {
_selectedIndex = currIndex;
});
}
Widget buildDefaultPage(String content) {
return Center(
child: Text(
content,
style: TextStyle(color: Colors.red, fontWeight: FontWeight.bold,fontSize: 48),
),
);
}
}
