ThreadLocal
本文从问题入手，结合源码分析threadLocal的设计思想和实现方案。
一、如何解决多线程数据独立问题
web应用接口开发中，在处理请求时常常需要跨类，跨方法保存一些值，比如traceId，userId等，这时就需要想一些策略支持这种功能。
- 方案1：使用静态类中的静态对象
优点：全局可用；缺陷：每个请求是一个独立的线程，无法保证每个线程的数据独立
- 方案2：使用方法参数进行传递
优点：所需参数可透传上下文且线程数据独立；缺陷：太过麻烦
假如让我们设计线程类
- 方案3：Thread类中添加一个局部变量保存该线程的信息，存的时候获取当前线程赋值，取的时候拿到当前线程取值
优点：所需参数可透传上下文且线程数据独立；缺点：若信息需要初始化值，则每个线程都要初始化一次
根据“任何软件工程遇到的任何问题都可以通过增加一个中间层来解决”原理，我们可以考虑在上一个方案的基础上加一层封装
- 方案4：封装一个类来做Thread类中的存取操作，在这个封装类中设置一个默认值，当取不到Thread中变量值时为其设置默认值
优点：线程数据独立，且可为所有线程设置初始化值；缺点：无法在线程类中保存多个对象
二、ThreadLocal是什么

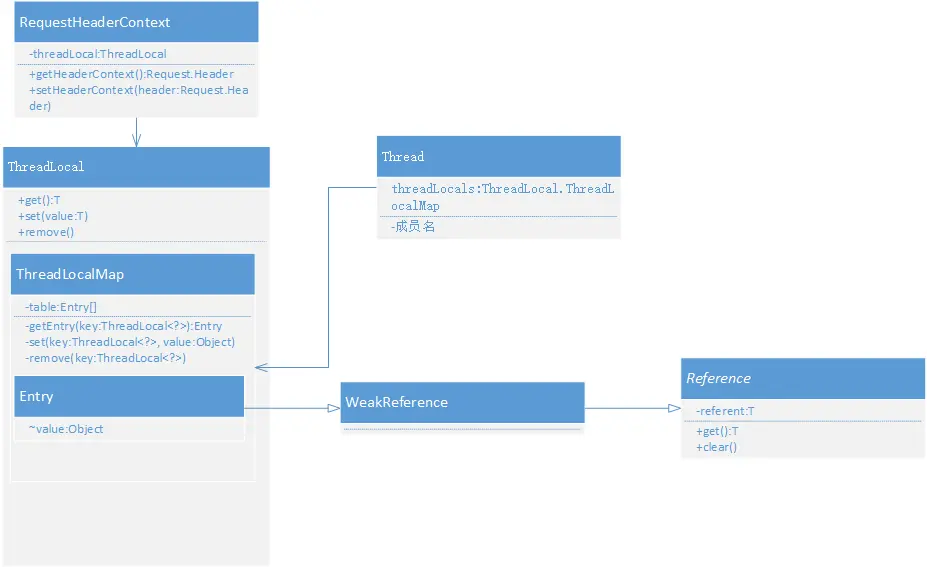

到我们的方案4，已经有点意思了。ThreadLocal是一个更完善的解决方案。先看类图：
如图所示，Thread类中维护了一个变量ThreadLocalMap记录该线程数据。
public class Thread implements Runnable {
...
/* ThreadLocal values pertaining to this thread. This map is maintained
* by the ThreadLocal class. */
ThreadLocal.ThreadLocalMap threadLocals = null;
...
}
ThreadLocalMap中维护了一个Entry数组，可存多个对象，解决了方案4的缺点。
public class ThreadLocal<T> {
...
static class ThreadLocalMap {
...
private Entry[] table;
static class Entry extends WeakReference<ThreadLocal<?>> {
/** The value associated with this ThreadLocal. */
Object value;
Entry(ThreadLocal<?> k, Object v) {
super(k);
value = v;
}
}
...
}
...
}
public abstract class Reference<T> {
...
/**
* Returns this reference object's referent. If this reference object has
* been cleared, either by the program or by the garbage collector, then
* this method returns <code>null</code>.
*
* @return The object to which this reference refers, or
* <code>null</code> if this reference object has been cleared
*/
public T get() {
return this.referent;
}
...
}
注意这里Entry继承了WeakReference，key实际上是ThreadLocal的弱引用类型。如果一个对象只有弱引用与之关联，则该对象会在下次YGC时被回收。之所以这么设计，是为了ThreadLocal的生命周期不与线程生命周期强绑定，当ThreadLocal对象不需要强引用时，Entry的key会被回收变成null。当再次调用set或者get方法时，会自动清理key为null的value值，使Entry的值能自动回收。
ThreadLocalMap值的获取由ThreadLocal类封装，可统一初始化默认值。源码如下：
2.1、set方法
public class ThreadLocal<T> {
...
/**
* Sets the current thread's copy of this thread-local variable
* to the specified value. Most subclasses will have no need to
* override this method, relying solely on the {@link #initialValue}
* method to set the values of thread-locals.
*
* @param value the value to be stored in the current thread's copy of
* this thread-local.
*/
public void set(T value) {
//获取当前线程
Thread t = Thread.currentThread();
//获取当前线程的成员变量
ThreadLocalMap map = getMap(t);
//若map不为空则直接赋值，否则新建
if (map != null)
//this指当前ThreadLocal对象
map.set(this, value);
else
//创建ThreadLocalMap
//Thread类的threadLocals持有ThreadLocalMap的引用
createMap(t, value);
}
/**
* Get the map associated with a ThreadLocal. Overridden in
* InheritableThreadLocal.
*
* @param t the current thread
* @return the map
*/
ThreadLocalMap getMap(Thread t) {
return t.threadLocals;
}
/**
* Create the map associated with a ThreadLocal. Overridden in
* InheritableThreadLocal.
*
* @param t the current thread
* @param firstValue value for the initial entry of the map
*/
void createMap(Thread t, T firstValue) {
t.threadLocals = new ThreadLocalMap(this, firstValue);
}
...
}
ThreadLocal的set方法其实调的是ThreadLocalMap中的set方法。这里通过hash算法计算存入Entry数组的位置，解决冲突的方式是线性探测再散列。
static class ThreadLocalMap {
...
/**
* Set the value associated with key.
*
* @param key the thread local object
* @param value the value to be set
*/
private void set(ThreadLocal<?> key, Object value) {
// We don't use a fast path as with get() because it is at
// least as common to use set() to create new entries as
// it is to replace existing ones, in which case, a fast
// path would fail more often than not.
Entry[] tab = table;
int len = tab.length;
//计算存入的位置
int i = key.threadLocalHashCode & (len-1);
//遍历查找key是否已存在
for (Entry e = tab[i]; e != null; e = tab[i = nextIndex(i, len)]) {
ThreadLocal<?> k = e.get();
//key存在则覆盖原值
if (k == key) {
e.value = value;
return;
}
if (k == null) {
//清理key为空的entry
replaceStaleEntry(key, value, i);
return;
}
}
//存入value值，key为当前ThreadLocal
tab[i] = new Entry(key, value);
int sz = ++size;
//全量清理key为null的entry并再hash
if (!cleanSomeSlots(i, sz) && sz >= threshold)
rehash();
}
...
}
2.2、get方法
public class ThreadLocal<T> {
...
/**
* Returns the value in the current thread's copy of this
* thread-local variable. If the variable has no value for the
* current thread, it is first initialized to the value returned
* by an invocation of the {@link #initialValue} method.
*
* @return the current thread's value of this thread-local
*/
public T get() {
//获取当前线程
Thread t = Thread.currentThread();
//获取当前线程的ThreadLocalMap
ThreadLocalMap map = getMap(t);
if (map != null) {
ThreadLocalMap.Entry e = map.getEntry(this);
if (e != null) {
@SuppressWarnings("unchecked")
T result = (T)e.value;
return result;
}
}
//若未获取到，则设置并返回初始值
//ThreadLocal设置统一的初始值
return setInitialValue();
}
/**
* Get the map associated with a ThreadLocal. Overridden in
* InheritableThreadLocal.
*
* @param t the current thread
* @return the map
*/
ThreadLocalMap getMap(Thread t) {
return t.threadLocals;
}
/**
* Variant of set() to establish initialValue. Used instead
* of set() in case user has overridden the set() method.
*
* @return the initial value
*/
//基本同set
private T setInitialValue() {
T value = initialValue();
Thread t = Thread.currentThread();
ThreadLocalMap map = getMap(t);
if (map != null)
map.set(this, value);
else
createMap(t, value);
return value;
}
...
}
ThreadLocal的get方法实际调的是ThreadLocalMap的getEntry方法
static class ThreadLocalMap {
...
/**
* Get the entry associated with key. This method
* itself handles only the fast path: a direct hit of existing
* key. It otherwise relays to getEntryAfterMiss. This is
* designed to maximize performance for direct hits, in part
* by making this method readily inlinable.
*
* @param key the thread local object
* @return the entry associated with key, or null if no such
*/
private Entry getEntry(ThreadLocal<?> key) {
int i = key.threadLocalHashCode & (table.length - 1);
//直接根据hash值获取，大概率能获取到
Entry e = table[i];
if (e != null && e.get() == key)
return e;
else
//根据save时解决hash冲突的方法继续查找
return getEntryAfterMiss(key, i, e);
}
...
}
2.3、remove方法
public class ThreadLocal<T> {
...
/**
* Removes the current thread's value for this thread-local
* variable. If this thread-local variable is subsequently
* {@linkplain #get read} by the current thread, its value will be
* reinitialized by invoking its {@link #initialValue} method,
* unless its value is {@linkplain #set set} by the current thread
* in the interim. This may result in multiple invocations of the
* {@code initialValue} method in the current thread.
*
* @since 1.5
*/
public void remove() {
ThreadLocalMap m = getMap(Thread.currentThread());
if (m != null)
m.remove(this);
}
...
}
实际调用ThreadLocalMap的remove方法
static class ThreadLocalMap {
...
/**
* Remove the entry for key.
*/
private void remove(ThreadLocal<?> key) {
Entry[] tab = table;
int len = tab.length;
int i = key.threadLocalHashCode & (len-1);
for (Entry e = tab[i];
e != null;
e = tab[i = nextIndex(i, len)]) {
if (e.get() == key) {
//key置空
e.clear();
//清理key为空的value
expungeStaleEntry(i);
return;
}
}
}
...
}
三、弱引用回收过程分析

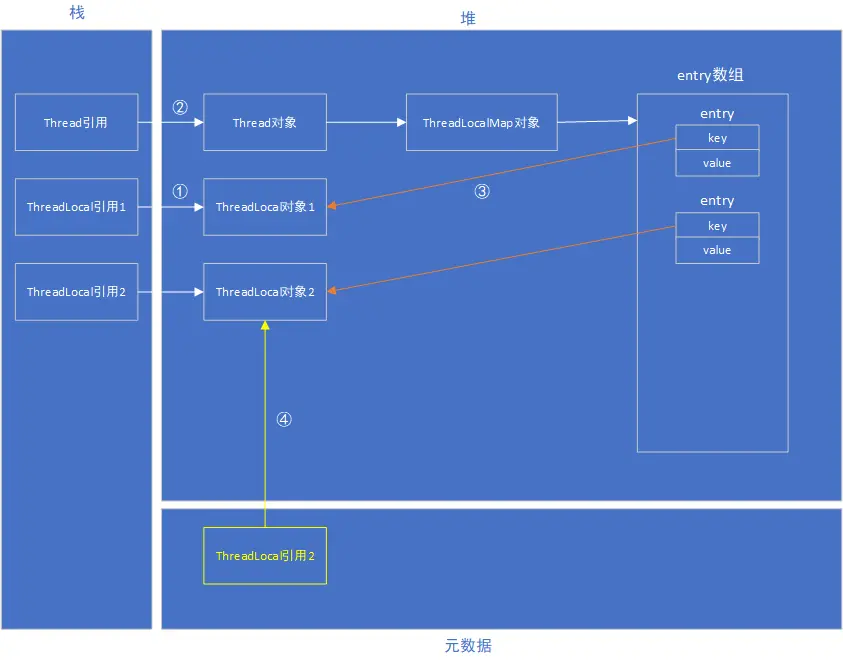

如上图所示，线程对象持有ThreadLocalMap对象的引用，ThreadLocalMap对象持有entry数组的引用。调用ThreadLocal的set方法实际存值在entry的value中，entry的key为ThreadLocal的弱引用。
正常执行流程为：
（1）ThreadLocal对象调用set方法，将值存入当前线程的ThreadLocalMap中的Entry中。如果当前ThreadLocalMap为空，则会新建Map并给初始值；
（2）ThreadLocal1使用之后会出栈，此时①处强连接断开，ThreadLocal对象1只有entry中的key的弱连接与之关联，下一次YGC时③处连接会断开，ThreadLocal对象1被回收，此时entry中key对应的值为null；
（3）ThreadLocal2的get或set操作都会触发entry数组清理所有key为null的value值，当entry的key和value都为空时，entry被回收。此时线程仍在进行，ThreadLocal的生命周期不与Thead生命周期关联，使ThreadLocal在使用完之后可以提前被回收；
（4）线程执行完毕，②出连接断开，对应Thread对象、ThreadLocalMap对象、Entry数组均被回收。
然而，实际使用场景中ThreadLocal往往不会定义在某个线程中，这样就失去了其共享线程之间数据的意义。正如以下官方描述：
{@code ThreadLocal} instances are typically private* static fields in classes that wish to associate state with a thread
四、常见问题
4.1、内存泄漏
ThreadLocal通常被定义为private static，如图中黄色标识。这就导致ThreadLocal对象一直有强引用指向，不会被自动回收，而entry中的值也不会被回收。直到线程结束，entry数组才会被回收。然而如果我们使用线程池，线程使用完后不回收，如果value中存的又是大对象就有可能导致内存溢出。
4.2、错误数据
当使用线程池时，线程使用后被回收到线程池。下一个使用的线程会发现上一个线程ThreadLocalMap中的数据仍然存在。
ThreadLocal的弱引用有过度设计的感觉。设计者既想透线程上下文传参，又不想参数与线程生命周期保持一致。导致此处设计不合理。
五、如何使用
public class RequestHeaderContext {
private static ThreadLocal<Request.Header> threadLocalHeaderMap = new ThreadLocal<>();
public static Request.Header getHeaderContext() {
return threadLocalHeaderMap.get();
}
public static void setHeaderContext(Request.Header headerContext) {
threadLocalHeaderMap.set(headerContext);
}
public static void clear() {
threadLocalHeaderMap.remove();
}
}
使用后一定要调用remove方法，手动释放内存，避免以上错误
