使用
使用起来很简单：
- 在需要感知生命周期的class上继承LifecycleObserver，并且在需要监听生命周期的方法上添加注解，比如下面是一个MVP模式的Presenter的定义
interface IPresenter:LifecycleObserver {
@OnLifecycleEvent(Lifecycle.Event.ON_CREATE)
fun onCreate(owner:LifecycleOwner){
}
@OnLifecycleEvent(Lifecycle.Event.ON_DESTROY)
fun onDestroy(owner: LifecycleOwner){
}
@OnLifecycleEvent(Lifecycle.Event.ON_ANY)
fun onLifecycleChanged(owner: LifecycleOwner){
}
}
这里感知了onCreate、onDestroy和任意生命周期，在它的实现类中打印了一下日志
class MyPresenter:IPresenter {
override fun onCreate(owner: LifecycleOwner) {
super.onCreate(owner)
Log.e(javaClass.simpleName,"onCreate")
}
override fun onDestroy(owner: LifecycleOwner) {
super.onDestroy(owner)
Log.e(javaClass.simpleName,"onDestroy")
}
override fun onLifecycleChanged(owner: LifecycleOwner) {
super.onLifecycleChanged(owner)
Log.e(javaClass.simpleName,"onLifecycleChanged:"+owner.lifecycle.currentState.name)
}
}
- 在activity或者fragment中注册这个观察者
class MainActivity : AppCompatActivity() {
private lateinit var myPresenter: MyPresenter
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)
myPresenter = MyPresenter()
lifecycle.addObserver(myPresenter)
}
}

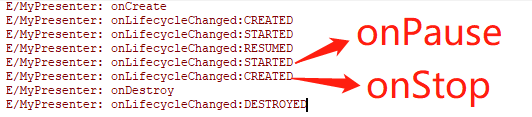

这时候启动这个activity会打印如下信息
LifecycleObserver 接口: Lifecycle 观察者。实现了该接口的类，被 LifecycleOwner 类的 addObserver 方法注册后，通过注解的方式即可观察到 LifecycleOwner 的生命周期方法。
LifecycleOwner 接口: Lifecycle 持有者。实现了该接口的类持有生命周期（Lifecycle 对象），该接口生命周期（Lifecycle 对象）的改变会被其注册的观察者 LifecycleObserver 观察到并触发其对应的事件。在当前的androidx.core.app.ComponentActivity（AppCompatActivity）以及androidx.fragment.app.Fragtment中都继承了该接口
原理
从 lifecycle.addObserver开始。这里的getLifecycle()通过跟踪可以看到获取的是一个LifecycleRegistry对象。这个对象又是lifecycle的子类，所有对LifeObserver的操作都是由LifeRegistry完成的。
@Override
public Lifecycle getLifecycle() {
return mLifecycleRegistry;
}
这里先看一下LifeRegistry的代码
public class LifecycleRegistry extends Lifecycle {
private static final String LOG_TAG = "LifecycleRegistry";
/**
* Custom list that keeps observers and can handle removals / additions during traversal.
*
* Invariant: at any moment of time for observer1 & observer2:
* if addition_order(observer1) < addition_order(observer2), then
* state(observer1) >= state(observer2),
*/
private FastSafeIterableMap<LifecycleObserver, ObserverWithState> mObserverMap =
new FastSafeIterableMap<>();
/**
* Current state
*/
private State mState;
private final WeakReference<LifecycleOwner> mLifecycleOwner;
private int mAddingObserverCounter = 0;
private boolean mHandlingEvent = false;
private boolean mNewEventOccurred = false;
private ArrayList<State> mParentStates = new ArrayList<>();
public LifecycleRegistry(@NonNull LifecycleOwner provider) {
mLifecycleOwner = new WeakReference<>(provider);
mState = INITIALIZED;
}
/**
* Moves the Lifecycle to the given state and dispatches necessary events to the observers.
*
* @param state new state
*/
@SuppressWarnings("WeakerAccess")
@MainThread
public void markState(@NonNull State state) {
moveToState(state);
}
/**
* Sets the current state and notifies the observers.
* <p>
* Note that if the {@code currentState} is the same state as the last call to this method,
* calling this method has no effect.
*
* @param event The event that was received
*/
public void handleLifecycleEvent(@NonNull Lifecycle.Event event) {
State next = getStateAfter(event);
moveToState(next);
}
private void moveToState(State next) {
if (mState == next) {
return;
}
mState = next;
if (mHandlingEvent || mAddingObserverCounter != 0) {
mNewEventOccurred = true;
// we will figure out what to do on upper level.
return;
}
mHandlingEvent = true;
sync();
mHandlingEvent = false;
}
private boolean isSynced() {
if (mObserverMap.size() == 0) {
return true;
}
State eldestObserverState = mObserverMap.eldest().getValue().mState;
State newestObserverState = mObserverMap.newest().getValue().mState;
return eldestObserverState == newestObserverState && mState == newestObserverState;
}
private State calculateTargetState(LifecycleObserver observer) {
Entry<LifecycleObserver, ObserverWithState> previous = mObserverMap.ceil(observer);
State siblingState = previous != null ? previous.getValue().mState : null;
State parentState = !mParentStates.isEmpty() ? mParentStates.get(mParentStates.size() - 1)
: null;
return min(min(mState, siblingState), parentState);
}
@Override
public void addObserver(@NonNull LifecycleObserver observer) {
State initialState = mState == DESTROYED ? DESTROYED : INITIALIZED;
ObserverWithState statefulObserver = new ObserverWithState(observer, initialState);
ObserverWithState previous = mObserverMap.putIfAbsent(observer, statefulObserver);
if (previous != null) {
return;
}
LifecycleOwner lifecycleOwner = mLifecycleOwner.get();
if (lifecycleOwner == null) {
// it is null we should be destroyed. Fallback quickly
return;
}
boolean isReentrance = mAddingObserverCounter != 0 || mHandlingEvent;
State targetState = calculateTargetState(observer);
mAddingObserverCounter++;
while ((statefulObserver.mState.compareTo(targetState) < 0
&& mObserverMap.contains(observer))) {
pushParentState(statefulObserver.mState);
statefulObserver.dispatchEvent(lifecycleOwner, upEvent(statefulObserver.mState));
popParentState();
// mState / subling may have been changed recalculate
targetState = calculateTargetState(observer);
}
if (!isReentrance) {
// we do sync only on the top level.
sync();
}
mAddingObserverCounter--;
}
private void popParentState() {
mParentStates.remove(mParentStates.size() - 1);
}
private void pushParentState(State state) {
mParentStates.add(state);
}
@Override
public void removeObserver(@NonNull LifecycleObserver observer) {
mObserverMap.remove(observer);
}
/**
* The number of observers.
*
* @return The number of observers.
*/
@SuppressWarnings("WeakerAccess")
public int getObserverCount() {
return mObserverMap.size();
}
@NonNull
@Override
public State getCurrentState() {
return mState;
}
static State getStateAfter(Event event) {
switch (event) {
case ON_CREATE:
case ON_STOP:
return CREATED;
case ON_START:
case ON_PAUSE:
return STARTED;
case ON_RESUME:
return RESUMED;
case ON_DESTROY:
return DESTROYED;
case ON_ANY:
break;
}
throw new IllegalArgumentException("Unexpected event value " + event);
}
private static Event downEvent(State state) {
switch (state) {
case INITIALIZED:
throw new IllegalArgumentException();
case CREATED:
return ON_DESTROY;
case STARTED:
return ON_STOP;
case RESUMED:
return ON_PAUSE;
case DESTROYED:
throw new IllegalArgumentException();
}
throw new IllegalArgumentException("Unexpected state value " + state);
}
private static Event upEvent(State state) {
switch (state) {
case INITIALIZED:
case DESTROYED:
return ON_CREATE;
case CREATED:
return ON_START;
case STARTED:
return ON_RESUME;
case RESUMED:
throw new IllegalArgumentException();
}
throw new IllegalArgumentException("Unexpected state value " + state);
}
private void forwardPass(LifecycleOwner lifecycleOwner) {
Iterator<Entry<LifecycleObserver, ObserverWithState>> ascendingIterator =
mObserverMap.iteratorWithAdditions();
while (ascendingIterator.hasNext() && !mNewEventOccurred) {
Entry<LifecycleObserver, ObserverWithState> entry = ascendingIterator.next();
ObserverWithState observer = entry.getValue();
while ((observer.mState.compareTo(mState) < 0 && !mNewEventOccurred
&& mObserverMap.contains(entry.getKey()))) {
pushParentState(observer.mState);
observer.dispatchEvent(lifecycleOwner, upEvent(observer.mState));
popParentState();
}
}
}
private void backwardPass(LifecycleOwner lifecycleOwner) {
Iterator<Entry<LifecycleObserver, ObserverWithState>> descendingIterator =
mObserverMap.descendingIterator();
while (descendingIterator.hasNext() && !mNewEventOccurred) {
Entry<LifecycleObserver, ObserverWithState> entry = descendingIterator.next();
ObserverWithState observer = entry.getValue();
while ((observer.mState.compareTo(mState) > 0 && !mNewEventOccurred
&& mObserverMap.contains(entry.getKey()))) {
Event event = downEvent(observer.mState);
pushParentState(getStateAfter(event));
observer.dispatchEvent(lifecycleOwner, event);
popParentState();
}
}
}
private void sync() {
LifecycleOwner lifecycleOwner = mLifecycleOwner.get();
if (lifecycleOwner == null) {
Log.w(LOG_TAG, "LifecycleOwner is garbage collected, you shouldn't try dispatch "
+ "new events from it.");
return;
}
while (!isSynced()) {
mNewEventOccurred = false;
// no need to check eldest for nullability, because isSynced does it for us.
if (mState.compareTo(mObserverMap.eldest().getValue().mState) < 0) {
backwardPass(lifecycleOwner);
}
Entry<LifecycleObserver, ObserverWithState> newest = mObserverMap.newest();
if (!mNewEventOccurred && newest != null
&& mState.compareTo(newest.getValue().mState) > 0) {
forwardPass(lifecycleOwner);
}
}
mNewEventOccurred = false;
}
static State min(@NonNull State state1, @Nullable State state2) {
return state2 != null && state2.compareTo(state1) < 0 ? state2 : state1;
}
static class ObserverWithState {
State mState;
GenericLifecycleObserver mLifecycleObserver;
ObserverWithState(LifecycleObserver observer, State initialState) {
mLifecycleObserver = Lifecycling.getCallback(observer);
mState = initialState;
}
void dispatchEvent(LifecycleOwner owner, Event event) {
State newState = getStateAfter(event);
mState = min(mState, newState);
mLifecycleObserver.onStateChanged(owner, event);
mState = newState;
}
}
}
所以之前的addObserver方法其实就是调用了这里的方法，他其实是向存储observer的map中存储了一个observer，并且立即分发了一个事件给observer（通过dispatchEvent方法），最终在observer.onStateChanged方法中获取到当前分发的事件。然后根据分发的事件调用相应的方法。这是具体的分发流程，那么它是在什么地方得到这个分发事件的呢。这就在activity中。在ComponentActivity中可以看到如下代码
@Override
@SuppressWarnings("RestrictedApi")
protected void onCreate(@Nullable Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
ReportFragment.injectIfNeededIn(this);
}
@CallSuper
@Override
protected void onSaveInstanceState(Bundle outState) {
mLifecycleRegistry.markState(Lifecycle.State.CREATED);
super.onSaveInstanceState(outState);
}
这里的injectIfNeededIn则是初始化的地方看，ReportFragment的源码如下
public class ReportFragment extends Fragment {
private static final String REPORT_FRAGMENT_TAG = "androidx.lifecycle"
+ ".LifecycleDispatcher.report_fragment_tag";
public static void injectIfNeededIn(Activity activity) {
// ProcessLifecycleOwner should always correctly work and some activities may not extend
// FragmentActivity from support lib, so we use framework fragments for activities
android.app.FragmentManager manager = activity.getFragmentManager();
if (manager.findFragmentByTag(REPORT_FRAGMENT_TAG) == null) {
manager.beginTransaction().add(new ReportFragment(), REPORT_FRAGMENT_TAG).commit();
// Hopefully, we are the first to make a transaction.
manager.executePendingTransactions();
}
}
static ReportFragment get(Activity activity) {
return (ReportFragment) activity.getFragmentManager().findFragmentByTag(
REPORT_FRAGMENT_TAG);
}
private ActivityInitializationListener mProcessListener;
private void dispatchCreate(ActivityInitializationListener listener) {
if (listener != null) {
listener.onCreate();
}
}
private void dispatchStart(ActivityInitializationListener listener) {
if (listener != null) {
listener.onStart();
}
}
private void dispatchResume(ActivityInitializationListener listener) {
if (listener != null) {
listener.onResume();
}
}
@Override
public void onActivityCreated(Bundle savedInstanceState) {
super.onActivityCreated(savedInstanceState);
dispatchCreate(mProcessListener);
dispatch(Lifecycle.Event.ON_CREATE);
}
@Override
public void onStart() {
super.onStart();
dispatchStart(mProcessListener);
dispatch(Lifecycle.Event.ON_START);
}
@Override
public void onResume() {
super.onResume();
dispatchResume(mProcessListener);
dispatch(Lifecycle.Event.ON_RESUME);
}
@Override
public void onPause() {
super.onPause();
dispatch(Lifecycle.Event.ON_PAUSE);
}
@Override
public void onStop() {
super.onStop();
dispatch(Lifecycle.Event.ON_STOP);
}
@Override
public void onDestroy() {
super.onDestroy();
dispatch(Lifecycle.Event.ON_DESTROY);
// just want to be sure that we won't leak reference to an activity
mProcessListener = null;
}
private void dispatch(Lifecycle.Event event) {
Activity activity = getActivity();
if (activity instanceof LifecycleRegistryOwner) {
((LifecycleRegistryOwner) activity).getLifecycle().handleLifecycleEvent(event);
return;
}
if (activity instanceof LifecycleOwner) {
Lifecycle lifecycle = ((LifecycleOwner) activity).getLifecycle();
if (lifecycle instanceof LifecycleRegistry) {
((LifecycleRegistry) lifecycle).handleLifecycleEvent(event);
}
}
}
void setProcessListener(ActivityInitializationListener processListener) {
mProcessListener = processListener;
}
interface ActivityInitializationListener {
void onCreate();
void onStart();
void onResume();
}
}
可以看到对于生命周期的分发采用的是无view的fragment，dispatch方法则是具体的分发，而其中的getLifeCycle.handleLifeCycleEvent则正是调用的lifecycleRegistry中的方法，从而完成了事件的分发。 所以上面的DEMO的完整log为（启动-杀死）
static State getStateAfter(Event event) {
switch (event) {
case ON_CREATE:
case ON_STOP:
return CREATED;
case ON_START:
case ON_PAUSE:
return STARTED;
case ON_RESUME:
return RESUMED;
case ON_DESTROY:
return DESTROYED;
case ON_ANY:
break;
}
throw new IllegalArgumentException("Unexpected event value " + event);
}
