Glide 4 0 源码解析

Cloud_lys
1,084 阅读24分钟

参考1_图文博客

参考2_源码博客

参考3_流程博客

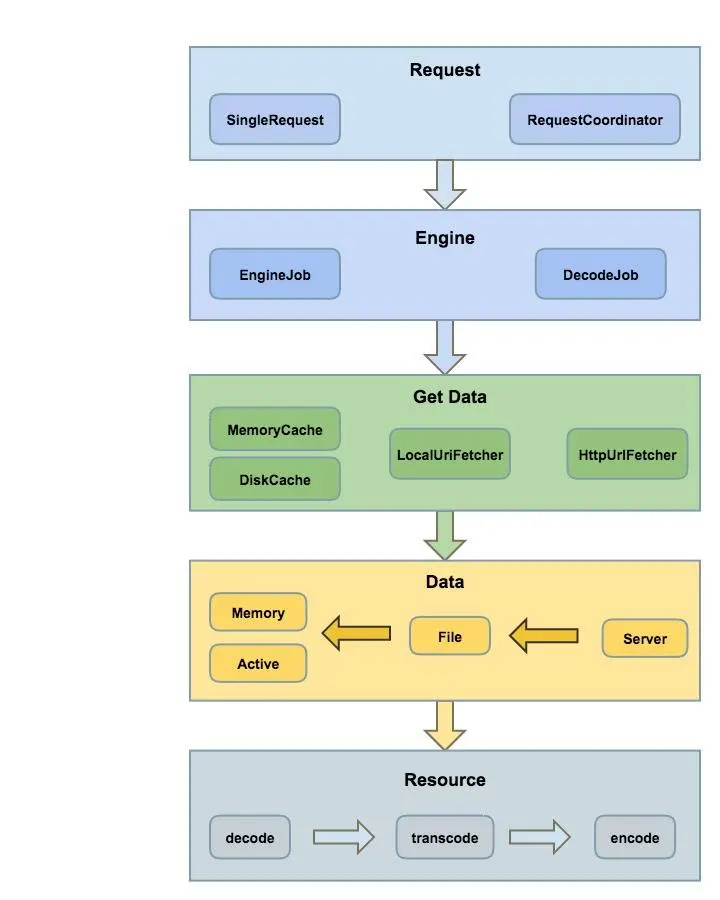

总体设计图

1. Glide with

glide with 是用于glide初始化。

  @NonNull
  public static RequestManager with(@NonNull Context context) {
    return getRetriever(context).get(context);
  }

  @NonNull
  public static RequestManager with(@NonNull Activity activity) {
    return getRetriever(activity).get(activity);
  }

  @NonNull
  public static RequestManager with(@NonNull FragmentActivity activity) {
    return getRetriever(activity).get(activity);
  }

  @NonNull
  public static RequestManager with(@NonNull Fragment fragment) {
    return getRetriever(fragment.getActivity()).get(fragment);
  }

  @Deprecated
  @NonNull
  public static RequestManager with(@NonNull android.app.Fragment fragment) {
    return getRetriever(fragment.getActivity()).get(fragment);
  }

  @NonNull
  public static RequestManager with(@NonNull View view) {
    return getRetriever(view.getContext()).get(view);
  }

glide with有很多不同参数类型的方法，但是这些参数都是为了将 Context 传递下去，在后面的分析可以看到，紧接着我们分析一下 getRetriever

  private static void initializeGlide(@NonNull Context context) {
    // 初始化Glide
    initializeGlide(context, new GlideBuilder());
  }

  private static void initializeGlide(@NonNull Context context, @NonNull GlideBuilder builder) {
    Context applicationContext = context.getApplicationContext();
    GeneratedAppGlideModule annotationGeneratedModule = getAnnotationGeneratedGlideModules();
    List<com.bumptech.glide.module.GlideModule> manifestModules = Collections.emptyList();
    if (annotationGeneratedModule == null || annotationGeneratedModule.isManifestParsingEnabled()) {
      manifestModules = new ManifestParser(applicationContext).parse();
    }

    if (annotationGeneratedModule != null
        && !annotationGeneratedModule.getExcludedModuleClasses().isEmpty()) {
      Set<Class<?>> excludedModuleClasses =
          annotationGeneratedModule.getExcludedModuleClasses();
      Iterator<com.bumptech.glide.module.GlideModule> iterator = manifestModules.iterator();
      while (iterator.hasNext()) {
        com.bumptech.glide.module.GlideModule current = iterator.next();
        if (!excludedModuleClasses.contains(current.getClass())) {
          continue;
        }
        if (Log.isLoggable(TAG, Log.DEBUG)) {
          Log.d(TAG, "AppGlideModule excludes manifest GlideModule: " + current);
        }
        iterator.remove();
      }
    }

    if (Log.isLoggable(TAG, Log.DEBUG)) {
      for (com.bumptech.glide.module.GlideModule glideModule : manifestModules) {
        Log.d(TAG, "Discovered GlideModule from manifest: " + glideModule.getClass());
      }
    }

    RequestManagerRetriever.RequestManagerFactory factory =
        annotationGeneratedModule != null
            ? annotationGeneratedModule.getRequestManagerFactory() : null;
    builder.setRequestManagerFactory(factory);
    for (com.bumptech.glide.module.GlideModule module : manifestModules) {
      module.applyOptions(applicationContext, builder);
    }
    if (annotationGeneratedModule != null) {
      annotationGeneratedModule.applyOptions(applicationContext, builder);
    }
    Glide glide = builder.build(applicationContext);
    for (com.bumptech.glide.module.GlideModule module : manifestModules) {
      module.registerComponents(applicationContext, glide, glide.registry);
    }
    if (annotationGeneratedModule != null) {
      annotationGeneratedModule.registerComponents(applicationContext, glide, glide.registry);
    }
    applicationContext.registerComponentCallbacks(glide);
    Glide.glide = glide;
  }

getRetriever 会调用到 glide 的初始化方法， initializeGlide()

  1. new GlideBuilder()
  2. 反射获取 GeneratedAppGlideModuleImpl 实例，此类为设置扩展配置 @GlideModule 时自动生成的类 。4.0提高glide初始化速度，可以禁用清单解析，覆盖 AppGlideModule 实现中的 isManifestParsingEnabled 返回 false。
  3. 兼容3.0行为，new ManifestParser(applicationContext).parse()； 获取 Manifest 内声明的 GlideModule ，并调用每个 module 的相关方法 applyOptions registerComponents，实现扩展。
  4. 通过 GlideBuilder 创建 Glide 实例，Glide类中实现了 ComponentCallbacks2 接口，通过 applicationContext.registerComponentCallbacks(glide); 进行注册，监听应用的 onLowMemory 与 onTrimMemory ，在 lowMemory 时进行清理缓存，在 onTrimMemory 的回调中，根据不同的 level 进行缓存清理
  5. 拿取 glide 中的 requestManagerRetriever 对象
  //RequestManagerRetriever
  @NonNull
  public RequestManager get(@NonNull Context context) {
    if (context == null) {
      throw new IllegalArgumentException("You cannot start a load on a null Context");
    } else if (Util.isOnMainThread() && !(context instanceof Application)) {
      if (context instanceof FragmentActivity) {
        return get((FragmentActivity) context);
      } else if (context instanceof Activity) {
        return get((Activity) context);
      } else if (context instanceof ContextWrapper) {
        return get(((ContextWrapper) context).getBaseContext());
      }
    }

    return getApplicationManager(context);
  }

  @NonNull
  public RequestManager get(@NonNull FragmentActivity activity) {
    if (Util.isOnBackgroundThread()) {
      return get(activity.getApplicationContext());
    } else {
      assertNotDestroyed(activity);
      FragmentManager fm = activity.getSupportFragmentManager();
      return supportFragmentGet(
          activity, fm, /*parentHint=*/ null, isActivityVisible(activity));
    }
  }

  @NonNull
  public RequestManager get(@NonNull Fragment fragment) {
    Preconditions.checkNotNull(fragment.getActivity(),
          "You cannot start a load on a fragment before it is attached or after it is destroyed");
    if (Util.isOnBackgroundThread()) {
      return get(fragment.getActivity().getApplicationContext());
    } else {
      FragmentManager fm = fragment.getChildFragmentManager();
      return supportFragmentGet(fragment.getActivity(), fm, fragment, fragment.isVisible());
    }
  }

  @SuppressWarnings("deprecation")
  @NonNull
  public RequestManager get(@NonNull Activity activity) {
    if (Util.isOnBackgroundThread()) {
      return get(activity.getApplicationContext());
    } else {
      assertNotDestroyed(activity);
      android.app.FragmentManager fm = activity.getFragmentManager();
      return fragmentGet(
          activity, fm, /*parentHint=*/ null, isActivityVisible(activity));
    }
  }

上诉get方法，总结起来就是，如果不在主线程，就使用ApplicationContext，否则就使用自己本身的context

@NonNull
  private RequestManager supportFragmentGet(
      @NonNull Context context,
      @NonNull FragmentManager fm,
      @Nullable Fragment parentHint,
      boolean isParentVisible) {
    SupportRequestManagerFragment current =
        getSupportRequestManagerFragment(fm, parentHint, isParentVisible);
    RequestManager requestManager = current.getRequestManager();
    if (requestManager == null) {
      // TODO(b/27524013): Factor out this Glide.get() call.
      Glide glide = Glide.get(context);
      requestManager =
          factory.build(
              glide, current.getGlideLifecycle(), current.getRequestManagerTreeNode(), context);
      current.setRequestManager(requestManager);
    }
    return requestManager;
  }

  @NonNull
  private RequestManager getApplicationManager(@NonNull Context context) {
    if (applicationManager == null) {
      synchronized (this) {
        if (applicationManager == null) {
          Glide glide = Glide.get(context.getApplicationContext());
          applicationManager =
              factory.build(
                  glide,
                  new ApplicationLifecycle(),
                  new EmptyRequestManagerTreeNode(),
                  context.getApplicationContext());
        }
      }
    }

    return applicationManager;
  }

区分 context 的原因是因为需要通过 context 判断，是否需要创建 SupportRequestManagerFragment ，此 Fragment 为空界面 Fragment，可以看到上诉两个方法创建 RequestManager 对象不同之处在于，是否与 Fragment 进行绑定，如果需要创建 Fragment 则使用 current.getGlideLifecycle() ， current.getRequestManagerTreeNode()否则使用的是 new ApplicationLifecycle(), new EmptyRequestManagerTreeNode()

  //RequestManager
  /**
   * Lifecycle callback that registers for connectivity events (if the
   * android.permission.ACCESS_NETWORK_STATE permission is present) and restarts failed or paused
   * requests.
   */
  @Override
  public synchronized void onStart() {
    resumeRequests();
    targetTracker.onStart();
  }

  /**
   * Lifecycle callback that unregisters for connectivity events (if the
   * android.permission.ACCESS_NETWORK_STATE permission is present) and pauses in progress loads.
   */
  @Override
  public synchronized void onStop() {
    pauseRequests();
    targetTracker.onStop();
  }

  /**
   * Lifecycle callback that cancels all in progress requests and clears and recycles resources for
   * all completed requests.
   */
  @Override
  public synchronized void onDestroy() {
    targetTracker.onDestroy();
    for (Target<?> target : targetTracker.getAll()) {
      clear(target);
    }
    targetTracker.clear();
    requestTracker.clearRequests();
    lifecycle.removeListener(this);
    lifecycle.removeListener(connectivityMonitor);
    mainHandler.removeCallbacks(addSelfToLifecycle);
    glide.unregisterRequestManager(this);
  }

  private class RequestManagerConnectivityListener
      implements ConnectivityMonitor.ConnectivityListener {
    @GuardedBy("RequestManager.this")
    private final RequestTracker requestTracker;

    RequestManagerConnectivityListener(@NonNull RequestTracker requestTracker) {
      this.requestTracker = requestTracker;
    }

    @Override
    public void onConnectivityChanged(boolean isConnected) {
      if (isConnected) {
        synchronized (RequestManager.this) {
          requestTracker.restartRequests();
        }
      }
    }
  }

glide 需要监听 LifecycleListener 的原因是，通过生命周期来管控 requests 的行为，除了生命周期，还会默认去通过监听网络状态来进行管理，这里的 context 区别就出来了，如果是 fragment 的生命周期，那么当fragment 所在的activity 销毁时，requst 的行为就停止了。

这里要注意两个类，ActivityFragmentLifecycle 与 ApplicationLifecycle ，Glide并不是通过 android 的真正的 Lifecycle 来进行的监听，而是自己封装了一套自己的 Lifecycle ，ActivityFragmentLifecycle 中维护了Set 来管理所有的 lifecycleListeners，而 ApplicationLifecycle 里仅仅只有 listener.onStart() 使用。所以在使用Glide的时候， 如果在主线程，尽量不要图省事使用Application的Context。

2. Glide load

//RequestManager
  public RequestBuilder<Drawable> asDrawable() {
    return as(Drawable.class);
  }

  public <ResourceType> RequestBuilder<ResourceType> as(
      @NonNull Class<ResourceType> resourceClass) {
    return new RequestBuilder<>(glide, this, resourceClass, context);
  }

  @Override
  public RequestBuilder<Drawable> load(@Nullable String string) {
    return asDrawable().load(string);
  }


 //RequestBuilder
  @CheckResult
  public RequestBuilder<TranscodeType> load(@Nullable String string) {
    return loadGeneric(string);
  }

  @NonNull
  private RequestBuilder<TranscodeType> loadGeneric(@Nullable Object model) {
    this.model = model;
    isModelSet = true;
    return this;
  }

glide 4.0 的 load 没有什么特别的东西了。

  1. 创建了 RequestBuilder 对象
  2. 进行一个赋值操作，对 isModelSet 标识位进行一个赋值，这个值会在 into 中用到。

但是这里有一个链式调用的小技巧吧，一般情况下，我们写代码的时候是不加 asXXX() 方法的，可以看到 RequestManager 与 RequestBuilder 都有一个load方法，返回的都是 RequestBuilder ，这里其实就是为了书写的方便，RequestBuilder 其实是通过 asXXX() 方法生成，为了可以隐藏 asXXX() 方法，便在两个类用相同的方法名。这样我们写代码的时候 Glide.with(context).asDrawable().load() 可以写成 Glide.with(context).load() ,使用不同的asXXX() 也不会打乱 调用的顺序。

3. Glide into

  @NonNull
  public <X> ViewTarget<ImageView, X> buildImageViewTarget(
      @NonNull ImageView imageView, @NonNull Class<X> transcodeClass) {
    return imageViewTargetFactory.buildTarget(imageView, transcodeClass);
  }

 //RequestBuilder
  @NonNull
  public ViewTarget<ImageView, TranscodeType> into(@NonNull ImageView view) {
    Util.assertMainThread();
    Preconditions.checkNotNull(view);

    BaseRequestOptions<?> requestOptions = this;
    if (!requestOptions.isTransformationSet()
        && requestOptions.isTransformationAllowed()
        && view.getScaleType() != null) {
      // Clone in this method so that if we use this RequestBuilder to load into a View and then
      // into a different target, we don't retain the transformation applied based on the previous
      // View's scale type.
      switch (view.getScaleType()) {
        case CENTER_CROP:
          requestOptions = requestOptions.clone().optionalCenterCrop();
          break;
        case CENTER_INSIDE:
          requestOptions = requestOptions.clone().optionalCenterInside();
          break;
        case FIT_CENTER:
        case FIT_START:
        case FIT_END:
          requestOptions = requestOptions.clone().optionalFitCenter();
          break;
        case FIT_XY:
          requestOptions = requestOptions.clone().optionalCenterInside();
          break;
        case CENTER:
        case MATRIX:
        default:
          // Do nothing.
      }
    }

    return into(
        glideContext.buildImageViewTarget(view, transcodeClass),
        /*targetListener=*/ null,
        requestOptions,
        Executors.mainThreadExecutor());
  }

先获取 ImageView 的缩放状态，然后深拷贝 requestOptions 将缩放状态添加进去，使用深拷贝的原因是使用相同的 RequestBuilder 放入不同的 ImageView 中，不会受到缩放状态的影响。

  @NonNull
  public <X> ViewTarget<ImageView, X> buildImageViewTarget(
      @NonNull ImageView imageView, @NonNull Class<X> transcodeClass) {
    return imageViewTargetFactory.buildTarget(imageView, transcodeClass);
  }

//ImageViewTargetFactory
public class ImageViewTargetFactory {
  @NonNull
  @SuppressWarnings("unchecked")
  public <Z> ViewTarget<ImageView, Z> buildTarget(@NonNull ImageView view,
      @NonNull Class<Z> clazz) {
    if (Bitmap.class.equals(clazz)) {
      return (ViewTarget<ImageView, Z>) new BitmapImageViewTarget(view);
    } else if (Drawable.class.isAssignableFrom(clazz)) {
      return (ViewTarget<ImageView, Z>) new DrawableImageViewTarget(view);
    } else {
      throw new IllegalArgumentException(
          "Unhandled class: " + clazz + ", try .as*(Class).transcode(ResourceTranscoder)");
    }
  }
}

glideContext.buildImageViewTarget(view, transcodeClass) 通过 asXXX 里传递的参数 创建不同的 ViewTarget，为兼容不同的资源 Bitmap 与 Drawable Gif 比较特殊，Glide 自己写了一个类 GifDrawable 继承 Drawable ，至于是如何加载可播放的gif 暂不分析（其实是还没看懂）

  //RequestBuilder
  private <Y extends Target<TranscodeType>> Y into(
      @NonNull Y target,
      @Nullable RequestListener<TranscodeType> targetListener,
      BaseRequestOptions<?> options,
      Executor callbackExecutor) {
    Preconditions.checkNotNull(target);
    if (!isModelSet) {
      throw new IllegalArgumentException("You must call #load() before calling #into()");
    }

    Request request = buildRequest(target, targetListener, options, callbackExecutor);

    Request previous = target.getRequest();
    if (request.isEquivalentTo(previous)
        && !isSkipMemoryCacheWithCompletePreviousRequest(options, previous)) {
      request.recycle();
      // If the request is completed, beginning again will ensure the result is re-delivered,
      // triggering RequestListeners and Targets. If the request is failed, beginning again will
      // restart the request, giving it another chance to complete. If the request is already
      // running, we can let it continue running without interruption.
      if (!Preconditions.checkNotNull(previous).isRunning()) {
        // Use the previous request rather than the new one to allow for optimizations like skipping
        // setting placeholders, tracking and un-tracking Targets, and obtaining View dimensions
        // that are done in the individual Request.
        previous.begin();
      }
      return target;
    }

    requestManager.clear(target);
    target.setRequest(request);
    requestManager.track(target, request);

    return target;
  }

  //ViewTarget
  @Override
  public void setRequest(@Nullable Request request) {
    setTag(request);
  }

  @Override
  @Nullable
  public Request getRequest() {
    Object tag = getTag();
    Request request = null;
    if (tag != null) {
      if (tag instanceof Request) {
        request = (Request) tag;
      } else {
        throw new IllegalArgumentException(
            "You must not call setTag() on a view Glide is targeting");
      }
    }
    return request;
  }

进入 into 源码，首先会对 isModelSet 进行判断，是否 load 在 into 之前调用了。into 中会创建 request 对象，glide 通过 view.setTag 来为每一个view设置自己独有的 request.所以这也是为什么在使用 glide 加载图片的时候，不能再去使用 setTag 的方法。然后通过 requestManager.track 来开始 request

流程：

  1. 判断是否调用 load
  2. 创建request对象，并通过 view.setTag 储存
  3. 通过 requestManager.track 来开始 request.
private Request buildRequest(
      Target<TranscodeType> target,
      @Nullable RequestListener<TranscodeType> targetListener,
      BaseRequestOptions<?> requestOptions,
      Executor callbackExecutor) {
    return buildRequestRecursive(
        target,
        targetListener,
        /*parentCoordinator=*/ null,
        transitionOptions,
        requestOptions.getPriority(),
        requestOptions.getOverrideWidth(),
        requestOptions.getOverrideHeight(),
        requestOptions,
        callbackExecutor);
  }

  private Request buildRequestRecursive(
      Target<TranscodeType> target,
      @Nullable RequestListener<TranscodeType> targetListener,
      @Nullable RequestCoordinator parentCoordinator,
      TransitionOptions<?, ? super TranscodeType> transitionOptions,
      Priority priority,
      int overrideWidth,
      int overrideHeight,
      BaseRequestOptions<?> requestOptions,
      Executor callbackExecutor) {

    // Build the ErrorRequestCoordinator first if necessary so we can update parentCoordinator.
    ErrorRequestCoordinator errorRequestCoordinator = null;
    if (errorBuilder != null) {
      errorRequestCoordinator = new ErrorRequestCoordinator(parentCoordinator);
      parentCoordinator = errorRequestCoordinator;
    }

    Request mainRequest =
        buildThumbnailRequestRecursive(
            target,
            targetListener,
            parentCoordinator,
            transitionOptions,
            priority,
            overrideWidth,
            overrideHeight,
            requestOptions,
            callbackExecutor);

    if (errorRequestCoordinator == null) {
      return mainRequest;
    }

    int errorOverrideWidth = errorBuilder.getOverrideWidth();
    int errorOverrideHeight = errorBuilder.getOverrideHeight();
    if (Util.isValidDimensions(overrideWidth, overrideHeight)
        && !errorBuilder.isValidOverride()) {
      errorOverrideWidth = requestOptions.getOverrideWidth();
      errorOverrideHeight = requestOptions.getOverrideHeight();
    }

    Request errorRequest =
        errorBuilder.buildRequestRecursive(
            target,
            targetListener,
            errorRequestCoordinator,
            errorBuilder.transitionOptions,
            errorBuilder.getPriority(),
            errorOverrideWidth,
            errorOverrideHeight,
            errorBuilder,
            callbackExecutor);
    errorRequestCoordinator.setRequests(mainRequest, errorRequest);
    return errorRequestCoordinator;
  }

  private Request buildThumbnailRequestRecursive(
      Target<TranscodeType> target,
      RequestListener<TranscodeType> targetListener,
      @Nullable RequestCoordinator parentCoordinator,
      TransitionOptions<?, ? super TranscodeType> transitionOptions,
      Priority priority,
      int overrideWidth,
      int overrideHeight,
      BaseRequestOptions<?> requestOptions,
      Executor callbackExecutor) {
    if (thumbnailBuilder != null) {
      // Recursive case: contains a potentially recursive thumbnail request builder.
      if (isThumbnailBuilt) {
        throw new IllegalStateException("You cannot use a request as both the main request and a "
            + "thumbnail, consider using clone() on the request(s) passed to thumbnail()");
      }

      TransitionOptions<?, ? super TranscodeType> thumbTransitionOptions =
          thumbnailBuilder.transitionOptions;

      // Apply our transition by default to thumbnail requests but avoid overriding custom options
      // that may have been applied on the thumbnail request explicitly.
      if (thumbnailBuilder.isDefaultTransitionOptionsSet) {
        thumbTransitionOptions = transitionOptions;
      }

      Priority thumbPriority = thumbnailBuilder.isPrioritySet()
          ? thumbnailBuilder.getPriority() : getThumbnailPriority(priority);

      int thumbOverrideWidth = thumbnailBuilder.getOverrideWidth();
      int thumbOverrideHeight = thumbnailBuilder.getOverrideHeight();
      if (Util.isValidDimensions(overrideWidth, overrideHeight)
          && !thumbnailBuilder.isValidOverride()) {
        thumbOverrideWidth = requestOptions.getOverrideWidth();
        thumbOverrideHeight = requestOptions.getOverrideHeight();
      }

      ThumbnailRequestCoordinator coordinator = new ThumbnailRequestCoordinator(parentCoordinator);
      Request fullRequest =
          obtainRequest(
              target,
              targetListener,
              requestOptions,
              coordinator,
              transitionOptions,
              priority,
              overrideWidth,
              overrideHeight,
              callbackExecutor);
      isThumbnailBuilt = true;
      // Recursively generate thumbnail requests.
      Request thumbRequest =
          thumbnailBuilder.buildRequestRecursive(
              target,
              targetListener,
              coordinator,
              thumbTransitionOptions,
              thumbPriority,
              thumbOverrideWidth,
              thumbOverrideHeight,
              thumbnailBuilder,
              callbackExecutor);
      isThumbnailBuilt = false;
      coordinator.setRequests(fullRequest, thumbRequest);
      return coordinator;
    } else if (thumbSizeMultiplier != null) {
      // Base case: thumbnail multiplier generates a thumbnail request, but cannot recurse.
      ThumbnailRequestCoordinator coordinator = new ThumbnailRequestCoordinator(parentCoordinator);
      Request fullRequest =
          obtainRequest(
              target,
              targetListener,
              requestOptions,
              coordinator,
              transitionOptions,
              priority,
              overrideWidth,
              overrideHeight,
              callbackExecutor);
      BaseRequestOptions<?> thumbnailOptions =
          requestOptions.clone().sizeMultiplier(thumbSizeMultiplier);

      Request thumbnailRequest =
          obtainRequest(
              target,
              targetListener,
              thumbnailOptions,
              coordinator,
              transitionOptions,
              getThumbnailPriority(priority),
              overrideWidth,
              overrideHeight,
              callbackExecutor);

      coordinator.setRequests(fullRequest, thumbnailRequest);
      return coordinator;
    } else {
      // Base case: no thumbnail.
      return obtainRequest(
          target,
          targetListener,
          requestOptions,
          parentCoordinator,
          transitionOptions,
          priority,
          overrideWidth,
          overrideHeight,
          callbackExecutor);
    }
  }

  private Request obtainRequest(
      Target<TranscodeType> target,
      RequestListener<TranscodeType> targetListener,
      BaseRequestOptions<?> requestOptions,
      RequestCoordinator requestCoordinator,
      TransitionOptions<?, ? super TranscodeType> transitionOptions,
      Priority priority,
      int overrideWidth,
      int overrideHeight,
      Executor callbackExecutor) {
    return SingleRequest.obtain(
        context,
        glideContext,
        model,
        transcodeClass,
        requestOptions,
        overrideWidth,
        overrideHeight,
        priority,
        target,
        targetListener,
        requestListeners,
        requestCoordinator,
        glideContext.getEngine(),
        transitionOptions.getTransitionFactory(),
        callbackExecutor);
  }

这里可以看到，buildRequest() 方法的内部其实又调用了 buildRequestRecursive() 方法，而buildRequestRecursive() 方法中的代码主要都是在处理缩略图的，可以看到在有 error 的时候会创建2个 request ，如果是单一request 会通过 SingleRequest.obtain 来创建，如果是多个则会创建 ThumbnailRequestCoordinator， 将每个通过 SingleRequest.obtain 创建的 request 添加进去 ，ThumbnailRequestCoordinator 其实只是封装了多个 request 的处理逻辑 。

  public static <R> SingleRequest<R> obtain(
      Context context,
      GlideContext glideContext,
      Object model,
      Class<R> transcodeClass,
      BaseRequestOptions<?> requestOptions,
      int overrideWidth,
      int overrideHeight,
      Priority priority,
      Target<R> target,
      RequestListener<R> targetListener,
      @Nullable List<RequestListener<R>> requestListeners,
      RequestCoordinator requestCoordinator,
      Engine engine,
      TransitionFactory<? super R> animationFactory,
      Executor callbackExecutor) {
    @SuppressWarnings("unchecked") SingleRequest<R> request =
        (SingleRequest<R>) POOL.acquire();
    if (request == null) {
      request = new SingleRequest<>();
    }
    request.init(
        context,
        glideContext,
        model,
        transcodeClass,
        requestOptions,
        overrideWidth,
        overrideHeight,
        priority,
        target,
        targetListener,
        requestListeners,
        requestCoordinator,
        engine,
        animationFactory,
        callbackExecutor);
    return request;
  }

private synchronized void init(
      Context context,
      GlideContext glideContext,
      Object model,
      Class<R> transcodeClass,
      BaseRequestOptions<?> requestOptions,
      int overrideWidth,
      int overrideHeight,
      Priority priority,
      Target<R> target,
      RequestListener<R> targetListener,
      @Nullable List<RequestListener<R>> requestListeners,
      RequestCoordinator requestCoordinator,
      Engine engine,
      TransitionFactory<? super R> animationFactory,
      Executor callbackExecutor) {
    this.context = context;
    this.glideContext = glideContext;
    this.model = model;
    this.transcodeClass = transcodeClass;
    this.requestOptions = requestOptions;
    this.overrideWidth = overrideWidth;
    this.overrideHeight = overrideHeight;
    this.priority = priority;
    this.target = target;
    this.targetListener = targetListener;
    this.requestListeners = requestListeners;
    this.requestCoordinator = requestCoordinator;
    this.engine = engine;
    this.animationFactory = animationFactory;
    this.callbackExecutor = callbackExecutor;
    status = Status.PENDING;

    if (requestOrigin == null && glideContext.isLoggingRequestOriginsEnabled()) {
      requestOrigin = new RuntimeException("Glide request origin trace");
    }
  }

创建 request 对象 ，其实只是将之前glide的那些配置全部传入 request 中，对这些变量进行赋值。创建 request 对象就结束了，紧接着回到之前说的 request 的运行，可以看到 request 是通过 requestManager.track(target, request); 运行的

  //RequestManager
  synchronized void track(@NonNull Target<?> target, @NonNull Request request) {
    targetTracker.track(target);
    requestTracker.runRequest(request);
  }

 //RequestTracker
  public void runRequest(@NonNull Request request) {
    requests.add(request);
    if (!isPaused) {
      request.begin();
    } else {
      request.clear();
      if (Log.isLoggable(TAG, Log.VERBOSE)) {
        Log.v(TAG, "Paused, delaying request");
      }
      pendingRequests.add(request);
    }
  }

之前分析可知，request 的实现实际为 SingleRequest ，这里 run 的逻辑较为简单，通过 request 的生命周期进行判断当前 request 的行为 ， 继续跟进 begin 的实现。

//SingleRequest
@Override
  public synchronized void begin() {
    assertNotCallingCallbacks();
    stateVerifier.throwIfRecycled();
    startTime = LogTime.getLogTime();
    if (model == null) {
      if (Util.isValidDimensions(overrideWidth, overrideHeight)) {
        width = overrideWidth;
        height = overrideHeight;
      }
      // Only log at more verbose log levels if the user has set a fallback drawable, because
      // fallback Drawables indicate the user expects null models occasionally.
      int logLevel = getFallbackDrawable() == null ? Log.WARN : Log.DEBUG;
      onLoadFailed(new GlideException("Received null model"), logLevel);
      return;
    }

    if (status == Status.RUNNING) {
      throw new IllegalArgumentException("Cannot restart a running request");
    }

    // If we're restarted after we're complete (usually via something like a notifyDataSetChanged
    // that starts an identical request into the same Target or View), we can simply use the
    // resource and size we retrieved the last time around and skip obtaining a new size, starting a
    // new load etc. This does mean that users who want to restart a load because they expect that
    // the view size has changed will need to explicitly clear the View or Target before starting
    // the new load.
    if (status == Status.COMPLETE) {
      onResourceReady(resource, DataSource.MEMORY_CACHE);
      return;
    }

    // Restarts for requests that are neither complete nor running can be treated as new requests
    // and can run again from the beginning.

    status = Status.WAITING_FOR_SIZE;
    if (Util.isValidDimensions(overrideWidth, overrideHeight)) {
      onSizeReady(overrideWidth, overrideHeight);
    } else {
      target.getSize(this);
    }

    if ((status == Status.RUNNING || status == Status.WAITING_FOR_SIZE)
        && canNotifyStatusChanged()) {
      target.onLoadStarted(getPlaceholderDrawable());
    }
    if (IS_VERBOSE_LOGGABLE) {
      logV("finished run method in " + LogTime.getElapsedMillis(startTime));
    }
  }

首先当 model 为 null 也就是 load 传入的 url 为 null 的时候，会去调用 onLoadFailed , 并且通过是否有 后备占位图 来定义 log 的级别。先分析 onLoadFailed

  //SingleRequest
  private synchronized void onLoadFailed(GlideException e, int maxLogLevel) {
    stateVerifier.throwIfRecycled();
    e.setOrigin(requestOrigin);
    int logLevel = glideContext.getLogLevel();
    if (logLevel <= maxLogLevel) {
      Log.w(GLIDE_TAG, "Load failed for " + model + " with size [" + width + "x" + height + "]", e);
      if (logLevel <= Log.INFO) {
        e.logRootCauses(GLIDE_TAG);
      }
    }

    loadStatus = null;
    status = Status.FAILED;

    isCallingCallbacks = true;
    try {
      //TODO: what if this is a thumbnail request?
      boolean anyListenerHandledUpdatingTarget = false;
      if (requestListeners != null) {
        for (RequestListener<R> listener : requestListeners) {
          anyListenerHandledUpdatingTarget |=
              listener.onLoadFailed(e, model, target, isFirstReadyResource());
        }
      }
      anyListenerHandledUpdatingTarget |=
          targetListener != null
              && targetListener.onLoadFailed(e, model, target, isFirstReadyResource());

      if (!anyListenerHandledUpdatingTarget) {
        setErrorPlaceholder();
      }
    } finally {
      isCallingCallbacks = false;
    }

    notifyLoadFailed();
  }

  private synchronized void setErrorPlaceholder() {
    if (!canNotifyStatusChanged()) {
      return;
    }

    Drawable error = null;
    if (model == null) {
      error = getFallbackDrawable();
    }

    if (error == null) {
      error = getErrorDrawable();
    }

    if (error == null) {
      error = getPlaceholderDrawable();
    }
    target.onLoadFailed(error);
  }

  //ImageViewTarget
  @Override
  public void onLoadFailed(@Nullable Drawable errorDrawable) {
    super.onLoadFailed(errorDrawable);
    setResourceInternal(null);
    setDrawable(errorDrawable);
  }

onLoadFailed 中 会调用到 setErrorPlaceholder ，而 setErrorPlaceholder 中 会依次获取 不同类型的占位图 ，最后设置到 view 中。

  • placeholder Drawable是当请求正在执行时被展示的 Drawable
  • error Drawable 在请求永久性失败时展示
  • fallback Drawable 在请求的url/model为 null 时展示 ，例如头像为null时的场景

回到 begin

如果在之前调用了指定override()的宽高就直接调用onSizeReady，否则调用target.getSize(this)获取图片宽高后，再调用onSizeReady， 最后都会调用到 onSizeReady 方法

  //SingleRequest
  @Override
  public synchronized void onSizeReady(int width, int height) {

    //如果对象可回收(即当前在对象池中)，则抛出一个异常。
    stateVerifier.throwIfRecycled();
    if (IS_VERBOSE_LOGGABLE) {
      logV("Got onSizeReady in " + LogTime.getElapsedMillis(startTime));
    }
    if (status != Status.WAITING_FOR_SIZE) {
      return;
    }
    status = Status.RUNNING;

    //加载尺寸为 View 或 Target 的某个百分比的图片，默认为1
    float sizeMultiplier = requestOptions.getSizeMultiplier();
    this.width = maybeApplySizeMultiplier(width, sizeMultiplier);
    this.height = maybeApplySizeMultiplier(height, sizeMultiplier);

    if (IS_VERBOSE_LOGGABLE) {
      logV("finished setup for calling load in " + LogTime.getElapsedMillis(startTime));
    }
    loadStatus =
        engine.load(
            glideContext,
            model,
            requestOptions.getSignature(),
            this.width,
            this.height,
            requestOptions.getResourceClass(),
            transcodeClass,
            priority,
            requestOptions.getDiskCacheStrategy(),
            requestOptions.getTransformations(),
            requestOptions.isTransformationRequired(),
            requestOptions.isScaleOnlyOrNoTransform(),
            requestOptions.getOptions(),
            requestOptions.isMemoryCacheable(),
            requestOptions.getUseUnlimitedSourceGeneratorsPool(),
            requestOptions.getUseAnimationPool(),
            requestOptions.getOnlyRetrieveFromCache(),
            this,
            callbackExecutor);


    if (status != Status.RUNNING) {
      loadStatus = null;
    }
    if (IS_VERBOSE_LOGGABLE) {
      logV("finished onSizeReady in " + LogTime.getElapsedMillis(startTime));
    }
  }

    //GlideBuilder
    if (engine == null) {
      engine =
          new Engine(
              memoryCache,
              diskCacheFactory,
              diskCacheExecutor,
              sourceExecutor,
              GlideExecutor.newUnlimitedSourceExecutor(),
              GlideExecutor.newAnimationExecutor(),
              isActiveResourceRetentionAllowed);
    }

onSizeReady 中会调用 engine.load ,而 engine 是在 glideBuilder 中 build 时 ，将 下载方面的对象传入。

  //Engine.java
  public synchronized <R> LoadStatus load(
      GlideContext glideContext,
      Object model,
      Key signature,
      int width,
      int height,
      Class<?> resourceClass,
      Class<R> transcodeClass,
      Priority priority,
      DiskCacheStrategy diskCacheStrategy,
      Map<Class<?>, Transformation<?>> transformations,
      boolean isTransformationRequired,
      boolean isScaleOnlyOrNoTransform,
      Options options,
      boolean isMemoryCacheable,
      boolean useUnlimitedSourceExecutorPool,
      boolean useAnimationPool,
      boolean onlyRetrieveFromCache,
      ResourceCallback cb,
      Executor callbackExecutor) {
    long startTime = VERBOSE_IS_LOGGABLE ? LogTime.getLogTime() : 0;

    EngineKey key = keyFactory.buildKey(model, signature, width, height, transformations,
        resourceClass, transcodeClass, options);

    // 根据key，检查当前使用的资源，并返回当前的活跃资源,从Map中取出
    EngineResource<?> active = loadFromActiveResources(key, isMemoryCacheable);
    if (active != null) {
      cb.onResourceReady(active, DataSource.MEMORY_CACHE);
      if (VERBOSE_IS_LOGGABLE) {
        logWithTimeAndKey("Loaded resource from active resources", startTime, key);
      }
      return null;
    }

    // 从MemoryCache（接口） 中取出， 默认为glide的 LruResourceCache ，使用LinkedHashMap实现的LRU算法
    EngineResource<?> cached = loadFromCache(key, isMemoryCacheable);
    if (cached != null) {
      cb.onResourceReady(cached, DataSource.MEMORY_CACHE);
      if (VERBOSE_IS_LOGGABLE) {
        logWithTimeAndKey("Loaded resource from cache", startTime, key);
      }
      return null;
    }

    // 检查当前的加载进度，并将cb添加到正在进行的加载进度中
    EngineJob<?> current = jobs.get(key, onlyRetrieveFromCache);
    if (current != null) {
      current.addCallback(cb, callbackExecutor);
      if (VERBOSE_IS_LOGGABLE) {
        logWithTimeAndKey("Added to existing load", startTime, key);
      }
      return new LoadStatus(cb, current);
    }

   //  构建了一个EngineJob，它的主要作用就是用来开启线程的
    EngineJob<R> engineJob =
        engineJobFactory.build(
            key,
            isMemoryCacheable,
            useUnlimitedSourceExecutorPool,
            useAnimationPool,
            onlyRetrieveFromCache);


   // 构建了一个 DecodeJob ，为图片解码
    DecodeJob<R> decodeJob =
        decodeJobFactory.build(
            glideContext,
            model,
            key,
            signature,
            width,
            height,
            resourceClass,
            transcodeClass,
            priority,
            diskCacheStrategy,
            transformations,
            isTransformationRequired,
            isScaleOnlyOrNoTransform,
            onlyRetrieveFromCache,
            options,
            engineJob);

    jobs.put(key, engineJob);

    engineJob.addCallback(cb, callbackExecutor);

    //运行job
    engineJob.start(decodeJob);

    if (VERBOSE_IS_LOGGABLE) {
      logWithTimeAndKey("Started new load", startTime, key);
    }

    // 开始一个新的加载
    return new LoadStatus(cb, engineJob);
  }

所有的请求流程都如下：

  1. 根据key，检查当前使用的资源，并返回当前的活跃资源,从Map中取出
  2. 从MemoryCache（接口） 中取出， 默认为glide的 LruResourceCache ，使用LinkedHashMap实现的LRU算法
  3. 检查当前的加载进度，并将cb添加到正在进行的加载进度中
  4. 创建2个job，并运行
  5. 开始一个新的加载
//EngineJob.java
 public void start(DecodeJob<R> decodeJob) {
    this.decodeJob = decodeJob;
    GlideExecutor executor = decodeJob.willDecodeFromCache()
        ? diskCacheExecutor
        : getActiveSourceExecutor();
    executor.execute(decodeJob);
  }

  //GlideExecutor.java
  @Override
  public void execute(@NonNull Runnable command) {
    delegate.execute(command);
  }

此处分为2种情况，一种是从磁盘中获取，一种是从网络获取，然后开启线程池，在子线程中处理获取图片逻辑。所以回到 DecodeJob的 run 方法中

//DecodeJob.java
@Override
  public void run() {
    GlideTrace.beginSectionFormat("DecodeJob#run(model=%s)", model);
    DataFetcher<?> localFetcher = currentFetcher;
    try {
      if (isCancelled) {
        notifyFailed();
        return;
      }

      //主要方法
      runWrapped();
    } catch (Throwable t) {

      if (Log.isLoggable(TAG, Log.DEBUG)) {
        Log.d(TAG, "DecodeJob threw unexpectedly"
            + ", isCancelled: " + isCancelled
            + ", stage: " + stage, t);
      }

      if (stage != Stage.ENCODE) {
        throwables.add(t);
        notifyFailed();
      }
      if (!isCancelled) {
        throw t;
      }
    } finally {
      // Keeping track of the fetcher here and calling cleanup is excessively paranoid, we call
      // close in all cases anyway.
      if (localFetcher != null) {
        localFetcher.cleanup();
      }
      GlideTrace.endSection();
    }
  }

private void runWrapped() {
    switch (runReason) {
      case INITIALIZE:
        //初始化 获取下一个阶段状态
        stage = getNextStage(Stage.INITIALIZE);
        //获取当前 “Generator”（发电机？）
        currentGenerator = getNextGenerator();
        //运行 load数据
        runGenerators();
        break;
      case SWITCH_TO_SOURCE_SERVICE:
        runGenerators();
        break;
      case DECODE_DATA:
        //处理已经load到的数据
        decodeFromRetrievedData();
        break;
      default:
        throw new IllegalStateException("Unrecognized run reason: " + runReason);
    }
  }

先看一下runGenerators方法

  private void runGenerators() {
    currentThread = Thread.currentThread();
    startFetchTime = LogTime.getLogTime();
    boolean isStarted = false;
    while (!isCancelled && currentGenerator != null
        && !(isStarted = currentGenerator.startNext())) {

      // 获取下一次阶段 ，根据stage 获取 Generator
      stage = getNextStage(stage);
      currentGenerator = getNextGenerator();

      if (stage == Stage.SOURCE) {
        reschedule();
        return;
      }
    }
    if ((stage == Stage.FINISHED || isCancelled) && !isStarted) {
      notifyFailed();
    }

  }

  private Stage getNextStage(Stage current) {
  switch (current) {
    //根据定义的缓存策略来取下一个状态
    //缓存策略来之于RequestBuilder的requestOptions域
    //如果你有自定义的策略，可以调用RequestBuilder.apply方法即可
    //详细的可用缓存策略请参看DiskCacheStrategy.java
    case INITIALIZE:
      return diskCacheStrategy.decodeCachedResource()
          ? Stage.RESOURCE_CACHE : getNextStage(Stage.RESOURCE_CACHE);
    case RESOURCE_CACHE:
      return diskCacheStrategy.decodeCachedData()
          ? Stage.DATA_CACHE : getNextStage(Stage.DATA_CACHE);
    case DATA_CACHE:
      return Stage.SOURCE;
    case SOURCE:
    case FINISHED:
      return Stage.FINISHED;
    default:
      throw new IllegalArgumentException("Unrecognized stage: " + current);
  }
}

private DataFetcherGenerator getNextGenerator() {
  switch (stage) {
    case RESOURCE_CACHE:
      return new ResourceCacheGenerator(decodeHelper, this);
    case DATA_CACHE:
      return new DataCacheGenerator(decodeHelper, this);
    case SOURCE:
      return new SourceGenerator(decodeHelper, this);
    case FINISHED:
      return null;
    default:
      throw new IllegalStateException("Unrecognized stage: " + stage);
  }
}

getNextStage:

获取下一步执行的策略，一共5种策略：INITIALIZE，RESOURCE_CACHE，DATA_CACHE，SOURCE，FINISHED

其中加载数据的策略有三种：RESOURCE_CACHE，DATA_CACHE，SOURCE，分别对应的Generator:

  1. ResourceCacheGenerator ：尝试从修改过的资源缓存中获取，如果缓存未命中，尝试从DATA_CACHE中获取
  2. DataCacheGenerator 尝试从未修改过的本地缓存中获取数据，如果缓存未命中则尝试从SourceGenerator中获取
  3. SourceGenerator 从原始的资源中获取，可能是服务器，也可能是本地的一些原始资源策略的配置在DiskCacheStrategy。开发者可通过BaseRequestOptions设置：
  • ALL
  • NONE
  • DATA
  • RESOURCE
  • AUTOMATIC（默认方式，依赖于DataFetcher的数据源和ResourceEncoder的EncodeStrategy）

getNextGenerator:

根据Stage获取到相应的Generator后会执行currentGenerator.startNext()，如果中途startNext返回true，则直接回调，否则最终会得到SOURCE的stage，重新调度任务

因为上诉为while循环，stage 一步步下去最后的是 SOURCE ， 也就是说最后总会调用到 SourceGenerator.startNext

  //SourceGenerator.java
  @Override
  public boolean startNext() {
    if (dataToCache != null) {
      Object data = dataToCache;
      dataToCache = null;
      cacheData(data);
    }

    if (sourceCacheGenerator != null && sourceCacheGenerator.startNext()) {
      return true;
    }
    sourceCacheGenerator = null;

    loadData = null;
    boolean started = false;

    ////查找ModelLoader
    while (!started && hasNextModelLoader()) {
      loadData = helper.getLoadData().get(loadDataListIndex++);
      if (loadData != null
          && (helper.getDiskCacheStrategy().isDataCacheable(loadData.fetcher.getDataSource())
          || helper.hasLoadPath(loadData.fetcher.getDataClass()))) {
        started = true;

        ////根据model的fetcher加载数据
        loadData.fetcher.loadData(helper.getPriority(), this);
      }
    }
    return started;
  }

  //DataCacheGenerator
  @Override
  public boolean startNext() {
    while (modelLoaders == null || !hasNextModelLoader()) {
      sourceIdIndex++;
      if (sourceIdIndex >= cacheKeys.size()) {
        return false;
      }

      Key sourceId = cacheKeys.get(sourceIdIndex);
      // PMD.AvoidInstantiatingObjectsInLoops The loop iterates a limited number of times
      // and the actions it performs are much more expensive than a single allocation.
      @SuppressWarnings("PMD.AvoidInstantiatingObjectsInLoops")
      Key originalKey = new DataCacheKey(sourceId, helper.getSignature());

      //获取缓存文件
      cacheFile = helper.getDiskCache().get(originalKey);
      if (cacheFile != null) {
        this.sourceKey = sourceId;

        //通过DecodeHelper 获取ModelLoader
        modelLoaders = helper.getModelLoaders(cacheFile);
        modelLoaderIndex = 0;
      }
    }

    loadData = null;
    boolean started = false;
    while (!started && hasNextModelLoader()) {
      ModelLoader<File, ?> modelLoader = modelLoaders.get(modelLoaderIndex++);
      loadData =
          modelLoader.buildLoadData(cacheFile, helper.getWidth(), helper.getHeight(),
              helper.getOptions());
      if (loadData != null && helper.hasLoadPath(loadData.fetcher.getDataClass())) {
        started = true;
        loadData.fetcher.loadData(helper.getPriority(), this);
      }
    }
    return started;
  }

modelLoaders是通过glideContext.getRegistry().getModelLoaders(file)获取。

其中Registry在Glide的构造方法中创建的，并且注册了许多解析器,ByteBufferEncoder,BitmapDrawableDecoder等等，我们只关注 .append(Uri.class, InputStream.class, new HttpUriLoader.Factory())

  //Glide
  registry
    .append(Uri.class, InputStream.class, new HttpUriLoader.Factory())

  //Registry
  @NonNull
  public <Model, Data> Registry append(
      @NonNull Class<Model> modelClass, @NonNull Class<Data> dataClass,
      @NonNull ModelLoaderFactory<Model, Data> factory) {
    modelLoaderRegistry.append(modelClass, dataClass, factory);
    return this;
  }

  //ModelLoaderRegistry
  public synchronized <Model, Data> void append(
      @NonNull Class<Model> modelClass,
      @NonNull Class<Data> dataClass,
      @NonNull ModelLoaderFactory<? extends Model, ? extends Data> factory) {
    multiModelLoaderFactory.append(modelClass, dataClass, factory);
    cache.clear();
  }

  //MultiModelLoaderFactory
  synchronized <Model, Data> void append(
      @NonNull Class<Model> modelClass,
      @NonNull Class<Data> dataClass,
      @NonNull ModelLoaderFactory<? extends Model, ? extends Data> factory) {
    add(modelClass, dataClass, factory, /*append=*/ true);
  }

  private <Model, Data> void add(
      @NonNull Class<Model> modelClass,
      @NonNull Class<Data> dataClass,
      @NonNull ModelLoaderFactory<? extends Model, ? extends Data> factory,
      boolean append) {
    Entry<Model, Data> entry = new Entry<>(modelClass, dataClass, factory);
    entries.add(append ? entries.size() : 0, entry);
  }

这里add主要是创建了一个Entry对象，把我们的modelClass，dataClass和factory对象关联起来，然后存放到entries的list集合中，这个Entry对象的理解关系到我们后面对整个网络加载的流程。

我们继续看刚才的getModelLoaders(cacheFile)

  //Registry
  @NonNull
  public <Model> List<ModelLoader<Model, ?>> getModelLoaders(@NonNull Model model) {

    //获取 modelLoaders 集合
    List<ModelLoader<Model, ?>> result = modelLoaderRegistry.getModelLoaders(model);
    if (result.isEmpty()) {
      throw new NoModelLoaderAvailableException(model);
    }
    return result;
  }

  //ModelLoaderRegistry
  @NonNull
  public synchronized <A> List<ModelLoader<A, ?>> getModelLoaders(@NonNull A model) {
    List<ModelLoader<A, ?>> modelLoaders = getModelLoadersForClass(getClass(model));
    int size = modelLoaders.size();
    List<ModelLoader<A, ?>> filteredLoaders = new ArrayList<>(size);
    //noinspection ForLoopReplaceableByForEach to improve perf
    for (int i = 0; i < size; i++) {
      ModelLoader<A, ?> loader = modelLoaders.get(i);
      if (loader.handles(model)) {
        filteredLoaders.add(loader);
      }
    }
    return filteredLoaders;
  }

  @NonNull
  private <A> List<ModelLoader<A, ?>> getModelLoadersForClass(@NonNull Class<A> modelClass) {

    //从 cache 中取，如果没有则 build 出
    List<ModelLoader<A, ?>> loaders = cache.get(modelClass);
    if (loaders == null) {
      loaders = Collections.unmodifiableList(multiModelLoaderFactory.build(modelClass));
      cache.put(modelClass, loaders);
    }
    return loaders;
  }

  //MultiModelLoaderFactory
  @NonNull
  synchronized <Model> List<ModelLoader<Model, ?>> build(@NonNull Class<Model> modelClass) {
    try {
      List<ModelLoader<Model, ?>> loaders = new ArrayList<>();

      //从 entries 遍历，通过 entry.handles(modelClass) 进行匹配
      for (Entry<?, ?> entry : entries) {

        if (alreadyUsedEntries.contains(entry)) {
          continue;
        }
        if (entry.handles(modelClass)) {
          alreadyUsedEntries.add(entry);
          loaders.add(this.<Model, Object>build(entry));
          alreadyUsedEntries.remove(entry);
        }
      }
      return loaders;
    } catch (Throwable t) {
      alreadyUsedEntries.clear();
      throw t;
    }
  }

  //这里就是之前 registry 添加的参数 modelClass 和 dataClass
    public boolean handles(@NonNull Class<?> modelClass, @NonNull Class<?> dataClass) {
      return handles(modelClass) && this.dataClass.isAssignableFrom(dataClass);
    }

    public boolean handles(@NonNull Class<?> modelClass) {
      return this.modelClass.isAssignableFrom(modelClass);
    }

举个例子，如果用.append(Uri.class, InputStream.class, new HttpUriLoader.Factory())，那么此时的entry.factory就是HttpUriLoader.Factory.

我们接下来看一下 HttpUriLoader.Factory build

//HttpUriLoader
public class HttpUriLoader implements ModelLoader<Uri, InputStream> {
  private static final Set<String> SCHEMES =
      Collections.unmodifiableSet(new HashSet<>(Arrays.asList("http", "https")));

  private final ModelLoader<GlideUrl, InputStream> urlLoader;

  // Public API.
  @SuppressWarnings("WeakerAccess")
  public HttpUriLoader(ModelLoader<GlideUrl, InputStream> urlLoader) {
    this.urlLoader = urlLoader;
  }

  @Override
  public LoadData<InputStream> buildLoadData(@NonNull Uri model, int width, int height,
      @NonNull Options options) {
    return urlLoader.buildLoadData(new GlideUrl(model.toString()), width, height, options);
  }

  @Override
  public boolean handles(@NonNull Uri model) {
    return SCHEMES.contains(model.getScheme());
  }

  /**
   * Factory for loading {@link InputStream}s from http/https {@link Uri}s.
   */
  public static class Factory implements ModelLoaderFactory<Uri, InputStream> {

    @NonNull
    @Override
    public ModelLoader<Uri, InputStream> build(MultiModelLoaderFactory multiFactory) {
      return new HttpUriLoader(multiFactory.build(GlideUrl.class, InputStream.class));
    }

    @Override
    public void teardown() {
      // Do nothing.
    }
  }
}

可以看到 HttpUriLoader 其实是又去调用了另一个解析器，这个解析器是multiFactory.build(GlideUrl.class, InputStream.class) 我们回到之前Glide 中，Registry append的地方去找一下

  //Glide
  .append(GlideUrl.class, InputStream.class, new HttpGlideUrlLoader.Factory())

  //HttpGlideUrlLoader
  @Override
  public LoadData<InputStream> buildLoadData(@NonNull GlideUrl model, int width, int height,
      @NonNull Options options) {
    // GlideUrls memoize parsed URLs so caching them saves a few object instantiations and time
    // spent parsing urls.
    GlideUrl url = model;
    if (modelCache != null) {
      url = modelCache.get(model, 0, 0);
      if (url == null) {
        modelCache.put(model, 0, 0, model);
        url = model;
      }
    }
    int timeout = options.get(TIMEOUT);
    return new LoadData<>(url, new HttpUrlFetcher(url, timeout));
  }

我们回到之前 startNext 基本上所有的 startNext 里都有这段代码，以 ResourceCacheGenerator 为例

   //ResourceCacheGenerator

    boolean started = false;
    while (!started && hasNextModelLoader()) {
      ModelLoader<File, ?> modelLoader = modelLoaders.get(modelLoaderIndex++);
      loadData = modelLoader.buildLoadData(cacheFile,
          helper.getWidth(), helper.getHeight(), helper.getOptions());
      if (loadData != null && helper.hasLoadPath(loadData.fetcher.getDataClass())) {
        started = true;
        loadData.fetcher.loadData(helper.getPriority(), this);
      }
    }

可以看到找到 modeloader后 都会调用loadData.fetcher.loadData(helper.getPriority(), this);

对应上文 HttpGlideUrlLoader

  //HttpUrlFetcher
  @Override
  public void loadData(@NonNull Priority priority,
      @NonNull DataCallback<? super InputStream> callback) {
    long startTime = LogTime.getLogTime();
    try {
      InputStream result = loadDataWithRedirects(glideUrl.toURL(), 0, null, glideUrl.getHeaders());
      callback.onDataReady(result);
    } catch (IOException e) {
      if (Log.isLoggable(TAG, Log.DEBUG)) {
        Log.d(TAG, "Failed to load data for url", e);
      }
      callback.onLoadFailed(e);
    } finally {
      if (Log.isLoggable(TAG, Log.VERBOSE)) {
        Log.v(TAG, "Finished http url fetcher fetch in " + LogTime.getElapsedMillis(startTime));
      }
    }
  }

可以看到，网路获取成功后，返回 InputStream ，然后回调callback.onDataReady(result);将InputStream返回回去。同样会发现CacheGenerator都会有此方法

  //ResourceCacheGenerator
  @Override
  public void onDataReady(Object data) {
    cb.onDataFetcherReady(sourceKey, data, loadData.fetcher, DataSource.RESOURCE_DISK_CACHE,
        currentKey);
  }

  ResourceCacheGenerator(DecodeHelper<?> helper, FetcherReadyCallback cb) {
    this.helper = helper;
    this.cb = cb;
  }

  //DecodeJob
  private DataFetcherGenerator getNextGenerator() {
    switch (stage) {
      case RESOURCE_CACHE:
        return new ResourceCacheGenerator(decodeHelper, this);
      case DATA_CACHE:
        return new DataCacheGenerator(decodeHelper, this);
      case SOURCE:
        return new SourceGenerator(decodeHelper, this);
      case FINISHED:
        return null;
      default:
        throw new IllegalStateException("Unrecognized stage: " + stage);
    }
  }

我们往上找 cb 其实就是 DecodeJob，也就是最后数据会交给DecodeJob的onDataFetcherReady

  //DecodeJob
  @Override
  public void onDataFetcherReady(Key sourceKey, Object data, DataFetcher<?> fetcher,
      DataSource dataSource, Key attemptedKey) {
    this.currentSourceKey = sourceKey;
    this.currentData = data;
    this.currentFetcher = fetcher;
    this.currentDataSource = dataSource;
    this.currentAttemptingKey = attemptedKey;
    if (Thread.currentThread() != currentThread) {
      runReason = RunReason.DECODE_DATA;
      callback.reschedule(this);
    } else {
      GlideTrace.beginSection("DecodeJob.decodeFromRetrievedData");
      try {
        decodeFromRetrievedData();
      } finally {
        GlideTrace.endSection();
      }
    }
  }

private void decodeFromRetrievedData() {
    if (Log.isLoggable(TAG, Log.VERBOSE)) {
      logWithTimeAndKey("Retrieved data", startFetchTime,
          "data: " + currentData
              + ", cache key: " + currentSourceKey
              + ", fetcher: " + currentFetcher);
    }
    Resource<R> resource = null;
    try {
      resource = decodeFromData(currentFetcher, currentData, currentDataSource);
    } catch (GlideException e) {
      e.setLoggingDetails(currentAttemptingKey, currentDataSource);
      throwables.add(e);
    }
    if (resource != null) {
      notifyEncodeAndRelease(resource, currentDataSource);
    } else {
      runGenerators();
    }
  }

decodeFromData 通过之前的解码器进行解码获取 resource，然后进行notifyEncodeAndRelease

  //DecodeJob
  private void notifyEncodeAndRelease(Resource<R> resource, DataSource dataSource) {
    if (resource instanceof Initializable) {
      ((Initializable) resource).initialize();
    }

    Resource<R> result = resource;
    LockedResource<R> lockedResource = null;
    if (deferredEncodeManager.hasResourceToEncode()) {
      lockedResource = LockedResource.obtain(resource);
      result = lockedResource;
    }

    notifyComplete(result, dataSource);

    stage = Stage.ENCODE;
    try {
      if (deferredEncodeManager.hasResourceToEncode()) {
        deferredEncodeManager.encode(diskCacheProvider, options);
      }
    } finally {
      if (lockedResource != null) {
        lockedResource.unlock();
      }
    }
    // Call onEncodeComplete outside the finally block so that it's not called if the encode process
    // throws.
    onEncodeComplete();
  }

  private void notifyComplete(Resource<R> resource, DataSource dataSource) {
    setNotifiedOrThrow();
    callback.onResourceReady(resource, dataSource);
  }

DecodeJob的callback其实就是EngineJob

  //EngineJob
  @Override
  public void onResourceReady(Resource<R> resource, DataSource dataSource) {
    this.resource = resource;
    this.dataSource = dataSource;
    MAIN_THREAD_HANDLER.obtainMessage(MSG_COMPLETE, this).sendToTarget();
  }

      @Override
    public boolean handleMessage(Message message) {
      EngineJob<?> job = (EngineJob<?>) message.obj;
      switch (message.what) {
        case MSG_COMPLETE:
          job.handleResultOnMainThread();
          break;
        case MSG_EXCEPTION:
          job.handleExceptionOnMainThread();
          break;
        case MSG_CANCELLED:
          job.handleCancelledOnMainThread();
          break;
        default:
          throw new IllegalStateException("Unrecognized message: " + message.what);
      }
      return true;
    }

发送了MSG_COMPLETE消息

  @Synthetic
  void handleResultOnMainThread() {
    stateVerifier.throwIfRecycled();
    if (isCancelled) {
      resource.recycle();
      release(false /*isRemovedFromQueue*/);
      return;
    } else if (cbs.isEmpty()) {
      throw new IllegalStateException("Received a resource without any callbacks to notify");
    } else if (hasResource) {
      throw new IllegalStateException("Already have resource");
    }
    engineResource = engineResourceFactory.build(resource, isCacheable);
    hasResource = true;

    // Hold on to resource for duration of request so we don't recycle it in the middle of
    // notifying if it synchronously released by one of the callbacks.
    engineResource.acquire();
    listener.onEngineJobComplete(this, key, engineResource);

    //noinspection ForLoopReplaceableByForEach to improve perf
    for (int i = 0, size = cbs.size(); i < size; i++) {
      ResourceCallback cb = cbs.get(i);
      if (!isInIgnoredCallbacks(cb)) {
        engineResource.acquire();
        cb.onResourceReady(engineResource, dataSource);
      }
    }
    // Our request is complete, so we can release the resource.
    engineResource.release();

    release(false /*isRemovedFromQueue*/);
  }

我们往上找 cbs

 //EngineJob
 void addCallback(ResourceCallback cb) {
    Util.assertMainThread();
    stateVerifier.throwIfRecycled();
    if (hasResource) {
      cb.onResourceReady(engineResource, dataSource);
    } else if (hasLoadFailed) {
      cb.onLoadFailed(exception);
    } else {
      cbs.add(cb);
    }
  }

  //Engine
  public <R> LoadStatus load(){
      ...
    EngineJob<?> current = jobs.get(key, onlyRetrieveFromCache);
    if (current != null) {
      current.addCallback(cb);
      if (VERBOSE_IS_LOGGABLE) {
        logWithTimeAndKey("Added to existing load", startTime, key);
      }
      return new LoadStatus(cb, current);
    }
      ...
  }

  //SingleRequest
  public void onSizeReady(int width, int height) {
  ...
      loadStatus = engine.load(
        glideContext,
        model,
        requestOptions.getSignature(),
        this.width,
        this.height,
        requestOptions.getResourceClass(),
        transcodeClass,
        priority,
        requestOptions.getDiskCacheStrategy(),
        requestOptions.getTransformations(),
        requestOptions.isTransformationRequired(),
        requestOptions.isScaleOnlyOrNoTransform(),
        requestOptions.getOptions(),
        requestOptions.isMemoryCacheable(),
        requestOptions.getUseUnlimitedSourceGeneratorsPool(),
        requestOptions.getUseAnimationPool(),
        requestOptions.getOnlyRetrieveFromCache(),
        this);
    ...
   }

所以其实是回调到了SingleRequest

  //SingleRequest
  @Override
  public void onResourceReady(Resource<?> resource, DataSource dataSource) {
    stateVerifier.throwIfRecycled();
    loadStatus = null;
    if (resource == null) {
      GlideException exception = new GlideException("Expected to receive a Resource<R> with an "
          + "object of " + transcodeClass + " inside, but instead got null.");
      onLoadFailed(exception);
      return;
    }

    Object received = resource.get();
    if (received == null || !transcodeClass.isAssignableFrom(received.getClass())) {
      releaseResource(resource);
      GlideException exception = new GlideException("Expected to receive an object of "
          + transcodeClass + " but instead" + " got "
          + (received != null ? received.getClass() : "") + "{" + received + "} inside" + " "
          + "Resource{" + resource + "}."
          + (received != null ? "" : " " + "To indicate failure return a null Resource "
          + "object, rather than a Resource object containing null data."));
      onLoadFailed(exception);
      return;
    }

    if (!canSetResource()) {
      releaseResource(resource);
      status = Status.COMPLETE;
      return;
    }

    onResourceReady((Resource<R>) resource, (R) received, dataSource);
  }

private void onResourceReady(Resource<R> resource, R result, DataSource dataSource) {
    // We must call isFirstReadyResource before setting status.
    boolean isFirstResource = isFirstReadyResource();
    status = Status.COMPLETE;
    this.resource = resource;

    if (glideContext.getLogLevel() <= Log.DEBUG) {
      Log.d(GLIDE_TAG, "Finished loading " + result.getClass().getSimpleName() + " from "
          + dataSource + " for " + model + " with size [" + width + "x" + height + "] in "
          + LogTime.getElapsedMillis(startTime) + " ms");
    }

    isCallingCallbacks = true;
    try {
      if ((requestListener == null
          || !requestListener.onResourceReady(result, model, target, dataSource, isFirstResource))
          && (targetListener == null
          || !targetListener.onResourceReady(result, model, target, dataSource, isFirstResource))) {
        Transition<? super R> animation =
            animationFactory.build(dataSource, isFirstResource);
        target.onResourceReady(result, animation);
      }
    } finally {
      isCallingCallbacks = false;
    }

    notifyLoadSuccess();
  }

最后可以看到，获取到了resource.get()获取真正的可用的数据(bitmap一类),然后通过target.onResourceReady(result, animation)，回到glide的into，target其实就是BitmapImageViewTarget/DrawableImageViewTarget

 //ImageViewTarget
  @Override
  public void onResourceReady(@NonNull Z resource, @Nullable Transition<? super Z> transition) {
    if (transition == null || !transition.transition(resource, this)) {
      setResourceInternal(resource);
    } else {
      maybeUpdateAnimatable(resource);
    }
  }

  private void setResourceInternal(@Nullable Z resource) {
    setResource(resource);
    maybeUpdateAnimatable(resource);
  }

  //BitmapImageViewTarget
  @Override
  protected void setResource(Bitmap resource) {
    view.setImageBitmap(resource);
  }

这里就设置到了图片

总结：

1. Glide.with

  1. 传递不同 Context ,判断是否需要创建 fragment ，监听 LifecycleListener，通过生命周期确定 request 调用时机，如果fragment的activity销毁了，request 也停止了
  2. registerComponentCallbacks 监听 onLowMemory 与 onTrimMemory 来控制缓存
  3. 初始化glide ，注册各类解码器
  4. 返回 RequestManager

2. Glide.load

  1. 创建RequestBuilder，创建engine
  2. 传入model 设置 isModelSet标识位

3. Glide.into

  1. 创建 imageTagert
  2. 创建request，通过view.setTag保存，通过requestManager.track 运行request。request是通过SingleRequest.obtain创建，进行必要的参数赋值
  3. 运行request，首先获取图片宽高,获取成功后调用engine.load，load 先从内存缓存中获取Resources。
  4. 如果内存缓存内不存在Resources，创建engineJob与decodeJob,engineJob触发decodeJob

.append(Uri.class, InputStream.class, new HttpUriLoader.Factory())

  1. ResourceCacheGenerator->DataCacheGenerator->SourceGenerator对应的 ModelLoaders(解码器 HttpUriLoader.Factory) 与 DataFetcher(HttpUrlFetcher) 依次处理，如果其中有磁盘缓存命中，则不会调用SourceGenerator

  2. loadData在数据获取成功后调用callback.onDataReady(result)，然后一直往上回调，一直回调到SingleRequest的onResourceReady，最后通过target.onResourceReady设置图片

缓存机制：

  1. 内存缓存：

    首先通过 acquired 计数记录图片引用，如果被引用则放到 activeResources （ 其实就是 activeEngineResources HashMap） 中。当计数为0时，会触发 onResourceReleased 将图片存入 LruResourceCache 中。当使用图片的时候，又会从 LruResourceCache 中remove 放到 activeResources 中，这样设计感觉是为了提高效率。

    Resources存的是EngineResource，而EngineResource是各种Resource的封装，具体存储的有Bitmap(BitmapResource),byte[](BytesResource)等等

  2. 磁盘缓存：

    glide自己写了一套 DiskLruCache ，没什么特别的区别，主要还是将流存入文件中，当size超过了maxsize，就通过LinkedHashMap将最旧的移除

BitmapPool：

  1. put bitmap：
glide.into
  --> requestManager.clear(target);
  --> boolean isOwnedByUs = untrack(target);
  --> requestTracker.clearRemoveAndRecycle(request)

//RequestTracker
private boolean clearRemoveAndMaybeRecycle(@Nullable Request request, boolean isSafeToRecycle) {
   if (request == null) {
    return true;
  }
  boolean isOwnedByUs = requests.remove(request);
  isOwnedByUs = pendingRequests.remove(request) || isOwnedByUs;
  if (isOwnedByUs) {
    request.clear();
    if (isSafeToRecycle) {
      request.recycle();
    }
  }
  return isOwnedByUs;
}

//SingleRequest
@Override
public synchronized void clear() {
  assertNotCallingCallbacks();
  stateVerifier.throwIfRecycled();
  if (status == Status.CLEARED) {
    return;
  }
  cancel();
  // Resource must be released before canNotifyStatusChanged is called.
  if (resource != null) {

  // 这里之后流程很多，一直调用到BitmapResource
    releaseResource(resource);
  }
  if (canNotifyCleared()) {
    target.onLoadCleared(getPlaceholderDrawable());
  }

  status = Status.CLEARED;
}

//BitmapResource
public void recycle() {
  bitmapPool.put(bitmap); //这里就将上一次使用过的bitmap进行了缓存
}

put的流程其实是，当使用的view，本身含有request，那么就会触发清除之前的request操作，清除中会将之前使用的bitmap进行缓存放入bitmapPool中。

  1. put bitmap：

    最后解码会调用到 Downsampler.decode

    //Downsampler
downsampler.decode
    --> decodeFromWrappedStreams
    --> setInBitmap

private static void setInBitmap(BitmapFactory.Options options, BitmapPool bitmapPool, int width, int height) {
  ...
  options.inBitmap = bitmapPool.getDirty(width, height, expectedConfig);
  ...
}

//LruBitmapPool
@Override
@NonNull
public Bitmap get(int width, int height, Bitmap.Config config) {
    Bitmap result = getDirtyOrNull(width, height, config);
    if (result != null) {
        result.eraseColor(Color.TRANSPARENT);
    } else {
    result = createBitmap(width, height, config);
    }
return result;
}

@NonNull
@Override
public Bitmap getDirty(int width, int height, Bitmap.Config config) {
    Bitmap result = getDirtyOrNull(width, height, config);
    if (result == null) {
     result = createBitmap(width, height, config);
    }
  return result;
}

    在一般的解码的时候，使用的是getDirty，这是返回复用的bitmap，所以里面会存在脏数据，在特殊情况下，需要进行擦除，则使用get

    回到LruBitmapPool代码本身，可以看到使用的还是典型的LRU算法，只是使用的集合比较特殊。以bitmap的ByteSize为key，使用NavigableMap作为集合，能够更方便的去进行集合的扩容和删除旧bitmap的操作

    肯定很烂写的= = 太累了。。。 写笔记以后面试好回顾用。 至此全篇结束。

avatar
文章
阅读
粉丝
