Dubbo服务引用的流程

遇见阳光
367 阅读20分钟

<dubbo:reference >   对应 registerBeanDefinitionParser("reference", new DubboBeanDefinitionParser(ReferenceBean.class, false));

public class ReferenceBean<T> extends ReferenceConfig<T> implements FactoryBean, ApplicationContextAware, InitializingBean, DisposableBean {}


既然是一个FactoryBean 根据规则从get()入手

 public synchronized T get() {
        if (destroyed) {
            throw new IllegalStateException("Already destroyed!");
        }
        if (ref == null) {
// 父类的方法
            init();
        }
        return ref;
    }

进入ReferenceConfig 的init方法说起

ref = createProxy(map);


 @SuppressWarnings({"unchecked", "rawtypes", "deprecation"})
    private T createProxy(Map<String, String> map) {

        URL tmpUrl = new URL("temp", "localhost", 0, map);
        final boolean isJvmRefer;

        if (isInjvm() == null) {
            if (url != null && url.length() > 0) { //指定URL的情况下，不做本地引用
                isJvmRefer = false;
            } else if (InjvmProtocol.getInjvmProtocol().isInjvmRefer(tmpUrl)) {
                //默认情况下如果本地有服务暴露，则引用本地服务.
                isJvmRefer = true;
            } else {
                isJvmRefer = false;
            }
        } else {
            isJvmRefer = isInjvm().booleanValue();
        }

        if (isJvmRefer) {
            URL url = new URL(Constants.LOCAL_PROTOCOL, NetUtils.LOCALHOST, 0, interfaceClass.getName()).addParameters(map);
            invoker = refprotocol.refer(interfaceClass, url);
            if (logger.isInfoEnabled()) {
                logger.info("Using injvm service " + interfaceClass.getName());
            }
        } else {
           // url 为指定的url  点对点直连服务提供者地址，将绕过注册中心 也可以是注册中心的地址
            if (url != null && url.length() > 0) { // 用户指定URL，指定的URL可能是对点对直连地址，也可能是注册中心URL
                String[] us = Constants.SEMICOLON_SPLIT_PATTERN.split(url);
                if (us != null && us.length > 0) {
                    for (String u : us) {
                        URL url = URL.valueOf(u);
                        if (url.getPath() == null || url.getPath().length() == 0) {
                            url = url.setPath(interfaceName);
                        }
                        if (Constants.REGISTRY_PROTOCOL.equals(url.getProtocol())) {
                            urls.add(url.addParameterAndEncoded(Constants.REFER_KEY, StringUtils.toQueryString(map)));
                        } else {
                            urls.add(ClusterUtils.mergeUrl(url, map));
                        }
                    }
                }
            } else {
            // 通过注册中心配置拼装URL
                List<URL> us = loadRegistries(false);
                if (us != null && us.size() > 0) {
                    for (URL u : us) {
                        URL monitorUrl = loadMonitor(u);
                        if (monitorUrl != null) {
                            map.put(Constants.MONITOR_KEY, URL.encode(monitorUrl.toFullString()));
                        }
                        urls.add(u.addParameterAndEncoded(Constants.REFER_KEY, StringUtils.toQueryString(map)));
                    }
                }
                if (urls == null || urls.size() == 0) {
                    throw new IllegalStateException("No such any registry to reference " + interfaceName + " on the consumer " + NetUtils.getLocalHost() + " use dubbo version " + Version.getVersion() + ", please config <dubbo:registry address=\"...\" /> to your spring config.");
                }
            }


            if (urls.size() == 1) {
         //  refprotocol 对应 Protocol$Adpative 自适应扩展点

                invoker = refprotocol.refer(interfaceClass, urls.get(0));
            } else {
                List<Invoker<?>> invokers = new ArrayList<Invoker<?>>();
                URL registryURL = null;
                for (URL url : urls) {
                    invokers.add(refprotocol.refer(interfaceClass, url));
                    if (Constants.REGISTRY_PROTOCOL.equals(url.getProtocol())) {
                        registryURL = url; // 用了最后一个registry url
                    }
                }
                if (registryURL != null) { // 有 注册中心协议的URL
                    // 对有注册中心的Cluster 只用 AvailableCluster
                    URL u = registryURL.addParameter(Constants.CLUSTER_KEY, AvailableCluster.NAME);
                    invoker = cluster.join(new StaticDirectory(u, invokers));
                } else { // 不是 注册中心的URL
                    invoker = cluster.join(new StaticDirectory(invokers));
                }
            }
        }

        Boolean c = check;
        if (c == null && consumer != null) {
            c = consumer.isCheck();
        }
        if (c == null) {
            c = true; // default true
        }
        if (c && !invoker.isAvailable()) {
            throw new IllegalStateException("Failed to check the status of the service " + interfaceName + ". No provider available for the service " + (group == null ? "" : group + "/") + interfaceName + (version == null ? "" : ":" + version) + " from the url " + invoker.getUrl() + " to the consumer " + NetUtils.getLocalHost() + " use dubbo version " + Version.getVersion());
        }
        if (logger.isInfoEnabled()) {
            logger.info("Refer dubbo service " + interfaceClass.getName() + " from url " + invoker.getUrl());
        }
        // 创建服务代理
        return (T) proxyFactory.getProxy(invoker);
    }



  • urls.get(0) 对应 registry://192.168.25.128:2181/com.alibaba.dubbo.registry.RegistryService?application=user-consumer&dubbo=2.5.5&pid=11884&refer=application%3Duser-consumer%26check%3Dfalse%26default.check%3Dfalse%26dubbo%3D2.5.5%26interface%3Dcom.zmz.order.api.IOrderService%26methods%3DdoCreateOrder%26pid%3D11884%26protocol%3Ddubbo%26revision%3D1.0%26side%3Dconsumer%26timestamp%3D1572670815240%26version%3D1.0&registry=zookeeper&timestamp=1572670817505
  • 所以先进入RegistryProtocol.refer() 进行分析

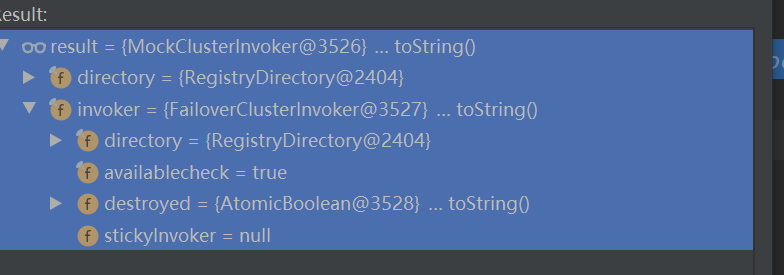

  • 最终生成的invoker为


此时根据url上的协议进入 RegistryProtocol 中的refer()

RegistryProtocol
public <T> Invoker<T> refer(Class<T> type, URL url) throws RpcException {
// 获取url中对应的协议 zookeeper
        url = url.setProtocol(url.getParameter(Constants.REGISTRY_KEY, Constants.DEFAULT_REGISTRY)).removeParameter(Constants.REGISTRY_KEY);
  // 获取注册中心   ZookeeperRegistry
   Registry registry = registryFactory.getRegistry(url);

        if (RegistryService.class.equals(type)) {
            return proxyFactory.getInvoker((T) registry, type, url);
        }

        // group="a,b" or group="*"
        Map<String, String> qs = StringUtils.parseQueryString(url.getParameterAndDecoded(Constants.REFER_KEY));
        String group = qs.get(Constants.GROUP_KEY);
        if (group != null && group.length() > 0) {
            if ((Constants.COMMA_SPLIT_PATTERN.split(group)).length > 1
                    || "*".equals(group)) {
                return doRefer(getMergeableCluster(), registry, type, url);
            }
        }
//重点分析
        return doRefer(cluster, registry, type, url);
    }

  • registry  对应zookeeper://192.168.25.128:2181/com.alibaba.dubbo.registry.RegistryService?application=user-consumer&dubbo=2.5.5&interface=com.alibaba.dubbo.registry.RegistryService&pid=11884&timestamp=1572670817505



RegistryProtocol
 private <T> Invoker<T> doRefer(Cluster cluster, Registry registry, Class<T> type, URL url) {
 //这是关键 服务目录
RegistryDirectory<T> directory = new RegistryDirectory<T>(type, url);
         // 此时的registry 为对应的注册中心的实现
        directory.setRegistry(registry);
    //protocol为protocol$Adaptive
        directory.setProtocol(protocol);
        URL subscribeUrl = new URL(Constants.CONSUMER_PROTOCOL, NetUtils.getLocalHost(), 0, type.getName(), directory.getUrl().getParameters());
        if (!Constants.ANY_VALUE.equals(url.getServiceInterface())
                && url.getParameter(Constants.REGISTER_KEY, true)) {
      // 注册consumer协议到注册中心 consumers/
            registry.register(subscribeUrl.addParameters(Constants.CATEGORY_KEY, Constants.CONSUMERS_CATEGORY,
                    Constants.CHECK_KEY, String.valueOf(false)));
        }
          //这是重点中的重点
        directory.subscribe(subscribeUrl.addParameter(Constants.CATEGORY_KEY,
                Constants.PROVIDERS_CATEGORY
                        + "," + Constants.CONFIGURATORS_CATEGORY
                        + "," + Constants.ROUTERS_CATEGORY));
        return cluster.join(directory);
    }
  1. 参数解释
  • subscribeUrl 对应     consumer://169.254.88.190/com.zmz.order.api.IOrderService?application=user-consumer&category=consumers&check=false&default.check=false&dubbo=2.5.5&interface=com.zmz.order.api.IOrderService&methods=doCreateOrder&pid=14796&protocol=dubbo&revision=1.0&side=consumer&timestamp=1572671425766&version=1.0

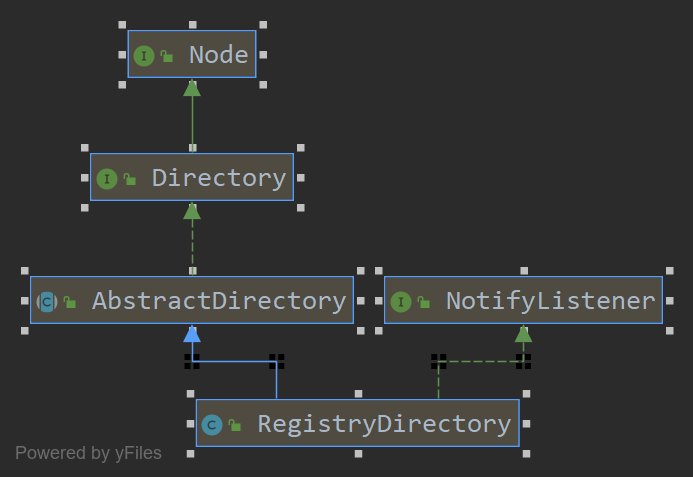

  • 首先看下RegistryDirectory 的类结构
  •
  • registry.register(subscribeUrl) 注册consumer节点数据consumer://169.254.88.190/com.zmz.order.api.IOrderService?application=user-consumer&category=consumers&check=false&default.check=false&dubbo=2.5.5&interface=com.zmz.order.api.IOrderService&methods=doCreateOrder&pid=1176&protocol=dubbo&revision=1.0&side=consumer&timestamp=1572678968723&version=1.0



先分析下 RegistryDirectory 类中成员属性

  public class RegistryDirectory<T> extends AbstractDirectory<T> implements NotifyListener {

    private static final Logger logger = LoggerFactory.getLogger(RegistryDirectory.class);

    private static final Cluster cluster = ExtensionLoader.getExtensionLoader(Cluster.class).getAdaptiveExtension();

    private static final RouterFactory routerFactory = ExtensionLoader.getExtensionLoader(RouterFactory.class).getAdaptiveExtension();

    private static final ConfiguratorFactory configuratorFactory = ExtensionLoader.getExtensionLoader(ConfiguratorFactory.class).getAdaptiveExtension();

// com.alibaba.dubbo.registry.RegistryService
   private final String serviceKey; // 构造时初始化，断言不为null
 //  com.zmz.order.api.IOrderService
    private final Class<T> serviceType; // 构造时初始化，断言不为null

// {protocol=dubbo, side=consumer, application=user-consumer,
methods=doCreateOrder, default.check=false,
 dubbo=2.5.5, pid=1176, check=false,
 interface=com.zmz.order.api.IOrderService,
 version=1.0, revision=1.0, timestamp=1572678968723}

    private final Map<String, String> queryMap; // 构造时初始化，断言不为null

zookeeper://192.168.25.128:2181/com.alibaba.dubbo.registry.RegistryService?
application=user-consumer&check=false&default.check=false&dubbo=2.5.5
&interface=com.zmz.order.api.IOrderService&methods=doCreateOrder&pid=1176
&protocol=dubbo&revision=1.0&side=consumer&timestamp=1572678968723&version=1.0
    private final URL directoryUrl; // 构造时初始化，断言不为null，并且总是赋非null值

   // 接口方法数组
    private final String[] serviceMethods;

// 是否多个group
    private final boolean multiGroup;

    private Protocol protocol; // 注入时初始化，断言不为null
    private Registry registry; // 注入时初始化，断言不为null
    private volatile boolean forbidden = false;

    private volatile URL overrideDirectoryUrl; // 构造时初始化，断言不为null，并且总是赋非null值

    /*override规则
     * 优先级：override>-D>consumer>provider
     * 第一种规则：针对某个provider <ip:port,timeout=100>
     * 第二种规则：针对所有provider <* ,timeout=5000>
     */
    private volatile List<Configurator> configurators; // 初始为null以及中途可能被赋为null，请使用局部变量引用

    // Map<url, Invoker> cache service url to invoker mapping.
    private volatile Map<String, Invoker<T>> urlInvokerMap; // 初始为null以及中途可能被赋为null，请使用局部变量引用

    // Map<methodName, Invoker> cache service method to invokers mapping.
    private volatile Map<String, List<Invoker<T>>> methodInvokerMap; // 初始为null以及中途可能被赋为null，请使用局部变量引用

    // Set<invokerUrls> cache invokeUrls to invokers mapping.
    private volatile Set<URL> cachedInvokerUrls; // 初始为null以及中途可能被赋为null，请使用局部变量引用

    public RegistryDirectory(Class<T> serviceType, URL url) {
        super(url);
        if (serviceType == null)
            throw new IllegalArgumentException("service type is null.");
        if (url.getServiceKey() == null || url.getServiceKey().length() == 0)
            throw new IllegalArgumentException("registry serviceKey is null.");
        this.serviceType = serviceType;
        this.serviceKey = url.getServiceKey();
        this.queryMap = StringUtils.parseQueryString(url.getParameterAndDecoded(Constants.REFER_KEY));
        this.overrideDirectoryUrl = this.directoryUrl = url.setPath(url.getServiceInterface()).clearParameters().addParameters(queryMap).removeParameter(Constants.MONITOR_KEY);
        String group = directoryUrl.getParameter(Constants.GROUP_KEY, "");
        this.multiGroup = group != null && ("*".equals(group) || group.contains(","));
        String methods = queryMap.get(Constants.METHODS_KEY);
        this.serviceMethods = methods == null ? null : Constants.COMMA_SPLIT_PATTERN.split(methods);
    }



FailbackRegistry
@Override
    public void subscribe(URL url, NotifyListener listener) {
        if (destroyed.get()){
            return;
        }
        super.subscribe(url, listener);
        removeFailedSubscribed(url, listener);
        try {
            // 向服务器端发送订阅请求
            doSubscribe(url, listener);
        } catch (Exception e) {
            Throwable t = e;

            List<URL> urls = getCacheUrls(url);
            if (urls != null && urls.size() > 0) {
                notify(url, listener, urls);
                logger.error("Failed to subscribe " + url + ", Using cached list: " + urls + " from cache file: " + getUrl().getParameter(Constants.FILE_KEY, System.getProperty("user.home") + "/dubbo-registry-" + url.getHost() + ".cache") + ", cause: " + t.getMessage(), t);
            } else {
                // 如果开启了启动时检测，则直接抛出异常
                boolean check = getUrl().getParameter(Constants.CHECK_KEY, true)
                        && url.getParameter(Constants.CHECK_KEY, true);
                boolean skipFailback = t instanceof SkipFailbackWrapperException;
                if (check || skipFailback) {
                    if (skipFailback) {
                        t = t.getCause();
                    }
                    throw new IllegalStateException("Failed to subscribe " + url + ", cause: " + t.getMessage(), t);
                } else {
                    logger.error("Failed to subscribe " + url + ", waiting for retry, cause: " + t.getMessage(), t);
                }
            }

            // 将失败的订阅请求记录到失败列表，定时重试
            addFailedSubscribed(url, listener);
        }
    }



 public class ZookeeperRegistry extends FailbackRegistry {

private final ConcurrentMap<URL, ConcurrentMap<NotifyListener, ChildListener>> zkListeners = new ConcurrentHashMap<URL, ConcurrentMap<NotifyListener, ChildListener>>();

// url consumer://169.254.88.190/com.zmz.order.api.IOrderService?application=user-consumer&category=providers,configurators,routers&check=false&default.check=false&dubbo=2.5.5&interface=com.zmz.order.api.IOrderService&methods=doCreateOrder&pid=1176&protocol=dubbo&revision=1.0&side=consumer&timestamp=1572678968723&version=1.0
// listener  RegistryDirecory
protected void doSubscribe(final URL url, final NotifyListener listener) {
        try {
             //   ANY_VALUE 为*        interface 为具体的接口path
            if (Constants.ANY_VALUE.equals(url.getServiceInterface())) {
//root   /dubbo
                String root = toRootPath();
                ConcurrentMap<NotifyListener, ChildListener> listeners = zkListeners.get(url);
                if (listeners == null) {
                    zkListeners.putIfAbsent(url, new ConcurrentHashMap<NotifyListener, ChildListener>());
                    listeners = zkListeners.get(url);
                }
                ChildListener zkListener = listeners.get(listener);
                if (zkListener == null) {
                    listeners.putIfAbsent(listener, new ChildListener() {
                        public void childChanged(String parentPath, List<String> currentChilds) {
                            for (String child : currentChilds) {
                                child = URL.decode(child);
                                if (!anyServices.contains(child)) {
                                    anyServices.add(child);
                                    subscribe(url.setPath(child).addParameters(Constants.INTERFACE_KEY, child,
                                            Constants.CHECK_KEY, String.valueOf(false)), listener);
                                }
                            }
                        }
                    });
                    zkListener = listeners.get(listener);
                }
                zkClient.create(root, false);
                List<String> services = zkClient.addChildListener(root, zkListener);
                if (services != null && services.size() > 0) {
                    for (String service : services) {
                        service = URL.decode(service);
                        anyServices.add(service);
                        subscribe(url.setPath(service).addParameters(Constants.INTERFACE_KEY, service,
                                Constants.CHECK_KEY, String.valueOf(false)), listener);
                    }
                }
            } else {
   从此处开始分析
                List<URL> urls = new ArrayList<URL>();
//  toCategoriesPath(url) 对应providers configurators routes节点

                for (String path : toCategoriesPath(url)) {
         // 判断该url上是否存在监听(实则对父节点进行监听)
              ConcurrentMap<NotifyListener, ChildListener> listeners = zkListeners.get(url);
                    if (listeners == null) {
                        zkListeners.putIfAbsent(url, new ConcurrentHashMap<NotifyListener, ChildListener>());
                        listeners = zkListeners.get(url);
                    }
                    ChildListener zkListener = listeners.get(listener);
                    if (zkListener == null) {
//  存储一个用于来通知节点数据发生变化的listener对象
                        listeners.putIfAbsent(listener, new ChildListener() {
                            public void childChanged(String parentPath, List<String> currentChilds) {
                                ZookeeperRegistry.this.notify(url, listener, toUrlsWithEmpty(url, parentPath, currentChilds));
                            }
                        });
                        zkListener = listeners.get(listener);
                    }
                    zkClient.create(path, false);
                      // 对该节点下的子节点注册监听事件   children为该path下的子节点
                    List<String> children = zkClient.addChildListener(path, zkListener);
                      // 返回结果为空列表是 会构造一个empty的协议即empty://
                      if (children != null) {
                        urls.addAll(toUrlsWithEmpty(url, path, children));
                    }
                }
             // 重点代码
                notify(url, listener, urls);
            }
        } catch (Throwable e) {
            throw new RpcException("Failed to subscribe " + url + " to zookeeper " + getUrl() + ", cause: " + e.getMessage(), e);
        }
    }

参数解释

  • url  consumer://169.254.88.190/com.zmz.order.api.IOrderService?application=user-consumer&category=providers,configurators,routers&check=false&default.check=false&dubbo=2.5.5&interface=com.zmz.order.api.IOrderService&methods=doCreateOrder&pid=14796&protocol=dubbo&revision=1.0&side=consumer&timestamp=1572671425766&version=1.0
  • listener    为当前RegisterDirectory
  •  toCategoriesPath(url)
  •  /dubbo/com.zmz.order.api.IOrderService/providers
  • /dubbo/com.zmz.order.api.IOrderService/configurators
  • /dubbo/com.zmz.order.api.IOrderService/routers



分析下如何添加监听

 List<String> children = zkClient.addChildListener(path, zkListener); 这段代码

AbstractZookeeperClient<TargetChildListener> implements ZookeeperClient {

  public List<String> addChildListener(String path, final ChildListener listener) {
        ConcurrentMap<ChildListener, TargetChildListener> listeners = childListeners.get(path);
        if (listeners == null) {
            childListeners.putIfAbsent(path, new ConcurrentHashMap<ChildListener, TargetChildListener>());
            listeners = childListeners.get(path);
        }
        TargetChildListener targetListener = listeners.get(listener);
        if (targetListener == null) {
            listeners.putIfAbsent(listener, createTargetChildListener(path, listener));
            targetListener = listeners.get(listener);
        }
     // 这里是重点
        return addTargetChildListener(path, targetListener);
    }


接下来进入具体的实现可以是Zkclient  也可以是Curator实现

  public class CuratorZookeeperClient extends AbstractZookeeperClient<CuratorWatcher> {

// path  /dubbo/com.zmz.order.api.IOrderService/providers
 //  listener 为 zkListener 即上面的匿名内部类实现
 public List<String> addTargetChildListener(String path, CuratorWatcher listener) {
        try {
       // 此处就很熟悉了
            return client.getChildren().usingWatcher(listener).forPath(path);
        } catch (NoNodeException e) {
            return null;
        } catch (Exception e) {
            throw new IllegalStateException(e.getMessage(), e);
        }
    }


接着分析  notify(url, listener, urls); 这段代码

  1. 参数解疑
  • url consumer://169.254.88.190/com.zmz.order.api.IOrderService?application=user-consumer&category=providers,configurators,routers&check=false&default.check=false&dubbo=2.5.5&interface=com.zmz.order.api.IOrderService&methods=doCreateOrder&pid=17696&protocol=dubbo&revision=1.0&side=consumer&timestamp=1572682533375&version=1.0
  • listener
    RegistryDirectory
  •  urls 为  (分别对应providers routers.configurators(空协议))
  1. dubbo://169.254.88.190:20881/com.zmz.order.api.IOrderService?anyhost=true&application=order-provider&dubbo=2.5.5&generic=false&interface=com.zmz.order.api.IOrderService&methods=doCreateOrder&pid=15332&revision=1.0&side=provider&timestamp=1572674326351&version=1.0
  2.  empty://169.254.88.190/com.zmz.order.api.IOrderService?application=user-consumer&category=configurators&check=false&default.check=false&dubbo=2.5.5&interface=com.zmz.order.api.IOrderService&methods=doCreateOrder&pid=17696&protocol=dubbo&revision=1.0&side=consumer&timestamp=1572682533375&version=1.0
  3. empty://169.254.88.190/com.zmz.order.api.IOrderService?application=user-consumer&category=routers&check=false&default.check=false&dubbo=2.5.5&interface=com.zmz.order.api.IOrderService&methods=doCreateOrder&pid=17696&protocol=dubbo&revision=1.0&side=consumer&timestamp=1572682533375&version=1.0


继续往下走

public abstract class FailbackRegistry extends AbstractRegistry {

 @Override
    protected void notify(URL url, NotifyListener listener, List<URL> urls) {
        if (url == null) {
            throw new IllegalArgumentException("notify url == null");
        }
        if (listener == null) {
            throw new IllegalArgumentException("notify listener == null");
        }
        try {
            doNotify(url, listener, urls);
        } catch (Exception t) {
            // 将失败的通知请求记录到失败列表，定时重试
            Map<NotifyListener, List<URL>> listeners = failedNotified.get(url);
            if (listeners == null) {
                failedNotified.putIfAbsent(url, new ConcurrentHashMap<NotifyListener, List<URL>>());
                listeners = failedNotified.get(url);
            }
            listeners.put(listener, urls);
            logger.error("Failed to notify for subscribe " + url + ", waiting for retry, cause: " + t.getMessage(), t);
        }
    }
 protected void doNotify(URL url, NotifyListener listener, List<URL> urls) {
        super.notify(url, listener, urls);
    }


进入父类中

public abstract class AbstractRegistry implements Registry {

    protected void notify(URL url, NotifyListener listener, List<URL> urls) {
// 参数检查
        if (url == null) {
            throw new IllegalArgumentException("notify url == null");
        }
        if (listener == null) {
            throw new IllegalArgumentException("notify listener == null");
        }
        if ((urls == null || urls.size() == 0)
                && !Constants.ANY_VALUE.equals(url.getServiceInterface())) {
            logger.warn("Ignore empty notify urls for subscribe url " + url);
            return;
        }
        if (logger.isInfoEnabled()) {
            logger.info("Notify urls for subscribe url " + url + ", urls: " + urls);
        }
        Map<String, List<URL>> result = new HashMap<String, List<URL>>();

     // url分类
        for (URL u : urls) {
            if (UrlUtils.isMatch(url, u)) {
                String category = u.getParameter(Constants.CATEGORY_KEY, Constants.DEFAULT_CATEGORY);
                List<URL> categoryList = result.get(category);
                if (categoryList == null) {
                    categoryList = new ArrayList<URL>();
                    result.put(category, categoryList);
                }
                categoryList.add(u);
            }
        }
   // result 存储category 与url的关系
        if (result.size() == 0) {
            return;
        }

        Map<String, List<URL>> categoryNotified = notified.get(url);
        if (categoryNotified == null) {
            notified.putIfAbsent(url, new ConcurrentHashMap<String, List<URL>>());
            categoryNotified = notified.get(url);
        }
        for (Map.Entry<String, List<URL>> entry : result.entrySet()) {
            String category = entry.getKey();
            List<URL> categoryList = entry.getValue();
            categoryNotified.put(category, categoryList);
        // 保存到文件中
   // <dubbo:registry file="d://a/txt"  id="zookeeper"   protocol="zookeeper" address="192.168.25.129:2181"/>
            saveProperties(url);
            listener.notify(categoryList);
        }
    }


这是  saveProperties(url)保存文件的数据格式 (本人进行过拆分)
#Dubbo Registry Cache
#Sun Nov 03 15:09:54 CST 2019
com.zmz.order.api.IOrderService\:1.0=
empty\://169.254.88.190/com.zmz.order.api.IOrderService?
application\=user-consumer&category\=configurators&check\=false
&default.check\=false&dubbo\=2.5.5&
interface\=com.zmz.order.api.IOrderService
&methods\=doCreateOrder&pid\=5388&protocol\=dubbo
&revision\=1.0&side\=consumer&timestamp\=1572764973152&version\=1.0


empty\://169.254.88.190/com.zmz.order.api.IOrderService?application\=user-consumer&category\=
routers&check\=false&default.check\=false&dubbo\=2.5.5&interface\=com.zmz.order.api.IOrderServi
ce&methods\=doCreateOrder&pid\=5388&protocol\=dubbo&revision\=1.0&side\=consumer&timestamp\=15727
64973152&version\=1.0


dubbo\://169.254.88.190\:20881/com.zmz.order.api.IOrderService?anyhost\=true&appl
ication\=order-provider&dubbo\=2.5.5&generic\=false&interface\=com.zmz.order.api.IOrderService&loadbalance
\=roundrobin&methods\=doCreateOrder&pid\=16484&revision\=1.0&side\=provider&timestamp\=1572764847308&version\=1.0

进入listener.notify(categoryList) 中

RegistryDirectory class

 /**
     * 当收到服务变更通知时触发。
     * <p>
     * 通知需处理契约：<br>
     * 1. 总是以服务接口和数据类型为维度全量通知，即不会通知一个服务的同类型的部分数据，用户不需要对比上一次通知结果。<br>
     * 2. 订阅时的第一次通知，必须是一个服务的所有类型数据的全量通知。<br>
     * 3. 中途变更时，允许不同类型的数据分开通知，比如：providers, consumers, routers, overrides，允许只通知其中一种类型，但该类型的数据必须是全量的，不是增量的。<br>
     * 4. 如果一种类型的数据为空，需通知一个empty协议并带category参数的标识性URL数据。<br>
     * 5. 通知者(即注册中心实现)需保证通知的顺序，比如：单线程推送，队列串行化，带版本对比。<br>
     *
     * @param urls 已注册信息列表，总不为空，含义同{@link com.alibaba.dubbo.registry.RegistryService#lookup(URL)}的返回值。
     */
public synchronized void notify(List<URL> urls) {
// invokerurl
        List<URL> invokerUrls = new ArrayList<URL>();
        List<URL> routerUrls = new ArrayList<URL>();
        List<URL> configuratorUrls = new ArrayList<URL>();
        for (URL url : urls) {
            String protocol = url.getProtocol();
            String category = url.getParameter(Constants.CATEGORY_KEY, Constants.DEFAULT_CATEGORY);
            if (Constants.ROUTERS_CATEGORY.equals(category)
                    || Constants.ROUTE_PROTOCOL.equals(protocol)) {
                routerUrls.add(url);
            } else if (Constants.CONFIGURATORS_CATEGORY.equals(category)
                    || Constants.OVERRIDE_PROTOCOL.equals(protocol)) {
                configuratorUrls.add(url);
            } else if (Constants.PROVIDERS_CATEGORY.equals(category)) {
                invokerUrls.add(url);
            } else {
                logger.warn("Unsupported category " + category + " in notified url: " + url + " from registry " + getUrl().getAddress() + " to consumer " + NetUtils.getLocalHost());
            }
        }
        // configurators
        if (configuratorUrls != null && configuratorUrls.size() > 0) {
            this.configurators = toConfigurators(configuratorUrls);
        }
        // routers
        if (routerUrls != null && routerUrls.size() > 0) {
            List<Router> routers = toRouters(routerUrls);
            if (routers != null) { // null - do nothing
                setRouters(routers);
            }
        }
        List<Configurator> localConfigurators = this.configurators; // local reference
        // 合并override参数
        this.overrideDirectoryUrl = directoryUrl;
        if (localConfigurators != null && localConfigurators.size() > 0) {
            for (Configurator configurator : localConfigurators) {
                this.overrideDirectoryUrl = configurator.configure(overrideDirectoryUrl);
            }
        }
        // providers 节点下的数据才会进入该方法中进行处理
        refreshInvoker(invokerUrls);
    }

重点关注 refreshInvoker(invokerUrls);

RegistryDirectory
   private void refreshInvoker(List<URL> invokerUrls) {
// empty 协议
        if (invokerUrls != null && invokerUrls.size() == 1 && invokerUrls.get(0) != null
                && Constants.EMPTY_PROTOCOL.equals(invokerUrls.get(0).getProtocol())) {
            this.forbidden = true; // 禁止访问
            this.methodInvokerMap = null; // 置空列表
            destroyAllInvokers(); // 关闭所有Invoker
        } else {
            this.forbidden = false; // 允许访问
            Map<String, Invoker<T>> oldUrlInvokerMap = this.urlInvokerMap; // local reference
            if (invokerUrls.size() == 0 && this.cachedInvokerUrls != null) {
                invokerUrls.addAll(this.cachedInvokerUrls);
            } else {
                this.cachedInvokerUrls = new HashSet<URL>();
                this.cachedInvokerUrls.addAll(invokerUrls);//缓存invokerUrls列表，便于交叉对比
            }
            if (invokerUrls.size() == 0) {
                return;
            }
// 生成invoker
            Map<String, Invoker<T>> newUrlInvokerMap = toInvokers(invokerUrls);// 将URL列表转成Invoker列表
            Map<String, List<Invoker<T>>> newMethodInvokerMap = toMethodInvokers(newUrlInvokerMap); // 换方法名映射Invoker列表
            // state change
            //如果计算错误，则不进行处理.
            if (newUrlInvokerMap == null || newUrlInvokerMap.size() == 0) {
                logger.error(new IllegalStateException("urls to invokers error .invokerUrls.size :" + invokerUrls.size() + ", invoker.size :0. urls :" + invokerUrls.toString()));
                return;
            }
            this.methodInvokerMap = multiGroup ? toMergeMethodInvokerMap(newMethodInvokerMap) : newMethodInvokerMap;
            this.urlInvokerMap = newUrlInvokerMap;
            try {
                destroyUnusedInvokers(oldUrlInvokerMap, newUrlInvokerMap); // 关闭未使用的Invoker
            } catch (Exception e) {
                logger.warn("destroyUnusedInvokers error. ", e);
            }
        }
    }

  1. 参数解释
  • invokerUrls  为多个协议数据dubbo://169.254.88.190:20881/com.zmz.order.api.IOrderService?anyhost=true&application=order-provider&dubbo=2.5.5&generic=false&interface=com.zmz.order.api.IOrderService&methods=doCreateOrder&pid=15332&revision=1.0&side=provider&timestamp=1572674326351&version=1.0



RegistryDirectory
  private Map<String, Invoker<T>> toInvokers(List<URL> urls) {
        Map<String, Invoker<T>> newUrlInvokerMap = new HashMap<String, Invoker<T>>();
        if (urls == null || urls.size() == 0) {
            return newUrlInvokerMap;
        }
        Set<String> keys = new HashSet<String>();
// 获取可以接受的协议
urls 为provieders的url 协议可能有多个    //查找满足条件的协议
        String queryProtocols = this.queryMap.get(Constants.PROTOCOL_KEY);
        for (URL providerUrl : urls) {
            //如果reference端配置了protocol，则只选择匹配的protocol
            if (queryProtocols != null && queryProtocols.length() > 0) {
                boolean accept = false;
                String[] acceptProtocols = queryProtocols.split(",");
                for (String acceptProtocol : acceptProtocols) {
                    if (providerUrl.getProtocol().equals(acceptProtocol)) {
                        accept = true;
                        break;
                    }
                }
                if (!accept) {
                    continue;
                }
            }


            if (Constants.EMPTY_PROTOCOL.equals(providerUrl.getProtocol())) {
                continue;
            }
            if (!ExtensionLoader.getExtensionLoader(Protocol.class).hasExtension(providerUrl.getProtocol())) {
                logger.error(new IllegalStateException("Unsupported protocol " + providerUrl.getProtocol() + " in notified url: " + providerUrl + " from registry " + getUrl().getAddress() + " to consumer " + NetUtils.getLocalHost()
                        + ", supported protocol: " + ExtensionLoader.getExtensionLoader(Protocol.class).getSupportedExtensions()));
                continue;
            }
   // 合并url参数 这里是为什么消费端配置数据优先的原因  详情参考标注!!1
            URL url = mergeUrl(providerUrl);

            String key = url.toFullString(); // URL参数是排序的
            if (keys.contains(key)) { // 重复URL
                continue;
            }
            keys.add(key);
            // 缓存key为没有合并消费端参数的URL，不管消费端如何合并参数，如果服务端URL发生变化，则重新refer
            Map<String, Invoker<T>> localUrlInvokerMap = this.urlInvokerMap; // local reference
            Invoker<T> invoker = localUrlInvokerMap == null ? null : localUrlInvokerMap.get(key);
            if (invoker == null) { // 缓存中没有，重新refer
                try {
                    boolean enabled = true;
                    if (url.hasParameter(Constants.DISABLED_KEY)) {
                        enabled = !url.getParameter(Constants.DISABLED_KEY, false);
                    } else {
                        enabled = url.getParameter(Constants.ENABLED_KEY, true);
                    }

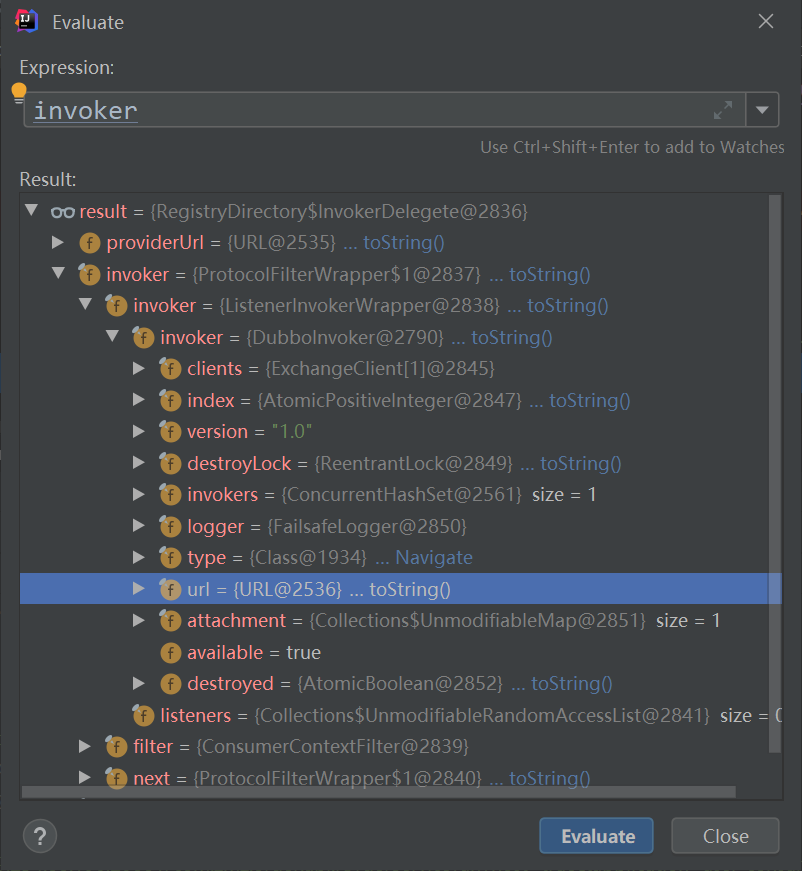

// 此处创建了InvokeDelegete 对象
                    if (enabled) {
                        invoker = new InvokerDelegete<T>(protocol.refer(serviceType, url), url, providerUrl);
                    }
                } catch (Throwable t) {
                    logger.error("Failed to refer invoker for interface:" + serviceType + ",url:(" + url + ")" + t.getMessage(), t);
                }
                if (invoker != null) { // 将新的引用放入缓存
                    newUrlInvokerMap.put(key, invoker);
                }
            } else {
                newUrlInvokerMap.put(key, invoker);
            }
        }
        keys.clear();
        return newUrlInvokerMap;
    }


分析这段代码

  invoker = new InvokerDelegete<T>(protocol.refer(serviceType, url), url, providerUrl);

参数解释

  • protocol 为自适应扩展点
  •  serviceType   com.zmz.order.api.IOrderService
  • url  dubbo://169.254.88.190:20881/com.zmz.order.api.IOrderService?anyhost=true&application=user-consumer&check=false&default.check=false&dubbo=2.5.5&generic=false&interface=com.zmz.order.api.IOrderService&methods=doCreateOrder&pid=17964&protocol=dubbo&revision=1.0&side=consumer&timestamp=1572686580170&version=1.0


此时根据url的protocol 进入DubboProtocol的refer()方法

public class DubboProtocol extends AbstractProtocol {

public <T> Invoker<T> refer(Class<T> serviceType, URL url) throws RpcException {
        // create rpc invoker.
        DubboInvoker<T> invoker = new DubboInvoker<T>(serviceType, url, getClients(url), invokers);
        invokers.add(invoker);
        return invoker;


// 建立连接
 private ExchangeClient[] getClients(URL url) {
        //是否共享连接
        boolean service_share_connect = false;
        int connections = url.getParameter(Constants.CONNECTIONS_KEY, 0);
        //如果connections不配置，则共享连接，否则每服务每连接
        if (connections == 0) {
            service_share_connect = true;
            connections = 1;
        }

        ExchangeClient[] clients = new ExchangeClient[connections];
        for (int i = 0; i < clients.length; i++) {
            if (service_share_connect) {
                clients[i] = getSharedClient(url);
            } else {
                clients[i] = initClient(url);
            }
        }
        return clients;
    }
    }

此时我们知道了invoke为DubboInvoker (当前会进行包装)



key 为 dubbo://169.254.88.190:20881/com.zmz.order.api.IOrderService?anyhost=true&application=user-consumer&check=false&default.check=false&dubbo=2.5.5&generic=false&interface=com.zmz.order.api.IOrderService&methods=doCreateOrder&pid=17964&protocol=dubbo&revision=1.0&side=consumer&timestamp=1572686580170&version=1.0

  • private volatile Map<String, Invoker<T>> urlInvokerMap;


public abstract class AbstractProtocol implements Protocol {

    protected final Logger logger = LoggerFactory.getLogger(getClass());
  // 这个是服务端提供的export
    protected final Map<String, Exporter<?>> exporterMap = new ConcurrentHashMap<String, Exporter<?>>();

   // 这个是消费端的invoker代理
    //TODO SOFEREFENCE
    protected final Set<Invoker<?>> invokers = new ConcurrentHashSet<Invoker<?>>();




继续分析这段代码

RegistryProtocol
private <T> Invoker<T> doRefer(Cluster cluster, Registry registry, Class<T> type, URL url) {
 return cluster.join(directory);
}

  1. 参数解释
  • cluster com.alibaba.dubbo.rpc.cluster.Cluster$Adpative 默认是 FailOverCluster(失败重试)
当前还会进行wrapper MockClusterWrapper(FailOverCluster)
  •  directory 为com.alibaba.dubbo.registry.RegistryDirectory

分析invoker的生成

public class MockClusterWrapper implements Cluster {

    private Cluster cluster;

    public MockClusterWrapper(Cluster cluster) {
        this.cluster = cluster;
    }

    public <T> Invoker<T> join(Directory<T> directory) throws RpcException {
        return new MockClusterInvoker<T>(directory,
                this.cluster.join(directory));
    }

}


接下来进入FailoverCluster 中

public class FailoverCluster implements Cluster {

    public final static String NAME = "failover";

    public <T> Invoker<T> join(Directory<T> directory) throws RpcException {
        return new FailoverClusterInvoker<T>(directory);
    }

}

分析下失败重试如何进行


public class FailoverClusterInvoker<T> extends AbstractClusterInvoker<T> {

    private static final Logger logger = LoggerFactory.getLogger(FailoverClusterInvoker.class);

    public FailoverClusterInvoker(Directory<T> directory) {
        super(directory);
    }

    @SuppressWarnings({"unchecked", "rawtypes"})
    public Result doInvoke(Invocation invocation, final List<Invoker<T>> invokers, LoadBalance loadbalance) throws RpcException {
        List<Invoker<T>> copyinvokers = invokers;
        checkInvokers(copyinvokers, invocation);
//  此处定义了dubbo重试的次数
// Constants.RETRIES_KEY 对应url参数 retries
//   Constants.DEFAULT_RETRIES 对应  public static final int DEFAULT_RETRIES = 2;// 为何加1 ? 重试次数不包括正常调用的一次

       int len = getUrl().getMethodParameter(invocation.getMethodName(),
         Constants.RETRIES_KEY, Constants.DEFAULT_RETRIES) + 1;
        if (len <= 0) {
            len = 1;
        }
        // retry loop.
        RpcException le = null; // last exception.
        List<Invoker<T>> invoked = new ArrayList<Invoker<T>>(copyinvokers.size()); // invoked invokers.
        Set<String> providers = new HashSet<String>(len);
        for (int i = 0; i < len; i++) {
            //重试时，进行重新选择，避免重试时invoker列表已发生变化.
            //注意：如果列表发生了变化，那么invoked判断会失效，因为invoker示例已经改变
            if (i > 0) {
                // 检查是否停止服务(正在调用时 消费端停机)
                checkWhetherDestroyed();
              //
                copyinvokers = list(invocation);
                //重新检查一下
                checkInvokers(copyinvokers, invocation);
            }
            // 负载均衡
            Invoker<T> invoker = select(loadbalance, invocation, copyinvokers, invoked);
            invoked.add(invoker);
            RpcContext.getContext().setInvokers((List) invoked);
            try {
                Result result = invoker.invoke(invocation);
                if (le != null && logger.isWarnEnabled()) {
                    //省略部分代码
                }
                return result;
            } catch (RpcException e) {
                if (e.isBiz()) { // biz exception.
                    throw e;
                }
                le = e;
            } catch (Throwable e) {
                le = new RpcException(e.getMessage(), e);
            } finally {
                providers.add(invoker.getUrl().getAddress());
            }
        }
       //省略部分代码
    }

}

回到最开始的这段代码

ReferenceConfig
return (T) proxyFactory.getProxy(invoker);

参数解释

  • proxyFactory 为ProxyFactory$Adaptive  根据默认实现Javaassist
  • invoker 为生成的invoker MockClusterInovker(FailOverClusterInvoker)
  • 当然RegistryDirectory的invoker是经过了包装的



进入AbstractProxyFactory.getProxy()方法


public abstract class AbstractProxyFactory implements ProxyFactory {
  public <T> T getProxy(Invoker<T> invoker) throws RpcException {
        Class<?>[] interfaces = null;
//  interface -> com.zmz.order.api.IOrderService
// 无interfaces
        String config = invoker.getUrl().getParameter("interfaces");
        if (config != null && config.length() > 0) {
            String[] types = Constants.COMMA_SPLIT_PATTERN.split(config);
            if (types != null && types.length > 0) {
                interfaces = new Class<?>[types.length + 2];
                interfaces[0] = invoker.getInterface();
                interfaces[1] = EchoService.class;
                for (int i = 0; i < types.length; i++) {
                    interfaces[i + 1] = ReflectUtils.forName(types[i]);
                }
            }
        }
//  进入这段代码
        if (interfaces == null) {
            interfaces = new Class<?>[]{invoker.getInterface(), EchoService.class};
        }
        return getProxy(invoker, interfaces);
    }

接着进入子类JavassistProxyFactory 中

public class JavassistProxyFactory extends AbstractProxyFactory {

// 这个是消费端的代理
    @SuppressWarnings("unchecked")
    public <T> T getProxy(Invoker<T> invoker, Class<?>[] interfaces) {
        return (T) Proxy.getProxy(interfaces).newInstance(new InvokerInvocationHandler(invoker));
    }

// 这个是服务端的代理
    public <T> Invoker<T> getInvoker(T proxy, Class<T> type, URL url) {
        // TODO Wrapper类不能正确处理带$的类名
        final Wrapper wrapper = Wrapper.getWrapper(proxy.getClass().getName().indexOf('$') < 0 ? proxy.getClass() : type);
        return new AbstractProxyInvoker<T>(proxy, type, url) {
            @Override
            protected Object doInvoke(T proxy, String methodName,
                                      Class<?>[] parameterTypes,
                                      Object[] arguments) throws Throwable {
                return wrapper.invokeMethod(proxy, methodName, parameterTypes, arguments);
            }
        };
    }

}


从上面的getProxy方法中的InvokerInvocationHandler 对象 我们可以猜想InvokerInvocationHandler 肯定实现了java中的InvocationHandler接口

public class InvokerInvocationHandler implements InvocationHandler {

    private final Invoker<?> invoker;

    public InvokerInvocationHandler(Invoker<?> handler) {
        this.invoker = handler;
    }

    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        String methodName = method.getName();
        Class<?>[] parameterTypes = method.getParameterTypes();
        if (method.getDeclaringClass() == Object.class) {
            return method.invoke(invoker, args);
        }
        if ("toString".equals(methodName) && parameterTypes.length == 0) {
            return invoker.toString();
        }
        if ("hashCode".equals(methodName) && parameterTypes.length == 0) {
            return invoker.hashCode();
        }
        if ("equals".equals(methodName) && parameterTypes.length == 1) {
            return invoker.equals(args[0]);
        }
        return invoker.invoke(new RpcInvocation(method, args)).recreate();
    }

}

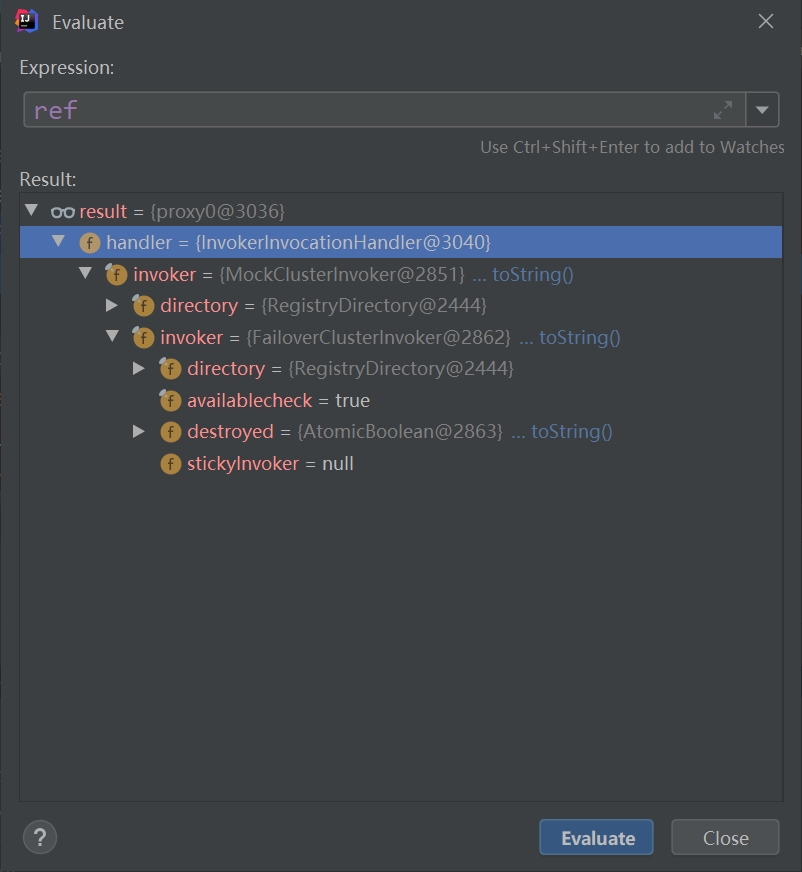

所以最终生成的ref为





接着分析下服务调用的流程

orderService.doCreateOrder("ss");

  • orderService 为前面生成的代理对象ref


因为ref为InvokerInvocationHandler 对象 此时进入invoker方法


public class InvokerInvocationHandler implements InvocationHandler {

    private final Invoker<?> invoker;

    public InvokerInvocationHandler(Invoker<?> handler) {
        this.invoker = handler;
    }

    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
      // 获取方法名称
     String methodName = method.getName();
// 获取方法参数类型
        Class<?>[] parameterTypes = method.getParameterTypes();
        if (method.getDeclaringClass() == Object.class) {
            return method.invoke(invoker, args);
        }
        if ("toString".equals(methodName) && parameterTypes.length == 0) {
            return invoker.toString();
        }
        if ("hashCode".equals(methodName) && parameterTypes.length == 0) {
            return invoker.hashCode();
        }
        if ("equals".equals(methodName) && parameterTypes.length == 1) {
            return invoker.equals(args[0]);
        }
// 进入具体调用
        return invoker.invoke(new RpcInvocation(method, args)).recreate();
    }
}

此处的invoker为MockCluster(FailOverClusterInvoker) 对象

进入MockCluster的invoker 方法


public class MockClusterInvoker<T> implements Invoker<T> {

public Result invoke(Invocation invocation) throws RpcException {
        Result result = null;

// 是否需要执行mock
        String value = directory.getUrl().getMethodParameter(invocation.getMethodName(), Constants.MOCK_KEY, Boolean.FALSE.toString()).trim();
        if (value.length() == 0 || value.equalsIgnoreCase("false")) {
            //no mock
            result = this.invoker.invoke(invocation);
        } else if (value.startsWith("force")) {
            if (logger.isWarnEnabled()) {
                logger.info("force-mock: " + invocation.getMethodName() + " force-mock enabled , url : " + directory.getUrl());
            }
            //force:direct mock
            result = doMockInvoke(invocation, null);
        } else {
            //fail-mock
            try {
                result = this.invoker.invoke(invocation);
            } catch (RpcException e) {
                if (e.isBiz()) {
                    throw e;
                } else {
                    if (logger.isWarnEnabled()) {
                        logger.info("fail-mock: " + invocation.getMethodName() + " fail-mock enabled , url : " + directory.getUrl(), e);
                    }
                    result = doMockInvoke(invocation, e);
                }
            }
        }
        return result;
    }



接着进入 AbstractClusterInvoker (FailoverClusterInvoker<T> extends AbstractClusterInvoker )

public abstract class AbstractClusterInvoker<T> implements Invoker<T> {

    private static final Logger logger = LoggerFactory
            .getLogger(AbstractClusterInvoker.class);
    protected final Directory<T> directory;

    protected final boolean availablecheck;

    private AtomicBoolean destroyed = new AtomicBoolean(false);

    private volatile Invoker<T> stickyInvoker = null;




    public Result invoke(final Invocation invocation) throws RpcException {

         // 检查是否停止
        checkWhetherDestroyed();

// 负载均衡 (稍后单独分析)
        LoadBalance loadbalance;

// 获取invokers
        List<Invoker<T>> invokers = list(invocation);
  // 获取负载均衡策略
        if (invokers != null && invokers.size() > 0) {
  // 从方法上获取
            loadbalance = ExtensionLoader.getExtensionLoader(LoadBalance.class).getExtension(invokers.get(0).getUrl()
                    .getMethodParameter(invocation.getMethodName(), Constants.LOADBALANCE_KEY, Constants.DEFAULT_LOADBALANCE));
        } else {
// 默认为随机
            loadbalance = ExtensionLoader.getExtensionLoader(LoadBalance.class).getExtension(Constants.DEFAULT_LOADBALANCE);
        }
        RpcUtils.attachInvocationIdIfAsync(getUrl(), invocation);
        return doInvoke(invocation, invokers, loadbalance);
    }

    protected void checkWhetherDestroyed() {

        if (destroyed.get()) {
            throw new RpcException("Rpc cluster invoker for " + getInterface() + " on consumer " + NetUtils.getLocalHost()
                    + " use dubbo version " + Version.getVersion()
                    + " is now destroyed! Can not invoke any more.");
        }
    }



    protected abstract Result doInvoke(Invocation invocation, List<Invoker<T>> invokers,
                                       LoadBalance loadbalance) throws RpcException;

// 从服务目录中获取invokers
    protected List<Invoker<T>> list(Invocation invocation) throws RpcException {
        List<Invoker<T>> invokers = directory.list(invocation);
        return invokers;
    }

接着分析核心代码 directory.list(invocation);


此时 RegistryDirectory 根据调用的class  method 查找invoker


AbstractDirectory
 public List<Invoker<T>> list(Invocation invocation) throws RpcException {
     // 判断是否已关闭
        if (destroyed) {
            throw new RpcException("Directory already destroyed .url: " + getUrl());
        }
// 模板方法 交由子类实现
        List<Invoker<T>> invokers = doList(invocation);
        List<Router> localRouters = this.routers; // local reference
        if (localRouters != null && localRouters.size() > 0) {
            for (Router router : localRouters) {
                try {
                    if (router.getUrl() == null || router.getUrl().getParameter(Constants.RUNTIME_KEY, true)) {
                        invokers = router.route(invokers, getConsumerUrl(), invocation);
                    }
                } catch (Throwable t) {
                    logger.error("Failed to execute router: " + getUrl() + ", cause: " + t.getMessage(), t);
                }
            }
        }
        return invokers;
    }



RegistryDirectory<T> extends AbstractDirectory<T>

public List<Invoker<T>> doList(Invocation invocation) {

        if (forbidden) {
            // 1. 没有服务提供者 2. 服务提供者被禁用
            throw new RpcException(RpcException.FORBIDDEN_EXCEPTION,
                "No provider available from registry " + getUrl().getAddress() + " for service " + getConsumerUrl().getServiceKey() + " on consumer " +  NetUtils.getLocalHost()
                    + " use dubbo version " + Version.getVersion() + ", may be providers disabled or not registered ?");
        }
        List<Invoker<T>> invokers = null;
// 直接从本地缓存中获取 (当服务提供者节点变化时 触发notify方法 进行refresh)
   //此时此处不为空
        Map<String, List<Invoker<T>>> localMethodInvokerMap = this.methodInvokerMap; // local reference
        if (localMethodInvokerMap != null && localMethodInvokerMap.size() > 0) {
  // 获取调用的方法名
   String methodName = RpcUtils.getMethodName(invocation);
// 方法实参
            Object[] args = RpcUtils.getArguments(invocation);
      // 第一个参数时枚举时
            if (args != null && args.length > 0 && args[0] != null
                    && (args[0] instanceof String || args[0].getClass().isEnum())) {
                invokers = localMethodInvokerMap.get(methodName + "." + args[0]); // 可根据第一个参数枚举路由
            }
//此时invokers肯定为null
            if (invokers == null) {
       // 从此处获取到invokers
                invokers = localMethodInvokerMap.get(methodName);
            }
            if (invokers == null) {
                invokers = localMethodInvokerMap.get(Constants.ANY_VALUE);
            }
            if (invokers == null) {
                Iterator<List<Invoker<T>>> iterator = localMethodInvokerMap.values().iterator();
                if (iterator.hasNext()) {
                    invokers = iterator.next();
                }
            }
        }
        return invokers == null ? new ArrayList<Invoker<T>>(0) : invokers;
    }


参数介绍

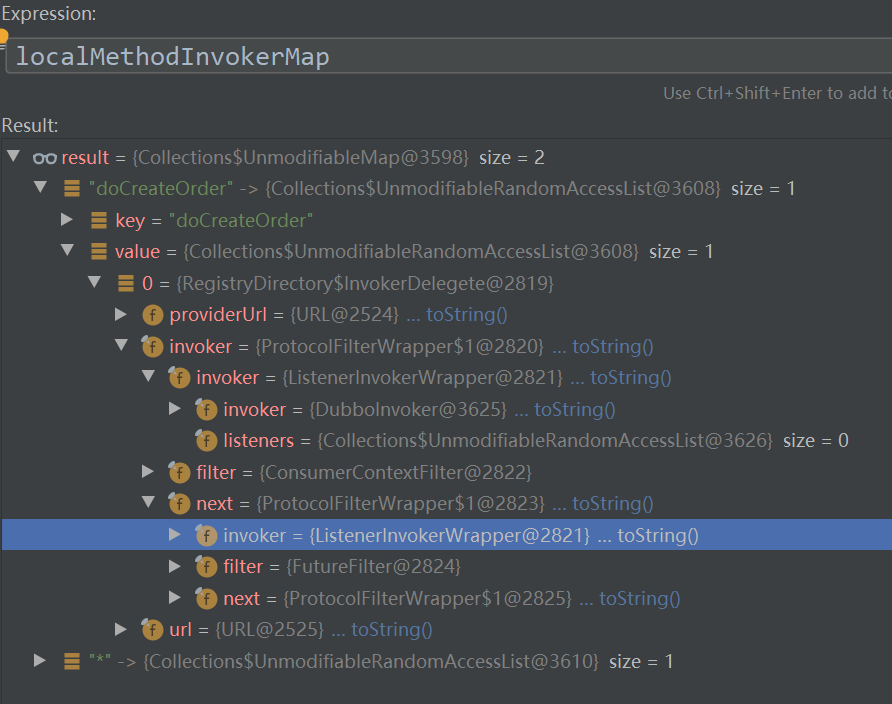

  • localMethodInvokerMap
  •

接着分析  return doInvoke(invocation, invokers, loadbalance);

public class FailoverClusterInvoker<T> extends AbstractClusterInvoker<T> {
  @SuppressWarnings({"unchecked", "rawtypes"})
    public Result doInvoke(Invocation invocation, final List<Invoker<T>> invokers, LoadBalance loadbalance) throws RpcException {
        List<Invoker<T>> copyinvokers = invokers;
        checkInvokers(copyinvokers, invocation);
        int len = getUrl().getMethodParameter(invocation.getMethodName(), Constants.RETRIES_KEY, Constants.DEFAULT_RETRIES) + 1;
        if (len <= 0) {
            len = 1;
        }
        // retry loop.
        RpcException le = null; // last exception.
        List<Invoker<T>> invoked = new ArrayList<Invoker<T>>(copyinvokers.size()); // invoked invokers.
        Set<String> providers = new HashSet<String>(len);
        for (int i = 0; i < len; i++) {
            //重试时，进行重新选择，避免重试时invoker列表已发生变化.
            //注意：如果列表发生了变化，那么invoked判断会失效，因为invoker示例已经改变
            if (i > 0) {
                checkWhetherDestroyed();
                copyinvokers = list(invocation);
                //重新检查一下
                checkInvokers(copyinvokers, invocation);
            }
    // 通过父子啊均衡策略去获取invoker
            Invoker<T> invoker = select(loadbalance, invocation, copyinvokers, invoked);
            invoked.add(invoker);
            RpcContext.getContext().setInvokers((List) invoked);
            try {
      //执行
                Result result = invoker.invoke(invocation);
                if (le != null && logger.isWarnEnabled()) {
                    logger.warn("Although retry the method " + invocation.getMethodName()
                            + " in the service " + getInterface().getName()
                            + " was successful by the provider " + invoker.getUrl().getAddress()
                            + ", but there have been failed providers " + providers
                            + " (" + providers.size() + "/" + copyinvokers.size()
                            + ") from the registry " + directory.getUrl().getAddress()
                            + " on the consumer " + NetUtils.getLocalHost()
                            + " using the dubbo version " + Version.getVersion() + ". Last error is: "
                            + le.getMessage(), le);
                }
                return result;
            } catch (RpcException e) {
                if (e.isBiz()) { // biz exception.
                    throw e;
                }
                le = e;
            } catch (Throwable e) {
                le = new RpcException(e.getMessage(), e);
            } finally {
                providers.add(invoker.getUrl().getAddress());
            }
        }
        throw new RpcException(le != null ? le.getCode() : 0, "Failed to invoke the method "
                + invocation.getMethodName() + " in the service " + getInterface().getName()
                + ". Tried " + len + " times of the providers " + providers
                + " (" + providers.size() + "/" + copyinvokers.size()
                + ") from the registry " + directory.getUrl().getAddress()
                + " on the consumer " + NetUtils.getLocalHost() + " using the dubbo version "
                + Version.getVersion() + ". Last error is: "
                + (le != null ? le.getMessage() : ""), le != null && le.getCause() != null ? le.getCause() : le);
    }



public abstract class AbstractClusterInvoker<T> implements Invoker<T> {

 private Invoker<T> doselect(LoadBalance loadbalance, Invocation invocation, List<Invoker<T>> invokers, List<Invoker<T>> selected) throws RpcException {
        if (invokers == null || invokers.size() == 0)
            return null;
        if (invokers.size() == 1)
            return invokers.get(0);
        // 如果只有两个invoker，退化成轮循
        if (invokers.size() == 2 && selected != null && selected.size() > 0) {
            return selected.get(0) == invokers.get(0) ? invokers.get(1) : invokers.get(0);
        }
// 通过负载均衡策略去获取
        Invoker<T> invoker = loadbalance.select(invokers, getUrl(), invocation);

        //如果 selected中包含（优先判断） 或者 不可用&&availablecheck=true 则重试.
        if ((selected != null && selected.contains(invoker))
                || (!invoker.isAvailable() && getUrl() != null && availablecheck)) {
            try {
                Invoker<T> rinvoker = reselect(loadbalance, invocation, invokers, selected, availablecheck);
                if (rinvoker != null) {
                    invoker = rinvoker;
                } else {
                    //看下第一次选的位置，如果不是最后，选+1位置.
                    int index = invokers.indexOf(invoker);
                    try {
                        //最后在避免碰撞
                        invoker = index < invokers.size() - 1 ? invokers.get(index + 1) : invoker;
                    } catch (Exception e) {
                        logger.warn(e.getMessage() + " may because invokers list dynamic change, ignore.", e);
                    }
                }
            } catch (Throwable t) {
                logger.error("clustor relselect fail reason is :" + t.getMessage() + " if can not slove ,you can set cluster.availablecheck=false in url", t);
            }
        }
        return invoker;
    }


接着分析下负载均衡策略

RoundRobinLoadBalance 轮询
RandomLoadBalance  随机
LeastActiveLoadBalance  最少活跃度调用
ConsistentHashLoadBalance   一致性哈希 (每个节点虚拟出160个子节点)

先从轮询算法开始一个个分析

  • RoundRobinLoadBalance  轮询算法(加权轮询)

 private final ConcurrentMap<String, AtomicPositiveInteger> sequences =
new ConcurrentHashMap<String, AtomicPositiveInteger>();
protected <T> Invoker<T> doSelect(List<Invoker<T>> invokers, URL url, Invocation invocation) {

   String key = invokers.get(0).getUrl().getServiceKey() + "." + invocation.getMethodName();
        int length = invokers.size(); // 总个数
        int maxWeight = 0; // 最大权重
        int minWeight = Integer.MAX_VALUE; // 最小权重
        final LinkedHashMap<Invoker<T>, IntegerWrapper> invokerToWeightMap = new LinkedHashMap<Invoker<T>, IntegerWrapper>();
      // 总权重
     int weightSum = 0;
        for (int i = 0; i < length; i++) {
            int weight = getWeight(invokers.get(i), invocation);
            maxWeight = Math.max(maxWeight, weight); // 累计最大权重
            minWeight = Math.min(minWeight, weight); // 累计最小权重
            if (weight > 0) {
                invokerToWeightMap.put(invokers.get(i), new IntegerWrapper(weight));
                weightSum += weight;
            }
        }
       // 查看当前第几次调用
        AtomicPositiveInteger sequence = sequences.get(key);
        if (sequence == null) {
            sequences.putIfAbsent(key, new AtomicPositiveInteger());
            sequence = sequences.get(key);
        }

        int currentSequence = sequence.getAndIncrement();
        if (maxWeight > 0 && minWeight < maxWeight) { // 权重不一样
            // 取模
          int mod = currentSequence % weightSum;

            for (int i = 0; i < maxWeight; i++) {
                for (Map.Entry<Invoker<T>, IntegerWrapper> each : invokerToWeightMap.entrySet()) {
                    final Invoker<T> k = each.getKey();
                    final IntegerWrapper v = each.getValue();
                    if (mod == 0 && v.getValue() > 0) {
                        return k;
                    }
                    if (v.getValue() > 0) {
                        v.decrement();
                        mod--;
                    }
                }
            }
        }
        // 取模轮循  权重相等时
        return invokers.get(currentSequence % length);
    }


未完待续!!!!!!


  • url级别
标注!!1  url参数合并


RegistryDirectory
 private URL mergeUrl(URL providerUrl) {
        providerUrl = ClusterUtils.mergeUrl(providerUrl, queryMap); // 合并消费端参数
}

public static URL mergeUrl(URL remoteUrl, Map<String, String> localMap) {
        Map<String, String> map = new HashMap<String, String>();
// 服务提供者url 参数
        Map<String, String> remoteMap = remoteUrl.getParameters();


        if (remoteMap != null && remoteMap.size() > 0) {
            map.putAll(remoteMap);

            //线程池配置不使用提供者的
            map.remove(Constants.THREAD_NAME_KEY);
            map.remove(Constants.DEFAULT_KEY_PREFIX + Constants.THREAD_NAME_KEY);

            map.remove(Constants.THREADPOOL_KEY);
            map.remove(Constants.DEFAULT_KEY_PREFIX + Constants.THREADPOOL_KEY);

            map.remove(Constants.CORE_THREADS_KEY);
            map.remove(Constants.DEFAULT_KEY_PREFIX + Constants.CORE_THREADS_KEY);

            map.remove(Constants.THREADS_KEY);
            map.remove(Constants.DEFAULT_KEY_PREFIX + Constants.THREADS_KEY);

            map.remove(Constants.QUEUES_KEY);
            map.remove(Constants.DEFAULT_KEY_PREFIX + Constants.QUEUES_KEY);

            map.remove(Constants.ALIVE_KEY);
            map.remove(Constants.DEFAULT_KEY_PREFIX + Constants.ALIVE_KEY);
        }

        if (localMap != null && localMap.size() > 0) {
            map.putAll(localMap);
        }
        if (remoteMap != null && remoteMap.size() > 0) {
            // 版本号使用提供者的
            String dubbo = remoteMap.get(Constants.DUBBO_VERSION_KEY);
            if (dubbo != null && dubbo.length() > 0) {
                map.put(Constants.DUBBO_VERSION_KEY, dubbo);
            }
            String version = remoteMap.get(Constants.VERSION_KEY);
            if (version != null && version.length() > 0) {
                map.put(Constants.VERSION_KEY, version);
            }
            String group = remoteMap.get(Constants.GROUP_KEY);
            if (group != null && group.length() > 0) {
                map.put(Constants.GROUP_KEY, group);
            }
            String methods = remoteMap.get(Constants.METHODS_KEY);
            if (methods != null && methods.length() > 0) {
                map.put(Constants.METHODS_KEY, methods);
            }
            // 合并filter和listener
            String remoteFilter = remoteMap.get(Constants.REFERENCE_FILTER_KEY);
            String localFilter = localMap.get(Constants.REFERENCE_FILTER_KEY);
            if (remoteFilter != null && remoteFilter.length() > 0
                    && localFilter != null && localFilter.length() > 0) {
                localMap.put(Constants.REFERENCE_FILTER_KEY, remoteFilter + "," + localFilter);
            }
            String remoteListener = remoteMap.get(Constants.INVOKER_LISTENER_KEY);
            String localListener = localMap.get(Constants.INVOKER_LISTENER_KEY);
            if (remoteListener != null && remoteListener.length() > 0
                    && localListener != null && localListener.length() > 0) {
                localMap.put(Constants.INVOKER_LISTENER_KEY, remoteListener + "," + localListener);
            }
        }

        return remoteUrl.clearParameters().addParameters(map);
    }


avatar
文章
阅读
粉丝
