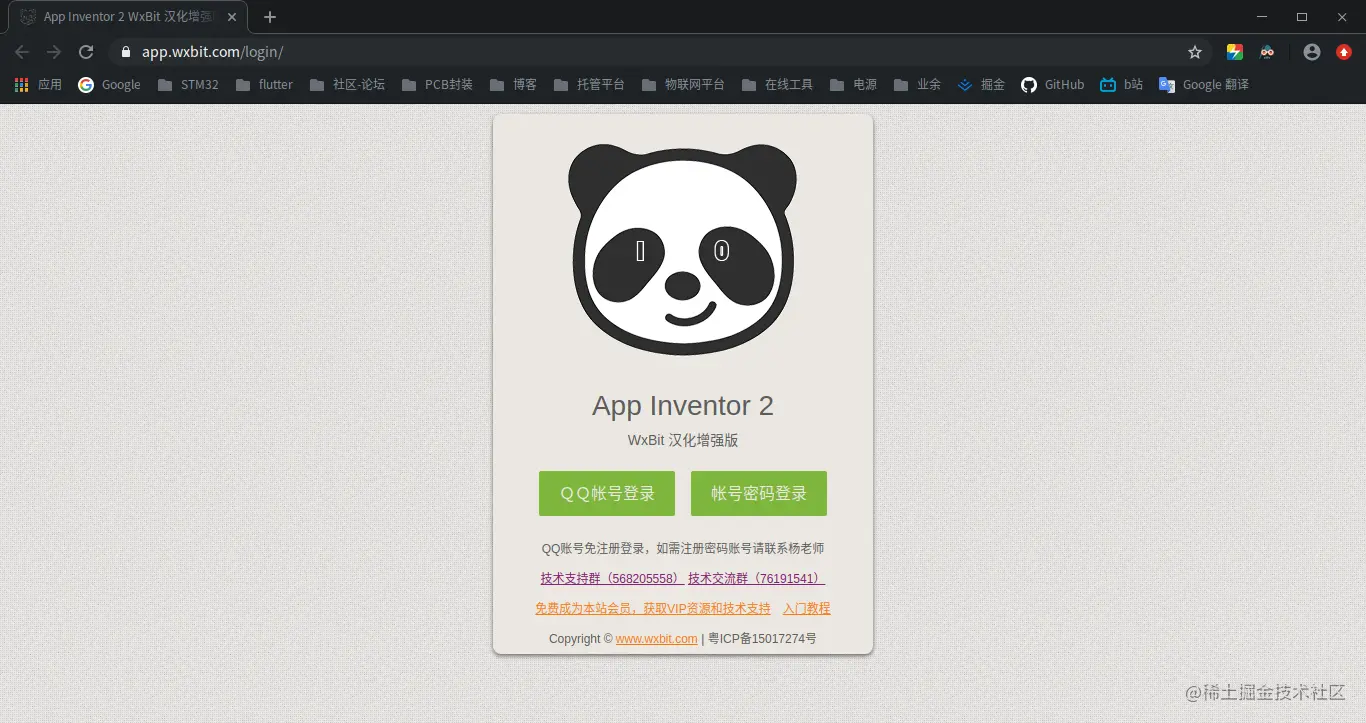

安卓APP制作

https://app.wxbit.com/

1_BLE

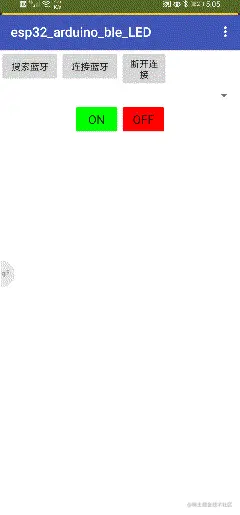

1.1_ble点灯

#include<Arduino.h>
#include <BLEDevice.h>
#include <BLEServer.h>
#include <BLEUtils.h>
#include <BLE2902.h>

BLECharacteristic *pCharacteristic;
bool deviceConnected = false;
float txValue = 0;
const int LED = 2;

#define SERVICE_UUID           "6E400001-B5A3-F393-E0A9-E50E24DCCA9E" // UART service UUID
#define CHARACTERISTIC_UUID_RX "6E400002-B5A3-F393-E0A9-E50E24DCCA9E"
#define CHARACTERISTIC_UUID_TX "6E400003-B5A3-F393-E0A9-E50E24DCCA9E"

class MyServerCallbacks: public BLEServerCallbacks {
    void onConnect(BLEServer* pServer) {
      deviceConnected = true;
    };

    void onDisconnect(BLEServer* pServer) {
      deviceConnected = false;
    }
};

class MyCallbacks: public BLECharacteristicCallbacks {
    void onWrite(BLECharacteristic *pCharacteristic) {
      std::string rxValue = pCharacteristic->getValue();

      if (rxValue.length() > 0) {
        Serial.println("*********");
        Serial.print("Received Value: ");

        for (int i = 0; i < rxValue.length(); i++) {
          Serial.print(rxValue[i]);
        }

        Serial.println();

        // Do stuff based on the command received from the app
        if (rxValue.find("1") != -1) {
          Serial.print("Turning ON!");
          digitalWrite(LED, HIGH);
        }
        else if (rxValue.find("0") != -1) {
          Serial.print("Turning OFF!");
          digitalWrite(LED, LOW);
        }

        Serial.println();
        Serial.println("*********");
      }
    }
};

void setup() {
  Serial.begin(115200);

  pinMode(LED, OUTPUT);

  // Create the BLE Device
  BLEDevice::init("ESP32 UART Test"); // Give it a name

  // Create the BLE Server
  BLEServer *pServer = BLEDevice::createServer();
  pServer->setCallbacks(new MyServerCallbacks());

  // Create the BLE Service
  BLEService *pService = pServer->createService(SERVICE_UUID);

  // Create a BLE Characteristic
  pCharacteristic = pService->createCharacteristic(
                      CHARACTERISTIC_UUID_TX,
                      BLECharacteristic::PROPERTY_NOTIFY
                    );

  pCharacteristic->addDescriptor(new BLE2902());

  BLECharacteristic *pCharacteristic = pService->createCharacteristic(
                                         CHARACTERISTIC_UUID_RX,
                                         BLECharacteristic::PROPERTY_WRITE
                                       );

  pCharacteristic->setCallbacks(new MyCallbacks());

  // Start the service
  pService->start();

  // Start advertising
  pServer->getAdvertising()->start();
  Serial.println("Waiting a client connection to notify...");
}

void loop() {

}

1.1_ble_BME280

#include <BLEDevice.h>
#include <BLEServer.h>
#include <BLEUtils.h>
#include <BLE2902.h>

#include <Adafruit_Sensor.h>
#include <Adafruit_BME280.h>

BLECharacteristic *pCharacteristic;

bool deviceConnected = false;

#define SEALEVELPRESSURE_HPA (1013.25)

Adafruit_BME280  bme280;

// Veja o link seguinte se quiser gerar seus próprios UUIDs:
// https://www.uuidgenerator.net/

#define SERVICE_UUID           "6E400001-B5A3-F393-E0A9-E50E24DCCA9E" // UART service UUID
#define CHARACTERISTIC_UUID_RX "6E400002-B5A3-F393-E0A9-E50E24DCCA9E"
#define DHTDATA_CHAR_UUID      "6E400003-B5A3-F393-E0A9-E50E24DCCA9E"


class MyServerCallbacks: public BLEServerCallbacks {
    void onConnect(BLEServer* pServer) {
      deviceConnected = true;
    };

    void onDisconnect(BLEServer* pServer) {
      deviceConnected = false;
    }
};

class MyCallbacks: public BLECharacteristicCallbacks {
    void onWrite(BLECharacteristic *pCharacteristic) {
      std::string rxValue = pCharacteristic->getValue();
      Serial.println(rxValue[0]);

      if (rxValue.length() > 0) {
        Serial.println("*********");
        Serial.print("Received Value: ");

        for (int i = 0; i < rxValue.length(); i++) {
          Serial.print(rxValue[i]);
        }
        Serial.println();
        Serial.println("*********");
      }

      // Processa o caracter recebido do aplicativo. Se for A acende o LED. B apaga o LED
      if (rxValue.find("1") != -1) {
        Serial.println("Turning ON!");
      }
      else if (rxValue.find("0") != -1) {
        Serial.println("Turning OFF!");
      }
    }
};

void setup() {
  Serial.begin(9600);

   // 初始化BME280传感器
  if( bme280.begin(0x76) == 0 )
  {  // 连接错误或设备地址错误！
    while(1);                 // stay here
  }

  // Create the BLE Device
  BLEDevice::init("ESP32 BME280"); // Give it a name

  // Configura o dispositivo como Servidor BLE
  BLEServer *pServer = BLEDevice::createServer();
  pServer->setCallbacks(new MyServerCallbacks());

  // Cria o servico UART
  BLEService *pService = pServer->createService(SERVICE_UUID);

  // Cria uma Característica BLE para envio dos dados
  pCharacteristic = pService->createCharacteristic(
                      DHTDATA_CHAR_UUID,
                      BLECharacteristic::PROPERTY_NOTIFY
                    );

  pCharacteristic->addDescriptor(new BLE2902());

  // cria uma característica BLE para recebimento dos dados
  BLECharacteristic *pCharacteristic = pService->createCharacteristic(
                                         CHARACTERISTIC_UUID_RX,
                                         BLECharacteristic::PROPERTY_WRITE
                                       );

  pCharacteristic->setCallbacks(new MyCallbacks());

  // Inicia o serviço
  pService->start();

  // Inicia a descoberta do ESP32
  pServer->getAdvertising()->start();
  Serial.println("Esperando um cliente se conectar...");
}

void loop() {
  if (deviceConnected) {

    //从BME280传感器读取温度,湿度,气压,海拔
  int temp = bme280.readTemperature();    // 温度
  int humi = bme280.readHumidity();       // 湿度
  int pres = bme280.readPressure();       // 气压
  int altitude =bme280.readAltitude(SEALEVELPRESSURE_HPA); //海拔

    // testa se retorno é valido, caso contrário algo está errado.
    if (isnan(temp) || isnan(humi) || isnan(pres) || isnan(altitude))
    {
      Serial.println("Failed to read from BME280");
    }
    else
    {
      Serial.print("Umidade: ");
      Serial.print(humi);
      Serial.print(" %");
      Serial.print("Temperatura: ");
      Serial.print(temp);
      Serial.println(" *C");
      Serial.print("Pressure: ");
      Serial.print(pres);
      Serial.println("hpa");
      Serial.print("Altitude: ");
      Serial.print(altitude);
      Serial.println("m");
    }

    char humidityString[2];
    char temperatureString[2];
    char presString[2];
    char altitudeString[2];
    dtostrf(humi, 1, 2, humidityString);
    dtostrf(temp, 1, 2, temperatureString);
    dtostrf(pres, 1, 2, presString);
    dtostrf(altitude, 1, 2, altitudeString);

    char dhtDataString[16];
    sprintf(dhtDataString, "%d,%d,%d,%d", temp, humi,pres,altitude);

    pCharacteristic->setValue(dhtDataString);

    pCharacteristic->notify(); // Envia o valor para o aplicativo!
    Serial.print("*** Dado enviado: ");
    Serial.print(dhtDataString);
    Serial.println(" ***");
  }
  delay(1000);
}

1.3_打印BLE值

#include <NimBLEDevice.h>

static NimBLEServer* pServer;

#define SERVICE_UUID "4fafc201-1fb5-459e-8fcc-c5c9c331914b"
#define CHARACTERISTIC_UUID "beb5483e-36e1-4688-b7f5-ea07361b26a8"

class MyServerCallbacks: public NimBLEServerCallbacks {
    void onConnect(NimBLEServer* pServer) {
        NimBLEDevice::startAdvertising();
    };
    void onDisconnect(NimBLEServer* pServer) {
        NimBLEDevice::startAdvertising();
    };
};

class MyCallbacks: public NimBLECharacteristicCallbacks {
    void onWrite(NimBLECharacteristic* pCharacteristic) {
        Serial.println(pCharacteristic->getValue().c_str());
    };
};

void setup() {
    Serial.begin(115200);

    /** sets device name */
    NimBLEDevice::init("NimBLE-Arduino");

    NimBLEDevice::setSecurityAuth(BLE_SM_PAIR_AUTHREQ_BOND);

    pServer = NimBLEDevice::createServer();
    pServer->setCallbacks(new MyServerCallbacks());

    NimBLEService* pDeadService = pServer->createService(SERVICE_UUID);
    NimBLECharacteristic* pCharacteristic = pDeadService->createCharacteristic(
                                               CHARACTERISTIC_UUID,
                                               NIMBLE_PROPERTY::WRITE |
                               /** Require a secure connection for read and write access */
                                               NIMBLE_PROPERTY::WRITE_ENC   // only allow writing if paired / encrypted
                                              );

    pCharacteristic->setCallbacks(new MyCallbacks());

    pDeadService->start();

    NimBLEAdvertising* pAdvertising = NimBLEDevice::getAdvertising();
    pAdvertising->addServiceUUID(SERVICE_UUID);
    pAdvertising->setScanResponse(true);
    pAdvertising->start();
}

void loop() {
  /** 在这里做你的事，这只是向所有连接的客户端发送垃圾邮件通知 */
    if(pServer->getConnectedCount()) {
        NimBLEService* pSvc = pServer->getServiceByUUID(SERVICE_UUID);
        if(pSvc) {
            NimBLECharacteristic* pChr = pSvc->getCharacteristic(CHARACTERISTIC_UUID);
            if(pChr) {
                pChr->notify(true);
            }
        }
    }

  delay(2000);
}

2_WIFI

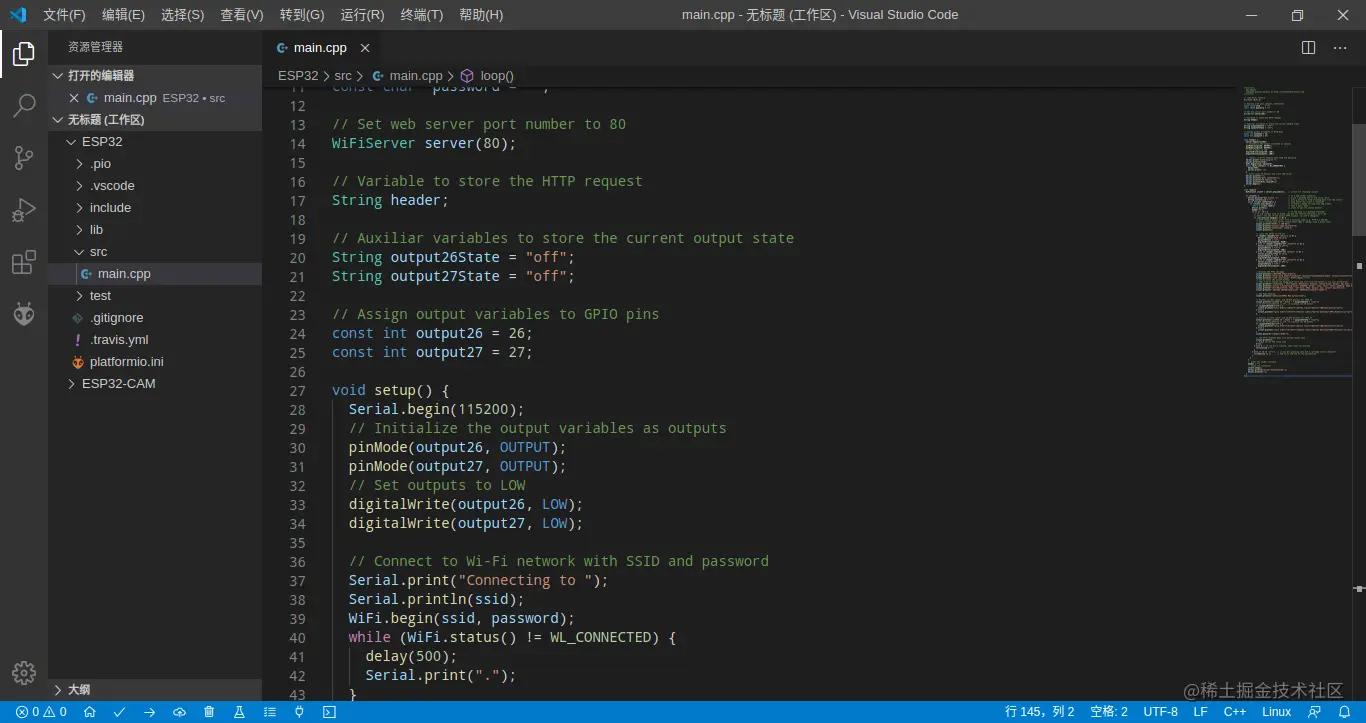

2.1_WIFI点灯

设置WIFI名和密码

/*********
  Rui Santos
  Complete project details at http://randomnerdtutorials.com
*********/

// Load Wi-Fi library
#include <WiFi.h>

// Replace with your network credentials
const char* ssid     = "";
const char* password = "";

// Set web server port number to 80
WiFiServer server(80);

// Variable to store the HTTP request
String header;

// Auxiliar variables to store the current output state
String output26State = "off";
String output27State = "off";

// Assign output variables to GPIO pins
const int output26 = 26;
const int output27 = 27;

void setup() {
  Serial.begin(115200);
  // Initialize the output variables as outputs
  pinMode(output26, OUTPUT);
  pinMode(output27, OUTPUT);
  // Set outputs to LOW
  digitalWrite(output26, LOW);
  digitalWrite(output27, LOW);

  // Connect to Wi-Fi network with SSID and password
  Serial.print("Connecting to ");
  Serial.println(ssid);
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

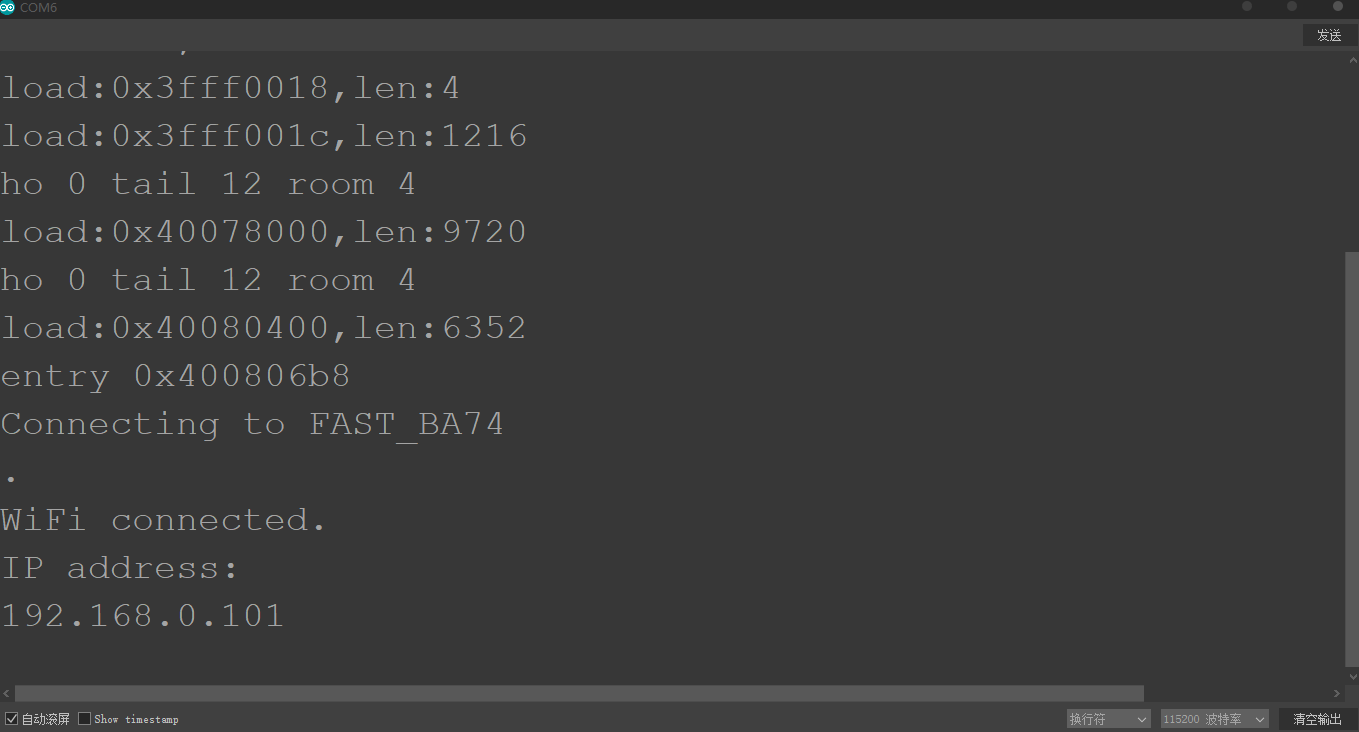

  // Print local IP address and start web server
  Serial.println("");
  Serial.println("WiFi connected.");
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());
  server.begin();
}

void loop(){
  WiFiClient client = server.available();   // Listen for incoming clients

  if (client) {                             // If a new client connects,
    Serial.println("New Client.");          // print a message out in the serial port
    String currentLine = "";                // make a String to hold incoming data from the client
    while (client.connected()) {            // loop while the client's connected
      if (client.available()) {             // if there's bytes to read from the client,
        char c = client.read();             // read a byte, then
        Serial.write(c);                    // print it out the serial monitor
        header += c;
        if (c == '\n') {                    // if the byte is a newline character
          // if the current line is blank, you got two newline characters in a row.
          // that's the end of the client HTTP request, so send a response:
          if (currentLine.length() == 0) {
            // HTTP headers always start with a response code (e.g. HTTP/1.1 200 OK)
            // and a content-type so the client knows what's coming, then a blank line:
            client.println("HTTP/1.1 200 OK");
            client.println("Content-type:text/html");
            client.println("Connection: close");
            client.println();

            // turns the GPIOs on and off
            if (header.indexOf("GET /26/on") >= 0) {
              Serial.println("GPIO 26 on");
              output26State = "on";
              digitalWrite(output26, HIGH);
            } else if (header.indexOf("GET /26/off") >= 0) {
              Serial.println("GPIO 26 off");
              output26State = "off";
              digitalWrite(output26, LOW);
            } else if (header.indexOf("GET /27/on") >= 0) {
              Serial.println("GPIO 27 on");
              output27State = "on";
              digitalWrite(output27, HIGH);
            } else if (header.indexOf("GET /27/off") >= 0) {
              Serial.println("GPIO 27 off");
              output27State = "off";
              digitalWrite(output27, LOW);
            }

            // Display the HTML web page
            client.println("<!DOCTYPE html><html>");
            client.println("<head><meta name=\"viewport\" content=\"width=device-width, initial-scale=1\">");
            client.println("<link rel=\"icon\" href=\"data:,\">");
            // CSS to style the on/off buttons
            // Feel free to change the background-color and font-size attributes to fit your preferences
            client.println("<style>html { font-family: Helvetica; display: inline-block; margin: 0px auto; text-align: center;}");
            client.println(".button { background-color: #4CAF50; border: none; color: white; padding: 16px 40px;");
            client.println("text-decoration: none; font-size: 30px; margin: 2px; cursor: pointer;}");
            client.println(".button2 {background-color: #555555;}</style></head>");

            // Web Page Heading

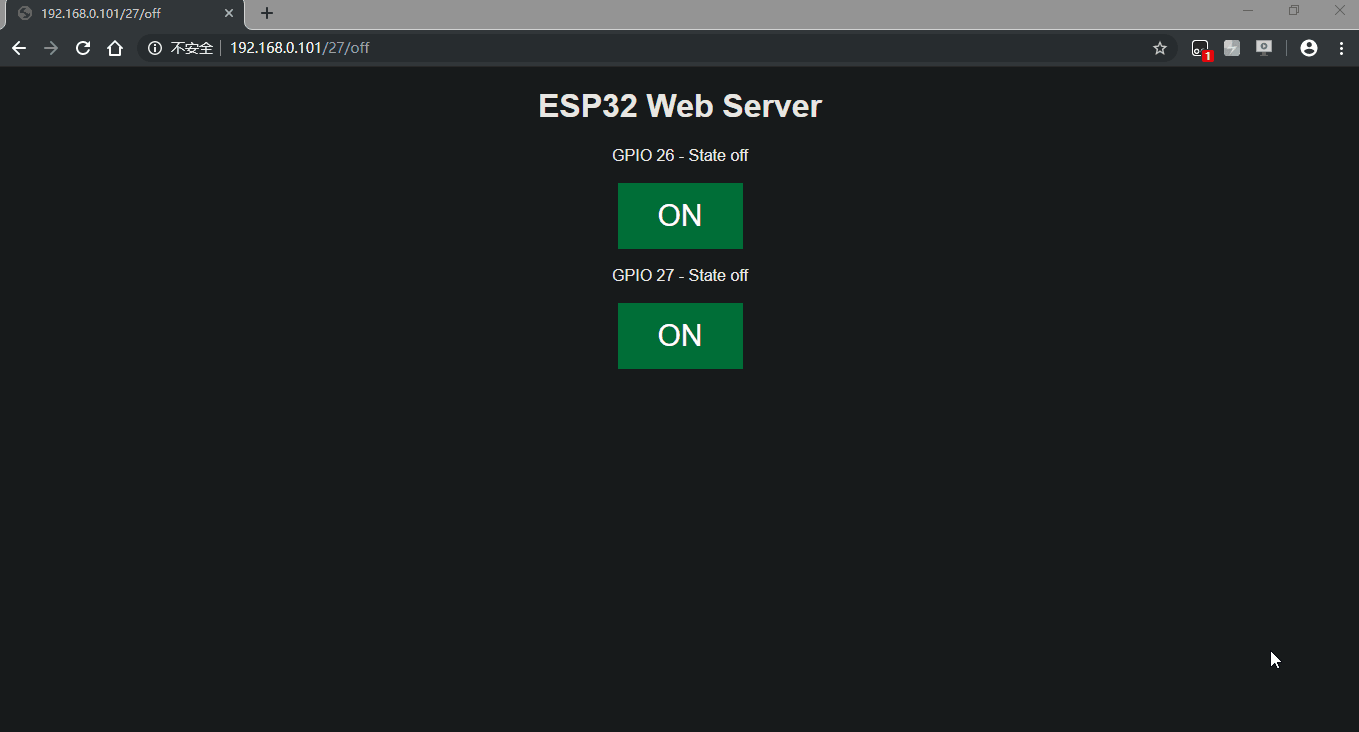

            client.println("<body><h1>ESP32 Web Server</h1>");

            // Display current state, and ON/OFF buttons for GPIO 26
            client.println("<p>GPIO 26 - State " + output26State + "</p>");
            // If the output26State is off, it displays the ON button
            if (output26State=="off") {
              client.println("<p><a href=\"/26/on\"><button class=\"button\">ON</button></a></p>");
            } else {
              client.println("<p><a href=\"/26/off\"><button class=\"button button2\">OFF</button></a></p>");
            }

            // Display current state, and ON/OFF buttons for GPIO 27
            client.println("<p>GPIO 27 - State " + output27State + "</p>");
            // If the output27State is off, it displays the ON button
            if (output27State=="off") {
              client.println("<p><a href=\"/27/on\"><button class=\"button\">ON</button></a></p>");
            } else {
              client.println("<p><a href=\"/27/off\"><button class=\"button button2\">OFF</button></a></p>");
            }
            client.println("</body></html>");

            // The HTTP response ends with another blank line
            client.println();
            // Break out of the while loop
            break;
          } else { // if you got a newline, then clear currentLine
            currentLine = "";
          }
        } else if (c != '\r') {  // if you got anything else but a carriage return character,
          currentLine += c;      // add it to the end of the currentLine
        }
      }
    }
    // Clear the header variable
    header = "";
    // Close the connection
    client.stop();
    Serial.println("Client disconnected.");
    Serial.println("");
  }
}

2.2_WIFI_BME280

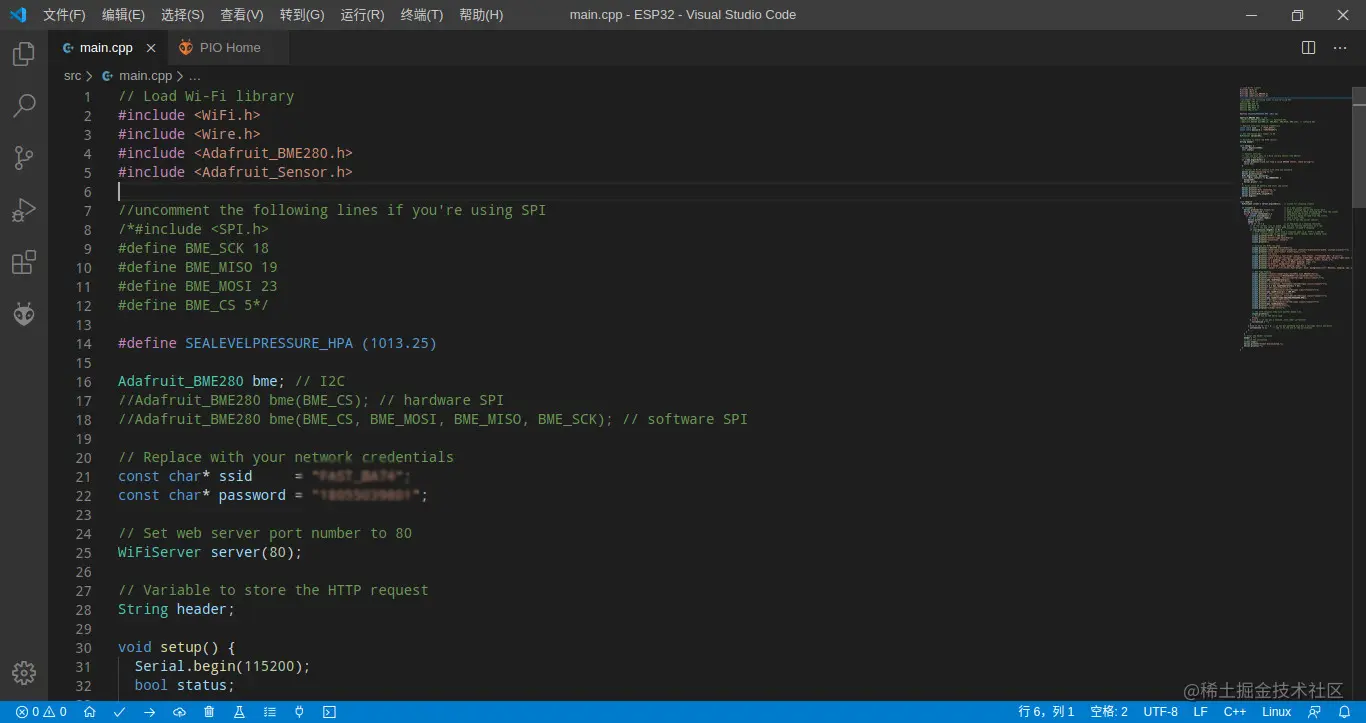

// Load Wi-Fi library
#include <WiFi.h>
#include <Wire.h>
#include <Adafruit_BME280.h>
#include <Adafruit_Sensor.h>

//uncomment the following lines if you're using SPI
/*#include <SPI.h>
#define BME_SCK 18
#define BME_MISO 19
#define BME_MOSI 23
#define BME_CS 5*/

#define SEALEVELPRESSURE_HPA (1013.25)

Adafruit_BME280 bme; // I2C
//Adafruit_BME280 bme(BME_CS); // hardware SPI
//Adafruit_BME280 bme(BME_CS, BME_MOSI, BME_MISO, BME_SCK); // software SPI

// Replace with your network credentials
const char* ssid     = "";
const char* password = "";

// Set web server port number to 80
WiFiServer server(80);

// Variable to store the HTTP request
String header;

void setup() {
  Serial.begin(115200);
  bool status;

  // default settings
  // (you can also pass in a Wire library object like &Wire2)
  //status = bme.begin();
  if (!bme.begin(0x76)) {
    Serial.println("Could not find a valid BME280 sensor, check wiring!");
    while (1);
  }

  // Connect to Wi-Fi network with SSID and password
  Serial.print("Connecting to ");
  Serial.println(ssid);
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  // Print local IP address and start web server
  Serial.println("");
  Serial.println("WiFi connected.");
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());
  server.begin();
}

void loop(){
  WiFiClient client = server.available();   // Listen for incoming clients

  if (client) {                             // If a new client connects,
    Serial.println("New Client.");          // print a message out in the serial port
    String currentLine = "";                // make a String to hold incoming data from the client
    while (client.connected()) {            // loop while the client's connected
      if (client.available()) {             // if there's bytes to read from the client,
        char c = client.read();             // read a byte, then
        Serial.write(c);                    // print it out the serial monitor
        header += c;
        if (c == '\n') {                    // if the byte is a newline character
          // if the current line is blank, you got two newline characters in a row.
          // that's the end of the client HTTP request, so send a response:
          if (currentLine.length() == 0) {
            // HTTP headers always start with a response code (e.g. HTTP/1.1 200 OK)
            // and a content-type so the client knows what's coming, then a blank line:
            client.println("HTTP/1.1 200 OK");
            client.println("Content-type:text/html");
            client.println("Connection: close");
            client.println();

            // Display the HTML web page
            client.println("<!DOCTYPE html><html>");
            client.println("<head><meta name=\"viewport\" content=\"width=device-width, initial-scale=1\">");
            client.println("<link rel=\"icon\" href=\"data:,\">");
            // CSS to style the table
            client.println("<style>body { text-align: center; font-family: \"Trebuchet MS\", Arial;}");
            client.println("table { border-collapse: collapse; width:35%; margin-left:auto; margin-right:auto; }");
            client.println("th { padding: 12px; background-color: #0043af; color: white; }");
            client.println("tr { border: 1px solid #ddd; padding: 12px; }");
            client.println("tr:hover { background-color: #bcbcbc; }");
            client.println("td { border: none; padding: 12px; }");
            client.println(".sensor { color:white; font-weight: bold; background-color: #bcbcbc; padding: 1px; }");

            // Web Page Heading

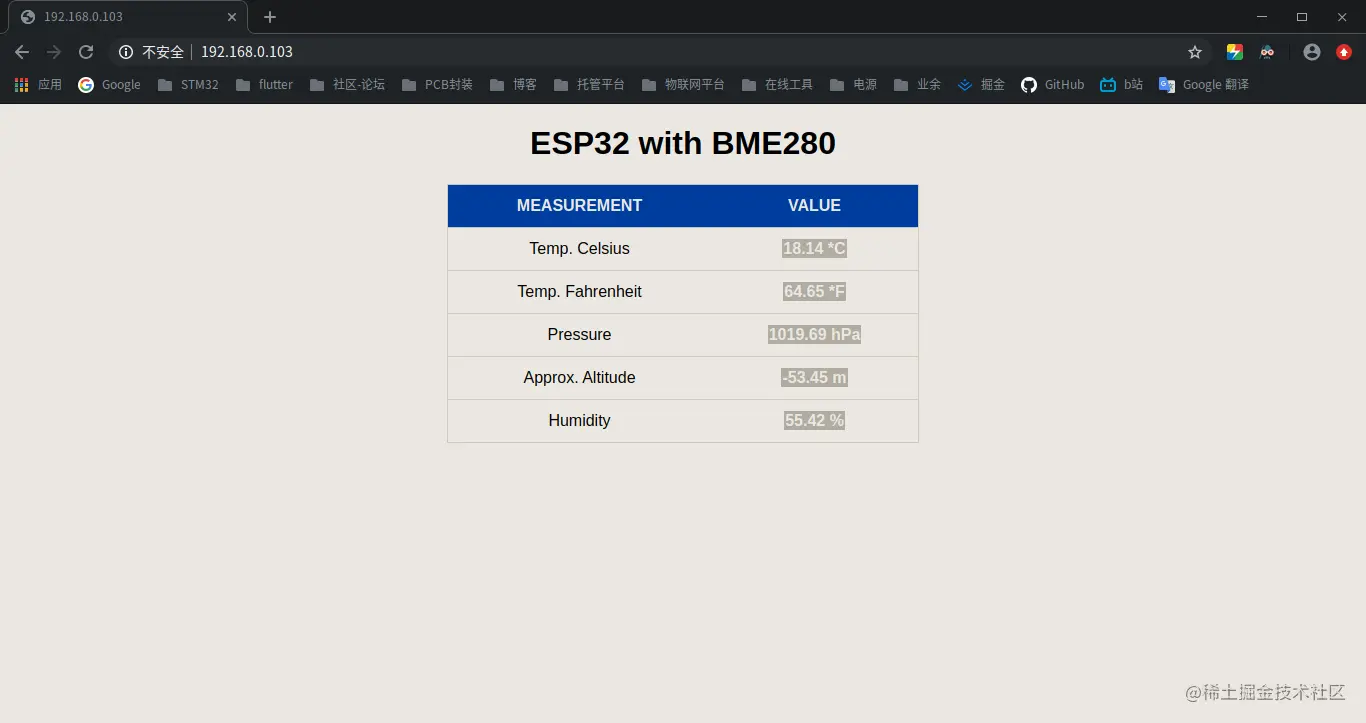

            client.println("</style></head><body><h1>ESP32 with BME280</h1>");
            client.println("<table><tr><th>MEASUREMENT</th><th>VALUE</th></tr>");
            client.println("<tr><td>Temp. Celsius</td><td><span class=\"sensor\">");
            client.println(bme.readTemperature());
            client.println(" *C</span></td></tr>");
            client.println("<tr><td>Temp. Fahrenheit</td><td><span class=\"sensor\">");
            client.println(1.8 * bme.readTemperature() + 32);
            client.println(" *F</span></td></tr>");
            client.println("<tr><td>Pressure</td><td><span class=\"sensor\">");
            client.println(bme.readPressure() / 100.0F);
            client.println(" hPa</span></td></tr>");
            client.println("<tr><td>Approx. Altitude</td><td><span class=\"sensor\">");
            client.println(bme.readAltitude(SEALEVELPRESSURE_HPA));
            client.println(" m</span></td></tr>");
            client.println("<tr><td>Humidity</td><td><span class=\"sensor\">");
            client.println(bme.readHumidity());
            client.println(" %</span></td></tr>");
            client.println("</body></html>");

            // The HTTP response ends with another blank line
            client.println();
            // Break out of the while loop
            break;
          } else { // if you got a newline, then clear currentLine
            currentLine = "";
          }
        } else if (c != '\r') {  // if you got anything else but a carriage return character,
          currentLine += c;      // add it to the end of the currentLine
        }
      }
    }
    // Clear the header variable
    header = "";
    // Close the connection
    client.stop();
    Serial.println("Client disconnected.");
    Serial.println("");
  }
}

5_Arduino-ESP32_BLE,WIFI

1_BLE

1.1_ble点灯

1.1_ble_BME280

1.3_打印BLE值

2_WIFI

2.1_WIFI点灯

2.2_WIFI_BME280
