@EnableCchae的定义：
@Target(ElementType.TYPE) @Retention(RetentionPolicy.RUNTIME) @Documented @Import(CachingConfigurationSelector.class) public @interface EnableCaching
功能：自动开启SpringCache，即导入四个核心的类到IoC容器之中： ProxyCachingConfiguration：作为一个@Configuration标记的导入Cache的核心类 CacheInterceptor：实现AOP的拦截器，即对相关的方法进行拦截 AnnotationCacheOperationSource：对与Cache的注解进行解析，建立一个方法与Cache规定的CacheOperation相关联 BeanFactoryCacheOperationSourceAdvisor：最为重要的类，定义了Cache相关的pointcut和advice之间的联系，在实现Cache的AOP代理的时候，将之与InfrastructureAdvisorAutoProxyCreator后置处理器相关联，通过后置处理器来判断一个类的方法是否需要使用Cache的AOP代理。
起到关键作用的就是这个@Import里面的内容，在准备BeanDefinition阶段ConfigurationClassParser在对@Configuration解析的过程中对@EnableCache实际上就是对@Import进行解析注解处理。
processImports(configClass, sourceClass, getImports(sourceClass), filter, true);
// 这里通过getImports获取@Import()注解里面的内容
// 传过去即是importCandidates，表示需要导入的候取元素
private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass,
Collection<SourceClass> importCandidates, Predicate<String> exclusionFilter,
boolean checkForCircularImports) {
if (importCandidates.isEmpty()) {
return;
}
if (checkForCircularImports && isChainedImportOnStack(configClass)) {
this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));
}
else {
this.importStack.push(configClass);
try {
for (SourceClass candidate : importCandidates) {
// 候取导入的元素是ImportSelector类型的
if (candidate.isAssignable(ImportSelector.class)) {
// Candidate class is an ImportSelector -> delegate to it to determine imports
Class<?> candidateClass = candidate.loadClass();
// 获取ImportSelector
ImportSelector selector = ParserStrategyUtils.instantiateClass(candidateClass, ImportSelector.class,
this.environment, this.resourceLoader, this.registry);
Predicate<String> selectorFilter = selector.getExclusionFilter();
if (selectorFilter != null) {
exclusionFilter = exclusionFilter.or(selectorFilter);
}
// DefeeredImportSelector是处理@EnableAutoConfiguration注解的特殊ImportSelector
if (selector instanceof DeferredImportSelector) {
this.deferredImportSelectorHandler.handle(configClass, (DeferredImportSelector) selector);
}
else {
// 调用导入class
String[] importClassNames = selector.selectImports(currentSourceClass.getMetadata());
Collection<SourceClass> importSourceClasses = asSourceClasses(importClassNames, exclusionFilter);
// 在处理现在导入的类
processImports(configClass, currentSourceClass, importSourceClasses, exclusionFilter, false);
}
}
// 如果不是看是否能注册到容器之中
else if (candidate.isAssignable(ImportBeanDefinitionRegistrar.class)) {
// Candidate class is an ImportBeanDefinitionRegistrar ->
// delegate to it to register additional bean definitions
Class<?> candidateClass = candidate.loadClass();
ImportBeanDefinitionRegistrar registrar =
ParserStrategyUtils.instantiateClass(candidateClass, ImportBeanDefinitionRegistrar.class,
this.environment, this.resourceLoader, this.registry);
configClass.addImportBeanDefinitionRegistrar(registrar, currentSourceClass.getMetadata());
}
else {
// Candidate class not an ImportSelector or ImportBeanDefinitionRegistrar ->
// process it as an @Configuration class
this.importStack.registerImport(
currentSourceClass.getMetadata(), candidate.getMetadata().getClassName());
processConfigurationClass(candidate.asConfigClass(configClass), exclusionFilter);
}
}
}
catch (BeanDefinitionStoreException ex) {
throw ex;
}
catch (Throwable ex) {
throw new BeanDefinitionStoreException(
"Failed to process import candidates for configuration class [" +
configClass.getMetadata().getClassName() + "]", ex);
}
finally {
this.importStack.pop();
}
}
}
下面是
public class CachingConfigurationSelector extends AdviceModeImportSelector<EnableCaching> {
@Override
public String[] selectImports(AdviceMode adviceMode) {
// adviceMode是其父类定义的，即AOP采用什么方式实现，一般采用PROXY代理模式
switch (adviceMode) {
case PROXY:
// 获取资源
return getProxyImports();
case ASPECTJ:
return getAspectJImports();
default:
return null;
}
}
private String[] getProxyImports() {
List<String> result = new ArrayList<>(3);
result.add(AutoProxyRegistrar.class.getName());
// 这个是Cache模块的关键
result.add(ProxyCachingConfiguration.class.getName());
if (jsr107Present && jcacheImplPresent) {
result.add(PROXY_JCACHE_CONFIGURATION_CLASS);
}
return StringUtils.toStringArray(result);
}
}
// 下面这个类将会通过selectImport()导入进IoC容器之中 @Configuration @Role(BeanDefinition.ROLE_INFRASTRUCTURE) public class ProxyCachingConfiguration extends AbstractCachingConfiguration {
@Bean(name = CacheManagementConfigUtils.CACHE_ADVISOR_BEAN_NAME)
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
// 这个类时实现Cache AOP代理的关键
public BeanFactoryCacheOperationSourceAdvisor cacheAdvisor() {
BeanFactoryCacheOperationSourceAdvisor advisor = new BeanFactoryCacheOperationSourceAdvisor();
advisor.setCacheOperationSource(cacheOperationSource());
advisor.setAdvice(cacheInterceptor());
if (this.enableCaching != null) {
advisor.setOrder(this.enableCaching.<Integer>getNumber("order"));
}
return advisor;
}
@Bean
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
public CacheOperationSource cacheOperationSource() {
return new AnnotationCacheOperationSource();
}
@Bean
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
//
public CacheInterceptor cacheInterceptor() {
CacheInterceptor interceptor = new CacheInterceptor();
interceptor.configure(this.errorHandler, this.keyGenerator, this.cacheResolver, this.cacheManager);
interceptor.setCacheOperationSource(cacheOperationSource());
return interceptor;
}
}

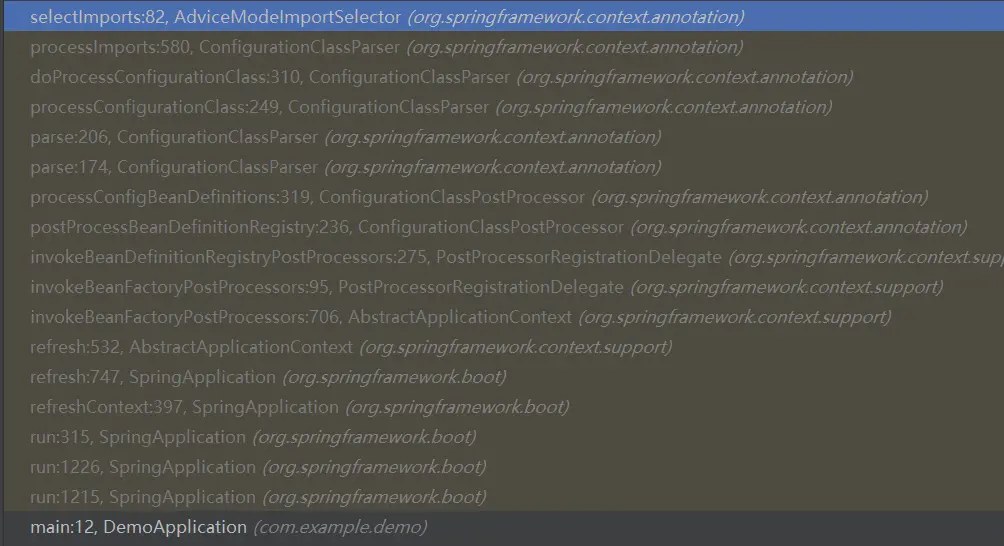

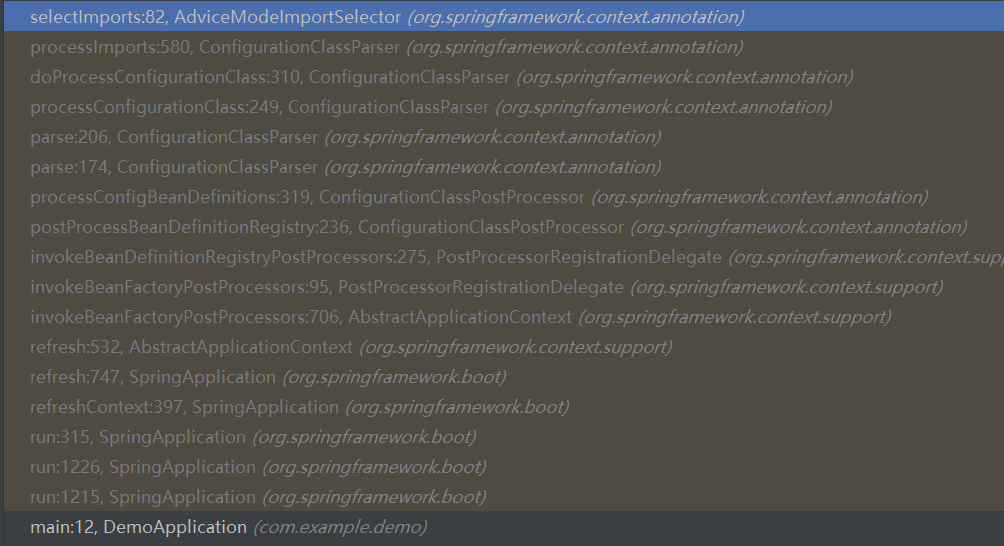

调用堆栈
