three.js(一）简单实现一些立体图

尝尝你的优乐美
621 阅读3分钟

zzz最近在webGl，个人感觉webGl入手较难，所以准备入手一些three.js，相对于webGL而言，three.js比较容易入手，基本功能也可以实现。

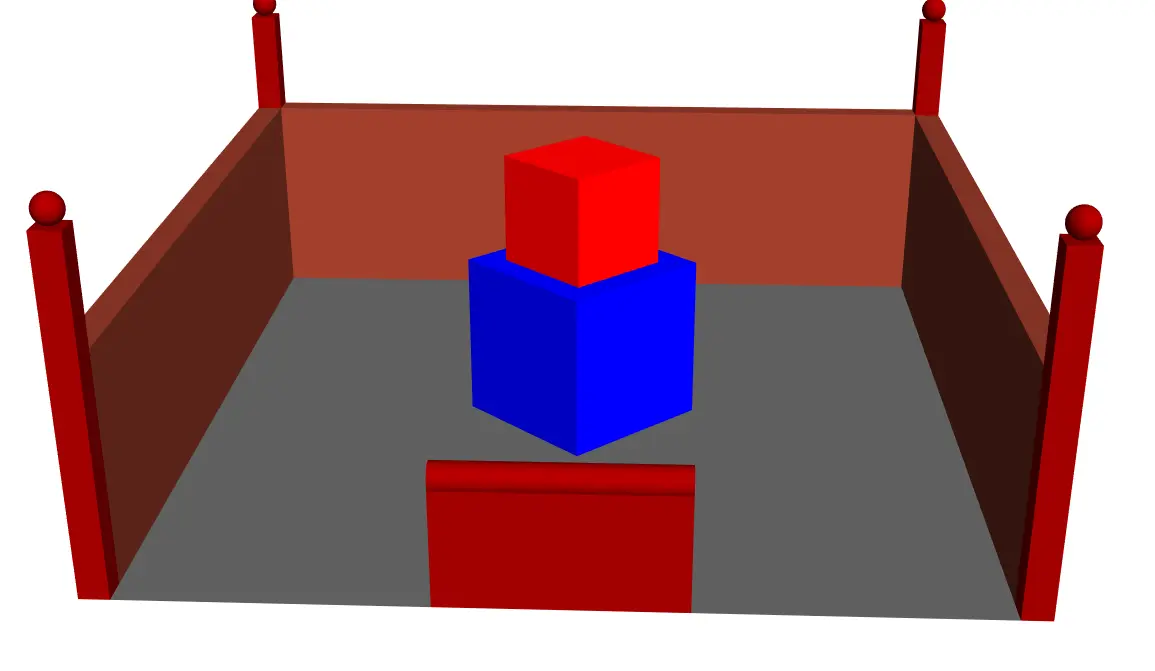

目的是实现一些简单立体图，实现简单控制。

1.首先是基本场景的配置：

 //添加一个div元素
container = document.createElement('div');
document.body.appendChild(container);

//创建场景

scene = new THREE.Scene();

//设置一个透视照相机
camera = new THREE.PerspectiveCamera(40, window.innerWidth / window.innerHeight, 1, 1000);
camera.position.set(100, 300, 100); //设置照相机的位置
camera.lookAt(new THREE.Vector3(0, 0, 0)); //让照相机指向原点
renderer = new THREE.WebGLRenderer({
antialias: true                //增加抗锯齿效果
});
renderer.setClearColor(new THREE.Color(colors[0])); //设置背景窗口颜色
renderer.setSize(window.innerWidth, window.innerHeight);//设置窗口尺寸
container.appendChild(renderer.domElement); //获取canvas元素
//给场景添加光源
//1.自然光
var ambientLight = new THREE.AmbientLight(0x606060);
scene.add(ambientLight);
//平行光源
var directionalLight = new THREE.DirectionalLight(0xffffff);
directionalLight.position.set(1, 0.75, 0.5).normalize();
scene.add(directionalLight);

//基本图形配置

1.平面(一个参考的平面）

 //创建一个平面
function plane() {
var planeGeo = new THREE.PlaneGeometry(150, 150); //创建平面
var planeMat = new THREE.MeshLambertMaterial({ //创建材料
color: 0x666666,
wireframe: false
});

var planeMesh = new THREE.Mesh(planeGeo, planeMat); //创建网格模型
planeMesh.position.set(0, 0, 0); //设置平面坐标
planeMesh.rotation.x = -0.5 * Math.PI; //绕x逆时针旋转90度
// planeMesh.rotation.y = 0.5 * Math.PI;
planeMesh.rotation.z = -0.25 * Math.PI;
scene.add(planeMesh); //加入场景中；
};
// 一个立方体

function cube() {
var cubeGeo = new THREE.CubeGeometry(20, 20, 20);
var cubeMaterial = new THREE.MeshLambertMaterial({
color: 'red',
wireframe: false
});
var cubeMesh = new THREE.Mesh(cubeGeo, cubeMaterial);
cubeMesh.position.set(0, 40, 0);
scene.add(cubeMesh);
}

function cube2() {
var cubeGeo = new THREE.CubeGeometry(30, 30, 30);
var cubeMaterial = new THREE.MeshLambertMaterial({
color: 'blue',
wireframe: false
});
var cubeMesh = new THREE.Mesh(cubeGeo, cubeMaterial);
cubeMesh.position.set(0, 15, 0);
scene.add(cubeMesh);
};

//长方体
function cube3() {
var CubeGeo = new THREE.CubeGeometry(140, 40, 5);
var cubeMaterial = new THREE.MeshLambertMaterial({
color: '#8B3626',
wireframe: false
});
var cubeMesh = new THREE.Mesh(CubeGeo, cubeMaterial);
// var instance = Math.pow(75, 2) * 2;
// var innerInstance = Math.pow(10, 2) * 2;
// console.log(instance);
var inst = Math.sqrt(75 * 75 / 2);
var inst2 = Math.sqrt(2.5 * 2.5 / 2);
console.log(inst);
// console.log(Math.sqrt(instance));
cubeMesh.position.set(-(inst - inst2), 20, -(inst - inst2));
cubeMesh.rotation.y = 0.25 * Math.PI;

scene.add(cubeMesh)
}

//长方体2
function cube4() {
var CubeGeo = new THREE.CubeGeometry(140, 40, 5);
var cubeMaterial = new THREE.MeshLambertMaterial({
color: '#8B3626',
wireframe: false
});
var cubeMesh = new THREE.Mesh(CubeGeo, cubeMaterial);
// var instance = Math.pow(75, 2) * 2;
// var innerInstance = Math.pow(10, 2) * 2;
// console.log(instance);
var inst = Math.sqrt(75 * 75 / 2);
var inst2 = Math.sqrt(2.5 * 2.5 / 2);
console.log(inst);
// console.log(Math.sqrt(instance));
cubeMesh.position.set(inst - inst2, 20, -(inst - inst2));
cubeMesh.rotation.y = 0.75 * Math.PI;

scene.add(cubeMesh)
};

//长方体3
function cube5() {
var CubeGeo = new THREE.CubeGeometry(140, 40, 5);
var cubeMaterial = new THREE.MeshLambertMaterial({
color: '#8B3626',
wireframe: false
});
var cubeMesh = new THREE.Mesh(CubeGeo, cubeMaterial);
// var instance = Math.pow(75, 2) * 2;
// var innerInstance = Math.pow(10, 2) * 2;
// console.log(instance);
var inst = Math.sqrt(75 * 75 / 2);
var inst2 = Math.sqrt(2.5 * 2.5 / 2);
console.log(inst);
// console.log(Math.sqrt(instance));
cubeMesh.position.set(-(inst - inst2), 20, inst - inst2);
cubeMesh.rotation.y = 0.75 * Math.PI;

scene.add(cubeMesh)
}

//对角长方体1
function angleCube1() {
var cubeGeo = new THREE.CubeGeometry(5, 60, 5);
var cubeMaterial = new THREE.MeshLambertMaterial({
color: '#8B0000',
wireframe: false
});
var cubeMesh = new THREE.Mesh(cubeGeo, cubeMaterial);
var inst = Math.sqrt(75 * 75 * 2);
var inst2 = Math.sqrt(2.5 * 2.5 * 2);
cubeMesh.position.set(inst - inst2, 30, 0);
cubeMesh.rotation.y = 0.75 * Math.PI;
scene.add(cubeMesh);
}

//对角长方体2
function angleCube2() {
var cubeGeo = new THREE.CubeGeometry(5, 60, 5);
var cubeMaterial = new THREE.MeshLambertMaterial({
color: '#8B0000',
wireframe: false
});
var cubeMesh = new THREE.Mesh(cubeGeo, cubeMaterial);
var inst = Math.sqrt(75 * 75 * 2);
var inst2 = Math.sqrt(2.5 * 2.5 * 2);
cubeMesh.position.set(-(inst - inst2), 30, 0);
cubeMesh.rotation.y = 0.75 * Math.PI;
scene.add(cubeMesh);
};
//对角长方体3
function angleCube3() {
var cubeGeo = new THREE.CubeGeometry(5, 60, 5);
var cubeMaterial = new THREE.MeshLambertMaterial({
color: '#8B0000',
wireframe: false
});
var cubeMesh = new THREE.Mesh(cubeGeo, cubeMaterial);
var inst = Math.sqrt(75 * 75 * 2);
var inst2 = Math.sqrt(2.5 * 2.5 * 2);
cubeMesh.position.set(0, 30, -(inst - inst2));
cubeMesh.rotation.y = 0.75 * Math.PI;
scene.add(cubeMesh);
};
//对角长方体3
function angleCube4() {
var cubeGeo = new THREE.CubeGeometry(5, 60, 5);
var cubeMaterial = new THREE.MeshLambertMaterial({
color: '#8B0000',
wireframe: false
});
var cubeMesh = new THREE.Mesh(cubeGeo, cubeMaterial);
var inst = Math.sqrt(75 * 75 * 2);
var inst2 = Math.sqrt(2.5 * 2.5 * 2);
cubeMesh.position.set(0, 30, inst - inst2);
cubeMesh.rotation.y = 0.75 * Math.PI;
scene.add(cubeMesh);
};

//顶部球体
function sphere1() {
var sphereGeo = new THREE.SphereGeometry(2.5, 40, 40);
var sphereMaterial = new THREE.MeshLambertMaterial({
color: '#8B0000',
wireframe: false
});
var sphereMesh = new THREE.Mesh(sphereGeo, sphereMaterial);
var inst = Math.sqrt(75 * 75 * 2);
var inst2 = Math.sqrt(2.5 * 2.5 * 2);
sphereMesh.position.set(inst - inst2, 62.5, 0);
scene.add(sphereMesh);
}

function sphere2() {
var sphereGeo = new THREE.SphereGeometry(2.5, 40, 40);
var sphereMaterial = new THREE.MeshLambertMaterial({
color: '#8B0000',
wireframe: false
});
var sphereMesh = new THREE.Mesh(sphereGeo, sphereMaterial);
var inst = Math.sqrt(75 * 75 * 2);
var inst2 = Math.sqrt(2.5 * 2.5 * 2);
sphereMesh.position.set(-(inst - inst2), 62.5, 0);
scene.add(sphereMesh);
};

function sphere3() {
var sphereGeo = new THREE.SphereGeometry(2.5, 40, 40);
var sphereMaterial = new THREE.MeshLambertMaterial({
color: '#8B0000',
wireframe: false
});
var sphereMesh = new THREE.Mesh(sphereGeo, sphereMaterial);
var inst = Math.sqrt(75 * 75 * 2);
var inst2 = Math.sqrt(2.5 * 2.5 * 2);
sphereMesh.position.set(0, 62.5, inst - inst2);
scene.add(sphereMesh);
};

function sphere4() {
var sphereGeo = new THREE.SphereGeometry(2.5, 40, 40);
var sphereMaterial = new THREE.MeshLambertMaterial({
color: '#8B0000',
wireframe: false
});
var sphereMesh = new THREE.Mesh(sphereGeo, sphereMaterial);
var inst = Math.sqrt(75 * 75 * 2);
var inst2 = Math.sqrt(2.5 * 2.5 * 2);
sphereMesh.position.set(0, 62.5, -(inst - inst2));
scene.add(sphereMesh);
}

//正门
function frontcube() {
var cubeGeo = new THREE.CubeGeometry(40, 20, 5);
var cubeMaterial = new THREE.MeshLambertMaterial({
color: '#8B0000',
wireframe: false
});
var cubeMesh = new THREE.Mesh(cubeGeo, cubeMaterial);
var inst = Math.sqrt(75 * 75 / 2);
var inst2 = Math.sqrt(2.5 * 2.5 / 2);
cubeMesh.position.set(inst - inst2, 10, inst - inst2);
cubeMesh.rotation.y = 0.25 * Math.PI;
scene.add(cubeMesh);
}

//半圆柱
function cylinder() {
const cylinders = document.createElement('div');
cylinders.className = 'cylinders';
container.appendChild(cylinders);

var cylinder = new THREE.CylinderGeometry(2.5, 2.5, 40, 40, 40);
var cylinderMaterial = new THREE.MeshLambertMaterial({
color: '#8B0000',
wireframe: false
});
var cylinderMesh = new THREE.Mesh(cylinder, cylinderMaterial);
var inst = Math.sqrt(75 * 75 / 2);
var inst2 = Math.sqrt(2.5 * 2.5 / 2);
cylinderMesh.position.set(inst - inst2, 21.25, inst - inst2);
cylinderMesh.rotation.x = -0.5 * Math.PI;
cylinderMesh.rotation.z = -0.25 * Math.PI;
scene.add(cylinderMesh);

}


function amine() {
var demo = document.getElementsByClassName('cylinders');
var book = anime({
target: demo,
translateY: 200,
translateX: 50,
loop: true,
duration: 300,

});
// console.log(demo);

}



function render() {
delta = clock.getDelta();
orbitControls.update(delta);
requestAnimationFrame(render);
renderer.render(scene, camera);
amine();
}


基本的实现就是这样了。
