css3实战汇总(附源码)

4,607 阅读10分钟

本文是继上一篇文章用css3实现惊艳面试官的背景即背景动画(高级附源码)的续篇也是本人最后一篇介绍css3技巧的文章,因为css这块知识难点不是很多,更多的在于去熟悉css3的新特性和基础理论知识。所以写这篇文章的目的一方面是对自己工作中一些css高级技巧的总结,另一方面也是希望能教大家一些实用的技巧和高效开发css的方式,以提高在工作中的效率。

我们将学到

  • box-shadow的高级应用
  • 制作自适应的椭圆
  • 纯css3实现饼图进度动画
  • 用border来实现一个对话框样式
  • css3 filter的简单应用
  • css3伪元素实现自定义复选框
  • 在线制作css3动画的利器

正文

1.box-shadow的高级应用

利用css3的新特性可以帮助我们实现各种意想不到的特效,接下来的几个案例我们来使用css3的box-shdow来实现,马上开始吧!

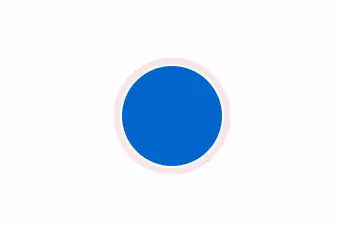

实现水波动画

知识点:box-shadow

想想我们如果不用css3,是怎么实现水波扩散的动画呢?想必一定是写一大堆的js才能实现如下的效果:

css3实现核心代码

<style>
.wave {
  margin-left: auto;
  margin-right: auto;
  width: 100px;
  height: 100px;
  border-radius: 100px;
  border: 2px solid #fff;
  text-align: center;
  line-height: 100px;
  color: #fff;
  background: #06c url(http://p3g4ahmhh.bkt.clouddn.com/me.jpg) no-repeat center center;
  background-size: 100%;
  animation: wave 4s linear infinite;
}
@keyframes wave {
    0% {
        box-shadow: 0 0 0 0 rgba(245, 226, 226, 1), 0 0 0 0 rgba(250, 189, 189, 1);
    }
    50% {
        box-shadow: 0 0 0 20px rgba(245, 226, 226, .5), 0 0 0 0 rgba(250, 189, 189, 1);
    }
    100% {
        box-shadow: 0 0 0 40px rgba(245, 226, 226, 0), 0 0 0 20px rgba(245, 226, 226, 0);
    }
}
</style>
<div class="wave"></div>

这里我们主要使用了box-shadow的多级阴影来实现的,动画部分我们使用的@keyframes,是不是感觉还行?

实现加载动画

知识点:box-shadow多阴影

加载动画大家想必也不陌生,虽然可以用很多方式实现加载动画,比如用伪元素,用gif,用js,但是更优雅的实现我觉得还是直接上css:

核心代码如下:

<style>
.loading {
  margin-left: auto;
  margin-right: auto;
  width: 30px;
  height: 30px;
  border-radius: 30px;
  background-color: transparent;
  animation: load 3s linear infinite;
}
@keyframes load {
    0% {
        box-shadow: -40px 0 0 rgba(250, 189, 189, 0),
                    inset 0 0 0 15px rgba(250, 189, 189, 0),
                    40px 0 0 rgba(250, 189, 189, 0);
    }
    30% {
        box-shadow: -40px 0 0 rgba(250, 189, 189, 1),
                    inset 0 0 0 15px rgba(250, 189, 189, 0),
                    40px 0 0 rgba(250, 189, 189, 0);
    }
    60% {
        box-shadow: -40px 0 0 rgba(250, 189, 189, 0),
                    inset 0 0 0 15px rgba(250, 189, 189, 1),
                    40px 0 0 rgba(250, 189, 189, 0);
    }
    100% {
        box-shadow: -40px 0 0 rgba(250, 189, 189, 0),
                    inset 0 0 0 15px rgba(250, 189, 189, 0),
                    40px 0 0 rgba(250, 189, 189, 1);
    }
}
</style>
<div class="loading"></div>

我们这里也是采用box-shadow多背景来实现,也是我当时思考的一个方向,至于其他的css方案,欢迎大家和我交流。

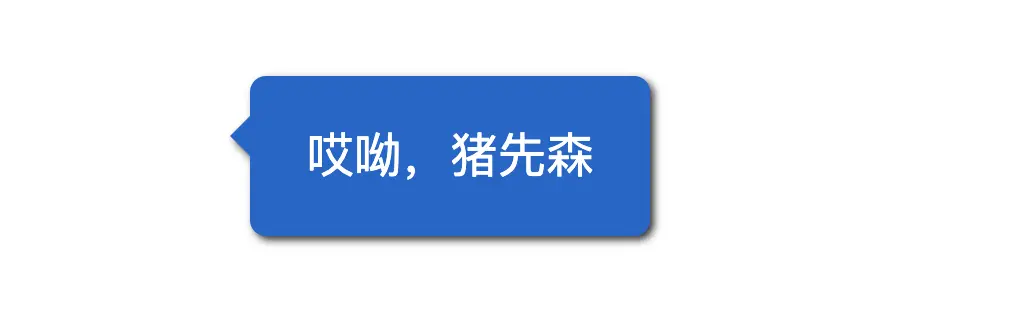

实现对话框及对话框的不规则投影

知识点: filter和伪元素

这里涉及到css滤镜的知识,不过也很简单,大家在css3官网上看看就理解了,我们直接看效果:

我们会通过filter的drop-shadow来实现不规则图形的阴影,然后利用伪元素和border来实现头部三角形:

<style>
.odd-shadow{
    margin-left: auto;
    margin-right: auto;
    width: 200px;
    height: 80px;
    border-radius: 8px;
    color: #fff;
    font-size: 24px;
    text-align: center;
    line-height: 80px;
    background: #06c;
    filter: drop-shadow(2px 2px 2px rgba(0,0,0,.8))
}
.odd-shadow::before{
    content: '';
    position: absolute;
    display: block;
    margin-left: -20px;
    transform: translateY(20px);
    width:0;
    height: 0;
    border: 10px solid transparent;
    border-right-color: #06c;
}
</style>

<div class="odd-shadow">哎呦,猪先森</div>

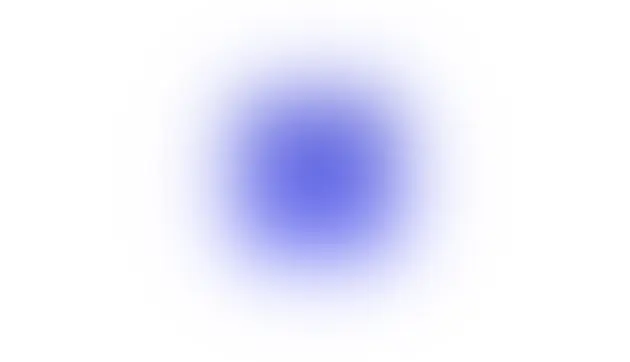

模糊效果

知识点: filter

这个比较简单,这里我直接上图和代码:

filter: blur(20px);

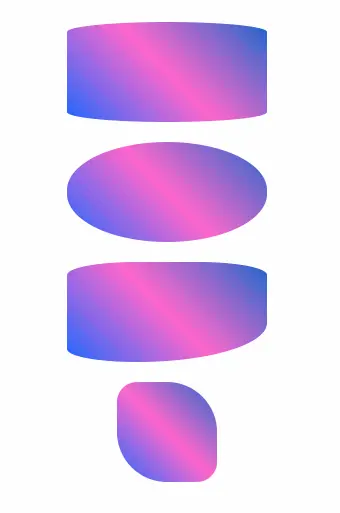

2.制作自适应的椭圆

border-radius的出现让我们实现圆角效果提供了极大的便利,我们还可以通过对Border-radius特性的进一步研究来实现各种图形效果,接下来就让我们看看它的威力吧!

知识点:border-radius: a / b;    //a,b分别为圆角的水平、垂直半径,单位若为%,则表示相对于宽度和高度进行解析

核心代码:

<style>
.br-1{
  width: 200px;
  height: 100px;
  border-radius: 50% /10%;
  background: linear-gradient(45deg,#06f,#f6c,#06c);
}
.br-2{
  width: 100px;
  border-radius: 20% 50%;
}
.ani{
  animation: skew 4s infinite;
}
.ani1{
  animation: skew1 4s infinite 2s;
}
.ani2{
  animation: skew2 4s infinite 3s;
}
@keyframes skew{
  to{
    border-radius: 50%;
  }
}
@keyframes skew1{
  to{
    border-radius: 20px 20px 100%;
  }
}
@keyframes skew2{
  to{
    transform: rotate(360deg);
  }
}
</style>
<div class="br-1 black-theme"></div>
<div class="br-1 black-theme ani"></div>
<div class="br-1 black-theme ani1"></div>
<div class="br-1 br-2 black-theme ani2"></div>

这里我们主要使用了背景渐变来实现华而不实的背景,用border-radius实现各种规格的椭圆图案。

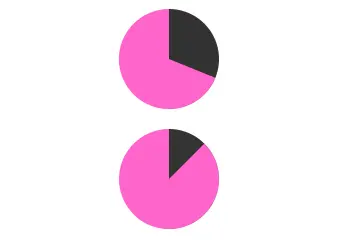

3.纯css3实现饼图进度动画

知识点:border-radius: a b c d / e f g h; animation多动画属性;

效果如下:

核心代码:

<style>
.br-31{
  width: 100px;
  height: 100px;
  border-radius: 50%;
  background: linear-gradient(to right,#f6c 50%,#333 0);
}
.br-31::before{
  content: '';
  display: block;
  margin-left: 50%;
  height: 100%;
  border-radius: 0 100% 100% 0 / 50%;
  background-color: #f6c;
  transform-origin: left;
  animation: skin 4s linear infinite,
             bg 8s step-end infinite;
}
@keyframes skin{
  to{
    transform: rotate(.5turn);
  }
}
@keyframes bg{
  50%{
    background: #333;
  }
}
.br-32::before{
  animation-play-state: paused;
  animation-delay: inherit;
}
</style>
<div class="br-31 black-theme"></div>
<div class="br-31 br-32 black-theme" style="animation-delay:-1s"></div>

这块的实现我们主要用了渐变背景,也是实现扇形进度的关键,包括代码中的如何遮挡半圆,如何对半圆做动画,如何改变旋转原点的位置等,这些虽然技巧性很强,但是我们稍微画一画,也可以实现的。

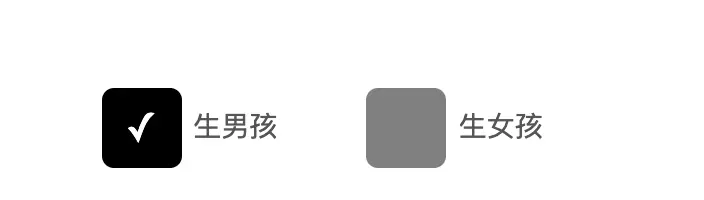

4.css3伪元素实现自定义复选框

我们都知道原生的复选框控件样式极难自定义,这对于工程师实现设计稿的难度加大了一大截。css3的出现,增加了:checked选择器,因此我们可以利用:checked和label来实现各式各样的表单选择控件,接下来让我们来看看如何实现吧!

我们来看看如何实现上述自定义的复选框:

<style>
.check-wrap{
    text-align: center;
}
.checkbox{
    position: absolute;
    clip: rect(0,0,0,0);
}
.checkbox[type="checkbox"]:focus + label::before{
    box-shadow: 0 0 .6em #06c;
}
.checkbox[type="checkbox"] + label::before{
    content: '\a0'; /* 不换行空格 */
    display: inline-block;
    margin-right: .3em;
    width: 2em;
    height: 2em;
    border-radius: .3em;
    vertical-align: middle;
    line-height: 2em; /* 关键 */
    font-size: 20px;
    text-align: center;
    color: #fff;
    background: gray;
}
.checkbox[type="checkbox"]:checked + label::before{
    content: '\2713'; /* 对勾 */
    background: black;
}

label{
    margin-right: 40px;
    font-size: 20px;
}
</style>
<div class="check-wrap">
    <input type="checkbox" class="checkbox" id="check-1" />
    <label for="check-1">生男孩</label>
    <input type="checkbox" class="checkbox" id="check-2" />
    <label for="check-2">生女孩</label>
</div>

这里为了隐藏原生的checkbox控间,我们用了clip: rect(0,0,0,0)进行截取,然后使用checkbox的伪类:checked来实现交互。

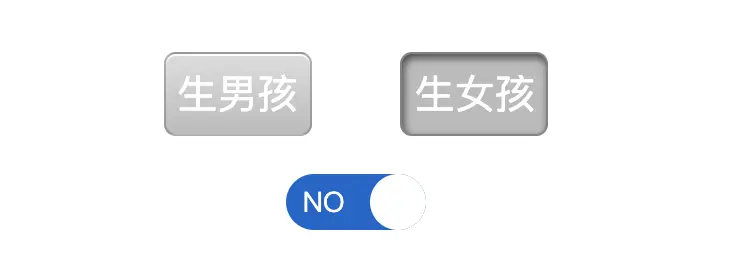

接下来扩展一下,我们来实现自定义开关:

这里原理是一样的,只不过样式做了改动,直接上代码:

<style>
.check-wrap{
    margin-bottom: 20px;
    text-align: center;
}
.switch{
    position: absolute;
    clip: rect(0,0,0,0);
}

.switch[type="checkbox"] + label{
    width: 6em;
    height: 3em;
    padding: .3em;
    border-radius: .3em;
    border: 1px solid rgba(0,0,0,.2);
    vertical-align: middle;
    line-height: 2em; /* 关键 */
    font-size: 20px;
    text-align: center;
    color: #fff;
    box-shadow: 0 1px white inset;
    background-color: #ccc;
    background-image: linear-gradient(#ddd,#bbb);
}
.switch[type="checkbox"]:checked + label{
    box-shadow: 0.05em .1em .2em rgba(0,0,0,.6) inset;
    border-color: rgba(0,0,0,.3);
    background: #bbb;
}

label{
    margin-right: 40px;
    font-size: 14px;
}

.switch-an{
    position: absolute;
    clip: rect(0,0,0,0);
}

.switch-an[type="checkbox"] + label{
    position: relative;
    display: inline-block;
    width: 5em;
    height: 2em;
    border-radius: 1em;
    color: #fff;
    background: #06c;
    text-align: left;
}

.switch-an[type="checkbox"] + label::before{
    content: '';
    width:2em;
    height: 2em;
    position: absolute;
    left: 0;
    border-radius: 100%;
    vertical-align: middle;
    background-color: #fff;
    transition: left .3s;
}
.switch-an[type="checkbox"] + label::after{
    content: 'OFF';
    margin-left: 2.6em;
}
.switch-an[type="checkbox"]:checked + label::before{
    transition: left .3s;
    left: 3em;
}
.switch-an[type="checkbox"]:checked + label::after{
   content: 'NO';
   margin-left: .6em;
}

</style>
<div class="check-wrap">
    <input type="checkbox" class="switch" id="switch-1" />
    <label for="switch-1">生男孩</label>
    <input type="checkbox" class="switch" id="switch-2" />
    <label for="switch-2">生女孩</label>
</div>

<div class="check-wrap">
    <input type="checkbox" class="switch-an" id="switch-an-1" />
    <label for="switch-an-1"></label>
</div>

是不是感觉css3提供了更强大的动画和自定义功能呢?其实我们可以实现更酷炫更实用的效果,等待你去尝试。

5.在线制作css3动画的利器

最后推荐一个在线制作各种贝塞尔曲线的工具,也是本人在做动画时经常使用的: cubic-bezier

最后

笔者2天后将推出开源的CMS系统,技术架构:

  • 后台Node+Koa+redis+JsonSchema
  • 管理后台界面 vue-cli3 + vue + ts + vuex + antd-vue + axios
  • 客户端前台 react + antd + react-hooks + axios

后面将推出该系统的设计思想,架构和实现过程,欢迎在公众号《趣谈前端》里查看更详细的介绍。

欢迎大家相互学习交流,一起探索前端的边界。
