概念
IoC（Inversion of Control，控制反转）
IOC-即控制反转，是一种设计思想，帮助我们设计出松耦合的程序。spring的IOC容器作为IOC设计思想的实现，是spring的核心，该容器负责控制对象的生命周期和对象间的依赖关系。关于控制反转如何理解：
- 谁控制谁，控制什么：传统java程序设计，直接在对象内部通过new创建对象，程序主动创建依赖对象；IOC设计思想，则是由IOC容器来创建对象；所以是IOC容器控制了对象，具体控制了外部资源的获取
- 什么是反转，反转了什么：传统程序的主动创建依赖对象，可以理解为正转；反转则是由IoC容器来帮助创建依赖对象，是被动的接受依赖对象
DI（Dependency Injection，依赖注入）
DI-依赖注入，这个概念和IoC经常同时出现，其实他们是同一个概念的不同角度描述。由于IoC的概念比较模糊，所以2004年大师级人物Martin Fowler又给出了一个新的名字：“依赖注入”，相对IoC 而言，“依赖注入”明确描述了“被注入对象依赖IoC容器配置依赖对象”。具体可以参考这篇原作《Inversion of Control Containers and the Dependency Injection pattern》。
依赖注入—是组件之间依赖关系由容器在运行期决定，形象的说，即由容器动态的将某个依赖关系注入到组件之中。通过依赖注入机制，我们只需要通过简单的配置，而无需任何代码就可指定目标需要的资源，完成自身的业务逻辑，而不需要关心具体的资源来自何处，由谁实现。

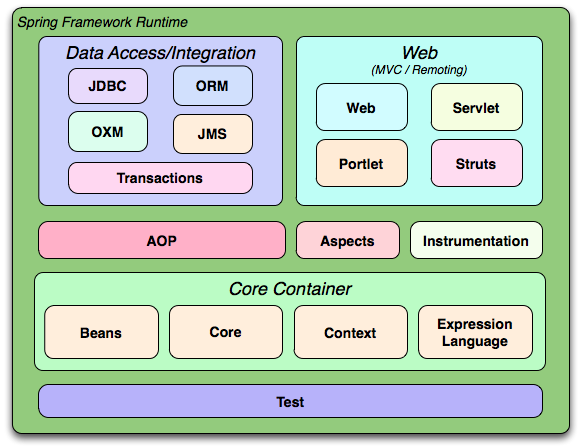

架构
BeanFactory和ApplicationContext
org.springframework.beans和org.springframework.contex是spring框架IoC的基础，其中org.springframework.beans.factory.BeanFactory是spring框架的核心接口，提供了高级IoC配置机制，BeanFactory使管理不同类型的Java对象成为可能。org.springframework.contex.ApplicationContext接口继承自BeanFactory，提供了更多面向应用的功能，融合了spring的AOP特性，提供了国际化支持以及框架事件体系等。简单区分二者，BeanFactory是spring框架基础设施，面向spring本身；ApplicationContext则是面向spring框架的开发者，几乎所有应用场合都可以直接使用ApplicationContext。
BeanFactory

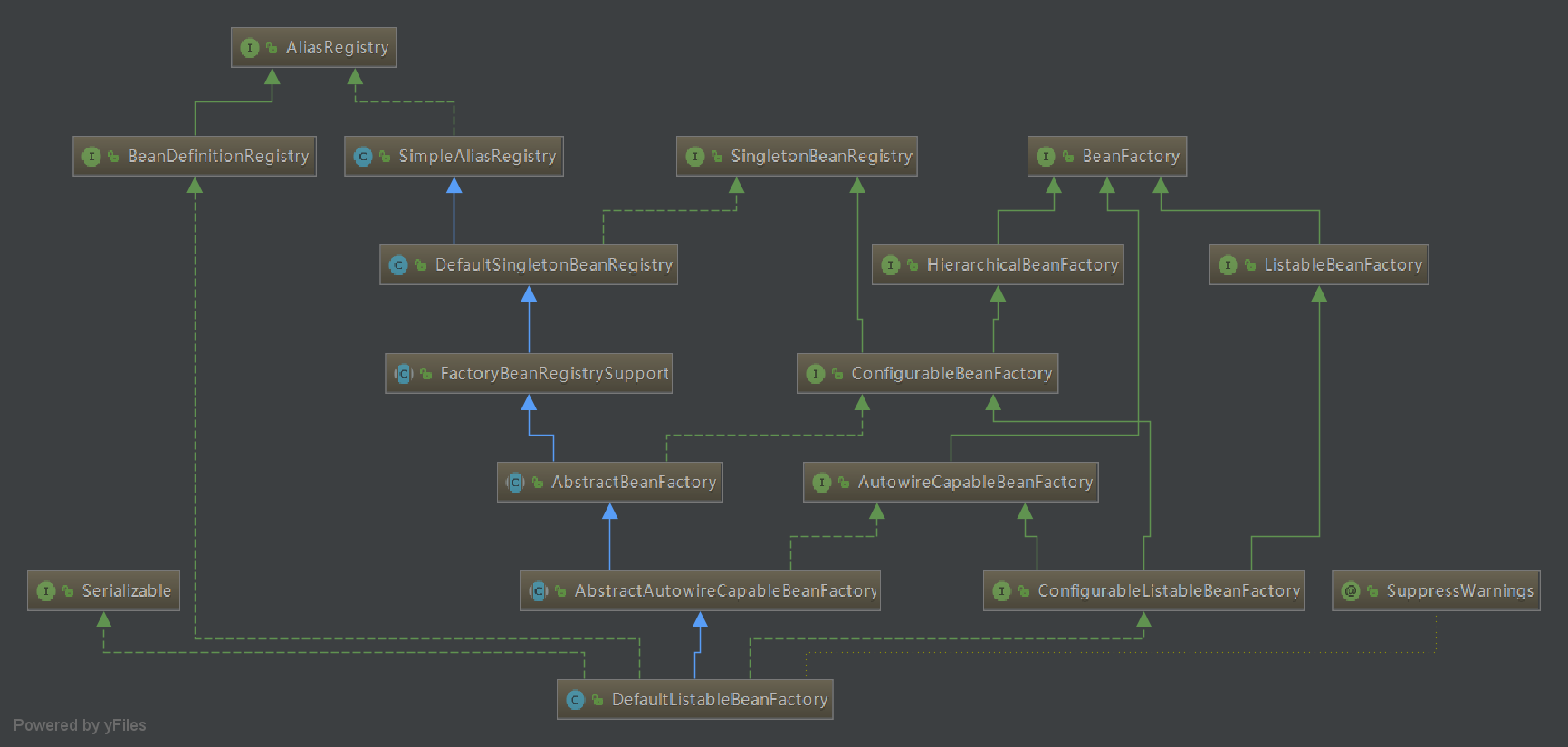

以DefaultListableBeanFactory为例如下图所示，包含了最核心的BeanDefinitionRegistry和BeanFactory，也就是bean的定义和生产bean的工厂。
ApplicationContext

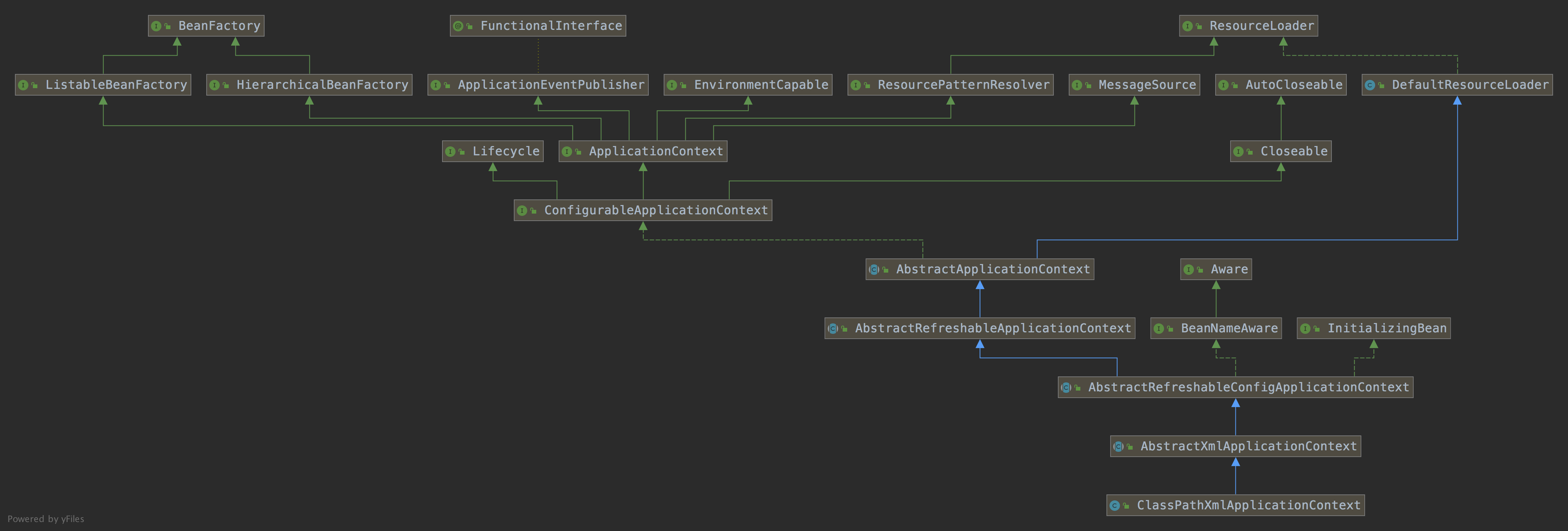

以ClassPathXmlApplicationContext为例如下图所示，可以看到ApplicationConext继承类资源，消息，事件，环境，工厂五种能力。
源码分析
以ClassPathXmlApplicationContext为例进行分析，该类的构造函数如下所示，传入配置文件路径参数
public ClassPathXmlApplicationContext(String[] configLocations, boolean refresh, @Nullable ApplicationContext parent)throws BeansException {
super(parent);
setConfigLocations(configLocations);
if (refresh) {
// 核心方法
refresh();
}
}
其中refresh方法中记录了IoC容器初始化整个流程
/**
* Load or refresh the persistent representation of the configuration
*/
public void refresh() throws BeansException, IllegalStateException {
//容器重启同步监控锁，防止刷新进行到一半被重复执行
synchronized (this.startupShutdownMonitor) {
// Prepare this context for refreshing.
// 填充配置文件占位符，记录容器启动时间和启动状态
prepareRefresh();
// 完成配置文件定义到注册表登记bean的流程，此时对象还未被创建
// Tell the subclass to refresh the internal bean factory.
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// Prepare the bean factory for use in this context.
// 配置类加载器，定制特殊bean，添加BeanPostProcessor可供回调
prepareBeanFactory(beanFactory);
try {
// Allows post-processing of the bean factory in context subclasses.
//工厂加载完配置，初始化之前回调PostProcessBeanFactory，作为工厂扩展功能
postProcessBeanFactory(beanFactory);
// Invoke factory processors registered as beans in the context.
//调用上文注册的扩展接口PostProcessBeanFactory的实现，为扩展接口为列表类型
invokeBeanFactoryPostProcessors(beanFactory);
// Register bean processors that intercept bean creation.
// bean扩展:postProcessBeforeInitialization和postProcessAfterInitialization
//分别在Bean初始化之前和初始化之后得到执行
registerBeanPostProcessors(beanFactory);
// Initialize message source for this context.
//初始化MessageSource对象，国际化
initMessageSource();
// Initialize event multicaster for this context.
//初始化事件广播器
initApplicationEventMulticaster();
// Initialize other special beans in specific context subclasses.
//临时钩子方法，提供一些初始化完成前的特殊操作，传送门
onRefresh();
// Check for listener beans and register them.
// 注册监听器
registerListeners();
// Instantiate all remaining (non-lazy-init) singletons.
// 实例化工厂注册表里面的bean（懒加载的除外，用到才实例化）
finishBeanFactoryInitialization(beanFactory);
// Last step: publish corresponding event.
// 初始化生命周期，广播事件
finishRefresh();
}
catch (BeansException ex) {
if (logger.isWarnEnabled()) {
logger.warn("Exception encountered during context initialization - " +
"cancelling refresh attempt: " + ex);
}
// Destroy already created singletons to avoid dangling resources.
destroyBeans();
// Reset 'active' flag.
cancelRefresh(ex);
// Propagate exception to caller.
throw ex;
}
finally {
// Reset common introspection caches in Spring's core, since we
// might not ever need metadata for singleton beans anymore...
resetCommonCaches();
}
}
}
创建BeanFactory
refresh初始化过程中，完成第一步prepareRefresh(填充配置文件占位符，记录容器启动时间和启动状态)后，进入IoC初始化最关键的一步BeanFactory的创建：
protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
//创建新beanFactory，销毁旧的
refreshBeanFactory();
//返回创建的新工厂
ConfigurableListableBeanFactory beanFactory = getBeanFactory();
if (logger.isDebugEnabled()) {
logger.debug("Bean factory for " + getDisplayName() + ": " + beanFactory);
}
return beanFactory;
}
refreshBeanFactory流程
protected final void refreshBeanFactory() throws BeansException {
//判断是否有this.beanFactory存在，存在则清除map中存在的对象，同时置this.beanFactory为null
if (hasBeanFactory()) {
destroyBeans();
closeBeanFactory();
}
try {
//返回新建的DefaultListableBeanFactory
DefaultListableBeanFactory beanFactory = createBeanFactory();
//工厂标识id
beanFactory.setSerializationId(getId());
//设置容器是否允许对象覆盖，循环依赖
customizeBeanFactory(beanFactory);
//加载bean定义
loadBeanDefinitions(beanFactory);
synchronized (this.beanFactoryMonitor) {
this.beanFactory = beanFactory;
}
}
catch (IOException ex) {
throw new ApplicationContextException("I/O error parsing bean definition source for " + getDisplayName(), ex);
}
}
createBeanFactory构造出子类对象DefaultListableBeanFactory，涵盖了工厂BeanFactory，对象定义BeanDefinition，和注册表AliasRegistry的能力，是一个完整的对象工厂。后续就是使用该工厂能力将配置文件信息转化为bean定义，再进行对象创建和属性赋值。
配置文件读取
接上面分析，创建出DefaultListableBeanFactory后，需要利用该工厂能力将配置文件转化为对应的bean对象。
- 实例化资源阅读器，开启资源加载
protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
// Create a new XmlBeanDefinitionReader for the given BeanFactory.
// 实例化一个工厂类的XML文件阅读器
XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);
// Configure the bean definition reader with this context
// resource loading environment.
beanDefinitionReader.setEnvironment(this.getEnvironment());
beanDefinitionReader.setResourceLoader(this);
beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));
// Allow a subclass to provide custom initialization of the reader,
// then proceed with actually loading the bean definitions.
// 开启xml文件校验
initBeanDefinitionReader(beanDefinitionReader);
// beanDefinitionReader阅读器加载资源文件
loadBeanDefinitions(beanDefinitionReader);
}
- 加载资源文件
protected void loadBeanDefinitions(XmlBeanDefinitionReader reader) throws BeansException, IOException {
// 针对ClassPathXmlApplicationContext返回的是构造函数中资源配置路径
Resource[] configResources = getConfigResources();
if (configResources != null) {
// 循环加载所有配置文件
reader.loadBeanDefinitions(configResources);
}
String[] configLocations = getConfigLocations();
if (configLocations != null) {
reader.loadBeanDefinitions(configLocations);
}
}
- 循环加载所有配置文件
public int loadBeanDefinitions(Resource... resources) throws BeanDefinitionStoreException {
Assert.notNull(resources, "Resource array must not be null");
int counter = 0;
for (Resource resource : resources) {
counter += loadBeanDefinitions(resource);
}
return counter;
}
- 获取路径，读取资源配置文件
public int loadBeanDefinitions(Resource resource) throws BeanDefinitionStoreException {
return loadBeanDefinitions(new EncodedResource(resource));
}
public int loadBeanDefinitions(EncodedResource encodedResource) throws BeanDefinitionStoreException {
Assert.notNull(encodedResource, "EncodedResource must not be null");
if (logger.isInfoEnabled()) {
logger.info("Loading XML bean definitions from " + encodedResource.getResource());
}
//使用ThreadLocal存放配置文件路径
Set<EncodedResource> currentResources = this.resourcesCurrentlyBeingLoaded.get();
if (currentResources == null) {
currentResources = new HashSet<EncodedResource>(4);
this.resourcesCurrentlyBeingLoaded.set(currentResources);
}
if (!currentResources.add(encodedResource)) {
throw new BeanDefinitionStoreException(
"Detected cyclic loading of " + encodedResource + " - check your import definitions!");
}
try {
InputStream inputStream = encodedResource.getResource().getInputStream();
try {
InputSource inputSource = new InputSource(inputStream);
if (encodedResource.getEncoding() != null) {
inputSource.setEncoding(encodedResource.getEncoding());
}
//真正解析资源配置文件
return doLoadBeanDefinitions(inputSource, encodedResource.getResource());
}
finally {
inputStream.close();
}
}
catch (IOException ex) {
throw new BeanDefinitionStoreException(
"IOException parsing XML document from " + encodedResource.getResource(), ex);
}
finally {
currentResources.remove(encodedResource);
if (currentResources.isEmpty()) {
this.resourcesCurrentlyBeingLoaded.remove();
}
}
}
- 配置文件解析
protected int doLoadBeanDefinitions(InputSource inputSource, Resource resource) {
try {
//xml文件生成Document对象
Document doc = doLoadDocument(inputSource, resource);
//bean对象注册
return registerBeanDefinitions(doc, resource);
}
// 后续各种catch代码省略
}
对象注册
接上一节，完成了xml到Document的转化，调用registerBeanDefinitions进行对象的注册。
- document阅读器生成，开启document注册流程
public int registerBeanDefinitions(Document doc, Resource resource) throws BeanDefinitionStoreException {
//生成document对象阅读器
BeanDefinitionDocumentReader documentReader = createBeanDefinitionDocumentReader();
//注册表已存在Definition数量（对象的描述）
int countBefore = getRegistry().getBeanDefinitionCount();
//将doc树的bean定义注册到工厂类的注册表属性
documentReader.registerBeanDefinitions(doc, createReaderContext(resource));
return getRegistry().getBeanDefinitionCount() - countBefore;
}
- 遍历document逐个解析xml标签
public void registerBeanDefinitions(Document doc, XmlReaderContext readerContext) {
this.readerContext = readerContext;
logger.debug("Loading bean definitions");
Element root = doc.getDocumentElement();
doRegisterBeanDefinitions(root);
}
protected void doRegisterBeanDefinitions(Element root) {
//创建解析DOM树对象的工具BeanDefinitionParserDelegate
this.delegate = createDelegate(getReaderContext(), root, parent);
if (this.delegate.isDefaultNamespace(root)) {
String profileSpec = root.getAttribute(PROFILE_ATTRIBUTE);
//关于profile标签的操作
if (StringUtils.hasText(profileSpec)) {
String[] specifiedProfiles = StringUtils.tokenizeToStringArray(
profileSpec, BeanDefinitionParserDelegate.MULTI_VALUE_ATTRIBUTE_DELIMITERS);
if (!getReaderContext().getEnvironment().acceptsProfiles(specifiedProfiles)) {
if (logger.isInfoEnabled()) {
logger.info("Skipped XML bean definition file due to specified profiles [" + profileSpec +
"] not matching: " + getReaderContext().getResource());
}
return;
}
}
}
preProcessXml(root);//预留方法，解析前的扩展操作
parseBeanDefinitions(root, this.delegate);//核心方法，解析DOM树
postProcessXml(root);//预留方法，解析后的扩展操作
this.delegate = parent;
}
配置文件标签解析
spring中标签包括默认标签和自定义标签，后续主要分析默认标签解析过程。接上一节parseBeanDefinitions对document中的标签进行解析。
- 解析dom文件树
protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
if (delegate.isDefaultNamespace(root)) {
NodeList nl = root.getChildNodes();
for (int i = 0; i < nl.getLength(); i++) {
Node node = nl.item(i);
if (node instanceof Element) {
Element ele = (Element) node;
//包含http://www.springframework.org/schema/beans的为默认命名空间
if (delegate.isDefaultNamespace(ele)) {
parseDefaultElement(ele, delegate);
}
else {
//非默认命名空间的有<mvc/>、<context/>、<aop/>等
delegate.parseCustomElement(ele);
}
}
}
}
else {
delegate.parseCustomElement(root);
}
}
- 默认标签解析
private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
if (delegate.nodeNameEquals(ele, IMPORT_ELEMENT)) {
importBeanDefinitionResource(ele);
}
else if (delegate.nodeNameEquals(ele, ALIAS_ELEMENT)) {
processAliasRegistration(ele);
}
else if (delegate.nodeNameEquals(ele, BEAN_ELEMENT)) {
processBeanDefinition(ele, delegate);//解析命名空间为bean的标签
}
else if (delegate.nodeNameEquals(ele, NESTED_BEANS_ELEMENT)) {
// recurse
doRegisterBeanDefinitions(ele);
}
}
上述代码逻辑比较清晰，对4中不同的标签(import、alias、bena和benas)做了不同处理，具体代码不展开分析。最终带有bean标签会被映射到BeanDefinitionHolder对象里面，接下来是把BeanDefinition对象登记到工厂的注册表里面。
- BeanDefinitionHolder转化
protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
if (bdHolder != null) {
bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
try {
// Register the final decorated instance.
BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, getReaderContext().getRegistry());
}
catch (BeanDefinitionStoreException ex) {
getReaderContext().error("Failed to register bean definition with name '" +
bdHolder.getBeanName() + "'", ele, ex);
}
// 完成bean转化后触发注册事件
getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
}
}
- 注册BeanDefinition对象
public static void registerBeanDefinition(
BeanDefinitionHolder definitionHolder, BeanDefinitionRegistry registry)
throws BeanDefinitionStoreException {
// Register bean definition under primary name.
String beanName = definitionHolder.getBeanName();
//通过beanName注册definitionHolder的BeanDefinition对象到注册表
registry.registerBeanDefinition(beanName, definitionHolder.getBeanDefinition());
// Register aliases for bean name, if any.
//如果有别名也一并注册
String[] aliases = definitionHolder.getAliases();
if (aliases != null) {
for (String alias : aliases) {
registry.registerAlias(beanName, alias);
}
}
}
具体调用DefaultListableBeanFactory中的registerBeanDefinition方法进行注册
public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition)
throws BeanDefinitionStoreException {
Assert.hasText(beanName, "Bean name must not be empty");
Assert.notNull(beanDefinition, "BeanDefinition must not be null");
if (beanDefinition instanceof AbstractBeanDefinition) {
try {
((AbstractBeanDefinition) beanDefinition).validate();
}
catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
"Validation of bean definition failed", ex);
}
}
BeanDefinition oldBeanDefinition;
oldBeanDefinition = this.beanDefinitionMap.get(beanName);
//新的xml获取出来的应该为空
if (oldBeanDefinition != null) {
if (!isAllowBeanDefinitionOverriding()) {
throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
"Cannot register bean definition [" + beanDefinition + "] for bean '" + beanName +
"': There is already [" + oldBeanDefinition + "] bound.");
}
else if (oldBeanDefinition.getRole() < beanDefinition.getRole()) {
// e.g. was ROLE_APPLICATION, now overriding with ROLE_SUPPORT or ROLE_INFRASTRUCTURE
if (this.logger.isWarnEnabled()) {
this.logger.warn("Overriding user-defined bean definition for bean '" + beanName +
"' with a framework-generated bean definition: replacing [" +
oldBeanDefinition + "] with [" + beanDefinition + "]");
}
}
else if (!beanDefinition.equals(oldBeanDefinition)) {
if (this.logger.isInfoEnabled()) {
this.logger.info("Overriding bean definition for bean '" + beanName +
"' with a different definition: replacing [" + oldBeanDefinition +
"] with [" + beanDefinition + "]");
}
}
else {
if (this.logger.isDebugEnabled()) {
this.logger.debug("Overriding bean definition for bean '" + beanName +
"' with an equivalent definition: replacing [" + oldBeanDefinition +
"] with [" + beanDefinition + "]");
}
}
this.beanDefinitionMap.put(beanName, beanDefinition);
}
else {
//初始化的过程，不允许实例化
if (hasBeanCreationStarted()) {
// Cannot modify startup-time collection elements anymore (for stable iteration)
synchronized (this.beanDefinitionMap) {
this.beanDefinitionMap.put(beanName, beanDefinition);
List<String> updatedDefinitions = new ArrayList<String>(this.beanDefinitionNames.size() + 1);
updatedDefinitions.addAll(this.beanDefinitionNames);
updatedDefinitions.add(beanName);
this.beanDefinitionNames = updatedDefinitions;
if (this.manualSingletonNames.contains(beanName)) {
Set<String> updatedSingletons = new LinkedHashSet<String>(this.manualSingletonNames);
updatedSingletons.remove(beanName);
this.manualSingletonNames = updatedSingletons;
}
}
}
else {
//最核心的一步，就是beanDefinitionMap增加beanDefinition
// Still in startup registration phase
this.beanDefinitionMap.put(beanName, beanDefinition);
this.beanDefinitionNames.add(beanName);
this.manualSingletonNames.remove(beanName);
}
this.frozenBeanDefinitionNames = null;
}
if (oldBeanDefinition != null || containsSingleton(beanName)) {
resetBeanDefinition(beanName);
}
}
到这一步，已经完整的把所有xml配置文件里面定义的对象转化到BeanFactory里面的beanDefinitionMap。但是此时IOC容器还没开始实例化这些对象，接下来就是实例化的过程。回顾开头refresh()方法中的，finishBeanFactoryInitialization(beanFactory)步骤，该步骤就是完成对象实例化的过程。
对象实例化
- 实例化入口
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
// Initialize conversion service for this context.
if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
beanFactory.setConversionService(
beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
}
// Register a default embedded value resolver if no bean post-processor
// (such as a PropertyPlaceholderConfigurer bean) registered any before:
// at this point, primarily for resolution in annotation attribute values.
if (!beanFactory.hasEmbeddedValueResolver()) {
beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
}
// Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
//JVM动态织入第三方模块
String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
for (String weaverAwareName : weaverAwareNames) {
// getBean提前让LoadTimeWeaverAware进行实例化
getBean(weaverAwareName);
}
// Stop using the temporary ClassLoader for type matching.
//消除临时类加载器
beanFactory.setTempClassLoader(null);
// Allow for caching all bean definition metadata, not expecting further changes.
//冻结配置文件，避免重复读取
beanFactory.freezeConfiguration();
// Instantiate all remaining (non-lazy-init) singletons.
//实例化非懒加载对象
beanFactory.preInstantiateSingletons();
}
- 单例对象预实例化
public void preInstantiateSingletons() throws BeansException {
if (this.logger.isDebugEnabled()) {
this.logger.debug("Pre-instantiating singletons in " + this);
}
List<String> beanNames = new ArrayList<String>(this.beanDefinitionNames);
// Trigger initialization of all non-lazy singleton beans...
for (String beanName : beanNames) {
//合并具有父子关系的对象
RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
//如果为FactoryBean子类，先构造该类然后实例化它的商品类；反之，直接实例化该类
if (isFactoryBean(beanName)) {
final FactoryBean<?> factory = (FactoryBean<?>) getBean(FACTORY_BEAN_PREFIX + beanName);
boolean isEagerInit;
if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
isEagerInit = AccessController.doPrivileged(new PrivilegedAction<Boolean>() {
@Override
public Boolean run() {
return ((SmartFactoryBean<?>) factory).isEagerInit();
}
}, getAccessControlContext());
}
else {
isEagerInit = (factory instanceof SmartFactoryBean &&
((SmartFactoryBean<?>) factory).isEagerInit());
}
if (isEagerInit) {
getBean(beanName);
}
}
else {
getBean(beanName);//进入实例化bean
}
}
}
// Trigger post-initialization callback for all applicable beans...
// 触发所有bean的post-initialization回调
for (String beanName : beanNames) {
Object singletonInstance = getSingleton(beanName);
if (singletonInstance instanceof SmartInitializingSingleton) {
final SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
if (System.getSecurityManager() != null) {
AccessController.doPrivileged(new PrivilegedAction<Object>() {
@Override
public Object run() {
smartSingleton.afterSingletonsInstantiated();
return null;
}
}, getAccessControlContext());
}
else {
smartSingleton.afterSingletonsInstantiated();
}
}
}
}
- 实例化对象
AbstractBeanFactory类中的getBean方法进行实例化对象
public Object getBean(String name) throws BeansException {
return doGetBean(name, null, null, false);
}
protected <T> T doGetBean(
final String name, final Class<T> requiredType, final Object[] args, boolean typeCheckOnly)
throws BeansException {
// 转换BeanName（XML中别名、去掉FactoryBean的“&”）
final String beanName = transformedBeanName(name);
//返回的实例化对象，等待赋值
Object bean;
// Eagerly check singleton cache for manually registered singletons.
// 检查是否已经实例化过
Object sharedInstance = getSingleton(beanName);
//如果存在则不需要再实例化,首次实例化为空，进入下个判断
if (sharedInstance != null && args == null) {
if (logger.isDebugEnabled()) {
if (isSingletonCurrentlyInCreation(beanName)) {
logger.debug("Returning eagerly cached instance of singleton bean '" + beanName +
"' that is not fully initialized yet - a consequence of a circular reference");
}
else {
logger.debug("Returning cached instance of singleton bean '" + beanName + "'");
}
}
bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
}
else {
//判断该beanName是否被实例化为prototype或者被创建中，如果是则抛异常
// Fail if we're already creating this bean instance:
// We're assumably within a circular reference.
if (isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
//判断bean的定义是否存在工厂里面
// Check if bean definition exists in this factory.
BeanFactory parentBeanFactory = getParentBeanFactory();
if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
// Not found -> check parent.
String nameToLookup = originalBeanName(name);
if (args != null) {
// Delegation to parent with explicit args.
return (T) parentBeanFactory.getBean(nameToLookup, args);
}
else {
// No args -> delegate to standard getBean method.
return parentBeanFactory.getBean(nameToLookup, requiredType);
}
}
if (!typeCheckOnly) {
markBeanAsCreated(beanName);
}
// 具体实例化过程
try {
// 获取bean的定义对象
final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
checkMergedBeanDefinition(mbd, beanName, args);
// 优先实例化所要依赖的对象递归检查
// Guarantee initialization of beans that the current bean depends on.
String[] dependsOn = mbd.getDependsOn();
if (dependsOn != null) {
for (String dep : dependsOn) {
//如果所要依赖的对象反过来还要依赖自己，形成了循环依赖，就抛异常，这里不允许循环依赖
if (isDependent(beanName, dep)) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
}
registerDependentBean(dep, beanName);
try {
getBean(dep);
}
catch (NoSuchBeanDefinitionException ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"'" + beanName + "' depends on missing bean '" + dep + "'", ex);
}
}
}
//创建单例对象
// Create bean instance.
if (mbd.isSingleton()) {
sharedInstance = getSingleton(beanName, new ObjectFactory<Object>() {
@Override
public Object getObject() throws BeansException {
try {
//开始创建对象
return createBean(beanName, mbd, args);
}
catch (BeansException ex) {
// Explicitly remove instance from singleton cache: It might have been put there
// eagerly by the creation process, to allow for circular reference resolution.
// Also remove any beans that received a temporary reference to the bean.
destroySingleton(beanName);
throw ex;
}
}
});
bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}
//同理创建prototype类型的对象，非单例，创建出来后不再维护生命周期
else if (mbd.isPrototype()) {
// a prototype -> create a new instance.
Object prototypeInstance = null;
try {
beforePrototypeCreation(beanName);
prototypeInstance = createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
}
//如果都不是以上两种类型，则需要在创建前后回调特殊操作
else {
String scopeName = mbd.getScope();
final Scope scope = this.scopes.get(scopeName);
if (scope == null) {
throw new IllegalStateException("No Scope registered for scope name" + scopeName + "'");
}
try {
Object scopedInstance = scope.get(beanName, new ObjectFactory<Object>() {
@Override
public Object getObject() throws BeansException {
beforePrototypeCreation(beanName);
try {
return createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
}
});
bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
}
catch (IllegalStateException ex) {
throw new BeanCreationException(beanName,
"Scope '" + scopeName + "' is not active for the current thread; consider " +
"defining a scoped proxy for this bean if you intend to refer to it from a singleton",
ex);
}
}
}
catch (BeansException ex) {
cleanupAfterBeanCreationFailure(beanName);
throw ex;
}
}
//最后检查对象的类型是否一致
// Check if required type matches the type of the actual bean instance.
if (requiredType != null && bean != null && !requiredType.isInstance(bean)) {
try {
return getTypeConverter().convertIfNecessary(bean, requiredType);
}
catch (TypeMismatchException ex) {
if (logger.isDebugEnabled()) {
logger.debug("Failed to convert bean '" + name + "' to required type '" +
ClassUtils.getQualifiedName(requiredType) + "'", ex);
}
throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
}
}
return (T) bean;
}
- 创建bean
@Override
protected Object createBean(String beanName, RootBeanDefinition mbd, Object[] args) throws BeanCreationException {
RootBeanDefinition mbdToUse = mbd;
//确保对象对应的类被加载进内存
Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
mbdToUse = new RootBeanDefinition(mbd);
mbdToUse.setBeanClass(resolvedClass);
}
// Prepare method overrides.
try {
mbdToUse.prepareMethodOverrides();
}
catch (BeanDefinitionValidationException ex) {
}
try {
// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
// 为AOP做的钩子，如果Bean配置了PostProcessor，那么返回一个Proxy
Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
if (bean != null) {
return bean;
}
}
catch (Throwable ex) {
}
//真正的创建对象
Object beanInstance = doCreateBean(beanName, mbdToUse, args);
if (logger.isDebugEnabled()) {
logger.debug("Finished creating instance of bean '" + beanName + "'");
}
return beanInstance;
}
protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final Object[] args)
throws BeanCreationException {
// Instantiate the bean.
BeanWrapper instanceWrapper = null;
if (mbd.isSingleton()) {
//从工厂bean缓存容器里面移除
instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
}
//为空说明不是工厂bean，可以直接创建对象
if (instanceWrapper == null) {
//这一步是真正的创建对象
instanceWrapper = createBeanInstance(beanName, mbd, args);
}
final Object bean = (instanceWrapper != null ? instanceWrapper.getWrappedInstance() : null);
Class<?> beanType = (instanceWrapper != null ? instanceWrapper.getWrappedClass() : null);
mbd.resolvedTargetType = beanType;
// Allow post-processors to modify the merged bean definition.
//创建完bean后的一些特殊操作
synchronized (mbd.postProcessingLock) {
if (!mbd.postProcessed) {
try {
applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
}
catch (Throwable ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Post-processing of merged bean definition failed", ex);
}
mbd.postProcessed = true;
}
}
//解析循环依赖的逻辑
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
isSingletonCurrentlyInCreation(beanName));
if (earlySingletonExposure) {
addSingletonFactory(beanName, new ObjectFactory<Object>() {
@Override
public Object getObject() throws BeansException {
return getEarlyBeanReference(beanName, mbd, bean);
}
});
}
// Initialize the bean instance.
Object exposedObject = bean;
try {
// 依赖注入，初始化属性值
populateBean(beanName, mbd, instanceWrapper);
if (exposedObject != null) {
exposedObject = initializeBean(beanName, exposedObject, mbd);
}
}
catch (Throwable ex) {
}
if (earlySingletonExposure) {
Object earlySingletonReference = getSingleton(beanName, false);
if (earlySingletonReference != null) {
if (exposedObject == bean) {
exposedObject = earlySingletonReference;
}
else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
String[] dependentBeans = getDependentBeans(beanName);
Set<String> actualDependentBeans = new LinkedHashSet<String>(dependentBeans.length);
for (String dependentBean : dependentBeans) {
if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
actualDependentBeans.add(dependentBean);
}
}
if (!actualDependentBeans.isEmpty()) {
}
}
}
// Register bean as disposable.
try {
registerDisposableBeanIfNecessary(beanName, bean, mbd);
}
catch (BeanDefinitionValidationException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
}
return exposedObject;
}
- 真正bean实例化操作createBeanInstance
protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, Object[] args) {
//确保对象对应的类被加载了
// Make sure bean class is actually resolved at this point.
Class<?> beanClass = resolveBeanClass(mbd, beanName);
if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
}
//工厂方法实例化
if (mbd.getFactoryMethodName() != null) {
return instantiateUsingFactoryMethod(beanName, mbd, args);
}
//无参数构造方法实例化
// Shortcut when re-creating the same bean...
boolean resolved = false;
boolean autowireNecessary = false;
if (args == null) {
synchronized (mbd.constructorArgumentLock) {
if (mbd.resolvedConstructorOrFactoryMethod != null) {
resolved = true;
autowireNecessary = mbd.constructorArgumentsResolved;
}
}
}
if (resolved) {
if (autowireNecessary) {
return autowireConstructor(beanName, mbd, null, null);
}
else {
return instantiateBean(beanName, mbd);
}
}
//有入参的构造方法实例化
// Need to determine the constructor...
Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
if (ctors != null ||
mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_CONSTRUCTOR ||
mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
return autowireConstructor(beanName, mbd, ctors, args);
}
// 无参数构造方法实例化
// No special handling: simply use no-arg constructor.
return instantiateBean(beanName, mbd);
}
- 无参数构造方法实例化
@Override
public Object instantiate(RootBeanDefinition bd, String beanName, BeanFactory owner) {
// Do not override the class with CGLIB if no overrides.
if (bd.getMethodOverrides().isEmpty()) {
Constructor<?> constructorToUse;
synchronized (bd.constructorArgumentLock) {
constructorToUse = (Constructor<?>) bd.resolvedConstructorOrFactoryMethod;
if (constructorToUse == null) {
final Class<?> clazz = bd.getBeanClass();
if (clazz.isInterface()) {
throw new BeanInstantiationException(clazz, "Specified class is an interface");
}
try {
if (System.getSecurityManager() != null) {
constructorToUse = AccessController.doPrivileged(new PrivilegedExceptionAction<Constructor<?>>() {
@Override
public Constructor<?> run() throws Exception {
return clazz.getDeclaredConstructor((Class[]) null);
}
});
}
else {
//构造方法反射实例化
constructorToUse = clazz.getDeclaredConstructor((Class[]) null);
}
bd.resolvedConstructorOrFactoryMethod = constructorToUse;
}
catch (Throwable ex) {
throw new BeanInstantiationException(clazz, "No default constructor found", ex);
}
}
}
return BeanUtils.instantiateClass(constructorToUse);
}
else {
// Must generate CGLIB subclass.
return instantiateWithMethodInjection(bd, beanName, owner);
}
}
- 核心反射生成类
public static <T> T instantiateClass(Constructor<T> ctor, Object... args) throws BeanInstantiationException {
Assert.notNull(ctor, "Constructor must not be null");
try {
ReflectionUtils.makeAccessible(ctor);
//核心核心！终于重bean里面获取类，类的构造方法，然后反射new除了对象，好累。
return ctor.newInstance(args);
}
catch (InstantiationException ex) {
throw new BeanInstantiationException(ctor, "Is it an abstract class?", ex);
}
catch (IllegalAccessException ex) {
throw new BeanInstantiationException(ctor, "Is the constructor accessible?", ex);
}
catch (IllegalArgumentException ex) {
throw new BeanInstantiationException(ctor, "Illegal arguments for constructor", ex);
}
catch (InvocationTargetException ex) {
throw new BeanInstantiationException(ctor, "Constructor threw exception", ex.getTargetException());
}
}
- 对象属性初始化 完成对象创建以后，在createBean方法中通过populateBean方法进行属性的初始化
protected void populateBean(String beanName, RootBeanDefinition mbd, BeanWrapper bw) {
//获取所有的属性值
PropertyValues pvs = mbd.getPropertyValues();
if (bw == null) {
if (!pvs.isEmpty()) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance");
}
else {
// Skip property population phase for null instance.
return;
}
}
// Give any InstantiationAwareBeanPostProcessors the opportunity to modify the
// state of the bean before properties are set. This can be used, for example,
// to support styles of field injection.
boolean continueWithPropertyPopulation = true;
//出现BeanPostProcessors又是钩子，给出各种特殊操作
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
if (!ibp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
continueWithPropertyPopulation = false;
break;
}
}
}
}
if (!continueWithPropertyPopulation) {
return;
}
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_NAME ||
mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_TYPE) {
MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
// Add property values based on autowire by name if applicable.
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_NAME) {
//通过name属性来装配
autowireByName(beanName, mbd, bw, newPvs);
}
// Add property values based on autowire by type if applicable.
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_TYPE) {
//通过type属性来装配
autowireByType(beanName, mbd, bw, newPvs);
}
pvs = newPvs;
}
boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
boolean needsDepCheck = (mbd.getDependencyCheck() != RootBeanDefinition.DEPENDENCY_CHECK_NONE);
if (hasInstAwareBpps || needsDepCheck) {
PropertyDescriptor[] filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
if (hasInstAwareBpps) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
pvs = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
if (pvs == null) {
return;
}
}
}
}
if (needsDepCheck) {
checkDependencies(beanName, mbd, filteredPds, pvs);
}
}
//实际装配配置文件的属性
applyPropertyValues(beanName, mbd, bw, pvs);
}
最终，我们完成了从xml配置文件，到注册表注册，到实例化对象，以及最后的对象的初始化。整个过程我们只是粗略的分析，后续会有文章对其中一些难点和细节进行分析。
