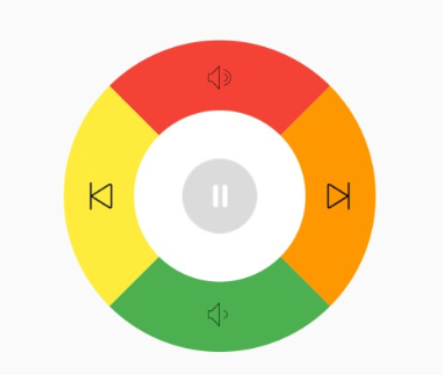

简单的遥控器 控制界面，精确的点击边界。实现思路
- 正方形区域裁剪成圆形。

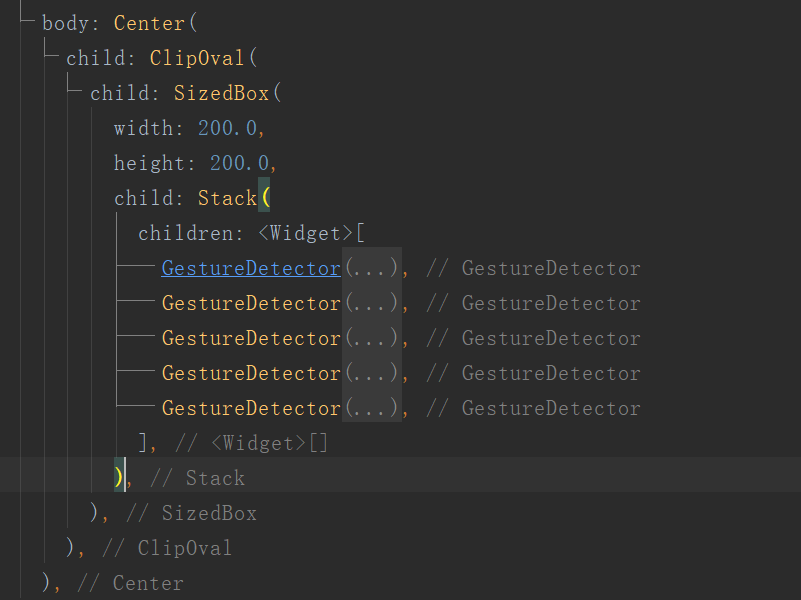

- Stack层叠布局，确定上下左右中5个按钮
- 对这5个组件进行裁剪。

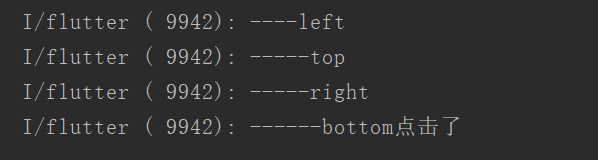

下面时点击事件
实现代码
ClipOval(
child: SizedBox(
width: 200.0,
height: 200.0,
child: Stack(
children: <Widget>[
GestureDetector(
onTap: () {
print("-----top");
},
child: ClipPath(
child: Align(
alignment: Alignment(-1, -1),
child: Container(
width: 200,
height: 100,
color: Colors.red,
child: Align(
alignment: Alignment(0, -0.65),
child: Image.asset(
"assets/images/yinliangda.png",
height: 20,
),
),
),
),
clipper: TopPath(),
),
),
GestureDetector(
onTap: () {
print("-----right");
},
child: ClipPath(
child: Align(
alignment: Alignment(1, -1),
child: Container(
width: 100,
height: 200,
color: Colors.orange,
child: Align(
alignment: Alignment(0.65, 0),
child: Image.asset(
"assets/images/xiayiqu.png",
width: 20,
),
),
),
),
clipper: RightPath(),
),
),
GestureDetector(
onTap: () {
print("----left");
},
child: ClipPath(
child: Align(
alignment: Alignment(-1, 1),
child: Container(
width: 100,
height: 200,
color: Colors.yellow,
child: Align(
alignment: Alignment(-0.65, 0),
child: Image.asset(
"assets/images/shangyiqu.png",
width: 20,
),
),
),
),
clipper: LeftPath(),
),
),
GestureDetector(
onTap: () {
print("------bottom点击了");
},
child: ClipPath(
child: Align(
alignment: Alignment(1, 1),
child: Container(
width: 200,
height: 100,
color: Colors.green,
child: Align(
alignment: Alignment(0, 0.65),
child: Image.asset(
"assets/images/yinliangxiao.png",
height: 20,
),
),
),
),
clipper: BottomPath(),
),
),
GestureDetector(
onTap: () {
print("---- 中间区域");
},
child: Center(
child: ClipOval(
child: SizedBox(
width: 110,
height: 110,
child: Align(
alignment: Alignment(0, 0),
child: Container(
color: Colors.white,
width: 110,
height: 110,
child: Image.asset("assets/images/playing.png"),
),
),
),
),
),
),
],
),
),
)
