什么是Subject
Rxswift 简单的分可以分为：
- 可观察序列（
Observable） - 观察者（
Observer） - 调度者（
Scheduler） - 销毁者（
Dispose）
Subject 既可以做序列，也可以做观察者，由于这个原因使得 Subject 使用特别方便，在项目中会大量使用。
Rxswift 中主要有4种 Subject：
PublishSubjectBehaviorSubjectReplaySubjectAsyncSubject
SubjectType 协议
Rxswift 中所有的 Subject 都会遵循 SubjectType 协议。
SubjectType它继承于ObservableType，它可以作为一个可观察的序列。SubjectType关联了（associatedtype）一个观察者协议（ObserverType）以及方法asObserver，它可以做为一个观察者来使用。
/// Represents an object that is both an observable sequence as well as an observer.
public protocol SubjectType : ObservableType {
/// The type of the observer that represents this subject.
///
/// Usually this type is type of subject itself, but it doesn't have to be.
associatedtype SubjectObserverType : ObserverType
/// Returns observer interface for subject.
///
/// - returns: Observer interface for subject.
func asObserver() -> SubjectObserverType
}
PublishSubject
/// Represents an object that is both an observable sequence as well as an observer.
///
/// Each notification is broadcasted to all subscribed observers.
public final class PublishSubject<Element>
: Observable<Element>
, SubjectType
, Cancelable
, ObserverType
, SynchronizedUnsubscribeType {
...(省略)
}
- 继承于
Observable<Element>（可被观察序列），遵循协议：SubjectType—— 既可以作为Observerable又可作为ObserverCancelable—— 可以被销毁（继承于Disposable）ObserverType—— 观察者SynchronizedUnsubscribeType—— 取消订阅

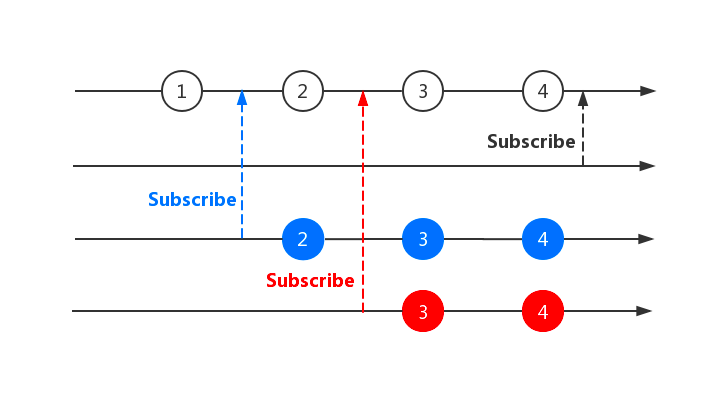

PublishSubject只能接收在被订阅之后发送的信号
示例：
let pub = PublishSubject<Int>()
pub.onNext(1)
pub.subscribe(onNext: { (num) in
print("接收到——\(num)")
}).disposed(by: disposeBag)
pub.onNext(2)
pub.onNext(3)
输出：
接收到——2
接收到——3
BehaviorSubject
/// Represents a value that changes over time.
///
/// Observers can subscribe to the subject to receive the last (or initial) value and all subsequent notifications.
public final class BehaviorSubject<Element>
: Observable<Element>
, SubjectType
, ObserverType
, SynchronizedUnsubscribeType
, Cancelable {
...(省略)
}
-
继承于
Observable<Element>（可被观察序列），遵循协议：SubjectType—— 既可以作为Observerable又可作为ObserverCancelable—— 可以被销毁（继承于Disposable）ObserverType—— 观察者SynchronizedUnsubscribeType—— 取消订阅
-

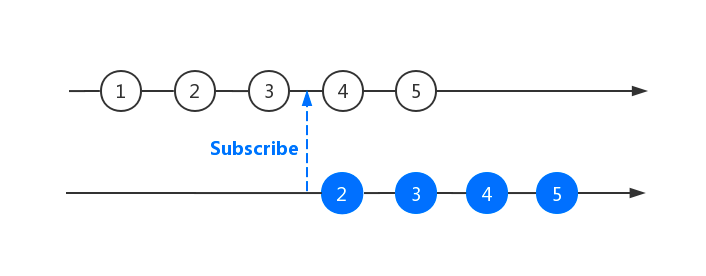

通过一个初始默认值创建，会存储上一次信号
// 初始化默认传入一个值
public init(value: Element) {
self._element = value
#if TRACE_RESOURCES
_ = Resources.incrementTotal()
#endif
}
func _synchronized_on(_ event: Event<E>) -> Observers {
self._lock.lock(); defer { self._lock.unlock() }
if self._stoppedEvent != nil || self._isDisposed {
return Observers()
}
switch event {
case .next(let element):
// 记录值
self._element = element
case .error, .completed:
self._stoppedEvent = event
}
return self._observers
}
3、订阅之后首先会接收到最近一次发送的事件（如果最近没有发送，那么发送一个初始的事件）
示例：
let behavior = BehaviorSubject<Int>(value: 1)
behavior.onNext(2)
behavior.subscribe(onNext: { (num) in
print("接收到——\(num)")
}).disposed(by: disposeBag)
behavior.onNext(3)
behavior.onNext(4)
let value = try? behavior.value()
print("value = \(value)")
输出：
接收到——2
接收到——3
接收到——4
value = Optional(4)
ReplaySubject
/// Represents an object that is both an observable sequence as well as an observer.
///
/// Each notification is broadcasted to all subscribed and future observers, subject to buffer trimming policies.
public class ReplaySubject<Element>
: Observable<Element>
, SubjectType
, ObserverType
, Disposable {
...(省略)
}
- 继承于
Observable<Element>（可被观察序列），遵循协议：SubjectType—— 既可以作为Observerable又可作为ObserverObserverType—— 观察者Disposable—— 可以被销毁
ReplaySubject会根据缓冲区调整，每个信号将广播给所有已订阅的观察者和未来订阅的观察者。
示例：
let replay = ReplaySubject<Int>.create(bufferSize: 2)
replay.onNext(1)
replay.onNext(2)
replay.onNext(3)
replay.subscribe(onNext: { (num) in
print("第一个订阅接收到 -- \(num)")
}).disposed(by: disposeBag)
replay.onNext(4)
replay.onNext(5)
replay.subscribe(onNext: { (num) in
print("第二个订阅接收到 -- \(num)")
}).disposed(by: disposeBag)
输出：
第一个订阅接收到 -- 2
第一个订阅接收到 -- 3
第一个订阅接收到 -- 4
第一个订阅接收到 -- 5
第二个订阅接收到 -- 4
第二个订阅接收到 -- 5
AsyncSubject
public final class AsyncSubject<Element>
: Observable<Element>
, SubjectType
, ObserverType
, SynchronizedUnsubscribeType {
...（省略）
}
-
继承于
Observable<Element>（可被观察序列），遵循协议：SubjectType—— 既可以作为Observerable又可作为ObserverObserverType—— 观察者SynchronizedUnsubscribeType—— 取消订阅
-

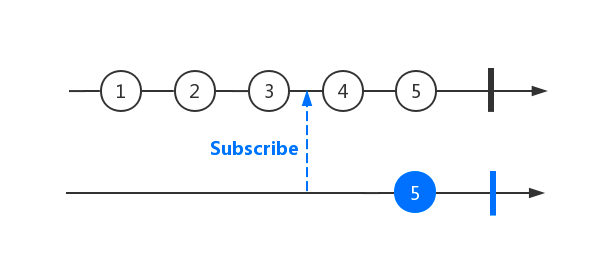

AsyncSubject只发送最后一个信号，并且只在完成（onCompleted）之后。
示例1：
let async = AsyncSubject<Int>()
async.onNext(1)
async.onNext(2)
async.subscribe(onNext: { (num) in
print("接受订阅 = \(num)")
}).disposed(by: disposeBag)
async.onNext(3)
async.onNext(4)
async.onCompleted()
输出：
接受订阅 = 4
RxCocoa 中的 PublishRelay, BehaviorRelay
PublishRelay是对PublishSubject的封装BehaviorRelay是对BehaviorSubject的封装PublishSubject和BehaviorSubject都会被error或者completed即可以用方法onError或者onCompleted终止；但是PublishRelay和BehaviorRelay不会（就没有onError或者onCompleted方法）
/// PublishRelay is a wrapper for `PublishSubject`.
///
/// Unlike `PublishSubject` it can't terminate with error or completed.
public final class PublishRelay<Element>: ObservableType {
public typealias E = Element
private let _subject: PublishSubject<Element>
...（省略）
}
/// BehaviorRelay is a wrapper for `BehaviorSubject`.
///
/// Unlike `BehaviorSubject` it can't terminate with error or completed.
public final class BehaviorRelay<Element>: ObservableType {
public typealias E = Element
private let _subject: BehaviorSubject<Element>
...（省略）
}
PublishRelay 示例：
let publisRelay = PublishRelay<Int>()
publisRelay.accept(1)
publisRelay.subscribe(onNext: { (num) in
print("接收到 -- \(num)")
}).disposed(by: disposeBag)
publisRelay.accept(2)
publisRelay.accept(3)
输出：
接收到 -- 2
接收到 -- 3
BehaviorRelay 示例：
let behaviorRelay = BehaviorRelay<Int>(value: 1)
behaviorRelay.accept(2)
behaviorRelay.subscribe(onNext: { (num) in
print("接收到 -- \(num)")
}).disposed(by: disposeBag)
behaviorRelay.accept(3)
behaviorRelay.accept(4)
print("value = \(behaviorRelay.value)")
输出：
接收到 -- 2
接收到 -- 3
接收到 -- 4
value = 4
