Java数据结构——循环链表

java精彩汇总
369 阅读4分钟
www.cnblogs.com/ericz2j/p/1…

一、单向循环链表

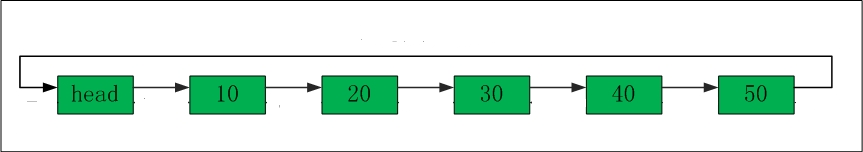

表中的最后一个节点的指针域指向头结点，整个链表形成一个环。其他的与单链表相同。

（以下图片均来自网络，侵删）

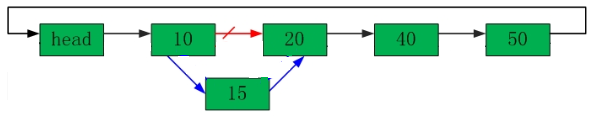

插入操作

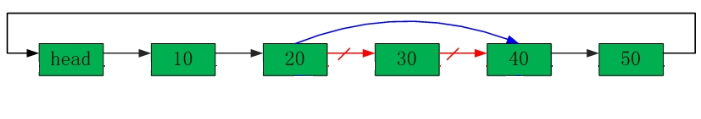

删除操作

简单实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
public class CiNode {
private Object data;
private CiNode next;
private static CiNode first; // 临时结点，头结点，并不是链表里想要的值，起到标记链表头的作用
public CiNode() {
super();
}
public CiNode(Object data, CiNode next) {
super();
this.data = data;
this.next = next;
}
public Object getData() {
return data;
}
public void setData(Object data) {
this.data = data;
}
public CiNode getNext() {
return next;
}
public void setNext(CiNode next) {
this.next = next;
}
public static void add(CiNode node, int index) {
if (index == 0) {
node.next = first.next;
first.next = node;
} else {
int temp = 0;
for (CiNode n = first.next;; n = n.next) {
temp++;
if (temp == index) {
node.next = n.next;
n.next = node;
break;
}
}
}
}
public static void remove(int index) {
if (index % 5 == 0) { // 删除第一个元素，考虑循环
first.next = first.next.next;
} else {
int temp = 0;
for (CiNode n = first.next;; n = n.next) {
if (n == first) {
temp -= 1; // 减一是因为链表循环计数时会把first记一次，所以这里减一次，使下标一致
}
temp++;
if (temp == index) {
n.next = n.next.next;
break;
}
}
}
}
public static void display() {
for (CiNode n = first.next; n != first; n = n.next) {
System.out.print(n.data + " ");
}
System.out.println();
}
public static void main(String[] args) {
CiNode node4 = new CiNode("ddd", null);
CiNode node3 = new CiNode("ccc", node4);
CiNode node2 = new CiNode("bbb", node3);
CiNode node1 = new CiNode("aaa", node2);
first = new CiNode(null, node1);
node4.next = first;
System.out.println("当前链表：");
display();
add(new CiNode("eee", null), 5); // 传5进去是为了体现循环，当参数大于了链表长度时，又回到first
System.out.println("插入后链表：");
display();
remove(11);
System.out.println("删除后链表：");
display();
}
}

　　

循环单链表模拟击鼓传花游戏

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
public class JiGuChuanHua implements Runnable {
private Object person;//游戏的人的data
private JiGuChuanHua next;//指向下一个人，
private static JiGuChuanHua first;//第一个人
public JiGuChuanHua() {
super();
}
//构造方法
public JiGuChuanHua(Object person, JiGuChuanHua next) {
super();
this.person = person;
this.next = next;
}
@Override
public void run() {
JiGuChuanHua loser = first; //以第一个人为起点
double time = (Math.random() + 0.5) * 10; //随机产生游戏时间（5-15s）
boolean flag = true;//结束线程的标志
System.out.println("本局游戏时间：" + time + "s");
System.out.println("游戏开始：");
System.out.println(loser.person);//初始游戏时，花在第一个人手上，打印
double startTime = System.currentTimeMillis();//获取开始游戏的时间
while (flag) {
for (JiGuChuanHua node = first;; node = node.next) {
loser = node.next;//loser指向下一个人，模拟传花过程
System.out.println(loser.person);//打印拿到花的人
try {
Thread.sleep((long) (Math.random() * 500));//线程睡眠，模拟花在每一个人手中停留时间
} catch (InterruptedException e) {
e.printStackTrace();
}
double endTime = System.currentTimeMillis();//传完一个人时的时间
if (endTime - startTime >= time * 1000) {//游戏时间到，这里不具备原子性，所以是大于等于
flag = false;//标志位置为false
break;
}
}
}
System.out.println("游戏结束，拿到花的人是：" + loser.person);//打印最后拿到花的人
}
public static void main(String[] args) {
//将参加游戏的人用链表连起来，构成一个循环
JiGuChuanHua person5 = new JiGuChuanHua("e", null);
JiGuChuanHua person4 = new JiGuChuanHua("d", person5);
JiGuChuanHua person3 = new JiGuChuanHua("c", person4);
JiGuChuanHua person2 = new JiGuChuanHua("b", person3);
JiGuChuanHua person1 = new JiGuChuanHua("a", person2);
person5.next = person1;
first = person1;
JiGuChuanHua jgch = new JiGuChuanHua();
Thread thread = new Thread(jgch);
thread.start(); //开启线程
}
}

　　

二、双向循环链表

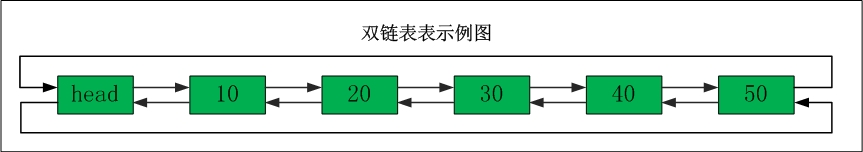

从双向链表中的任意一个结点开始，都可以很方便地访问它的前驱结点和后继结点。一般我们都构造双向循环链表。

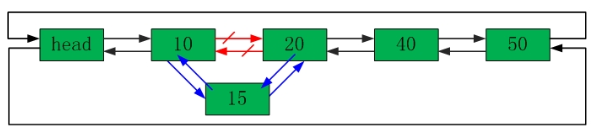

插入操作

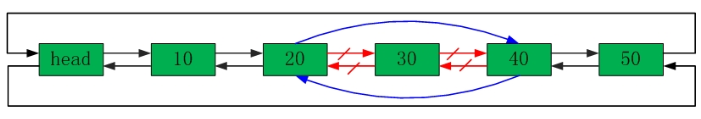

删除操作


简单实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
public class CiDlNode {
private Object data;
private CiDlNode next;
private CiDlNode prev;
private static CiDlNode first;
public CiDlNode() {
super();
}
public CiDlNode(Object data, CiDlNode next, CiDlNode prev) {
super();
this.data = data;
this.next = next;
this.prev = prev;
}
public static void insert(Object data, int index) {
CiDlNode node = new CiDlNode(data, null, null);
if (index == 0) {
node.next = first.next;
first.next.prev = node;
first.next = node;
node.prev = first;
} else {
int temp = 0;
for (CiDlNode n = first.next;; n = n.next) {
temp++;
if (temp == index) {
node.next = n.next;
node.next = n.next;
n.next.prev = node;
n.next = node;
node.prev = n;
break;
}
}
}
}
public static void remove(Object data) {
for (CiDlNode n = first.next; n != first; n = n.next) {
if (n.data.equals(data)) {
n.prev.next = n.next;
n.next.prev = n;
}
}
}
public static void print() {
for (CiDlNode node = first.next; node != first; node = node.next) {
System.out.print(node.data + " ");
}
System.out.println();
}
public static void main(String[] args) {
first = new CiDlNode("0", null, null);
CiDlNode node1 = new CiDlNode("aaa", null, first);
CiDlNode node2 = new CiDlNode("bbb", null, node1);
CiDlNode node3 = new CiDlNode("ccc", null, node2);
CiDlNode node4 = new CiDlNode("ddd", first, node3);
node3.next = node4;
node2.next = node3;
node1.next = node2;
first.next = node1;
System.out.println("当前链表:");
print();
insert("ddd", 5);
System.out.println("插入后链表：");
print();
remove("ddd");
System.out.println("删除后链表：");
print();
}
}
