本文章出处Spring使用xml启动源码解析 转载请说明出处
工程准备
- 引入Spring最小依赖
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<spring.version>5.1.8.RELEASE</spring.version>
</properties>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${spring.version}</version>
</dependency>
</dependencies>
- applicationContext.xml配置
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">
<bean id="myBean" class="org.ting.spring.study.App"/>
</beans>
- Spring 启动代码
package org.ting.spring.study;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
public class App
{
public static void main( String[] args ){
ApplicationContext app = new ClassPathXmlApplicationContext("applicationContext.xml");
App myBean = (App) app.getBean("myBean");
System.out.println(myBean);
}
}

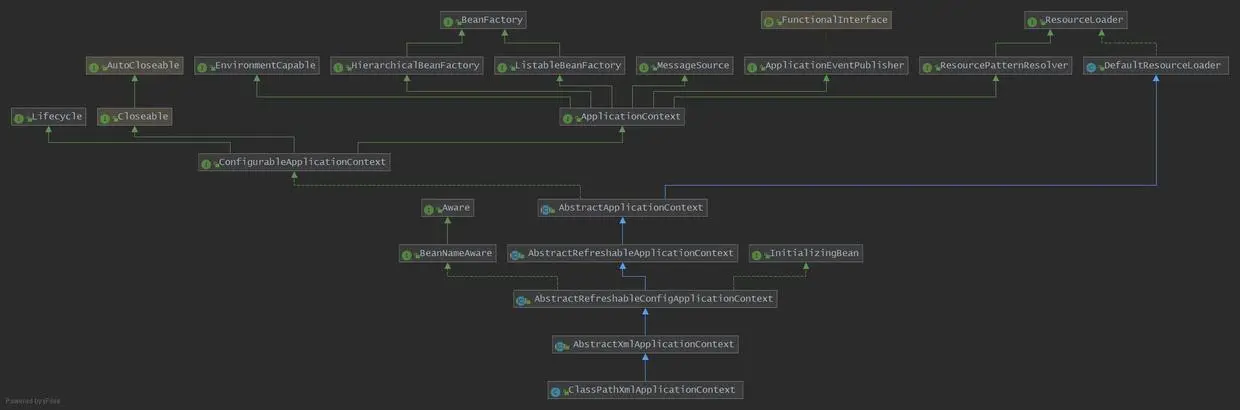

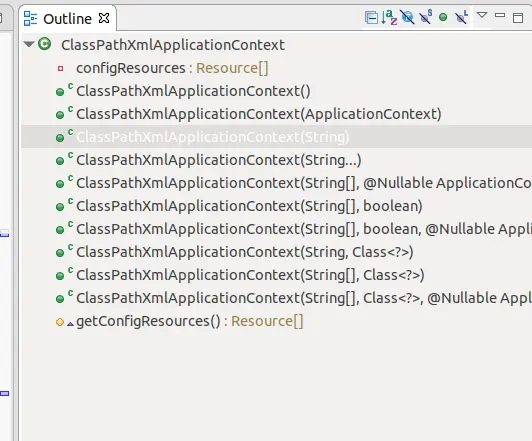

了解ClassPathXmlApplicationContext
public ClassPathXmlApplicationContext(String configLocation) throws BeansException {
this(new String[] {configLocation}, true, null);
}
进入this构造方法
public ClassPathXmlApplicationContext(
String[] configLocations, boolean refresh, @Nullable ApplicationContext parent)
throws BeansException {
//设置父容器
super(parent);
setConfigLocations(configLocations);
if (refresh) {
refresh();
}
}
可以看出，这个才是ClassPathXmlApplicatonContext实例化方法，设置父容器对象，添加配置文件路径到容器中，开始启动容器工作。
super(parent)方法依次调用服务父类AbstractXmlApplicationContext、AbstractRefreshableConfigApplicationContext、AbstractRefreshableApplicationContext、AbstractApplicationContext的构造方法。
public AbstractApplicationContext(@Nullable ApplicationContext parent) {
this();
setParent(parent);
}
@Override
public void setParent(@Nullable ApplicationContext parent) {
this.parent = parent;
if (parent != null) {
Environment parentEnvironment = parent.getEnvironment();
if (parentEnvironment instanceof ConfigurableEnvironment) {
getEnvironment().merge((ConfigurableEnvironment) parentEnvironment);
}
}
}
这个方法主要是向上调用父类构造方法，一直到AbstractApplicationContext对象。参数不为空的话将父上下文对像Environment设置合并到当前容器中，将两个容器配置文件合并起来，一般在web环境有使用到。
setConfigLocations
public void setConfigLocations(@Nullable String... locations) {
if (locations != null) {
Assert.noNullElements(locations, "Config locations must not be null");
this.configLocations = new String[locations.length];
for (int i = 0; i < locations.length; i++) {
//处理路径，从环境变量中替换占位符 ${x}
this.configLocations[i] = resolvePath(locations[i]).trim();
}
}
else {
this.configLocations = null;
}
}
将路径添加到AbstractRefreshableConfigApplicationContextconfigLocations 属性中，并且出来掉路径中环境变量占位符，保证configLocaiton得到是可用地址。
refresh解读
@Override
public void refresh() throws BeansException, IllegalStateException {
synchronized (this.startupShutdownMonitor) {
//准备刷新上下文对象
prepareRefresh();
// 创建Spring Factory对象，清空缓存，解析xml文件转换成BeanDefinition 保存到缓存中
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
//初始化BeanFactory 内部属性值，添加类型转换 ,前置处理器
prepareBeanFactory(beanFactory);
try {
// 空方法，让字类实现查看或者修改beanFacory内部属性值
postProcessBeanFactory(beanFactory);
// 注册实例化BeanFactoryPostProcessor，并且执行所有类接口方法
invokeBeanFactoryPostProcessors(beanFactory);
//注册所有后置处理器
registerBeanPostProcessors(beanFactory);
//初始化messageSource bean
initMessageSource();
//初始化组播器
initApplicationEventMulticaster();
// 空方法，让字类自行初始化特别bean
onRefresh();
// 初始化所有事件监听器，加入组播器中，广播事件
registerListeners();
//启动所有非延迟单例bean
finishBeanFactoryInitialization(beanFactory);
// 完成applicationContext初始化工作
finishRefresh();
}
catch (BeansException ex) {
if (logger.isWarnEnabled()) {
logger.warn("Exception encountered during context initialization - " +
"cancelling refresh attempt: " + ex);
}
// 销毁已经创建成功bean
destroyBeans();
// Reset 'active' flag.
cancelRefresh(ex);
// Propagate exception to caller.
throw ex;
}
finally {
// Reset common introspection caches in Spring's core, since we
//清空所有类型注解扫描，反射等元数据集合
resetCommonCaches();
}
}
}
下面我们一个个方法解析
prepareRefresh
protected void prepareRefresh() {
// Switch to active.
this.startupDate = System.currentTimeMillis();
this.closed.set(false);
this.active.set(true);
if (logger.isDebugEnabled()) {
if (logger.isTraceEnabled()) {
logger.trace("Refreshing " + this);
}
else {
logger.debug("Refreshing " + getDisplayName());
}
}
// 初始化PropertySource ，默认不做任何处理，让子类实现
initPropertySources();
// Validate that all properties marked as required are resolvable:
// see ConfigurablePropertyResolver#setRequiredProperties
getEnvironment().validateRequiredProperties();
// Store pre-refresh ApplicationListeners...
if (this.earlyApplicationListeners == null) {
this.earlyApplicationListeners = new LinkedHashSet<>(this.applicationListeners);
}
else {
// Reset local application listeners to pre-refresh state.
this.applicationListeners.clear();
this.applicationListeners.addAll(this.earlyApplicationListeners);
}
// Allow for the collection of early ApplicationEvents,
// to be published once the multicaster is available...
this.earlyApplicationEvents = new LinkedHashSet<>();
}
设置启动时间，将关闭标记设置false，活动开关设置true，initPropertySources(),本身是一个空方法，由子类自行去实现，让子类在容器创建之前修改ConfigurableEnvironment的PropertySources对象属性。PropertySourcesname/value键值对的封装接口，主要用来装配配置变量。虽然ClassPathXmlApplicatonContext和他的父类都没有实现这个方法，在Spring MVC中， GenericWebApplicationContext实现initPropertySources方法，将servletContext配置变量合并到ProertySources中。接着看getEnvironment().validateRequiredProperties()这个方法实现在
validateRequiredProperties
@Override
public void validateRequiredProperties() {
MissingRequiredPropertiesException ex = new MissingRequiredPropertiesException();
for (String key : this.requiredProperties) {
if (this.getProperty(key) == null) {
ex.addMissingRequiredProperty(key);
}
}
if (!ex.getMissingRequiredProperties().isEmpty()) {
throw ex;
}
}
主要校验ProertySources中key value，是否有不对应的情况。其实这个主要校验上一个initPropertySources()方法安全措施来的。比如老爸放手让自己儿子去做一件事，自己完全不干预，但是他会偷偷去查看事件做得怎么样？如果做不不行，狠狠打儿子一顿。
ConfigurableListableBeanFactory初始化

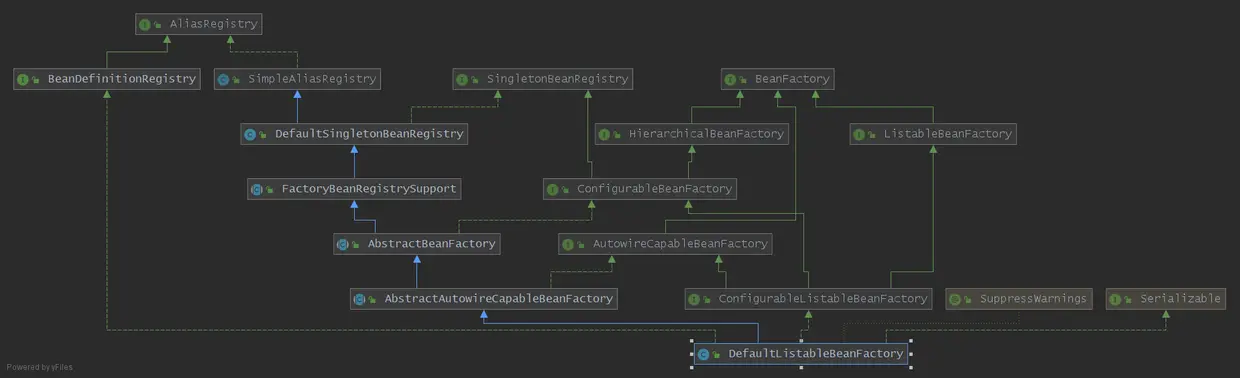

这部分应该是整个代码解析最核心的功能了，这个类就是我们经常说的Spring容器,Spring工厂的实现DefaultListableBeanFactory。主要负责bean注册实例化，bean查找，bean别名，bean销毁。这里实例化这个对象，也开始说明Spring生命周期正式开始。下面是 DefaultListableBeanFactory的继承关系
protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
refreshBeanFactory();
return getBeanFactory();
}
refreshBeanFactory主要是清除ConfigurableListableBeanFactory bean缓存，重新实例化。
refreshBeanFactory
这个方法在AbstractRefreshableApplicationContext中
protected final void refreshBeanFactory() throws BeansException {
if (hasBeanFactory()) { //判断ConfigurableListableBeanFactory 是否已经创建了
destroyBeans();
closeBeanFactory();
}
try {
//使用构造函数实例化new DefaultListableBeanFactory（parent）
DefaultListableBeanFactory beanFactory = createBeanFactory();
beanFactory.setSerializationId(getId());
//Spring 工厂自定义设置，是否运行已经注册bean被相同beanName覆盖，默认是true，设置是否允许bean之间的循环引用 - 并尝试自动解决它默认也是true
customizeBeanFactory(beanFactory);
//开始解析xml配置文件，注册BeanDefinition,下面具体分析
loadBeanDefinitions(beanFactory);
synchronized (this.beanFactoryMonitor) {
this.beanFactory = beanFactory;
}
}
catch (IOException ex) {
throw new ApplicationContextException("I/O error parsing bean definition source for " + getDisplayName(), ex);
}
}
先判断ConfigurableListableBeanFactory对象是否已经创建成功了，如果已经存在了，执行销毁Spring容器内已经注册bean销毁，重新实例化ConfigurableListableBeanFactory对象，设置id，设置beanFactory bean重名，依赖解决方式。开始加载xml配置文件，注册BeanDefinition，将已经实例化BeanFactory指引再指向this.beanFactory。
主要看下destroyBeans()
protected void destroyBeans() {
getBeanFactory().destroySingletons();
}
调用了ConfigurableListableBeanFactory的destroySingletons方法，接口的实现类是DefaultListableBeanFactory。
@Override
public void destroySingletons() {
super.destroySingletons();
updateManualSingletonNames(Set::clear, set -> !set.isEmpty());
clearByTypeCache();
}
destroySingletons
super.destroySingletons()调用了DefaultSingletonBeanRegistry的destroySingletons方法
public void destroySingletons() {
if (logger.isTraceEnabled()) {
logger.trace("Destroying singletons in " + this);
}
synchronized (this.singletonObjects) {
this.singletonsCurrentlyInDestruction = true;
}
String[] disposableBeanNames;
synchronized (this.disposableBeans) { //将map key 转化成string 数组
disposableBeanNames = StringUtils.toStringArray(this.disposableBeans.keySet());
}
for (int i = disposableBeanNames.length - 1; i >= 0; i--) {
destroySingleton(disposableBeanNames[i]);
}
this.containedBeanMap.clear();
this.dependentBeanMap.clear();
this.dependenciesForBeanMap.clear();
clearSingletonCache();
}
destroySingleton
public void destroySingleton(String beanName) {
// Remove a registered singleton of the given name, if any.
removeSingleton(beanName);
// Destroy the corresponding DisposableBean instance.
DisposableBean disposableBean;
synchronized (this.disposableBeans) {
disposableBean = (DisposableBean) this.disposableBeans.remove(beanName);
}
destroyBean(beanName, disposableBean);
}
查看removeSingleton方法
protected void removeSingleton(String beanName) {
synchronized (this.singletonObjects) {
this.singletonObjects.remove(beanName);
this.singletonFactories.remove(beanName);
this.earlySingletonObjects.remove(beanName);
this.registeredSingletons.remove(beanName);
}
}
这几个分别就是内部容器来的，看下主要用途
/**缓存单例bean对象 ： beanName 对应 bean对象 */
private final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);
/**缓存单例工厂: beanName 对应 bean工厂实体. */
private final Map<String, ObjectFactory<?>> singletonFactories = new HashMap<>(16);
/** 缓存bean早期对象，主要是bean注册的实体依赖对象: beanName 对应 实体对象 */
private final Map<String, Object> earlySingletonObjects = new HashMap<>(16);
/**已经成功注册beanName,按住注册顺序保存 */
private final Set<String> registeredSingletons = new LinkedHashSet<>(256);
destroyBean
protected void destroyBean(String beanName, @Nullable DisposableBean bean) {
// Trigger destruction of dependent beans first...
Set<String> dependencies;
synchronized (this.dependentBeanMap) {
// Within full synchronization in order to guarantee a disconnected Set
dependencies = this.dependentBeanMap.remove(beanName);
}
if (dependencies != null) {
if (logger.isTraceEnabled()) {
logger.trace("Retrieved dependent beans for bean '" + beanName + "': " + dependencies);
}
for (String dependentBeanName : dependencies) {
destroySingleton(dependentBeanName);
}
}
// Actually destroy the bean now...
if (bean != null) {
try {
bean.destroy();
}
catch (Throwable ex) {
if (logger.isInfoEnabled()) {
logger.info("Destroy method on bean with name '" + beanName + "' threw an exception", ex);
}
}
}
// Trigger destruction of contained beans...
Set<String> containedBeans;
synchronized (this.containedBeanMap) {
// Within full synchronization in order to guarantee a disconnected Set
containedBeans = this.containedBeanMap.remove(beanName);
}
if (containedBeans != null) {
for (String containedBeanName : containedBeans) {
destroySingleton(containedBeanName);
}
}
在删除DisposableBean实例的时候，获取bean下依赖实例，逐个移除。最后将Spring容器依赖实体逐个移除。接着看closeBeanFactory()办法
loadBeanDefinitions 解析
@Override
protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
// Create a new XmlBeanDefinitionReader for the given BeanFactory.
XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);
// Configure the bean definition reader with this context's
// resource loading environment.
beanDefinitionReader.setEnvironment(this.getEnvironment());
beanDefinitionReader.setResourceLoader(this);
//xml 文件约束校验
beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));
// Allow a subclass to provide custom initialization of the reader,
// 设置xml校验方式
initBeanDefinitionReader(beanDefinitionReader);
//开始解析xml转化BeanDefinition
loadBeanDefinitions(beanDefinitionReader);
}
实例化XmlBeanDefinitionReader将资源文件xml解析成BeanDefinition，将Spring上下文对象赋值给对象属性。loadBeanDefinitions会将xml文件转化成Document对象，由于这部分太过繁琐，需要根据文件名获取ResouceLoader，再获取到文件流对象，解析xml成Document，觉得省略这些代码解析，主要放在Document如何转化成BeanDefinition，在DefaultBeanDefinitionDocumentReader实现。
doRegisterBeanDefinitions
protected void doRegisterBeanDefinitions(Element root) {
// Any nested <beans> elements will cause recursion in this method. In
// order to propagate and preserve <beans> default-* attributes correctly,
// keep track of the current (parent) delegate, which may be null. Create
// the new (child) delegate with a reference to the parent for fallback purposes,
// then ultimately reset this.delegate back to its original (parent) reference.
// this behavior emulates a stack of delegates without actually necessitating one.
BeanDefinitionParserDelegate parent = this.delegate;
this.delegate = createDelegate(getReaderContext(), root, parent);
if (this.delegate.isDefaultNamespace(root)) {
String profileSpec = root.getAttribute(PROFILE_ATTRIBUTE);
//判断文件profile属性，转化成array
if (StringUtils.hasText(profileSpec)) {
String[] specifiedProfiles = StringUtils.tokenizeToStringArray(
profileSpec, BeanDefinitionParserDelegate.MULTI_VALUE_ATTRIBUTE_DELIMITERS);
// We cannot use Profiles.of(...) since profile expressions are not supported
// in XML config. See SPR-12458 for details.
if (!getReaderContext().getEnvironment().acceptsProfiles(specifiedProfiles)) {
if (logger.isDebugEnabled()) {
logger.debug("Skipped XML bean definition file due to specified profiles [" + profileSpec +
"] not matching: " + getReaderContext().getResource());
}
return;
}
}
}
//运行自定义实现类 预处理xml文件，空方法，让子类实现。
preProcessXml(root);
parseBeanDefinitions(root, this.delegate);
//运行自定义自主实心方法，修改xml属性，空方法。
postProcessXml(root);
this.delegate = parent;
}
BeanDefinitionParserDelegate主要是解析Document命名空间，标签元素，属性，将xml标签转化成对象。
prseBeanDefinitions
protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
if (delegate.isDefaultNamespace(root)) {
NodeList nl = root.getChildNodes();
for (int i = 0; i < nl.getLength(); i++) {
Node node = nl.item(i);
if (node instanceof Element) {
Element ele = (Element) node;
if (delegate.isDefaultNamespace(ele)) {
//注册BeanDefinition
parseDefaultElement(ele, delegate);
}
else {
delegate.parseCustomElement(ele);
}
}
}
}
else {
delegate.parseCustomElement(root);
}
}
循环遍历beans的子标签，符合"import", "alias", "bean"命名空间，进入标签解析环节
private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
if (delegate.nodeNameEquals(ele, IMPORT_ELEMENT)) {
importBeanDefinitionResource(ele);
}
else if (delegate.nodeNameEquals(ele, ALIAS_ELEMENT)) {
processAliasRegistration(ele);
}
else if (delegate.nodeNameEquals(ele, BEAN_ELEMENT)) {
processBeanDefinition(ele, delegate);
}
else if (delegate.nodeNameEquals(ele, NESTED_BEANS_ELEMENT)) {
// recurse
doRegisterBeanDefinitions(ele);
}
}
主要看下bean标签解析
protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
if (bdHolder != null) {
bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
try {
// Register the final decorated instance.
BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, getReaderContext().getRegistry());
}
catch (BeanDefinitionStoreException ex) {
getReaderContext().error("Failed to register bean definition with name '" +
bdHolder.getBeanName() + "'", ele, ex);
}
// Send registration event.
getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
}
}
这个方法将xml解析返回 BeanDefinition对象，如果对象不为空，继续解析元素的自定义属性，并将元素自定义属性设置给刚刚创建BeanDefiniton对象，最后广播注册BeanDefinition对象。关于如何生成BeanDefiniton对象，这个方法我不具体深入了解了，毕竟里面篇幅很多的，以后会专门出一个章节去说明。
prepareBeanFactory 方法解析
prepareBeanFactory方法主要是配置BeanFactory 类加载器，Spring el表达式实现，bean前置处理器等等的属性设置，主要逻辑详看下面的代码
protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
// Tell the internal bean factory to use the context's class loader etc.
//设置工厂类加载器 beanFactory.setBeanClassLoader(getClassLoader());
//设置Spring el表达式实现
beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
//添加属性转化器
beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));
/*
* 添加后置处理器实现, 如果实现了相应的 Aware 接口，则注入对应的资源
* 1. EnvironmentAware
* 2. EmbeddedValueResolverAware
* 3. ResourceLoaderAware
* 4. ApplicationEventPublisherAware
* 5. MessageSourceAware
* 6. ApplicationContextAware
*/
beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
//忽略 这些类自动注入，与上面后置处理器对应
beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);
//将Spring 内部对象缓存起来，注册到容器内部。
beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
beanFactory.registerResolvableDependency(ResourceLoader.class, this);
beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
beanFactory.registerResolvableDependency(ApplicationContext.class, this);
// 注册 事件监听器前置处理
beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));
// 判断存在AOP bean name 则注册aop前置处理器
if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
// Set a temporary ClassLoader for type matching.
beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
}
// 注册 默认environment beans.
if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
//向Spring容器注册bean
beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
}
if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) { //注册系统环境变量
beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
}
if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());0
}
}
BeanPostProcessor
addBeanPostProcessor方法主要添加BeanPostProcessor接口实现类，Bean 的后置处理器，主要是在 bean 初始化前后进行一些处理工作,spring bean 创建委派给个大后置处理器创建。
public interface BeanPostProcessor {
/**
* bean 在创建之前，对bean进行处理，将处理过实体返回给BeanFactory容器
*/
@Nullable
default Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
return bean;
}
/**
* bean创建之后，对bean进行处理，相当于给已经创建的进行功能加强
*/
@Nullable
default Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
return bean;
}
}
ApplicationContextAwareProcessor
@Override
@Nullable
public Object postProcessBeforeInitialization(final Object bean, String beanName) throws BeansException {
AccessControlContext acc = null;
if (System.getSecurityManager() != null &&
(bean instanceof EnvironmentAware || bean instanceof EmbeddedValueResolverAware ||
bean instanceof ResourceLoaderAware || bean instanceof ApplicationEventPublisherAware ||
bean instanceof MessageSourceAware || bean instanceof ApplicationContextAware)) {
acc = this.applicationContext.getBeanFactory().getAccessControlContext();
}
if (acc != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
invokeAwareInterfaces(bean);
return null;
}, acc);
}
else {
invokeAwareInterfaces(bean);
}
return bean;
}
private void invokeAwareInterfaces(Object bean) {
if (bean instanceof Aware) {
if (bean instanceof EnvironmentAware) {
((EnvironmentAware) bean).setEnvironment(this.applicationContext.getEnvironment());
}
if (bean instanceof EmbeddedValueResolverAware) {
((EmbeddedValueResolverAware) bean).setEmbeddedValueResolver(this.embeddedValueResolver);
}
if (bean instanceof ResourceLoaderAware) {
((ResourceLoaderAware) bean).setResourceLoader(this.applicationContext);
}
if (bean instanceof ApplicationEventPublisherAware) {
((ApplicationEventPublisherAware) bean).setApplicationEventPublisher(this.applicationContext);
}
if (bean instanceof MessageSourceAware) {
((MessageSourceAware) bean).setMessageSource(this.applicationContext);
}
if (bean instanceof ApplicationContextAware) {
((ApplicationContextAware) bean).setApplicationContext(this.applicationContext);
}
}
}
上面的逻辑非常判断准备初始化bean是否实现了EnvironmentAware,EmbeddedValueResolverAware,ResourceLoaderAware,ApplicationEventPublisherAware,MessageSourceAware.ApplicationContextAware接口，如果是，直接执行接口方法，将Spring工厂方法注入属性中。这个也解析了上面设置registerResolvableDependency依赖注入忽略。
postProcessBeanFactory
postProcessBeanFactory方法中没有任何实现，主要是允许子类在Spring工厂还没有初始化bean之前，添加一些特殊bean进入到容器中，比如添加BeanPostProcessors接口实现类。这时候Spring 已经解析完xml，还需要想添加一些bean到容器中，这时候就可以实现这个方法。
invokeBeanFactoryPostProcessors
BeanFactoryPostProcessors接口跟BeanPostProcessor类似，可以用于bean的定义进行处理，也可以在bean初始化之前修改bean元数据。可以配置多个BeanFactoryPostProcessor，使用Order接口来控制执行顺序。源码展示
protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
//执行BeanFactoryPostProcessors ，从容器中已经实例化对象中执行方法
PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());
if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {//判断是否需要AOP支持，注册AOP前置处理器
beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
}
}
invokeBeanFactoryPostProcessors
public static void invokeBeanFactoryPostProcessors(
ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {
// Invoke BeanDefinitionRegistryPostProcessors first, if any.
Set<String> processedBeans = new HashSet<>();
if (beanFactory instanceof BeanDefinitionRegistry) { //强制类型 BeanDefinitionRegistryPostProcessor接口需要用到
BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
List<BeanFactoryPostProcessor> regularPostProcessors = new ArrayList<>();
List<BeanDefinitionRegistryPostProcessor> registryProcessors = new ArrayList<>();
//遍历所有BeanFactoryPostProcessor，按照BeanFactoryPostProcessor类型和BeanDefinitionRegistryPostProcessor类型分别放入不用容器中，
//并且执行BeanDefinitionRegistryPostProcessor接口方法。
for (BeanFactoryPostProcessor postProcessor : beanFactoryPostProcessors) {
if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {
BeanDefinitionRegistryPostProcessor registryProcessor =
(BeanDefinitionRegistryPostProcessor) postProcessor;
registryProcessor.postProcessBeanDefinitionRegistry(registry); //执行接口方法，参考或者修改bean 元数据
registryProcessors.add(registryProcessor);
}
else {
regularPostProcessors.add(postProcessor);
}
}
// Do not initialize FactoryBeans here: We need to leave all regular beans
// uninitialized to let the bean factory post-processors apply to them!
// Separate between BeanDefinitionRegistryPostProcessors that implement
// PriorityOrdered, Ordered, and the rest.
List<BeanDefinitionRegistryPostProcessor> currentRegistryProcessors = new ArrayList<>();
// First, invoke the BeanDefinitionRegistryPostProcessors that implement PriorityOrdered.
//获取工厂中所以BeanDefinitionRegistryPostProcessor类型 bean
String[] postProcessorNames =
beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
for (String ppName : postProcessorNames) {
if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
processedBeans.add(ppName);
}
}
sortPostProcessors(currentRegistryProcessors, beanFactory);
registryProcessors.addAll(currentRegistryProcessors);
//执行集合中所有BeanDefinitionRegistryPostProcessors 接口方法
invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
currentRegistryProcessors.clear();
// Next, invoke the BeanDefinitionRegistryPostProcessors that implement Ordered.
postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
for (String ppName : postProcessorNames) {
if (!processedBeans.contains(ppName) && beanFactory.isTypeMatch(ppName, Ordered.class)) {
currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
processedBeans.add(ppName);
}
}
//根据order接口排序集合中的顺序
sortPostProcessors(currentRegistryProcessors, beanFactory);
registryProcessors.addAll(currentRegistryProcessors);
invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
currentRegistryProcessors.clear();
// Finally, invoke all other BeanDefinitionRegistryPostProcessors until no further ones appear.
boolean reiterate = true;
while (reiterate) {
reiterate = false;
postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
for (String ppName : postProcessorNames) {
if (!processedBeans.contains(ppName)) {
currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
processedBeans.add(ppName);
reiterate = true;
}
}
sortPostProcessors(currentRegistryProcessors, beanFactory);
registryProcessors.addAll(currentRegistryProcessors);
invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
currentRegistryProcessors.clear();
}
// Now, invoke the postProcessBeanFactory callback of all processors handled so far.
invokeBeanFactoryPostProcessors(registryProcessors, beanFactory);
invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);
}
else {
// Invoke factory processors registered with the context instance.
invokeBeanFactoryPostProcessors(beanFactoryPostProcessors, beanFactory);
}
// Do not initialize FactoryBeans here: We need to leave all regular beans
// uninitialized to let the bean factory post-processors apply to them!
String[] postProcessorNames =
beanFactory.getBeanNamesForType(BeanFactoryPostProcessor.class, true, false);
// Separate between BeanFactoryPostProcessors that implement PriorityOrdered,
// Ordered, and the rest.
List<BeanFactoryPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
List<String> orderedPostProcessorNames = new ArrayList<>();
List<String> nonOrderedPostProcessorNames = new ArrayList<>();
for (String ppName : postProcessorNames) {
if (processedBeans.contains(ppName)) {
// skip - already processed in first phase above
}
else if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
priorityOrderedPostProcessors.add(beanFactory.getBean(ppName, BeanFactoryPostProcessor.class));
}
else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
orderedPostProcessorNames.add(ppName);
}
else {
nonOrderedPostProcessorNames.add(ppName);
}
}
// First, invoke the BeanFactoryPostProcessors that implement PriorityOrdered.
sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);
// Next, invoke the BeanFactoryPostProcessors that implement Ordered.
List<BeanFactoryPostProcessor> orderedPostProcessors = new ArrayList<>();
for (String postProcessorName : orderedPostProcessorNames) {
orderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
}
sortPostProcessors(orderedPostProcessors, beanFactory);
invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);
// Finally, invoke all other BeanFactoryPostProcessors.
List<BeanFactoryPostProcessor> nonOrderedPostProcessors = new ArrayList<>();
for (String postProcessorName : nonOrderedPostProcessorNames) {
nonOrderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
}
invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);
// Clear cached merged bean definitions since the post-processors might have
// modified the original metadata, e.g. replacing placeholders in values...
beanFactory.clearMetadataCache();
}
看起来代码挺多，其实很简单的逻辑。
- 遍历循环所有
BeanFactoryPostProcessor集合，首先取出BeanDefinitionRegistryPostProcessor，并且执行接口方法，再放入registryProcessors容器中。 - BeanFactory 中获取所有
BeanDefinitionRegistryPostProcessor类型的bean name 数组，遍历循环数据，判断是否有PriorityOrdered接口，加入容器中，并且根据接口重新排序后，遍历容器所有类，执行接口方法，加入registryProcessors容器中。 - 在获取容器所有
BeanDefinitionRegistryPostProcessor类型的bean name 数组，循环遍历bean name 取出实现Ordered接口,按照Orderd顺序排序集合，依次执行接口方法，加入放入registryProcessors容器中. - 将剩下所有BeanDefinitionRegistryPostProcessor，加入registryProcessors容器中。执行registryProcessors容器中所有
BeanFactoryPostProcessor的接口方法。 BeanFactoryPostProcessor也是按照上面的思路，先过滤排序执行接口方法。 看到这里我有一个疑问，这些接口对象怎么产生的？Spring 工厂并没有开始实例化对象，这时候Spring只进行到将xml转化成beanDefinition这个对象,不可能从Spring 工厂获取出来的。
BeanFactoryPostProcessor实例化过程
实例化bean 的方法主要在AbstractBeanFactory中
protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType,
@Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {
// 取出&提取对应beanName
final String beanName = transformedBeanName(name);
Object bean;
// 在缓存中获取对象
Object sharedInstance = getSingleton(beanName);
if (sharedInstance != null && args == null) {
if (logger.isTraceEnabled()) {
if (isSingletonCurrentlyInCreation(beanName)) {
logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
"' that is not fully initialized yet - a consequence of a circular reference");
}
else {
logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
}
}
//判断缓存中对象是否是正确的bean实例化，如果是FactoryBean接口对象，调用接口方法获取到bean实例
bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
}
else {
// 如果beanName 是prototpe或者scope类型，并且正在创建中，直接抛出异常
if (isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
// 尝试在父容器获取
BeanFactory parentBeanFactory = getParentBeanFactory();
if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
// 没有找到，尝试修改beanName名称，重新来过
String nameToLookup = originalBeanName(name);
if (parentBeanFactory instanceof AbstractBeanFactory) {
return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
nameToLookup, requiredType, args, typeCheckOnly);
}
else if (args != null) {
// Delegation to parent with explicit args.
return (T) parentBeanFactory.getBean(nameToLookup, args);
}
else if (requiredType != null) {
// No args -> delegate to standard getBean method.
return parentBeanFactory.getBean(nameToLookup, requiredType);
}
else {
return (T) parentBeanFactory.getBean(nameToLookup);
}
}
//如果只是做类型检查，不进行实例化，这将bean加入创建记录中
if (!typeCheckOnly) {
markBeanAsCreated(beanName);
}
try {
final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
//判断BeanDefinition 类型不是抽象类
checkMergedBeanDefinition(mbd, beanName, args);
// 获取bean 元数据所有依赖bean
String[] dependsOn = mbd.getDependsOn();
if (dependsOn != null) {
for (String dep : dependsOn) {
if (isDependent(beanName, dep)) { //检查是否存在依赖关系
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
}
//相互添加依赖和被依赖的关联
registerDependentBean(dep, beanName);
try {
getBean(dep); //实例化创建依赖bean
}
catch (NoSuchBeanDefinitionException ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"'" + beanName + "' depends on missing bean '" + dep + "'", ex);
}
}
}
// 创建单例对象
if (mbd.isSingleton()) {
sharedInstance = getSingleton(beanName, () -> {
try {
//具体创建bean方法，由子类 AbstractAutowireCapableBeanFactory实现
return createBean(beanName, mbd, args);
}
catch (BeansException ex) {
destroySingleton(beanName);
throw ex;
}
});
bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}
else if (mbd.isPrototype()) {
// It's a prototype -> create a new instance.
Object prototypeInstance = null;
try {
//添加创建记录
beforePrototypeCreation(beanName);
prototypeInstance = createBean(beanName, mbd, args);
}
finally {
//删除记录
afterPrototypeCreation(beanName);
}
bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
}
else {
String scopeName = mbd.getScope();
final Scope scope = this.scopes.get(scopeName);
if (scope == null) {
throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
}
try {
Object scopedInstance = scope.get(beanName, () -> {
beforePrototypeCreation(beanName);
try {
return createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
});
bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
}
catch (IllegalStateException ex) {
throw new BeanCreationException(beanName,
"Scope '" + scopeName + "' is not active for the current thread; consider " +
"defining a scoped proxy for this bean if you intend to refer to it from a singleton",
ex);
}
}
}
catch (BeansException ex) {
cleanupAfterBeanCreationFailure(beanName);
throw ex;
}
}
// 类型检查 得到bean可能是String类型，但是需要转化成Integer类型
if (requiredType != null && !requiredType.isInstance(bean)) {
try {
//使用类型转化器
T convertedBean = getTypeConverter().convertIfNecessary(bean, requiredType);
if (convertedBean == null) {
throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
}
return convertedBean;
}
catch (TypeMismatchException ex) {
if (logger.isTraceEnabled()) {
logger.trace("Failed to convert bean '" + name + "' to required type '" +
ClassUtils.getQualifiedName(requiredType) + "'", ex);
}
throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
}
}
return (T) bean;
}
这个就是Spring 创建bean具体流程，但是任然还有很多细节没有表达出来，看了这么多源码，都知道一个方法不可能放得下这么多逻辑的。以后有机会我入深入每个方法再具体讲解的。主要总结下Spring 创建bean整体路程。
- 处理beanName，去除FactoryBean的修饰符，也就是"&name" 转化成"name"。将alias name 转化成真正beanName。
- 如果是否是单例，尝试从缓存中加载bean。再处理缓存中bean，在缓存中记录的只是最原始bean，并一定是我们最终想要的bean，需要getObjectForBeanInstance來完成這個工作。
- 原型依赖检查
- 尝试从父容器中获取bean，如果父容器不为空并且包含beanName情况下。
- 获取beanName下所有的依赖bean，并且实例化所有的依赖bean
- 根据对象scope 分别实例化bean。
- 实例化结束后，将对象转化成requiredType 给定类型。
registerBeanPostProcessors
注册所有BeanPostProcessor后置处理类，这里只是注册，不会执行任何接口方法。具体流程跟上面BeanFactoryPostProcessor非常相似。在PostProcessorRegistrationDelegate看下具体代码逻辑，注意与上面代码相似地方。
public static void registerBeanPostProcessors(
ConfigurableListableBeanFactory beanFactory, AbstractApplicationContext applicationContext) {
//根据类型获取所有BeanPostProcessor beanName
String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanPostProcessor.class, true, false);
// 注册 BeanPostProcessorChecker 只是一个info 日志信息打印类
// 当一个bean 正在被BeanPostProcessor 创建时就会打印信息
// 这个bean不能是BeanPostProcessor类型
int beanProcessorTargetCount = beanFactory.getBeanPostProcessorCount() + 1 + postProcessorNames.length;
beanFactory.addBeanPostProcessor(new BeanPostProcessorChecker(beanFactory, beanProcessorTargetCount));
// 使用PriorityOrdered 排序bean 执行顺序
List<BeanPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
//MergedBeanDefinitionPostProcessor 接口容器
List<BeanPostProcessor> internalPostProcessors = new ArrayList<>();
//使用Ordered 接口排序bean 执行顺序
List<String> orderedPostProcessorNames = new ArrayList<>();
// 默认顺序排序
List<String> nonOrderedPostProcessorNames = new ArrayList<>();
for (String ppName : postProcessorNames) {
if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) { //匹配类型
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
priorityOrderedPostProcessors.add(pp);
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
orderedPostProcessorNames.add(ppName);
}
else {
nonOrderedPostProcessorNames.add(ppName);
}
}
//首先注册PriorityOrdered 优先排序
sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
//只是注册处理器，不调用方法
registerBeanPostProcessors(beanFactory, priorityOrderedPostProcessors);
// 接着注册Ordered 类型 优先排序
List<BeanPostProcessor> orderedPostProcessors = new ArrayList<>();
for (String ppName : orderedPostProcessorNames) {
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
orderedPostProcessors.add(pp);
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
sortPostProcessors(orderedPostProcessors, beanFactory);
registerBeanPostProcessors(beanFactory, orderedPostProcessors);
// 注册所有常规 BeanPostProcessors.
List<BeanPostProcessor> nonOrderedPostProcessors = new ArrayList<>();
for (String ppName : nonOrderedPostProcessorNames) {
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
nonOrderedPostProcessors.add(pp);
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
registerBeanPostProcessors(beanFactory, nonOrderedPostProcessors);
// 最后注册 MergedBeanDefinitionPostProcessor 类型
sortPostProcessors(internalPostProcessors, beanFactory);
registerBeanPostProcessors(beanFactory, internalPostProcessors);
// 注册ApplicationListener 后置处理器
// 添加到所有处理器链后面
beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(applicationContext));
}
BeanPostProcessor注册流程跟上面BeanFactoryPostProcessor非常相似啊。
- 根据
BeanPostProcessor获取所有后置处理器beanName - 根据beanName数组长度创建
BeanPostProcessorChecker对象，并注册到容器中。 - 根据PriorityOrdered，MergedBeanDefinitionPostProcessor，Ordered，等类型分别创建不同处理器容器
- 根据不同类型排序注册处理器
initMessageSource
初始化信息资源类，Spring内部国际化支持。逻辑非常简单，先判断容器内是否有messageSource,直接注册bean，否则Spring内部注册DelegatingMessageSource。代码我就不放出来了，有兴趣同学自行去查看。
initApplicationEventMulticaster
初始化ApplicationEventMulticaster事件组播器，主要判断用户是否自定义了事件组播器，直接使用用户定义的组播器。如果没有用户自定义组播器，默认使用SimpleApplicationEventMulticaster，代码略...
onRefresh
初始化其他特殊bean，由子类自行实现。这里又是使用了模板方法设计模式，让使用者可以扩展新功能。
registerListeners
注册所有实现ApplicationListeners接口的监听器，添加到上面刚刚初始化组播器中。获取所有事件集合，发布到组播器中，组播器再广播到监听指定事件的监听器中。
protected void registerListeners() {
// Register statically specified listeners first.
for (ApplicationListener<?> listener : getApplicationListeners()) {
getApplicationEventMulticaster().addApplicationListener(listener);
}
// Do not initialize FactoryBeans here: We need to leave all regular beans
// uninitialized to let post-processors apply to them!
String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class, true, false);
for (String listenerBeanName : listenerBeanNames) {
getApplicationEventMulticaster().addApplicationListenerBean(listenerBeanName);
}
// Publish early application events now that we finally have a multicaster...
Set<ApplicationEvent> earlyEventsToProcess = this.earlyApplicationEvents;
this.earlyApplicationEvents = null;
if (earlyEventsToProcess != null) {
for (ApplicationEvent earlyEvent : earlyEventsToProcess) {
getApplicationEventMulticaster().multicastEvent(earlyEvent);
}
}
}
finishBeanFactoryInitialization
这个方法就是我们解析Spring IOC核心了，初始化所有Spring bean，看这么多代码，终于到了我们最想了解部分了，直接上代码
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
// 初始化conversion service 用于类型转化
if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
beanFactory.setConversionService(
beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
}
//如果没有后置处理器，默认就支持嵌入值解析器
// 例如PropertyPlaceholderConfigurer bean之前注册的任何一个
// 主要用于配置占位符解析
if (!beanFactory.hasEmbeddedValueResolver()) {
beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
}
// 在所有bean初始化之前初始化所有AOP 代理对象
String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
for (String weaverAwareName : weaverAwareNames) {
getBean(weaverAwareName);
}
// 取消临时类加载器，关闭类型查找 beanFactory.setTempClassLoader(null);
//冻结所有beanDefinition 特性
beanFactory.freezeConfiguration();
// 初始化非延迟单例bean (创建所有bean)
beanFactory.preInstantiateSingletons();
}
- 判断容器内是否有
conversionService,并且类型必须是 ConversionService，则实例化bean。ConversionService接口也是个类型转换器。 - 判断容器内是否有
StringValueResolver类型bean，没有手动注册一个。 - 初始化所有AOP 通知类型。 4.冻结所有bean元数据特性，不允许任何修改。
- 实例化所有非延迟单例bean
preInstantiateSingletons
public void preInstantiateSingletons() throws BeansException {
if (logger.isTraceEnabled()) {
logger.trace("Pre-instantiating singletons in " + this);
}
// 遍历所有beanDefinitionNames，copy 到信息list中
List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);
// 实例化所有非延迟bean
for (String beanName : beanNames) {
RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
if (isFactoryBean(beanName)) {// 判断FactoryBean 接口类型bean
Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
if (bean instanceof FactoryBean) {
final FactoryBean<?> factory = (FactoryBean<?>) bean;
boolean isEagerInit;
if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
isEagerInit = AccessController.doPrivileged((PrivilegedAction<Boolean>)
((SmartFactoryBean<?>) factory)::isEagerInit,
getAccessControlContext());
}
else {
isEagerInit = (factory instanceof SmartFactoryBean &&
((SmartFactoryBean<?>) factory).isEagerInit());
}
if (isEagerInit) {
getBean(beanName);
}
}
}
else {
getBean(beanName);
}
}
}
// 执行bean中实现SmartInitializingSingleton接口，执行接口方法，用与单例bean 初始化成功后执行
for (String beanName : beanNames) {
Object singletonInstance = getSingleton(beanName);
if (singletonInstance instanceof SmartInitializingSingleton) {
final SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
smartSingleton.afterSingletonsInstantiated();
return null;
}, getAccessControlContext());
}
else {
smartSingleton.afterSingletonsInstantiated();
}
}
}
}
finishRefresh
protected void finishRefresh() {
// 清空容器中Resource缓存
clearResourceCaches();
// 初始化LifecycleProcessor，注册到Spring容器中
initLifecycleProcessor();
//调用上面刚刚注册LifecycleProcessor onRefresh方法
getLifecycleProcessor().onRefresh();
// 发布ApplicationContext 完成初始化事件
publishEvent(new ContextRefreshedEvent(this));
// 如果配置文件中存在spring.liveBeansView.mbeanDomain 初始化LiveBeansView 注册到容器中
LiveBeansView.registerApplicationContext(this);
}
到这里说明Spring 创建bean过程差不多完成了，但是还有很多细节没有展示出来，因为篇幅实在太多了。可以看出我前面讲得还是比较详细的，到了后面简略一些方法解析，篇幅实在太长了。如果有哪里说错了，或者讲得不好，请指出来，大家一起学习讨论下。
