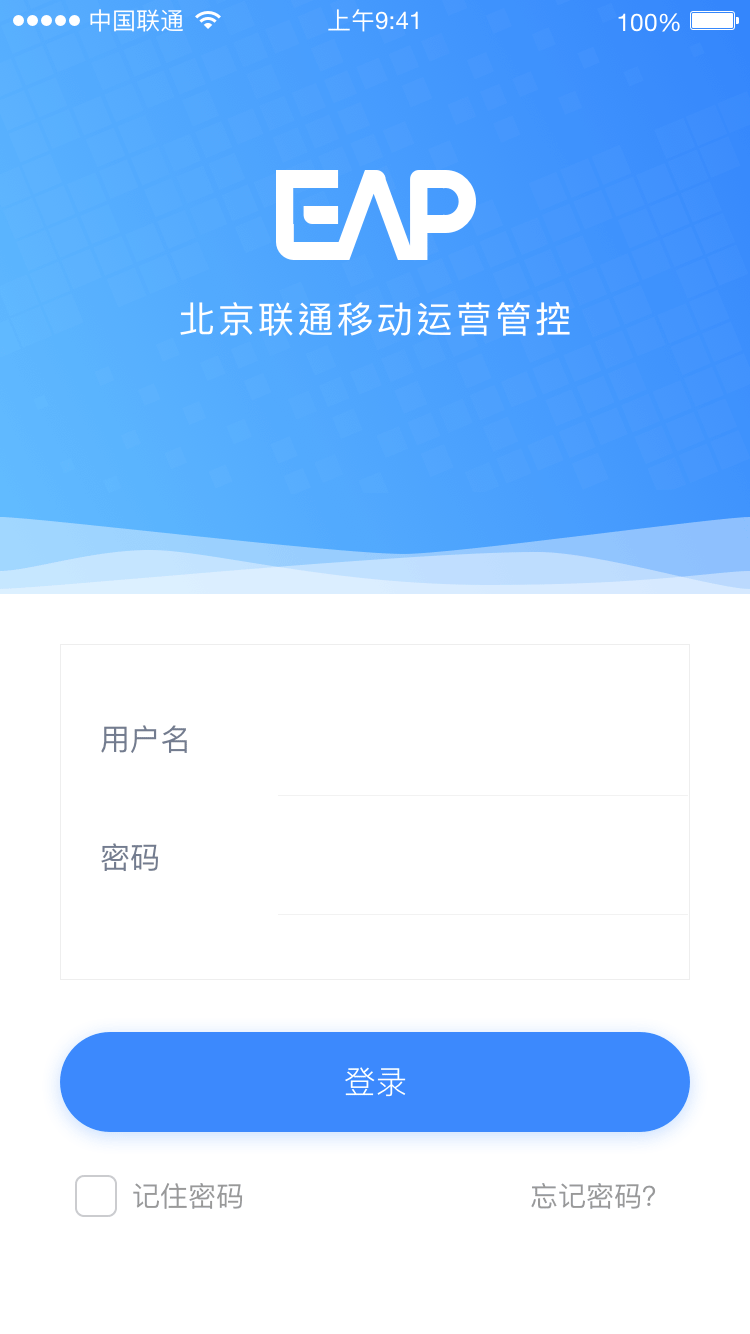

有一天ui 姐姐想画一个双层的波浪用于项目，大概是这样的效果
分析：
看起来有点炫酷，第一次做还有点分不清楚门道。连续几天，我都在思考它的原理，有空闲就两只手来回，模拟荡漾得出几点特征：
- 1.双层波浪，相反的方向运行，中间是静态的不考虑。
- 2.看着像一层层波浪，上下移动，向x轴方向移动，偶尔还变个速导致忽快忽慢，都是错觉。
- 3.波浪是不均匀的，非得贝塞尔曲线来做不可。

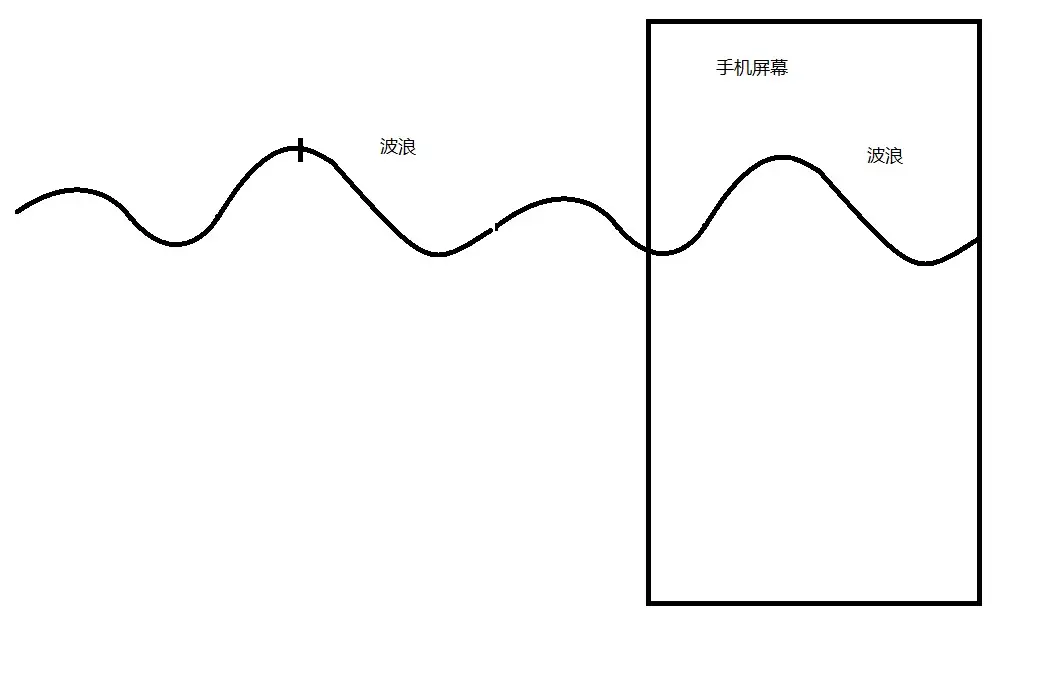

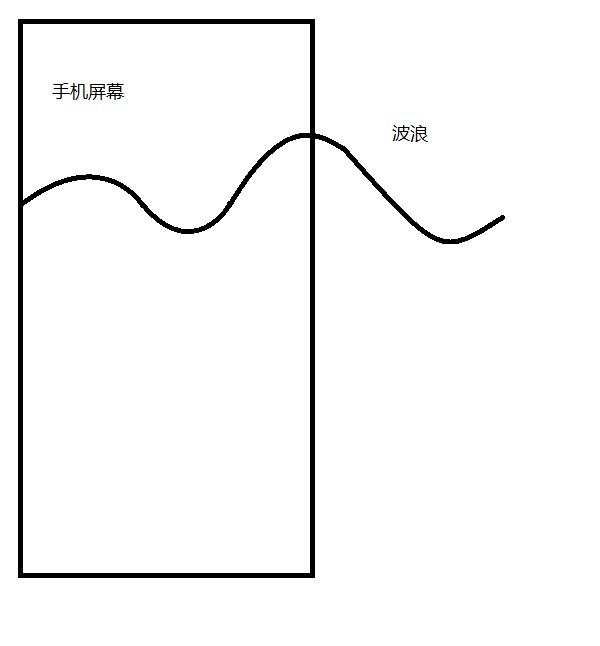

解释第2点，上下移动，向左移动，忽快忽慢的误导性很大，这是个巨坑。注意最下面那层波浪，把它的波浪想像成固定一个整体，不上下移动，眼睛一直跟随一个波段，盯住它，你会发现，它就是一个整体在匀速向左移动，曲线只是在x轴平移，不断重复，第2点的错觉是波段的波峰，波谷，波长不一致导致的变速感。没有上下移动。

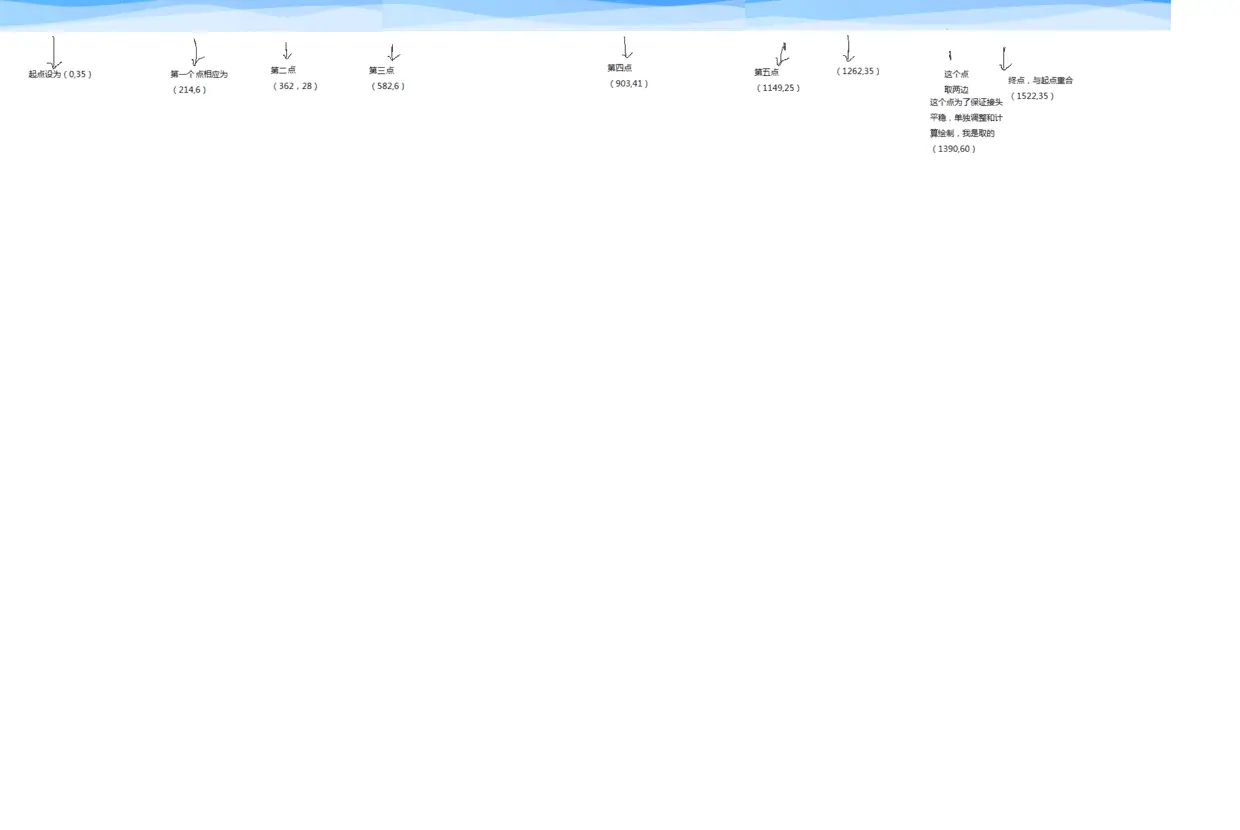

如何实现: 1.path画一条固定的贝塞尔曲线，曲线的数据找 ui小姐姐要大概是这样子的：
上手
第一个问题：如何画一条曲线，可以首尾拼接起来保持平滑？
- 画一个多点相连平滑曲线，android 上解决不了（最多两个控制点，不能再多了），但是数学可以。 安排：www.jianshu.com/p/98088ff77…

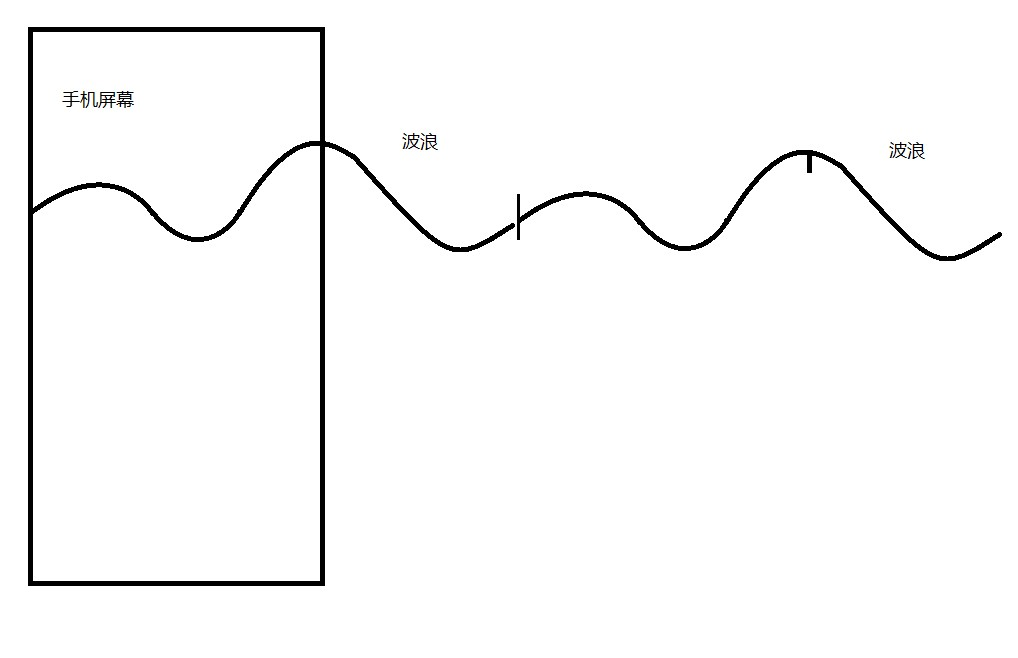

- 结尾处，单独处理，用一条一个控制点的一阶贝赛尔连接。 上图：

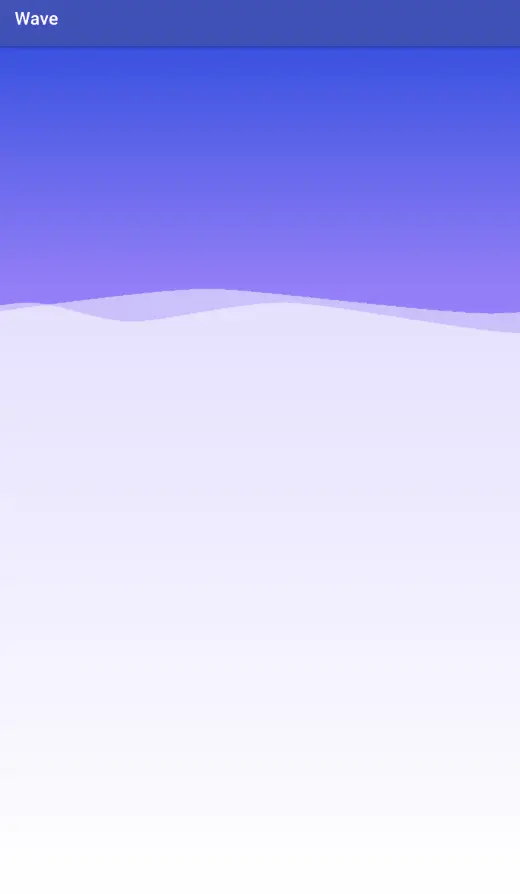

最后效果：

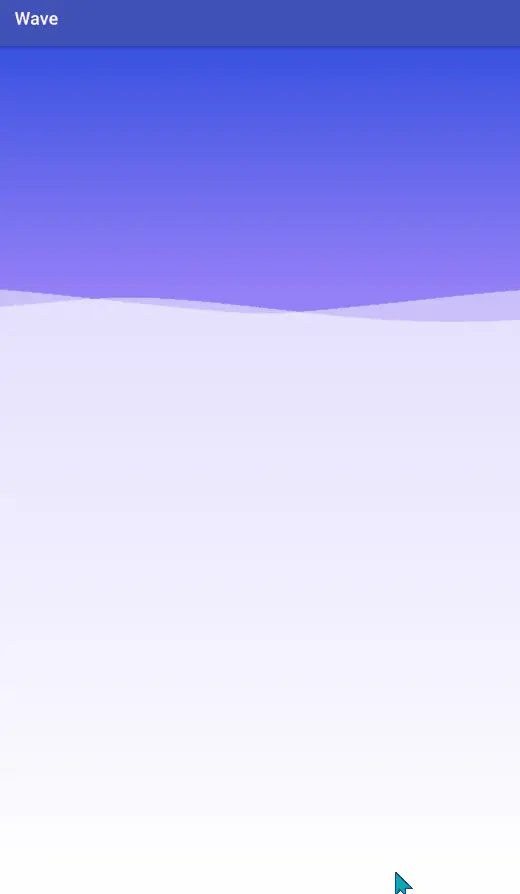

但是为什么要画不均匀的波浪呢？
上代码：
wave 类
package com.example.a14143.wave;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.RectF;
import android.util.Log;
/**
* @author DrChen
* @Date 2019/4/21.
* qq:1414355045
* 保存波浪的所有信息
* 和绘制
*/
public class Wave {
/**
* 单个波浪宽
*/
private float waveWith;
/**
* 绘制的方向
*/
boolean isLeft = true;
/**
* 单个循环一半长度占屏幕宽度的百分比（浪的长度等于一个循环的1/2）
*/
private float waveWithF;
/**
* 绘制的区域
*/
private RectF rectF;
/**
* 当前移动位置计次
*/
private int currentMoveX;
/**
* 每次移动的距离
*/
private int moveX;
/**
* 移动前的点位
*/
private float[][] wavePoints;
private boolean isDebug = false;
/**
* 切率
*/
private float lineSmoothness = 0.12f;
public Path path = new Path();
private int mHeight;
/**
*
* @param isLeft 向左向右
* @param rectF 绘制区域
* @param points
*/
public Wave( boolean isLeft, RectF rectF,float lineSmoothness,int mHeight,int moveX,float[]... points) {
this.isLeft = isLeft;
this.mHeight = mHeight;
if(lineSmoothness>0) this.lineSmoothness = lineSmoothness;
setRectF(rectF);
setPoints(points);
//每次移动的距离
if (isLeft) {
this.moveX = - moveX;
} else {
this. moveX = moveX;
}
measurePath();
}
private void setRectF(RectF rectF) {
this.rectF = rectF;
}
/**
* 传入数据只有控制点，没有贝赛尔的起点，通过控制点计算各个点位
*/
private void setPoints(float[]... points) {
if (points.length < 4 ) {
throw new RuntimeException("所有点不能小于4个"); //直接手动抛出异常
}
if (rectF == null) {
throw new RuntimeException("没有绘制区域就没有绘制");
}
if (wavePoints == null) {
wavePoints = new float[points.length][6];
}
waveWithF = points[points.length-1][0];
waveWith = rectF.width()* waveWithF;
// 下面是利用各个点连成一条平滑的曲线
float prePreviousPointX = Float.NaN;
float prePreviousPointY = Float.NaN;
float previousPointX = Float.NaN;
float previousPointY = Float.NaN;
float currentPointX = Float.NaN;
float currentPointY = Float.NaN;
float nextPointX;
float nextPointY;
int lineSize = points.length;
for (int i = 0; i < points.length; i++) {
if (Float.isNaN(currentPointX)) {
currentPointX = points[i][0];
currentPointY = points[i][1];
}
if (Float.isNaN(previousPointX)) {
//是否是第一个点
if (i > 0) {
previousPointX = points[i - 1][0];
previousPointY = points[i - 1][1];
} else {
//是的话就用当前点表示上一个点
previousPointX = currentPointX;
previousPointY = currentPointY;
}
}
if (Float.isNaN(prePreviousPointX)) {
//是否是前两个点
if (i > 1) {
prePreviousPointX = points[i][0];
prePreviousPointY = points[i][1];
} else {
//是的话就用当前点表示上上个点
prePreviousPointX = previousPointX;
prePreviousPointY = previousPointY;
}
}
// 判断是不是最后一个点了
if (i < lineSize - 1) {
nextPointX = points[i + 1][0];
nextPointY = points[i + 1][1];
} else {
//是的话就用当前点表示下一个点
nextPointX = currentPointX;
nextPointY = currentPointY;
}
if (i == 0||i>=points.length-2) {//起点和最后面接头的地方，为了保证平滑单独处理
// 将Path移动到开始点
wavePoints[i][0] = currentPointX*rectF.width();
wavePoints[i][1] = currentPointY*rectF.height()+rectF.top;
} else {
// 求出控制点坐标
final float firstDiffX = (currentPointX - prePreviousPointX);
final float firstDiffY = (currentPointY - prePreviousPointY);
final float secondDiffX = (nextPointX - previousPointX);
final float secondDiffY = (nextPointY - previousPointY);
final float firstControlPointX = previousPointX + (lineSmoothness * firstDiffX);
final float firstControlPointY = previousPointY + (lineSmoothness * firstDiffY);
final float secondControlPointX = currentPointX - (lineSmoothness * secondDiffX);
final float secondControlPointY = currentPointY - (lineSmoothness * secondDiffY);
wavePoints[i][0] = firstControlPointX*rectF.width();
wavePoints[i][1] = firstControlPointY*rectF.height()+rectF.top;
wavePoints[i][2] = secondControlPointX*rectF.width();
wavePoints[i][3] = secondControlPointY*rectF.height()+rectF.top;
wavePoints[i][4] = currentPointX*rectF.width();
wavePoints[i][5] = currentPointY*rectF.height()+rectF.top;
}
// 更新值,
prePreviousPointX = previousPointX;
prePreviousPointY = previousPointY;
previousPointX = currentPointX;
previousPointY = currentPointY;
currentPointX = nextPointX;
currentPointY = nextPointY;
}
}
/**
* 测试时需要
*/
public void testMoveTo(float moveX) {
for (int i = 0; i < wavePoints.length; i++) {
wavePoints[i][0] += moveX * waveWith;
wavePoints[i][2] += moveX * waveWith;
wavePoints[i][4] += moveX * waveWith;
}
}
/**
* 刷新每次移动的点位
*/
public void measureMoveTo() {
if(isLeft){
if(waveWith + currentMoveX < Math.abs(moveX)){
currentMoveX = 0;
}else {
currentMoveX+=moveX;
}
}else {
if(waveWith - currentMoveX< moveX){
currentMoveX = 0;
}else {
currentMoveX+= moveX;
}
}
}
/**
*
* 绘制path
*/
private void measurePath() {
path.reset();
if(isLeft){
path.moveTo(wavePoints[0][0], mHeight);
path.lineTo(wavePoints[0][0], wavePoints[0][1]);
for (int i = 1; i < wavePoints.length-2 ; i ++) {
path.cubicTo(wavePoints[i][0], wavePoints[i][1],
wavePoints[i][2], wavePoints[i][3],
wavePoints[i][4], wavePoints[i ][5]);
}
//最后面接头处理
path.quadTo(wavePoints[wavePoints.length-2][0],wavePoints[wavePoints.length-2][1],
wavePoints[wavePoints.length-1][0],wavePoints[wavePoints.length-1][1]
);
for (int i = 1; i < wavePoints.length-2 ; i ++) {
path.cubicTo(wavePoints[i][0]+waveWith, wavePoints[i][1],
wavePoints[i][2]+waveWith, wavePoints[i][3],
wavePoints[i][4]+waveWith, wavePoints[i ][5]);
}
path.lineTo(waveWith + wavePoints[wavePoints.length-1][0], mHeight);
path.close();
}else {
path.moveTo(wavePoints[0][0]-waveWith, mHeight);
path.lineTo(wavePoints[0][0]-waveWith, wavePoints[0][1]);
for (int i = 1; i < wavePoints.length-2 ; i ++) {
path.cubicTo(wavePoints[i][0]-waveWith, wavePoints[i][1],
wavePoints[i][2]-waveWith, wavePoints[i][3],
wavePoints[i][4]-waveWith, wavePoints[i ][5]);
}
//最后面接头处理
path.quadTo(wavePoints[wavePoints.length-2][0]-waveWith,wavePoints[wavePoints.length-2][1],
wavePoints[wavePoints.length-1][0]-waveWith,wavePoints[wavePoints.length-1][1]
);
for (int i = 1; i < wavePoints.length-2 ; i ++) {
path.cubicTo(wavePoints[i][0], wavePoints[i][1],
wavePoints[i][2], wavePoints[i][3],
wavePoints[i][4], wavePoints[i ][5]);
}
path.lineTo( wavePoints[wavePoints.length-1][0], mHeight);
path.close();
}
}
public void draw(Canvas canvas, Paint paint) {
canvas.save();
canvas.translate(currentMoveX,0);
canvas.drawPath(path,paint);
measureMoveTo();
canvas.restore();
}
}
View 类
package com.example.a14143.wave;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.LinearGradient;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.RectF;
import android.graphics.Shader;
import android.support.annotation.Nullable;
import android.util.AttributeSet;
import android.util.Log;
import android.view.View;
/**
* @author DrChen
* @Date 2019/4/16 0016.
* qq:1414355045
* 三段渐变波纹
*/
public class WaveView extends View {
/**
* 三段渐变的中点
*/
private final float gradient_height_mid = 0.28f;
private final float top_wave_top = 0.28f;
private final float top_wave_bottom = top_wave_top + 0.06f;
private final float bottom_wave_bottom = top_wave_bottom ;
private final float bottom_wave_top = top_wave_bottom - 0.05f;
/**
* 这个是背景的渐变色和波浪的颜色
*/
private int topColor, midColor, bottomColor, waveColor;
/**
* 控件的宽高
*/
private int mHeight, mWidth;
/**
* 渐变画笔
*/
private Paint gradientPaint;
/**
* 波浪的画笔
*/
private Paint wavePaint;
/**
* 绘制波浪式辅助的画笔（可以去掉）
*/
private Paint testPaint;
/**
* 是否开启辅助的画笔
*/
private boolean isDebug = false;
/**
* view 是否被删除
*/
private boolean onPause = false;
/**
* 整个视图的背景是三种颜色的渐变，蓝到紫的区域
*/
private RectF gradient_bottom;
/**
* 紫到白的区域
*/
private RectF gradient_top;
/**
* 波浪绘制区域
*/
private RectF bottom_wave_RectF;
private RectF top_wave_RectF;
private LinearGradient oneGradient;
private LinearGradient twoGradient;
private Wave bottomWave;
private Path bottomPath = new Path();
private Wave topWave;
private Path topPath = new Path();
public WaveView(Context context) {
this(context, null);
}
public WaveView(Context context, @Nullable AttributeSet attrs) {
this(context, attrs, -1);
}
public WaveView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
topColor = Color.parseColor("#3851DF");
midColor = Color.parseColor("#937EF7");
bottomColor = Color.parseColor("#FFFFFF");
waveColor = Color.parseColor("#80FFFFFF");
if (gradientPaint == null) {
gradientPaint = new Paint();
}
gradientPaint.setStyle(Paint.Style.FILL);
if (gradient_bottom == null) gradient_bottom = new RectF();
if (gradient_top == null) gradient_top = new RectF();
if (bottom_wave_RectF == null) bottom_wave_RectF = new RectF();
if (top_wave_RectF == null) top_wave_RectF = new RectF();
if (wavePaint == null) wavePaint = new Paint();
wavePaint.setColor(waveColor);
wavePaint.setStyle(Paint.Style.FILL);
wavePaint.setAntiAlias(true);
if (testPaint == null) {
testPaint = new Paint();
}
testPaint.setColor(Color.BLACK);
testPaint.setStrokeWidth(2);
testPaint.setStyle(Paint.Style.STROKE);
}
public void onResume() {
onPause = false;
invalidate();
}
public void onPause() {
onPause = true;
}
@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
super.onSizeChanged(w, h, oldw, oldh);
mWidth = w;
mHeight = h;
gradient_bottom.right = mWidth;
gradient_bottom.bottom = mHeight * gradient_height_mid;
gradient_top.top = mHeight * gradient_height_mid;
gradient_top.bottom = mHeight;
gradient_top.right = mWidth;
bottom_wave_RectF.top = mHeight * bottom_wave_top;
bottom_wave_RectF.right = mWidth;
bottom_wave_RectF.bottom = mHeight * bottom_wave_bottom;
top_wave_RectF.top = mHeight * top_wave_top;
top_wave_RectF.right = mWidth;
top_wave_RectF.bottom = mHeight * top_wave_bottom;
if (bottomWave == null) {
//我的数据屏幕宽度是750，浪高50, 每个点位后面要加f 不然算出来的数据会全错，因为会丢失小数点
bottomWave = new Wave( true, bottom_wave_RectF,0.12f,mHeight,dip2px(5,getContext()),
new float[]{0 / 750f, 35 / 50f},
new float[]{214 / 750f, 6 / 50f},
new float[]{362 / 750f, 28 / 50f},
new float[]{582 / 750f, 6 / 50f},
new float[]{903 / 750f, 41 / 50f},
new float[]{1149 / 750f, 25 / 50f},
new float[]{1262/750f,35/50f},
new float[]{1390/750f,60/50f},//最后这个点可以适当调整，保证平滑
new float[]{1522/750f,35/50f}
);
}
if(topWave==null){
//我的数据屏幕宽度是750，浪高50, 每个点位后面要加f 不然算出来的数据会全错，因为会丢失小数点
topWave = new Wave(false, top_wave_RectF,0.1f,mHeight,dip2px(2,getContext()),
new float[]{0 / 750f, 28 / 78f},
new float[]{262 / 750f, 0 / 78f},
new float[]{657 / 750f, 37 / 78f},
new float[]{1052 / 750f, 0 / 78f},
new float[]{1314 / 750f, 28 / 78f},
new float[]{1520 / 750f, 60 / 78f},
new float[]{1709/750f,28/78f}
);
}
}
/**
* dp转px
* @param dip dp
* @param context 上下文
* @return
*/
public static int dip2px(float dip, Context context) { float density = context.getResources().getDisplayMetrics().density;
int px = (int) (dip * density + 0.5f);// 4.9->4, 4.1->4, 四舍五入
return px;
}
@Override
protected void onDraw(Canvas canvas) {
// super.onDraw(canvas);
//绘制背景三段渐变
drawBackdrop(canvas);
if (isDebug) {
canvas.drawRect(bottom_wave_RectF, testPaint);
}
// topWave.testMoveTo(0.4f);
// bottomWave.testMoveTo(0.6f);
topWave.draw(canvas,wavePaint);
bottomWave.draw(canvas,wavePaint);
if (onPause) {
return;
}
postInvalidateDelayed(10);
}
@Override
protected void onDetachedFromWindow() {
onPause = true;
super.onDetachedFromWindow();
}
/**
* 绘制三段渐变背景
*
* @param canvas
*/
private void drawBackdrop(Canvas canvas) {
if (oneGradient == null)
oneGradient = new LinearGradient(gradient_bottom.centerX(), gradient_bottom.top, gradient_bottom.centerX(), gradient_bottom.bottom, topColor, midColor, Shader.TileMode.MIRROR);
if (twoGradient == null)
twoGradient = new LinearGradient(gradient_top.centerX(), gradient_top.top, gradient_top.centerX(), gradient_top.bottom, midColor, bottomColor, Shader.TileMode.MIRROR);
gradientPaint.setShader(oneGradient);
canvas.drawRect(gradient_bottom, gradientPaint);
gradientPaint.setShader(twoGradient);
canvas.drawRect(gradient_top, gradientPaint);
}
}
最后调用：
package com.example.a14143.wave;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
public class MainActivity extends AppCompatActivity {
WaveView waveView;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
waveView = findViewById(R.id.waveView);
}
@Override
protected void onResume() {
super.onResume();
waveView.onResume();
}
@Override
protected void onPause() {
super.onPause();
waveView.onPause();
}
}
改进
他运行的话，我调用软键盘，会有卡顿的感觉，由于的他是在后面运行的，跟前面的ui 线程没有什么关系，用surfaceView 对单独开个线程绘制比较好，
/**
* @author DrChen
* @Date 2019/9/9 0009.
* qq:1414355045
*/
public class MyWaveView extends SurfaceView implements SurfaceHolder.Callback, Runnable {
/**
* 三段渐变的中点
*/
private final float gradient_height_mid = 0.28f;
private final float top_wave_top = 0.28f;
private final float top_wave_bottom = top_wave_top + 0.06f;
private final float bottom_wave_bottom = top_wave_bottom;
private final float bottom_wave_top = top_wave_bottom - 0.05f;
private SurfaceHolder mHolder;
/**
* 与surfaceHolder 绑定的Canvas
*/
private Canvas mCanvas;
/**
* 用于绘制线程
*/
private Thread t;
/**
* 线程的控制开关
*/
private boolean isRunning;
/**
* 这个是背景的渐变色和波浪的颜色
*/
private int topColor, midColor, bottomColor, waveColor;
/**
* 控件的宽高
*/
private int mHeight, mWidth;
/**
* 渐变画笔
*/
private Paint gradientPaint;
/**
* 波浪的画笔
*/
private Paint wavePaint;
/**
* 绘制波浪式辅助的画笔（可以去掉）
*/
private Paint testPaint;
/**
* 是否开启辅助的画笔
*/
private boolean isDebug = false;
/**
* 整个视图的背景是三种颜色的渐变，蓝到紫的区域
*/
private RectF gradient_bottom;
/**
* 紫到白的区域
*/
private RectF gradient_top;
/**
* 波浪绘制区域
*/
private RectF bottom_wave_RectF;
private RectF top_wave_RectF;
private LinearGradient oneGradient;
private LinearGradient twoGradient;
private Wave bottomWave;
private Wave topWave;
public MyWaveView(Context context) {
this(context, null);
}
public MyWaveView(Context context, AttributeSet attrs) {
super(context, attrs);
mHolder = getHolder();
mHolder.addCallback(this);
// setZOrderOnTop(true);// 设置画布 背景透明
mHolder.setFormat(PixelFormat.TRANSLUCENT);
//设置可获得焦点
setFocusable(true);
setFocusableInTouchMode(true);
//设置常亮
this.setKeepScreenOn(true);
topColor = Color.parseColor("#3851DF");
midColor = Color.parseColor("#937EF7");
bottomColor = Color.parseColor("#FFFFFF");
waveColor = Color.parseColor("#80FFFFFF");
if (gradientPaint == null) {
gradientPaint = new Paint();
}
gradientPaint.setStyle(Paint.Style.FILL);
if (gradient_bottom == null) gradient_bottom = new RectF();
if (gradient_top == null) gradient_top = new RectF();
if (bottom_wave_RectF == null) bottom_wave_RectF = new RectF();
if (top_wave_RectF == null) top_wave_RectF = new RectF();
if (wavePaint == null) wavePaint = new Paint();
wavePaint.setColor(waveColor);
wavePaint.setStyle(Paint.Style.FILL);
wavePaint.setAntiAlias(true);
//防抖动
wavePaint.setDither(true);
if (testPaint == null) {
testPaint = new Paint();
}
testPaint.setColor(Color.BLACK);
testPaint.setStrokeWidth(2);
testPaint.setStyle(Paint.Style.STROKE);
}
@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
super.onSizeChanged(w, h, oldw, oldh);
mWidth = w;
mHeight = h;
gradient_bottom.right = mWidth;
gradient_bottom.bottom = mHeight * gradient_height_mid;
gradient_top.top = mHeight * gradient_height_mid;
gradient_top.bottom = mHeight;
gradient_top.right = mWidth;
bottom_wave_RectF.top = mHeight * bottom_wave_top;
bottom_wave_RectF.right = mWidth;
bottom_wave_RectF.bottom = mHeight * bottom_wave_bottom;
top_wave_RectF.top = mHeight * top_wave_top;
top_wave_RectF.right = mWidth;
top_wave_RectF.bottom = mHeight * top_wave_bottom;
if (bottomWave == null) {
//我的数据屏幕宽度是750，浪高50, 每个点位后面要加f 不然算出来的数据会全错，因为会丢失小数点
bottomWave = new Wave(true, bottom_wave_RectF, 0.2f, mHeight, dip2px(6, getContext()),
new float[]{0 / 750f, 35 / 50f},
new float[]{214 / 750f, 6 / 50f},
new float[]{362 / 750f, 28 / 50f},
new float[]{582 / 750f, 6 / 50f},
new float[]{903 / 750f, 41 / 50f},
new float[]{1149 / 750f, 25 / 50f},
new float[]{1262 / 750f, 35 / 50f},
new float[]{1390 / 750f, 60 / 50f},//最后这个点可以适当调整，保证平滑
new float[]{1522 / 750f, 35 / 50f}
// new float[]{0 / 750f, 28 / 78f},
// new float[]{262 / 750f, 0 / 78f},
// new float[]{657 / 750f, 37 / 78f},
// new float[]{1052 / 750f, 0 / 78f},
// new float[]{1314 / 750f, 28 / 78f},
// new float[]{1520 / 750f, 60 / 78f},
// new float[]{1709/750f,28/78f}
);
}
if (topWave == null) {
//我的数据屏幕宽度是750，浪高50, 每个点位后面要加f 不然算出来的数据会全错，因为会丢失小数点
topWave = new Wave(false, top_wave_RectF, 0.15f, mHeight, dip2px(6, getContext()),
new float[]{0 / 750f, 28 / 78f},
new float[]{262 / 750f, 0 / 78f},
new float[]{657 / 750f, 37 / 78f},
new float[]{1052 / 750f, 0 / 78f},
new float[]{1314 / 750f, 28 / 78f},
new float[]{1520 / 750f, 60 / 78f},
new float[]{1709 / 750f, 28 / 78f}
);
}
}
/**
* dp转px
*
* @param dip dp
* @param context 上下文
* @return
*/
public static int dip2px(float dip, Context context) {
float density = context.getResources().getDisplayMetrics().density;
int px = (int) (dip * density + 0.5f);// 4.9->4, 4.1->4, 四舍五入
return px;
}
/**每30帧刷新一次屏幕**/
public static final int TIME_IN_FRAME = 30;
@Override
public void run() {
while (isRunning) {
/**取得更新之前的时间**/
long startTime = System.currentTimeMillis();
/**在这里加上线程安全锁**/
synchronized (mHolder) {
/**拿到当前画布 然后锁定**/
mCanvas =mHolder.lockCanvas();
draw();
/**绘制结束后解锁显示在屏幕上**/
mHolder.unlockCanvasAndPost(mCanvas);
}
/**取得更新结束的时间**/
long endTime = System.currentTimeMillis();
/**计算出一次更新的毫秒数**/
int diffTime = (int)(endTime - startTime);
/**确保每次更新时间为30帧**/
while(diffTime <=TIME_IN_FRAME) {
diffTime = (int)(System.currentTimeMillis() - startTime);
/**线程等待**/
Thread.yield();
}
}
}
private void draw() {
if (mCanvas != null) {
mCanvas.drawColor(Color.TRANSPARENT, PorterDuff.Mode.CLEAR);
//绘制背景三段渐变
drawBackdrop(mCanvas);
if (isDebug) {
mCanvas.drawRect(bottom_wave_RectF, testPaint);
}
topWave.draw(mCanvas, wavePaint);
bottomWave.draw(mCanvas, wavePaint);
}
}
/**
* 绘制三段渐变背景
*
* @param canvas
*/
private void drawBackdrop(Canvas canvas) {
if (oneGradient == null)
oneGradient = new LinearGradient(gradient_bottom.centerX(), gradient_bottom.top, gradient_bottom.centerX(), gradient_bottom.bottom, topColor, midColor, Shader.TileMode.MIRROR);
if (twoGradient == null)
twoGradient = new LinearGradient(gradient_top.centerX(), gradient_top.top, gradient_top.centerX(), gradient_top.bottom, midColor, bottomColor, Shader.TileMode.MIRROR);
gradientPaint.setShader(oneGradient);
canvas.drawRect(gradient_bottom, gradientPaint);
gradientPaint.setShader(twoGradient);
canvas.drawRect(gradient_top, gradientPaint);
}
@Override
public void surfaceCreated(SurfaceHolder holder) {
// 开启线程
isRunning = true;
t = new Thread(this);
t.start();
}
@Override
public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) {
}
@Override
public void surfaceDestroyed(SurfaceHolder holder) {
// 通知关闭线程
isRunning = false;
}
}
改造完了之后，如何ui 能懂你意思，还是建议切图（自己写path 取坐标真的太难了）： www.cnblogs.com/itcqx/p/555…
参考资源：
鸿洋转盘 | blog.csdn.net/lmj62356579…
30毫秒刷新一次 | blog.csdn.net/android_cmo…
surface清屏 | blog.csdn.net/BruceDuBruc…
github的链接： github.com/drchengit/W…
我是drchen，一个温润的男子，版权所有，未经允许不得抄袭。
