前言

博主最近在用antd Form组件开发表单功能，深深感慨antd Form组件功能也忒强大了，但是写起来真的挺麻烦的，相信很多小伙伴在用antd Form组件的时候都有同样的感受吧。

看一下antd官网的一个例子，需要Form.create包装表单组件，然后表单每一项使用getFieldDecorator进行具体描述。

import { Form, Input, Button, Checkbox } from 'antd';

const formItemLayout = {
  labelCol: { span: 4 },
  wrapperCol: { span: 8 },
};
const formTailLayout = {
  labelCol: { span: 4 },
  wrapperCol: { span: 8, offset: 4 },
};
class DynamicRule extends React.Component {
  state = {
    checkNick: false,
  };

  check = () => {
    this.props.form.validateFields(err => {
      if (!err) {
        console.info('success');
      }
    });
  };

  handleChange = e => {
    this.setState(
      {
        checkNick: e.target.checked,
      },
      () => {
        this.props.form.validateFields(['nickname'], { force: true });
      },
    );
  };

  render() {
    const { getFieldDecorator } = this.props.form;
    return (
      <div>
        <Form.Item {...formItemLayout} label="Name">
          {getFieldDecorator('username', {
            rules: [
              {
                required: true,
                message: 'Please input your name',
              },
            ],
          })(<Input placeholder="Please input your name" />)}
        </Form.Item>
        <Form.Item {...formItemLayout} label="Nickname">
          {getFieldDecorator('nickname', {
            rules: [
              {
                required: this.state.checkNick,
                message: 'Please input your nickname',
              },
            ],
          })(<Input placeholder="Please input your nickname" />)}
        </Form.Item>
        <Form.Item {...formTailLayout}>
          <Checkbox checked={this.state.checkNick} onChange={this.handleChange}>
            Nickname is required
          </Checkbox>
        </Form.Item>
        <Form.Item {...formTailLayout}>
          <Button type="primary" onClick={this.check}>
            Check
          </Button>
        </Form.Item>
      </div>
    );
  }
}

const WrappedDynamicRule = Form.create({ name: 'dynamic_rule' })(DynamicRule);
ReactDOM.render(<WrappedDynamicRule />, mountNode);

思考：能不能只传data和fields字段，底层不需要关心表单项的生成过程呢。

基本介绍

于是，博主费尽千辛万苦封装了一个超好用的UForm组件，只需要传入data、fields props和onChange、onCancel、onSubmit回调即可渲染一个完整的表单了，支持表单渲染、表单验证、修改回调、提交回调、取消回调。

<UForm
    data={data}
    fields={fields}
    onChange={onChange}
    onCancel={onCancel}
    onSubmit={onSubmit}
    />

目前UForm组件支持常规表单及弹窗表单两种，支持Form组件包含Input、InputNumber、Textarea、Select、Radio、Checkbox、Password、Switch、Rate、custom（自定义ReactNode）。

documentation：dadaiwei.github.io/uform
npm：www.npmjs.com/package/ufo…

使用指南

1.安装 UForm 依赖包

npm install uform --save-dev

2.引入依赖包

import UForm from "uform";
import "uform/dist/uform.css";

3.使用 UForm 组件

<UForm
    data={data}
    fields={fields}
    onChange={onChange}
    onCancel={onCancel}
    onSubmit={onSubmit}
    />

代码演示

通用表单

通用表单

代码

import React, { useState } from "react";
import UForm from "uform";
import "uform/dist/uform.css";

function NormalForm() {
  const [data, setData] = useState({
    name: "",
    size: 1,
    city: 0,
    area: "郊区",
    password: "",
    choosen: true,
    confirm: true,
    rate: 3,
    describe: ""
  });
  const fields = [
    {
      name: "name",
      label: "名称",
      type: "input",
      placeholder: "请输入名称",
      rules: [
        {
          required: true,
          message: "请输入名称"
        }
      ]
    },
    {
      name: "size",
      label: "大小",
      type: "inputNumber",
      placeholder: "请输入大小",
      rules: [
        {
          required: true,
          message: "请输入名称"
        }
      ]
    },
    {
      name: "city",
      label: "城市",
      type: "select",
      fieldData: [
        {
          name: "北京",
          value: 0
        },
        {
          name: "上海",
          value: 1
        },
        {
          name: "杭州",
          value: 2
        },
        {
          name: "深圳",
          value: 3
        }
      ],
      rules: [
        {
          required: true,
          message: "请输入名称"
        }
      ]
    },
    {
      name: "area",
      label: "地区",
      type: "radio",
      fieldData: ["城区", "郊区"]
    },
    {
      name: "confirm",
      label: "确认选择",
      type: "checkbox",
      rules: [
        {
          required: true,
          message: "请确认选择"
        }
      ]
    },
    {
      name: "custom",
      label: "自定义项",
      type: "custom",
      node: (
        <div>
          <h2>自定义表单项</h2>
        </div>
      )
    },
    {
      name: "password",
      label: "密码",
      type: "password",
      rules: [
        {
          required: true,
          message: "请输入密码"
        }
      ]
    },
    {
      name: "choosen",
      label: "是否选择",
      type: "switch",
      checkedChildren: "开",
      unCheckedChildren: "关",
      rules: [
        {
          required: true,
          message: "请输入密码"
        }
      ]
    },
    {
      name: "rate",
      label: "评分",
      type: "rate"
    },
    {
      name: "describe",
      label: "描述",
      type: "textarea",
      placeholder: "请输入描述"
    }
  ];
  const onChange = (result) => {
    setData({
      ...data,
      ...result
    });
  };
  const onSubmit = (values) => {
    console.log(values);
  };
  const onCancel = () => {
    console.log("cancel");
  };
  return (
    <div>
      <div style={{ width: 600, marginLeft: 100 }}>
        <UForm
          data={data}
          fields={fields}
          onChange={onChange}
          onCancel={onCancel}
          onSubmit={onSubmit}
        />
      </div>
    </div>
  );
}

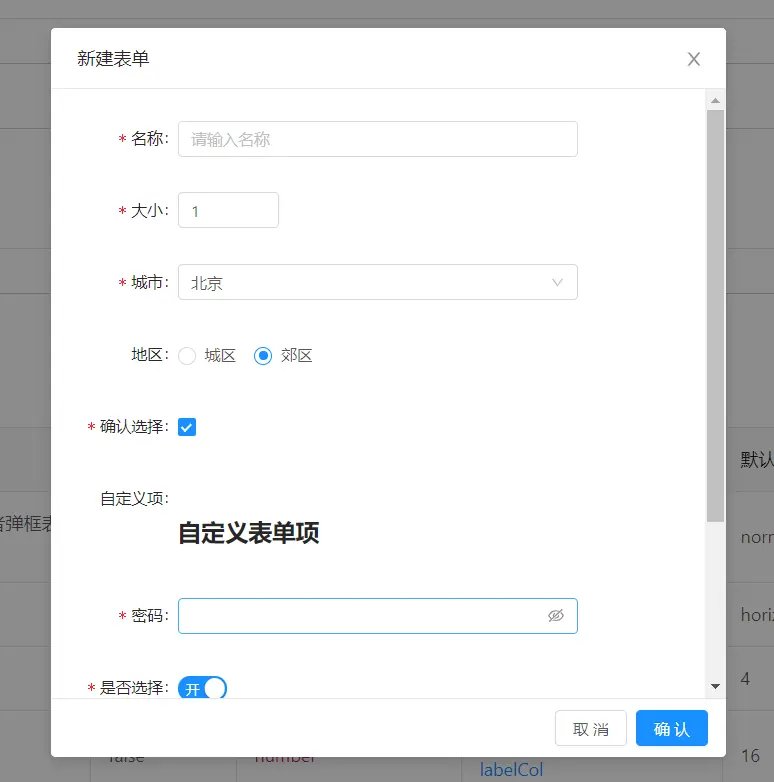

弹窗表单

谈框表单

代码

import React, { useState } from "react";
import { Button } from "antd";
import UForm from "uform";
import "uform/dist/uform.css";

function ModalForm() {
  const { visible, setVisible } = useState(false);
  const [data, setData] = useState({
    name: "",
    size: 1,
    city: 0,
    area: "郊区",
    password: "",
    choosen: true,
    confirm: true,
    rate: 3,
    describe: ""
  });
  const fields = [
    {
      name: "name",
      label: "名称",
      type: "input",
      placeholder: "请输入名称",
      rules: [
        {
          required: true,
          message: "请输入名称"
        }
      ]
    },
    {
      name: "size",
      label: "大小",
      type: "inputNumber",
      placeholder: "请输入大小",
      rules: [
        {
          required: true,
          message: "请输入名称"
        }
      ]
    },
    {
      name: "city",
      label: "城市",
      type: "select",
      fieldData: [
        {
          name: "北京",
          value: 0
        },
        {
          name: "上海",
          value: 1
        },
        {
          name: "杭州",
          value: 2
        },
        {
          name: "深圳",
          value: 3
        }
      ],
      rules: [
        {
          required: true,
          message: "请输入名称"
        }
      ]
    },
    {
      name: "area",
      label: "地区",
      type: "radio",
      fieldData: ["城区", "郊区"]
    },
    {
      name: "confirm",
      label: "确认选择",
      type: "checkbox",
      rules: [
        {
          required: true,
          message: "请确认选择"
        }
      ]
    },
    {
      name: "custom",
      label: "自定义项",
      type: "custom",
      node: (
        <div>
          <h2>自定义表单项</h2>
        </div>
      )
    },
    {
      name: "password",
      label: "密码",
      type: "password",
      rules: [
        {
          required: true,
          message: "请输入密码"
        }
      ]
    },
    {
      name: "choosen",
      label: "是否选择",
      type: "switch",
      checkedChildren: "开",
      unCheckedChildren: "关",
      rules: [
        {
          required: true,
          message: "请输入密码"
        }
      ]
    },
    {
      name: "rate",
      label: "评分",
      type: "rate"
    },
    {
      name: "describe",
      label: "描述",
      type: "textarea",
      placeholder: "请输入描述"
    }
  ];
  const onChange = (result) => {
    setData({
      ...data,
      ...result
    });
  };
  const onSubmit = (values) => {
    console.log(values);
  };
  const onCancel = () => {
    setVisible(false);
  };
  return (
    <div>
      <Button
        type='primary'
        onClick={() => {
          setVisible(true);
        }}>
        打开弹窗表单
      </Button>
      <div style={{ width: 600, marginLeft: 100 }}>
        <UForm
          type="modal"
          visible={visible}
          title='新建表单'
          data={data}
          fields={fields}
          onChange={onChange}
          onCancel={onCancel}
          onSubmit={onSubmit}
        />
      </div>
    </div>
  );
}

API

公共 API

属性 说明 必填属性 类型 可选值 默认值
type 使用通用表单或者弹框表单 false string norma | modal normal
layout 表单布局 false string horizontal | vertical | inline horizontal
labelCol 表单 label 占宽 false number 1-24 之间整数 4
wrapperCol 表单内容项占宽 false number 1-24 之间整数，通常为 24-labelCol 16
loading 确定按钮 loading false boolean true | false false
data 表单数据 true any[ ] - [ ]
fields 表单每一项特征描述 true any[ ] - [ ]
onSubmit 表单提交回调 true Function(values) - 无
onChange 表单每一项修改回调 false Function(value) - 无
onCancel 表单取消回调 false Function( ) - 无

fields props

属性 说明 必填属性 类型 可选值 默认值
name 表单数据 name，与 data 中 key 值一致 true string - 无
type 表单项类型 true string input | inputNumber | textarea | select | radio | checkbox | password | switch | rate | custom（自定义项） 无
label 表单项 label true string - 无
rules 表单项限制规则，与 antd Form 限制规则一致 false object [ ] - 无
fieldData 适用于 type 为 select/radio 的选择项 true object [ ] - 无
placehoder 适用于 type 为 input/textarea/select 的提示信息 false string - 无
node 适用于 type 为 custom 的自定义 ReactNode true ReactNode - 无

特别说明：type 类型为 select/radio时， fieldsData 是必填属性， type 类型为 custome 时， node 是必填属性。

通用表单特有API

属性 说明 必填属性 类型 可选值 默认值
showCancelButton 是否展示取消按钮 false boolean true | false true

弹框表单特有API

属性 说明 必填属性 类型 可选值 默认值
visible 弹框是否可见 true boolean true | false true
title 弹框标题 true string | ReactNode - 无
width 弹框宽度 false number - 600

总结

以上就是博主基于antd Form组件封装的UForm组件，目前支持功能还比较简单，后续会逐渐完善扩展该组件的功能，感兴趣的小伙伴可以试用下，真的简单又好用。

觉得文章不错的小伙伴可以点个赞，灰常感谢^_^。
