Spring Cloud入门笔记（一）构建Eureka/Ribbon服务注册与发现中心

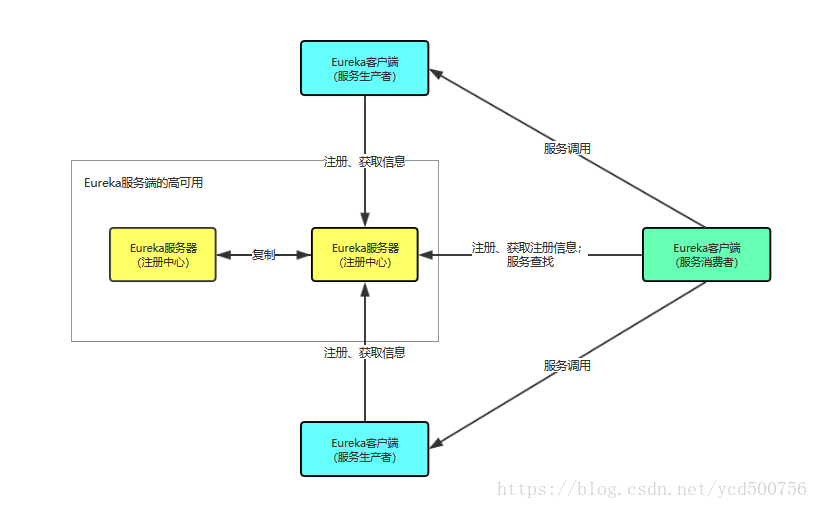

##1.Eureka/Ribbon基本概念 Eureka是Spring Cloud全家桶中，服务注册、发现的组件。 Eureka主要由三个模块构成

• 服务注册中心： （1）服务注册，新服务都需要在注册中心进行注册； （2）服务发现，服务需求方，即Eureka客户端来注册中心进行服务发现，获取需要的服务地址； （3）服务管理，维护各个服务的健康情况，保证服务的可用性

• 服务提生产者，提供各种服务

• 服务消费者（client），使用生产者提供的服务



• Ribbon：主要功能为保障服务访问的负载均衡

---

##2.构建Eureka 服务注册发现中心

2.1 创建一个spring boot工程 pom.xml如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>xyz.onepig</groupId>
	<artifactId>discovery-server</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>discovery-server</name>
	<description>Demo project for Spring Boot</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.5.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
		<spring-cloud.version>Finchley.SR1</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>

2.2在入口文件中添加注解

@SpringBootApplication
@EnableEurekaServer
public class DiscoveryServerApplication {

	public static void main(String[] args) {
		SpringApplication.run(DiscoveryServerApplication.class, args);
	}
}

2.3配置文件如下： /resources/application.roperties

spring.application.name=discovery-server
eureka.client.register-with-eureka=false
eureka.client.fetch-registry=false
server.port=8761

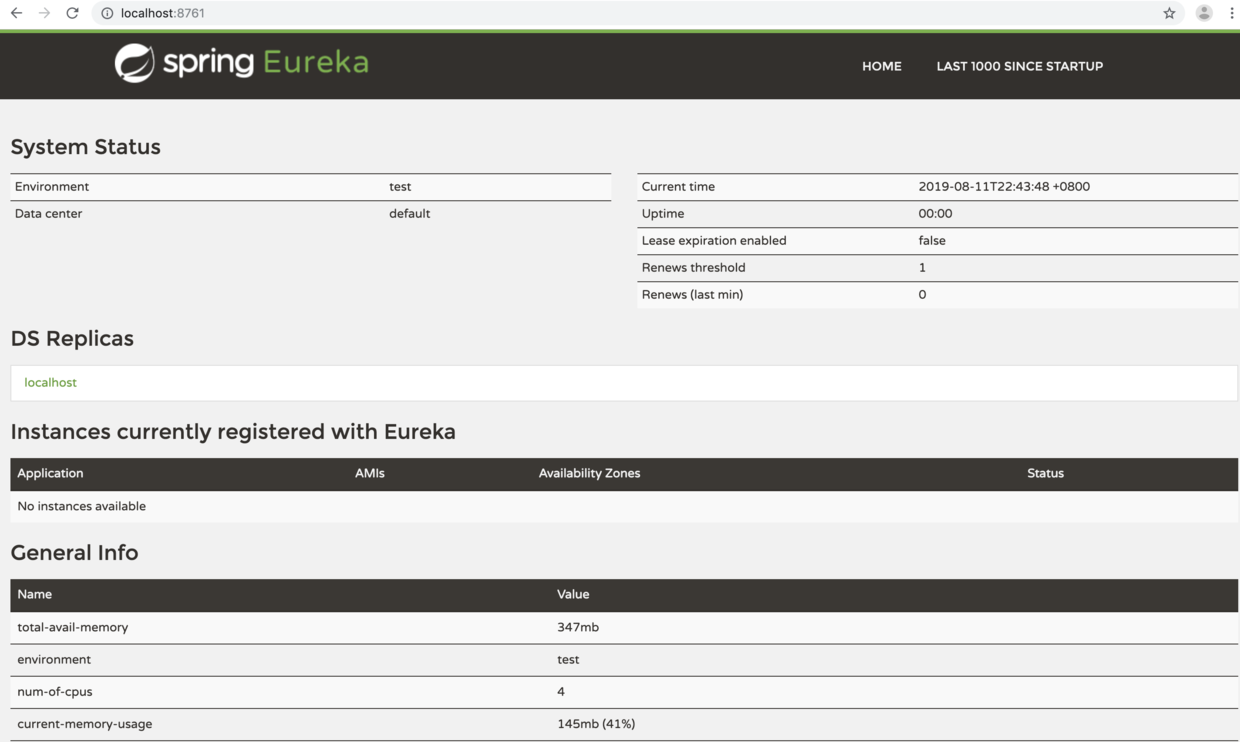

2.4启动注册中心 （启动server的spring boot），访问本地8761端口，出现如下界面，则server创建成功。

---

##3.构建Eureka server 服务生产者 3.1创建一个spring boot工程 pom.xml如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>xyz.onepig</groupId>
	<artifactId>time-service</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>time-service</name>
	<description>Demo project for Spring Boot</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.5.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
		<spring-cloud.version>Finchley.SR1</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>
</project>

3.2编写服务生产者代码 我们在这里构建一个时间查询服务，用于返回当前时间，代码如下，关键注解为@EnableDiscoveryClient，功能是注册服务。

@SpringBootApplication
@EnableDiscoveryClient
@RestController
public class TimeServiceApplication {

	@Value("${server.port}")
	private int port;

	public static void main(String[] args) {
		SpringApplication.run(TimeServiceApplication.class, args);
	}

	@GetMapping
	public String getTime() {
		return "The current time is " + new Date().toString() + "(answered by service running on " + port + ")";
	}
}

3.3配置文件如下：

/resources/application.roperties，注意service-url为服务发现server的地址

spring.application.name=time-service
eureka.client.service-url.defaultZone=http://localhost:8761/eureka
#eureka.instance.prefer-ip-address=true
eureka.instance.instance-id=${spring.cloud.client.ip-address}:${spring.application.name}:${server.port}

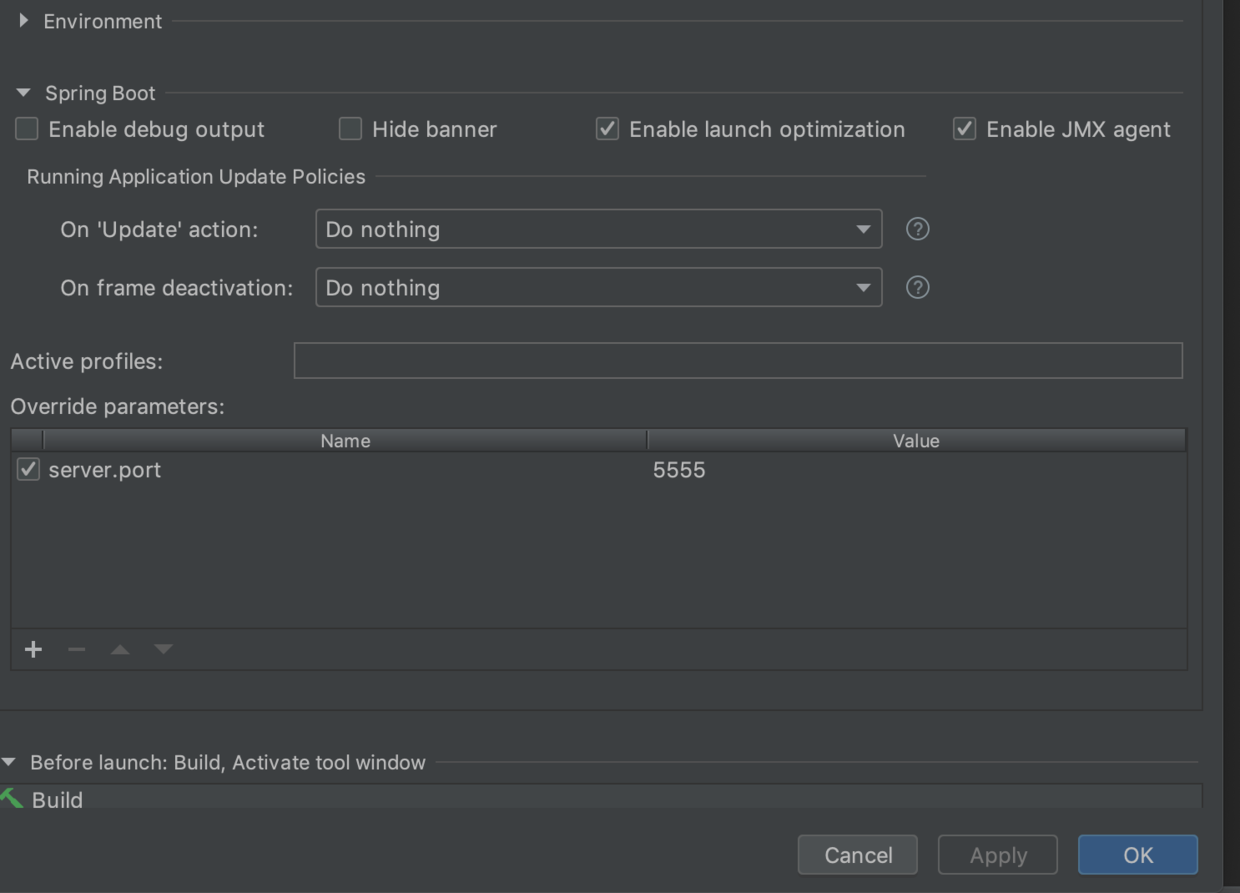

3.4定制化启动 配置server.port参数为4444和5555（Edit Configurations），分别启动两个服务实例

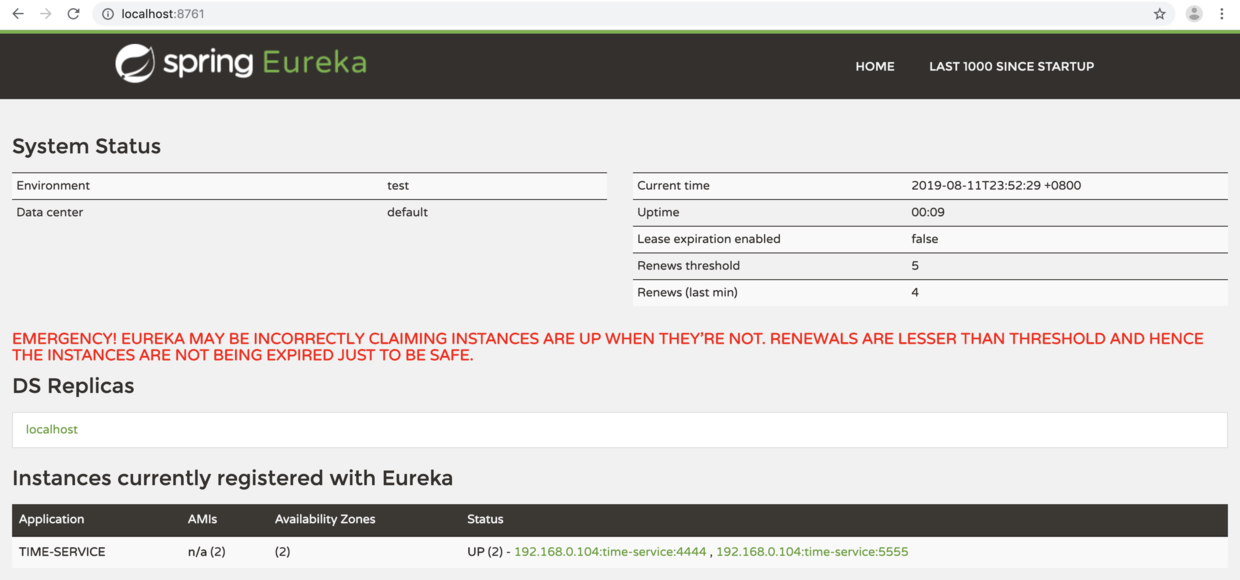

可以看到Eureka控制中心已经出现了该服务的两个实例（Instances currently registered with Eureka），即刚才启动的4444和5555

---

##4.构建Eureka客户端，使用Ribbon负载均衡

4.1创建一个spring boot工程 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>xyz.onepig</groupId>
	<artifactId>time-client</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>time-client</name>
	<description>Demo project for Spring Boot</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.5.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
		<spring-cloud.version>Finchley.SR1</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

4.2主程序代码 其中关键注解为 @EnableDiscoveryClient：发现服务 @LoadBalanced：启用Ribbon

@SpringBootApplication
@RestController
@EnableDiscoveryClient
public class TimeClientApplication {

	@Autowired
	private RestTemplate restTemplate;

	public static void main(String[] args) {
		SpringApplication.run(TimeClientApplication.class, args);
	}

	@GetMapping
	public String getTime() {
		return restTemplate.getForEntity("http://time-service", String.class).getBody();
	}

	@Bean
	@LoadBalanced
	public RestTemplate restTemplate() {
		return new RestTemplate();
	}
}

4.3配置文件 /resources/application.properties

spring.application.name=time-client
eureka.client.service-url.defaultZone=http://localhost:8761/eureka
eureka.client.register-with-eureka=false
server.port=8081

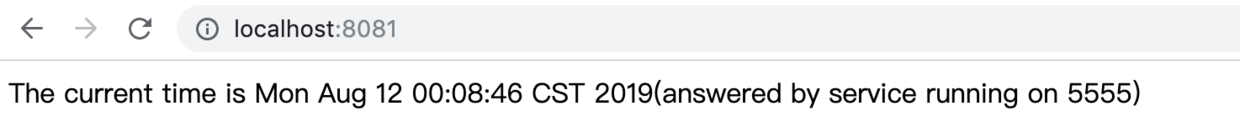

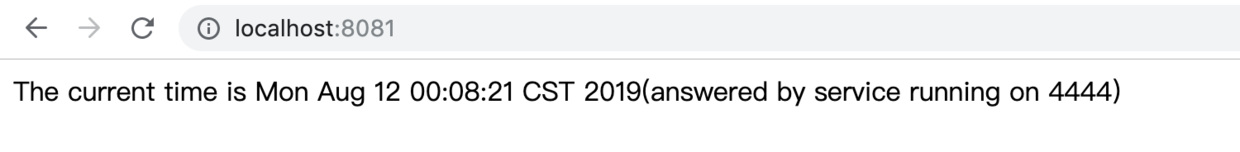

4.4启动client 访问本机8081端口，刷新几次，可以看到访问被负载到了两个服务上：

本文参考：《极客时间-微服务建构实战160讲》
