Jetpack-Lifecycle

作用：将生命周期的管理移交给Activity，专注于业务实现

使用

增加依赖

dependencies {
    def lifecycle_version = "2.0.0"

    // ViewModel and LiveData
    implementation "androidx.lifecycle:lifecycle-extensions:$lifecycle_version"
    // alternatively - just ViewModel
    implementation "androidx.lifecycle:lifecycle-viewmodel:$lifecycle_version" // For Kotlin use lifecycle-viewmodel-ktx
    // alternatively - just LiveData
    implementation "androidx.lifecycle:lifecycle-livedata:$lifecycle_version"
    // alternatively - Lifecycles only (no ViewModel or LiveData). Some UI
    // AndroidX libraries use this lightweight import for Lifecycle
    implementation "androidx.lifecycle:lifecycle-runtime:$lifecycle_version"

    annotationProcessor "androidx.lifecycle:lifecycle-compiler:$lifecycle_version" // For Kotlin use kapt instead of annotationProcessor
    // alternately - if using Java8, use the following instead of lifecycle-compiler
    implementation "androidx.lifecycle:lifecycle-common-java8:$lifecycle_version"

    // optional - ReactiveStreams support for LiveData
    implementation "androidx.lifecycle:lifecycle-reactivestreams:$lifecycle_version" // For Kotlin use lifecycle-reactivestreams-ktx

    // optional - Test helpers for LiveData
    testImplementation "androidx.arch.core:core-testing:$lifecycle_version"
}

增加生命周期观察者

//如果Activity继承自AppCompatActivity，可以直接调用getLifecycle()获取LifeCycle实例，添加观察者
public class MainActivity extends AppCompatActivity {
    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main_activity);
		//AppCompatActivity实现了LifecycleOwner
        getLifecycle().addObserver(new LifecycleObserver() {
            @OnLifecycleEvent(Lifecycle.Event.ON_CREATE)
            void onCreate(){
            }

            @OnLifecycleEvent(Lifecycle.Event.ON_START)
            void onStart(){
            }

            @OnLifecycleEvent(Lifecycle.Event.ON_RESUME)
            void onResume(){
            }

            @OnLifecycleEvent(Lifecycle.Event.ON_PAUSE)
            void onPause(){
            }

            @OnLifecycleEvent(Lifecycle.Event.ON_STOP)
            void onStop(){
            }

            @OnLifecycleEvent(Lifecycle.Event.ON_DESTROY)
            void onDestroy(){
            }

            @OnLifecycleEvent(Lifecycle.Event.ON_ANY)
            void onAny(){
            }
        });
    }
}

根据上面代码可以看出，生命周期的监听不是通过重写接口的方法实现，而是通过给自定义方法增加注解，在绑定时解析注解得到各个生命周期对应的方法。

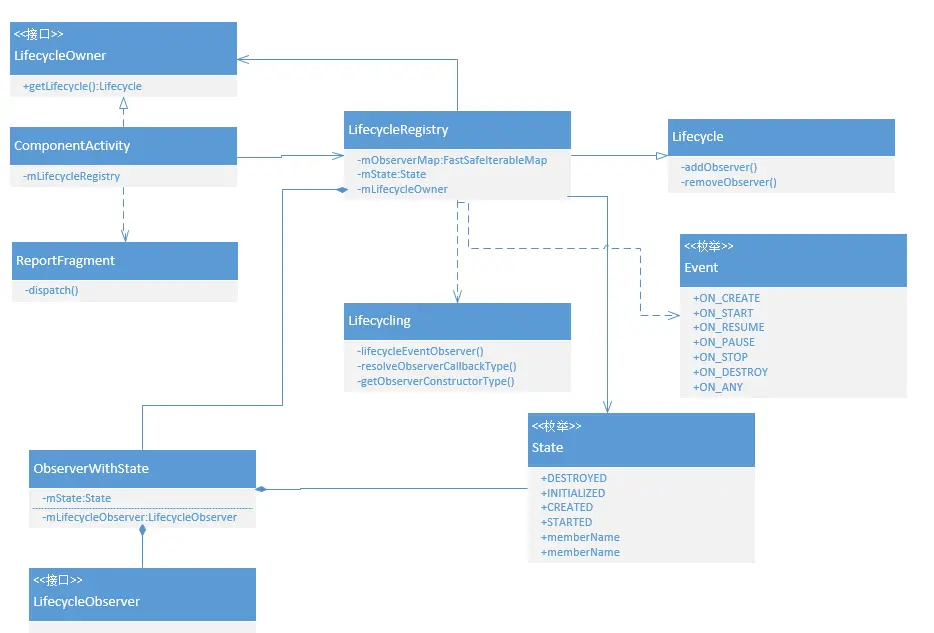

类图

关键类的作用

Lifecycle：抽象类，主要定义了添加和移除观察者的方法

public abstract class Lifecycle {

    @RestrictTo(RestrictTo.Scope.LIBRARY_GROUP)
    @NonNull
    AtomicReference<Object> mInternalScopeRef = new AtomicReference<>();
	//添加观察者
    @MainThread
    public abstract void addObserver(@NonNull LifecycleObserver observer);
	//移除观察者
    @MainThread
    public abstract void removeObserver(@NonNull LifecycleObserver observer);
	//获取当前状态
    @MainThread
    @NonNull
    public abstract State getCurrentState();
}

Event：枚举类，定义了各个生命周期的事件

public enum Event {
    //onCreate
    ON_CREATE,
   	//onStart
    ON_START,
   	//onResume
    ON_RESUME,
    //onPause
    ON_PAUSE,
    //onStop
    ON_STOP,
    //onDestroy
    ON_DESTROY,
    //类似swtich中的default
    ON_ANY
}

State：枚举类，定义了状态常量。对应Activity的生命周期

public enum State {
    DESTROYED,
    INITIALIZED,
    CREATED,
    STARTED,
    RESUMED;
    public boolean isAtLeast(@NonNull State state) {
        return compareTo(state) >= 0;
    }
}

状态转换关系：

LifecycleRegistry：继承自Lifecycle，管理状态和观察者，以及分发生命周期

public class LifecycleRegistry extends Lifecycle {
	//自定义的可迭代的数据结构，内部是一个HashMap，并记录了最早和最后放入的元素
    private FastSafeIterableMap<LifecycleObserver, ObserverWithState> mObserverMap =
            new FastSafeIterableMap<>();
    private State mState;
	//保存LifecycleOwner，一般是Activity，为防止内存泄漏，使用弱引用
    private final WeakReference<LifecycleOwner> mLifecycleOwner;
    private int mAddingObserverCounter = 0;
    private boolean mHandlingEvent = false;
    private boolean mNewEventOccurred = false;
    // void onStart() {
    //     mRegistry.removeObserver(this);
    //     mRegistry.add(newObserver);
    // }
    //当观察者都被移除，然后从其他声明周期中添加观察者时，无法确认它此时的状态。所以需要mParentStates来帮助判断此时的状态
    private ArrayList<State> mParentStates = new ArrayList<>();

    public LifecycleRegistry(@NonNull LifecycleOwner provider) {
        mLifecycleOwner = new WeakReference<>(provider);
        mState = INITIALIZED;
    }
	//设置当前的状态，已废弃，使用setCurrentState()
    @Deprecated
    @MainThread
    public void markState(@NonNull State state) {
        setCurrentState(state);
    }
	//设置当前的状态
    @MainThread
    public void setCurrentState(@NonNull State state) {
        moveToState(state);
    }
	//设置当前的状态，并通知观察者
    public void handleLifecycleEvent(@NonNull Lifecycle.Event event) {
        State next = getStateAfter(event);
        moveToState(next);
    }
	//根据状态转换图，每个事件都会使状态转换
    private void moveToState(State next) {
        if (mState == next) {
            return;
        }
        mState = next;
        if (mHandlingEvent || mAddingObserverCounter != 0) {
            mNewEventOccurred = true;
            // we will figure out what to do on upper level.
            return;
        }
        mHandlingEvent = true;
        sync();
        mHandlingEvent = false;
    }
	//观察者的状态是否都同步了
    private boolean isSynced() {
        if (mObserverMap.size() == 0) {
            return true;
        }
        State eldestObserverState = mObserverMap.eldest().getValue().mState;
        State newestObserverState = mObserverMap.newest().getValue().mState;
        return eldestObserverState == newestObserverState && mState == newestObserverState;
    }
	//计算当前的状态，取前一个观察者和最后一个mParentStates的状态最小值
    private State calculateTargetState(LifecycleObserver observer) {
        Entry<LifecycleObserver, ObserverWithState> previous = mObserverMap.ceil(observer);

        State siblingState = previous != null ? previous.getValue().mState : null;
        State parentState = !mParentStates.isEmpty() ? mParentStates.get(mParentStates.size() - 1)
                : null;
        return min(min(mState, siblingState), parentState);
    }

    @Override
    public void addObserver(@NonNull LifecycleObserver observer) {
        State initialState = mState == DESTROYED ? DESTROYED : INITIALIZED;
        ObserverWithState statefulObserver = new ObserverWithState(observer, initialState);
        ObserverWithState previous = mObserverMap.putIfAbsent(observer, statefulObserver);

        if (previous != null) {
            return;
        }
        LifecycleOwner lifecycleOwner = mLifecycleOwner.get();
        if (lifecycleOwner == null) {
            // it is null we should be destroyed. Fallback quickly
            return;
        }

        boolean isReentrance = mAddingObserverCounter != 0 || mHandlingEvent;
        State targetState = calculateTargetState(observer);
        mAddingObserverCounter++;
        //如果当前观察者小于目标状态，则逐次上升当前观察者的状态，并触发对应的回调
        while ((statefulObserver.mState.compareTo(targetState) < 0
                && mObserverMap.contains(observer))) {
            pushParentState(statefulObserver.mState);
            statefulObserver.dispatchEvent(lifecycleOwner, upEvent(statefulObserver.mState));
            popParentState();
            // mState / subling may have been changed recalculate
            targetState = calculateTargetState(observer);
        }
		//如果同时有几个观察者被添加，或者在改变状态，则需要把全部观察者都同步一下
        if (!isReentrance) {
            // we do sync only on the top level.
            sync();
        }
        mAddingObserverCounter--;
    }

    private void popParentState() {
        mParentStates.remove(mParentStates.size() - 1);
    }

    private void pushParentState(State state) {
        mParentStates.add(state);
    }

    @Override
    public void removeObserver(@NonNull LifecycleObserver observer) {
        //移除观察者时不发送事件
        mObserverMap.remove(observer);
    }

    @SuppressWarnings("WeakerAccess")
    public int getObserverCount() {
        return mObserverMap.size();
    }

    @NonNull
    @Override
    public State getCurrentState() {
        return mState;
    }
	//事件发生后的状态
    static State getStateAfter(Event event) {
        switch (event) {
            case ON_CREATE:
            case ON_STOP:
                return CREATED;
            case ON_START:
            case ON_PAUSE:
                return STARTED;
            case ON_RESUME:
                return RESUMED;
            case ON_DESTROY:
                return DESTROYED;
            case ON_ANY:
                break;
        }
        throw new IllegalArgumentException("Unexpected event value " + event);
    }
	//看状态转换图，状态减小的方向循环
    private static Event downEvent(State state) {
        switch (state) {
            case INITIALIZED:
                throw new IllegalArgumentException();
            case CREATED:
                return ON_DESTROY;
            case STARTED:
                return ON_STOP;
            case RESUMED:
                return ON_PAUSE;
            case DESTROYED:
                throw new IllegalArgumentException();
        }
        throw new IllegalArgumentException("Unexpected state value " + state);
    }
	//看转换图，状态变大的方向循环
    private static Event upEvent(State state) {
        switch (state) {
            case INITIALIZED:
            case DESTROYED:
                return ON_CREATE;
            case CREATED:
                return ON_START;
            case STARTED:
                return ON_RESUME;
            case RESUMED:
                throw new IllegalArgumentException();
        }
        throw new IllegalArgumentException("Unexpected state value " + state);
    }
	//当前状态小于目标状态，状态需要增大
    private void forwardPass(LifecycleOwner lifecycleOwner) {
        Iterator<Entry<LifecycleObserver, ObserverWithState>> ascendingIterator =
                mObserverMap.iteratorWithAdditions();
        while (ascendingIterator.hasNext() && !mNewEventOccurred) {
            Entry<LifecycleObserver, ObserverWithState> entry = ascendingIterator.next();
            ObserverWithState observer = entry.getValue();
            while ((observer.mState.compareTo(mState) < 0 && !mNewEventOccurred
                    && mObserverMap.contains(entry.getKey()))) {
                pushParentState(observer.mState);
                observer.dispatchEvent(lifecycleOwner, upEvent(observer.mState));
                popParentState();
            }
        }
    }
	//当前状态大于目标状态，状态需要减小
    private void backwardPass(LifecycleOwner lifecycleOwner) {
        Iterator<Entry<LifecycleObserver, ObserverWithState>> descendingIterator =
                mObserverMap.descendingIterator();
        while (descendingIterator.hasNext() && !mNewEventOccurred) {
            Entry<LifecycleObserver, ObserverWithState> entry = descendingIterator.next();
            ObserverWithState observer = entry.getValue();
            while ((observer.mState.compareTo(mState) > 0 && !mNewEventOccurred
                    && mObserverMap.contains(entry.getKey()))) {
                Event event = downEvent(observer.mState);
                pushParentState(getStateAfter(event));
                observer.dispatchEvent(lifecycleOwner, event);
                popParentState();
            }
        }
    }

    //同步观察者的状态
    private void sync() {
        LifecycleOwner lifecycleOwner = mLifecycleOwner.get();
        if (lifecycleOwner == null) {
            throw new IllegalStateException("LifecycleOwner of this LifecycleRegistry is already"
                    + "garbage collected. It is too late to change lifecycle state.");
        }
        while (!isSynced()) {
            mNewEventOccurred = false;
            //比较最早加入的观察者的状态是否大于新的状态
            if (mState.compareTo(mObserverMap.eldest().getValue().mState) < 0) {
                backwardPass(lifecycleOwner);
            }
            //比较最新加入的观察者的状态是否小于目标状态
            Entry<LifecycleObserver, ObserverWithState> newest = mObserverMap.newest();
            if (!mNewEventOccurred && newest != null
                    && mState.compareTo(newest.getValue().mState) > 0) {
                forwardPass(lifecycleOwner);
            }
        }
        mNewEventOccurred = false;
    }
}

ObserverWithState：LifecycleRegistry的静态内部类，保存状态和观察者，并执行事件分发的工作

static class ObserverWithState {
    State mState;
    LifecycleEventObserver mLifecycleObserver;

    ObserverWithState(LifecycleObserver observer, State initialState) {
        //适配器，将添加的观察者转换为对应的观察者接口（包含注解处理）
        mLifecycleObserver = Lifecycling.lifecycleEventObserver(observer);
        mState = initialState;
    }
	//事件分发
    void dispatchEvent(LifecycleOwner owner, Event event) {
        State newState = getStateAfter(event);
        mState = min(mState, newState);
        mLifecycleObserver.onStateChanged(owner, event);
        mState = newState;
    }
}

LifecycleEventObserver：观察者接口，有多种实现

public interface LifecycleEventObserver extends LifecycleObserver {
    void onStateChanged(@NonNull LifecycleOwner source, @NonNull Lifecycle.Event event);
}

Lifecycling：静态类，处理观察者的转换

public class Lifecycling {
	//观察者定义了接口
    private static final int REFLECTIVE_CALLBACK = 1;
    //apt注解生成观察者接口类
    private static final int GENERATED_CALLBACK = 2;

    private static Map<Class<?>, Integer> sCallbackCache = new HashMap<>();
    private static Map<Class<?>, List<Constructor<? extends GeneratedAdapter>>> sClassToAdapters =
            new HashMap<>();
	//将观察者包装成一个GenericLifecycleObserver对象（继承自LifecycleEventObserver）
    @SuppressWarnings("deprecation")
    @Deprecated
    @NonNull
    static GenericLifecycleObserver getCallback(final Object object) {
        final LifecycleEventObserver observer = lifecycleEventObserver(object);
        return new GenericLifecycleObserver() {
            @Override
            public void onStateChanged(@NonNull LifecycleOwner source,
                    @NonNull Lifecycle.Event event) {
                observer.onStateChanged(source, event);
            }
        };
    }
	//适配，将观察者转换为对应的LifecycleEventObserver对象
    @NonNull
    static LifecycleEventObserver lifecycleEventObserver(Object object) {
        boolean isLifecycleEventObserver = object instanceof LifecycleEventObserver;
        boolean isFullLifecycleObserver = object instanceof FullLifecycleObserver;
        if (isLifecycleEventObserver && isFullLifecycleObserver) {
            //如果实现了FullLifecycleObserver需要声明周期变化时，调用对应的方法
            //LifecycleEventObserver，只需调用onStateChanged()
            return new FullLifecycleObserverAdapter((FullLifecycleObserver) object,
                    (LifecycleEventObserver) object);
        }
        if (isFullLifecycleObserver) {
            //只实现了如果实现了FullLifecycleObserver需要声明周期变化时
            return new FullLifecycleObserverAdapter((FullLifecycleObserver) object, null);
        }

        if (isLifecycleEventObserver) {
            //实现了LifecycleEventObserver
            return (LifecycleEventObserver) object;
        }

        final Class<?> klass = object.getClass();
        //判断观察者的类型
        int type = getObserverConstructorType(klass);
        if (type == GENERATED_CALLBACK) {
            //解析注解生成类，得到对应的SingleGeneratedAdapterObserver或CompositeGeneratedAdaptersObserver
            List<Constructor<? extends GeneratedAdapter>> constructors =
                    sClassToAdapters.get(klass);
            if (constructors.size() == 1) {
                GeneratedAdapter generatedAdapter = createGeneratedAdapter(
                        constructors.get(0), object);
                return new SingleGeneratedAdapterObserver(generatedAdapter);
            }
            GeneratedAdapter[] adapters = new GeneratedAdapter[constructors.size()];
            for (int i = 0; i < constructors.size(); i++) {
                adapters[i] = createGeneratedAdapter(constructors.get(i), object);
            }
            return new CompositeGeneratedAdaptersObserver(adapters);
        }
        //如果没有使用apt，则运行时解析注解，得到对应的事件的回调方法
        return new ReflectiveGenericLifecycleObserver(object);
    }
	//创建对象
    private static GeneratedAdapter createGeneratedAdapter(
            Constructor<? extends GeneratedAdapter> constructor, Object object) {
        //noinspection TryWithIdenticalCatches
        try {
            return constructor.newInstance(object);
        } catch (IllegalAccessException e) {
            throw new RuntimeException(e);
        } catch (InstantiationException e) {
            throw new RuntimeException(e);
        } catch (InvocationTargetException e) {
            throw new RuntimeException(e);
        }
    }
	//注解生成的类的构造函数
    @Nullable
    private static Constructor<? extends GeneratedAdapter> generatedConstructor(Class<?> klass) {
        try {
            Package aPackage = klass.getPackage();
            String name = klass.getCanonicalName();
            final String fullPackage = aPackage != null ? aPackage.getName() : "";
             //注解生成类的类名：MainActivity_Listener_LifecycleAdapter
            final String adapterName = getAdapterName(fullPackage.isEmpty() ? name :
                    name.substring(fullPackage.length() + 1));

            @SuppressWarnings("unchecked") final Class<? extends GeneratedAdapter> aClass =
                    (Class<? extends GeneratedAdapter>) Class.forName(
                            fullPackage.isEmpty() ? adapterName : fullPackage + "." + adapterName);
            Constructor<? extends GeneratedAdapter> constructor =
                    aClass.getDeclaredConstructor(klass);
            if (!constructor.isAccessible()) {
                constructor.setAccessible(true);
            }
            return constructor;
        } catch (ClassNotFoundException e) {
            return null;
        } catch (NoSuchMethodException e) {
            // this should not happen
            throw new RuntimeException(e);
        }
    }
	//观察者的类型
    private static int getObserverConstructorType(Class<?> klass) {
        Integer callbackCache = sCallbackCache.get(klass);
        if (callbackCache != null) {
            return callbackCache;
        }
        int type = resolveObserverCallbackType(klass);
        sCallbackCache.put(klass, type);
        return type;
    }

    private static int resolveObserverCallbackType(Class<?> klass) {
        // anonymous class bug:35073837
        if (klass.getCanonicalName() == null) {
            return REFLECTIVE_CALLBACK;
        }

        Constructor<? extends GeneratedAdapter> constructor = generatedConstructor(klass);
        //说明有注解生成类
        if (constructor != null) {
            sClassToAdapters.put(klass, Collections
                    .<Constructor<? extends GeneratedAdapter>>singletonList(constructor));
            return GENERATED_CALLBACK;
        }
		//解析类或接口中带OnLifecycleEvent注解的方法，并放到Map中，最终形成事件与方法的对应
        boolean hasLifecycleMethods = ClassesInfoCache.sInstance.hasLifecycleMethods(klass);
        if (hasLifecycleMethods) {
            return REFLECTIVE_CALLBACK;
        }
		//如果上面的方法都没有确认到观察者及回调方法，从父类和这个类实现的接口来寻找
        Class<?> superclass = klass.getSuperclass();
        List<Constructor<? extends GeneratedAdapter>> adapterConstructors = null;
        if (isLifecycleParent(superclass)) {
            if (getObserverConstructorType(superclass) == REFLECTIVE_CALLBACK) {
                return REFLECTIVE_CALLBACK;
            }
            adapterConstructors = new ArrayList<>(sClassToAdapters.get(superclass));
        }

        for (Class<?> intrface : klass.getInterfaces()) {
            if (!isLifecycleParent(intrface)) {
                continue;
            }
            if (getObserverConstructorType(intrface) == REFLECTIVE_CALLBACK) {
                return REFLECTIVE_CALLBACK;
            }
            if (adapterConstructors == null) {
                adapterConstructors = new ArrayList<>();
            }
            adapterConstructors.addAll(sClassToAdapters.get(intrface));
        }
        if (adapterConstructors != null) {
            sClassToAdapters.put(klass, adapterConstructors);
            return GENERATED_CALLBACK;
        }

        return REFLECTIVE_CALLBACK;
    }
	//klass是否继承LifecycleObserver
    private static boolean isLifecycleParent(Class<?> klass) {
        return klass != null && LifecycleObserver.class.isAssignableFrom(klass);
    }

    public static String getAdapterName(String className) {
        return className.replace(".", "_") + "_LifecycleAdapter";
    }

    private Lifecycling() {
    }
}

apt注解生成的观察者：

public class MainActivity_Listener_LifecycleAdapter implements GeneratedAdapter {
  final MainActivity.Listener mReceiver;

  MainActivity_Listener_LifecycleAdapter(MainActivity.Listener receiver) {
    this.mReceiver = receiver;
  }

  @Override
  public void callMethods(LifecycleOwner owner, Lifecycle.Event event, boolean onAny,
      MethodCallsLogger logger) {
    boolean hasLogger = logger != null;
    if (onAny) {
      if (!hasLogger || logger.approveCall("onAny", 1)) {
        mReceiver.onAny();
      }
      return;
    }
    if (event == Lifecycle.Event.ON_CREATE) {
      if (!hasLogger || logger.approveCall("onCreate", 1)) {
        mReceiver.onCreate();
      }
      return;
    }
    if (event == Lifecycle.Event.ON_START) {
      if (!hasLogger || logger.approveCall("onStart", 1)) {
        mReceiver.onStart();
      }
      return;
    }
    if (event == Lifecycle.Event.ON_RESUME) {
      if (!hasLogger || logger.approveCall("onResume", 1)) {
        mReceiver.onResume();
      }
      return;
    }
    if (event == Lifecycle.Event.ON_PAUSE) {
      if (!hasLogger || logger.approveCall("onPause", 1)) {
        mReceiver.onPause();
      }
      return;
    }
    if (event == Lifecycle.Event.ON_STOP) {
      if (!hasLogger || logger.approveCall("onStop", 1)) {
        mReceiver.onStop();
      }
      return;
    }
    if (event == Lifecycle.Event.ON_DESTROY) {
      if (!hasLogger || logger.approveCall("onDestroy", 1)) {
        mReceiver.onDestroy();
      }
      return;
    }
  }
}

Activity如何分发生命周期的变化

AppCompactActivity继承自FragmentActivity，又继承自ComponentActivity，在onCreate中添加了一个ReportFragment，然后由ReportFragment进行生命周期的分发

protected void onCreate(@Nullable Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    mSavedStateRegistryController.performRestore(savedInstanceState);
    ReportFragment.injectIfNeededIn(this);
    if (mContentLayoutId != 0) {
        setContentView(mContentLayoutId);
    }
}

public class ReportFragment extends Fragment {
    private static final String REPORT_FRAGMENT_TAG = "androidx.lifecycle"
            + ".LifecycleDispatcher.report_fragment_tag";
	//添加一个ReportFragment
    public static void injectIfNeededIn(Activity activity) {
        // ProcessLifecycleOwner should always correctly work and some activities may not extend
        // FragmentActivity from support lib, so we use framework fragments for activities
        android.app.FragmentManager manager = activity.getFragmentManager();
        if (manager.findFragmentByTag(REPORT_FRAGMENT_TAG) == null) {
            manager.beginTransaction().add(new ReportFragment(), REPORT_FRAGMENT_TAG).commit();
            // Hopefully, we are the first to make a transaction.
            manager.executePendingTransactions();
        }
    }

    static ReportFragment get(Activity activity) {
        return (ReportFragment) activity.getFragmentManager().findFragmentByTag(
                REPORT_FRAGMENT_TAG);
    }

    private ActivityInitializationListener mProcessListener;

    private void dispatchCreate(ActivityInitializationListener listener) {
        if (listener != null) {
            listener.onCreate();
        }
    }

    private void dispatchStart(ActivityInitializationListener listener) {
        if (listener != null) {
            listener.onStart();
        }
    }

    private void dispatchResume(ActivityInitializationListener listener) {
        if (listener != null) {
            listener.onResume();
        }
    }

    @Override
    public void onActivityCreated(Bundle savedInstanceState) {
        super.onActivityCreated(savedInstanceState);
        dispatchCreate(mProcessListener);
        dispatch(Lifecycle.Event.ON_CREATE);
    }

    @Override
    public void onStart() {
        super.onStart();
        dispatchStart(mProcessListener);
        dispatch(Lifecycle.Event.ON_START);
    }

    @Override
    public void onResume() {
        super.onResume();
        dispatchResume(mProcessListener);
        dispatch(Lifecycle.Event.ON_RESUME);
    }

    @Override
    public void onPause() {
        super.onPause();
        dispatch(Lifecycle.Event.ON_PAUSE);
    }

    @Override
    public void onStop() {
        super.onStop();
        dispatch(Lifecycle.Event.ON_STOP);
    }

    @Override
    public void onDestroy() {
        super.onDestroy();
        dispatch(Lifecycle.Event.ON_DESTROY);
        // just want to be sure that we won't leak reference to an activity
        mProcessListener = null;
    }

    private void dispatch(Lifecycle.Event event) {
        Activity activity = getActivity();
        if (activity instanceof LifecycleRegistryOwner) {
            ((LifecycleRegistryOwner) activity).getLifecycle().handleLifecycleEvent(event);
            return;
        }

        if (activity instanceof LifecycleOwner) {
            Lifecycle lifecycle = ((LifecycleOwner) activity).getLifecycle();
            if (lifecycle instanceof LifecycleRegistry) {
                ((LifecycleRegistry) lifecycle).handleLifecycleEvent(event);
            }
        }
    }

    void setProcessListener(ActivityInitializationListener processListener) {
        mProcessListener = processListener;
    }

    interface ActivityInitializationListener {
        void onCreate();

        void onStart();

        void onResume();
    }
}

Fragment如何分发生命周期：

androidx包中的Fragment有一个LifecycleRegistry对象，且在各个生命周期都会进行分发：

LifecycleRegistry mLifecycleRegistry;

private void initLifecycle() {
    mLifecycleRegistry = new LifecycleRegistry(this);
    mSavedStateRegistryController = SavedStateRegistryController.create(this);
    if (Build.VERSION.SDK_INT >= 19) {
        mLifecycleRegistry.addObserver(new LifecycleEventObserver() {
            @Override
            public void onStateChanged(@NonNull LifecycleOwner source,
                   @NonNull Lifecycle.Event event) {
                if (event == Lifecycle.Event.ON_STOP) {
                    if (mView != null) {
                        mView.cancelPendingInputEvents();
                    }
                }
            }
        });
    }
}

void performCreate(Bundle savedInstanceState) {
    mLifecycleRegistry.handleLifecycleEvent(Lifecycle.Event.ON_CREATE);
}

void performStart() {
    mLifecycleRegistry.handleLifecycleEvent(Lifecycle.Event.ON_START);
}

void performResume() {
    mLifecycleRegistry.handleLifecycleEvent(Lifecycle.Event.ON_RESUME);
}

void performPause() {
    mLifecycleRegistry.handleLifecycleEvent(Lifecycle.Event.ON_PAUSE);
}

void performStop() {
    mLifecycleRegistry.handleLifecycleEvent(Lifecycle.Event.ON_STOP);
}

void performDestroy() {
    mLifecycleRegistry.handleLifecycleEvent(Lifecycle.Event.ON_DESTROY);
}
