SpringBoot web 开发整合

添加spring boot父版本

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starters</artifactId>
    <version>2.1.6.RELEASE</version>
  </parent>

整合web

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>

实际上, 该依赖包含了spring, spring-mvc, jackson等依赖.

测试环境

1. 添加controller

    @RestController
    @RequestMapping("/home")
    public class indexController {
        @RequestMapping(value = "/",method = RequestMethod.GET)
        public Map<String,Object> home(){
            Map<String,Object> map = new HashMap<>();
            map.put("msg","hello spring boot");
            return map;
        }
    }


2. 添加springboot启动类

    @SpringBootApplication
    public class SpringBootBranchApplication {
        public static void main(String[] args) {
            SpringApplication.run(SpringBootBranchApplication.class, args);
        }
    }


3. 在application.properties下修改web监听端口

    server.port=8088

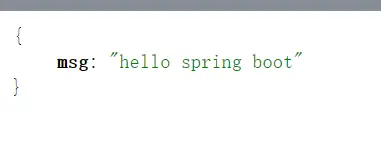

4. 运行main 访问http://127.0.0.1/home/

说明环境搭建成功

整合servlet

方式1:扫描注解

1. 在servlet包下创建MyServlet类继承HttpServlet

     /**
     * 传统spring开发:
     * <servlet>
     *     <servlet-name>MyServlet</servlet-name>
     *     <servlet-class>com.lcd.branch.servlet.MyServlet</servlet-class>
     * </servlet>
     * <servlet-mapping>
     *      <servlet-name>MyServlet</servlet-name>
     *      <url-pattern>/my</url-pattern>
     * </servlet-mapping>
     */
    @WebServlet(name ="MyServlet",urlPatterns = "/my")
    public class MyServlet extends HttpServlet {
        @Override
        protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
            System.out.println("springboot中配置servlet成功................");;
        }
    }

2. 修改启动类

    @SpringBootApplication
    @ServletComponentScan
    public class SpringBootBranchApplication {
        public static void main(String[] args) {
            SpringApplication.run(SpringBootBranchApplication.class, args);
        }
    }


在springboot启动的时候, @ServletComponentScan注解会 扫描所有@WebServle注解,并进行实例化

3. 测试: 访问: http://localhost:8088/my,控制台输出:

4. 说明配置成功

方式二: 通过方法并标记@Bean完成

1. 编写BeanServlet,继承HttpServlet

    public class BeanServlet extends HttpServlet {
        @Override
        protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
            System.out.println("注册bean方法的servlet配置成功");
        }
    }


2. 在启动类下编写获取servlet方法:

    @SpringBootApplication
    @ServletComponentScan //springboot启动会扫描@WebServle注解t,并进行实例化
    public class SpringBootBranchApplication {
        public static void main(String[] args) {
            SpringApplication.run(SpringBootBranchApplication.class, args);
        }
        @Bean
        public ServletRegistrationBean getServletRegistrationBean(){
            ServletRegistrationBean registrationBean = new ServletRegistrationBean(new BeanServlet());
            registrationBean.addUrlMappings("/bean");
            return registrationBean;
        }
    }


3. 测试: http://localhost:8088/bean

4. 说明配置成功

springboot整合filter

跟整合servlet一样也有两种方式,注解扫描+获取beans(FilterRegisterBean),这里主要演示第一种方式

1. 在filter包下创建Myfilter类

      //@WebFilter(filterName = "MyFilter",urlPatterns = {"*.do","*.jsp"})
      @WebFilter(filterName = "MyFilter",urlPatterns = "/filter")
      public class MyFilter implements Filter {
          @Override
          public void init(FilterConfig filterConfig) throws ServletException {
          }
          @Override
          public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
              System.out.println("进入filter");
              filterChain.doFilter(servletRequest,servletResponse);
              System.out.println("离开filter");
          }
          @Override
          public void destroy() {
          }
      }


2. 启动类上添加@ServletComponentScan注解既可.

3. 测试访问: http://127.0.0.1/8088/filter

4. 控制台输出



5. 说明整合filter成功

springboot整合Listener

跟整合servlet一样也有两种方式,注解扫描+获取beans(ServletListenerRegisterBean),这里主要演示第一种方式

1. 在listen包下创建MyListener监听器, 这里演示的是监听server上下文

   @WebListener
   public class MyListener implements ServletContextListener {
       @Override
       public void contextInitialized(ServletContextEvent sce) {
           System.out.println("servlet上下文监听器初始化");
       }

       @Override
       public void contextDestroyed(ServletContextEvent sce) {
           System.out.println("servlet上下文监听器销毁");
       }
   }


2. 启动类上添加@ServletComponentScan注解既可.

3. 测试:项目启动的时候



4. 说明配置listener成功

springboot整合静态资源访问

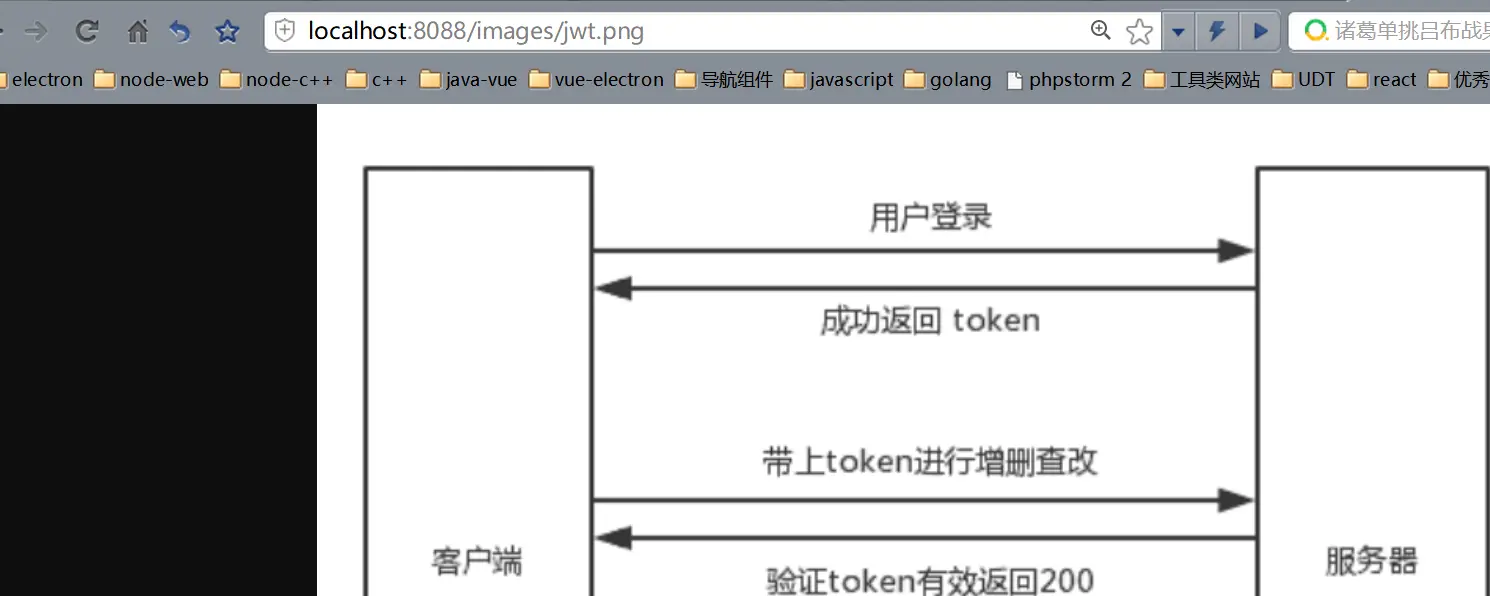

1. 在resource的static下均可以通过http url来访问(比如在static下images下有张jwt.png图片)

springboot整合文件上传

1. 首先编写html

        <!DOCTYPE html>
        <html lang="en">
        <head>
            <meta charset="UTF-8">
            <title>文件上传</title>
        </head>
        <body>
        <form enctype="multipart/form-data" method="post" action="/file/upload">
            文件:<input type="file" name="file"/>
            姓名:<input type="text" name="name"/>
            <input type="submit" value="上传"/>
        </form>
        </body>
        </html>


2. 编写controller

    @RestController
    @RequestMapping("/file")
    public class FileUploadController {
        private final static String filePath = "E://java/logs/";
        @RequestMapping("/upload")
        public Map<String,Object> upload(@RequestParam("file") MultipartFile file, HttpServletRequest request) throws IOException {
            // 姓名
            String name = request.getParameter("name");
            System.out.println("姓名：" + name);
            // 文件名
            String fileName = file.getOriginalFilename();
            System.out.println("文件名： " + fileName);
            // 文件后缀
            String suffixName = fileName.substring(fileName.lastIndexOf("."));
            System.out.println("文件后缀名： " + suffixName);
            // 重新生成唯一文件名，用于存储数据库
            String newFileName = UUID.randomUUID().toString()+suffixName;
            System.out.println("新的文件名： " + newFileName);
            //创建文件
            File dest = new File(filePath + newFileName);
            file.transferTo(dest);
            Map map = new HashMap();
            map.put("filePath", dest.getAbsolutePath());
            map.put("name", name);
            return map;
        }
    }


3. 修改上传设置

    spring.servlet.multipart.max-file-size=1024MB
    spring.servlet.multipart.max-request-size=1024MB


springboot整合mybatis

包括druid数据源, druid监控

1. 添加pom.xml 依赖

    <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
        <version>1.3.2</version>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
    </dependency>


2. application.properties配置

        ##mysql连接信息
        spring.datasource.url=jdbc:mysql://localhost:3306/mmal?characterEncoding=utf-8&useSSL=false
        spring.datasource.username=root
        spring.datasource.password=xxx.xxx.xxx
        spring.datasource.driver-class-name=com.mysql.jdbc.Driver

        #####数据源配置#########
        ##数据源类别
        spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
        ##初始化大小
        spring.datasource.druid.initial-size=3
        ##最大
        spring.datasource.druid.max-active=20
        ##最小
        spring.datasource.druid.min-idle=2
        ##获取连接等待超时的实际,单位毫秒
        spring.datasource.druid.max-wait=60000
        ##多久进行一次检测,检测需要关闭的空闲连接,单位毫秒
        spring.datasource.druid.time-between-eviction-runs-millis=60000
        ###配置一个连接在池中最小生成的时间,单位毫秒
        spring.datasource.druid.min-evictable-idle-time-millis=300000
        spring.datasource.druid.validation-query=SELECT 1 FROM DUAL
        spring.datasource.druid.test-while-idle=true
        spring.datasource.druid.test-on-borrow=false
        spring.datasource.druid.test-on-return=false
        ##配置监控统计拦截的filters
        spring.datasource.druid.filters=stat,wall
        ## druid sql 监控
        spring.datasource.druid.stat-view-servlet.enabled=true
        spring.datasource.druid.web-stat-filter.enabled=true
        spring.datasource.druid.filter.stat.enabled=true
        spring.datasource.druid.filter.stat.log-slow-sql=true
        spring.datasource.druid.filter.stat.slow-sql-millis=30000
        spring.datasource.druid.filter.stat.merge-sql=true
        spring.datasource.druid.web-stat-filter.url-pattern=/*


        ##控制台输出sql语句
        logging.level.com.lcd.branch.dao=debug
        ##配置mybatis
        ##映射文件位置
        mybatis.mapper-locations=classpath:mappers/*.xml
        ##类型别名包配置
        mybatis.type-aliases-package=package com.lcd.branch.pojo


   3. 编写配置类

       @Configuration
       public class DruidConfiguration {
           @Bean
           public ServletRegistrationBean druidStatViewServle(){
               //ServletRegistrationBean提供类注册
               ServletRegistrationBean servletRegistrationBean = new ServletRegistrationBean(new StatViewServlet(),"/druid/*");
               //添加初始化参数 initParams
               //白名单
               servletRegistrationBean.addInitParameter("allow","127.0.0.1");
               //ip黑名单 存在共同, deny优先allow
               servletRegistrationBean.addInitParameter("loginUsername","root");
               servletRegistrationBean.addInitParameter("loginPassword","root");
               //能否重置数据
               servletRegistrationBean.addInitParameter("resetEnable","false");
               return servletRegistrationBean;
           }

           public FilterRegistrationBean druidStatFilter(){
               FilterRegistrationBean filterRegistrationBean
                       =new FilterRegistrationBean(new WebStatFilter());
               //添加过滤规则
               filterRegistrationBean.addUrlPatterns("/*");
               //添加忽略的格式信息
               filterRegistrationBean.addInitParameter("exclusions",
                       "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*");
               return filterRegistrationBean;
           }
       }


   4. 访问localhost:8088/druid/index.html

   5. 编写dao接口,mapperxxx.xml实现(普通的dao,xml,pojo可以通过mabatis-generator-plugin插件生成)

   6. 编写service接口以及service实现类

   7. 启动类上添加@MapperScan({"com.lcd.branch.dao"})

   springboot整合分页插件pageHelper

   1. 添加pom.xml依赖

       <dependency>
           <groupId>com.github.pagehelper</groupId>
           <artifactId>pagehelper-spring-boot-starter</artifactId>
           <version>1.2.5</version>
       </dependency>


   2. application.properties添加分页插件配置

       ##分页插件
       pagehelper.helper-dialect=mysql
       pagehelper.reasonable=true
       pagehelper.support-methods-arguments=true
       pagehelper.params=count=countSql


   3. 方法使用

       @RequestMapping(value = "/list",method = RequestMethod.GET)
       public PageInfo<User> list(){
       PageHelper.startPage(1,1);
       List<User> users = iUserService.selectUsers();
       PageInfo result = new PageInfo(users);
       return result;
       }


   springboot整合redis

   1. 添加pom.xml依赖

       <dependency>
       	<groupId>org.springframework.boot</groupId>
       	<artifactId>spring-boot-starter-data-redis</artifactId>
       </dependency>


   2. application.properties

       ## redis配置
       spring.redis.port=6379
       spring.redis.host=127.0.0.1
       ##默认redis数据库为db0
       spring.redis.database=0
       ##连接池最大连接数,使用负数表示没有限制
       spring.redis.jedis.pool.max-active=8
       ##连接池最大阻塞时间,使用负数表示没有限制
       spring.redis.jedis.pool.max-wait=-1
       ##连接池最大空闲数
       spring.redis.jedis.pool.max-idle=8
       ## 连接池最小空闲连接
       spring.redis.jedis.pool.min-idle=0
       ##连接超时时间,单位毫秒
       spring.redis.timeout=1000


   3. 编写controller测试

       @RequestMapping(value = "/redis",method = RequestMethod.GET)
       public String testRedis(){
           redisTemplate.opsForValue().set("name","lcd");
           String name = (String)redisTemplate.opsForValue().get("name");
           return name;
       }


   4. 访问localhost:8088/home/redis 返回lcd

   5. RedisTemplate操作redis的方法:

      • opsForList: 操作含有list的数据
      • opsForSet: 操作含有set的数据
      • opsForZSet: 操作含有ZSet(有序set)的数据
      • opsForHash: 操作含有hash的数据

springboot整合AOP

1. pom.xml依赖

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-aop</artifactId>
    </dependency>


2. 编写AOP类, 加上@Aspect和@component注解即可

• @PointCut: 切片点表达式
• @Before("pointCut()"): 前置通知, 在目标方法运行之前 JoinPoint joinPoint
• @After("pointCut()") :后置通知 在目标方法运行结束运行(无论方法是正常结束还是异常结束)
• @AfterReturing("pointCut()",returning = "result"): 返回通知, 在目标方法运行正常通知 public void logReturn(Object result) ;
• @AfterThrowing(value = "pointCut()", throwing = "exception") 异常通知,在目标方法运行出现异常通知, public void logThrown(Exception exception)
• -@Around(value = "pointCut()") 环绕通知, 目标方法运行执行前后 public Object logAround(ProceedingJoinPoint pdj)

为了保证执行顺序，需要 AOP 继承 org.springframework.core.Ordered 接口，继承了 Ordered 接口之后需要覆写 getOrder() 方法，返回的数字越小，执行的顺序越靠前。

整合Swagger2接口文档

1. 添加pom.xml依赖

    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-swagger2</artifactId>
        <version>2.4.0</version>
    </dependency>
    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-swagger-ui</artifactId>
        <version>2.4.0</version>
    </dependency>


2. 添加配置类 这里只是添加一些简单配置,具体可以看源码

    @Configuration
    @EnableSwagger2
    public class SwaggerConfig {

        @Bean
        public Docket createRestApi(){
            return new Docket(DocumentationType.SWAGGER_2)
                    //指定构建API文档的返回
                    .apiInfo(apiInfo())
                    .select()
                    // 指定要生成 API 接口的包路径，这里把 Controller 作为包路径，生成 Controller 中的所有接口
                    .apis(RequestHandlerSelectors.basePackage("com.lcd.branch.controller"))
                    .paths(PathSelectors.any())
                    .build();
        }

        private ApiInfo apiInfo() {
            return new ApiInfoBuilder()
                    .title("springboot继承swagger2接口")
                    .description("项目接口文档")
                    .contact(new Contact("lcd","xxx.xxx.xxx","chengdong2518@163.com"))
                    //设置联系方式
                    .version("1.0")
                    .build();
        }
    }


注意: 这里有个坑, 这个配置类必须跟项目启动类写一个包类, 否则会错误.

常用:

    类: @Api(value="用户相关业务的接口", tags= {"用户相关业务的controller"})
    方法: @ApiOperation(value="用户上传头像", notes="用户上传头像的接口")
          @ApiImplicitParam(name="userId", value="用户id", required=true,         						dataType="String", paramType="query")
