Android：Retrofit源码解析

前言

本文主要是带着三个问题去理解Retrofit的工作原理；

• 1.我们调用定义好的接口后发生了什么，接口api到底是怎么解析出来的？
• 2.Retrofit是怎么和Okhttp合作的，因为发送请求最终都是Okhttp；
• 3.解析返回的数据怎么corvert成RxJava的observable的？

带着这三个问题，我们开始下面的讲解。

Retrofit的使用

public interface MedalApi {
    String url = "employeeMedal/medalList.do";

    @FormUrlEncoded
    @POST(url)
    Observable<AchievedMedalResult> getAchievedMedal(@Field("account") String account,
                                                 @Field("accountType") String accountType,
                                                 @Field("queryEmployeeId263") String queryEmployeeId263);

    @GET(url)
    Observable<AchievedMedalResult> testMedal();

    @POST("/example_copy_copy/medallist")
    Observable<AchievedMedalDetailResult> getAchievedMedalDetail(@Field("account") String account,
                                                                 @Field("accountType") String accountType,
                                                                 @Field("queryEmployeeId263") String queryEmployeeId263,
                                                                 @Field("queryMedalCode") String queryMedalCode
                                                                 );

}


    public static <T> T createService(Class<T> service, String baseUrl) {
        //日志处理
        HttpLoggingInterceptor loggingInterceptor = new HttpLoggingInterceptor(new HttpLoggingInterceptor.Logger() {
            @Override
            public void log(String message) {
                L.d(TAG, message);
            }
        });

        loggingInterceptor.setLevel(HttpLoggingInterceptor.Level.BODY);
        OkHttpClient okHttpClient = new OkHttpClient.Builder()
                //.addInterceptor(new LoggerInterceptor("TAG"))
                .connectTimeout(CONNECT_TIMEOUT, TimeUnit.MILLISECONDS)
                .readTimeout(READ_TIMEOUT, TimeUnit.MILLISECONDS)
                /* 关闭OkHttp失败重试连接的机制，该问题导致发帖重复的问题 */
                .retryOnConnectionFailure(false)
                .addInterceptor(loggingInterceptor)
                .addInterceptor(new HttpHeadInterceptor())
                .addInterceptor(new SecurityInterceptor(AppInstance.INSTANCE)) // 加密解密
                .addNetworkInterceptor(new StethoInterceptor())
                .dns(new SunlandDNS())
                // 其他配置
                .build();
        Retrofit retrofit = new Retrofit.Builder()
                .baseUrl(baseUrl)
                .addCallAdapterFactory(RxJavaCallAdapterFactory.create())
                .addConverterFactory(GsonConverterFactory.create())
                .client(okHttpClient)
                .build();

        return retrofit.create(service);
    }

上面就是实际使用了，做一些简单配置就可以发送请求了，返回的数据是转换后好的实体类，确实很方便。

原理解析

上面简单讲了使用方法，下面开始进入正题，讲讲背后的原理。

Retrofit实例化

首先看看它是怎么被初始化的，就是入口在哪？很显然，就是那个build，建造者模式，这个和okhttp是异曲同工。

    public Retrofit build() {
      if (baseUrl == null) {
        throw new IllegalStateException("Base URL required.");
      }

      okhttp3.Call.Factory callFactory = this.callFactory;
      if (callFactory == null) {
        callFactory = new OkHttpClient();
      }

      Executor callbackExecutor = this.callbackExecutor;
      if (callbackExecutor == null) {
        callbackExecutor = platform.defaultCallbackExecutor();
      }

      // Make a defensive copy of the adapters and add the default Call adapter.
      List<CallAdapter.Factory> callAdapterFactories = new ArrayList<>(this.callAdapterFactories);
      callAdapterFactories.add(platform.defaultCallAdapterFactory(callbackExecutor));

      // Make a defensive copy of the converters.
      List<Converter.Factory> converterFactories =
          new ArrayList<>(1 + this.converterFactories.size());

      // Add the built-in converter factory first. This prevents overriding its behavior but also
      // ensures correct behavior when using converters that consume all types.
      converterFactories.add(new BuiltInConverters());
      converterFactories.addAll(this.converterFactories);

      return new Retrofit(callFactory, baseUrl, unmodifiableList(converterFactories),
          unmodifiableList(callAdapterFactories), callbackExecutor, validateEagerly);
    }
  }

它会接收一些外面传进来的参数，比如url，默认初始化okhttpclient，covert等，然后直接new了一个Retrofit，这才是把初始化的一些值真正保存到Retrofit对象里面去；

  Retrofit(okhttp3.Call.Factory callFactory, HttpUrl baseUrl,
      List<Converter.Factory> converterFactories, List<CallAdapter.Factory> callAdapterFactories,
      @Nullable Executor callbackExecutor, boolean validateEagerly) {
    this.callFactory = callFactory;
    this.baseUrl = baseUrl;
    this.converterFactories = converterFactories; // Copy+unmodifiable at call site.
    this.callAdapterFactories = callAdapterFactories; // Copy+unmodifiable at call site.
    this.callbackExecutor = callbackExecutor;
    this.validateEagerly = validateEagerly;
  }

这里面的参数都是非常重要的，有的是默认的，有的是外面初始化的时候传递进来的。

Retrofit的create（）

好了retrofit实例有了，接着看create方法。

  public <T> T create(final Class<T> service) {
    Utils.validateServiceInterface(service);
    if (validateEagerly) {
      eagerlyValidateMethods(service);
    }
    return (T) Proxy.newProxyInstance(service.getClassLoader(), new Class<?>[] { service },
        new InvocationHandler() {
          private final Platform platform = Platform.get();

          @Override public Object invoke(Object proxy, Method method, @Nullable Object[] args)
              throws Throwable {
            // If the method is a method from Object then defer to normal invocation.
            if (method.getDeclaringClass() == Object.class) {
              return method.invoke(this, args);
            }
            if (platform.isDefaultMethod(method)) {
              return platform.invokeDefaultMethod(method, service, proxy, args);
            }
            ServiceMethod<Object, Object> serviceMethod =
                (ServiceMethod<Object, Object>) loadServiceMethod(method);
            OkHttpCall<Object> okHttpCall = new OkHttpCall<>(serviceMethod, args);
            return serviceMethod.adapt(okHttpCall);
          }
        });
  }

这里把我们定义好的api接口当做class参数传递进来，可以看到，这里面采用的是java动态代理技术，把接口api里面的方法集中在代理的invoke方法中去执行了，做了如下几件事

• 对method做校验，object默认的方法我们不用去管，直接执行。
• 对平台的校验，在java8中默认会做校验，android中，我们不用去理会。
• 重点的是最后三行代码，创建ServiceMethod，实例化OkHttpCall， serviceMethod.adapt。

接下来我们对最后三行代码做分析；

首先看loadServiceMethod ：

private final Map<Method, ServiceMethod<?, ?>> serviceMethodCache = new ConcurrentHashMap<>();

  ServiceMethod<?, ?> loadServiceMethod(Method method) {
    ServiceMethod<?, ?> result = serviceMethodCache.get(method);
    if (result != null) return result;

    synchronized (serviceMethodCache) {
      result = serviceMethodCache.get(method);
      if (result == null) {
        result = new ServiceMethod.Builder<>(this, method).build();
        serviceMethodCache.put(method, result);
      }
    }
    return result;
  }

serviceMethodCache里面存放的是Method和ServiceMethod的键值对，首先从map中去读取ServiceMethod，如果当前的值存在，那就直接使用。否者就需要新建ServiceMethod。这个逻辑是非常简单的，就是使用了缓存机制，因为java的动态代理和注解的解析都是比较耗时的，所以缓存是很有必要的。接下来看看ServiceMethod到底是何方神圣，需要我们大费周折的去获取或新建。 ServiceMethod的Build（）

      this.retrofit = retrofit;
      this.method = method;
      this.methodAnnotations = method.getAnnotations();
      this.parameterTypes = method.getGenericParameterTypes();
      this.parameterAnnotationsArray = method.getParameterAnnotations();
    }

这里把retrofit和method当作参数传递过来，然后获取method里面的一些参数，是的，api接口看上去是很抽象的，里面有注解，参数类型，还有参数的注解等等，首先获取api里的这些参数，然后看看build（）；

    public ServiceMethod build() {
      callAdapter = createCallAdapter();
      responseType = callAdapter.responseType();
      if (responseType == Response.class || responseType == okhttp3.Response.class) {
        throw methodError("'"
            + Utils.getRawType(responseType).getName()
            + "' is not a valid response body type. Did you mean ResponseBody?");
      }
      responseConverter = createResponseConverter();

      for (Annotation annotation : methodAnnotations) {
        parseMethodAnnotation(annotation);
      }

      if (httpMethod == null) {
        throw methodError("HTTP method annotation is required (e.g., @GET, @POST, etc.).");
      }

      if (!hasBody) {
        if (isMultipart) {
          throw methodError(
              "Multipart can only be specified on HTTP methods with request body (e.g., @POST).");
        }
        if (isFormEncoded) {
          throw methodError("FormUrlEncoded can only be specified on HTTP methods with "
              + "request body (e.g., @POST).");
        }
      }

      int parameterCount = parameterAnnotationsArray.length;
      parameterHandlers = new ParameterHandler<?>[parameterCount];
      for (int p = 0; p < parameterCount; p++) {
        Type parameterType = parameterTypes[p];
        if (Utils.hasUnresolvableType(parameterType)) {
          throw parameterError(p, "Parameter type must not include a type variable or wildcard: %s",
              parameterType);
        }

        Annotation[] parameterAnnotations = parameterAnnotationsArray[p];
        if (parameterAnnotations == null) {
          throw parameterError(p, "No Retrofit annotation found.");
        }

        parameterHandlers[p] = parseParameter(p, parameterType, parameterAnnotations);
      }

      if (relativeUrl == null && !gotUrl) {
        throw methodError("Missing either @%s URL or @Url parameter.", httpMethod);
      }
      if (!isFormEncoded && !isMultipart && !hasBody && gotBody) {
        throw methodError("Non-body HTTP method cannot contain @Body.");
      }
      if (isFormEncoded && !gotField) {
        throw methodError("Form-encoded method must contain at least one @Field.");
      }
      if (isMultipart && !gotPart) {
        throw methodError("Multipart method must contain at least one @Part.");
      }

      return new ServiceMethod<>(this);
    }

这个方法看上去比较长，但是并不难，我们分步说明之：

• 1.创建calladapter，这个方法最终的创建过程是在retrofit中，例如创建RxJava的CallAdapter
• 2.创建responseConverter，返回结果的covert，这个最终也是在retrofit里面创建的，例如创建GsonConveter
• 3.查找method中的所有注解，并一个个解析出来，http的各种请求post，get，put等注解，都是在这里解析出来的。

    private void parseMethodAnnotation(Annotation annotation) {
      if (annotation instanceof DELETE) {
        parseHttpMethodAndPath("DELETE", ((DELETE) annotation).value(), false);
      } else if (annotation instanceof GET) {
        parseHttpMethodAndPath("GET", ((GET) annotation).value(), false);
      } else if (annotation instanceof HEAD) {
        parseHttpMethodAndPath("HEAD", ((HEAD) annotation).value(), false);
        if (!Void.class.equals(responseType)) {
          throw methodError("HEAD method must use Void as response type.");
        }
    }

• 4.对上面解析出来的注解做个校验，需要有httpmethod，也就是说必须要有请求方法的注解才行，否则会抛异常，这也很好理解，发请求肯定是要指明是post还是get吧。
• 5.对请求做一些其他的校验，比如post请求必须含有body等。再就是URL是否为空。
• 6.所有的校验通过以后，最后就是实例化了，如下：

 ServiceMethod(Builder<R, T> builder) {
    this.callFactory = builder.retrofit.callFactory();
    this.callAdapter = builder.callAdapter;
    this.baseUrl = builder.retrofit.baseUrl();
    this.responseConverter = builder.responseConverter;
    this.httpMethod = builder.httpMethod;
    this.relativeUrl = builder.relativeUrl;
    this.headers = builder.headers;
    this.contentType = builder.contentType;
    this.hasBody = builder.hasBody;
    this.isFormEncoded = builder.isFormEncoded;
    this.isMultipart = builder.isMultipart;
    this.parameterHandlers = builder.parameterHandlers;
  }

好了，这个扯得有点多了，让我们还是回到那个代理类得invoke方法里面去。

OkHttpCall<Object> okHttpCall = new OkHttpCall<>(serviceMethod, args);

这里实例化OkHttpCall，其中参数就是我们刚刚新建好的serviceMethod，这个call实质上就是okhttp里面的那个call，对的，最终调用网络请求就靠它了。 如果上面的都是准备工作的话，接下来才是正式开始发送请求了。这里我决定分两部分讲，一种是adapt返回普通的Call，另外一种返回RxJava的Observable，实质上这也是Retrofit的两种不同用法。

return serviceMethod.adapt(okHttpCall);

返回类型是Call的调用

adapt方法返回类型是有okhttpcall里面的servicemethod来决定的。OkHttpCall实现了Call，这里返回的是call，接下来就是执行请求了。请求的执行分同步和异步。 同步的请求方法是 call.execute();

  @Override public Response<T> execute() throws IOException {
    okhttp3.Call call;

    synchronized (this) {
      if (executed) throw new IllegalStateException("Already executed.");
      executed = true;

      if (creationFailure != null) {
        if (creationFailure instanceof IOException) {
          throw (IOException) creationFailure;
        } else if (creationFailure instanceof RuntimeException) {
          throw (RuntimeException) creationFailure;
        } else {
          throw (Error) creationFailure;
        }
      }

      call = rawCall;
      if (call == null) {
        try {
          call = rawCall = createRawCall();
        } catch (IOException | RuntimeException | Error e) {
          throwIfFatal(e); //  Do not assign a fatal error to creationFailure.
          creationFailure = e;
          throw e;
        }
      }
    }

    if (canceled) {
      call.cancel();
    }

    return parseResponse(call.execute());
  }

发送请求的是rawCall；

  private okhttp3.Call createRawCall() throws IOException {
    okhttp3.Call call = serviceMethod.toCall(args);
    if (call == null) {
      throw new NullPointerException("Call.Factory returned null.");
    }
    return call;
  }

继续跟

  /** Builds an HTTP request from method arguments. */
  okhttp3.Call toCall(@Nullable Object... args) throws IOException {
    RequestBuilder requestBuilder = new RequestBuilder(httpMethod, baseUrl, relativeUrl, headers,
        contentType, hasBody, isFormEncoded, isMultipart);

    @SuppressWarnings("unchecked") // It is an error to invoke a method with the wrong arg types.
    ParameterHandler<Object>[] handlers = (ParameterHandler<Object>[]) parameterHandlers;

    int argumentCount = args != null ? args.length : 0;
    if (argumentCount != handlers.length) {
      throw new IllegalArgumentException("Argument count (" + argumentCount
          + ") doesn't match expected count (" + handlers.length + ")");
    }

    for (int p = 0; p < argumentCount; p++) {
      handlers[p].apply(requestBuilder, args[p]);
    }

    return callFactory.newCall(requestBuilder.build());
  }

这个过程调用servicemethod的toCall方法去构建网络请求，返回okhttp3.call，之后再调用call里面的ececute（），最后调用parseResponse对返回的结果进行解析；这里解析就不做过多分析了。

接着看看异步的调用： 事实上了解同步以后，异步也就差不多了：

  @Override public void enqueue(final Callback<T> callback) {
    checkNotNull(callback, "callback == null");

    okhttp3.Call call;
    Throwable failure;

    synchronized (this) {
      if (executed) throw new IllegalStateException("Already executed.");
      executed = true;

      call = rawCall;
      failure = creationFailure;
      if (call == null && failure == null) {
        try {
          call = rawCall = createRawCall();
        } catch (Throwable t) {
          throwIfFatal(t);
          failure = creationFailure = t;
        }
      }
    }

    if (failure != null) {
      callback.onFailure(this, failure);
      return;
    }

    if (canceled) {
      call.cancel();
    }

    call.enqueue(new okhttp3.Callback() {
      @Override public void onResponse(okhttp3.Call call, okhttp3.Response rawResponse) {
        Response<T> response;
        try {
          response = parseResponse(rawResponse);
        } catch (Throwable e) {
          callFailure(e);
          return;
        }

        try {
          callback.onResponse(OkHttpCall.this, response);
        } catch (Throwable t) {
          t.printStackTrace();
        }
      }

      @Override public void onFailure(okhttp3.Call call, IOException e) {
        callFailure(e);
      }

      private void callFailure(Throwable e) {
        try {
          callback.onFailure(OkHttpCall.this, e);
        } catch (Throwable t) {
          t.printStackTrace();
        }
      }
    });
  }

就是把刚刚新建的request放到线程池里面去，然后使用callback对返回结果进行解析。以上就是普通的返回call的调用方法。

对于RxJava中的调用

我们使用的时候是怎么初始化的：

     .addCallAdapterFactory(RxJavaCallAdapterFactory.create())
     .addConverterFactory(GsonConverterFactory.create())

这里是使用的RxJava和GsonConvert，将它们保存在Retrofit的对象里面先存着，后面会用到。接着看ServiceMethod中build（），里面会调用createCallAdapter（），从字面意思可以理解为创建adapter； 最终会调用Retrofit中的函数：

  public CallAdapter<?, ?> nextCallAdapter(@Nullable CallAdapter.Factory skipPast, Type returnType,
      Annotation[] annotations) {
    checkNotNull(returnType, "returnType == null");
    checkNotNull(annotations, "annotations == null");

    int start = callAdapterFactories.indexOf(skipPast) + 1;
    for (int i = start, count = callAdapterFactories.size(); i < count; i++) {
      CallAdapter<?, ?> adapter = callAdapterFactories.get(i).get(returnType, annotations, this);
      if (adapter != null) {
        return adapter;
      }
    }
...
  }

我们只看重点，它就是遍历callAdapterFactories里面的CallAdapter，callAdapterFactories不就是我们刚刚往里面addCallAdapterFactory值了的吗，没错，所以最终会调用RxJavaCallAdapterFactory的get方法

  @Override
  public CallAdapter<?, ?> get(Type returnType, Annotation[] annotations, Retrofit retrofit) {
 ...
    if (!(returnType instanceof ParameterizedType)) {
      String name = isSingle ? "Single" : "Observable";
      throw new IllegalStateException(name + " return type must be parameterized"
          + " as " + name + "<Foo> or " + name + "<? extends Foo>");
    }

    Type observableType = getParameterUpperBound(0, (ParameterizedType) returnType);
    Class<?> rawObservableType = getRawType(observableType);

...
    return new RxJavaCallAdapter(responseType, scheduler, isAsync, isResult, isBody, isSingle,
        false);
  }

看重点，这个get方法经过一定处理后，最终会实例化一个RxJavaCallAdapter 对象，然后会去调用这个类里面的adapt方法。

 @Override public Object adapt(Call<R> call) {
    OnSubscribe<Response<R>> callFunc = isAsync
        ? new CallEnqueueOnSubscribe<>(call)
        : new CallExecuteOnSubscribe<>(call);

    OnSubscribe<?> func;
    if (isResult) {
      func = new ResultOnSubscribe<>(callFunc);
    } else if (isBody) {
      func = new BodyOnSubscribe<>(callFunc);
    } else {
      func = callFunc;
    }
    Observable<?> observable = Observable.create(func);

    if (scheduler != null) {
      observable = observable.subscribeOn(scheduler);
    }

    if (isSingle) {
      return observable.toSingle();
    }
    if (isCompletable) {
      return observable.toCompletable();
    }
    return observable;
  }

  T adapt(Call<R> call) {
    return callAdapter.adapt(call);
  }

所以不同的callAdapter会调用不同的类中的adapt，返回的结果也不一样，前面说的默认的都是返回的call，RxJava返回的是Observable。然后就是使用Rxjava去发网络请求咯：

  @Override public void call(Subscriber<? super Response<T>> subscriber) {
    // Since Call is a one-shot type, clone it for each new subscriber.
    Call<T> call = originalCall.clone();
    CallArbiter<T> arbiter = new CallArbiter<>(call, subscriber);
    subscriber.add(arbiter);
    subscriber.setProducer(arbiter);

    Response<T> response;
    try {
      response = call.execute();
    } catch (Throwable t) {
      Exceptions.throwIfFatal(t);
      arbiter.emitError(t);
      return;
    }
    arbiter.emitResponse(response);
  }
}

里面的call.execute()就是执行网络请求的，这些就和前面没有区别了，最后会得到Respone，然后进行解析，这就讲清楚了怎么使用RxJava发送网络请求的，那么第二个问题，最终我们怎么把返回值转换为对应的Observable呢。接着看，分析方法类似于上面，在ServiceMethod的build中有

responseConverter = createResponseConverter();

这就是创建Convert，这个Convert就是初始化的时候传递进去的，我们传的是GsonConverterFactory，所以和adapter一样最终会走到Retrofit里面去：

{
    checkNotNull(type, "type == null");
    checkNotNull(annotations, "annotations == null");

    int start = converterFactories.indexOf(skipPast) + 1;
    for (int i = start, count = converterFactories.size(); i < count; i++) {
      Converter<ResponseBody, ?> converter =
          converterFactories.get(i).responseBodyConverter(type, annotations, this);
      if (converter != null) {
        //noinspection unchecked
        return (Converter<ResponseBody, T>) converter;
      }
    }

  }

代码和分析adapter的差不多，最终会走到GsonConverterFactory

  public Converter<ResponseBody, ?> responseBodyConverter(Type type, Annotation[] annotations,
      Retrofit retrofit) {
    TypeAdapter<?> adapter = gson.getAdapter(TypeToken.get(type));
    return new GsonResponseBodyConverter<>(gson, adapter);
  }

当Retrofit在解析Respone数据的时候会调用ServiceMothod的如下方法：

  /** Builds a method return value from an HTTP response body. */
  R toResponse(ResponseBody body) throws IOException {
    return responseConverter.convert(body);
  }

继续跟：

  @Override public T convert(ResponseBody value) throws IOException {
    JsonReader jsonReader = gson.newJsonReader(value.charStream());
    try {
      T result = adapter.read(jsonReader);
      if (jsonReader.peek() != JsonToken.END_DOCUMENT) {
        throw new JsonIOException("JSON document was not fully consumed.");
      }
      return result;
    } finally {
      value.close();
    }
  }

就是Gson将返回结果做了处理，直接convert成对象返回了,最后再封装成Observable。

总结

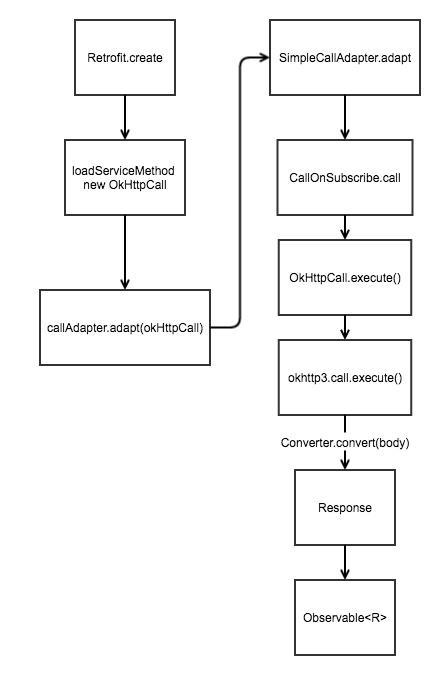

分析完后我们再来看看文章开头的三个问题，是不是都已经有结果了，最后我们上一张图，整个Retrofit的分析流程图：
