Flutter 三棵树

查看抽象类实现快捷键： command+option+b

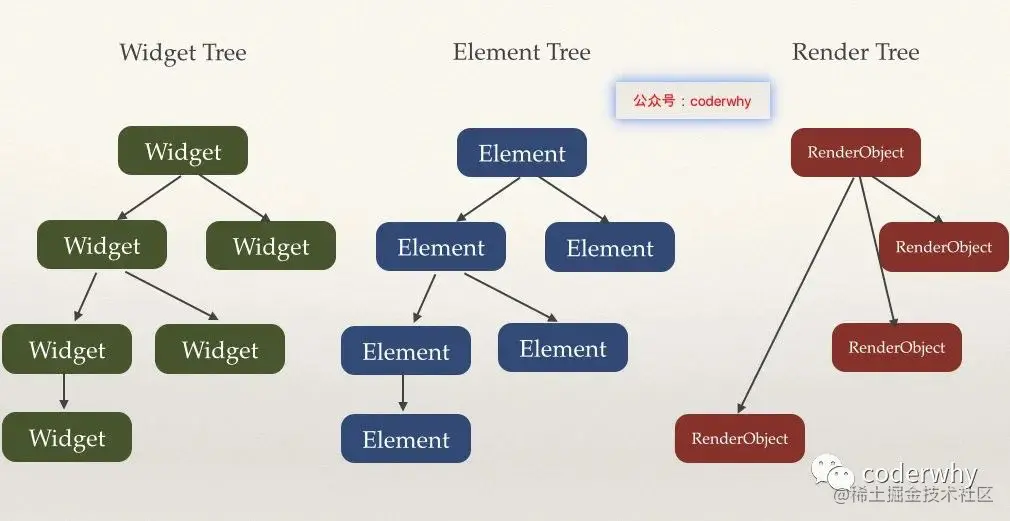

Flutter 渲染原理分析，针对Widget、Element、renderObject进行分析。并详细阐述三者关系

1. 自己写Widget
2. 部分Widget会生成RederObject进行渲染
3. 每一个Widget都会生成对应的Element，每次挂载到树上，都会生成一个Element

4.1 ComponElement会调用mount方法, mout -> firstBuild -> rebuild -> performBuild -> build -> _widget.build

4.2 RenderObjectElement: mount -> widger.createRenderObject

4.3 StatefulElement: 构造方法中 widger.createState()

Widget 到 RenderObject过程

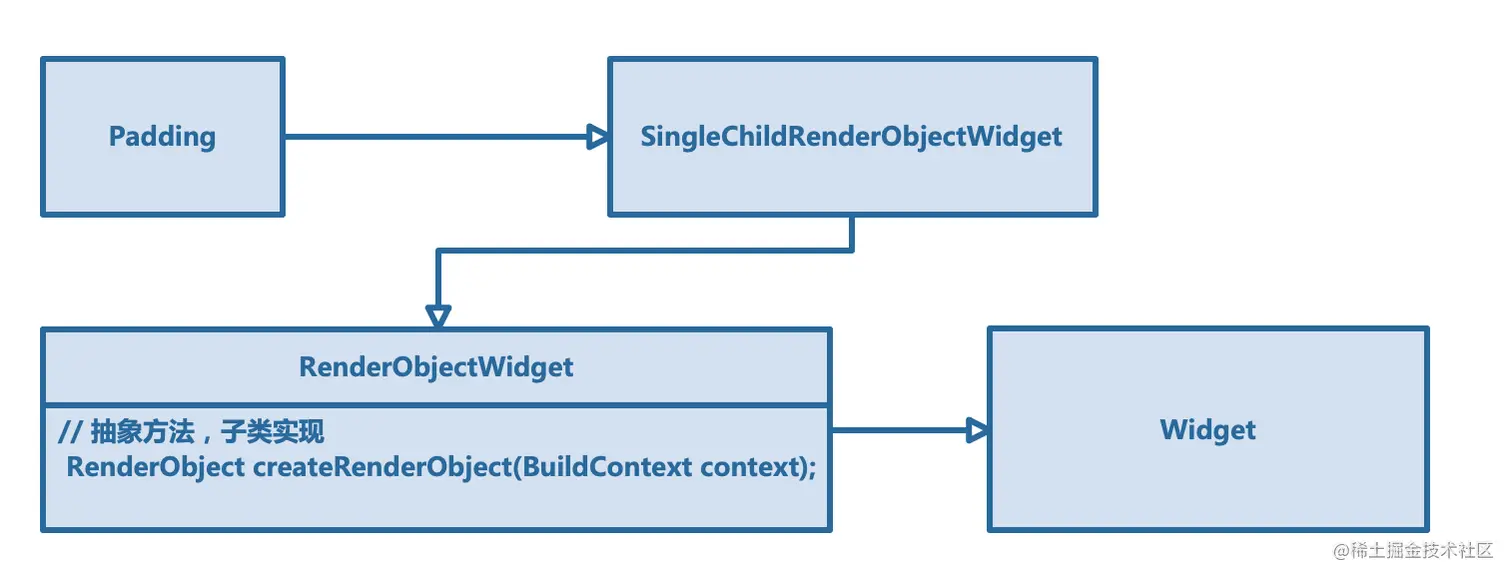

创建过程是要实现RenderObjectWidget内部的createRenderObject方法.具体在Padding来看，是在Padding内部进行了实现

class Padding extends SingleChildRenderObjectWidget {
    @override
    RenderPadding createRenderObject(BuildContext context) {
      return RenderPadding(
        padding: padding,
        textDirection: Directionality.maybeOf(context),
      );
    }
}

RenderPadding --> RenderShiftedBox --> RenderBox --> RenderObject

具体调用地方待查看？

Widget 到 Element 的过程

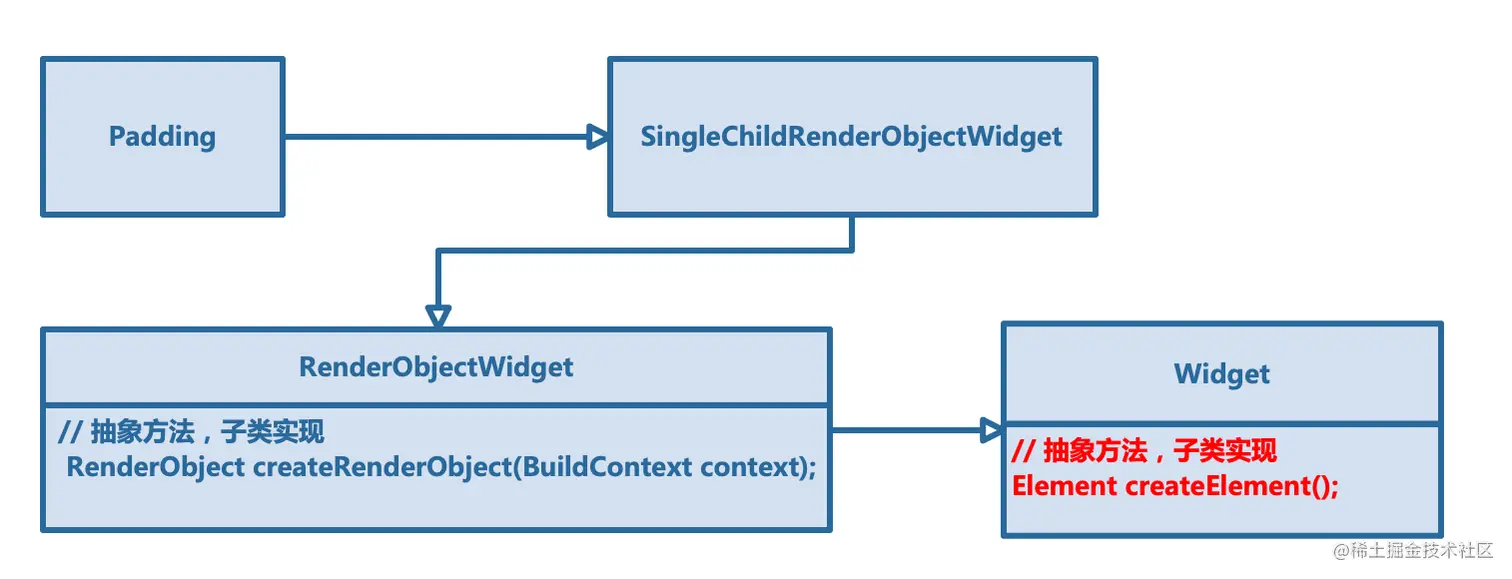

可以看出抽象方法是在Widget里面定义的，是所有抽象方法的根，也就是说无论是渲染Widget和非渲染Widget（所有Widget）都要实现这个方法. 创建一个Element

非渲染Widget	渲染Widget
StlessElement	RenderElement
StatefulElement

mount方法

调用顺序：mount -> firstBuild -> rebuild -> performBuild -> build -> _widget.build

Element 里面的 mount

/// Add this element to the tree in the given slot of the given parent.
/// The framework calls this function when a newly created element is added to the tree
/// for the first time.

@mustCallSuper
void mount(Element? parent, Object? newSlot) {
}

ComponentElement中 （stless、stful都是继承ComponentElement）

/// **********Class ComponentElement
@override
void mount(Element? parent, Object? newSlot) {
  super.mount(parent, newSlot);
  _firstBuild();
}


void _firstBuild() {
  // StatefulElement overrides this to also call state.didChangeDependencies.
  rebuild(); // This eventually calls performRebuild.
}


/// **********Class Element
void rebuild() {
    performRebuild();
}
// 抽象方法，查看具体（command+option+b）实现在ComponentElement中
void performRebuild();

/// **********Class ComponentElement
void performRebuild() {
    built = build();
}

// 抽象方法
@protected
Widget build();

/// ***********Class StlessElement
// widget是创建Element时候，传入的
Widget build() => (widget as StatelessWidget).build(this);

RenderObjectElement 中

void mount(Element? parent, Object? newSlot) {
  _renderObject = (widget as RenderObjectWidget).createRenderObject(this);
}

StatefulElement中

StatefulElement(StatefulWidget widget): _state = widget.createState(),
    super(widget) {
    // 将widget进行了赋值操作
    state._widget = widget;
}

// stful这里的build，可以看出是调用state的build方法，同时将Element传出去
@override
Widget build() => state.build(this);

可以看出，Element内部，既有Widget也包含RenderObject，还包含state

// StlessElement
Widget build() => (widget as StatelessWidget).build(this);


// RenderObjectElement
_renderObject = (widget as RenderObjectWidget).createRenderObject(this);


// StatefulElement
StatefulElement(StatefulWidget widget): _state = widget.createState(),
    super(widget) {
}

总结：StlessWidget 调用 CreateElement方法，创建ELement， Element调用mount方法，mount方法内部调用Widget的build方法

参考：Flutter的Widget-Element-RenderObject
