# Android 项目集成 flutter 模块

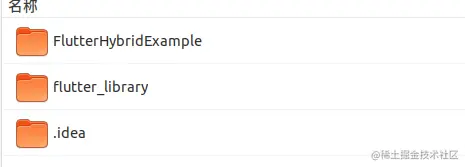

#创建项目文件夹

mkdir FlutterHybrid

# 创建Android项目文件夹

cd FluterHybrid
mkdir FlutterHybridExample

# 创建flutter module

flutter create -t module flutter_library

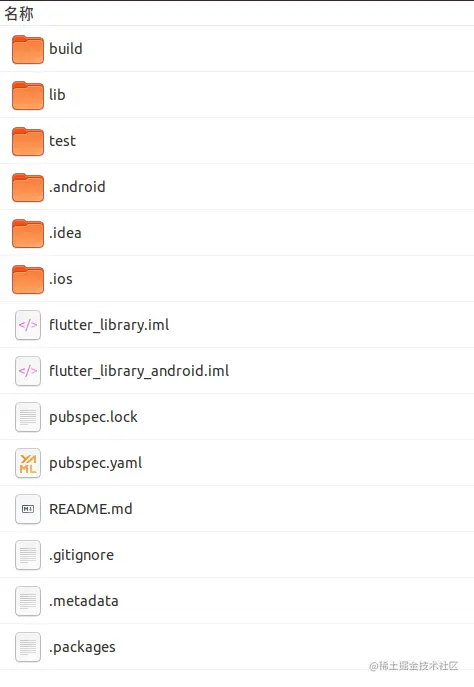

FlutterHybrid/flutter_library/

# Android配置

FlutterHybrid/FlutterHybridExample/settings.gradle

include ':app'
setBinding(new Binding([gradle: this]))
evaluate(new File(
        settingsDir.parentFile,
        "/flutter_library/.android/include_flutter.groovy"
))

FlutterHybrid/FlutterHybridExample/app/build.gradle

dependencies {
    implementation fileTree(dir: 'libs', include: ['*.jar'])
    implementation 'com.android.support:appcompat-v7:28.0.0'
    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'com.android.support.test:runner:1.0.2'
    androidTestImplementation 'com.android.support.test.espresso:espresso-core:3.0.2'
    implementation 'android.arch.lifecycle:runtime:1.1.1'
    implementation project(':flutter')
}

 compileOptions {
        sourceCompatibility JavaVersion.VERSION_1_8
        targetCompatibility JavaVersion.VERSION_1_8
    }

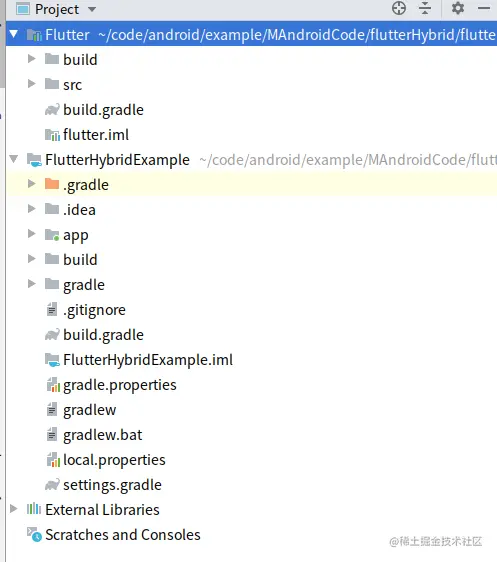

Gradle 编译后项目结构：

Flutter /lib/main.dart

import 'package:flutter/material.dart';
import 'package:flutter_library/App.dart';
import 'package:flutter_library/List.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Flutter Demo',
      theme: ThemeData(
        // This is the theme of your application.
        //
        // Try running your application with "flutter run". You'll see the
        // application has a blue toolbar. Then, without quitting the app, try
        // changing the primarySwatch below to Colors.green and then invoke
        // "hot reload" (press "r" in the console where you ran "flutter run",
        // or press Run > Flutter Hot Reload in a Flutter IDE). Notice that the
        // counter didn't reset back to zero; the application is not restarted.
        primarySwatch: Colors.green,
      ),
      home: MyHomePage(title: 'Flutter Demo Home Page'),
      routes: <String, WidgetBuilder>{
        '/list': (BuildContext context) => MyPageWidget(title: "列表页面"),
        '/homePage': (BuildContext context) => HomePage(title: "HomePage"),
      },
    );
  }
}

class MyHomePage extends StatefulWidget {
  MyHomePage({Key key, this.title}) : super(key: key);

  // This widget is the home page of your application. It is stateful, meaning
  // that it has a State object (defined below) that contains fields that affect
  // how it looks.

  // This class is the configuration for the state. It holds the values (in this
  // case the title) provided by the parent (in this case the App widget) and
  // used by the build method of the State. Fields in a Widget subclass are
  // always marked "final".

  final String title;

  @override
  _MyHomePageState createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  @override
  Widget build(BuildContext context) {
    // This method is rerun every time setState is called, for instance as done
    // by the _incrementCounter method above.
    //
    // The Flutter framework has been optimized to make rerunning build methods
    // fast, so that you can just rebuild anything that needs updating rather
    // than having to individually change instances of widgets.
    return Scaffold(
      appBar: AppBar(
        // Here we take the value from the MyHomePage object that was created by
        // the App.build method, and use it to set our appbar title.
        title: Text(widget.title),
      ),
      body: Center(
          child: Column(
        children: <Widget>[
          RaisedButton(
            child: Text('列表演示页面'),
            onPressed: () {
              Navigator.pushNamed(context, '/list');
            },
          ),
          RaisedButton(
            child: Text('一个文本'),
            onPressed: () {
              Navigator.pushNamed(context, '/homePage');
            },
          )
        ],
      )),
      floatingActionButton: FloatingActionButton(
        tooltip: 'Increment',
        child: Icon(Icons.add),
        onPressed: () {
          Navigator.pushNamed(context, '/list');
        },
      ),
    );
  }
}

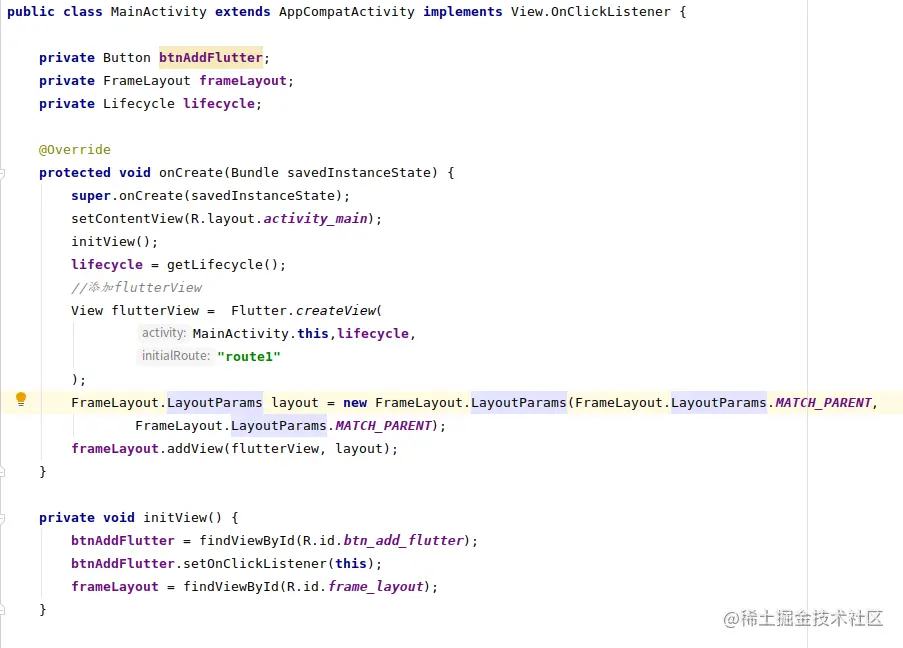

添加Flutter View
