1.RocketMQ 源码分析 — Message 发送与接收

·  阅读 1512
1.RocketMQ 源码分析 — Message 发送与接收

1.概述

  • Producer 发送消息。主要是同步发送消息源码,涉及到 异步/Oneway发送消息,事务消息会跳过。
  • Broker 接收消息。

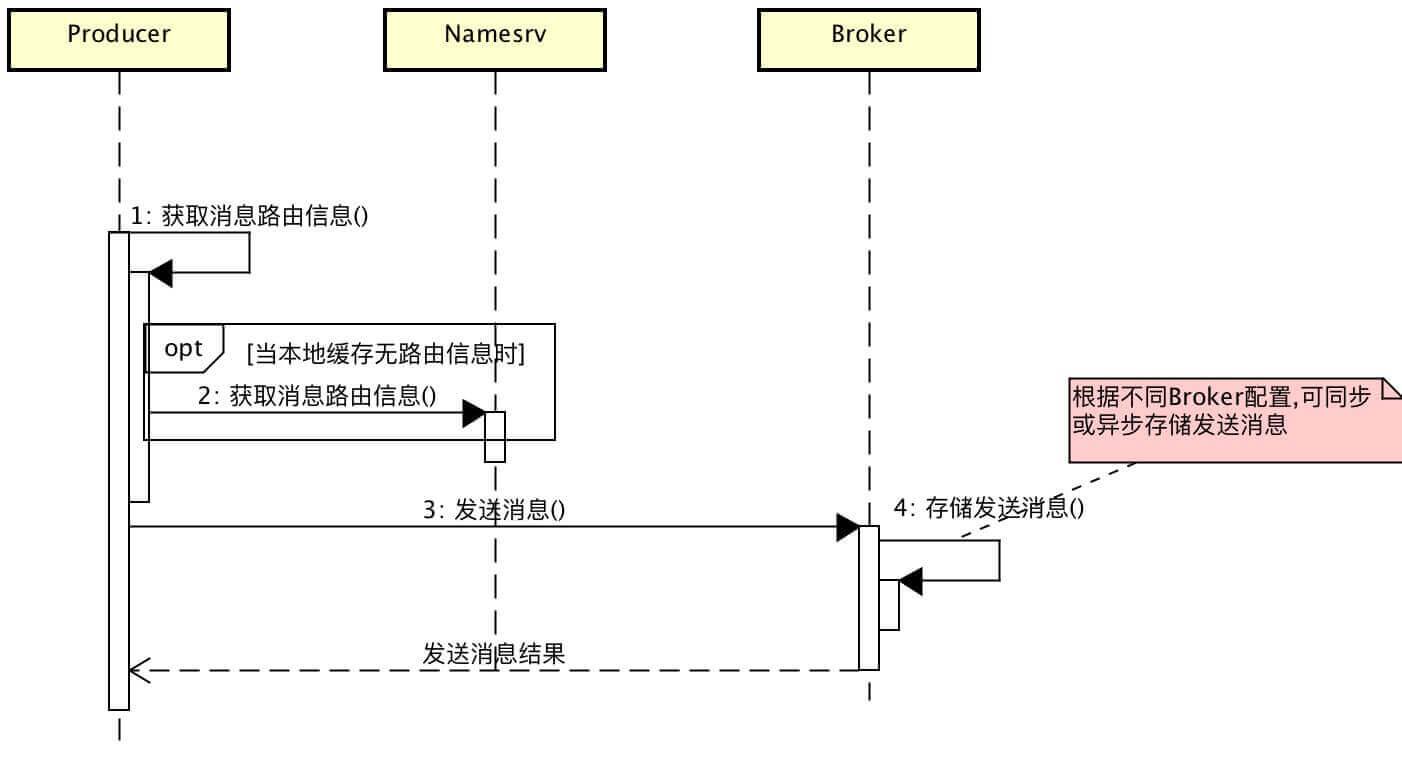

整体交互发送时序图如下:

时序图

2.Producer 发送消息:

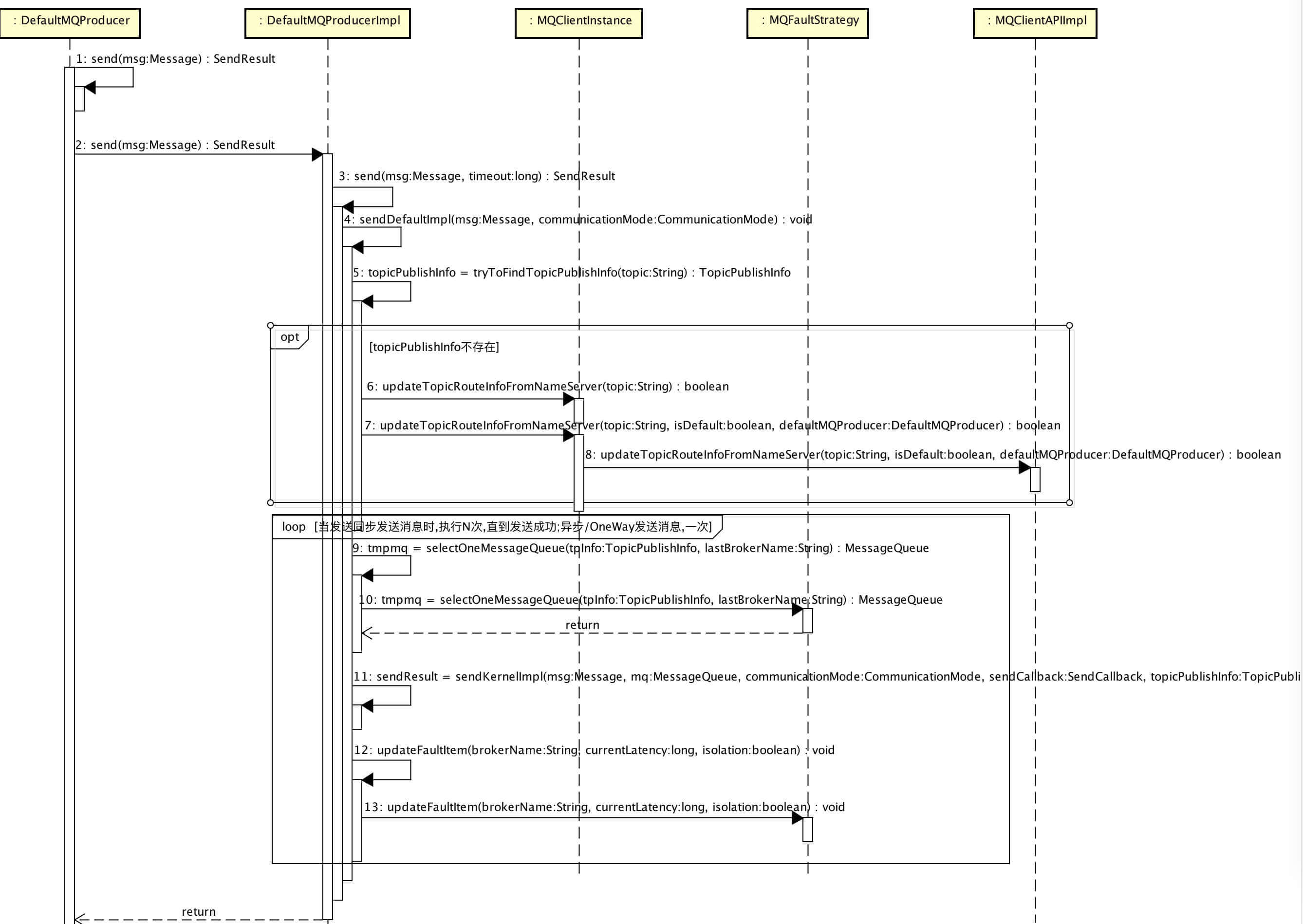

时序图

/*
 * Instantiate with a producer group name.
 */
DefaultMQProducer producer = new DefaultMQProducer("please_rename_unique_group_name");
DefaultMQProducer#send(Message)
@Override
public SendResult send(
    Message msg) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
    Validators.checkMessage(msg, this);             //a
    msg.setTopic(withNamespace(msg.getTopic()));    //b
    return this.defaultMQProducerImpl.send(msg);    //c
}
public static String wrapNamespace(String namespace, String resourceWithOutNamespace) {
        if (StringUtils.isEmpty(namespace) || StringUtils.isEmpty(resourceWithOutNamespace)) {
            return resourceWithOutNamespace;
        }

        if (isSystemResource(resourceWithOutNamespace) || isAlreadyWithNamespace(resourceWithOutNamespace, namespace)) {
            return resourceWithOutNamespace;
        }

        String resourceWithoutRetryAndDLQ = withOutRetryAndDLQ(resourceWithOutNamespace);
        StringBuffer strBuffer = new StringBuffer();

        if (isRetryTopic(resourceWithOutNamespace)) {   //判断是否为重试队列
            strBuffer.append(MixAll.RETRY_GROUP_TOPIC_PREFIX);
        }

        if (isDLQTopic(resourceWithOutNamespace)) {     //判断是否为死信队列
            strBuffer.append(MixAll.DLQ_GROUP_TOPIC_PREFIX);
        }

        return strBuffer.append(namespace).append(NAMESPACE_SEPARATOR).append(resourceWithoutRetryAndDLQ).toString();
}

以上源码:

a处验证消息和topic是否为空

b处通过nameSpace进行判断该topic是否为特定的消息类型(重试消息或者死信消息类型的TOPIC)开头,若是并且对应的NameSpace不为空,在原来的topic基础上拼接namespace。NamespaceUtil#wrapNamespace()方法。

c处发送同步消息,DefaultMQProducer#send(Message) 对 DefaultMQProducerImpl#send(Message) 进行封装。

DefaultMQProducerImpl#send()
/**
 * DEFAULT SYNC -------------------------------------------------------
 */
public SendResult send(
    Message msg) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
    return send(msg, this.defaultMQProducer.getSendMsgTimeout());
}


public SendResult send(Message msg,
    long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
    return this.sendDefaultImpl(msg, CommunicationMode.SYNC, null, timeout);
}


private SendResult sendDefaultImpl(
    Message msg,
    final CommunicationMode communicationMode,
    final SendCallback sendCallback,
    final long timeout
) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
    // 校验 Producer 处于运行状态
    this.makeSureStateOK();
    // 校验消息格式
    Validators.checkMessage(msg, this.defaultMQProducer);

    // 调用编号;用于下面打印日志,标记为同一次发送消息
    final long invokeID = random.nextLong();
    long beginTimestampFirst = System.currentTimeMillis();
    long beginTimestampPrev = beginTimestampFirst;
    long endTimestamp = beginTimestampFirst;
    // 获取 Topic路由信息     <a>
    TopicPublishInfo topicPublishInfo = this.tryToFindTopicPublishInfo(msg.getTopic());
    if (topicPublishInfo != null && topicPublishInfo.ok()) {
        boolean callTimeout = false;
        MessageQueue mq = null;         // 最后选择消息要发送到的队列实例
        Exception exception = null;
        SendResult sendResult = null;   // 最后一次发送结果
        int timesTotal = communicationMode == CommunicationMode.SYNC ? 1 + this.defaultMQProducer.getRetryTimesWhenSendFailed() : 1;   // 同步几次调用,同步和异步情况下默认为3次
        int times = 0;                                  //第几次发送
        String[] brokersSent = new String[timesTotal];  // 存储每次发送消息选择的broker名
        // 循环调用timesTotal次数发送消息,直到成功
        for (; times < timesTotal; times++) {
            String lastBrokerName = null == mq ? null : mq.getBrokerName();
            // 选择消息要发送到的队列   <b>
            MessageQueue mqSelected = this.selectOneMessageQueue(topicPublishInfo, lastBrokerName);
            if (mqSelected != null) {
                mq = mqSelected;
                brokersSent[times] = mq.getBrokerName();
                try {
                    beginTimestampPrev = System.currentTimeMillis();
                    if (times > 0) {
                        //Reset topic with namespace during resend.
                        msg.setTopic(this.defaultMQProducer.withNamespace(msg.getTopic()));
                    }
                    long costTime = beginTimestampPrev - beginTimestampFirst;
                    if (timeout < costTime) {
                        callTimeout = true;
                        break;
                    }

                    // 调用发送消息核心方法     <c>
                    sendResult = this.sendKernelImpl(msg, mq, communicationMode, sendCallback, topicPublishInfo, timeout - costTime);
                    endTimestamp = System.currentTimeMillis();
                    // 更新Broker可用性信息,在选择发送到的消息队列时,会参考Broker发送消息的延迟
                    this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
                    switch (communicationMode) {
                        case ASYNC:
                            return null;
                        case ONEWAY:
                            return null;
                        case SYNC:
                            if (sendResult.getSendStatus() != SendStatus.SEND_OK) {
                                if (this.defaultMQProducer.isRetryAnotherBrokerWhenNotStoreOK()) {
                                    continue;
                                }
                            }

                            return sendResult;
                        default:
                            break;
                    }
                } catch (RemotingException e) {// 打印异常,更新Broker可用性信息,更新继续循环
                    //当抛出RemotingException时,如果进行消息发送失败重试,则可能导致消息发送重复。例如,发送消息超时(RemotingTimeoutException),实际Broker接收到该消息并处理成功。因此,Consumer在消费时,需要保证幂等性。
                    endTimestamp = System.currentTimeMillis();
                    this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
                    log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
                    log.warn(msg.toString());
                    exception = e;
                    continue;
                } catch (MQClientException e) {// 打印异常,更新Broker可用性信息,继续循环
                    endTimestamp = System.currentTimeMillis();
                    this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
                    log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
                    log.warn(msg.toString());
                    exception = e;
                    continue;
                } catch (MQBrokerException e) {// 打印异常,更新Broker可用性信息,部分情况下的异常,直接返回,结束循环
                    endTimestamp = System.currentTimeMillis();
                    this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
                    log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
                    log.warn(msg.toString());
                    exception = e;
                    switch (e.getResponseCode()) {
                        //以下几种情况全部继续重试发送消息
                        case ResponseCode.TOPIC_NOT_EXIST:
                        case ResponseCode.SERVICE_NOT_AVAILABLE:
                        case ResponseCode.SYSTEM_ERROR:
                        case ResponseCode.NO_PERMISSION:
                        case ResponseCode.NO_BUYER_ID:
                        case ResponseCode.NOT_IN_CURRENT_UNIT:
                            continue;
                        default:// 如果有发送结果,进行返回,否则,抛出异常
                            if (sendResult != null) {
                                return sendResult;
                            }

                            throw e;
                    }
                } catch (InterruptedException e) {
                    endTimestamp = System.currentTimeMillis();
                    this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
                    log.warn(String.format("sendKernelImpl exception, throw exception, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq), e);
                    log.warn(msg.toString());

                    log.warn("sendKernelImpl exception", e);
                    log.warn(msg.toString());
                    throw e;
                }
            } else {
                break;
            }
        }

        // 若发送结果不为空,返回发送结果
        if (sendResult != null) {
            return sendResult;
        }

        // 根据不同情况,抛出不同的异常
        String info = String.format("Send [%d] times, still failed, cost [%d]ms, Topic: %s, BrokersSent: %s",
            times,
            System.currentTimeMillis() - beginTimestampFirst,
            msg.getTopic(),
            Arrays.toString(brokersSent));

        info += FAQUrl.suggestTodo(FAQUrl.SEND_MSG_FAILED);

        MQClientException mqClientException = new MQClientException(info, exception);
        if (callTimeout) {
            throw new RemotingTooMuchRequestException("sendDefaultImpl call timeout");
        }

        if (exception instanceof MQBrokerException) {
            mqClientException.setResponseCode(((MQBrokerException) exception).getResponseCode());
        } else if (exception instanceof RemotingConnectException) {
            mqClientException.setResponseCode(ClientErrorCode.CONNECT_BROKER_EXCEPTION);
        } else if (exception instanceof RemotingTimeoutException) {
            mqClientException.setResponseCode(ClientErrorCode.ACCESS_BROKER_TIMEOUT);
        } else if (exception instanceof MQClientException) {
            mqClientException.setResponseCode(ClientErrorCode.BROKER_NOT_EXIST_EXCEPTION);
        }

        throw mqClientException;
    }

    // Namesrv找不到异常
    List<String> nsList = this.getmQClientFactory().getMQClientAPIImpl().getNameServerAddressList();
    if (null == nsList || nsList.isEmpty()) {
        throw new MQClientException(
            "No name server address, please set it." + FAQUrl.suggestTodo(FAQUrl.NAME_SERVER_ADDR_NOT_EXIST_URL), null).setResponseCode(ClientErrorCode.NO_NAME_SERVER_EXCEPTION);
    }

    // 消息路由找不到异常
    throw new MQClientException("No route info of this topic, " + msg.getTopic() + FAQUrl.suggestTodo(FAQUrl.NO_TOPIC_ROUTE_INFO),
        null).setResponseCode(ClientErrorCode.NOT_FOUND_TOPIC_EXCEPTION);
}

以上两个send方法对sendsendDefaultImpl封装。

<b>处调用MQFaultStrategy#selectOneMessageQueue()方法。 <c>处调用发送消息核心方法。

继续深入<a>处获取Topic路由信息方法 :

DefaultMQProducerImpl#tryToFindTopicPublishInfo()
private TopicPublishInfo tryToFindTopicPublishInfo(final String topic) {
    // 从缓存中获取 Topic发布信息
    TopicPublishInfo topicPublishInfo = this.topicPublishInfoTable.get(topic);
    // 当无可用的 Topic发布信息时,从Namesrv获取一次
    if (null == topicPublishInfo || !topicPublishInfo.ok()) {
        this.topicPublishInfoTable.putIfAbsent(topic, new TopicPublishInfo());
        this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic);
        topicPublishInfo = this.topicPublishInfoTable.get(topic);
    }

    // 若获取的 Topic发布信息时候可用,则返回
    if (topicPublishInfo.isHaveTopicRouterInfo() || topicPublishInfo.ok()) {
        return topicPublishInfo;
    } else {
        //当从 Namesrv 无法获取时,DefaultMQProducer#createTopicKey对应的Topic发布信息。目的是当 Broker 开启自动创建 Topic开关时,Broker 接收到消息后自动创建Topic
        this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic, true, this.defaultMQProducer);
        topicPublishInfo = this.topicPublishInfoTable.get(topic);
        return topicPublishInfo;
    }
}

获得 Topic发布信息。优先从缓存topicPublishInfoTable,若获取不到则从Namesrv中获得。

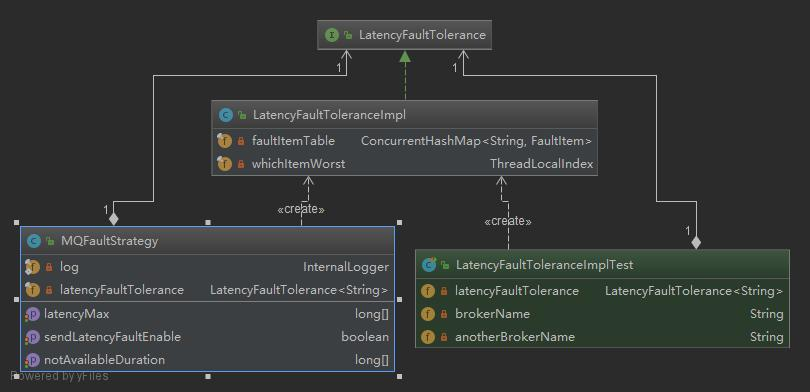

继续深入<b>处选择消息要发送到的队列,MQFaultStrategy类MQFaultStrategy的类图:

类图

MQFaultStrategy
public class MQFaultStrategy {
    private final static InternalLogger log = ClientLogger.getLog();
    // 延迟故障容错,维护每个Broker的发送消息的延迟
    private final LatencyFaultTolerance<String> latencyFaultTolerance = new LatencyFaultToleranceImpl();

    // 发送消息延迟容错开关
    private boolean sendLatencyFaultEnable = false;

    // 延迟级别数组
    private long[] latencyMax = {50L, 100L, 550L, 1000L, 2000L, 3000L, 15000L};
    // 不可用时长数组
    private long[] notAvailableDuration = {0L, 0L, 30000L, 60000L, 120000L, 180000L, 600000L};

    public long[] getNotAvailableDuration() {
        return notAvailableDuration;
    }

    public void setNotAvailableDuration(final long[] notAvailableDuration) {
        this.notAvailableDuration = notAvailableDuration;
    }

    public long[] getLatencyMax() {
        return latencyMax;
    }

    public void setLatencyMax(final long[] latencyMax) {
        this.latencyMax = latencyMax;
    }

    public boolean isSendLatencyFaultEnable() {
        return sendLatencyFaultEnable;
    }

    public void setSendLatencyFaultEnable(final boolean sendLatencyFaultEnable) {
        this.sendLatencyFaultEnable = sendLatencyFaultEnable;
    }

    /**
     * @Description 根据Topic路由信息 选择一个消息队列
     * @param       tpInfo
     * @param       lastBrokerName
     * @return      org.apache.rocketmq.common.message.MessageQueue
     **/
    public MessageQueue selectOneMessageQueue(final TopicPublishInfo tpInfo, final String lastBrokerName) {
        if (this.sendLatencyFaultEnable) {
            try {
                // 获取 brokerName=lastBrokerName 并且 可用的一个消息队列
                int index = tpInfo.getSendWhichQueue().getAndIncrement();
                for (int i = 0; i < tpInfo.getMessageQueueList().size(); i++) {
                    int pos = Math.abs(index++) % tpInfo.getMessageQueueList().size();
                    if (pos < 0)
                        pos = 0;
                    MessageQueue mq = tpInfo.getMessageQueueList().get(pos);
                    if (latencyFaultTolerance.isAvailable(mq.getBrokerName())) {
                        if (null == lastBrokerName || mq.getBrokerName().equals(lastBrokerName))
                            return mq;
                    }
                }

                // 选择一个相对好的broker,并获得其对应的一个消息队列,不考虑该队列的可用性
                final String notBestBroker = latencyFaultTolerance.pickOneAtLeast();
                int writeQueueNums = tpInfo.getQueueIdByBroker(notBestBroker);
                if (writeQueueNums > 0) {
                    final MessageQueue mq = tpInfo.selectOneMessageQueue();
                    if (notBestBroker != null) {
                        mq.setBrokerName(notBestBroker);
                        mq.setQueueId(tpInfo.getSendWhichQueue().getAndIncrement() % writeQueueNums);
                    }
                    return mq;
                } else {
                    latencyFaultTolerance.remove(notBestBroker);
                }
            } catch (Exception e) {
                log.error("Error occurred when selecting message queue", e);
            }

            // 选择一个消息队列,不考虑队列的可用性
            return tpInfo.selectOneMessageQueue();
        }

        // 获得 lastBrokerName 对应的一个消息队列,不考虑该队列的可用性,未开启容错策略选择消息队列逻辑
        return tpInfo.selectOneMessageQueue(lastBrokerName);
    }

    /**
     * @Description 更新延迟容错信息
     * @param       brokerName
     * @param       currentLatency
     * @param       isolation
     * @return      void
     **/
    public void updateFaultItem(final String brokerName, final long currentLatency, boolean isolation) {
        if (this.sendLatencyFaultEnable) {
            long duration = computeNotAvailableDuration(isolation ? 30000 : currentLatency);
            this.latencyFaultTolerance.updateFaultItem(brokerName, currentLatency, duration);
        }
    }

    /**
     * @Description 计算延迟对应的不可用时间
     * @param       currentLatency
     * @return      long
     **/
    private long computeNotAvailableDuration(final long currentLatency) {
        for (int i = latencyMax.length - 1; i >= 0; i--) {
            if (currentLatency >= latencyMax[i])
                return this.notAvailableDuration[i];
        }

        return 0;
    }
}

Producer消息发送容错策略。默认情况下容错策略关闭,即sendLatencyFaultEnable=false。

若开启容错的策略。优先获取可用队列,其次选择一个broker获取队列,最差返回任意broker的一个队列。

#updateFaultItem方法更新延迟容错信息。当 Producer发送消息时间过长,则逻辑认为N秒内不可用。按照latencyMax,notAvailableDuration的配置,对应如下:

producer发送消息消耗时长 Broker不可用时长
>= 15000 ms 600000ms
>= 3000 ms 180000 ms
>= 2000 ms 120000 ms
>= 1000 ms 60000 ms
>= 550 ms 30000 ms
>= 100 ms 0 ms
>= 50 ms 0 ms

继续看延迟故障容错的接口和实现:

LatencyFaultTolerance
//延迟故障容错接口
public interface LatencyFaultTolerance<T> {
    /**
     * 更新对应的延迟和不可用时长
     * @param name  对象
     * @param currentLatency 延迟
     * @param notAvailableDuration  不可用时长
     */
    void updateFaultItem(final T name, final long currentLatency, final long notAvailableDuration);

    /**
     * 对象是否可用
     * @param name  对象
     * @return  对象
     */
    boolean isAvailable(final T name);

    /**
     * 移除对象
     * @param name 对象
     */
    void remove(final T name);

    /**
     * 获取一个对象
     * @return  对象
     */
    T pickOneAtLeast();
}
LatencyFaultToleranceImpl
// 延迟故障容错实现。维护每个对象的信息
public class LatencyFaultToleranceImpl implements LatencyFaultTolerance<String> {
    // 对象故障信息Table
    private final ConcurrentHashMap<String, FaultItem> faultItemTable = new ConcurrentHashMap<String, FaultItem>(16);

    // 对象选择Index
    private final ThreadLocalIndex whichItemWorst = new ThreadLocalIndex();

    @Override
    public void updateFaultItem(final String name, final long currentLatency, final long notAvailableDuration) {
        FaultItem old = this.faultItemTable.get(name);
        if (null == old) {
            final FaultItem faultItem = new FaultItem(name);
            faultItem.setCurrentLatency(currentLatency);
            faultItem.setStartTimestamp(System.currentTimeMillis() + notAvailableDuration);

            old = this.faultItemTable.putIfAbsent(name, faultItem);
            if (old != null) {
                old.setCurrentLatency(currentLatency);
                old.setStartTimestamp(System.currentTimeMillis() + notAvailableDuration);
            }
        } else {
            old.setCurrentLatency(currentLatency);
            old.setStartTimestamp(System.currentTimeMillis() + notAvailableDuration);
        }
    }

    @Override
    public boolean isAvailable(final String name) {
        final FaultItem faultItem = this.faultItemTable.get(name);
        if (faultItem != null) {
            return faultItem.isAvailable();
        }
        return true;
    }

    @Override
    public void remove(final String name) {
        this.faultItemTable.remove(name);
    }

    /**
     * 选择一个相对优秀的对象
     * @return
     */
    @Override
    public String pickOneAtLeast() {
        // 创建数组
        final Enumeration<FaultItem> elements = this.faultItemTable.elements();
        List<FaultItem> tmpList = new LinkedList<FaultItem>();
        while (elements.hasMoreElements()) {
            final FaultItem faultItem = elements.nextElement();
            tmpList.add(faultItem);
        }

        if (!tmpList.isEmpty()) {
            //先打乱再排序
            Collections.shuffle(tmpList);
            Collections.sort(tmpList);

            // 选择顺序在前一半的对象
            final int half = tmpList.size() / 2;
            if (half <= 0) {
                return tmpList.get(0).getName();
            } else {
                final int i = this.whichItemWorst.getAndIncrement() % half;
                return tmpList.get(i).getName();
            }
        }

        return null;
    }

    @Override
    public String toString() {
        return "LatencyFaultToleranceImpl{" +
            "faultItemTable=" + faultItemTable +
            ", whichItemWorst=" + whichItemWorst +
            '}';
    }

    // 对象故障信息。维护对象的名字、延迟、开始可用的时间
    class FaultItem implements Comparable<FaultItem> {
        // 对象名
        private final String name;
        // 延迟
        private volatile long currentLatency;
        // 开始可用时间
        private volatile long startTimestamp;

        public FaultItem(final String name) {
            this.name = name;
        }

        /**
         * 比较对象
         * 可用性 > 延迟 > 开始可以时间
         * @param other
         * @return
         */
        @Override
        public int compareTo(final FaultItem other) {
            if (this.isAvailable() != other.isAvailable()) {
                if (this.isAvailable())
                    return -1;

                if (other.isAvailable())
                    return 1;
            }

            if (this.currentLatency < other.currentLatency)
                return -1;
            else if (this.currentLatency > other.currentLatency) {
                return 1;
            }

            if (this.startTimestamp < other.startTimestamp)
                return -1;
            else if (this.startTimestamp > other.startTimestamp) {
                return 1;
            }

            return 0;
        }

        /**
         * 是否可用:当开始可用时间大于当前时间
         * @return
         */
        public boolean isAvailable() {
            return (System.currentTimeMillis() - startTimestamp) >= 0;
        }

        @Override
        public int hashCode() {
            int result = getName() != null ? getName().hashCode() : 0;
            result = 31 * result + (int) (getCurrentLatency() ^ (getCurrentLatency() >>> 32));
            result = 31 * result + (int) (getStartTimestamp() ^ (getStartTimestamp() >>> 32));
            return result;
        }

        @Override
        public boolean equals(final Object o) {
            if (this == o)
                return true;
            if (!(o instanceof FaultItem))
                return false;

            final FaultItem faultItem = (FaultItem) o;

            if (getCurrentLatency() != faultItem.getCurrentLatency())
                return false;
            if (getStartTimestamp() != faultItem.getStartTimestamp())
                return false;
            return getName() != null ? getName().equals(faultItem.getName()) : faultItem.getName() == null;

        }

        @Override
        public String toString() {
            return "FaultItem{" +
                "name='" + name + '\'' +
                ", currentLatency=" + currentLatency +
                ", startTimestamp=" + startTimestamp +
                '}';
        }

        public String getName() {
            return name;
        }

        public long getCurrentLatency() {
            return currentLatency;
        }

        public void setCurrentLatency(final long currentLatency) {
            this.currentLatency = currentLatency;
        }

        public long getStartTimestamp() {
            return startTimestamp;
        }

        public void setStartTimestamp(final long startTimestamp) {
            this.startTimestamp = startTimestamp;
        }

    }
}

继续看调用发送消息核心方法DefaultMQProducerImpl#sendKernelImpl()方法:

DefaultMQProducerImpl#sendKernelImpl()
// 发送消息核心方法。该方法真正发起网络请求,发送消息给 Broker。
private SendResult sendKernelImpl(final Message msg,
                                      final MessageQueue mq,
                                      final CommunicationMode communicationMode,
                                      final SendCallback sendCallback,
                                      final TopicPublishInfo topicPublishInfo,
                                      final long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
        long beginStartTime = System.currentTimeMillis();
        // 获取broker地址
        String brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
        if (null == brokerAddr) {
            tryToFindTopicPublishInfo(mq.getTopic());
            brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
        }

        SendMessageContext context = null;
        if (brokerAddr != null) {
            // 是否使用broker vip通道,broker会开启两个端口对外服务
            brokerAddr = MixAll.brokerVIPChannel(this.defaultMQProducer.isSendMessageWithVIPChannel(), brokerAddr);

            byte[] prevBody = msg.getBody();
            try {
                //对于MessageBatch,已在生成过程中设置了ID
                if (!(msg instanceof MessageBatch)) {
                    // 若不是批量发送则设置唯一编号
                    MessageClientIDSetter.setUniqID(msg);
                }

                boolean topicWithNamespace = false;
                if (null != this.mQClientFactory.getClientConfig().getNamespace()) {
                    msg.setInstanceId(this.mQClientFactory.getClientConfig().getNamespace());
                    topicWithNamespace = true;
                }

                // 消息压缩
                int sysFlag = 0;
                boolean msgBodyCompressed = false;
                if (this.tryToCompressMessage(msg)) {
                    sysFlag |= MessageSysFlag.COMPRESSED_FLAG;
                    msgBodyCompressed = true;
                }

                // 事务消息
                final String tranMsg = msg.getProperty(MessageConst.PROPERTY_TRANSACTION_PREPARED);
                if (tranMsg != null && Boolean.parseBoolean(tranMsg)) {
                    sysFlag |= MessageSysFlag.TRANSACTION_PREPARED_TYPE;
                }

                // 发送消息校验
                if (hasCheckForbiddenHook()) {
                    CheckForbiddenContext checkForbiddenContext = new CheckForbiddenContext();
                    checkForbiddenContext.setNameSrvAddr(this.defaultMQProducer.getNamesrvAddr());
                    checkForbiddenContext.setGroup(this.defaultMQProducer.getProducerGroup());
                    checkForbiddenContext.setCommunicationMode(communicationMode);
                    checkForbiddenContext.setBrokerAddr(brokerAddr);
                    checkForbiddenContext.setMessage(msg);
                    checkForbiddenContext.setMq(mq);
                    checkForbiddenContext.setUnitMode(this.isUnitMode());
                    this.executeCheckForbiddenHook(checkForbiddenContext);
                }

                // 发送消息前逻辑
                if (this.hasSendMessageHook()) {
                    context = new SendMessageContext();
                    context.setProducer(this);
                    context.setProducerGroup(this.defaultMQProducer.getProducerGroup());
                    context.setCommunicationMode(communicationMode);
                    context.setBornHost(this.defaultMQProducer.getClientIP());
                    context.setBrokerAddr(brokerAddr);
                    context.setMessage(msg);
                    context.setMq(mq);
                    context.setNamespace(this.defaultMQProducer.getNamespace());
                    String isTrans = msg.getProperty(MessageConst.PROPERTY_TRANSACTION_PREPARED);
                    if (isTrans != null && isTrans.equals("true")) {
                        context.setMsgType(MessageType.Trans_Msg_Half);
                    }

                    if (msg.getProperty("__STARTDELIVERTIME") != null || msg.getProperty(MessageConst.PROPERTY_DELAY_TIME_LEVEL) != null) {
                        context.setMsgType(MessageType.Delay_Msg);
                    }
                    this.executeSendMessageHookBefore(context);
                }

                // 构建发送消息请求
                SendMessageRequestHeader requestHeader = new SendMessageRequestHeader();
                requestHeader.setProducerGroup(this.defaultMQProducer.getProducerGroup());
                requestHeader.setTopic(msg.getTopic());
                requestHeader.setDefaultTopic(this.defaultMQProducer.getCreateTopicKey());
                requestHeader.setDefaultTopicQueueNums(this.defaultMQProducer.getDefaultTopicQueueNums());
                requestHeader.setQueueId(mq.getQueueId());
                requestHeader.setSysFlag(sysFlag);
                requestHeader.setBornTimestamp(System.currentTimeMillis());
                requestHeader.setFlag(msg.getFlag());
                requestHeader.setProperties(MessageDecoder.messageProperties2String(msg.getProperties()));
                requestHeader.setReconsumeTimes(0);
                requestHeader.setUnitMode(this.isUnitMode());
                requestHeader.setBatch(msg instanceof MessageBatch);
                if (requestHeader.getTopic().startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
                    String reconsumeTimes = MessageAccessor.getReconsumeTime(msg);
                    if (reconsumeTimes != null) {
                        requestHeader.setReconsumeTimes(Integer.valueOf(reconsumeTimes));
                        MessageAccessor.clearProperty(msg, MessageConst.PROPERTY_RECONSUME_TIME);
                    }

                    String maxReconsumeTimes = MessageAccessor.getMaxReconsumeTimes(msg);
                    if (maxReconsumeTimes != null) {
                        requestHeader.setMaxReconsumeTimes(Integer.valueOf(maxReconsumeTimes));
                        MessageAccessor.clearProperty(msg, MessageConst.PROPERTY_MAX_RECONSUME_TIMES);
                    }
                }
                // 跟据不同的消息模式发送消息
                SendResult sendResult = null;
                switch (communicationMode) {
                    case ASYNC:
                        Message tmpMessage = msg;
                        boolean messageCloned = false;
                        if (msgBodyCompressed) {
                            //If msg body was compressed, msgbody should be reset using prevBody.
                            //Clone new message using commpressed message body and recover origin massage.
                            //Fix bug:https://github.com/apache/rocketmq-externals/issues/66
                            tmpMessage = MessageAccessor.cloneMessage(msg);
                            messageCloned = true;
                            msg.setBody(prevBody);
                        }

                        if (topicWithNamespace) {
                            if (!messageCloned) {
                                tmpMessage = MessageAccessor.cloneMessage(msg);
                                messageCloned = true;
                            }
                            msg.setTopic(NamespaceUtil.withoutNamespace(msg.getTopic(), this.defaultMQProducer.getNamespace()));
                        }

                        long costTimeAsync = System.currentTimeMillis() - beginStartTime;
                        if (timeout < costTimeAsync) {
                            throw new RemotingTooMuchRequestException("sendKernelImpl call timeout");
                        }
                        sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
                            brokerAddr,
                            mq.getBrokerName(),
                            tmpMessage,
                            requestHeader,
                            timeout - costTimeAsync,
                            communicationMode,
                            sendCallback,
                            topicPublishInfo,
                            this.mQClientFactory,
                            this.defaultMQProducer.getRetryTimesWhenSendAsyncFailed(),
                            context,
                            this);
                        break;
                    case ONEWAY:
                    case SYNC:
                        long costTimeSync = System.currentTimeMillis() - beginStartTime;
                        if (timeout < costTimeSync) {
                            throw new RemotingTooMuchRequestException("sendKernelImpl call timeout");
                        }
                        sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
                            brokerAddr,
                            mq.getBrokerName(),
                            msg,
                            requestHeader,
                            timeout - costTimeSync,
                            communicationMode,
                            context,
                            this);
                        break;
                    default:
                        assert false;
                        break;
                }

                // 发送消息后置逻辑
                if (this.hasSendMessageHook()) {
                    context.setSendResult(sendResult);
                    this.executeSendMessageHookAfter(context);
                }

                // 返回发送结果
                return sendResult;
            } catch (RemotingException e) {
                if (this.hasSendMessageHook()) {
                    context.setException(e);
                    this.executeSendMessageHookAfter(context);
                }
                throw e;
            } catch (MQBrokerException e) {
                if (this.hasSendMessageHook()) {
                    context.setException(e);
                    this.executeSendMessageHookAfter(context);
                }
                throw e;
            } catch (InterruptedException e) {
                if (this.hasSendMessageHook()) {
                    context.setException(e);
                    this.executeSendMessageHookAfter(context);
                }
                throw e;
            } finally {
                msg.setBody(prevBody);
                msg.setTopic(NamespaceUtil.withoutNamespace(msg.getTopic(), this.defaultMQProducer.getNamespace()));
            }
        }

        // broker为空抛出异常
        throw new MQClientException("The broker[" + mq.getBrokerName() + "] not exist", null);
    }

3.Broker接收消息

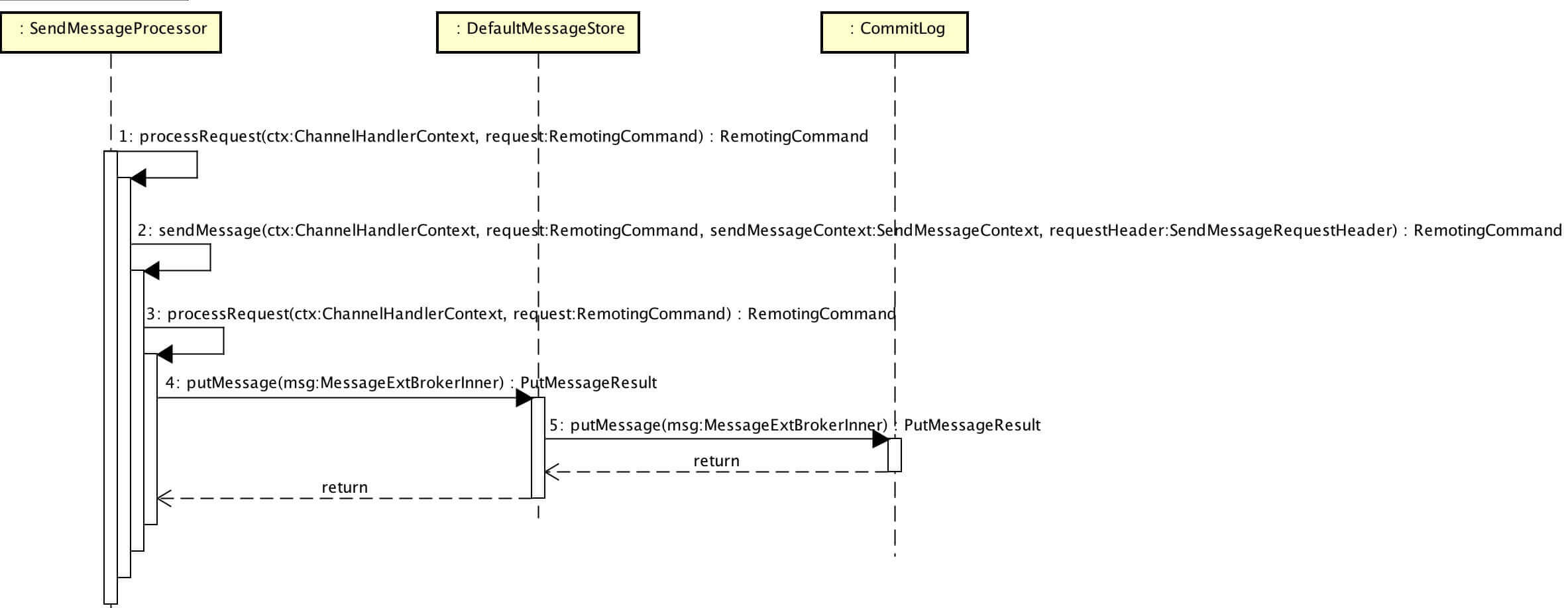

接收时序图:

接收时序图

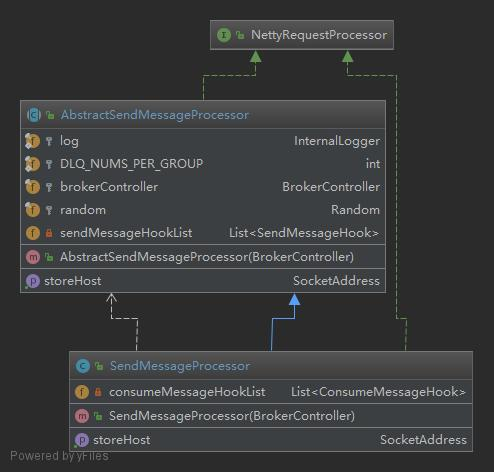

对应的类图:

类图

SendMessageProcessor#sendMessage
//处理接收的消息请求
@Override
public RemotingCommand processRequest(ChannelHandlerContext ctx,
                                      RemotingCommand request) throws RemotingCommandException {
    SendMessageContext mqtraceContext;
    switch (request.getCode()) {
        case RequestCode.CONSUMER_SEND_MSG_BACK:
            return this.consumerSendMsgBack(ctx, request);
        default:
            //解析请求
            SendMessageRequestHeader requestHeader = parseRequestHeader(request);
            if (requestHeader == null) {
                return null;
            }

            // 发送Context,在hook场景下使用
            mqtraceContext = buildMsgContext(ctx, requestHeader);
            // hook:处理发送消息前逻辑
            this.executeSendMessageHookBefore(ctx, request, mqtraceContext);

            RemotingCommand response;
            // 处理发送消息逻辑
            if (requestHeader.isBatch()) {
                response = this.sendBatchMessage(ctx, request, mqtraceContext, requestHeader);
            } else {
                response = this.sendMessage(ctx, request, mqtraceContext, requestHeader);
            }

            // hook:处理发送消息后逻辑
            this.executeSendMessageHookAfter(response, mqtraceContext);
            return response;
    }
}

// 发送消息,并返回发送消息结果
private RemotingCommand sendMessage(final ChannelHandlerContext ctx,
                                        final RemotingCommand request,
                                        final SendMessageContext sendMessageContext,
                                        final SendMessageRequestHeader requestHeader) throws RemotingCommandException {

    //初始化创建响应
    final RemotingCommand response = RemotingCommand.createResponseCommand(SendMessageResponseHeader.class);
    final SendMessageResponseHeader responseHeader = (SendMessageResponseHeader)response.readCustomHeader();

    response.setOpaque(request.getOpaque());

    response.addExtField(MessageConst.PROPERTY_MSG_REGION, this.brokerController.getBrokerConfig().getRegionId());
    response.addExtField(MessageConst.PROPERTY_TRACE_SWITCH, String.valueOf(this.brokerController.getBrokerConfig().isTraceOn()));

    log.debug("receive SendMessage request command, {}", request);

    // 如果未开始接收消息,抛出系统异常
    final long startTimstamp = this.brokerController.getBrokerConfig().getStartAcceptSendRequestTimeStamp();
    if (this.brokerController.getMessageStore().now() < startTimstamp) {
        response.setCode(ResponseCode.SYSTEM_ERROR);
        response.setRemark(String.format("broker unable to service, until %s", UtilAll.timeMillisToHumanString2(startTimstamp)));
        return response;
    }

    // 消息配置(Topic配置)校验         <a>
    response.setCode(-1);
    super.msgCheck(ctx, requestHeader, response);
    if (response.getCode() != -1) {
        return response;
    }

    final byte[] body = request.getBody();

    // 如果队列编号小于0,从可用队列随机选择
    int queueIdInt = requestHeader.getQueueId();
    TopicConfig topicConfig = this.brokerController.getTopicConfigManager().selectTopicConfig(requestHeader.getTopic());

    if (queueIdInt < 0) {
        queueIdInt = Math.abs(this.random.nextInt() % 99999999) % topicConfig.getWriteQueueNums();
    }
    // 创建MessageExtBrokerInner
    MessageExtBrokerInner msgInner = new MessageExtBrokerInner();
    msgInner.setTopic(requestHeader.getTopic());
    msgInner.setQueueId(queueIdInt);

    //处理是否重试和死信
    if (!handleRetryAndDLQ(requestHeader, response, request, msgInner, topicConfig)) {
        return response;
    }

    msgInner.setBody(body);
    msgInner.setFlag(requestHeader.getFlag());
    MessageAccessor.setProperties(msgInner, MessageDecoder.string2messageProperties(requestHeader.getProperties()));
    msgInner.setPropertiesString(requestHeader.getProperties());
    msgInner.setBornTimestamp(requestHeader.getBornTimestamp());
    msgInner.setBornHost(ctx.channel().remoteAddress());
    msgInner.setStoreHost(this.getStoreHost());
    msgInner.setReconsumeTimes(requestHeader.getReconsumeTimes() == null ? 0 : requestHeader.getReconsumeTimes());
    PutMessageResult putMessageResult = null;
    Map<String, String> oriProps = MessageDecoder.string2messageProperties(requestHeader.getProperties());
    // 校验是否不允许发送事务消息
    String traFlag = oriProps.get(MessageConst.PROPERTY_TRANSACTION_PREPARED);
    if (traFlag != null && Boolean.parseBoolean(traFlag)) {
        if (this.brokerController.getBrokerConfig().isRejectTransactionMessage()) {
            response.setCode(ResponseCode.NO_PERMISSION);
            response.setRemark(
                "the broker[" + this.brokerController.getBrokerConfig().getBrokerIP1()
                    + "] sending transaction message is forbidden");
            return response;
        }
        putMessageResult = this.brokerController.getTransactionalMessageService().prepareMessage(msgInner);
    } else {
        putMessageResult = this.brokerController.getMessageStore().putMessage(msgInner);      // <b>
    }

    // 添加消息
    return handlePutMessageResult(putMessageResult, response, request, msgInner, responseHeader, sendMessageContext, ctx, queueIdInt);

}


private boolean handleRetryAndDLQ(SendMessageRequestHeader requestHeader, RemotingCommand response,
                                      RemotingCommand request,
                                      MessageExt msg, TopicConfig topicConfig) {
    // 对RETRY类型的消息处理。如果超过最大消费次数,则topic修改成"%DLQ%" + 分组名,即加入死信队列(Dead Letter Queue)
    String newTopic = requestHeader.getTopic();
    if (null != newTopic && newTopic.startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
        // 获取订阅分组配置
        String groupName = newTopic.substring(MixAll.RETRY_GROUP_TOPIC_PREFIX.length());
        SubscriptionGroupConfig subscriptionGroupConfig =
            this.brokerController.getSubscriptionGroupManager().findSubscriptionGroupConfig(groupName);
        if (null == subscriptionGroupConfig) {
            response.setCode(ResponseCode.SUBSCRIPTION_GROUP_NOT_EXIST);
            response.setRemark(
                "subscription group not exist, " + groupName + " " + FAQUrl.suggestTodo(FAQUrl.SUBSCRIPTION_GROUP_NOT_EXIST));
            return false;
        }

        // 计算最大可消费次数
        int maxReconsumeTimes = subscriptionGroupConfig.getRetryMaxTimes();
        if (request.getVersion() >= MQVersion.Version.V3_4_9.ordinal()) {
            maxReconsumeTimes = requestHeader.getMaxReconsumeTimes();
        }
        int reconsumeTimes = requestHeader.getReconsumeTimes() == null ? 0 : requestHeader.getReconsumeTimes();
        if (reconsumeTimes >= maxReconsumeTimes) {      // 超过最大消费次数
            newTopic = MixAll.getDLQTopic(groupName);
            int queueIdInt = Math.abs(this.random.nextInt() % 99999999) % DLQ_NUMS_PER_GROUP;
            topicConfig = this.brokerController.getTopicConfigManager().createTopicInSendMessageBackMethod(newTopic,
                DLQ_NUMS_PER_GROUP,
                PermName.PERM_WRITE, 0
            );
            msg.setTopic(newTopic);
            msg.setQueueId(queueIdInt);
            if (null == topicConfig) {
                response.setCode(ResponseCode.SYSTEM_ERROR);
                response.setRemark("topic[" + newTopic + "] not exist");
                return false;
            }
        }
    }
    int sysFlag = requestHeader.getSysFlag();
    if (TopicFilterType.MULTI_TAG == topicConfig.getTopicFilterType()) {
        sysFlag |= MessageSysFlag.MULTI_TAGS_FLAG;
    }
    msg.setSysFlag(sysFlag);
    return true;
}

private RemotingCommand handlePutMessageResult(PutMessageResult putMessageResult, RemotingCommand response,
                                                   RemotingCommand request, MessageExt msg,
                                                   SendMessageResponseHeader responseHeader, SendMessageContext sendMessageContext, ChannelHandlerContext ctx,
                                                   int queueIdInt) {
    if (putMessageResult == null) {
        response.setCode(ResponseCode.SYSTEM_ERROR);
        response.setRemark("store putMessage return null");
        return response;
    }
    boolean sendOK = false;

    switch (putMessageResult.getPutMessageStatus()) {
        // Success
        case PUT_OK:
            sendOK = true;
            response.setCode(ResponseCode.SUCCESS);
            break;
        case FLUSH_DISK_TIMEOUT:
            response.setCode(ResponseCode.FLUSH_DISK_TIMEOUT);
            sendOK = true;
            break;
        case FLUSH_SLAVE_TIMEOUT:
            response.setCode(ResponseCode.FLUSH_SLAVE_TIMEOUT);
            sendOK = true;
            break;
        case SLAVE_NOT_AVAILABLE:
            response.setCode(ResponseCode.SLAVE_NOT_AVAILABLE);
            sendOK = true;
            break;

        // Failed
        case CREATE_MAPEDFILE_FAILED:
            response.setCode(ResponseCode.SYSTEM_ERROR);
            response.setRemark("create mapped file failed, server is busy or broken.");
            break;
        case MESSAGE_ILLEGAL:
        case PROPERTIES_SIZE_EXCEEDED:
            response.setCode(ResponseCode.MESSAGE_ILLEGAL);
            response.setRemark(
                "the message is illegal, maybe msg body or properties length not matched. msg body length limit 128k, msg properties length limit 32k.");
            break;
        case SERVICE_NOT_AVAILABLE:
            response.setCode(ResponseCode.SERVICE_NOT_AVAILABLE);
            response.setRemark(
                "service not available now, maybe disk full, " + diskUtil() + ", maybe your broker machine memory too small.");
            break;
        case OS_PAGECACHE_BUSY:
            response.setCode(ResponseCode.SYSTEM_ERROR);
            response.setRemark("[PC_SYNCHRONIZED]broker busy, start flow control for a while");
            break;
        case UNKNOWN_ERROR:
            response.setCode(ResponseCode.SYSTEM_ERROR);
            response.setRemark("UNKNOWN_ERROR");
            break;
        default:
            response.setCode(ResponseCode.SYSTEM_ERROR);
            response.setRemark("UNKNOWN_ERROR DEFAULT");
            break;
    }

    String owner = request.getExtFields().get(BrokerStatsManager.COMMERCIAL_OWNER);
    if (sendOK) {
        // 统计
        this.brokerController.getBrokerStatsManager().incTopicPutNums(msg.getTopic(), putMessageResult.getAppendMessageResult().getMsgNum(), 1);
        this.brokerController.getBrokerStatsManager().incTopicPutSize(msg.getTopic(),
            putMessageResult.getAppendMessageResult().getWroteBytes());
        this.brokerController.getBrokerStatsManager().incBrokerPutNums(putMessageResult.getAppendMessageResult().getMsgNum());

        // 响应
        response.setRemark(null);

        responseHeader.setMsgId(putMessageResult.getAppendMessageResult().getMsgId());
        responseHeader.setQueueId(queueIdInt);
        responseHeader.setQueueOffset(putMessageResult.getAppendMessageResult().getLogicsOffset());

        doResponse(ctx, request, response);

        // hook:设置发送成功到context
        if (hasSendMessageHook()) {
            sendMessageContext.setMsgId(responseHeader.getMsgId());
            sendMessageContext.setQueueId(responseHeader.getQueueId());
            sendMessageContext.setQueueOffset(responseHeader.getQueueOffset());

            int commercialBaseCount = brokerController.getBrokerConfig().getCommercialBaseCount();
            int wroteSize = putMessageResult.getAppendMessageResult().getWroteBytes();
            int incValue = (int)Math.ceil(wroteSize / BrokerStatsManager.SIZE_PER_COUNT) * commercialBaseCount;

            sendMessageContext.setCommercialSendStats(BrokerStatsManager.StatsType.SEND_SUCCESS);
            sendMessageContext.setCommercialSendTimes(incValue);
            sendMessageContext.setCommercialSendSize(wroteSize);
            sendMessageContext.setCommercialOwner(owner);
        }

        // 响应给 Producer 可能发生异常,#doResponse(ctx, request, response)已经进行返回。若发生异常直接打印日志方便排查 Broker 接收消息成功后响应是否存在异常
        return null;
    } else {
        // hook:设置发送失败到context
        if (hasSendMessageHook()) {
            int wroteSize = request.getBody().length;
            int incValue = (int)Math.ceil(wroteSize / BrokerStatsManager.SIZE_PER_COUNT);

            sendMessageContext.setCommercialSendStats(BrokerStatsManager.StatsType.SEND_FAILURE);
            sendMessageContext.setCommercialSendTimes(incValue);
            sendMessageContext.setCommercialSendSize(wroteSize);
            sendMessageContext.setCommercialOwner(owner);
        }
    }
    return response;
}

sendMessage和sendBatchMessage处理逻辑基本一致,只是sendBatchMessage不支持对RETRY类型的消息的处理和事务消息处理。

继续深入<a>处的#msgCheck方法:

AbstractSendMessageProcessor#msgCheck
// 校验消息是否正确,主要是Topic配置方面,例如:Broker 是否有写入权限,topic配置是否存在,队列编号是否正确。
protected RemotingCommand msgCheck(final ChannelHandlerContext ctx,
    final SendMessageRequestHeader requestHeader, final RemotingCommand response) {
    // 检查 broker 是否有写入权限
    if (!PermName.isWriteable(this.brokerController.getBrokerConfig().getBrokerPermission())
        && this.brokerController.getTopicConfigManager().isOrderTopic(requestHeader.getTopic())) {
        response.setCode(ResponseCode.NO_PERMISSION);
        response.setRemark("the broker[" + this.brokerController.getBrokerConfig().getBrokerIP1()
            + "] sending message is forbidden");
        return response;
    }

    // 检查topic是否可以被发送。目前是{@link MixAll.AUTO_CREATE_TOPIC_KEY_TOPIC}不被允许发送
    if (!this.brokerController.getTopicConfigManager().isTopicCanSendMessage(requestHeader.getTopic())) {
        String errorMsg = "the topic[" + requestHeader.getTopic() + "] is conflict with system reserved words.";
        log.warn(errorMsg);
        response.setCode(ResponseCode.SYSTEM_ERROR);
        response.setRemark(errorMsg);
        return response;
    }

    TopicConfig topicConfig =
        this.brokerController.getTopicConfigManager().selectTopicConfig(requestHeader.getTopic());
    if (null == topicConfig) { // 不存在topicConfig,则进行创建
        int topicSysFlag = 0;
        if (requestHeader.isUnitMode()) {
            if (requestHeader.getTopic().startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
                topicSysFlag = TopicSysFlag.buildSysFlag(false, true);
            } else {
                topicSysFlag = TopicSysFlag.buildSysFlag(true, false);
            }
        }

        log.warn("the topic {} not exist, producer: {}", requestHeader.getTopic(), ctx.channel().remoteAddress());
        // 跟据requestHeader和ctx创建topic配置
        topicConfig = this.brokerController.getTopicConfigManager().createTopicInSendMessageMethod(
            requestHeader.getTopic(),
            requestHeader.getDefaultTopic(),
            RemotingHelper.parseChannelRemoteAddr(ctx.channel()),
            requestHeader.getDefaultTopicQueueNums(), topicSysFlag);

        if (null == topicConfig) {
            if (requestHeader.getTopic().startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
                topicConfig =
                    this.brokerController.getTopicConfigManager().createTopicInSendMessageBackMethod(
                        requestHeader.getTopic(), 1, PermName.PERM_WRITE | PermName.PERM_READ,
                        topicSysFlag);
            }
        }

        // 若还是没配置,则报错提示进行手动创建topic配置
        //创建会存在不成功的情况,例如说:defaultTopic的Topic配置不存在,又或者存在但是不允许继承
        if (null == topicConfig) {
            response.setCode(ResponseCode.TOPIC_NOT_EXIST);
            response.setRemark("topic[" + requestHeader.getTopic() + "] not exist, apply first please!"
                + FAQUrl.suggestTodo(FAQUrl.APPLY_TOPIC_URL));
            return response;
        }
    }

    // 队列编号是否正确
    int queueIdInt = requestHeader.getQueueId();
    int idValid = Math.max(topicConfig.getWriteQueueNums(), topicConfig.getReadQueueNums());
    if (queueIdInt >= idValid) {
        String errorInfo = String.format("request queueId[%d] is illegal, %s Producer: %s",
            queueIdInt,
            topicConfig.toString(),
            RemotingHelper.parseChannelRemoteAddr(ctx.channel()));

        log.warn(errorInfo);
        response.setCode(ResponseCode.SYSTEM_ERROR);
        response.setRemark(errorInfo);

        return response;
    }
    return response;
}

校验消息是否正确,主要是Topic配置方面,例如:Broker 是否有写入权限,topic配置是否存在,队列编号是否正确。

继续深入<b>处DefaultMessageStore#putMessage方法:

DefaultMessageStore#putMessage
/**
 * @Description 存储消息封装,最终存储需要 CommitLog 实现。
 * @param       msg
 * @return      org.apache.rocketmq.store.PutMessageResult
 **/
public PutMessageResult putMessage(MessageExtBrokerInner msg) {
    if (this.shutdown) {
        log.warn("message store has shutdown, so putMessage is forbidden");
        return new PutMessageResult(PutMessageStatus.SERVICE_NOT_AVAILABLE, null);
    }

    // 从节点不允许写入
    if (BrokerRole.SLAVE == this.messageStoreConfig.getBrokerRole()) {
        long value = this.printTimes.getAndIncrement();
        if ((value % 50000) == 0) {
            log.warn("message store is slave mode, so putMessage is forbidden ");
        }

        return new PutMessageResult(PutMessageStatus.SERVICE_NOT_AVAILABLE, null);
    }

    // store是否允许写入
    if (!this.runningFlags.isWriteable()) {
        long value = this.printTimes.getAndIncrement();
        if ((value % 50000) == 0) {
            log.warn("message store is not writeable, so putMessage is forbidden " + this.runningFlags.getFlagBits());
        }

        return new PutMessageResult(PutMessageStatus.SERVICE_NOT_AVAILABLE, null);
    } else {
        this.printTimes.set(0);
    }

    // 消息的topic过长
    if (msg.getTopic().length() > Byte.MAX_VALUE) {
        log.warn("putMessage message topic length too long " + msg.getTopic().length());
        return new PutMessageResult(PutMessageStatus.MESSAGE_ILLEGAL, null);
    }

    // 消息的附加属性过长
    if (msg.getPropertiesString() != null && msg.getPropertiesString().length() > Short.MAX_VALUE) {
        log.warn("putMessage message properties length too long " + msg.getPropertiesString().length());
        return new PutMessageResult(PutMessageStatus.PROPERTIES_SIZE_EXCEEDED, null);
    }

    // 操作系统缓存页是否繁忙
    if (this.isOSPageCacheBusy()) {
        return new PutMessageResult(PutMessageStatus.OS_PAGECACHE_BUSY, null);
    }

    long beginTime = this.getSystemClock().now();
    // 添加消息到commitLog中
    PutMessageResult result = this.commitLog.putMessage(msg);

    long eclipseTime = this.getSystemClock().now() - beginTime;
    if (eclipseTime > 500) {
        log.warn("putMessage not in lock eclipse time(ms)={}, bodyLength={}", eclipseTime, msg.getBody().length);
    }
    this.storeStatsService.setPutMessageEntireTimeMax(eclipseTime);

    if (null == result || !result.isOk()) {
        this.storeStatsService.getPutMessageFailedTimes().incrementAndGet();
    }

    return result;
}

存储消息的封装,最终存储需要从CommitLog 实现。

分类:
后端
标签:
分类:
后端
标签:
收藏成功!
已添加到「」, 点击更改
