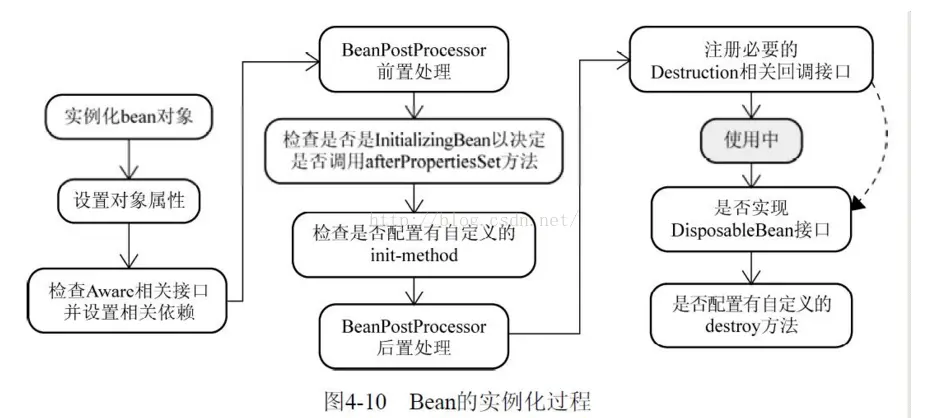

spring中bean的生命周期
spring bean的作用域
spring 如何解决循环依赖
@Component
public class A {
@Autowired
private B b;
public void aMethod(){
b.bMethod();
}
}
@Component
public class B {
@Autowired
private A a;
public void bMethod(){
System.out.println("bmethod");
}
}
@SpringBootApplication
public class MyspringlearningApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context = SpringApplication.run(MyspringlearningApplication.class, args);
A a = context.getBean(A.class);
a.aMethod();
}
}
上面的示例中，A依赖B，B又依赖了A.是典型的循环依赖的情况，但是运行的结果来看，程序能正常运行，调用a.aMethod()能打印出"bmethod"字符串
那spring是怎么解决循环依赖的呢？？？
protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType,
@Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {
final String beanName = transformedBeanName(name);
Object bean;
// Eagerly check singleton cache for manually registered singletons.
Object sharedInstance = getSingleton(beanName);
if (sharedInstance != null && args == null) {
if (logger.isDebugEnabled()) {
if (isSingletonCurrentlyInCreation(beanName)) {
logger.debug("Returning eagerly cached instance of singleton bean '" + beanName +
"' that is not fully initialized yet - a consequence of a circular reference");
}
else {
logger.debug("Returning cached instance of singleton bean '" + beanName + "'");
}
}
bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
}
else {
// Fail if we're already creating this bean instance:
// We're assumably within a circular reference.
if (isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
.......
各种作用域的创建bean
}

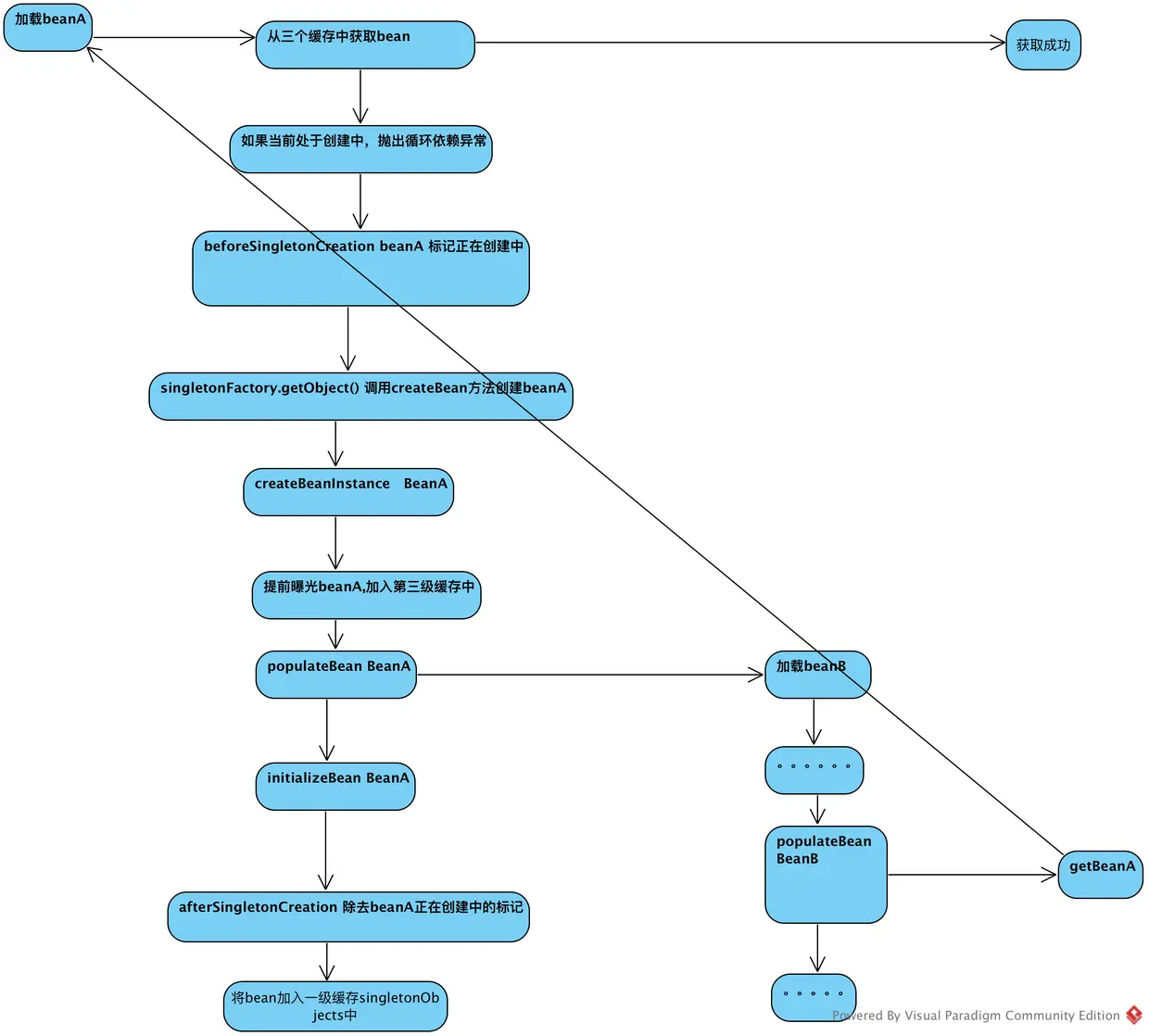

获取bean的时候
- 从spring维护的三个缓存中获取bean
- 如果缓存中获取失败，并且bean处于创建中，抛出循环依赖异常
- 在对应的作用域中创建bean
spring为bean创建了三个级别的缓存， 这三级缓存分别是
| 级别 | 名称 | 类型 | 内容 |
|---|---|---|---|
| 1 | singletonObjects | Map<String, Object> | 正在完成加载的bean |
| 2 | earlySingletonObjects | Map<String, Object> | 完成了实例化，提前曝光的Bean02 |
| 3 | singletonFactories | Map<String, ObjectFactory<?>> | 提前曝光的bean01 |
protected Object getSingleton(String beanName, boolean allowEarlyReference) {
Object singletonObject = this.singletonObjects.get(beanName);
if (singletonObject == null && isSingletonCurrentlyInCreation(beanName)) {
synchronized (this.singletonObjects) {
singletonObject = this.earlySingletonObjects.get(beanName);
if (singletonObject == null && allowEarlyReference) {
ObjectFactory<?> singletonFactory = this.singletonFactories.get(beanName);
if (singletonFactory != null) {
singletonObject = singletonFactory.getObject();
this.earlySingletonObjects.put(beanName, singletonObject);
this.singletonFactories.remove(beanName);
}
}
}
}
return singletonObject;
}
getBean的第一步操作就是从三个级别缓存中获取bean
- 如果singletonObjects中有，可以直接返回
- 如果earlySingletonObjects中有，直接返回
- 如果singletonFactories中有
- 调用ObjectFactory的getObject方法
- 将获取到的bean放入二级缓存中
- 从三级缓存中删除该beanName
在bean完成实例化之后,populateBean之前，会将bean提前曝光。加入到三级缓存中
protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final @Nullable Object[] args)
throws BeanCreationException {
.....
createBeanInstance
// Eagerly cache singletons to be able to resolve circular references
// even when triggered by lifecycle interfaces like BeanFactoryAware.
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
isSingletonCurrentlyInCreation(beanName));
if (earlySingletonExposure) {
if (logger.isDebugEnabled()) {
logger.debug("Eagerly caching bean '" + beanName +
"' to allow for resolving potential circular references");
}
addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
}
....
populateBean()
....
}
当对beanB执行populateBean填充属性的时候，因为A已经加入到三级缓存中了，所以在getBean的最开始就能从缓存中获取到已经完成实例化的beanA,完成beanB的属性填充。
什么情况下的循环依赖问题可以被spring解决
首先，我们常用的依赖注入方式有如下几种
- 构造函数注入
@Component
public class C {
private D d;
public C(@Autowired D d) {
}
public void cMethod(){
d.dMethod();
}
}
@Component
public class D {
private C c;
public D(@Autowired C c) {
this.c = c;
}
public void dMethod(){
System.out.println("dMethod");
}
}
@SpringBootApplication
public class MyspringlearningApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context = SpringApplication.run(MyspringlearningApplication.class, args);
C c = context.getBean(C.class);
c.cMethod();
}
}
运行结果:报循环依赖异常
***************************
APPLICATION FAILED TO START
***************************
Description:
The dependencies of some of the beans in the application context form a cycle:
┌─────┐
| c defined in file [/Users/lihongli/testWorkSpace/myspringlearning/target/classes/com/li/myspringlearning/C.class]
↑ ↓
| d defined in file [/Users/lihongli/testWorkSpace/myspringlearning/target/classes/com/li/myspringlearning/D.class]
└─────┘
- 属性注入
@Component
public class A {
@Autowired
private B b;
public void aMethod(){
b.bMethod();
}
}
@Component
public class B {
@Autowired
private A a;
public void bMethod(){
System.out.println("bmethod");
}
}
运行正常
按照前面的代码分析，spring会在完成实例化createBeanInstance方法执行完成后，才会把bean提前曝光到缓存中，才能让依赖方获取到这个提前曝光的bean完成依赖方bean的加载。如果将依赖写在构造函数中，会在实例化C的时候就去加载依赖的D,在D加载过程中也会在他的构造函数中去加载C的bean，C当前处于创建中，但是没有进行提前曝光，导致循环依赖异常
如果将构造器注入的示例改成如下：
@Component
public class C {
@Autowired
private D d;
// public C(@Autowired D d) {
// }
public void cMethod(){
d.dMethod();
}
}
@Component
public class D {
private C c;
public D(@Autowired C c) {
this.c = c;
}
public void dMethod(){
System.out.println("dMethod");
}
}
@SpringBootApplication
public class MyspringlearningApplication {
public static void main(String[] args) {
ConfigurableApplicationContext context = SpringApplication.run(MyspringlearningApplication.class, args);
C c = context.getBean(C.class);
c.cMethod();
}
}
让C在获取D的bean之前，能把自己提前曝光出去，就不过报循环依赖了。
earlySingletonObjects和singletonFactories
在doCreateBean方法中，完成bean的实例化后，如果允许提前曝光，会把刚刚完成实例化的bean暴露出去
此时加入到三级缓存缓存中。目的是为了在调用getSingleton从三级缓存升级到二级缓存中的时候能执行一些拓展的操作
protected Object getEarlyBeanReference(String beanName, RootBeanDefinition mbd, Object bean) {
Object exposedObject = bean;
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof SmartInstantiationAwareBeanPostProcessor) {
SmartInstantiationAwareBeanPostProcessor ibp = (SmartInstantiationAwareBeanPostProcessor) bp;
exposedObject = ibp.getEarlyBeanReference(exposedObject, beanName);
}
}
}
return exposedObject;
}
