K8S自己动手系列 - 2.3 - PV & PVC

前言

在实验2.2 – Deployment中，我们将原来基于Pod部署的wordpress+mysql成功改造成基于Deployment部署，基于Deployment部署有很多好处，例如：支持滚动升级（Rolling Update），支持水平扩展。

不过有个问题，就是当我们的Deployment修改了，或者Pod删除重建了，数据也随之丢失了，这是我们不希望看到的，本篇文章我们就来尝试一下基于PV & PVC保存数据状态的有状态应用。

场景

对于单实例的有状态应用，我们可以定义Deployment并且replicas只能为1，用指定PVC的方式关联到一个PV上，使用PV提供的状态存储功能。如果要启动多实例，那么Deployment就无法胜任这个任务，必须使用到我们后面会讲到的StatefulSet+PVC Template的方式创建多实例对多PVC的模型。

本文实验所有的源码保存在： github.com/zrbcool/blo…

实战

PVC定义

➜  lab06 git:(master) ✗ cat 03-wordpress-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: wordpress-pv-claim
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi

部署后查看状态

➜  lab06 git:(master) ✗ kubectl apply -f 03-wordpress-pvc.yaml
persistentvolumeclaim/wordpress-pv-claim created
➜  lab06 git:(master) ✗ kubectl get pvc
NAME                       STATUS    VOLUME   CAPACITY   ACCESS MODES   STORAGECLASS   AGE
wordpress-mysql-pv-claim   Pending                                                     4s

发现PVC处于Pending状态，追查下原因

➜  lab06 git:(master) ✗ kubectl describe pvc/wordpress-mysql-pv-claim
Name:          wordpress-mysql-pv-claim
Namespace:     default
StorageClass:
Status:        Pending
Volume:
Labels:        <none>
Annotations:   kubectl.kubernetes.io/last-applied-configuration:
                 {"apiVersion":"v1","kind":"PersistentVolumeClaim","metadata":{"annotations":{},"name":"wordpress-mysql-pv-claim","namespace":"default"},"s...
Finalizers:    [kubernetes.io/pvc-protection]
Capacity:
Access Modes:
VolumeMode:    Filesystem
Events:
  Type       Reason         Age               From                         Message
  ----       ------         ----              ----                         -------
  Normal     FailedBinding  6s (x4 over 36s)  persistentvolume-controller  no persistent volumes available for this claim and no storage class is set
Mounted By:  <none>

接下来我们创建PV

PV定义

查看定义

➜  lab06 git:(master) ✗ cat 04-wordpress-pv.yaml
kind: PersistentVolume
apiVersion: v1
metadata:
  name: wordpress-mysql-pv-volume
  labels:
    type: local
spec:
  capacity:
    storage: 2Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: "/data/pv/wordpress/mysql"

该pv定义是基于hostPath的方式，所以我们要在节点上提前创建好目录，如下：

➜  lab06 git:(master) ✗ mkdir -p /data/pv/wordpress/mysql

➜  lab06 git:(master) ✗ kubectl create -f 04-wordpress-pv.yaml
persistentvolume/wordpress-mysql-pv-volume created
➜  lab06 git:(master) ✗ kubectl get pv
NAME                        CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                              STORAGECLASS   REASON   AGE
wordpress-mysql-pv-volume   2Gi        RWO            Retain           Bound    default/wordpress-mysql-pv-claim                           31s
➜  lab06 git:(master) ✗ kubectl get pvc
NAME                       STATUS   VOLUME                      CAPACITY   ACCESS MODES   STORAGECLASS   AGE
wordpress-mysql-pv-claim   Bound    wordpress-mysql-pv-volume   2Gi        RWO                           118s

此时我们之前定义的pvc也已经成功绑定了

使Deployment使用该PVC

查看定义

➜  lab06 git:(master) ✗ cat 01-wordpress-mysql-deployment.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: wordpress
  name: wordpress
spec:
  replicas: 1
  selector:
    matchLabels:
      app: wordpress
  template:
    metadata:
      labels:
        app: wordpress
    spec:
      containers:
      - image: wordpress:latest
        imagePullPolicy: IfNotPresent
        name: wordpress
        env:
          - name: WORDPRESS_DB_HOST
            value: "127.0.0.1"
          - name: WORDPRESS_DB_USER
            value: "root"
          - name: WORDPRESS_DB_PASSWORD
            value: "passw0rd"
      - image: mysql:5.7.26
        imagePullPolicy: IfNotPresent
        name: mysql
        env:
          - name: MYSQL_ROOT_PASSWORD
            value: "passw0rd"
          - name: MYSQL_DATABASE
            value: "wordpress"
        volumeMounts:
        - name: mysql-persistent-storage
          mountPath: /var/lib/mysql
      volumes:
      - name: mysql-persistent-storage
        persistentVolumeClaim:
          claimName: wordpress-mysql-pv-claim

执行更新并查看效果

➜  lab06 git:(master) ✗ kubectl apply -f 01-wordpress-mysql-deployment.yaml
deployment.extensions/wordpress configured
➜  lab06 git:(master) ✗ kubectl get pod
NAME                         READY   STATUS    RESTARTS   AGE
wordpress-6cfd879fcd-9mlhb   2/2     Running   0          29s

➜  lab06 git:(master) ✗ ls -l /data/pv/wordpress/mysql/
total 188480
-rw-r----- 1 999 999       56 Jun 10 23:42 auto.cnf
-rw------- 1 999 999     1675 Jun 10 23:42 ca-key.pem
-rw-r--r-- 1 999 999     1107 Jun 10 23:42 ca.pem
...
drwxr-x--- 2 999 999    12288 Jun 10 23:42 sys
drwxr-x--- 2 999 999     4096 Jun 10 23:42 wordpress

可见，Pod已经在/data/pv/wordpress/mysql/下产生数据了，接下来我们来试一下配置数据后，删除Pod，使Deployment控制Pod重建，配置数据是否能够保存 通过下面命令删除Pod使其重建

➜  lab06 git:(master) ✗ kubectl get pod
NAME                         READY   STATUS    RESTARTS   AGE
wordpress-6cfd879fcd-9mlhb   2/2     Running   0          7m34s
➜  lab06 git:(master) ✗ kubectl delete pod/wordpress-6cfd879fcd-9mlhb
pod "wordpress-6cfd879fcd-9mlhb" deleted
➜  lab06 git:(master) ✗ kubectl get pod
NAME                         READY   STATUS    RESTARTS   AGE
wordpress-6cfd879fcd-29qg9   2/2     Running   1          11s

刷新网页，发布的测试文件还在，测试成功

新问题

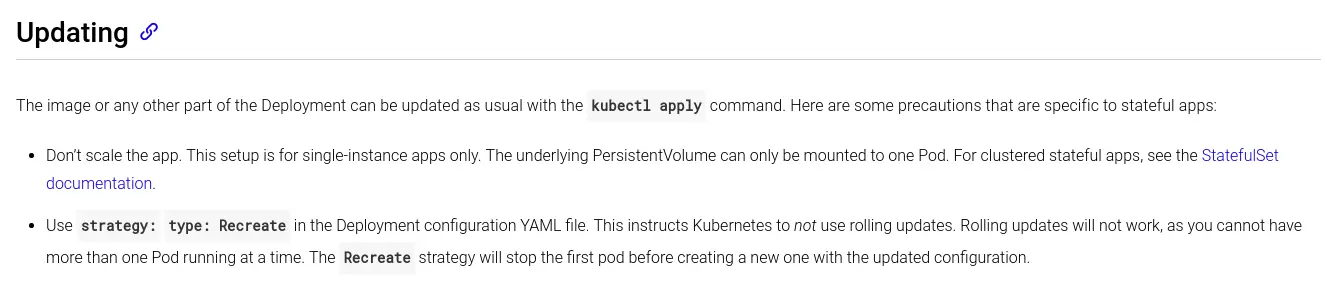

查看官网说明：

意思是说，对于这个单实例的有状态Deployment不要对其进行扩容，同时当Deployment定义发生更新时也不能使用滚动更新，而应该先删除再创建，也就是strategy: type: Recreate 修改后的文件如下：

➜  lab06 git:(master) ✗ cat 01-wordpress-mysql-deployment.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  labels:
    app: wordpress
  name: wordpress
spec:
  strategy:
    type: Recreate
  replicas: 1
  selector:
    matchLabels:
      app: wordpress
  template:
    metadata:
      labels:
        app: wordpress
    spec:
      containers:
      - image: wordpress:latest
        imagePullPolicy: IfNotPresent
        name: wordpress
        env:
          - name: WORDPRESS_DB_HOST
            value: "127.0.0.1"
          - name: WORDPRESS_DB_USER
            value: "root"
          - name: WORDPRESS_DB_PASSWORD
            value: "passw0rd"
      - image: mysql:5.7.26
        imagePullPolicy: IfNotPresent
        name: mysql
        env:
          - name: MYSQL_ROOT_PASSWORD
            value: "passw0rd"
          - name: MYSQL_DATABASE
            value: "wordpress"
        volumeMounts:
        - name: mysql-persistent-storage
          mountPath: /var/lib/mysql
      volumes:
      - name: mysql-persistent-storage
        persistentVolumeClaim:
          claimName: wordpress-mysql-pv-claim

清除数据

➜  lab06 git:(master) ✗ kubectl delete -f .
deployment.extensions "wordpress" deleted
service "wordpress-svc" deleted
persistentvolumeclaim "wordpress-mysql-pv-claim" deleted
persistentvolume "wordpress-mysql-pv-volume" deleted
