Flutter iOS混编踩坑记

5,319 阅读2分钟

混编配置可以参考这篇文章 www.jianshu.com/p/eee692736…

最近开始在项目的边缘模块中尝试使用Flutter开发,对混编过程中遇到的问题做了一些记录。

1、使用了cocoapods

在Debug.xcconfig和Release.xcconfig里面添加 注意FlutterMixed 是自己iOS项目的名称

#include "Pods/Target Support Files/Pods-FlutterMixed/Pods-FlutterMixed.debug.xcconfig"
#include "Pods/Target Support Files/Pods-FlutterMixed/Pods-FlutterMixed.release.xcconfig"

2、找不到FLUTTER_ROOT

在项目中手动添加文件目录

open Project Target and add User-Defined Setting with key name FLUTTER_ROOTwith the value of your flutter SDK location.

3、The path lib/main.dart does not exist

config文件的../../路径问题

4、dyld: Library not loaded: @rpath/Flutter.framework/Flutter

5、debug环境 跳转黑屏

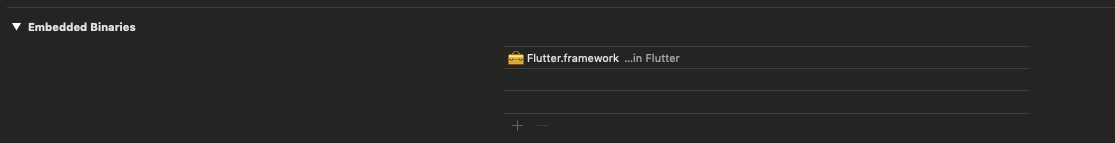

移除App.framework

6、Flutter doctor ,Flutter upgrade 等卡住

挂终端ss

export http_proxy=http://127.0.0.1:1087;export https_proxy=http://127.0.0.1:1087;

端口不一定相同,根据自己的ss配置修改

7、xcode运行脚本卡住

用Android studio 运行一次flutter应用

8、iOS风格的AppBar

return new Scaffold(
        appBar: new CupertinoNavigationBar(
          middle: new Text('test'),
          trailing: Material(child: IconButton(icon: Icon(Icons.settings))),
        ),

        body: Text('test'),
);

9、release包 不加载图片资源

1.更新flutter 版本

flutter upgrade

2.删除原生项目中的App.framework及Flutter.framework文件重新添加

注:Flutter在1.2版本中将flutter_assets 文件夹的内容移到了App.framework中,不需要再将flutter_assets文件添加至原生工程中

10、上传App Store 包含[x86_64]报错

App Store Connect Operation Error
ERROR ITMS-90087: "Unsupported Architectures. The executable for LoanCalculator.app/Frameworks/Flutter.framework contains unsupported architectures '[x86_64]'."

App Store Connect Operation Error
ERROR ITMS-90209: "Invalid Segment Alignment. The app binary at 'LoanCalculator.app/Frameworks/Flutter.framework/Flutter' does not have proper segment alignment. Try rebuilding the app with the latest Xcode version."

App Store Connect Operation Error
ERROR ITMS-90125: "The binary is invalid. The encryption info in the LC_ENCRYPTION_INFO load command is either missing or invalid, or the binary is already encrypted. This binary does not seem to have been built with Apple's linker."

解决方法

1.打开终端

2.cd到Flutter.framework文件夹

example : cd /Users/MAC/Desktop/Flutter/Flutter.framework

3.执行下面代码

lipo -remove x86_64 Flutter -o Flutter

4.重新打开项目 Clean, Build & Run and Create Archive

ps:

目前项目只是很少的一部分尝试用Flutter来写,遇到的问题就上面这些,后面踩到坑会陆续添加进来。个人对Flutter技术十分看好,但是目前就使用体验来讲,我觉得距离iOS原生还有不小的差距,让iOS有了安卓味,这可不太好,希望后面会更完善吧。
