栈 Stack
-
栈也是一种线性结构
-
相比数组，栈对应的操作是数组的子集
-
只能从一端添加元素，也只能从一端取出元素
-
这一端称为栈顶
-
栈是一种后进先出的结构(Last In First Out LIFO)
-
栈的应用
-

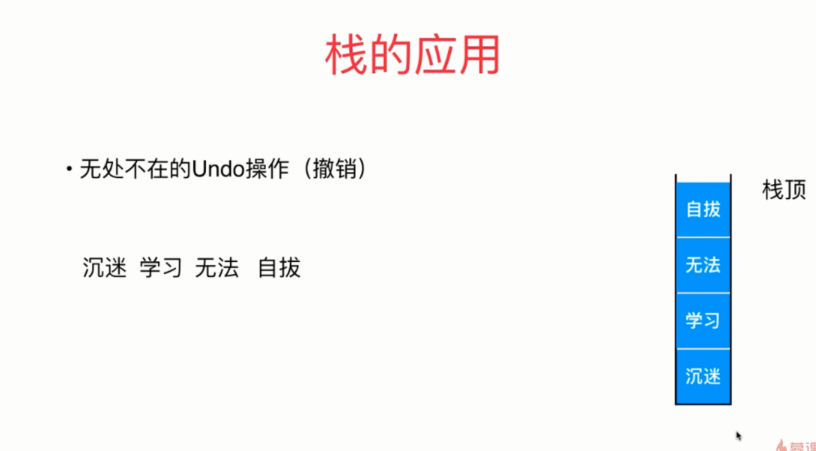

无处不在的Undo操作(撤销)
-

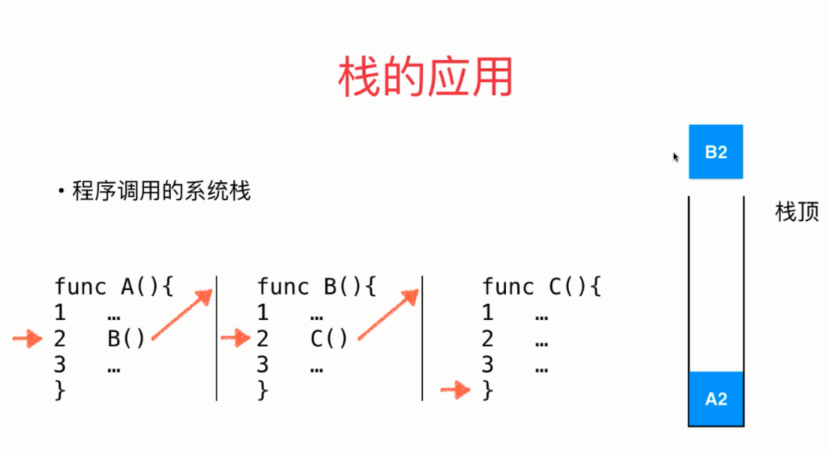

程序调用的系统栈

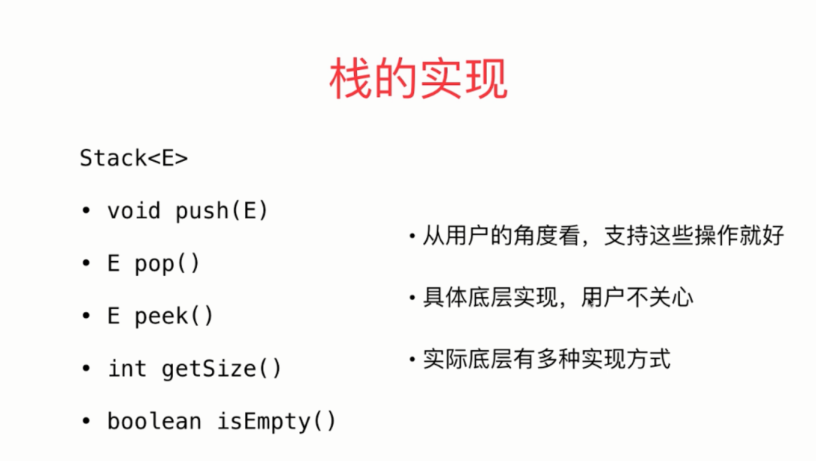

栈的实现
-
代码实现
-
接口代码
public interface Stack<E> {
int getSize();
boolean isEmpty();
void push(E e);
E pop();
E peek();
}
- 实现类
public class ArrayStack<E> implements Stack<E> {
Array<E> array;
public ArrayStack(int capacity){
array = new Array<>(capacity);
}
public ArrayStack(){
array = new Array<>();
}
@Override
public int getSize() {
return array.getSize();
}
@Override
public boolean isEmpty() {
return array.isEmpty();
}
@Override
public void push(E e) {
array.addLast(e);
}
@Override
public E pop() {
return array.removeLast();
}
@Override
public E peek() {
return array.getLast();
}
@Override
public String toString(){
StringBuilder res = new StringBuilder();
res.append("Stack: ");
res.append('[');
for(int i = 0 ; i < array.getSize(); i++) {
res.append(array.get(i));
if (i != array.getSize() - 1) {
res.append(",");
}
}
res.append("] top");
return res.toString();
}
public int getCapacity(){
return array.getCapacity();
}
}
- 调用栈方法
ArrayStack<Integer> stack = new ArrayStack<>();
for(int i = 0 ; i < 5 ; i++){
stack.push(i);
System.out.println(stack);
}
stack.pop();
System.out.println(stack);
}
- 栈的时间复杂度分析
栈的应用
- undo操作 - 编辑器
- 系统调用栈 - 操作系统
- 括号匹配 - 编译器
class Solution{
public boolean isValid(String s){
Stack<Character> stack = new Stack<>();
for(int i = 0 ; i < s.length(); i++){
char c = s.charAt(i);
if(c == '(' || c == '[' || c == '{'){
stack.push(c);
}else{
if(stack.isEmpty()){
return false;
}
char topChar = stack.pop();
if(c == ')' && topChar != '('){
return false;
}
if(c == ']' && topChar != '['){
return false;
}
if(c == '}' && topChar != '{(}'){
return false;
}
}
}
return stack.isEmpty();
}
}

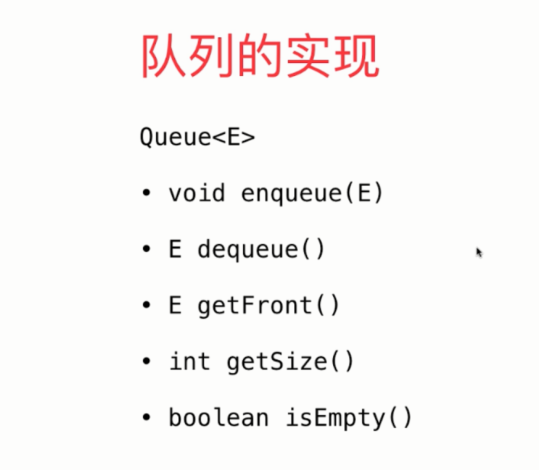

队列(Queue)
- 队列也是一种线性结构
- 相比数组，队列对应的操作是数组的子集
- 只能从一端(队尾)添加元素，只能从另一端（队首）去吃元素
- 队列是一种先进先出的数据结构（先到先得）
- First In First Out (FIFO)
public class ArrayQueue<E> implements Queue<E> {
private Array<E> array;
public ArrayQueue(int capacity){
array = new Array<>(capacity);
}
public ArrayQueue(){
array = new Array<>();
}
@Override
public int getSize() {
return array.getSize();
}
@Override
public boolean isEmpty() {
return array.isEmpty();
}
public int getCapacity(){
return array.getCapacity();
}
@Override
public void enQueue(E e) {
array.addLast(e);
}
@Override
public E dequeue() {
return array.removeFirst();
}
@Override
public E getFront() {
return array.getFirst();
}
@Override
public String toString(){
StringBuilder res = new StringBuilder();
res.append("Queue: ");
res.append("front [");
for(int i = 0 ; i < array.getSize(); i++) {
res.append(array.get(i));
if (i != array.getSize() - 1) {
res.append(",");
}
}
res.append("] tail");
return res.toString();
}
public static void main(String[] args){
ArrayQueue<Integer> queue = new ArrayQueue<>();
for(int i = 0 ; i < 10 ; i++){
queue.enQueue(i);
System.out.println(queue);
if(i % 3 == 2){
queue.dequeue();
System.out.println(queue);
}
}
}
}

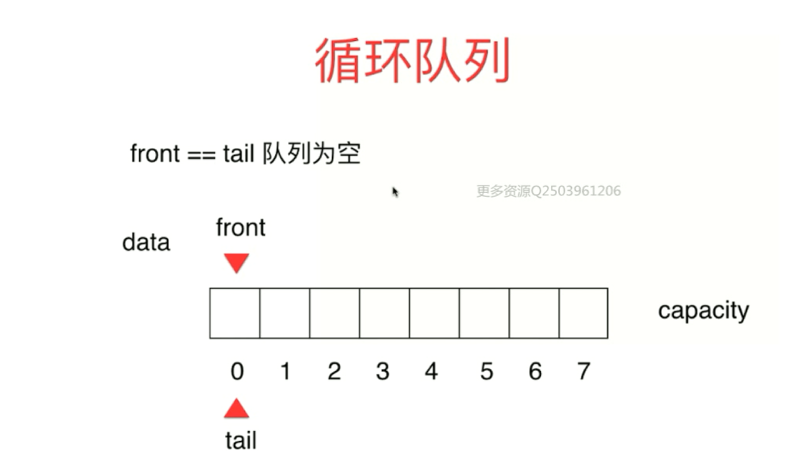

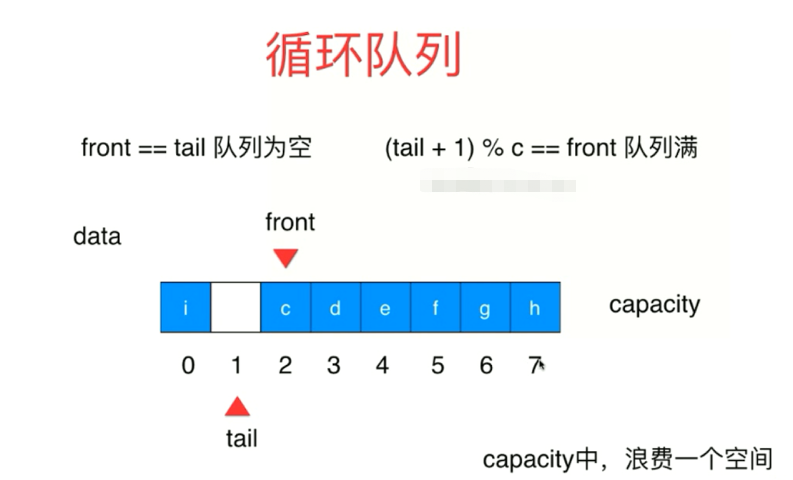

循环队列
- 代码实现
public class LoopQueue<E> implements Queue<E> {
private E[] data;
private int front, tail;
private int size;
public LoopQueue(int capacity){
data = (E[])new Object[capacity + 1];
front = 0;
tail = 0;
size = 0;
}
public LoopQueue(){
this(10);
}
public int getCapacity(){
return data.length - 1;
}
@Override
public int getSize() {
return size;
}
@Override
public boolean isEmpty() {
return front == tail;
}
@Override
public void enqueue(E e) {
if((tail+1) % data.length == front){
resize(getCapacity() * 2);
}
data[tail] = e;
tail = (tail + 1)% data.length;
size ++;
}
private void resize(int newCapacity){
E[] newData = (E[]) new Object[newCapacity + 1];
for(int i = 0;i < size ;i++){
newData[i] =data[(front + i) % data.length];
}
data = newData;
front = 0;
tail = size;
}
@Override
public E dequeue() {
if(isEmpty()){
throw new IllegalArgumentException("Cannot dequeue from an empty queue.");
}
E ret = data[front];
data[front] = null;
front =(front + 1) % data.length;
size --;
if(size == getCapacity()/4 && getCapacity() /2 != 0){
resize(getCapacity() /2);
}
return ret;
}
@Override
public E getFront() {
if(isEmpty()){
throw new IllegalArgumentException("Queue is empty.");
}
return data[front];
}
@Override
public String toString(){
StringBuilder res = new StringBuilder();
res.append(String.format("Queue: size = %d , capacity = %d\n", size, getCapacity()));
res.append(" front[" );
for(int i = front ; i != tail ; i = ( i + 1 ) % data.length ){
res.append(data[i]);
if((i + 1) % data.length != tail){
res.append(",");
}
}
res.append("]tail");
return res.toString();
}
public static void main(String[] args){
LoopQueue<Integer> queue = new LoopQueue<>();
for(int i = 0 ; i < 10 ; i++){
queue.enqueue(i);
System.out.println(queue);
if(i % 3 == 2){
queue.dequeue();
System.out.println(queue);
}
}
}
}

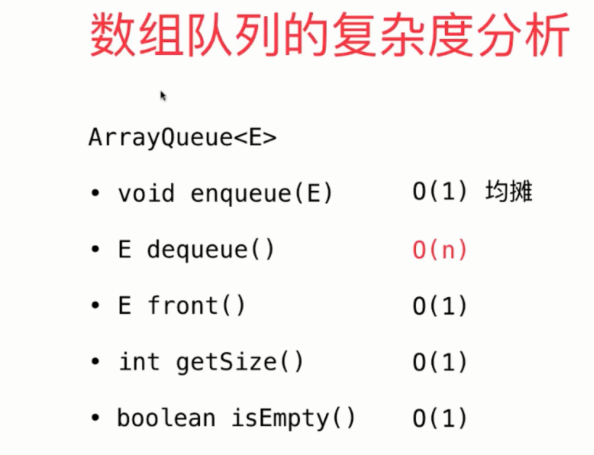

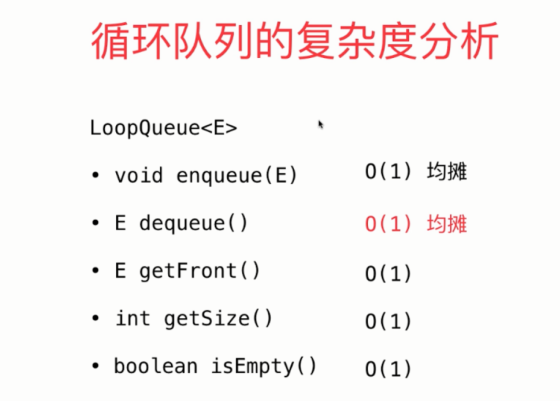

- loopQueue与ArrayQueue的性能对比
- 代码
public class Main {
//测试使用q运行opCount个enqueue和dequeue操作所需要的时间,单位：秒
private static double testQueue(Queue<Integer> q, int opCount){
long startTime = System.nanoTime();
Random random = new Random();
for(int i = 0 ;i < opCount; i++){
q.enqueue(random.nextInt(Integer.MAX_VALUE));
}
for(int i = 0 ;i < opCount; i++) {
q.dequeue();
}
long endTime = System.nanoTime();
return(endTime - startTime) / 1000000000.0;
}
public static void main(String[] args) {
int opCount = 100000;
ArrayQueue<Integer> arrayQueue = new ArrayQueue<>();
double time1 = testQueue(arrayQueue,opCount);
System.out.println("ArrayQueue,time: "+ time1 +"s");
LoopQueue<Integer> loopQueue = new LoopQueue<>();
double time2 = testQueue(loopQueue,opCount);
System.out.println("LoopQueue,time: "+ time2 +"s");
}
}
- 对比结果
