开启事务标识
本小节的整体思路:1.注册一个advisor。2.每一个业务bean(比如UserService)初始化时都会调用后处理器，得到该bean的注解。然后将advisor逻辑应用进来。
在XML中配置tx:annotation-driven/ 。表示事务的开关。若没有配置，则spring中不存在事务的功能。
所以我们根据这个自定义配置，找到源码。
#TxNamespaceHandler
public void init() {
registerBeanDefinitionParser("advice", new TxAdviceBeanDefinitionParser());
registerBeanDefinitionParser("annotation-driven", new AnnotationDrivenBeanDefinitionParser());
registerBeanDefinitionParser("jta-transaction-manager", new JtaTransactionManagerBeanDefinitionParser());
}
可以看到annotation-driven标签的解析是用AnnotationDrivenBeanDefinitionParser类表示的。我们进入其parse方法。
public BeanDefinition parse(Element element, ParserContext parserContext) {
registerTransactionalEventListenerFactory(parserContext);
String mode = element.getAttribute("mode");
if ("aspectj".equals(mode)) {
// mode="aspectj"
registerTransactionAspect(element, parserContext);
}
else {
// mode="proxy"
AopAutoProxyConfigurer.configureAutoProxyCreator(element, parserContext);
}
return null;
}
如果annotation-driven标签配置mode="aspectj"，则用registerTransactionAspect方法来解析。默认走下面
private static class AopAutoProxyConfigurer {
public static void configureAutoProxyCreator(Element element, ParserContext parserContext) {
AopNamespaceUtils.registerAutoProxyCreatorIfNecessary(parserContext, element);
String txAdvisorBeanName = TransactionManagementConfigUtils.TRANSACTION_ADVISOR_BEAN_NAME;
if (!parserContext.getRegistry().containsBeanDefinition(txAdvisorBeanName)) {
Object eleSource = parserContext.extractSource(element);
//1. 创建TransactionAttributeSource的bean
RootBeanDefinition sourceDef = new RootBeanDefinition(
"org.springframework.transaction.annotation.AnnotationTransactionAttributeSource");
sourceDef.setSource(eleSource);
sourceDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
//注册bean。beanname用规则自动生成
String sourceName = parserContext.getReaderContext().registerWithGeneratedName(sourceDef);
//2. 创建TransactionInterceptor的bean
RootBeanDefinition interceptorDef = new RootBeanDefinition(TransactionInterceptor.class);
interceptorDef.setSource(eleSource);
interceptorDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
registerTransactionManager(element, interceptorDef);
interceptorDef.getPropertyValues().add("transactionAttributeSource", new RuntimeBeanReference(sourceName));
String interceptorName = parserContext.getReaderContext().registerWithGeneratedName(interceptorDef);
//3. 创建BeanFactoryTransactionAttributeSourceAdvisor的bean
RootBeanDefinition advisorDef = new RootBeanDefinition(BeanFactoryTransactionAttributeSourceAdvisor.class);
advisorDef.setSource(eleSource);
advisorDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
// BeanFactoryTransactionAttributeSourceAdvisor
//包含AnnotationTransactionAttributeSource和TransactionInterceptor
advisorDef.getPropertyValues().add("transactionAttributeSource", new RuntimeBeanReference(sourceName));
advisorDef.getPropertyValues().add("adviceBeanName", interceptorName);
if (element.hasAttribute("order")) {
advisorDef.getPropertyValues().add("order", element.getAttribute("order"));
}
parserContext.getRegistry().registerBeanDefinition(txAdvisorBeanName, advisorDef);
CompositeComponentDefinition compositeDef = new CompositeComponentDefinition(element.getTagName(), eleSource);
compositeDef.addNestedComponent(new BeanComponentDefinition(sourceDef, sourceName));
compositeDef.addNestedComponent(new BeanComponentDefinition(interceptorDef, interceptorName));
compositeDef.addNestedComponent(new BeanComponentDefinition(advisorDef, txAdvisorBeanName));
parserContext.registerComponent(compositeDef);
}
}
}
public static BeanDefinition registerAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry, Object source) {
return registerOrEscalateApcAsRequired(InfrastructureAdvisorAutoProxyCreator.class, registry, source);
}
注册InfrastructureAdvisorAutoProxyCreator的目的是什么呢?

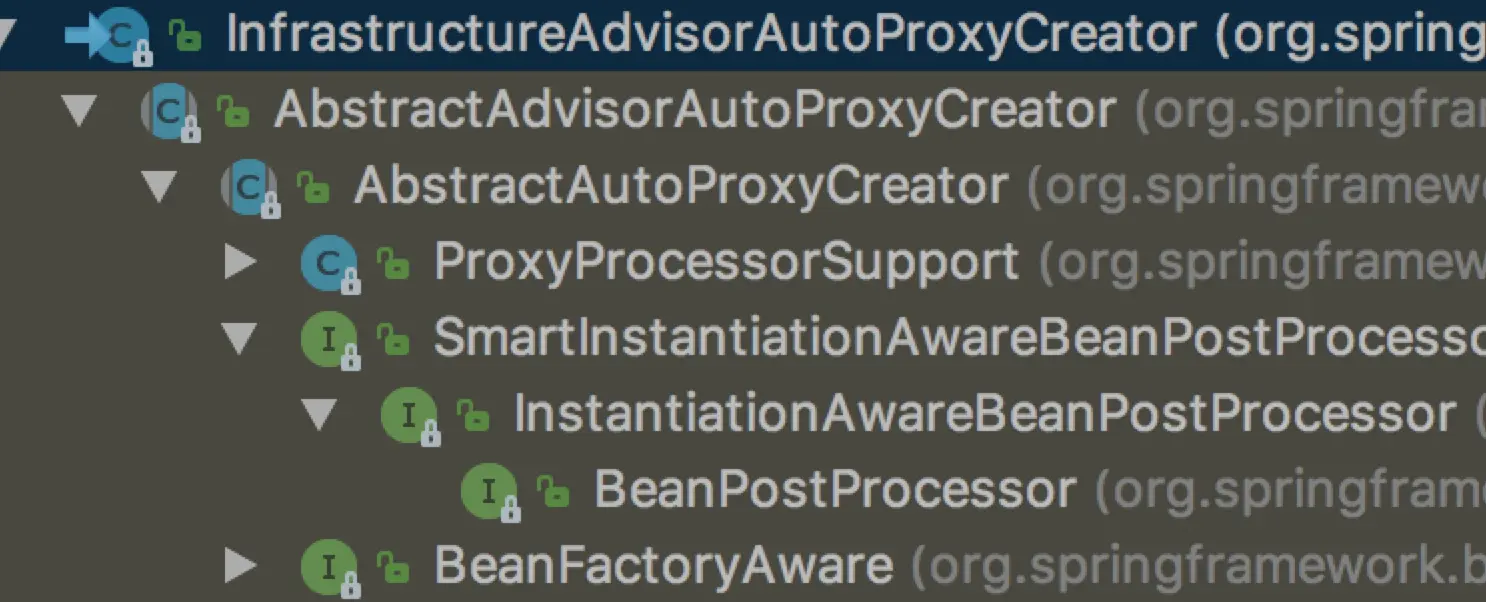

从上面的继承关系能看出:当所有bean实例化的时候会调用
#AbstractAutoProxyCreator
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
if (bean != null) {
//构建key
Object cacheKey = getCacheKey(bean.getClass(), beanName);
//对bean进行封装
if (!this.earlyProxyReferences.contains(cacheKey)) {
return wrapIfNecessary(bean, beanName, cacheKey);
}
}
return bean;
}
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
if (beanName != null && this.targetSourcedBeans.contains(beanName)) {
return bean;
}
if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
return bean;
}
if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
// 找出增强器
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
if (specificInterceptors != DO_NOT_PROXY) {
this.advisedBeans.put(cacheKey, Boolean.TRUE);
//根据上面的增强器创建代理
Object proxy = createProxy(
bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
//找出增强器，并判断增强器是否满足要求
protected Object[] getAdvicesAndAdvisorsForBean(Class<?> beanClass, String beanName, TargetSource targetSource) {
List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
if (advisors.isEmpty()) {
return DO_NOT_PROXY;
}
return advisors.toArray();
}
protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
//找增强器
List<Advisor> candidateAdvisors = findCandidateAdvisors();
//看增强器是否与对应class匹配或者class内部方法匹配也行。
List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
extendAdvisors(eligibleAdvisors);
if (!eligibleAdvisors.isEmpty()) {
eligibleAdvisors = sortAdvisors(eligibleAdvisors);
}
return eligibleAdvisors;
}
protected List<Advisor> findCandidateAdvisors() {
return this.advisorRetrievalHelper.findAdvisorBeans();
}
public List<Advisor> findAdvisorBeans() {
String[] advisorNames = null;
synchronized (this) {
advisorNames = this.cachedAdvisorBeanNames;
if (advisorNames == null) {//根据类类型获取所有Advisor类
//此时就会获取到上面注册的BeanFactoryTransactionAttributeSourceAdvisor。因为它是一个advisor
advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
this.beanFactory, Advisor.class, true, false);
this.cachedAdvisorBeanNames = advisorNames;
}
}
if (advisorNames.length == 0) {
return new LinkedList<Advisor>();
}
List<Advisor> advisors = new LinkedList<Advisor>();
for (String name : advisorNames) {
if (isEligibleBean(name)) {
if (this.beanFactory.isCurrentlyInCreation(name)) {
if (logger.isDebugEnabled()) {
logger.debug("Skipping currently created advisor '" + name + "'");
}
}
else {
try {
advisors.add(this.beanFactory.getBean(name, Advisor.class));
}
catch (BeanCreationException ex) {
}
throw ex;
}
}
}
}
return advisors;
}
protected List<Advisor> findAdvisorsThatCanApply(
List<Advisor> candidateAdvisors, Class<?> beanClass, String beanName) {
ProxyCreationContext.setCurrentProxiedBeanName(beanName);
try {
return AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass);
}
finally {
ProxyCreationContext.setCurrentProxiedBeanName(null);
}
}
public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
if (candidateAdvisors.isEmpty()) {
return candidateAdvisors;
}
List<Advisor> eligibleAdvisors = new LinkedList<Advisor>();
for (Advisor candidate : candidateAdvisors) {
if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
eligibleAdvisors.add(candidate);
}
}
boolean hasIntroductions = !eligibleAdvisors.isEmpty();
for (Advisor candidate : candidateAdvisors) {
if (candidate instanceof IntroductionAdvisor) {
// IntroductionAdvisor这种增强已经处理
continue;
}//对普通bean的处理
if (canApply(candidate, clazz, hasIntroductions)) {
eligibleAdvisors.add(candidate);
}
}
return eligibleAdvisors;
}
public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) {
if (advisor instanceof IntroductionAdvisor) {
return ((IntroductionAdvisor) advisor).getClassFilter().matches(targetClass);
}
else if (advisor instanceof PointcutAdvisor) {
PointcutAdvisor pca = (PointcutAdvisor) advisor;//是这个类型
//走到这里
return canApply(pca.getPointcut(), targetClass, hasIntroductions);
}
else {
// It doesn't have a pointcut so we assume it applies.
return true;
}
}
当前我们判断UserService是否适用于此增强方法。当前的advisor就是BeanFactoryTransactionAttributeSourceAdvisor实例。pca.getPointcut()返回TransactionAttributeSourcePointcut实例。
public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
if (!pc.getClassFilter().matches(targetClass)) {
return false;
}
MethodMatcher methodMatcher = pc.getMethodMatcher();//返回自身this
if (methodMatcher == MethodMatcher.TRUE) {
return true;
}
IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
if (methodMatcher instanceof IntroductionAwareMethodMatcher) {
introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;
}
Set<Class<?>> classes = new LinkedHashSet<Class<?>>(ClassUtils.getAllInterfacesForClassAsSet(targetClass));
classes.add(targetClass);
for (Class<?> clazz : classes) {
Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
for (Method method : methods) {
if ((introductionAwareMethodMatcher != null &&
introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions)) ||
methodMatcher.matches(method, targetClass)) {
return true;
}
}
}
return false;
}
#TransactionAttributeSourcePointcut
public boolean matches(Method method, Class<?> targetClass) {
if (TransactionalProxy.class.isAssignableFrom(targetClass)) {
return false;
}
TransactionAttributeSource tas = getTransactionAttributeSource();
return (tas == null || tas.getTransactionAttribute(method, targetClass) != null);
}
//提取事务标签
protected TransactionAttribute computeTransactionAttribute(Method method, Class<?> targetClass) {
if (allowPublicMethodsOnly() && !Modifier.isPublic(method.getModifiers())) {
return null;
}
Class<?> userClass = ClassUtils.getUserClass(targetClass);
//代表接口中方法 //specificMethod代表实现类方法
Method specificMethod = ClassUtils.getMostSpecificMethod(method, userClass);
//
specificMethod = BridgeMethodResolver.findBridgedMethod(specificMethod);
// 查看方法中是否存在事务申明
TransactionAttribute txAttr = findTransactionAttribute(specificMethod);
if (txAttr != null) {
return txAttr;
}
// 查看方法所在类中是否存在事务申明
txAttr = findTransactionAttribute(specificMethod.getDeclaringClass());
if (txAttr != null && ClassUtils.isUserLevelMethod(method)) {
return txAttr;
}
//到接口中找
if (specificMethod != method) {
// 查找接口方法
txAttr = findTransactionAttribute(method);
if (txAttr != null) {
return txAttr;
}
// 到接口中的类去找
txAttr = findTransactionAttribute(method.getDeclaringClass());
if (txAttr != null && ClassUtils.isUserLevelMethod(method)) {
return txAttr;
}
}
return null;
}
#SpringTransactionAnnotationParser
public TransactionAttribute parseTransactionAnnotation(AnnotatedElement ae) {
AnnotationAttributes attributes = AnnotatedElementUtils.getMergedAnnotationAttributes(ae, Transactional.class);
if (attributes != null) {
return parseTransactionAnnotation(attributes);
}
else {
return null;
}
}
protected TransactionAttribute parseTransactionAnnotation(AnnotationAttributes attributes) {
RuleBasedTransactionAttribute rbta = new RuleBasedTransactionAttribute();
Propagation propagation = attributes.getEnum("propagation");
rbta.setPropagationBehavior(propagation.value());
Isolation isolation = attributes.getEnum("isolation");
rbta.setIsolationLevel(isolation.value());
rbta.setTimeout(attributes.getNumber("timeout").intValue());
rbta.setReadOnly(attributes.getBoolean("readOnly"));
rbta.setQualifier(attributes.getString("value"));
ArrayList<RollbackRuleAttribute> rollBackRules = new ArrayList<RollbackRuleAttribute>();
Class<?>[] rbf = attributes.getClassArray("rollbackFor");
for (Class<?> rbRule : rbf) {
RollbackRuleAttribute rule = new RollbackRuleAttribute(rbRule);
rollBackRules.add(rule);
}
String[] rbfc = attributes.getStringArray("rollbackForClassName");
for (String rbRule : rbfc) {
RollbackRuleAttribute rule = new RollbackRuleAttribute(rbRule);
rollBackRules.add(rule);
}
Class<?>[] nrbf = attributes.getClassArray("noRollbackFor");
for (Class<?> rbRule : nrbf) {
NoRollbackRuleAttribute rule = new NoRollbackRuleAttribute(rbRule);
rollBackRules.add(rule);
}
String[] nrbfc = attributes.getStringArray("noRollbackForClassName");
for (String rbRule : nrbfc) {
NoRollbackRuleAttribute rule = new NoRollbackRuleAttribute(rbRule);
rollBackRules.add(rule);
}
rbta.getRollbackRules().addAll(rollBackRules);
return rbta;
}
终于，我们看到了获取注解标记的代码。首先会判断是否有Transactianal注解。 事务增强器
TransactionInterceptor 支持整个事务架构。那么它是如何实现事务特性的呢。
public Object invoke(final MethodInvocation invocation) throws Throwable {
Class<?> targetClass = invocation.getThis() != null?AopUtils.getTargetClass(invocation.getThis()):null;
return this.invokeWithinTransaction(invocation.getMethod(), targetClass, new InvocationCallback() {
public Object proceedWithInvocation() throws Throwable {
return invocation.proceed();
}
});
}
protected Object invokeWithinTransaction(Method method, Class<?> targetClass, final TransactionAspectSupport.InvocationCallback invocation) throws Throwable {
//获取对应事务属性
final TransactionAttribute txAttr = this.getTransactionAttributeSource().getTransactionAttribute(method, targetClass);
//获取TransactionManager
final PlatformTransactionManager tm = this.determineTransactionManager(txAttr);
//构建一个方法的ID。(类.方法 如 service.UserServiceImpl.save)
final String joinpointIdentification = this.methodIdentification(method, targetClass);
//
if(txAttr != null && tm instanceof CallbackPreferringPlatformTransactionManager) {
try {//编程式事务处理
Object result = ((CallbackPreferringPlatformTransactionManager)tm).execute(txAttr, new TransactionCallback<Object>() {
public Object doInTransaction(TransactionStatus status) {
TransactionAspectSupport.TransactionInfo txInfo = TransactionAspectSupport.this.prepareTransactionInfo(tm, txAttr, joinpointIdentification, status);
TransactionAspectSupport.ThrowableHolder var4;
try {
Object var3 = invocation.proceedWithInvocation();
return var3;
} catch (Throwable var8) {
if(txAttr.rollbackOn(var8)) {
if(var8 instanceof RuntimeException) {
throw (RuntimeException)var8;
}
throw new TransactionAspectSupport.ThrowableHolderException(var8);
}
var4 = new TransactionAspectSupport.ThrowableHolder(var8);
} finally {
TransactionAspectSupport.this.cleanupTransactionInfo(txInfo);
}
return var4;
}
});
if(result instanceof TransactionAspectSupport.ThrowableHolder) {
throw ((TransactionAspectSupport.ThrowableHolder)result).getThrowable();
} else {
return result;
}
} catch (TransactionAspectSupport.ThrowableHolderException var14) {
throw var14.getCause();
}
} else {//创建TransactionInfo
TransactionAspectSupport.TransactionInfo txInfo = this.createTransactionIfNecessary(tm, txAttr, joinpointIdentification);
Object retVal = null;
try {//执行被增强方法
retVal = invocation.proceedWithInvocation();
} catch (Throwable var15) {
//异常回滚
this.completeTransactionAfterThrowing(txInfo, var15);
throw var15;
} finally {
//清除消息
this.cleanupTransactionInfo(txInfo);
}
//提交事务
this.commitTransactionAfterReturning(txInfo);
return retVal;
}
}
-
创建事务 protected TransactionInfo createTransactionIfNecessary( PlatformTransactionManager tm, TransactionAttribute txAttr, final String joinpointIdentification) { if(txAttr != null && ((TransactionAttribute)txAttr).getName() == null) { //封装一下txAttr,目的提供更多功能 txAttr = new DelegatingTransactionAttribute((TransactionAttribute)txAttr) { public String getName() { return joinpointIdentification; } }; } TransactionStatus status = null; if(txAttr != null) { if(tm != null) {//获取事务 status = tm.getTransaction((TransactionDefinition)txAttr); } else if(this.logger.isDebugEnabled()) { } } //根据指定的属性与status准备一个TransactionInfo return this.prepareTransactionInfo(tm, txAttr, joinpointIdentification, status); } //事务获取和信息的构建 public final TransactionStatus getTransaction(TransactionDefinition definition) throws TransactionException { Object transaction = this.doGetTransaction(); boolean debugEnabled = this.logger.isDebugEnabled(); if(definition == null) { definition = new DefaultTransactionDefinition(); } //判断当前线程是否存在事务。(依据是：当前线程记录的连接不为空且连接中的transactionActive不为空) if(this.isExistingTransaction(transaction)) { //当前线程存在事务 return this.handleExistingTransaction((TransactionDefinition)definition, transaction, debugEnabled); //事务超时设置验证 } else if(((TransactionDefinition)definition).getTimeout() < -1) { throw new InvalidTimeoutException("Invalid transaction timeout", ((TransactionDefinition)definition).getTimeout()); //当前线程不存在事务 } else if(((TransactionDefinition)definition).getPropagationBehavior() == 2) { throw new IllegalTransactionStateException("No existing transaction found for transaction marked with propagation 'mandatory'"); } else if(((TransactionDefinition)definition).getPropagationBehavior() != 0 && ((TransactionDefinition)definition).getPropagationBehavior() != 3 && ((TransactionDefinition)definition).getPropagationBehavior() != 6) { if(((TransactionDefinition)definition).getIsolationLevel() != -1 && this.logger.isWarnEnabled()) { this.logger.warn("Custom isolation level specified but no actual transaction initiated; isolation level will effectively be ignored: " + definition); }
boolean newSynchronization = this.getTransactionSynchronization() == 0; return this.prepareTransactionStatus((TransactionDefinition)definition, (Object)null, true, newSynchronization, debugEnabled, (Object)null); } else {//空挂起 AbstractPlatformTransactionManager.SuspendedResourcesHolder suspendedResources = this.suspend((Object)null); try { boolean newSynchronization = this.getTransactionSynchronization() != 2; //构建DefaultTransactionStatus DefaultTransactionStatus status = this.newTransactionStatus(definition, transaction, true, newSynchronization, debugEnabled, suspendedResources); //构造transaction，包括设置connectionHolder、隔离级别、timeout //如果是新连接，绑定到当前线程 this.doBegin(transaction, (TransactionDefinition)definition); //新同步事务的设置，针对当前线程的设置 this.prepareSynchronization(status, (TransactionDefinition)definition); return status; } catch (RuntimeException var7) { } catch (Error var8) { } } }获取事务 protected Object doGetTransaction() { DataSourceTransactionManager.DataSourceTransactionObject txObject = new DataSourceTransactionManager.DataSourceTransactionObject(); //保存点设置。是否允许保存点取决于是否设置允许嵌入式事务 txObject.setSavepointAllowed(this.isNestedTransactionAllowed()); //若当前线程已经记录数据库连接则使用原有连接 ConnectionHolder conHolder = (ConnectionHolder)TransactionSynchronizationManager.getResource(this.dataSource); //false表示非新创建连接 txObject.setConnectionHolder(conHolder, false); return txObject; }
-
//构建事务 protected void doBegin(Object transaction, TransactionDefinition definition) { DataSourceTransactionManager.DataSourceTransactionObject txObject = (DataSourceTransactionManager.DataSourceTransactionObject)transaction; Connection con = null; try { if(txObject.getConnectionHolder() == null || txObject.getConnectionHolder().isSynchronizedWithTransaction()) { Connection newCon = this.dataSource.getConnection(); txObject.setConnectionHolder(new ConnectionHolder(newCon), true); } txObject.getConnectionHolder().setSynchronizedWithTransaction(true); con = txObject.getConnectionHolder().getConnection(); //设置隔离级别 Integer previousIsolationLevel = DataSourceUtils.prepareConnectionForTransaction(con, definition); txObject.setPreviousIsolationLevel(previousIsolationLevel); //更改自动提交设置，由Spring控制提交 if(con.getAutoCommit()) { txObject.setMustRestoreAutoCommit(true); con.setAutoCommit(false); } //设置标志位。标示当前连接已经被事务激活 txObject.getConnectionHolder().setTransactionActive(true); int timeout = this.determineTimeout(definition); if(timeout != -1) { txObject.getConnectionHolder().setTimeoutInSeconds(timeout); } if(txObject.isNewConnectionHolder()) { //将当前获取到的连接绑定到当前线程 TransactionSynchronizationManager.bindResource(this.getDataSource(), txObject.getConnectionHolder()); } } catch (Throwable var7) { if(txObject.isNewConnectionHolder()) { DataSourceUtils.releaseConnection(con, this.dataSource); txObject.setConnectionHolder((ConnectionHolder)null, false); } throw new CannotCreateTransactionException("Could not open JDBC Connection for transaction", var7); } }
-
-
处理已经存在的事务 上面是普通事务建立的过程，但Spring中支持多种事务传播规则，这些是在已经存在的事务的基础上进行进一步的处理。
private TransactionStatus handleExistingTransaction(TransactionDefinition definition, Object transaction, boolean debugEnabled) throws TransactionException { if(definition.getPropagationBehavior() == 5) { throw new IllegalTransactionStateException("Existing transaction found for transaction marked with propagation 'never'"); } else { AbstractPlatformTransactionManager.SuspendedResourcesHolder suspendedResources; boolean newSynchronization; if(definition.getPropagationBehavior() == 4) { if(debugEnabled) { this.logger.debug("Suspending current transaction"); }
suspendedResources = this.suspend(transaction); newSynchronization = this.getTransactionSynchronization() == 0; return this.prepareTransactionStatus(definition, (Object)null, false, newSynchronization, debugEnabled, suspendedResources); } else if(definition.getPropagationBehavior() == 3) { if(debugEnabled) { this.logger.debug("Suspending current transaction, creating new transaction with name [" + definition.getName() + "]"); } // 新事务的建立 suspendedResources = this.suspend(transaction); try { newSynchronization = this.getTransactionSynchronization() != 2; DefaultTransactionStatus status = this.newTransactionStatus(definition, transaction, true, newSynchronization, debugEnabled, suspendedResources); this.doBegin(transaction, definition); this.prepareSynchronization(status, definition); return status; } catch (RuntimeException var7) { this.resumeAfterBeginException(transaction, suspendedResources, var7); throw var7; } catch (Error var8) { this.resumeAfterBeginException(transaction, suspendedResources, var8); throw var8; } } else { boolean newSynchronization; //嵌入式事务的处理 if(definition.getPropagationBehavior() == 6) { if(!this.isNestedTransactionAllowed()) { throw new NestedTransactionNotSupportedException("Transaction manager does not allow nested transactions by default - specify 'nestedTransactionAllowed' property with value 'true'"); } else { if(debugEnabled) { this.logger.debug("Creating nested transaction with name [" + definition.getName() + "]"); } if(this.useSavepointForNestedTransaction()) { //如果没有可以使用保存点的方式控制事务回滚，那么在嵌入事务的建立初始建立保存点 DefaultTransactionStatus status = this.prepareTransactionStatus(definition, transaction, false, false, debugEnabled, (Object)null); status.createAndHoldSavepoint(); return status; } else { newSynchronization = this.getTransactionSynchronization() != 2; DefaultTransactionStatus status = this.newTransactionStatus(definition, transaction, true, newSynchronization, debugEnabled, (Object)null); this.doBegin(transaction, definition); this.prepareSynchronization(status, definition); return status; } } } else { if(debugEnabled) { this.logger.debug("Participating in existing transaction"); } if(this.isValidateExistingTransaction()) { if(definition.getIsolationLevel() != -1) { Integer currentIsolationLevel = TransactionSynchronizationManager.getCurrentTransactionIsolationLevel(); if(currentIsolationLevel == null || currentIsolationLevel.intValue() != definition.getIsolationLevel()) { Constants isoConstants = DefaultTransactionDefinition.constants; throw new IllegalTransactionStateException("Participating transaction with definition [" + definition + "] specifies isolation level which is incompatible with existing transaction: " + (currentIsolationLevel != null?isoConstants.toCode(currentIsolationLevel, "ISOLATION_"):"(unknown)")); } } if(!definition.isReadOnly() && TransactionSynchronizationManager.isCurrentTransactionReadOnly()) { throw new IllegalTransactionStateException("Participating transaction with definition [" + definition + "] is not marked as read-only but existing transaction is"); } } newSynchronization = this.getTransactionSynchronization() != 2; return this.prepareTransactionStatus(definition, transaction, false, newSynchronization, debugEnabled, (Object)null); } } } }
当事务方法被另一个事务方法调用时，必须指定事务应该如何传播。例如：方法可能继续在现有事务中运行，也可能开启一个新事务，并在自己的事务中运行。在TransactionDefinition定义中包括了如下几个表示传播行为的常量。
1。TransactionDefinition.PROPAGATION_REQUIRES_NEW： 创建一个新的事务，如果当前存在事务，则把当前事务挂起
2。TransactionDefinition.PROPAGATION_NESTED： 如果当前存在事务，则创建一个事务作为当前事务的嵌套事务来运行
- 准备事务信息 当已经建立事务连接并完成了事务信息的提取后，会将所有事务信息统一记录在TransactionInfo类型的实例中。它包含目标开始前的所有状态信息，一旦事务执行失败，Spring会通过TransactionInfo类型的实例信息来进行回滚等后续工作。
