h5 上经常会有这样的需求:

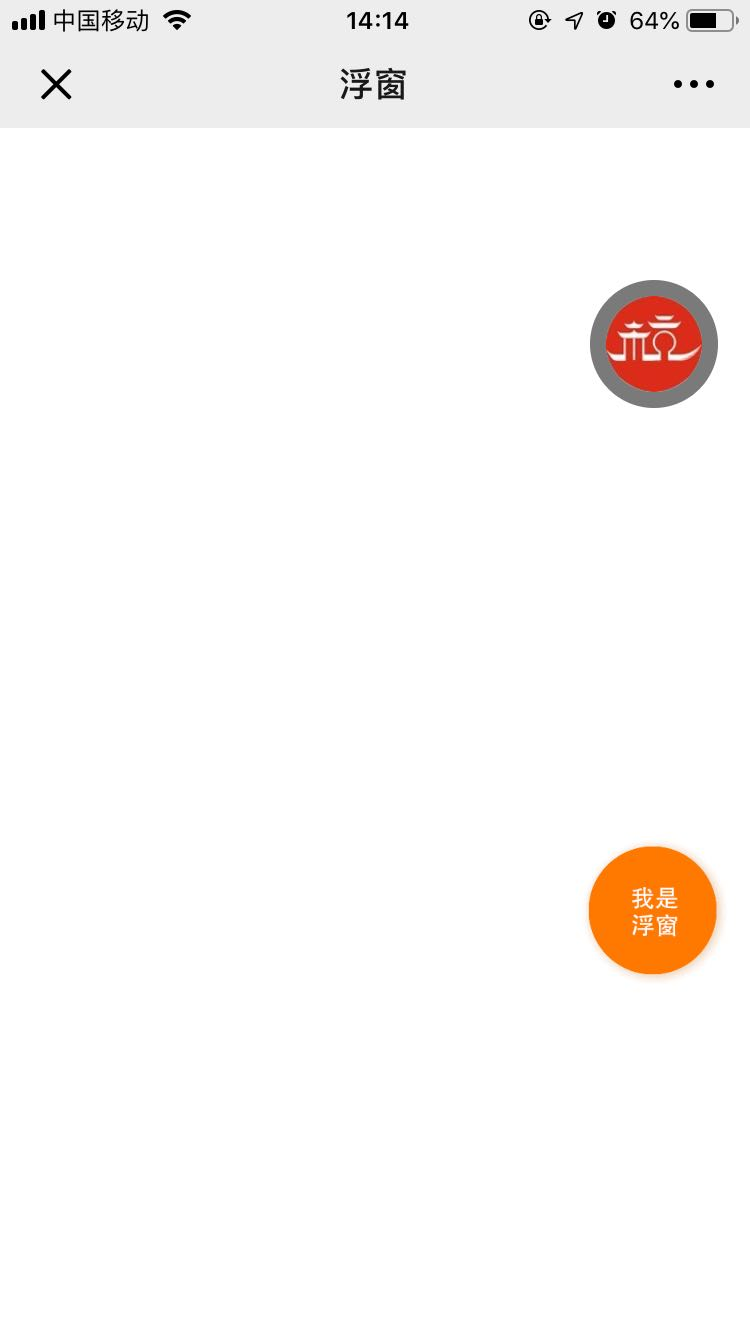

需要在页面上加上一个悬浮图标,大致是如下图的最终实现

但是往往按照设计稿是不会遮住主体区域的,但是实际上有时候偏偏会遮挡主体区域,但是为了更好的点击量,又不得不悬浮在页面上...
如果能让图标可拖拽移动,这样在遮住主体区域之后,用户可自由移动,这种方案及可以兼顾了。
在线测试地址:codepen.io/1782457225/…
(PS:请切换至移动端访问,如果是PC端的话,需要修改成PC对应的拖拽的方法)

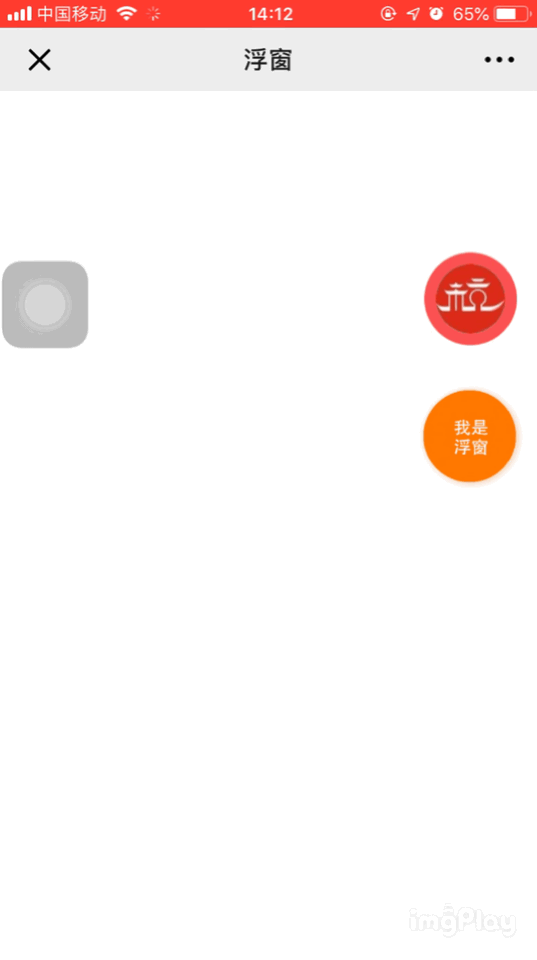

实现的效果如下:
(和微信的浮窗效果类似,左右位置靠边显示,上下位置随意放)


话不多说,上代码了
<div class="ys-float-btn"
:style="{'width': itemWidth+'px','height': itemHeight+'px','left': left+'px','top': top+'px'}"
ref="div"
@touchstart.prevent="(e) => {dragStart(e)}"
@touchend.prevent="(e) => {dragEnd(e)}"
@touchmove.prevent="(e) => {dragProgress(e)}"
>
<img src="./../assets/fc-icon.png" />
</div>css 部分:
.ys-float-btn {
color: #666;
z-index: 2000;
transition: all 0.3s;
position: fixed;
bottom: 20vw;
width: 120px;
white-space: nowrap;
}
// 代码直接在 vue 项目里,可自行改为js/jquery 写法
data () {
return {
clientWidth: 0,
clientHeight: 0,
left: 0,
top: 0,
gapWidth: 10,
itemWidth: 20, // 图标的宽度
itemHeight: 30 // 图标的高度
}
},
created() {
this.clientWidth = document.documentElement.clientWidth;
this.clientHeight = document.documentElement.clientHeight;
this.left = this.clientWidth - this.itemWidth - this.gapWidth;
this.top = this.clientHeight*0.8;
},
methods: {
dragStart(e) {
this.$refs.div.style.transition = 'none';
},
dragEnd(e) {
this.$refs.div.style.transition = 'all 0.3s';
if (this.left > this.clientWidth/2) {
this.left = this.clientWidth - this.itemWidth - this.gapWidth;
} else {
this.left = this.gapWidth;
}
},
dragProgress(e) {
if (e.targetTouches.length === 1) {
let touch = event.targetTouches[0];
this.left = touch.clientX - this.itemWidth/2;
this.top = touch.clientY - this.itemHeight/2;
}
}
}以上代码既可以上下也可以左右移动,如果只想让可上下移动,就去掉 left 相关的设置和计算。
