注解的定义及解析

注解是代码里的特殊标记，这些标记可以在编译、类加载、运行时被读取，并执行相应的处理。本章的内容主要介绍注解的种类、如何自定义以及如何解析自定义注解。

1. 注解的定义

我们熟知的Retrofit就是以注解的形式提供接口的注册的，这里拿我们最常使用的@GET注解来进行说明：

import static java.lang.annotation.ElementType.METHOD;
import static java.lang.annotation.RetentionPolicy.RUNTIME;

@Documented
@Target(METHOD)
@Retention(RUNTIME)
public @interface GET {
  String value() default "";
}

这个注解可以分为两个部分：

1. 第一部分就是用来注解@GET注解的注解，这些注解称之为元注解

2. 第二部分就是@GET注解的结构定义了

元注解有以下几种：

• @Inherited

  注解可以被继承

• @Documented

  注解可以被JavaDoc工具记录

• @Repeatable

  JDK 8 新增，允许一个注解在同一声明类型上多次使用

• @Retention

  注解的保留策略

  取值是一个RetentionPolicy枚举类型，分别表示不同级别的保留策略，而根据保留策略的不同，处理该注解的方式也不相同

• SOURCE

  源码级，注解信息只会保留到源代码中，编译器会在编译时丢弃调注解信息，因此不会保留到.class文件中

• CLASS

  编译时注解，默认值，注解信息会一直保留到.class文件阶段，但不会保存到运行时阶段。所以，需要在编译时通过注解处理器处理。

• RUNTIME

  运行时注解，注解信息在class文件阶段以及运行时阶段都会保留，因此可以通过反射获取注解信息。

• @Target

  注解可以修饰的范围

  取值是一个ElementType枚举类型的数组，有以下枚举值可取：

• TYPE

  修饰类、接口（包括注解类型）、枚举类型

• FIELD

  修饰成员变量（包括枚举常量）

• METHOD

  修饰方法

• PARAMETER

  修饰参数

• CONSTRUCTOR

  修饰构造器

• LOCAL_VARIABLE

  修饰局部变量

• ANNOTATION_TYPE

  修饰注解类型

• PACKAGE

  修饰包

• TYPE_PARAMETER

  Type parameter declaration，1.8新增

• TYPE_USE

  Use of a type，1.8新增

自定义注解类型使用@interface关键字，这和定义一个接口非常像。注解只有成员变量，没有方法，注解的成员变量在注解定义中以“无形参的方法”形式来声明，其“方法名”定义了该成员变量的名字，其返回值定义了该成员变量的类型。成员变量可以使用default关键词指定默认值。

因此，开头的Retrofit中@GET注解的含义为：可以被JavaDoc工具记录的修饰方法的运行时注解，该注解接受一个参数String类型的value，默认值为""。

2. 注解的处理

在上面我们知道了，@Retention注解可以设定自定义注解的保留策略，这3个策略的生命周期长度为SOURCE＜CLASS＜RUNTIME。生命周期短的能起作用的地方，生命周期长的一定也能起作用。

一般如果需要在运行时去动态获取注解信息，那只能用RetentionPolicy.RUNTIME；如果要在编译时进行一些预处理操作，比如生成一些辅助代码，就用RetentionPolicy.CLASS；如果只是做一些检查性的操作，比如@Override和@SuppressWarnings，则可选用RetentionPolicy.SOURCE。

当设定为RetentionPolicy.RUNTIME时，这个注解就是运行时注解。同样地，设定为RetentionPolicy.CLASS，这个注解就是编译时注解。

如果没有处理注解的工具，那么注解也不会有什么大的作用。对于不同的注解有不同的注解处理器。针对运行时注解会采用反射机制处理，针对编译时注解会采用注解处理器AbstractProcessor来处理。

2.1 运行时注解的处理

运行时注解由于注解信息在运行时也会保留，所以一般会采用反射机制进行处理。

@GET注解的处理过程在Refrofit的ServiceMethod.java中，每一个ServiceMethod都对应一个网络请求的接口，在我们首次调用网络请求的时候会创建该对象。我们看看其建造者中相关代码：

  static final class Builder<T, R> {
    final Retrofit retrofit;
    final Method method;
    final Annotation[] methodAnnotations;
    ...

    Builder(Retrofit retrofit, Method method) {
      this.retrofit = retrofit;
      this.method = method;
      this.methodAnnotations = method.getAnnotations();
      ...
    }

    public ServiceMethod build() {
      ...
      for (Annotation annotation : methodAnnotations) {
        parseMethodAnnotation(annotation);
      }
      ...
    }

    private void parseMethodAnnotation(Annotation annotation) {
      if (annotation instanceof DELETE) {
        parseHttpMethodAndPath("DELETE", ((DELETE) annotation).value(), false);
      } else if (annotation instanceof GET) {
        parseHttpMethodAndPath("GET", ((GET) annotation).value(), false);
      }
      ...
    }
  }

这里通过Method.getAnnotations()反射方法获取了该方法的所有注解，然后遍历注解，找到自定义的@GET注解，最后调用@GET注解的value获得设置的值。

2.2 编译时注解的处理

编译时注解由于注解信息只保存到.class文件阶段，所以一般会在编译时进行处理。处理的结果一般是生成一个辅助文件参与后续编译。

通常，设计编译时注解处理器需要以下几步

1. 定义注解
2. 编写注解处理器
3. 注册注解处理器
4. 应用注解

在第2步中，通常需要通过注解生成辅助文件参与后续编译，所以涉及到生成辅助文件的类库。生成辅助文件的类库根据生成文件类型的不同，分为com.squareup:javapoet和com.squareup:kotlinpoet。

2.2.1 自定义注解

新建一个Java Library的Module，命名为annotations。然后自定义一个注解：

RuntimePermissions.java

@Retention(RetentionPolicy.CLASS)
@Target(ElementType.TYPE)
public @interface RuntimePermissions {
    String[] permissions();
}

2.2.2 编写注解处理器¶

新建一个Java Library的Module，命名为processor。同时，让该模块依赖annotations模块：

processor/build.gradle

implementation project(':annotations')

接下来编写注解处理器，自定义的注解处理器需要继承AbstractProcessor，并实现4个方法：

PermissionProcessor.kt

class PermissionProcessor : AbstractProcessor() {
    private lateinit var filer: Filer
    private lateinit var elementUtils: Elements
    private lateinit var typeUtils: Types
    private lateinit var messager: Messager

    override fun init(processingEnv: ProcessingEnvironment) {
        super.init(processingEnv)

        filer = processingEnv.filer
        elementUtils = processingEnv.elementUtils
        typeUtils = processingEnv.typeUtils
        messager = processingEnv.messager
    }

    override fun getSupportedAnnotationTypes(): MutableSet<String> {
        return hashSetOf(RuntimePermissions::class.java.canonicalName)
    }

    override fun getSupportedSourceVersion(): SourceVersion? {
        return SourceVersion.latestSupported()
    }

    override fun process(annotations: MutableSet<out TypeElement>, roundEnv: RoundEnvironment): Boolean {
        messager.printMessage(Diagnostic.Kind.WARNING, ">>> process begin")
        roundEnv.getElementsAnnotatedWith(RuntimePermissions::class.java)
            .filter { it.kind == ElementKind.CLASS }
            .forEach {
                messager.printMessage(
                    Diagnostic.Kind.WARNING,
                    "printMessage: $it, value=${it.getAnnotation(RuntimePermissions::class.java).permissions}")
            }
        messager.printMessage(Diagnostic.Kind.WARNING, ">>> process end")
        return true
    }
}

上面的代码就是一个非常简单但完整的注解处理器了，这四个方法的作用如下：

• init

  初始化方法，在这里我们初始化一些工具类，比如Filer、Elements、Types、Messager等

• getSupportedAnnotationTypes

  指定注解处理器可以哪些注解

• getSupportedSourceVersion

  用来指定你使用的Java版本，通常这里返回SourceVersion.latestSupported()

• process

  处理器开始处理注解的方法，在这里写扫描、评估和处理注解的代码，以及生成辅助文件。

在Java 7 以后，也可以使用注解来代替getSupportedAnnotationTypes方法和getSupportedSourceVersion方法，如下所示：

@SupportedSourceVersion(SourceVersion.RELEASE_8)
@SupportedAnnotationTypes("xyz.yorek.annotations.RuntimePermissions")
class PermissionProcessor : AbstractProcessor() {
    private lateinit var filer: Filer
    private lateinit var elementUtils: Elements
    private lateinit var typeUtils: Types
    private lateinit var messager: Messager

    override fun init(processingEnv: ProcessingEnvironment) {
        super.init(processingEnv)

        filer = processingEnv.filer
        elementUtils = processingEnv.elementUtils
        typeUtils = processingEnv.typeUtils
        messager = processingEnv.messager
    }

    override fun process(annotations: MutableSet<out TypeElement>, roundEnv: RoundEnvironment): Boolean {
        ...
        return true
    }
}

在上面我们提到了四个工具类：Filer、Elements、Types、Messager，它们都有独特的作用：

• Elements：一个用来处理Element的工具类，Element就是代表源码中的句子，可以理解为DOM树的形式。通过Element.getEnclosingElement()可以获得父元素，通过Element.getEnclosedElements()可以遍历子元素。

Element元素实例如下：

package com.example;    // PackageElement

public class Foo {      // TypeElement

    private int a;      // VariableElement
    private Foo other;  // VariableElement

    public Foo () {}    // ExecuteableElement

    public void setA (  // ExecuteableElement
              int newA  // VariableElement
    ) {}
}

• Types：一个用来处理TypeMirror的工具类，可以通过TypeMirror获取类的相关信息；调用Element.asType()方法可以获得TypeMirror

• Filer：正如这个名字所示，使用Filer你可以创建辅助文件

• Messager: 提供给注解处理器一个报告错误、警告以及提示信息的途径。它不是日志工具，而是展示给注解处理器使用者的。

回到我们的示例注解处理器中，现在我们知道了自定义处理器是干什么的了。

1. 首先，该注解处理器会处理RuntimePermissions注解，支持最新的Java版本
2. 在处理注解时（process方法），首先会获取所有RuntimePermissions注解修饰的Element，这里面可能是类、方法、变量等。所以我们需要过滤掉所有不符合的Element，只留下类的Element。
3. 最后，调用Messager打印出注解修饰的类的类名以及注解的值。

这个自定义注解器非常简单，复杂一点的就需要生成辅助文件了。根据辅助文件的格式的不同（.kt或.java），可以使用两个不同的类库com.squareup:javapoet和com.squareup:kotlinpoet。

2.2.3 注册注解处理器¶

接下来我们需要在processor库的main目录下面，新建一个resources/目录，在该目录下继续创建META-INF/services/目录，最后在META-INF/services/文件夹中创建javax.annotation.processing.Processor文件，内容就是自定义注解处理器的全名：

META-INF/services/javax.annotation.processing.Processor

xyz.yorek.processor.PermissionProcessor

这些步骤可以对应如下shell（在processor模块根目录下执行）：

mkdir -p src/main/resources/META-INF/services/
echo xyz.yorek.processor.PermissionProcessor > src/main/resources/META-INF/services/javax.annotation.processing.Processor

如果嫌麻烦，可以使用Google开源的AutoService来完成。首先在processor库中添加如下依赖：

...
apply plugin: 'kotlin-kapt'

dependencies {
    ...
    implementation 'com.google.auto.service:auto-service:1.0-rc6'
    kapt "com.google.auto.service:auto-service:1.0-rc6"
}

在PermissionProcessor类上添加@AutoService(Processor::class)即可，这样AutoService会自动为我们生成注册文件：

@AutoService(Processor::class)
class PermissionProcessor : AbstractProcessor() {
    ...
}

2.2.4 应用注解¶

回到app模块中，因为我们需要使用注解以及注解处理器，所以先配置一下build.gradle：

app/build.gradle

...
apply plugin: 'kotlin-kapt'
...
dependencies {
    ...
    implementation project(':annotations')
    kapt project(':processor')
}

然后在MainActivity.java上配置一下我们的自定义注解：

@RuntimePermissions(permissions = ["Hello", "World"])
class MainActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
    }
}

配置完毕后，clean后make一下，就能看到在注解器中配置的信息了。如下面第47行所示：

Executing tasks: [:processor:assemble, :processor:testClasses, :app:assembleDebug]


> Task :annotations:compileJava
warning: [options] bootstrap class path not set in conjunction with -source 1.7
1 warning

> Task :processor:kaptGenerateStubsKotlin
> Task :processor:kaptKotlin
> Task :processor:compileKotlin
> Task :processor:compileJava NO-SOURCE
> Task :processor:processResources
> Task :processor:classes
> Task :processor:inspectClassesForKotlinIC
> Task :processor:jar
> Task :processor:assemble
> Task :processor:kaptGenerateStubsTestKotlin NO-SOURCE

> Task :processor:kaptTestKotlin
Annotation processors discovery from compile classpath is deprecated.
Set 'kapt.includeCompileClasspath = false' to disable discovery.
Run the build with '--info' for more details.

> Task :processor:compileTestKotlin NO-SOURCE
> Task :processor:compileTestJava NO-SOURCE
> Task :processor:processTestResources NO-SOURCE
> Task :processor:testClasses UP-TO-DATE
> Task :annotations:processResources NO-SOURCE
> Task :annotations:classes
> Task :annotations:jar
> Task :app:preBuild UP-TO-DATE
> Task :app:preDebugBuild UP-TO-DATE
> Task :app:compileDebugAidl NO-SOURCE
> Task :app:compileDebugRenderscript NO-SOURCE
> Task :app:checkDebugManifest UP-TO-DATE
> Task :app:generateDebugBuildConfig UP-TO-DATE
> Task :app:mainApkListPersistenceDebug
> Task :app:generateDebugResValues
> Task :app:generateDebugResources
> Task :app:mergeDebugResources
> Task :app:createDebugCompatibleScreenManifests
> Task :app:processDebugManifest
> Task :app:processDebugResources
> Task :app:kaptGenerateStubsDebugKotlin

> Task :app:kaptDebugKotlin
w: warning: >>> process begin
w: warning: printMessage: xyz.yorek.component.MainActivity, value=[Ljava.lang.String;@2a0c97c4
w: warning: >>> process end
w: warning: >>> process begin
w: warning: >>> process end

> Task :app:compileDebugKotlin
> Task :app:prepareLintJar UP-TO-DATE
> Task :app:generateDebugSources UP-TO-DATE
> Task :app:javaPreCompileDebug
> Task :app:compileDebugJavaWithJavac
> Task :app:compileDebugSources
> Task :app:mergeDebugShaders
> Task :app:compileDebugShaders
> Task :app:generateDebugAssets
> Task :app:mergeDebugAssets
> Task :app:checkDebugDuplicateClasses
> Task :app:transformClassesWithDexBuilderForDebug
> Task :app:validateSigningDebug
> Task :app:mergeExtDexDebug
> Task :app:mergeDexDebug
> Task :app:signingConfigWriterDebug
> Task :app:mergeDebugJniLibFolders
> Task :app:transformNativeLibsWithMergeJniLibsForDebug
> Task :app:transformNativeLibsWithStripDebugSymbolForDebug
> Task :app:processDebugJavaRes NO-SOURCE
> Task :app:transformResourcesWithMergeJavaResForDebug
> Task :app:packageDebug
> Task :app:assembleDebug

Deprecated Gradle features were used in this build, making it incompatible with Gradle 6.0.
Use '--warning-mode all' to show the individual deprecation warnings.
See https://docs.gradle.org/5.1.1/userguide/command_line_interface.html#sec:command_line_warnings

BUILD SUCCESSFUL in 8s
38 actionable tasks: 34 executed, 4 up-to-date

PermissionDispatcher源码解析

PermissionDispatcher是一个基于注解的动态权限请求框架。其主要工作原理就是在编译时获取指定注解的内容，然后生成辅助文件参与编译。

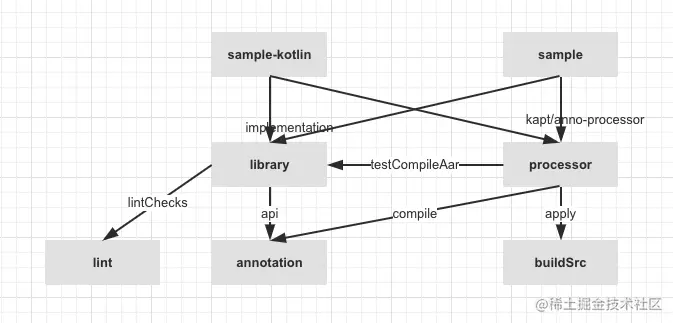

下面首先介绍一下PermissionDispatcher的模块关系图，以及各个模块的作用：

1. sample模块

MainActivity.kt in samplekotlin

package permissions.dispatcher.samplekotlin

import android.Manifest
import android.os.Bundle
import android.widget.Button
import android.widget.Toast
import androidx.annotation.StringRes
import androidx.appcompat.app.AlertDialog
import androidx.appcompat.app.AppCompatActivity
import permissions.dispatcher.*
import permissions.dispatcher.samplekotlin.camera.CameraPreviewFragment
import permissions.dispatcher.samplekotlin.contacts.ContactsFragment

@RuntimePermissions
class MainActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
        val buttonCamera: Button = findViewById(R.id.button_camera)
        buttonCamera.setOnClickListener {
            showCameraWithPermissionCheck()
        }
        val buttonContacts: Button = findViewById(R.id.button_contacts)
        buttonContacts.setOnClickListener {
            showContactsWithPermissionCheck()
        }
    }

    override fun onRequestPermissionsResult(requestCode: Int, permissions: Array<String>, grantResults: IntArray) {
        super.onRequestPermissionsResult(requestCode, permissions, grantResults)
        // NOTE: delegate the permission handling to generated method
        onRequestPermissionsResult(requestCode, grantResults)
    }

    @NeedsPermission(Manifest.permission.CAMERA)
    fun showCamera() {
        // NOTE: Perform action that requires the permission. If this is run by PermissionsDispatcher, the permission will have been granted
        supportFragmentManager.beginTransaction()
                .replace(R.id.sample_content_fragment, CameraPreviewFragment.newInstance())
                .addToBackStack("camera")
                .commitAllowingStateLoss()
    }

    @OnPermissionDenied(Manifest.permission.CAMERA)
    fun onCameraDenied() {
        // NOTE: Deal with a denied permission, e.g. by showing specific UI
        // or disabling certain functionality
        Toast.makeText(this, R.string.permission_camera_denied, Toast.LENGTH_SHORT).show()
    }

    @OnShowRationale(Manifest.permission.CAMERA)
    fun showRationaleForCamera(request: PermissionRequest) {
        // NOTE: Show a rationale to explain why the permission is needed, e.g. with a dialog.
        // Call proceed() or cancel() on the provided PermissionRequest to continue or abort
        showRationaleDialog(R.string.permission_camera_rationale, request)
    }

    @OnNeverAskAgain(Manifest.permission.CAMERA)
    fun onCameraNeverAskAgain() {
        Toast.makeText(this, R.string.permission_camera_never_ask_again, Toast.LENGTH_SHORT).show()
    }

    @NeedsPermission(Manifest.permission.READ_CONTACTS, Manifest.permission.WRITE_CONTACTS)
    fun showContacts() {
        // NOTE: Perform action that requires the permission.
        // If this is run by PermissionsDispatcher, the permission will have been granted
        supportFragmentManager.beginTransaction()
                .replace(R.id.sample_content_fragment, ContactsFragment.newInstance())
                .addToBackStack("contacts")
                .commitAllowingStateLoss()
    }

    @OnPermissionDenied(Manifest.permission.READ_CONTACTS, Manifest.permission.WRITE_CONTACTS)
    fun onContactsDenied() {
        // NOTE: Deal with a denied permission, e.g. by showing specific UI
        // or disabling certain functionality
        Toast.makeText(this, R.string.permission_contacts_denied, Toast.LENGTH_SHORT).show()
    }

    @OnShowRationale(Manifest.permission.READ_CONTACTS, Manifest.permission.WRITE_CONTACTS)
    fun showRationaleForContacts(request: PermissionRequest) {
        // NOTE: Show a rationale to explain why the permission is needed, e.g. with a dialog.
        // Call proceed() or cancel() on the provided PermissionRequest to continue or abort
        showRationaleDialog(R.string.permission_contacts_rationale, request)
    }

    @OnNeverAskAgain(Manifest.permission.READ_CONTACTS, Manifest.permission.WRITE_CONTACTS)
    fun onContactsNeverAskAgain() {
        Toast.makeText(this, R.string.permission_contacts_never_ask_again, Toast.LENGTH_SHORT).show()
    }

    private fun showRationaleDialog(@StringRes messageResId: Int, request: PermissionRequest) {
        AlertDialog.Builder(this)
                .setPositiveButton(R.string.button_allow) { _, _ -> request.proceed() }
                .setNegativeButton(R.string.button_deny) { _, _ -> request.cancel() }
                .setCancelable(false)
                .setMessage(messageResId)
                .show()
    }
}

kt辅助文件

// This file was generated by PermissionsDispatcher. Do not modify!
@file:JvmName("MainActivityPermissionsDispatcher")

package permissions.dispatcher.samplekotlin

import androidx.core.app.ActivityCompat
import java.lang.ref.WeakReference
import kotlin.Array
import kotlin.Int
import kotlin.IntArray
import kotlin.String
import permissions.dispatcher.PermissionRequest
import permissions.dispatcher.PermissionUtils

private const val REQUEST_SHOWCAMERA: Int = 0

private val PERMISSION_SHOWCAMERA: Array<String> = arrayOf("android.permission.CAMERA")

private const val REQUEST_SHOWCONTACTS: Int = 1

private val PERMISSION_SHOWCONTACTS: Array<String> = arrayOf("android.permission.READ_CONTACTS",
    "android.permission.WRITE_CONTACTS")

fun MainActivity.showCameraWithPermissionCheck() {
  if (PermissionUtils.hasSelfPermissions(this, *PERMISSION_SHOWCAMERA)) {
    showCamera()
  } else {
    if (PermissionUtils.shouldShowRequestPermissionRationale(this, *PERMISSION_SHOWCAMERA)) {
      showRationaleForCamera(MainActivityShowCameraPermissionRequest(this))
    } else {
      ActivityCompat.requestPermissions(this, PERMISSION_SHOWCAMERA, REQUEST_SHOWCAMERA)
    }
  }
}

fun MainActivity.showContactsWithPermissionCheck() {
  if (PermissionUtils.hasSelfPermissions(this, *PERMISSION_SHOWCONTACTS)) {
    showContacts()
  } else {
    if (PermissionUtils.shouldShowRequestPermissionRationale(this, *PERMISSION_SHOWCONTACTS)) {
      showRationaleForContacts(MainActivityShowContactsPermissionRequest(this))
    } else {
      ActivityCompat.requestPermissions(this, PERMISSION_SHOWCONTACTS, REQUEST_SHOWCONTACTS)
    }
  }
}

fun MainActivity.onRequestPermissionsResult(requestCode: Int, grantResults: IntArray) {
  when (requestCode) {
    REQUEST_SHOWCAMERA ->
     {
      if (PermissionUtils.verifyPermissions(*grantResults)) {
        showCamera()
      } else {
        if (!PermissionUtils.shouldShowRequestPermissionRationale(this, *PERMISSION_SHOWCAMERA)) {
          onCameraNeverAskAgain()
        } else {
          onCameraDenied()
        }
      }
    }
    REQUEST_SHOWCONTACTS ->
     {
      if (PermissionUtils.verifyPermissions(*grantResults)) {
        showContacts()
      } else {
        if (!PermissionUtils.shouldShowRequestPermissionRationale(this, *PERMISSION_SHOWCONTACTS)) {
          onContactsNeverAskAgain()
        } else {
          onContactsDenied()
        }
      }
    }
  }
}

private class MainActivityShowCameraPermissionRequest(
  target: MainActivity
) : PermissionRequest {
  private val weakTarget: WeakReference<MainActivity> = WeakReference(target)

  override fun proceed() {
    val target = weakTarget.get() ?: return
    ActivityCompat.requestPermissions(target, PERMISSION_SHOWCAMERA, REQUEST_SHOWCAMERA)
  }

  override fun cancel() {
    val target = weakTarget.get() ?: return
    target.onCameraDenied()
  }
}

private class MainActivityShowContactsPermissionRequest(
  target: MainActivity
) : PermissionRequest {
  private val weakTarget: WeakReference<MainActivity> = WeakReference(target)

  override fun proceed() {
    val target = weakTarget.get() ?: return
    ActivityCompat.requestPermissions(target, PERMISSION_SHOWCONTACTS, REQUEST_SHOWCONTACTS)
  }

  override fun cancel() {
    val target = weakTarget.get() ?: return
    target.onContactsDenied()
  }
}

MainActivity.kt in sample

package permissions.dispatcher.sample

import android.Manifest
import android.os.Bundle
import android.widget.Button
import android.widget.Toast
import androidx.annotation.StringRes
import androidx.appcompat.app.AlertDialog
import androidx.appcompat.app.AppCompatActivity
import permissions.dispatcher.*
import permissions.dispatcher.sample.camera.CameraPreviewFragment
import permissions.dispatcher.sample.contacts.ContactsFragment

@RuntimePermissions
class MainActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
        val buttonCamera: Button = findViewById(R.id.button_camera)
        buttonCamera.setOnClickListener {
            showCameraWithPermissionCheck()
        }
        val buttonContacts: Button = findViewById(R.id.button_contacts)
        buttonContacts.setOnClickListener {
            showContactsWithPermissionCheck()
        }
    }

    override fun onRequestPermissionsResult(requestCode: Int, permissions: Array<String>, grantResults: IntArray) {
        super.onRequestPermissionsResult(requestCode, permissions, grantResults)
        // NOTE: delegate the permission handling to generated method
        onRequestPermissionsResult(requestCode, grantResults)
    }

    @NeedsPermission(Manifest.permission.CAMERA)
    fun showCamera() {
        // NOTE: Perform action that requires the permission. If this is run by PermissionsDispatcher, the permission will have been granted
        supportFragmentManager.beginTransaction()
                .replace(R.id.sample_content_fragment, CameraPreviewFragment.newInstance())
                .addToBackStack("camera")
                .commitAllowingStateLoss()
    }

    @OnPermissionDenied(Manifest.permission.CAMERA)
    fun onCameraDenied() {
        // NOTE: Deal with a denied permission, e.g. by showing specific UI
        // or disabling certain functionality
        Toast.makeText(this, R.string.permission_camera_denied, Toast.LENGTH_SHORT).show()
    }

    @OnShowRationale(Manifest.permission.CAMERA)
    fun showRationaleForCamera(request: PermissionRequest) {
        // NOTE: Show a rationale to explain why the permission is needed, e.g. with a dialog.
        // Call proceed() or cancel() on the provided PermissionRequest to continue or abort
        showRationaleDialog(R.string.permission_camera_rationale, request)
    }

    @OnNeverAskAgain(Manifest.permission.CAMERA)
    fun onCameraNeverAskAgain() {
        Toast.makeText(this, R.string.permission_camera_never_ask_again, Toast.LENGTH_SHORT).show()
    }

    @NeedsPermission(Manifest.permission.READ_CONTACTS, Manifest.permission.WRITE_CONTACTS)
    fun showContacts() {
        // NOTE: Perform action that requires the permission.
        // If this is run by PermissionsDispatcher, the permission will have been granted
        supportFragmentManager.beginTransaction()
                .replace(R.id.sample_content_fragment, ContactsFragment.newInstance())
                .addToBackStack("contacts")
                .commitAllowingStateLoss()
    }

    @OnPermissionDenied(Manifest.permission.READ_CONTACTS, Manifest.permission.WRITE_CONTACTS)
    fun onContactsDenied() {
        // NOTE: Deal with a denied permission, e.g. by showing specific UI
        // or disabling certain functionality
        Toast.makeText(this, R.string.permission_contacts_denied, Toast.LENGTH_SHORT).show()
    }

    @OnShowRationale(Manifest.permission.READ_CONTACTS, Manifest.permission.WRITE_CONTACTS)
    fun showRationaleForContacts(request: PermissionRequest) {
        // NOTE: Show a rationale to explain why the permission is needed, e.g. with a dialog.
        // Call proceed() or cancel() on the provided PermissionRequest to continue or abort
        showRationaleDialog(R.string.permission_contacts_rationale, request)
    }

    @OnNeverAskAgain(Manifest.permission.READ_CONTACTS, Manifest.permission.WRITE_CONTACTS)
    fun onContactsNeverAskAgain() {
        Toast.makeText(this, R.string.permission_contacts_never_ask_again, Toast.LENGTH_SHORT).show()
    }

    private fun showRationaleDialog(@StringRes messageResId: Int, request: PermissionRequest) {
        AlertDialog.Builder(this)
                .setPositiveButton(R.string.button_allow) { _, _ -> request.proceed() }
                .setNegativeButton(R.string.button_deny) { _, _ -> request.cancel() }
                .setCancelable(false)
                .setMessage(messageResId)
                .show()
    }
}

kt辅助文件

// This file was generated by PermissionsDispatcher. Do not modify!
@file:JvmName("MainActivityPermissionsDispatcher")

package permissions.dispatcher.sample

import androidx.core.app.ActivityCompat
import java.lang.ref.WeakReference
import kotlin.Array
import kotlin.Int
import kotlin.IntArray
import kotlin.String
import permissions.dispatcher.PermissionRequest
import permissions.dispatcher.PermissionUtils

private const val REQUEST_SHOWCAMERA: Int = 0

private val PERMISSION_SHOWCAMERA: Array<String> = arrayOf("android.permission.CAMERA")

private const val REQUEST_SHOWCONTACTS: Int = 1

private val PERMISSION_SHOWCONTACTS: Array<String> = arrayOf("android.permission.READ_CONTACTS",
    "android.permission.WRITE_CONTACTS")

fun MainActivity.showCameraWithPermissionCheck() {
  if (PermissionUtils.hasSelfPermissions(this, *PERMISSION_SHOWCAMERA)) {
    showCamera()
  } else {
    if (PermissionUtils.shouldShowRequestPermissionRationale(this, *PERMISSION_SHOWCAMERA)) {
      showRationaleForCamera(MainActivityShowCameraPermissionRequest(this))
    } else {
      ActivityCompat.requestPermissions(this, PERMISSION_SHOWCAMERA, REQUEST_SHOWCAMERA)
    }
  }
}

fun MainActivity.showContactsWithPermissionCheck() {
  if (PermissionUtils.hasSelfPermissions(this, *PERMISSION_SHOWCONTACTS)) {
    showContacts()
  } else {
    if (PermissionUtils.shouldShowRequestPermissionRationale(this, *PERMISSION_SHOWCONTACTS)) {
      showRationaleForContacts(MainActivityShowContactsPermissionRequest(this))
    } else {
      ActivityCompat.requestPermissions(this, PERMISSION_SHOWCONTACTS, REQUEST_SHOWCONTACTS)
    }
  }
}

fun MainActivity.onRequestPermissionsResult(requestCode: Int, grantResults: IntArray) {
  when (requestCode) {
    REQUEST_SHOWCAMERA ->
     {
      if (PermissionUtils.verifyPermissions(*grantResults)) {
        showCamera()
      } else {
        if (!PermissionUtils.shouldShowRequestPermissionRationale(this, *PERMISSION_SHOWCAMERA)) {
          onCameraNeverAskAgain()
        } else {
          onCameraDenied()
        }
      }
    }
    REQUEST_SHOWCONTACTS ->
     {
      if (PermissionUtils.verifyPermissions(*grantResults)) {
        showContacts()
      } else {
        if (!PermissionUtils.shouldShowRequestPermissionRationale(this, *PERMISSION_SHOWCONTACTS)) {
          onContactsNeverAskAgain()
        } else {
          onContactsDenied()
        }
      }
    }
  }
}

private class MainActivityShowCameraPermissionRequest(
  target: MainActivity
) : PermissionRequest {
  private val weakTarget: WeakReference<MainActivity> = WeakReference(target)

  override fun proceed() {
    val target = weakTarget.get() ?: return
    ActivityCompat.requestPermissions(target, PERMISSION_SHOWCAMERA, REQUEST_SHOWCAMERA)
  }

  override fun cancel() {
    val target = weakTarget.get() ?: return
    target.onCameraDenied()
  }
}

private class MainActivityShowContactsPermissionRequest(
  target: MainActivity
) : PermissionRequest {
  private val weakTarget: WeakReference<MainActivity> = WeakReference(target)

  override fun proceed() {
    val target = weakTarget.get() ?: return
    ActivityCompat.requestPermissions(target, PERMISSION_SHOWCONTACTS, REQUEST_SHOWCONTACTS)
  }

  override fun cancel() {
    val target = weakTarget.get() ?: return
    target.onContactsDenied()
  }
}

2. library模块

library模块仅有一个PermissionUtils工具类，在生成的辅助文件中使用。该类有如下方法：

1. boolean verifyPermissions(int... grantResults)

   检查这些权限是否都是PERMISSION_GRANTED状态；所有权限都是该状态，才会返回true

2. boolean hasSelfPermissions(Context context, String... permissions)

   检查是否已经拥有了要申请的这些权限；所有权限都拥有了，才会返回true

3. boolean shouldShowRequestPermissionRationale(Activity activity, String... permissions)

   boolean shouldShowRequestPermissionRationale(Fragment fragment, String... permissions)

   检查是否应该弹出权限说明框；只要有一个权限需要弹出说明框，就会返回true

3. annotation模块

annotation模块里面有5个注解

除了上面的几个注解外，还有一个与@OnShowRationale注解搭配使用的PermissionRequest接口，该接口有两个方法，分别用来进行权限的继续申请或者取消：

PermissionRequest.java

/**
 * Interface used by {@link OnShowRationale} methods to allow for continuation
 * or cancellation of a permission request.
 */
public interface PermissionRequest {
    void proceed();

    void cancel();
}

用法在示例中有展示，根据权限提示框上对应的按钮，需要触发对应的方法。示例代码粘贴如下：

@OnShowRationale(Manifest.permission.CAMERA)
fun showRationaleForCamera(request: PermissionRequest) {
    // NOTE: Show a rationale to explain why the permission is needed, e.g. with a dialog.
    // Call proceed() or cancel() on the provided PermissionRequest to continue or abort
    showRationaleDialog(R.string.permission_camera_rationale, request)
}

@OnShowRationale(Manifest.permission.READ_CONTACTS, Manifest.permission.WRITE_CONTACTS)
fun showRationaleForContacts(request: PermissionRequest) {
    // NOTE: Show a rationale to explain why the permission is needed, e.g. with a dialog.
    // Call proceed() or cancel() on the provided PermissionRequest to continue or abort
    showRationaleDialog(R.string.permission_contacts_rationale, request)
}

private fun showRationaleDialog(@StringRes messageResId: Int, request: PermissionRequest) {
    AlertDialog.Builder(this)
            .setPositiveButton(R.string.button_allow) { _, _ -> request.proceed() }
            .setNegativeButton(R.string.button_deny) { _, _ -> request.cancel() }
            .setCancelable(false)
            .setMessage(messageResId)
            .show()
}

4. processor模块

接着就是最重要的processor模块了，这是一个注解处理器模块，用途就是在编辑时生成辅助文件，辅助文件参与后续的编译过程。

要了解一个注解处理器的作用是什么，我们先要通过注册文件找到它，注册文件的目录是固定的：

src/main/resources/META-INF/services/javax.annotation.processing.Processor

permissions.dispatcher.processor.PermissionsProcessor

显然，processor模块的注解处理器代码就是PermissionsProcessor.kt，这就是本节的要点了。

同时，我们注意到resources/META-INF/目录下还有一个gradle目录，下面也有一个文件：

src/main/resources/META-INF/gradle/incremental.annotation.processors

permissions.dispatcher.processor.PermissionsProcessor,isolating

这是配置给Gradle的，目的是开启Gradle增量编译.

首先看看PermissionsProcessor除了process外的其他方法：

/** Element Utilities, obtained from the processing environment */
var ELEMENT_UTILS: Elements by Delegates.notNull()
/** Type Utilities, obtained from the processing environment */
var TYPE_UTILS: Types by Delegates.notNull()

class PermissionsProcessor : AbstractProcessor() {

    /* Processing Environment helpers */
    private var filer: Filer by Delegates.notNull()

    override fun init(processingEnv: ProcessingEnvironment) {
        super.init(processingEnv)
        filer = processingEnv.filer
        ELEMENT_UTILS = processingEnv.elementUtils
        TYPE_UTILS = processingEnv.typeUtils
    }

    override fun getSupportedSourceVersion(): SourceVersion? {
        return SourceVersion.latestSupported()
    }

    override fun getSupportedAnnotationTypes(): Set<String> {
        return hashSetOf(RuntimePermissions::class.java.canonicalName)
    }

    override fun process(annotations: Set<TypeElement>, roundEnv: RoundEnvironment): Boolean {
        ...
        return true
    }
}

这三个方法都是非常标准的写法，在getSupportedAnnotationTypes方法中表明了该注解处理器只处理@RuntimePermissions注解。这是因为，@RuntimePermissions注解修饰的是一个类，其他四种类型的注解都分布在该类里面，这些注解可以通过Elements来获取，就和DOM树一样。

接下来就是process方法了。在该方法中的步骤如下：

1. 首先创建了一个用于自增请求码的RequestCodeProvider对象；

2. 然后获取所有注解了@RuntimePermissions的Element，并将这些Element包装成为一个RuntimePermissionsElement对象；

3. 最后根据Element是否有@Metadata注解来判断源文件是Java编写还是Kotlin编写，进而调用相应的方法生成相应格式的辅助文件。

override fun process(annotations: Set<TypeElement>, roundEnv: RoundEnvironment): Boolean {
    // Create a RequestCodeProvider which guarantees unique request codes for each permission request
    val requestCodeProvider = RequestCodeProvider()

    // The Set of annotated elements needs to be ordered
    // in order to achieve Deterministic, Reproducible Builds
    roundEnv.getElementsAnnotatedWith(RuntimePermissions::class.java)
            .sortedBy { it.simpleName.toString() }
            .forEach {
                val rpe = RuntimePermissionsElement(it as TypeElement)
                val kotlinMetadata = it.getAnnotation(Metadata::class.java)
                if (kotlinMetadata != null) {
                    processKotlin(it, rpe, requestCodeProvider)
                } else {
                    processJava(it, rpe, requestCodeProvider)
                }
            }
    return true
}

下面依次说说process方法三个步骤中的要点。 RequestCodeProvider实现就是靠AtomicInteger.andIncrement方法，非常简单：

class RequestCodeProvider {
    private val currentCode = AtomicInteger(0)

    fun nextRequestCode(): Int = currentCode.andIncrement
}

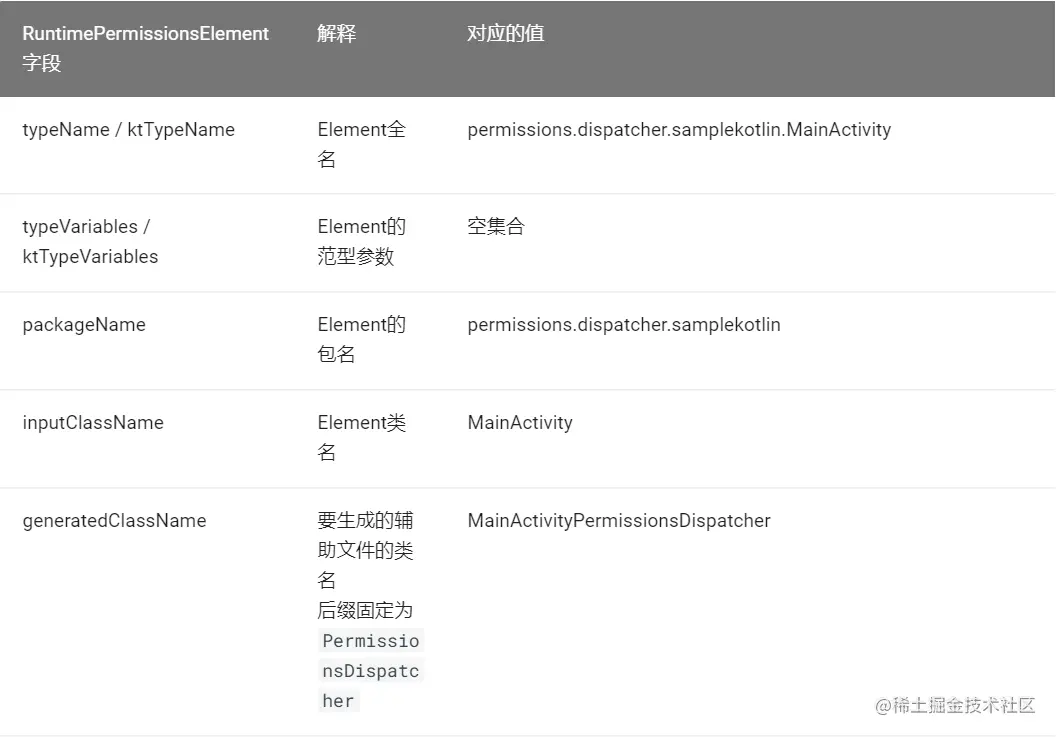

至于RuntimePermissionsElement，则是TypeElement对象的包装类，而TypeElement对象就是我们在注解的Activity、Fragment类了。RuntimePermissionsElement的作用就是解析Element的各种值、保存Element里面四种注解的子Element，另外还有针对四种注解注解的子Element的检查。代码如下：

class RuntimePermissionsElement(val element: TypeElement) {
    val typeName: TypeName = TypeName.get(element.asType())
    val ktTypeName = element.asType().asTypeName()
    val typeVariables = element.typeParameters.map { TypeVariableName.get(it) }
    val ktTypeVariables = element.typeParameters.map { it.asTypeVariableName() }
    val packageName = element.packageName()
    val inputClassName = element.simpleString()
    val generatedClassName = inputClassName + GEN_CLASS_SUFFIX
    val needsElements = element.childElementsAnnotatedWith(NeedsPermission::class.java)
    private val onRationaleElements = element.childElementsAnnotatedWith(OnShowRationale::class.java)
    private val onDeniedElements = element.childElementsAnnotatedWith(OnPermissionDenied::class.java)
    private val onNeverAskElements = element.childElementsAnnotatedWith(OnNeverAskAgain::class.java)

    init {
        validateNeedsMethods()
        validateRationaleMethods()
        validateDeniedMethods()
        validateNeverAskMethods()
    }
    ...
}

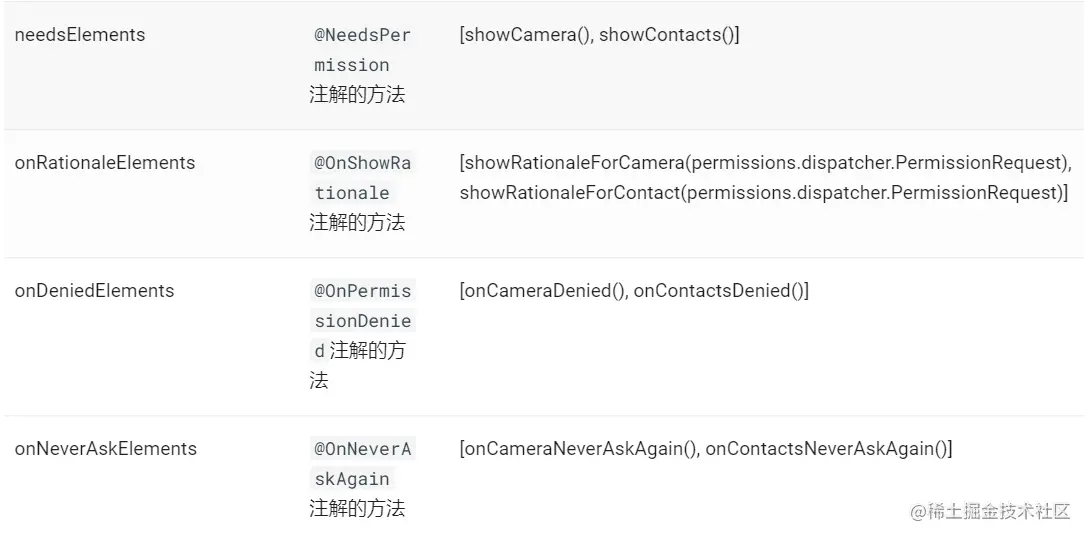

注意最前面4个属性，以“kt”开头的是给Kotlin使用的，否则是给Java使用的；而且两者也是使用对应的的poet库文件获取的。但实际上，两者的值都是一致的，没有什么区别。且有一些字段调用的方法是kotlin扩展方法，需要注意一下。 下表是以示例中的MainActivity为例子，给出的RuntimePermissionsElement中各个字段的解释以及值。

最后就是对每一个需要产生辅助文件的Element进行处理了。这里首先会通过it.getAnnotation(Metadata::class.java)获取Metadata，该注解是Kotlin文件特有的注解，所有的kotlin文件在经过kotlin编译器之后都会带上该注解。所以我们可以通过Element是否有该注解来确定是否是Kotlin文件。 如果是kotlin文件，则调用processKotlin方法，否则调用processJava方法。两个方法以及相关的代码如下所示：

private fun processKotlin(element: Element, rpe: RuntimePermissionsElement, requestCodeProvider: RequestCodeProvider) {
    val processorUnit = findAndValidateProcessorUnit(kotlinProcessorUnits, element)
    val kotlinFile = processorUnit.createFile(rpe, requestCodeProvider)
    kotlinFile.writeTo(filer)
}

private fun processJava(element: Element, rpe: RuntimePermissionsElement, requestCodeProvider: RequestCodeProvider) {
    val processorUnit = findAndValidateProcessorUnit(javaProcessorUnits, element)
    val javaFile = processorUnit.createFile(rpe, requestCodeProvider)
    javaFile.writeTo(filer)
}

val javaProcessorUnits = listOf(JavaActivityProcessorUnit(), JavaFragmentProcessorUnit(), JavaConductorProcessorUnit())
val kotlinProcessorUnits = listOf(KotlinActivityProcessorUnit(), KotlinFragmentProcessorUnit(), KotlinConductorProcessorUnit())

fun <K> findAndValidateProcessorUnit(units: List<ProcessorUnit<K>>, element: Element): ProcessorUnit<K> {
    val type = element.asType()
    try {
        return units.first { type.isSubtypeOf(it.getTargetType()) }
    } catch (ex: NoSuchElementException) {
        throw WrongClassException(type)
    }
}

很显然，在processKotlin/processJava方法中，首先从kotlinProcessorUnits/javaProcessorUnits中找到能处理Element的处理器，然后调用处理器生成辅助文件，最后通过Filer写入到磁盘中。这就是上面代码干的事情。

如何找到能够处理Element的处理器，这里涉及到了TypeMirror，通过TypeMirror就可以判断两个Element之间的关系。KotlinActivityProcessorUnit、KotlinBaseProcessorUnit可以处理的TypeMirror类型如下：

fun typeMirrorOf(className: String): TypeMirror = ELEMENT_UTILS.getTypeElement(className).asType()

class KotlinActivityProcessorUnit : KotlinBaseProcessorUnit() {
    override fun getTargetType(): TypeMirror = typeMirrorOf("android.app.Activity")
    ...
}

class KotlinFragmentProcessorUnit : KotlinBaseProcessorUnit() {
    override fun getTargetType(): TypeMirror = typeMirrorOf("androidx.fragment.app.Fragment")
    ...
}

因此，我们实例中的MainActivity就会被KotlinActivityProcessorUnit和JavaActivityProcessorUnit所处理。而两者createFile方法的实现在各自的基类KotlinBaseProcessorUnit、JavaBaseProcessorUnit中。

下面简单说一下KotlinBaseProcessorUnit、JavaBaseProcessorUnit在创建辅助文件时的代码，过多的细节不做进一步说明。

KotlinBaseProcessorUnit.kt

override fun createFile(rpe: RuntimePermissionsElement, requestCodeProvider: RequestCodeProvider): FileSpec {
    return FileSpec.builder(rpe.packageName, rpe.generatedClassName)
            .addComment(FILE_COMMENT)
            .addAnnotation(createJvmNameAnnotation(rpe.generatedClassName))
            .addProperties(createProperties(rpe, requestCodeProvider))
            .addFunctions(createWithPermissionCheckFuns(rpe))
            .addFunctions(createOnShowRationaleCallbackFuns(rpe))
            .addFunctions(createPermissionHandlingFuns(rpe))
            .addTypes(createPermissionRequestClasses(rpe))
            .build()
}

第2行builder方法指定了文件将要生成在哪个包下，文件名是什么。

第3行则在生成的文件的第一行添加了一行注释。

第4行将会在辅助文件头中添加@file:JvmName("MainActivityPermissionsDispatcher") 注解，若没有该注解，则文件在编译后会加上“Kt”的后缀，Java代码调用时该类时需要注意。

第5行会为每一个@NeedsPermission请求方法生成一个对应的请求码以及权限数组，且如果请 求方法有参数，会生成额外的对象(GrantableRequest)或者字段来保存传入的值。

第6行为每个@NeedsPermission请求方法生成对应的处理方法。

第7行为每个无参数的@NeedsPermission请求方法生成对应的处理方法。

第8行生成权限请求回调方法。

第9行为每个请求生成一个PermissionRequest的实现类。

JavaBaseProcessorUnit.kt

final override fun createFile(rpe: RuntimePermissionsElement, requestCodeProvider: RequestCodeProvider): JavaFile {
    return JavaFile.builder(rpe.packageName, createTypeSpec(rpe, requestCodeProvider))
            .addFileComment(FILE_COMMENT)
            .build()
}

private fun createTypeSpec(rpe: RuntimePermissionsElement, requestCodeProvider: RequestCodeProvider): TypeSpec {
    return TypeSpec.classBuilder(rpe.generatedClassName)
            .addOriginatingElement(rpe.element) // for incremental annotation processing
            .addModifiers(Modifier.FINAL)
            .addFields(createFields(rpe, requestCodeProvider))
            .addMethod(createConstructor())
            .addMethods(createWithPermissionCheckMethods(rpe))
            .addMethods(createOnShowRationaleCallbackMethods(rpe))
            .addMethods(createPermissionHandlingMethods(rpe))
            .addTypes(createPermissionRequestClasses(rpe))
            .build()
}
