Iview组件库之tree

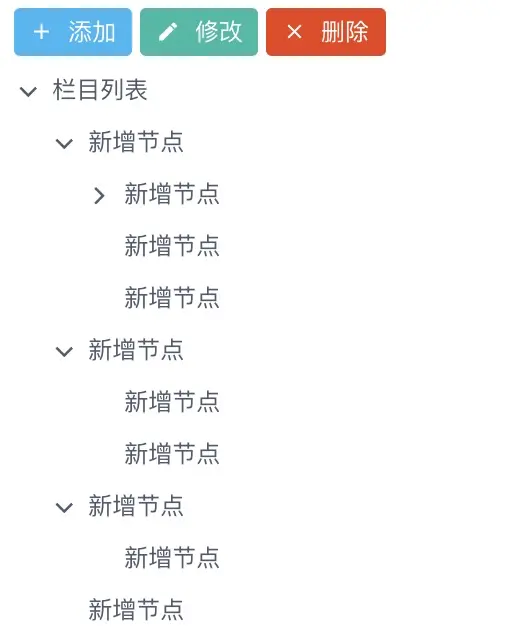

让我们看一下实现的效果
通过Iview组件库中的tree的on-select-change事件实现。 点击树节点时触发，可以返回当前已选中的节点数组、当前项
我们需要写两个组件
树组件
三个按钮，一个用来添加，一个用来修改，一个用来删除
<template>
<Card ref="cardTable">
<Button type="info" size="small" icon="md-add" @click="handleAdd(currentNode,currentRoot)">添加</Button>
<Button type="primary" size="small" icon="md-create" @click="handleEdit(currentNode,currentRoot)">修改</Button>
<Button type="error" size="small" icon="md-close" @click="handleDelete(currentNode,currentRoot)">删除</Button>
<tree :data="treeData" @on-select-change="handleSelectChange" ref="tree">
</tree>
<ColumnFormModal
:currentColumnParent="currentColumnParent"
:currentNodeKey="currentNodeKey"
:showModal="showModal"
:treeObj="treeObj"
@modal-visible-change="modalVisibleChange"
></ColumnFormModal>
</Card>
</template>
<script>
import ColumnFormModal from './ColumnFormModal'
export default {
name: 'Column',
components: {
ColumnFormModal
},
data () {
return {
// 用来给tree的data属性赋值
treeData: [],
// 用来接收后台传来的树List
treeList: null,
// 编辑模态框
showModal: false,
// 选中的当前node
currentNode: {},
// 选中的树的根节点
currentRoot: {},
// 树对象
treeObj: {},
// 当前选中节点的nodeKey
currentNodeKey: 0,
// 当前选中节点的父节点的nodeKey
currentColumnParent: 0
}
},
props: {},
computed: {},
methods: {
// 响应弹窗的变化
modalVisibleChange (visible) {
this.showModal = visible
// 递归查询树结构
this.initTreeList()
},
// 选中树节点触发的方法
handleSelectChange (root, node) {
this.currentNode = node
this.currentRoot = root
},
// 新增按钮触发的方法
handleAdd (currentNode) {
console.log(currentNode)
// 声明一个数组
let treeNode = currentNode.children ? currentNode.children : []
// console.log(treeNode)
// 声明一个对象
let column = {}
// 新增节点，新增的节点的名字是 ‘新增节点’
// 修改名字需要点击修改按钮
treeNode.push({
title: '新增节点',
parent: currentNode.id,
expend: true,
isEdit: false,
children: []
})
column.columnTitle = treeNode[treeNode.length - 1].title
column.columnParent = treeNode[treeNode.length - 1].parent
column.childColumn = []
column.nodeKey = currentNode.nodeKey
console.log(column)
this.saveOrUpdateColumn(column)
},
// 编辑按钮触发的方法
handleEdit (currentNode, currentRoot) {
this.showModal = true
this.treeObj = Object.assign({}, currentNode)
console.log(currentNode)
this.currentColumnParent = currentNode.columnParent
this.currentNodeKey = currentNode.nodeKey
console.log(this.currentColumnParent)
console.log(this.currentNodeKey)
},
// 删除按钮触发的方法
handleDelete (currentNode, currentRoot) {
let id = currentNode.id
this.deleteColumn(id)
this.initTreeList()
},
// 查询树结构
initTreeList () {
this.axios.request('GET', '接口').then(response => {
if (response.status === 200) {
this.treeList = response.data
this.getTree(this.treeList)
this.treeData = this.treeList
}
})
},
// 递归解析树结构
getTree (parents) {
if (parents === undefined) {
return
}
parents.forEach(item => {
item.title = item.columnTitle
item.children = item.childColumn
this.getTree(item.childColumn)
})
},
// 调用后台新增或者编辑的接口
// 参数是实体
saveOrUpdateColumn (column) {
this.axios.request('POST', '接口', column).then((response) => {
let status = response.status
if (status === 200) {
this.initTreeList()
} else {
// 提示错误
let errorMsg = '[' + response.errorCode + ']:' + response.errorMsg
this.$Notice.error({
title: '错误',
desc: errorMsg,
duration: 5
})
}
})
},
// 调用后台删除的接口
// 根据id删除
deleteColumn (id) {
this.axios.request('POST', '接口', {id}).then(response => {
let status = response.status
if (status === 200) {
this.initTreeList()
} else {
// 提示错误
let errorMsg = '[' + response.errorCode + ']:' + response.errorMsg
this.$Notice.error({
title: '错误',
desc: errorMsg,
duration: 5
})
}
})
}
},
watch: {
showModal (val) {
this.visible = val
},
visible (val) {
this.$emit('modal-visible-change', val)
}
},
created () {
// 查询树
this.initTreeList()
},
mounted () {
}
}
</script>
<style>
</style>
模态框
<template>
<div>
<Modal
v-model="visible"
title='编辑'
@on-visible-change="visibleChange"
:mask-closable="false">
<Form ref="form" :model="columnModal" :label-with="80">
<FormItem prop="columnTitle" label="栏目名称">
<Input v-model="columnModal.columnTitle"/>
</FormItem>
</Form>
<div slot="footer">
<Button @click="cancel" :disabled="requestLoading">取消</Button>
<Button type="primary" @click="submit" :loading="requestLoading">{{requestLoading ? '正在提交' : '提交'}}</Button>
</div>
</Modal>
</div>
</template>
<script>
import {mapGetters} from 'vuex'
export default {
name: 'ColumnFormModal',
components: {},
data () {
return {
visible: false,
columnModal: {}
}
},
props: {
showModal: {
type: Boolean,
required: true
},
processObj: {
type: Object,
required: false
},
currentNodeKey: {
type: Number | Object,
required: true
},
currentColumnParent: {
type: Number | Object,
required: true
}
},
computed: {
...mapGetters([
'requestLoading'
])
},
methods: {
// 响应显示与否
visibleChange (status) {
// 显示时初始化动作
if (status) {
} else {
// 关闭时抛出事件
this.$emit('modal-visible-change', false)
}
},
// 提交
submit () {
this.$refs['form'].validate((valid) => {
if (valid) {
this.columnModal.columnParent = this.currentColumnParent
this.columnModal.nodeKey = this.currentNodeKey
console.log(this.columnModal)
this.axios.request('POST', 'message/column/saveOrUpdateColumn', this.columnModal).then((response) => {
let status = response.status
if (status === 200) {
this.$Notice.success({
title: '栏目编辑' + '成功',
duration: 3
})
this.$emit('on-oper-success', this.columnModal)
} else {
// 提示错误
let errorMsg = '[' + response.errorCode + ']:' + response.errorMsg
this.$Notice.error({
title: '栏目编辑' + '失败',
desc: errorMsg,
duration: 5
})
}
}).finally(() => {
this.visible = false
})
}
})
},
cancel () {
this.visible = false
// 清空校验信息
this.$refs['form'].resetFields()
// 关闭时抛出事件
this.$emit('modal-visible-change', false)
}
},
watch: {
showModal (val) {
this.visible = val
this.columnModal = Object.assign({}, this.treeObj)
},
visible (val) {
this.$emit('modal-visible-change', val)
}
},
created () {},
mounted () {}
}
</script>
<style>
</style>
