基本思路，django编写页面，通过api调用获取kubernetes的部署情况，列出pod信息，然后根据pod信息埋点url，点击跳转到ssh docker的页面，通过嵌套 github.com/kubernetes-… 实现登录到docker。
具体代码片段
django model 设计：
from django.db import models
# Create your models here.
class K8sHost(models.Model):
k8s_api = models.CharField(max_length=64, verbose_name=u"k8s连接地址",unique=True,help_text="例如 https://10.255.56.250:6443")
k8s_api_token = models.TextField(verbose_name=u'k8s连接token',help_text="参考 apiserver token")
k8s_ws = models.CharField(max_length=64, verbose_name=u"k8s连接地址",unique=True,help_text="例如 ws://10.255.56.250:8080")
k8s_ws_token = models.CharField(max_length=255,verbose_name=u'k8s websoket连接token',help_text="参考 ws token")
k8s_name = models.CharField(max_length=255,verbose_name='k8s集群名称',default='default',help_text="给k8s起个名")
def __str__(self):
return self.k8s_name
class Meta:
verbose_name = "k8s配置"
verbose_name_plural = verbose_name
class K8sexec(K8sHost):
class Meta:
verbose_name = "k8s管理"
verbose_name_plural = verbose_name
proxy = TrueDjango view 设计：
from django.shortcuts import render,render_to_response
from django.contrib.auth.decorators import login_required
# Create your views here.
import json
from django.http import HttpResponse
from k8sapp.utils import K8sApi
from .models import K8sHost
def getnamespacelist(request):
if request.method == 'GET':
k8s_apiport = str(request.GET.get('k8s_apiport',None)).strip()
message = []
if k8s_apiport:
k8s_client = K8sApi(confid=int(k8s_apiport))
namespaces_list = k8s_client.get_namespacelist()
for item in namespaces_list.items:
message.append(item.metadata.name)
return HttpResponse (json.dumps({'message': message}, ensure_ascii=False),
content_type="application/json,charset=utf-8")
else:
return HttpResponse (json.dumps ({'message': "不允许POST请求"}, ensure_ascii=False),
content_type="application/json,charset=utf-8")
def getpodlist(request):
if request.method == "POST":
messages = ''
k8s_apiport = str(request.POST.get('k8s_apiport',None)).strip()
namespace = str(request.POST.get('k8s_namespaces',None)).strip()
if k8s_apiport and namespace:
k8s_client = K8sApi(confid=int(k8s_apiport))
pods_list = k8s_client.get_podlist(namespace=namespace)
for items in pods_list.items:
pod_name = items.metadata.name
pod_namespace = items.metadata.namespace
pod_creatime = items.metadata.creation_timestamp
host_ip = items.status.host_ip
pod_ip = items.status.pod_ip
messages += '''
<tr class="grid-item">
<td class="action-checkbox">
<a href="/k8sapp/connectpod?k8s_namespaces=%s&k8s_apiport=%s&k8s_pod=%s" target="_blank">
<img src="/static/icons/ssh.png"/></a>
</td><td>%s</td>
<td>%s</td>
<td>%s</td>
<td>%s</td>
<td>%s</td>
</tr>''' %(pod_namespace,k8s_apiport,pod_name,pod_name,pod_ip,host_ip,pod_namespace,pod_creatime)
return HttpResponse(json.dumps({'message': messages}, ensure_ascii=False),
content_type="application/json,charset=utf-8")
else:
return HttpResponse(json.dumps({'message': "不允许GET请求"}, ensure_ascii=False),
content_type="application/json,charset=utf-8")
@login_required()
def connectpod(request):
if request.method == "GET":
namespace = str(request.GET.get ('k8s_namespaces', None)).strip()
k8s_apiport = str(request.GET.get('k8s_apiport', None)).strip()
pod_name = str(request.GET.get ('k8s_pod', None)).strip()
token = str(K8sHost.objects.values ('k8s_ws_token').get(id=k8s_apiport)['k8s_ws_token']).strip()
k8s_url = K8sHost.objects.values('k8s_ws').get(id=k8s_apiport)['k8s_ws']
return render_to_response ('xtem_pod.html', {'status': 'ok', 'namespace': namespace, 'k8s_url': k8s_url,
'pod_name': pod_name,'token':token})
else:
return render_to_response ('xtem_pod.html', {'status': 'error'})
def podexec(request):
if request.method == "POST":
namespace = str(request.POST.get('k8s_namespaces', None)).strip()
k8s_apiport = str(request.POST.get('k8s_apiport', None)).strip()
pod_name = str(request.POST.get('k8s_pod',None)).strip()
command = str(request.POST.get('command', None)).strip ()
k8s_client = K8sApi(confid=int(k8s_apiport))
rest = k8s_client.get_pods_exec(podname=pod_name,namespace=namespace,command=command)
else:
rest = '不允许除POST之外的任何访问.'
return HttpResponse(json.dumps({'message': rest}, ensure_ascii=False),content_type="application/json,charset=utf-8")django k8s接口调用插件：
from kubernetes import client, config
from kubernetes.stream import stream
from .models import K8sHost
# Create a configuration object
class K8sApi:
def __init__(self,confid):
self.confid = confid
def get_client(self):
baseurl = K8sHost.objects.values('k8s_api').get(id=self.confid)['k8s_api']
token = str(K8sHost.objects.values('k8s_api_token').get(id=self.confid)['k8s_api_token']).strip()
aConfiguration = client.Configuration()
aConfiguration.host = baseurl
aConfiguration.verify_ssl = False
aConfiguration.api_key = {"authorization": "Bearer " + token}
aApiClient = client.ApiClient (aConfiguration)
v1 = client.CoreV1Api(aApiClient)
return v1
def get_podlist(self,namespace):
client_v1 = self.get_client()
ret_pod = client_v1.list_namespaced_pod(namespace=namespace)
return ret_pod
def get_namespacelist(self):
client_v1 = self.get_client()
ret_namespace = client_v1.list_namespace()
return ret_namespace
def test_pods_connect(self,podname,namespace,command,container=None):
client_v1 = self.get_client()
if stream(client_v1.connect_get_namespaced_pod_exec, podname, namespace, command=command,
container=container,
stderr=True, stdin=False,
stdout=True, tty=False):
return True
else:
return False
def get_pods_exec(self,podname,namespace,command,container=None):
client_v1 = self.get_client()
if container:
rest = stream(client_v1.connect_get_namespaced_pod_exec, podname, namespace, command=command,
container=container,
stderr=True, stdin=False,
stdout=True, tty=False)
else:
rest = stream(client_v1.connect_get_namespaced_pod_exec, podname, namespace, command=command,
stderr=True, stdin=False,
stdout=True, tty=False)
return rest容器连接页面设计：
<!doctype html>
<html class="no-js">
<head>
<meta charset="utf-8">
<title>{{ namespace }} - {{ pod_name }}</title>
<meta name="viewport" content="width=device-width">
<style>
* {
box-sizing: border-box;
}
body {
margin: 20px !important;
font-family: sans-serif;
}
label {
display: block !important;
}
label span {
float: left;
width: 100px;
margin-top: 2px;
}
label .form-control {
display: inline !important;
width: 300px;
}
body > div {
margin-top: 15px;
}
kubernetes-container-terminal {
}
</style>
<link rel="stylesheet" href="/static/customs/css/patternfly.css">
<link rel="stylesheet" href="/static/customs/css/xterm.css">
<link rel="stylesheet" href="/static/customs/css/container-terminal.css">
<link rel="stylesheet" href="/static/xadmin/vendor/bootstrap/css/bootstrap.min.css">
<script src="/static/vendor/jquery-1.8.3.min.js"></script>
<script src="/static/xadmin/vendor/bootstrap/js/bootstrap.min.js"></script>
<script src="/static/customs/js/angular.js"></script>
<script src="/static/customs/js/xterm.js"></script>
<script src="/static/customs/js/container-terminal.js"></script>
</head>
<body>
<div style="text-align:left">
<span class="alert-info" >命名空间
: {{ namespace }} 连接容器名: {{ pod_name }}</span>
</div>
<div ng-app="exampleApp" class="">
<kubernetes-container-terminal pod="selfLink" container="containerName" screen-keys="true"
autofocus="true" title="远程终端 {{ pod_name }} 命名空间为: {{ namespace }}" cols="110" rows="24" >
</kubernetes-container-terminal>
<script type="text/javascript">
angular.module('exampleApp', ['kubernetesUI'])
.config(function (kubernetesContainerSocketProvider) {
kubernetesContainerSocketProvider.WebSocketFactory = "CustomWebSockets";
})
.run(function ($rootScope) {
$rootScope.baseUrl = "{{ k8s_url }}";
$rootScope.selfLink = "/api/v1/namespaces/{{ namespace }}/pods/{{ pod_name }}";
$rootScope.containerName = "";
$rootScope.accessToken = "{{ token }}";
$rootScope.preventSocket = true;
})
/* Our custom WebSocket factory adapts the url */
.factory("CustomWebSockets", function ($rootScope) {
return function CustomWebSocket(url, protocols) {
url = $rootScope.baseUrl + url;
if ($rootScope.accessToken)
url += "&access_token=" + $rootScope.accessToken;
return new WebSocket(url, protocols);
};
});
</script>
</div>
</body>

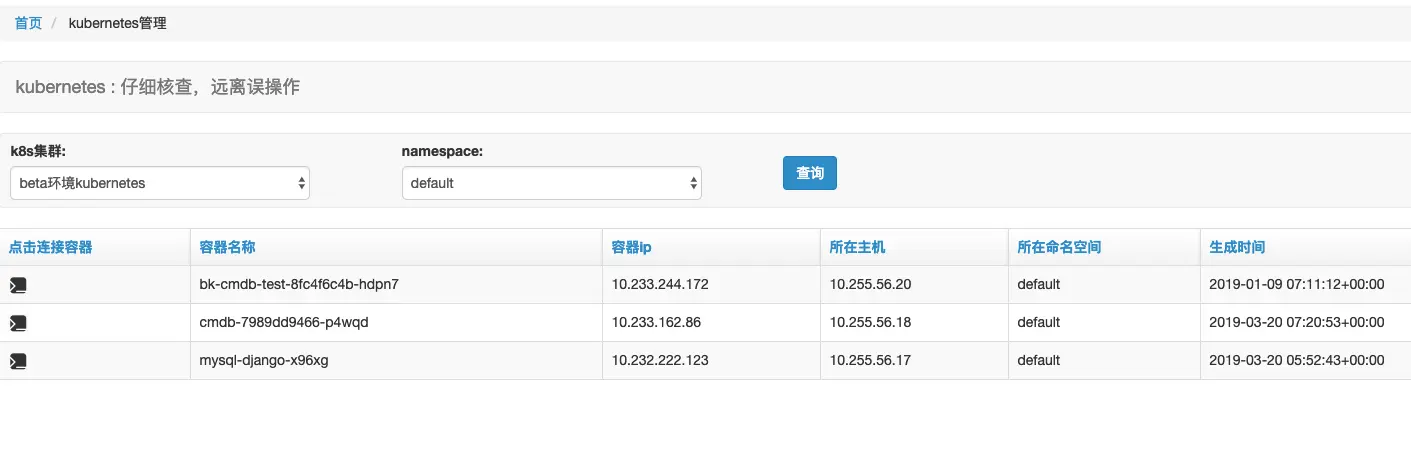

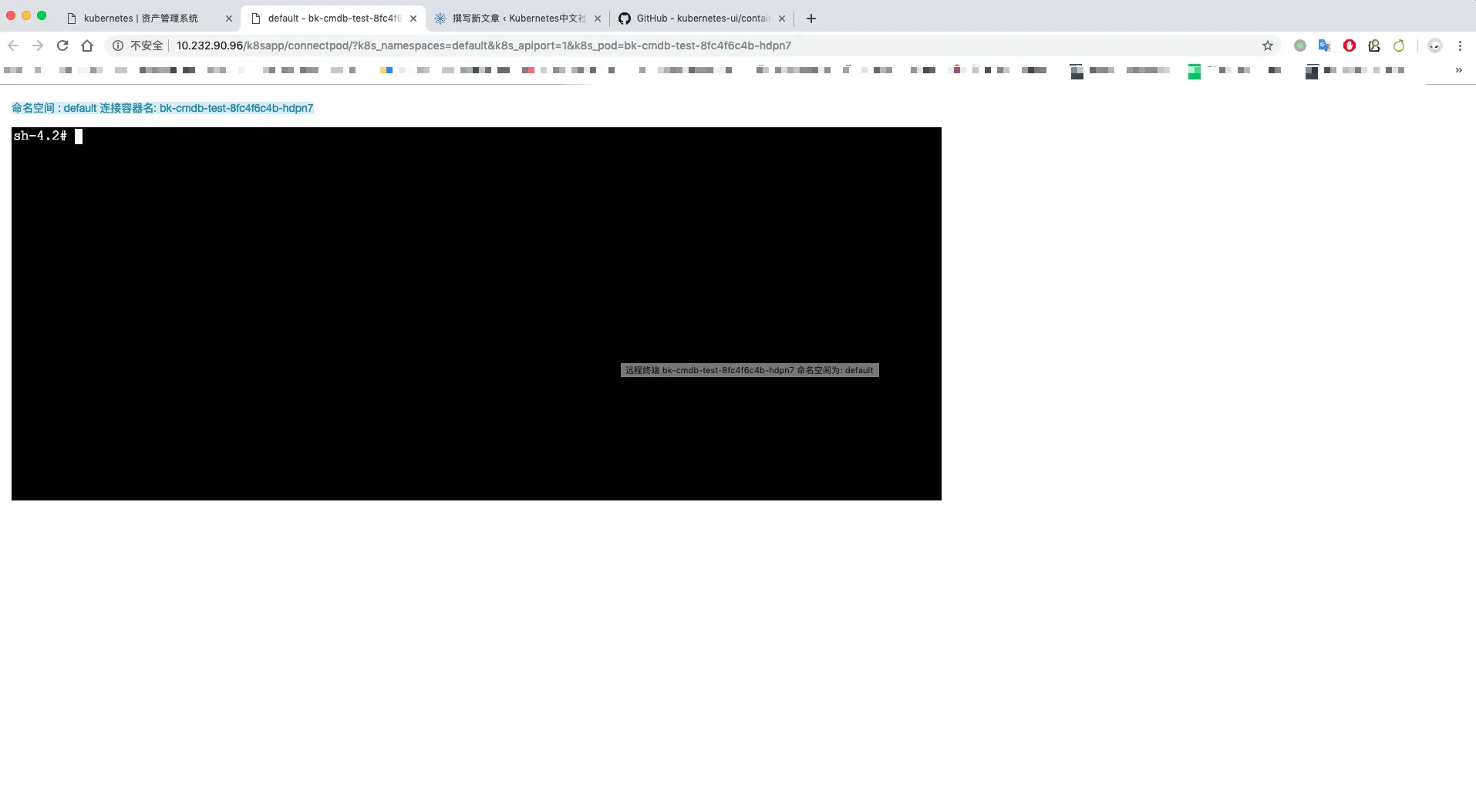

</html>实现效果：
