Vue源码简析之视图生成（下）

接上篇

vm._update(vm._render(), hydrating)

上篇说到render函数执行完返回vnode，下面来看下_update是怎么把vnode变成dom并挂载到页面上的。

_update

// core/instance/lifecycle.js
Vue.prototype._update = function (vnode: VNode, hydrating?: boolean) {
    const vm: Component = this
    const prevEl = vm.$el
    const prevVnode = vm._vnode
    const prevActiveInstance = activeInstance
    activeInstance = vm
    vm._vnode = vnode
    // Vue.prototype.__patch__ is injected in entry points
    // based on the rendering backend used.
    if (!prevVnode) {
      // initial render
      vm.$el = vm.__patch__(vm.$el, vnode, hydrating, false /* removeOnly */)
    } else {
      // updates
      vm.$el = vm.__patch__(prevVnode, vnode)
    }
    activeInstance = prevActiveInstance
    // update __vue__ reference
    if (prevEl) {
      prevEl.__vue__ = null
    }
    if (vm.$el) {
      vm.$el.__vue__ = vm
    }
    // if parent is an HOC, update its $el as well
    if (vm.$vnode && vm.$parent && vm.$vnode === vm.$parent._vnode) {
      vm.$parent.$el = vm.$el
    }
    // updated hook is called by the scheduler to ensure that children are
    // updated in a parent's updated hook.
  }

值得注意的地方：

• prevActiveInstance，activeInstance代表上一个vm实例和当前vm实例，存在父子组件时会用到。
• vm._vnode表示vm的render函数执行生成的vnode
• 通过判断preVnode是否存在来执行初次渲染或组件更新。显然这里是初次渲染。

__patch__

// platforms/web/runtime/index.js
import { patch } from './patch'
....
// install platform patch function
Vue.prototype.__patch__ = inBrowser ? patch : noop

patch

// platforms/web/runtime/patch.js

import * as nodeOps from 'web/runtime/node-ops'
import { createPatchFunction } from 'core/vdom/patch'
import baseModules from 'core/vdom/modules/index'
import platformModules from 'web/runtime/modules/index'

// the directive module should be applied last, after all
// built-in modules have been applied.
const modules = platformModules.concat(baseModules)

export const patch: Function = createPatchFunction({ nodeOps, modules })

最终的patch

return function patch (oldVnode, vnode, hydrating, removeOnly) {
    if (isUndef(vnode)) {
      if (isDef(oldVnode)) invokeDestroyHook(oldVnode)
      return
    }

    let isInitialPatch = false
    const insertedVnodeQueue = []

    if (isUndef(oldVnode)) {
      // empty mount (likely as component), create new root element
      isInitialPatch = true
      createElm(vnode, insertedVnodeQueue)
    } else {
      const isRealElement = isDef(oldVnode.nodeType)
      if (!isRealElement && sameVnode(oldVnode, vnode)) {
        // patch existing root node
        patchVnode(oldVnode, vnode, insertedVnodeQueue, removeOnly)
      } else {
        if (isRealElement) {
          // mounting to a real element
          // check if this is server-rendered content and if we can perform
          // a successful hydration.
          if (oldVnode.nodeType === 1 && oldVnode.hasAttribute(SSR_ATTR)) {
            oldVnode.removeAttribute(SSR_ATTR)
            hydrating = true
          }
          if (isTrue(hydrating)) {
            if (hydrate(oldVnode, vnode, insertedVnodeQueue)) {
              invokeInsertHook(vnode, insertedVnodeQueue, true)
              return oldVnode
            } else if (process.env.NODE_ENV !== 'production') {
              warn(
                'The client-side rendered virtual DOM tree is not matching ' +
                'server-rendered content. This is likely caused by incorrect ' +
                'HTML markup, for example nesting block-level elements inside ' +
                '<p>, or missing <tbody>. Bailing hydration and performing ' +
                'full client-side render.'
              )
            }
          }
          // either not server-rendered, or hydration failed.
          // create an empty node and replace it
          oldVnode = emptyNodeAt(oldVnode)
        }

        // replacing existing element
        const oldElm = oldVnode.elm
        const parentElm = nodeOps.parentNode(oldElm)

        // create new node
        createElm(
          vnode,
          insertedVnodeQueue,
          // extremely rare edge case: do not insert if old element is in a
          // leaving transition. Only happens when combining transition +
          // keep-alive + HOCs. (#4590)
          oldElm._leaveCb ? null : parentElm,
          nodeOps.nextSibling(oldElm)
        )

        // update parent placeholder node element, recursively
        if (isDef(vnode.parent)) {
          let ancestor = vnode.parent
          const patchable = isPatchable(vnode)
          while (ancestor) {
            for (let i = 0; i < cbs.destroy.length; ++i) {
              cbs.destroy[i](ancestor)
            }
            ancestor.elm = vnode.elm
            if (patchable) {
              for (let i = 0; i < cbs.create.length; ++i) {
                cbs.create[i](emptyNode, ancestor)
              }
              // #6513
              // invoke insert hooks that may have been merged by create hooks.
              // e.g. for directives that uses the "inserted" hook.
              const insert = ancestor.data.hook.insert
              if (insert.merged) {
                // start at index 1 to avoid re-invoking component mounted hook
                for (let i = 1; i < insert.fns.length; i++) {
                  insert.fns[i]()
                }
              }
            } else {
              registerRef(ancestor)
            }
            ancestor = ancestor.parent
          }
        }

        // destroy old node
        if (isDef(parentElm)) {
          removeVnodes(parentElm, [oldVnode], 0, 0)
        } else if (isDef(oldVnode.tag)) {
          invokeDestroyHook(oldVnode)
        }
    }

    invokeInsertHook(vnode, insertedVnodeQueue, isInitialPatch)
    return vnode.elm
  }
}

这里绕了一圈主要是为了让最终的patch函数无需考虑平台差异，内部调用的函数已经处理了平台兼容性。

流程分析：

• 这里的oldVnode是vm.$el(还记得el属性吗)是realElement，先将其转换成空的vnode
• parentElm = nodeOps.parentNode(oldElm)，vm.$el的父元素就是document.body
• 执行createElm方法
• 删掉oldVnode

createElm

function createElm (
    vnode,
    insertedVnodeQueue,
    parentElm,
    refElm,
    nested,
    ownerArray,
    index
  ) {
    vnode.isRootInsert = !nested // for transition enter check
    if (createComponent(vnode, insertedVnodeQueue, parentElm, refElm)) {
      return
    }

    const data = vnode.data
    const children = vnode.children
    const tag = vnode.tag


      vnode.elm = vnode.ns
        ? nodeOps.createElementNS(vnode.ns, tag)
        : nodeOps.createElement(tag, vnode)
      setScope(vnode)

      /* istanbul ignore if */
      if (__WEEX__) {
        ...
      } else {
        createChildren(vnode, children, insertedVnodeQueue)
        if (isDef(data)) {
          invokeCreateHooks(vnode, insertedVnodeQueue)
        }
        insert(parentElm, vnode.elm, refElm)
      }

      if (process.env.NODE_ENV !== 'production' && data && data.pre) {
        creatingElmInVPre--
      }
    } else if (isTrue(vnode.isComment)) {
      vnode.elm = nodeOps.createComment(vnode.text)
      insert(parentElm, vnode.elm, refElm)
    } else {
      vnode.elm = nodeOps.createTextNode(vnode.text)
      insert(parentElm, vnode.elm, refElm)
    }
  }

这里每次都是先尝试调用createComponent方法，如果有子组件就会进入子组件的逻辑，例子比较简单，先忽略。看下流程：

• 根据根vnode的tag生成相应的dom元素并赋值给vnode.elm
• 根据tag类型执行相应的方法，isDef(tag)执行createChildren,否则生成注释节点或者文本节点(看这个文本节点)
• 第二步的三种情况最后都有个insert操作

createChildren

function createChildren (vnode, children, insertedVnodeQueue) {
    if (Array.isArray(children)) {
      if (process.env.NODE_ENV !== 'production') {
        checkDuplicateKeys(children)
      }
      for (let i = 0; i < children.length; ++i) {
        createElm(children[i], insertedVnodeQueue, vnode.elm, null, true, children, i)
      }
    } else if (isPrimitive(vnode.text)) {
      nodeOps.appendChild(vnode.elm, nodeOps.createTextNode(String(vnode.text)))
    }
  }

createChildren很简单，就是遍历children调用createElm方法。注意一个点，createElm第三个参数是vnode.elm,是上一步生成的dom。

结合例子说下patch

{
  el: '#app',
  template: '<div>{{msg}}</div>',
  data: {
    msg: 'hello vue'
    }
}

对应的vnode长这样:

children是文本节点

• 先根据根vndoe的tag类型(div)生成div元素
• 有children，执行createChildren，生成hello vue的文本节点并通过insert函数插入到第一步生成的div元素上。
• vnode.elm就成了整个vnode树生成的dom结构。(可以试着在组件的mounted钩子中conosle.log(this._vnode.elm)看看)
• 根节点的parentElm是document.body，完成整个template的挂载.
• 删掉oldVnode,也就是el属性对应的元素。

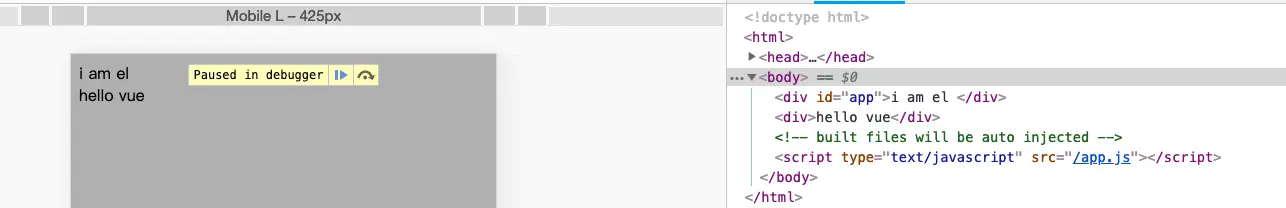

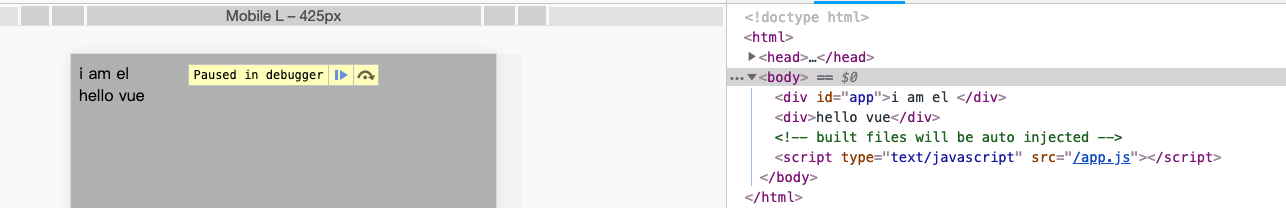

第四步，第五步是先插入再删除的操作，也就是某个时间节点el属性对应的dom和template生成的dom都在页面上，上图：

 // destroy old node
        if (isDef(parentElm)) {
          removeVnodes(parentElm, [oldVnode], 0, 0)
        } else if (isDef(oldVnode.tag)) {
          invokeDestroyHook(oldVnode)
        }

执行完上述代码，el对应的dom删掉，就是最终的结果啦～
