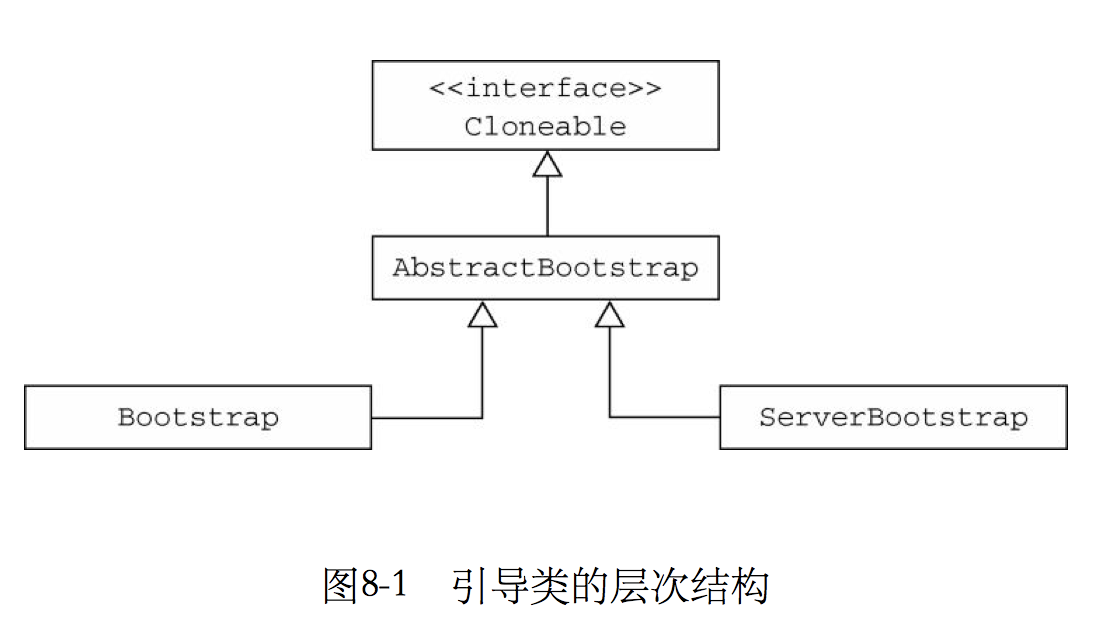

类的继承图
说明
1.服务器端启动类ServerBootStrap
2.客户端启动类BootStrap
抽象类
作用
是一个工具类 创建连接(netty叫channel) 和ServerSocket创建连接一样
哪些方法？
bind() ip/port server和client 通用的方法 不通用的方法由子类实现
API
AbstractBootstrap is a helper class that makes it easy to bootstrap a Channel. //是一个工具类
It support method-chaining to provide an easy way to configure the AbstractBootstrap.
When not used in a ServerBootstrap context, the bind() methods are useful for connectionless transports such as datagram (UDP).
添加EventExecutorGroup
public abstract class MultithreadEventExecutorGroup extends AbstractEventExecutorGroup {
protected MultithreadEventExecutorGroup(int nThreads, Executor executor,
EventExecutorChooserFactory chooserFactory, Object... args) {
if (nThreads <= 0) {
throw new IllegalArgumentException(String.format("nThreads: %d (expected: > 0)", nThreads));
}
if (executor == null) {
executor = new ThreadPerTaskExecutor(newDefaultThreadFactory());
}
children = new EventExecutor[nThreads];
for (int i = 0; i < nThreads; i ++) {
boolean success = false;
try {
children[i] = newChild(executor, args);
success = true;
} catch (Exception e) {
// TODO: Think about if this is a good exception type
throw new IllegalStateException("failed to create a child event loop", e);
} finally {
if (!success) {
for (int j = 0; j < i; j ++) {
children[j].shutdownGracefully();
}
for (int j = 0; j < i; j ++) {
EventExecutor e = children[j];
try {
while (!e.isTerminated()) {
e.awaitTermination(Integer.MAX_VALUE, TimeUnit.SECONDS);
}
} catch (InterruptedException interrupted) {
// Let the caller handle the interruption.
Thread.currentThread().interrupt();
break;
}
}
}
}
}
chooser = chooserFactory.newChooser(children);
final FutureListener<Object> terminationListener = new FutureListener<Object>() {
@Override
public void operationComplete(Future<Object> future) throws Exception {
if (terminatedChildren.incrementAndGet() == children.length) {
terminationFuture.setSuccess(null);
}
}
};
for (EventExecutor e: children) {
e.terminationFuture().addListener(terminationListener);
}
Set<EventExecutor> childrenSet = new LinkedHashSet<EventExecutor>(children.length);
Collections.addAll(childrenSet, children);
readonlyChildren = Collections.unmodifiableSet(childrenSet);
}
bind
private static void doBind0(
final ChannelFuture regFuture, final Channel channel,
final SocketAddress localAddress, final ChannelPromise promise) {
// This method is invoked before channelRegistered() is triggered. Give user handlers a chance to set up
// the pipeline in its channelRegistered() implementation.
channel.eventLoop().execute(new Runnable() { //提交/执行任务
@Override
public void run() { //业务方法
if (regFuture.isSuccess()) {
channel.bind(localAddress, promise).addListener(ChannelFutureListener.CLOSE_ON_FAILURE); //
} else {
promise.setFailure(regFuture.cause());
}
}
});
}
@Override
public ChannelFuture bind(final SocketAddress localAddress, final ChannelPromise promise) {
if (localAddress == null) {
throw new NullPointerException("localAddress");
}
if (!validatePromise(promise, false)) {
// cancelled
return promise;
}
final AbstractChannelHandlerContext next = findContextOutbound();
EventExecutor executor = next.executor();
if (executor.inEventLoop()) {
next.invokeBind(localAddress, promise);
} else {
safeExecute(executor, new Runnable() {
@Override
public void run() {
next.invokeBind(localAddress, promise);
}
}, promise, null);
}
return promise;
}
abstract class AbstractChannelHandlerContext extends DefaultAttributeMap
implements ChannelHandlerContext, ResourceLeakHint {
@Override
public ChannelFuture connect(
final SocketAddress remoteAddress, final SocketAddress localAddress, final ChannelPromise promise) {
if (remoteAddress == null) {
throw new NullPointerException("remoteAddress");
}
if (!validatePromise(promise, false)) {
// cancelled
return promise;
}
final AbstractChannelHandlerContext next = findContextOutbound();
EventExecutor executor = next.executor();
if (executor.inEventLoop()) {
next.invokeConnect(remoteAddress, localAddress, promise);
} else {
safeExecute(executor, new Runnable() {
@Override
public void run() {
next.invokeConnect(remoteAddress, localAddress, promise);
}
}, promise, null);
}
return promise;
}
class ServerSocketChannelImpl
extends ServerSocketChannel
implements SelChImpl
{
@Override
public ServerSocketChannel bind(SocketAddress local, int backlog) throws IOException {
synchronized (lock) {
if (!isOpen())
throw new ClosedChannelException();
if (isBound())
throw new AlreadyBoundException();
InetSocketAddress isa = (local == null) ? new InetSocketAddress(0) :
Net.checkAddress(local);
SecurityManager sm = System.getSecurityManager();
if (sm != null)
sm.checkListen(isa.getPort());
NetHooks.beforeTcpBind(fd, isa.getAddress(), isa.getPort());
Net.bind(fd, isa.getAddress(), isa.getPort()); //最终还是调用ServerSocketChannelImpl.bind
Net.listen(fd, backlog < 1 ? 50 : backlog);
synchronized (stateLock) {
localAddress = Net.localAddress(fd);
}
}
return this;
}
addListener()
public class DefaultChannelPromise extends DefaultPromise<Void> implements ChannelPromise, FlushCheckpoint {
@Override
public ChannelPromise addListener(GenericFutureListener<? extends Future<? super Void>> listener) {
super.addListener(listener);
return this;
}
