rabbitmq 可靠性投递（一）项目搭建

首先来看看我们可靠性投递的流程图

流程的示意图如上所示，比如我下单成功了，这时进行 step1，对我的业务数据进行入库，业务数据入库完毕（这里要特别注意一定要保证业务数据入库）再对要发送的消息进行入库，图中采用了两个数据库，可以根据实际业务场景来确定是否采用两个数据库，如果采用了两个数据库，有人可能就像到了采用分布式事务来保证数据的一致性，但是在大型互联网中，基本很少采用事务，都是采用补偿机制。

对业务数据和消息入库完毕就进入 setp2，发送消息到 MQ 服务上，按照正常的流程就是消费者监听到该消息，就根据唯一 id 修改该消息的状态为已消费，并给一个确认应答 ack 到 Listener。如果出现意外情况，消费者未接收到或者 Listener 接收确认时发生网络闪断，接收不到，这时候就需要用到我们的分布式定时任务来从 msg 数据库抓取那些超时了还未被消费的消息，重新发送一遍。重试机制里面要设置重试次数限制，因为一些外部的原因导致一直发送失败的，不能重试太多次，要不然会拖垮整个服务。例如重试三次还是失败的，就把消息的 status 设置成 发送失败，然后通过补偿机制，人工去处理。实际生产中，这种情况还是比较少的，但是你不能没有这个补偿机制，要不然就做不到可靠性了。

这一小节，我们介绍项目的基本搭建

先来看看项目依赖

<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.2.RELEASE</version>
		<relativePath/>
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		 <dependency>
            <groupId>com.rabbitmq</groupId>
            <artifactId>amqp-client</artifactId>
            <version>3.6.5</version>
        </dependency>

         <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>

        <!-- 添加JDBC jar -->
	    <dependency>
	      <groupId>org.mybatis.spring.boot</groupId>
	      <artifactId>mybatis-spring-boot-starter</artifactId>
	      <version>1.1.1</version>
	    </dependency>
	    <dependency>
	      <groupId>tk.mybatis</groupId>
	      <artifactId>mapper-spring-boot-starter</artifactId>
	      <version>1.1.0</version>
	    </dependency>
		<dependency>
		    <groupId>com.alibaba</groupId>
		    <artifactId>druid</artifactId>
		    <version>1.0.24</version>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>
        <!-- mybatis分页插件 -->
        <dependency>
	    	<groupId>com.github.pagehelper</groupId>
		    <artifactId>pagehelper-spring-boot-starter</artifactId>
		    <version>1.2.5</version>
		</dependency>
        <dependency>
            <groupId>com.github.miemiedev</groupId>
            <artifactId>mybatis-paginator</artifactId>
            <version>1.2.17</version>
            <exclusions>
                <exclusion>
 					<groupId>org.mybatis</groupId>
    				<artifactId>mybatis</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-lang3</artifactId>
			 <version>3.7</version>
		</dependency>
		<dependency>
			<groupId>commons-io</groupId>
			<artifactId>commons-io</artifactId>
			<version>2.4</version>
		</dependency>
		 <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-mapper-asl</artifactId>
            <version>1.9.13</version>
        </dependency>
         <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>20.0</version>
        </dependency>
         <dependency>
            <groupId>commons-collections</groupId>
            <artifactId>commons-collections</artifactId>
            <version>3.2.1</version>
        </dependency>
		<dependency>
		    <groupId>javax.servlet</groupId>
		    <artifactId>javax.servlet-api</artifactId>
		    <scope>provided</scope>
		</dependency>
		<dependency>
		    <groupId>log4j</groupId>
		    <artifactId>log4j</artifactId>
		    <version>1.2.17</version>
		</dependency>
        <dependency>
            <groupId>com.hmily.dubbo</groupId>
            <artifactId>common</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>

        <dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-amqp</artifactId>
		</dependency>
	</dependencies>

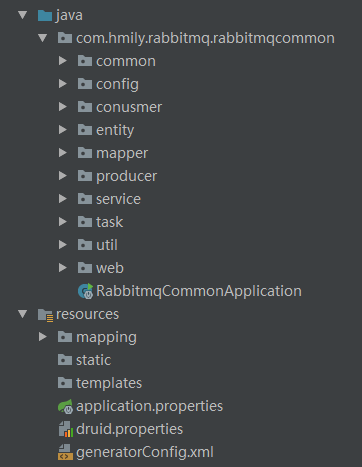

来看看包结构

然后就是 application.properties 的配置

server.port=8030

server.servlet.context-path=/

spring.http.encoding.charset=UTF-8
spring.jackson.date-format=yyyy-MM-dd HH:mm:ss
spring.jackson.time-zone=GMT+8
spring.jackson.default-property-inclusion=NON_NULL

db.driverLocation=G:/test/MySQL/mysql-connector-java-5.1.6-bin.jar
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.url=jdbc:mysql://130.67.151.179:3306/rabbitmq_common?characterEncoding=UTF-8&autoReconnect=true&zeroDateTimeBehavior=convertToNull&useUnicode=true
spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.username=root
spring.datasource.password=admin

mybatis.type-aliases-package=com.hmily.rabbitmq.rabbitmqcommon
mybatis.mapper-locations=classpath:mapping/*.xml

logging.level.tk.mybatis=TRACE

##########################  server setting for LongID Gene  ####################################
snowFlake.workerId = 1
snowFlake.datacenterId = 1

# Dubbo Config properties
dubbo.application.id=rabbitmq-common
dubbo.application.name=rabbitmq-common
dubbo.application.qosPort=22212
dubbo.application.qosEnable=true
dubbo.scan.basePackages=com.hmily.rabbitmq.rabbitmqcommon.*
dubbo.protocol.id=dubbo
dubbo.protocol.name=dubbo
dubbo.protocol.port=12343
dubbo.registry.id=rabbitmq-common-registry
dubbo.registry.address=zookeeper://130.67.151.179:2181

# Enables Dubbo All Endpoints
management.endpoint.dubbo.enabled = true
management.endpoint.dubbo-shutdown.enabled = true
management.endpoint.dubbo-configs.enabled = true
management.endpoint.dubbo-services.enabled = true
management.endpoint.dubbo-references.enabled = true
management.endpoint.dubbo-properties.enabled = true

# Dubbo Health
## StatusChecker Name defaults (default : "memory", "load" )
management.health.dubbo.status.defaults = memory
## StatusChecker Name extras (default : empty )
management.health.dubbo.status.extras = load,threadpool

spring.rabbitmq.addresses=130.67.151.179:5672
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest
spring.rabbitmq.virtual-host=/
spring.rabbitmq.connection-timeout=15000

spring.rabbitmq.publisher-confirms=true
spring.rabbitmq.publisher-returns=true
spring.rabbitmq.template.mandatory=true


snowFlakeServiceApi.version=1.0.0

order.rabbitmq.listener.order.queue.name=order-create
order.rabbitmq.listener.order.queue.durable=true
order.rabbitmq.listener.order.exchange.name=order
order.rabbitmq.listener.order.exchange.durable=true
order.rabbitmq.listener.order.exchange.type=topic
order.rabbitmq.listener.order.exchange.ignoreDeclarationExceptions=true
order.rabbitmq.listener.order.key=order.*
order.rabbitmq.send.create.key=order.create

druid.properties 的配置如下：

##下面为连接池的补充设置，应用到上面所有数据源中
#初始化大小，最小，最大
druid.initialSize=5
druid.minIdle=10
druid.maxActive=300
#配置获取连接等待超时的时间
druid.maxWait=60000
#配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒
druid.timeBetweenEvictionRunsMillis=60000
#配置一个连接在池中最小生存的时间，单位是毫秒
druid.minEvictableIdleTimeMillis=300000
druid.validationQuery=SELECT 1 FROM DUAL
druid.testWhileIdle=true
druid.testOnBorrow=false
druid.testOnReturn=false
#打开PSCache，并且指定每个连接上PSCache的大小
druid.poolPreparedStatements=true
druid.maxPoolPreparedStatementPerConnectionSize=20
#配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙
druid.filters=stat,wall,log4j
#通过connectProperties属性来打开mergeSql功能；慢SQL记录
druid.connectionProperties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000
#合并多个DruidDataSource的监控数据
druid.useGlobalDataSourceStat=true

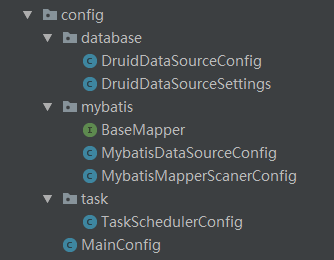

再展开看配置包里面的结构

先看看主配置文件

@Configuration
@MapperScan(basePackages = "com.hmily.rabbitmq.rabbitmqcommon.mapper")
@ComponentScan(basePackages = {"com.hmily.rabbitmq.rabbitmqcommon.*", "com.hmily.rabbitmq.rabbitmqcommon.config.*"})
public class MainConfig {

}

接着是从配置文件 druid.properties 获取 DruidDataSource 的信息

@Component
@ConfigurationProperties(prefix="spring.datasource")
@PropertySource("classpath:druid.properties")
public class DruidDataSourceSettings {

	private String driverClassName;
	private String url;
	private String username;
	private String password;

	@Value("${druid.initialSize}")
	private int initialSize;

	@Value("${druid.minIdle}")
	private int minIdle;

	@Value("${druid.maxActive}")
	private int maxActive;

	@Value("${druid.timeBetweenEvictionRunsMillis}")
	private long timeBetweenEvictionRunsMillis;

	@Value("${druid.minEvictableIdleTimeMillis}")
	private long minEvictableIdleTimeMillis;

	@Value("${druid.validationQuery}")
	private String validationQuery;

	@Value("${druid.testWhileIdle}")
	private boolean testWhileIdle;

	@Value("${druid.testOnBorrow}")
	private boolean testOnBorrow;

	@Value("${druid.testOnReturn}")
	private boolean testOnReturn;

	@Value("${druid.poolPreparedStatements}")
	private boolean poolPreparedStatements;

	@Value("${druid.maxPoolPreparedStatementPerConnectionSize}")
	private int maxPoolPreparedStatementPerConnectionSize;

	@Value("${druid.filters}")
	private String filters;

	@Value("${druid.connectionProperties}")
	private String connectionProperties;

	@Bean
	public static PropertySourcesPlaceholderConfigurer properdtyConfigure(){
		return new PropertySourcesPlaceholderConfigurer();
	}

	public String getDriverClassName() {
		return driverClassName;
	}
	public void setDriverClassName(String driverClassName) {
		this.driverClassName = driverClassName;
	}
	public String getUrl() {
		return url;
	}
	public void setUrl(String url) {
		this.url = url;
	}
	public String getUsername() {
		return username;
	}
	public void setUsername(String username) {
		this.username = username;
	}
	public String getPassword() {
		return password;
	}
	public void setPassword(String password) {
		this.password = password;
	}
	public int getInitialSize() {
		return initialSize;
	}
	public void setInitialSize(int initialSize) {
		this.initialSize = initialSize;
	}
	public int getMinIdle() {
		return minIdle;
	}
	public void setMinIdle(int minIdle) {
		this.minIdle = minIdle;
	}
	public int getMaxActive() {
		return maxActive;
	}
	public void setMaxActive(int maxActive) {
		this.maxActive = maxActive;
	}
	public long getTimeBetweenEvictionRunsMillis() {
		return timeBetweenEvictionRunsMillis;
	}
	public void setTimeBetweenEvictionRunsMillis(long timeBetweenEvictionRunsMillis) {
		this.timeBetweenEvictionRunsMillis = timeBetweenEvictionRunsMillis;
	}
	public long getMinEvictableIdleTimeMillis() {
		return minEvictableIdleTimeMillis;
	}
	public void setMinEvictableIdleTimeMillis(long minEvictableIdleTimeMillis) {
		this.minEvictableIdleTimeMillis = minEvictableIdleTimeMillis;
	}
	public String getValidationQuery() {
		return validationQuery;
	}
	public void setValidationQuery(String validationQuery) {
		this.validationQuery = validationQuery;
	}
	public boolean isTestWhileIdle() {
		return testWhileIdle;
	}
	public void setTestWhileIdle(boolean testWhileIdle) {
		this.testWhileIdle = testWhileIdle;
	}
	public boolean isTestOnBorrow() {
		return testOnBorrow;
	}
	public void setTestOnBorrow(boolean testOnBorrow) {
		this.testOnBorrow = testOnBorrow;
	}
	public boolean isTestOnReturn() {
		return testOnReturn;
	}
	public void setTestOnReturn(boolean testOnReturn) {
		this.testOnReturn = testOnReturn;
	}
	public boolean isPoolPreparedStatements() {
		return poolPreparedStatements;
	}
	public void setPoolPreparedStatements(boolean poolPreparedStatements) {
		this.poolPreparedStatements = poolPreparedStatements;
	}
	public int getMaxPoolPreparedStatementPerConnectionSize() {
		return maxPoolPreparedStatementPerConnectionSize;
	}
	public void setMaxPoolPreparedStatementPerConnectionSize(
			int maxPoolPreparedStatementPerConnectionSize) {
		this.maxPoolPreparedStatementPerConnectionSize = maxPoolPreparedStatementPerConnectionSize;
	}
	public String getFilters() {
		return filters;
	}
	public void setFilters(String filters) {
		this.filters = filters;
	}
	public String getConnectionProperties() {
		return connectionProperties;
	}
	public void setConnectionProperties(String connectionProperties) {
		this.connectionProperties = connectionProperties;
	}

}

再到 DruidDataSource 的配置

@Configuration
@EnableTransactionManagement
public class DruidDataSourceConfig {

	private static Logger logger = LoggerFactory.getLogger(DruidDataSourceConfig.class);

	@Autowired
	private DruidDataSourceSettings druidSettings;

	public static String DRIVER_CLASSNAME ;

	@Bean
	public static PropertySourcesPlaceholderConfigurer propertyConfigure(){
		return new PropertySourcesPlaceholderConfigurer();
	}

    @Bean
    public ServletRegistrationBean druidServlet() {

        ServletRegistrationBean reg = new ServletRegistrationBean();
        reg.setServlet(new StatViewServlet());
//        reg.setAsyncSupported(true);
        reg.addUrlMappings("/druid/*");
        reg.addInitParameter("allow", "localhost");
        reg.addInitParameter("deny","/deny");
//        reg.addInitParameter("loginUsername", "bhz");
//        reg.addInitParameter("loginPassword", "bhz");
        logger.info(" druid console manager init : {} ", reg);
        return reg;
    }

    @Bean
    public FilterRegistrationBean filterRegistrationBean() {
        FilterRegistrationBean filterRegistrationBean = new FilterRegistrationBean();
        filterRegistrationBean.setFilter(new WebStatFilter());
        filterRegistrationBean.addUrlPatterns("/*");
        filterRegistrationBean.addInitParameter("exclusions", "*.js,*.gif,*.jpg,*.png,*.css,*.ico, /druid/*");
        logger.info(" druid filter register : {} ", filterRegistrationBean);
        return filterRegistrationBean;
    }

	@Bean
	public DataSource dataSource() throws SQLException {
		DruidDataSource ds = new DruidDataSource();
		ds.setDriverClassName(druidSettings.getDriverClassName());
		DRIVER_CLASSNAME = druidSettings.getDriverClassName();
		ds.setUrl(druidSettings.getUrl());
		ds.setUsername(druidSettings.getUsername());
		ds.setPassword(druidSettings.getPassword());
		ds.setInitialSize(druidSettings.getInitialSize());
		ds.setMinIdle(druidSettings.getMinIdle());
//		ds.setMaxIdle(druidSettings.getMaxIdle());
		ds.setMaxActive(druidSettings.getMaxActive());
		ds.setTimeBetweenEvictionRunsMillis(druidSettings.getTimeBetweenEvictionRunsMillis());
		ds.setMinEvictableIdleTimeMillis(druidSettings.getMinEvictableIdleTimeMillis());
		ds.setValidationQuery(druidSettings.getValidationQuery());
		ds.setTestWhileIdle(druidSettings.isTestWhileIdle());
		ds.setTestOnBorrow(druidSettings.isTestOnBorrow());
		ds.setTestOnReturn(druidSettings.isTestOnReturn());
		ds.setPoolPreparedStatements(druidSettings.isPoolPreparedStatements());
		ds.setMaxPoolPreparedStatementPerConnectionSize(druidSettings.getMaxPoolPreparedStatementPerConnectionSize());
		ds.setFilters(druidSettings.getFilters());
		ds.setConnectionProperties(druidSettings.getConnectionProperties());

		//proxyFilters ===> 有问题
//		WallFilter wallFilter = new WallFilter();
//		WallConfig wallConfig = new WallConfig();
//		wallConfig.setMultiStatementAllow(true);
//		wallFilter.setConfig(wallConfig);
//		List<Filter> wallFilterList = new ArrayList<Filter>();
//		wallFilterList.add(wallFilter);
//		ds.setProxyFilters(wallFilterList);
		logger.info(" druid datasource config : {} ", ds);
		return ds;
	}

	@Bean
	public PlatformTransactionManager transactionManager() throws Exception {
		DataSourceTransactionManager txManager = new DataSourceTransactionManager();
		txManager.setDataSource(dataSource());
		return txManager;
	}

}

再接着就是 mybatis 的配置

@Configuration
@AutoConfigureAfter(MybatisDataSourceConfig.class)
public class MybatisMapperScanerConfig {

	@Bean
    public MapperScannerConfigurer mapperScannerConfigurer() {
        MapperScannerConfigurer mapperScannerConfigurer = new MapperScannerConfigurer();
        mapperScannerConfigurer.setSqlSessionFactoryBeanName("sqlSessionFactory");
        mapperScannerConfigurer.setBasePackage("com.hmily.rabbitmq.rabbitmqcommon.mapper");
        return mapperScannerConfigurer;
    }

}

@Configuration
public class MybatisDataSourceConfig {

	@Autowired
	private DataSource dataSource;

	@Bean(name="sqlSessionFactory")
	public SqlSessionFactory sqlSessionFactoryBean() {
		SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
		bean.setDataSource(dataSource);
		// 添加XML目录
		ResourcePatternResolver resolver = new PathMatchingResourcePatternResolver();
		try {
//		    如果是刚开始搭建项目时，mapping 底下没有 xml 就要注释掉这里，要不然会报错
			bean.setMapperLocations(resolver.getResources("classpath:mapping/*.xml"));
			SqlSessionFactory sqlSessionFactory = bean.getObject();
			sqlSessionFactory.getConfiguration().setCacheEnabled(Boolean.TRUE);

			return sqlSessionFactory;
		} catch (Exception e) {
			throw new RuntimeException(e);
		}
	}

	@Bean
	public SqlSessionTemplate sqlSessionTemplate(SqlSessionFactory sqlSessionFactory) {
		return new SqlSessionTemplate(sqlSessionFactory);
	}

}

public interface BaseMapper<T> extends Mapper<T>, MySqlMapper<T> {

}

最后是我们的定时任务 task 配置

@Configuration
@EnableScheduling
public class TaskSchedulerConfig implements SchedulingConfigurer {

	@Override
	public void configureTasks(ScheduledTaskRegistrar taskRegistrar) {
		taskRegistrar.setScheduler(taskScheduler());
	}

	@Bean(destroyMethod="shutdown")
	public Executor taskScheduler(){
		return Executors.newScheduledThreadPool(100);
	}

}

就这样，启动项目，运行不报错，写个简单接口调用一下不报错，我们的项目就搭建好了。

完整代码：
https://github.com/hmilyos/common.git
https://github.com/hmilyos/snowFlakeDemo.git
https://github.com/hmilyos/rabbitmq-common.git       available 分支
