注意：这篇文章代码较多，最好使用浏览器打开或点击原文去简书获取较好的阅读体验。
在面试候选人的时候，我有时候会提出这样的一个问题：说说你对Java线程的理解？从这个问题开始，可以考察候选人对并发基础的掌握、对操作系统基本概念的理解，如果遇到对底层有浓厚兴趣的同学，我会抛出另一个问题：Java里的线程和操作系统的线程是什么关系？它们是如何对应的？这两个问题，就是今天这篇文章想讲述的。
基础知识
JVM中的线程是和OS中的线程一一对应的，操作系统负责调度所有的线程，因此在不同的平台上，Java线程的优先级有所不同。
在JVM中除了应用线程，还有其他的一些线程用于支持JVM的运行，这些线程可以被划分为以下几类：
-
VM Thread：负责JVM在安全点内的各种操作，这些操作（诸如自动内存管理、取消偏向锁、线程dump、线程挂起等等）在执行过程中需要JVM处于这样一个状态——堆的内容不会被改变，这种状态在JVM里叫做安全点（safe-point）。
-
Periodic task thread：这个线程负责响应定时触发的事件（例如：中断），用来执行一些定时操作。
-
GC thread：这些线程负责JVM里的垃圾收集活动；
-
Compiler threads：这些线程负责在运行时将字节码编译为本地代码；
-
Singal dispatcher thread：这些线程负责响应外部发给当前JVM进程的信号，并通过调用JVM内的其他线程。
我们现在写一个简单的hello word程序，代码如下：
public class GcExample {
private static class E {
public static final int[] a = new int[1024 * 10];
}
public static void main(String[] args) {
System.out.println("hello world");
while (true) {
new E();
}
}
}

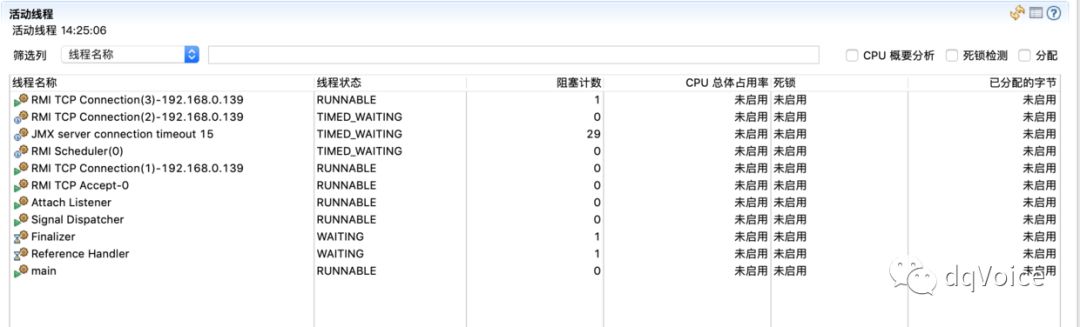

然后使用jmc（Java Mission Control）attach到这个程序上，展现为如下的情况：
-
RMI开头的线程，负责JVM跟JMC客户端通信，吐出JVM内的运行信息；
-
Attach Listener和Single Dispatcher两个线程，属于信号处理线程，负责接收外部到当前JVM的attach信号，并建立通信用的文件socket；
-
Finalizer线程，用于处理Finalizer队列的线程，在Java中，如果一个对象重写了finalize()方法，那么JVM会为之创建一个对应的Finalizer对象，所有的Finzlizer对象会构成一个列表，由Finalizer线程统一处理
-
Reference Handler，负责JVM中的引用处理
-
main，我们例子中的业务线程。
我想你现在也有这个疑问——跟上面说的那个分类对不上，有些线程没看到，是的，可能是由于JMC的实现机制，这些线程没有被展示出来，我们再用jstack命令做一次线程dump，就可以得到如下内容：
Full thread dump Java HotSpot(TM) 64-Bit Server VM (25.151-b12 mixed mode):
"RMI TCP Connection(5)-192.168.0.139" #17 daemon prio=9 os_prio=31 tid=0x00007fba7c830800 nid=0x5c03 runnable [0x000070000f740000]
java.lang.Thread.State: RUNNABLE
at java.net.SocketInputStream.socketRead0(Native Method)
at java.net.SocketInputStream.socketRead(SocketInputStream.java:116)
at java.net.SocketInputStream.read(SocketInputStream.java:171)
at java.net.SocketInputStream.read(SocketInputStream.java:141)
at java.io.BufferedInputStream.fill(BufferedInputStream.java:246)
at java.io.BufferedInputStream.read(BufferedInputStream.java:265)
- locked <0x000000076f590708> (a java.io.BufferedInputStream)
at java.io.FilterInputStream.read(FilterInputStream.java:83)
at sun.rmi.transport.tcp.TCPTransport.handleMessages(TCPTransport.java:550)
at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(TCPTransport.java:826)
at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(TCPTransport.java:683)
at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler?Lambda$3/745402377.run(Unknown Source)
at java.security.AccessController.doPrivileged(Native Method)
at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(TCPTransport.java:682)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at java.lang.Thread.run(Thread.java:748)
"RMI TCP Connection(2)-192.168.0.139" #16 daemon prio=9 os_prio=31 tid=0x00007fba7e0b0000 nid=0xa403 in Object.wait() [0x000070000f63c000]
java.lang.Thread.State: TIMED_WAITING (on object monitor)
at java.lang.Object.wait(Native Method)
- waiting on <0x000000076f580878> (a com.sun.jmx.remote.internal.ArrayNotificationBuffer)
at com.sun.jmx.remote.internal.ArrayNotificationBuffer.fetchNotifications(ArrayNotificationBuffer.java:449)
- locked <0x000000076f580878> (a com.sun.jmx.remote.internal.ArrayNotificationBuffer)
at com.sun.jmx.remote.internal.ArrayNotificationBuffer$ShareBuffer.fetchNotifications(ArrayNotificationBuffer.java:227)
at com.sun.jmx.remote.internal.ServerNotifForwarder.fetchNotifs(ServerNotifForwarder.java:274)
at javax.management.remote.rmi.RMIConnectionImpl$4.run(RMIConnectionImpl.java:1270)
at javax.management.remote.rmi.RMIConnectionImpl$4.run(RMIConnectionImpl.java:1268)
at javax.management.remote.rmi.RMIConnectionImpl.fetchNotifications(RMIConnectionImpl.java:1274)
at sun.reflect.GeneratedMethodAccessor62.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at sun.rmi.server.UnicastServerRef.dispatch(UnicastServerRef.java:357)
at sun.rmi.transport.Transport$1.run(Transport.java:200)
at sun.rmi.transport.Transport$1.run(Transport.java:197)
at java.security.AccessController.doPrivileged(Native Method)
at sun.rmi.transport.Transport.serviceCall(Transport.java:196)
at sun.rmi.transport.tcp.TCPTransport.handleMessages(TCPTransport.java:568)
at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(TCPTransport.java:826)
at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(TCPTransport.java:683)
at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler?Lambda$3/745402377.run(Unknown Source)
at java.security.AccessController.doPrivileged(Native Method)
at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(TCPTransport.java:682)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at java.lang.Thread.run(Thread.java:748)
"JMX server connection timeout 15" #15 daemon prio=9 os_prio=31 tid=0x00007fba80014800 nid=0xa503 in Object.wait() [0x000070000f53b000]
java.lang.Thread.State: TIMED_WAITING (on object monitor)
at java.lang.Object.wait(Native Method)
- waiting on <0x000000076f5887f8> (a [I)
at com.sun.jmx.remote.internal.ServerCommunicatorAdmin$Timeout.run(ServerCommunicatorAdmin.java:168)
- locked <0x000000076f5887f8> (a [I)
at java.lang.Thread.run(Thread.java:748)
"RMI Scheduler(0)" #14 daemon prio=9 os_prio=31 tid=0x00007fba7c805800 nid=0xa603 waiting on condition [0x000070000f438000]
java.lang.Thread.State: TIMED_WAITING (parking)
at sun.misc.Unsafe.park(Native Method)
- parking to wait for <0x000000076f598188> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
at java.util.concurrent.locks.LockSupport.parkNanos(LockSupport.java:215)
at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.awaitNanos(AbstractQueuedSynchronizer.java:2078)
at java.util.concurrent.ScheduledThreadPoolExecutor$DelayedWorkQueue.take(ScheduledThreadPoolExecutor.java:1093)
at java.util.concurrent.ScheduledThreadPoolExecutor$DelayedWorkQueue.take(ScheduledThreadPoolExecutor.java:809)
at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at java.lang.Thread.run(Thread.java:748)
"RMI TCP Accept-0" #12 daemon prio=9 os_prio=31 tid=0x00007fba7d906000 nid=0xa803 runnable [0x000070000f232000]
java.lang.Thread.State: RUNNABLE
at java.net.PlainSocketImpl.socketAccept(Native Method)
at java.net.AbstractPlainSocketImpl.accept(AbstractPlainSocketImpl.java:409)
at java.net.ServerSocket.implAccept(ServerSocket.java:545)
at java.net.ServerSocket.accept(ServerSocket.java:513)
at sun.management.jmxremote.LocalRMIServerSocketFactory$1.accept(LocalRMIServerSocketFactory.java:52)
at sun.rmi.transport.tcp.TCPTransport$AcceptLoop.executeAcceptLoop(TCPTransport.java:400)
at sun.rmi.transport.tcp.TCPTransport$AcceptLoop.run(TCPTransport.java:372)
at java.lang.Thread.run(Thread.java:748)
"Attach Listener" #10 daemon prio=9 os_prio=31 tid=0x00007fba7d865800 nid=0xa903 waiting on condition [0x0000000000000000]
java.lang.Thread.State: RUNNABLE
"Service Thread" #9 daemon prio=9 os_prio=31 tid=0x00007fba7d803000 nid=0x3903 runnable [0x0000000000000000]
java.lang.Thread.State: RUNNABLE
"C1 CompilerThread3" #8 daemon prio=9 os_prio=31 tid=0x00007fba7e002000 nid=0x3803 waiting on condition [0x0000000000000000]
java.lang.Thread.State: RUNNABLE
"C2 CompilerThread2" #7 daemon prio=9 os_prio=31 tid=0x00007fba80000000 nid=0x3703 waiting on condition [0x0000000000000000]
java.lang.Thread.State: RUNNABLE
"C2 CompilerThread1" #6 daemon prio=9 os_prio=31 tid=0x00007fba7d82d800 nid=0x3e03 waiting on condition [0x0000000000000000]
java.lang.Thread.State: RUNNABLE
"C2 CompilerThread0" #5 daemon prio=9 os_prio=31 tid=0x00007fba7c020000 nid=0x3f03 waiting on condition [0x0000000000000000]
java.lang.Thread.State: RUNNABLE
"Signal Dispatcher" #4 daemon prio=9 os_prio=31 tid=0x00007fba7c01e800 nid=0x3403 runnable [0x0000000000000000]
java.lang.Thread.State: RUNNABLE
"Finalizer" #3 daemon prio=8 os_prio=31 tid=0x00007fba7f022000 nid=0x4903 in Object.wait() [0x000070000e917000]
java.lang.Thread.State: WAITING (on object monitor)
at java.lang.Object.wait(Native Method)
- waiting on <0x000000076f5a0600> (a java.lang.ref.ReferenceQueue$Lock)
at java.lang.ref.ReferenceQueue.remove(ReferenceQueue.java:143)
- locked <0x000000076f5a0600> (a java.lang.ref.ReferenceQueue$Lock)
at java.lang.ref.ReferenceQueue.remove(ReferenceQueue.java:164)
at java.lang.ref.Finalizer$FinalizerThread.run(Finalizer.java:209)
"Reference Handler" #2 daemon prio=10 os_prio=31 tid=0x00007fba7c01d800 nid=0x4b03 in Object.wait() [0x000070000e814000]
java.lang.Thread.State: WAITING (on object monitor)
at java.lang.Object.wait(Native Method)
- waiting on <0x000000076f5983e8> (a java.lang.ref.Reference$Lock)
at java.lang.Object.wait(Object.java:502)
at java.lang.ref.Reference.tryHandlePending(Reference.java:191)
- locked <0x000000076f5983e8> (a java.lang.ref.Reference$Lock)
at java.lang.ref.Reference$ReferenceHandler.run(Reference.java:153)
"main" #1 prio=5 os_prio=31 tid=0x00007fba7f000000 nid=0x2303 runnable [0x000070000ddf6000]
java.lang.Thread.State: RUNNABLE
at GcExample.main(GcExample.java:9)
"VM Thread" os_prio=31 tid=0x00007fba7c01b000 nid=0x2f03 runnable
"GC task thread#0 (ParallelGC)" os_prio=31 tid=0x00007fba7c007000 nid=0x2007 runnable
"GC task thread#1 (ParallelGC)" os_prio=31 tid=0x00007fba7d804800 nid=0x2a03 runnable
"GC task thread#2 (ParallelGC)" os_prio=31 tid=0x00007fba7c007800 nid=0x5303 runnable
"GC task thread#3 (ParallelGC)" os_prio=31 tid=0x00007fba7f800000 nid=0x2c03 runnable
"GC task thread#4 (ParallelGC)" os_prio=31 tid=0x00007fba7d805000 nid=0x5103 runnable
"GC task thread#5 (ParallelGC)" os_prio=31 tid=0x00007fba7c013800 nid=0x5003 runnable
"GC task thread#6 (ParallelGC)" os_prio=31 tid=0x00007fba7f001000 nid=0x4e03 runnable
"GC task thread#7 (ParallelGC)" os_prio=31 tid=0x00007fba7c014000 nid=0x4c03 runnable
"VM Periodic Task Thread" os_prio=31 tid=0x00007fba7d858800 nid=0x3a03 waiting on condition
JNI global references: 295
OK，从上面这个dump文件中，可以找到Periodic Task Thread、GC Thread、VM Thread、Compiler Thread的身影了。
JVM源码分析
前面从概念和分类两个角度观察了JVM中的线程，现在我们从源码角度看下另一个问题，JVM是如何实现Java线程的。
java.lang.Thread类的start接口，用来启动一个Java线程，然后JVM会执行run()方法中的内容，run()方法是Runnable接口定义然后在 java.lang.Thread中提供了实现方法，start()方法的内容如下：
/**
* Causes this thread to begin execution; the Java Virtual Machine
* calls the <code>run</code> method of this thread.
* <p>
* The result is that two threads are running concurrently: the
* current thread (which returns from the call to the
* <code>start</code> method) and the other thread (which executes its
* <code>run</code> method).
* <p>
* It is never legal to start a thread more than once.
* In particular, a thread may not be restarted once it has completed
* execution.
*
* @exception IllegalThreadStateException if the thread was already
* started.
* @see #run()
* @see #stop()
*/
public synchronized
void start
() {
/**
* This method is not invoked for the main method thread or "system"
* group threads created/set up by the VM. Any new functionality added
* to this method in the future may have to also be added to the VM.
*
* A zero status value corresponds to state "NEW".
*/
if (
threadStatus !=
0)
throw new
IllegalThreadStateException();
/* Notify the group that this thread is about to be started
* so that it can be added to the group's list of threads
* and the group's unstarted count can be decremented. */
group.add
(this);
boolean started =
false;
try {
start0
();
started
= true
;
} finally
{
try {
if (!
started)
{
group.threadStartFailed
(this);
}
} catch
(Throwable
ignore)
{
/* do nothing. If start0 threw a Throwable then
it will be passed up the call stack */
}
}
}
private native
void start0
();
根据注释中说的，一个线程退出后是再次start是非法的，会抛出异常，我们可以用下面的代码验证下：
package org.java.learn.concurrent;
public class ThreadRestartExample {
public static void main(String[] args) throws InterruptedException {
Thread thread = new Thread(() -> {
System.out.println("hello");
});
thread.start();
Thread.sleep(1000);
thread.start();
}
}
运行这个代码的结果是：
hello
Exception in thread "main" java.lang.IllegalThreadStateException
at java.lang.Thread.start(Thread.java:708)
at org.java.learn.concurrent.ThreadRestartExample.main(ThreadRestartExample.java:18)
Process finished with exit code 1
start方法调用了start0方法，这是一个JNI接口，在Java中通过JNI接口可以实现Java调用本地方法；通过JVMTI接口可以实现在C++空间调用Java对象的方法。start0方法的实现在 jdk/src/share/native/java/lang/Thread.c中定义，代码如下所示：
static
JNINativeMethod methods
[] =
{
{"start0",
"()V",
(void
*)&JVM_StartThread
},
{"stop0",
"(" OBJ
")V",
(void
*)&JVM_StopThread},
{"isAlive",
"()Z",
(void
*)&JVM_IsThreadAlive
},
{"suspend0",
"()V",
(void
*)&JVM_SuspendThread
},
{"resume0",
"()V",
(void
*)&JVM_ResumeThread
},
{"setPriority0",
"(I)V",
(void
*)&JVM_SetThreadPriority
},
{"yield",
"()V",
(void
*)&JVM_Yield
},
{"sleep",
"(J)V",
(void
*)&JVM_Sleep
},
{"currentThread",
"()" THD
, (
void *)&
JVM_CurrentThread},
{"countStackFrames",
"()I",
(void
*)&JVM_CountStackFrames
},
{"interrupt0",
"()V",
(void
*)&JVM_Interrupt
},
{"isInterrupted",
"(Z)Z",
(void
*)&JVM_IsInterrupted
},
{"holdsLock",
"(" OBJ
")Z",
(void
*)&JVM_HoldsLock},
{"getThreads",
"()[" THD
, (
void *)&
JVM_GetAllThreads},
{"dumpThreads",
"([" THD
")[[" STE,
(void
*)&JVM_DumpThreads
},
{"setNativeName",
"(" STR
")V",
(void
*)&JVM_SetNativeThreadName},
};
JVM_StartThread的接口定义在jvm.h中，JDK中用到的jni接口，最终都会在jvm.h文件中定义，并在jvm.cpp中作为C++实现的入口，也就是说jvm.cpp是Java世界和JVM中C++世界沟通的桥梁。
/*
* java.lang.Thread
*/
JNIEXPORT void JNICALL
JVM_StartThread(JNIEnv *env, jobject thread);
JVM_StartThread的具体实现在jvm.cpp中，主要代码逻辑列举如下（本文主要是要看线程创建的逻辑，因此一些分支代码没有展示）：
JVM_ENTRY(void, JVM_StartThread(JNIEnv* env, jobject jthread))
JVMWrapper("JVM_StartThread");
JavaThread *native_thread = NULL;
//……
//获取栈的大小
jlong size = java_lang_Thread::stackSize(JNIHandles::resolve_non_null(jthread));
//……
//栈的大小不能为负数
size_t sz = size > 0 ? (size_t) size : 0;
//通过new JavaThread新建os线程对象，这里thread_entry就是runnable的run方法。
native_thread = new JavaThread(&thread_entry, sz);
//……
Thread::start(native_thread);
JVM_END

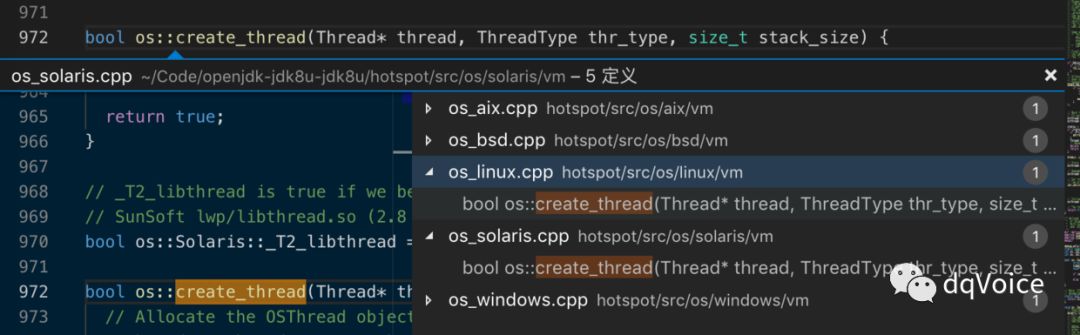

JavaThread的构造方法实现时在thread.cpp文件中，做一些准备工作后，会通过 os::create_thread(this,thr_type,stack_sz);创建线程，os::create_thread的实现时跟具体平台有关的，如下图所示：
这里我们选择oslinux.cpp这个文件。os::createthread的主要动作有几个：
-
通过
pthread_attr_init (&attr );初始化线程的属性 -
通过
int ret= pthread_create(& tid, &attr ,( void* (*)(void *))java_start ,thread );创建os线程，这里最重要了，参见pthread_create手册，可以知道，第三个参数表示启动这个线程后要执行的方法的入口，第四个参数表示要给这个方法传入的参数。
这里我们看下java_start方法的实现（该方法也在thread.cpp中），在这个方法的入参是Thread指针；
// Thread start routine for all newly created threads
static void *java_start(Thread *thread) {
// Try to randomize the cache line index of hot stack frames.
// This helps when threads of the same stack traces evict each other's
// cache lines. The threads can be either from the same JVM instance, or
// from different JVM instances. The benefit is especially true for
// processors with hyperthreading technology.
static int counter = 0;
int pid = os::current_process_id();
alloca(((pid ^ counter++) & 7) * 128);
ThreadLocalStorage::set_thread(thread);
OSThread* osthread = thread->osthread();
Monitor* sync = osthread->startThread_lock();
// non floating stack LinuxThreads needs extra check, see above
if (!_thread_safety_check(thread)) {
// notify parent thread
MutexLockerEx ml(sync, Mutex::_no_safepoint_check_flag);
osthread->set_state(ZOMBIE);
sync->notify_all();
return NULL;
}
// thread_id is kernel thread id (similar to Solaris LWP id)
osthread->set_thread_id(os::Linux::gettid());
if (UseNUMA) {
int lgrp_id = os::numa_get_group_id();
if (lgrp_id != -1) {
thread->set_lgrp_id(lgrp_id);
}
}
// initialize signal mask for this thread
os::Linux::hotspot_sigmask(thread);
// initialize floating point control register
os::Linux::init_thread_fpu_state();
// handshaking with parent thread
{
MutexLockerEx ml(sync, Mutex::_no_safepoint_check_flag);
// notify parent thread
osthread->set_state(INITIALIZED);
sync->notify_all();
// wait until os::start_thread()
// 这里说明，新创建的os线程不会立即执行，会等os::start_thread()的通知，在后面我们马上会分析到。
while (osthread->get_state() == INITIALIZED) {
sync->wait(Mutex::_no_safepoint_check_flag);
}
}
// call one more level start routine
thread->run();
return 0;
}
在方法的最后，会通过 thread->run();调用JavaThread的run方法，然后再到JavaThread的threadmaininner方法，
void
JavaThread::
thread_main_inner()
{
assert(JavaThread
::current()
==
this,
"sanity check");
assert(this
->threadObj()
!= NULL
, "just checking"
);
// Execute thread entry point unless this thread has a pending exception
// or has been stopped before starting.
// Note: Due to JVM_StopThread we can have pending exceptions already!
if (!
this->has_pending_exception
() &&
!java_lang_Thread::
is_stillborn(this
->threadObj()))
{
{
ResourceMark rm(
this);
this->set_native_thread_name
(this->
get_thread_name());
}
HandleMark hm(
this);
//注意：这里就是Java线程要执行的run方法
this->entry_point
()(this,
this);
}
DTRACE_THREAD_PROBE
(stop,
this);
this->exit
(false);
delete this
;
}
this->entry_point()(this,this);这行的调用，就会执行java.lang.Thread中的run方法，那么这个entrypoint是在哪里被设置到JavaThread对象中的呢，回顾上文，在jvm.cpp里有一个new JavaThread(&threadentry,sz)的调用，是的，就是这里，thread_entry的具体实现是：
static void thread_entry(JavaThread* thread, TRAPS) {
HandleMark hm(THREAD);
Handle obj(THREAD, thread->threadObj());
JavaValue result(T_VOID);
JavaCalls::call_virtual(&result,
obj,
KlassHandle(THREAD, SystemDictionary::Thread_klass()),
vmSymbols::run_method_name(),
vmSymbols::void_method_signature(),
THREAD);
}
这段代码要做的事情就是在JVM的c++世界里，获取到对应的java.lang.Thread的对象，然后调用它的run方法。
再看下JVMStartThread的逻辑，nativethread被创建后并不会立即被执行，而是出于初始化状态，后面还会执行 Thread::start(native_thread);代码，这是做了什么工作呢？
void
Thread::
start(Thread
* thread)
{
trace
("start",
thread);
// Start is different from resume in that its safety is guaranteed by context or
// being called from a Java method synchronized on the Thread object.
if (!
DisableStartThread)
{
if (
thread->is_Java_thread
()) {
// Initialize the thread state to RUNNABLE before starting this thread.
// Can not set it after the thread started because we do not know the
// exact thread state at that time. It could be in MONITOR_WAIT or
// in SLEEPING or some other state.
java_lang_Thread
::set_thread_status(((
JavaThread*)thread
)->threadObj(),
java_lang_Thread
::RUNNABLE);
}
os
::start_thread(
thread);
}
}
根据代码可知道，这个方法先将thread的状态设置为RUNNABLE，然后再调用 os::start_thread(thread)；通知刚刚创建的os线程开始运行，具体的代码如下：
void
os::start_thread
(Thread*
thread)
{
// guard suspend/resume
MutexLockerEx ml(
thread->SR_lock
(), Mutex
::_no_safepoint_check_flag);
OSThread* osthread
= thread->
osthread();
osthread
->set_state(
RUNNABLE);
pd_start_thread
(thread);
}
在这里pdstartthread(具体实现在os_linux.cpp)就负责通知刚刚被创建的但是处于初始化状态的线程，代码如下：
void os::pd_start_thread(Thread* thread) {
OSThread * osthread = thread->osthread();
assert(osthread->get_state() != INITIALIZED, "just checking");
Monitor* sync_with_child = osthread->startThread_lock();
MutexLockerEx ml(sync_with_child, Mutex::_no_safepoint_check_flag);
sync_with_child->notify();
}
sync_with_child->notify();这行代码就是用来通知线程开始运行的。
总结

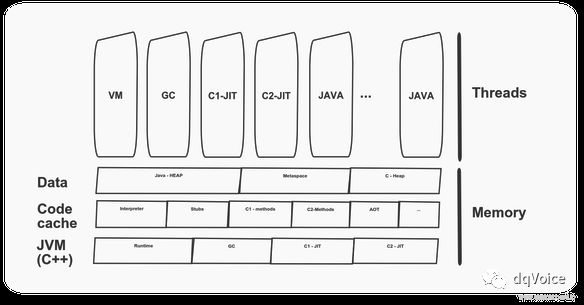

这篇文章主要梳理了三个问题：（1）JVM中的线程模型是怎么样的，跟os中的线程一一对应；（2）JVM里常见的几类线程都有哪些？VM Thread、周期线程、Compiler 线程、GC线程、信号量处理线程；（3）当我们在java代码中执行start()方法的时候，JVM内部做了哪些事情？
参考资料
-
HotSpot JVM internal threads
-
JVM原理与实现——Thread
-
How Java thread maps to OS thread?
-
Java并发的官方文档
-
JVM attach机制的实现
-
HOTSPOTVM线程实现浅析
动动手指，关注一下啦
