一、概述
在2018年5月9日的谷歌开发者大会(Google I/O 2018) 中提出在去年发布的广受欢迎的架构组件上,进一步改进并推出了Jetpack。Jetpack能帮助我们更专注提升应用体验,加快应用开发速度,处理类似后台任务、UI 导航以及生命周期管理等。发布的新版 Android Jetpack 组件中更新的内容包括 4 个部分:
WorkManager、Paging、Navigation 以及 Slices。
我们今天要说的就是Paging,在进行大数据查询的时候,Paging分页组件可以让我们从本地或者网络中通过渐进的方式、逐步的请求数据加载,在不过多增加设备负担或等待时间的情况下,让应用拥有了处理大型数据的能力,其中包括对RecycleView的支持。和往常一样,主要是想总结一下Android官方Paging Library的学习过程以及一些需要注意的地方。
详细请查看谷歌官方文档:
https://developer.android.com/topic/libraries/architecture/paging/
二、Paging Libray介绍
Paging Library中DataSource,PagedList,PagedAdapter三者之间的关系以及数据加载到数据展示的流程:

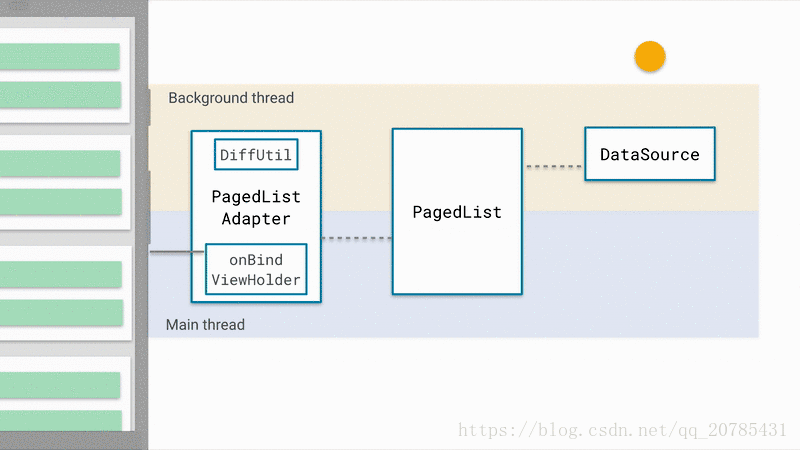

如下图所示,Paging的数据流是在后台线程生产的,在后台线程中完成了大部分工作,在UI线程中显示。
比如说:当一条新的item插入到数据库,DataSource会被初始化,LiveData<PagedList>后台线程就会创建一个新的PagedList。这个新的PagedList会被发送到UI线程的PagedListAdapter中,PagedListAdapter使用DiffUtil在对比现在的Item和新建Item的差异。当对比结束,PagedListAdapter通过调用RecycleView.Adapter.notifyItemInserted()将新的item插入到适当的位置。RecycleView就会知道它需要绑定一个新的item,并将其显示。
从代码层面来说,我们需要给Recyclerview设置PagedListAdater,PagedListAdapter设置对应的PagedList。每一次adapter getItem就是让PagedList知道我们已经滑到第几个item了,PagedList计算这些数量以及配置的参数,当条件达成就通知DataSource,让其返回数据。数据返回成功时,通知PagedListAdapter进行刷新等操作。
Datasource
Datasource是数据源相关的类,针对不同场景,Paging 提供了三种 Datasource:
-
PageKeyedDataSource:如果页面在加载时插入一个/下一个键,例如:从网络获取社交媒体的帖子,可能需要将nextPage加载到后续的加载中;
-
ItemKeyedDataSource:在需要让使用的数据的item从N条增加到N+1条时使用;
-
PositionalDataSource:如果需要从数据存储的任意位置来获取数据页面。此类支持你从任何位置开始请求一组item的数据集。例如,该请求可能会返回从位置1200条开始的20个数据项;
根据使用场景选择实现DataSource不同的抽象类, 使用时需实现请求加载数据的方法。其中这三种Datasource 都需要实现 loadInitial()方法, 各自都封装了请求初始化数据的参数类型 LoadInitialParams。 不同的是分页加载数据的方法, PageKeyedDataSource和 ItemKeyedDataSource比较相似, 需要实现 loadBefore()和 loadAfter()方法,同样对请求参数做了封装,即LoadParams<Key>。 PositionalDataSource需要实现 loadRange()。
PagedList
PagedList 通过 Datasource 加载数据, 通过 Config 的配置,可以设置一次加载的数量以及预加载的数量等。 除此之外,PagedList 还可以向 RecyclerView.Adapter 发送更新UI的信号。Config: 配置 PagedList 从 Datasource 加载数据的方式, 其中包含以下属性:
-
setPageSize:设置每一页加载的数量;
-
setInitialLoadSizeHint:设置首次加载的数量;
-
setPrefetchDistance:设置距离最后还有多少个item时,即寻呼库开始加载下一页的数据;
-
setEnablePlaceholders:表示是否设置null占位符;
PagedListAdapter
PagedListAdapter 是 RecyclerView.Adapter 的实现,用于展示 PagedList 的数据。PagedListAdapter中每一次getItem就是让PagedList知道我们已经滑到第几个item了,当数据源提供新的PagedList时,PagedList会计算这些数量以及配置的参数,当条件达成就通知DataSource,让其返回数据。数据返回成功时,通知PagedListAdapter。 而PagedListAdapter会使用DiffUtil再对比现在的Item和新建Item的差异并进行刷新等操作。
三、加载的数据源类型
数据的加载方式主要有两种:
单一数据源:本地数据或网络数据

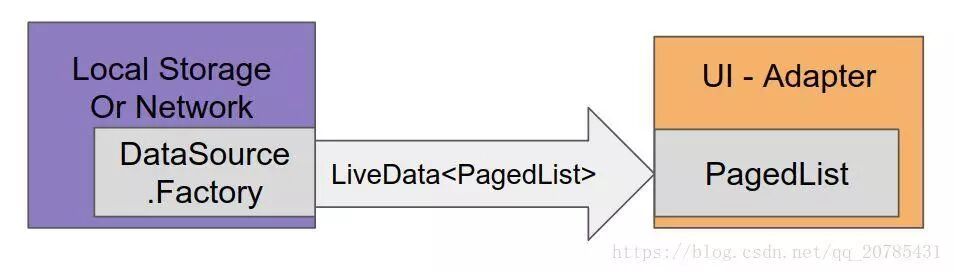

首先我们可以通过 LivePagedListBuilder来创建 LiveData<PagedList>为 UI 层提供数据。如果数据源是DB,当数据发生变化,DB 会推送一个新的 PagedList(依赖LiveData的机制)。如果是网络数据,因为我们无法知道数据源的变化,以通过滑动刷新的方式调用 Datasource 的 invalidate()方法来加载新的数据。流程如下所示:

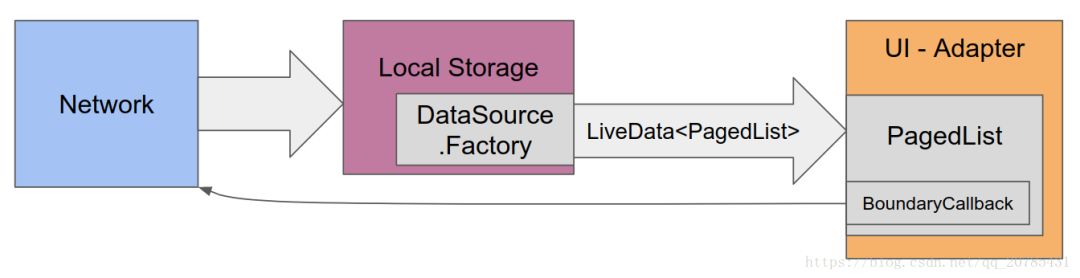

多个数据源:本地数据+网络数据
一般是先加载本地数据,加载完成后再加载网络数据。比如 IM 中的聊天消息,当打开聊天界面时先加载本地数据库中的聊天消息,加载完了再加载网络的离线消息。这个时候我们需要为 PagedList 设置 BoundaryCallback来监听本地数据是否加载完成,当本地数据加载完成就触发加载网络数据,然后入库,此时LiveData会推送一个新的PagedList, 并触发界面刷新。
四、代码的实现
按照惯例,我们先来看看效果图
从效果图中可以看到,当RecyclerView不断下滑时,就触发分页加载,把RecyclerView后续要使用的数据分页加载显示出来。这么说吧,当我们滑动第一页时,在还没有滑到底部的时候,它将请求第二页的数据,代码中就是实现ItemKeyedDataSource中的loadAfter方法;当我们滑动第二页时,在还没有滑到底部的时候,它将请求第三页的数据,以此类推。好了,下面我们来看看代码吧:
添加依赖
首先要使用Android Paging Library,我们需要在应用的build.gradle中添加Paging支持库以及我在Dome中用到的其他库的引用(注意:这篇文章是基于Paging Library 1.0.0的版本。):
//pagingimplementation 'android.arch.paging:runtime:1.0.0'// RxKotlinimplementation 'io.reactivex.rxjava2:rxkotlin:2.2.0'// RxAndroidimplementation 'io.reactivex.rxjava2:rxandroid:2.0.2'// Lifecycleimplementation 'android.arch.lifecycle:extensions:1.1.1'
StudentDataSourceFactory:
为了创建这些可观察 PagedList对象,我们需要将DataSource.Factory给一个LivePagedListBuilder对象。一个DataSource对象为单个页面加载PagedList数据。工厂类创建新的实例PagedList以响应内容更新,例如数据库表失效和网络刷新。
/** * 一个简单的数据源工厂,它提供了一种观察上次创建的数据源的方式,这使得我们能够将其网络请求状态等返回到UI界面 * Created by juan on 2018/05/23. */class StudentDataSourceFactory(private val retryExecutor: Executor): DataSource.Factory<String, StudentBean>() { val sourceLiveData=MutableLiveData<StudentDataSource>() override fun create(): DataSource<String, StudentBean> { val source= StudentDataSource(retryExecutor) sourceLiveData.postValue(source) return source }}
StudentDataRepository:
/** 1. Repository实现返回一个直接从网络加载数据的Listing,并使用该名称作为加载上一页/下一页数据的关键 2. Created by juan on 2018/05/23. */class StudentDataRepository(private val executor: Executor): StudentRepository { override fun getStudentList(pageSize: Int): Listing<StudentBean?> { val sourceFactory= StudentDataSourceFactory(executor) val pagedListConfig = PagedList.Config.Builder() .setEnablePlaceholders(false) .setInitialLoadSizeHint(pageSize*2)//定义第一页加载项目的数量 .setPageSize(pageSize)//定义从DataSource中每一次加载的项目数量 .build() val pagedList = LivePagedListBuilder(sourceFactory, pagedListConfig) .setFetchExecutor(executor)//设置Executor执行器用于从用于从DataSources中获取PagedLists数据,如果未设置,则默认为Arch组件I/O线程。 .build() val refreshState = switchMap(sourceFactory.sourceLiveData) { it.initialLoad } return Listing<StudentBean?>( pagedList =pagedList, networkState = switchMap(sourceFactory.sourceLiveData, { it.networkState }), retry = { sourceFactory.sourceLiveData.value?.retryAllFailed() }, refresh = { sourceFactory.sourceLiveData.value?.invalidate() }, refreshState = refreshState) }}
共享接口
定义一个用于给不同的Repository实现共享的通用接口:
/** 3. 给不同的Repository实现共享的通用接口 4. Created by juan on 2018/05/23. */interface StudentRepository { fun getStudentList(pageSize: Int): Listing<StudentBean?>}
选择正确的数据源类型:
下面,我们就使用DataSource建立自己的分页数据源,其中包括定义加载第一页以及后面每一页数据:
/** * DataSource负责加载第一页以及后面每一页数据 * Created by juan on 2018/05/23. */open class StudentDataSource(private val retryExecutor: Executor) : ItemKeyedDataSource<String, StudentBean>(){ private var TAG: String="paging" private var retry:(()->Any)?=null private var startPosition:Int = 0 fun retryAllFailed(){ val prevRetry=retry retry=null prevRetry?.let { retryExecutor.execute { it.invoke() } } } val networkState by lazy{ MutableLiveData<Resource<String>>() } val initialLoad by lazy{ MutableLiveData<Resource<String>>() } /** * 接收初始加载的数据,在这里需要将获取到的数据通过LoadInitialCallback的onResult进行回调,用于出始化PagedList,并对加载的项目进行计数 */ override fun loadInitial(params: LoadInitialParams<String>, callback: LoadInitialCallback<StudentBean>) { Log.d(TAG,"loadInitial->mSkip:"+startPosition+",count:"+params.requestedLoadSize) networkState.postValue(Resource.loading(null)) initialLoad.postValue(Resource.loading(null)) //模拟耗时操作 val list=loadData(startPosition,params.requestedLoadSize) retry=null networkState.postValue(Resource.success(null)) initialLoad.postValue(Resource.success(null)) callback.onResult(list) startPosition+=list.size } /** * 接收加载的数据 */ override fun loadAfter(params: LoadParams<String>, callback: LoadCallback<StudentBean>) { Log.d(TAG,"loadAfter->mSkip:"+startPosition+",count:"+params.requestedLoadSize) networkState.postValue(Resource.loading(null)) //模拟耗时操作 val list=loadData(startPosition,params.requestedLoadSize) retry=null networkState.postValue(Resource.success(null)) callback.onResult(list) startPosition+=list.size } override fun loadBefore(params: LoadParams<String>, callback: LoadCallback<StudentBean>) { Log.d(TAG,"loadBefore") } override fun getKey(item: StudentBean): String = item.id!! /** * 模拟耗时操作,假设这里需要做一些后台线程的数据加载任务。 */ private fun loadData(startPosition: Int, limit: Int): List<StudentBean> { val list = ArrayList<StudentBean>() for (i in 0 until limit) { var position=startPosition + i val data = StudentBean(position.toString(), "学生@$position") list.add(data) } return list }}
这里的实现了ItemKeyedDataSource中几个方法:
-
loadInitial(@NonNull LoadInitialParams<Key> params,@NonNull LoadInitialCallback<Value> callback) ->用于接收初始第一页加载的数据,在这里需要将获取到的数据通过LoadInitialCallback的onResult进行回调,用于出始化PagedList,并对加载的项目进行计数
-
loadAfter(@NonNull LoadParams<Key> params,@NonNull LoadCallback<Value> callback) ->用于接收后面每一页加载的数据,使用方法和loadInitial一样
-
loadBefore(@NonNull LoadParams<Key> params,@NonNull LoadCallback<Value> callback) ->指定的密钥之前加载列表数据
-
getKey(@NonNull Value item) ->返回与给定项目关联的密钥
Listing
用于UI显示列表和系统其余部分进行交互所必需的数据类:
/** * UI显示列表和系统其余部分进行交互所必需的数据类 * Created by juan on 2018/05/23. */data class Listing<T> ( val pagedList: LiveData<PagedList<T>>, val networkState: LiveData<Resource<String>>, val refreshState: LiveData<Resource<String>>, val refresh: () -> Unit, val retry: () -> Unit)
Resource
一个通用类,用于保存具有其加载状态的值:
/** * 一个通用类,用于保存具有其加载状态的值 * Created by juan on 2018/05/23. */data class Resource<out T>(val status: Status, val data: T?, val message: String?) { companion object { fun <T> loading(msg: String? = null, data: T? = null): Resource<T> { return Resource(Status.LOADING, data, msg) } fun <T> success(data: T? = null): Resource<T> { return Resource(Status.SUCCESS, data, null) } fun <T> error(msg: String? = null, data: T? = null): Resource<T> { return Resource(Status.ERROR, data, msg) } }}enum class Status { SUCCESS, ERROR, LOADING}
StudentViewModel
在Dome中我们是引用MVVM的应用框架,StudentViewModel只做和业务逻辑和业务数据相关的事,不做任何和UI相关的事情,负责完成View与Model间的交互。ViewModel 层不会持有任何控件的引用,更不会在ViewModel中通过UI控件的引用去做更新UI的事情。简单说就是专注于业务的逻辑处理,做的事情也都只是对数据的操作。后面我可能会专门写一篇MVVM的文章
/** * Created by juan on 2018/05/23. */class StudentViewModel : AndroidViewModel { private lateinit var mPostRepository: StudentRepository constructor(application: Application, postRepository: StudentRepository):super(application){ this.mPostRepository=postRepository } // region 基于Android官方Paging Library的分页加载框架 private val data = MutableLiveData<String>() private val repoResult = Transformations.map(data, { mPostRepository.getStudentList(10) }) val posts = Transformations.switchMap(repoResult, { it.pagedList })!! val networkState = Transformations.switchMap(repoResult, { it.networkState })!! val refreshState = Transformations.switchMap(repoResult, { it.refreshState })!! fun refresh() { repoResult.value?.refresh?.invoke() } fun showDatas(subreddit: String): Boolean { if (data.value == subreddit) { return false } data.value = subreddit return true } fun retry() { val listing = repoResult?.value listing?.retry?.invoke() } fun currentData(): String? = data.value // endregion}
MainActivity
这里的Activity做的事就是初始化一些控件(如控件的颜色,添加RecyclerView的分割线等)、订阅Resource.Status的加载状态,从而更新UI。简单地说:View层不做任何业务逻辑、不涉及操作或处理数据。
class MainActivity : AppCompatActivity() { private lateinit var studentViewModel: StudentViewModel private lateinit var mAdapter: StudentAdapter override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) setContentView(R.layout.activity_main) studentViewModel=getViewModel() initAdapter() initSwipeToRefresh() studentViewModel.showDatas("") } private fun getViewModel(): StudentViewModel { return ViewModelProviders.of(this, object : ViewModelProvider.Factory { override fun <T : ViewModel?> create(modelClass: Class<T>): T { val repo = ServiceLocator.instance() .getRepository() return StudentViewModel(application, repo) as T } })[StudentViewModel::class.java] } private fun initSwipeToRefresh() { swipeRefreshLayout.setColorSchemeColors(Color.BLUE, Color.GREEN, Color.RED, Color.YELLOW) swipeRefreshLayout.setOnRefreshListener { studentViewModel.refresh() } studentViewModel.refreshState.observe(this, Observer { resource-> if (resource==null){ return@Observer } when(resource.status){ Status.LOADING->{ swipeRefreshLayout.isRefreshing=true } Status.SUCCESS->{ swipeRefreshLayout.isRefreshing=false } Status.ERROR->{ Toast.makeText(this,resource.message,Toast.LENGTH_LONG).show() swipeRefreshLayout.isRefreshing=false } } }) } private fun initAdapter() { val mLayoutManager = LinearLayoutManager(this) mLayoutManager.orientation = LinearLayout.VERTICAL rv!!.layoutManager = mLayoutManager rv.addItemDecoration(DividerItemDecoration(this, DividerItemDecoration.VERTICAL))//添加分割线 mAdapter= StudentAdapter(this) rv.adapter = mAdapter studentViewModel.posts.observe(this, Observer((mAdapter::submitList))) }}
其中studentViewModel.posts.observe(this, Observer((mAdapter::submitList)))就是把LiveData<PagedList>与PagedListAdapter关联连接。
StudentAdapter
/** * Created by juan on 2018/05/23. */class StudentAdapter(private val mContext: Context):PagedListAdapter<StudentBean, StudentViewHolder>(diffCallback){ override fun onBindViewHolder(holder: StudentViewHolder, position: Int) { holder.bindTo(getItem(position),mContext) } override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): StudentViewHolder = StudentViewHolder(parent) companion object { private val diffCallback = object : DiffUtil.ItemCallback<StudentBean>() { override fun areItemsTheSame(oldItem: StudentBean, newItem: StudentBean): Boolean = oldItem.id == newItem.id override fun areContentsTheSame(oldItem: StudentBean, newItem: StudentBean): Boolean = oldItem == newItem } }}
大概就这么多,我把现阶段对Android Paging Library学习过程记录下来,作为我学习Android Paging Library技术的阶段性备忘录,这代码还有待进一步完善和继续跟进研究!
有什么疑问的,请在下面留言,有不足之处还望指导,感谢各位。
源码下载
附录:1、谷歌Android官方Android Paging Library技术文档主页:https://developer.android.com/topic/libraries/architecture/paging/
2、Google samples :https://github.com/googlesamples/android-architecture-components
