Guide to app architecture

This guide is for developers who are past the basics of building an app and now want to know the best practices and recommended architecture for building robust, production-quality apps.

This page assumes you are familiar with the Android Framework. If you are new to Android app development, check out our Developer guides, which cover prerequisite topics for this guide.

Mobile app user experiences

In the majority of cases, desktop apps have a single entry point from a desktop or program launcher, then run as a single, monolithic process. Android apps, on the other hand, have a much more complex structure. A typical Android app contains multiple app components, including activities, fragments, services, content providers, and broadcast receivers.

You declare most of these app components in your app manifest. The Android OS then uses this file to decide how to integrate your app into the device's overall user experience. Given that a properly-written Android app contains multiple components and that users often interact with multiple apps in a short period of time, apps need to adapt to different kinds of user-driven workflows and tasks.

For example, consider what happens when you share a photo in your favorite social networking app:

1. The app triggers a camera intent. The Android OS then launches a camera app to handle the request.

   At this point, the user has left the social networking app, but their experience is still seamless.

2. The camera app might trigger other intents, like launching the file chooser, which may launch yet another app.

3. Eventually, the user returns to the social networking app and shares the photo.

At any point during the process, the user could be interrupted by a phone call or notification. After acting upon this interruption, the user expects to be able to return to, and resume, this photo-sharing process. This app-hopping behavior is common on mobile devices, so your app must handle these flows correctly.

Keep in mind that mobile devices are also resource-constrained, so at any time, the operating system might kill some app processes to make room for new ones.

Given the conditions of this environment, it's possible for your app components to be launched individually and out-of-order, and the operating system or user can destroy them at any time. Because these events aren't under your control, you shouldn't store any app data or state in your app components, and your app components shouldn't depend on each other.

Common architectural principles

If you shouldn't use app components to store app data and state, how should you design your app?

Separation of concerns

The most important principle to follow is separation of concerns. It's a common mistake to write all your code in an Activity or a Fragment. These UI-based classes should only contain logic that handles UI and operating system interactions. By keeping these classes as lean as possible, you can avoid many lifecycle-related problems.

Keep in mind that you don't own implementations of Activity and Fragment; rather, these are just glue classes that represent the contract between the Android OS and your app. The OS can destroy them at any time based on user interactions or because of system conditions like low memory. To provide a satisfactory user experience and a more manageable app maintenance experience, it's best to minimize your dependency on them.

Drive UI from a model

Another important principle is that you should drive your UI from a model, preferably a persistent model.

are components that are responsible for handling the data for an app. They're independent from the Viewobjects and app components in your app, so they're unaffected by the app's lifecycle and the associated concerns.

Persistence is ideal for the following reasons:

• Your users don't lose data if the Android OS destroys your app to free up resources.
• Your app continues to work in cases when a network connection is flaky or not available.

By basing your app on model classes with the well-defined responsibility of managing the data, your app is more testable and consistent.

Recommended app architecture

In this section, we demonstrate how to structure an app using Architecture Components by working through an end-to-end use case.

Imagine we're building a UI that shows a user profile. We use a private backend and a REST API to fetch the data for a given profile.

Overview

To start, consider the following diagram, which shows how all the modules should interact with one another after designing the app:

Notice that each component depends only on the component one level below it. For example, activities and fragments depend only on a view model. The repository is the only class that depends on multiple other classes; in this example, the repository depends on a persistent data model and a remote backend data source.

This design creates a consistent and pleasant user experience. Regardless of whether the user comes back to the app several minutes after they've last closed it or several days later, they instantly see a user's information that the app persists locally. If this data is stale, the app's repository module starts updating the data in the background.

Build the user interface

The UI consists of a fragment, UserProfileFragment, and its corresponding layout file, user_profile_layout.xml.

To drive the UI, our data model needs to hold the following data elements:

• User ID: The identifier for the user. It's best to pass this information into the fragment using the fragment arguments. If the Android OS destroys our process, this information is preserved, so the ID is available the next time our app is restarted.
• User object: A data class that holds details about the user.

We use a UserProfileViewModel, based on the

architecture component, to keep this information.

A ViewModel object provides the data for a specific UI component, such as a fragment or activity, and contains data-handling business logic to communicate with the model. For example, the ViewModel can call other components to load the data, and it can forward user requests to modify the data. The ViewModeldoesn't know about UI components, so it isn't affected by configuration changes, such as recreating an activity when rotating the device.

We've now defined the following files:

• user_profile.xml: The UI layout definition for the screen.
• UserProfileFragment: The UI controller that displays the data.
• UserProfileViewModel: The class that prepares the data for viewing in the UserProfileFragment and reacts to user interactions.

The following code snippets show the starting contents for these files. (The layout file is omitted for simplicity.)

UserProfileViewModel

public class UserProfileViewModel extends ViewModel {
    private String userId;
    private User user;

    public void init(String userId) {
        this.userId = userId;
    }
    public User getUser() {
        return user;
    }
}

UserProfileFragment

public class UserProfileFragment extends Fragment {
    private static final String UID_KEY = "uid";
    private UserProfileViewModel viewModel;

    @Override
    public void onActivityCreated(@Nullable Bundle savedInstanceState) {
        super.onActivityCreated(savedInstanceState);
        String userId = getArguments().getString(UID_KEY);
        viewModel = ViewModelProviders.of(this).get(UserProfileViewModel.class);
        viewModel.init(userId);
    }

    @Override
    public View onCreateView(LayoutInflater inflater,
                @Nullable ViewGroup container,
                @Nullable Bundle savedInstanceState) {
        return inflater.inflate(R.layout.user_profile, container, false);
    }
}

Now that we have these code modules, how do we connect them? After all, when the user field is set in the UserProfileViewModel class, we need a way to inform the UI. This is where the

architecture component comes in.

LiveData is an observable data holder. Other components in your app can monitor changes to objects using this > holder without creating explicit and rigid dependency paths between them. The LiveData component also respects the lifecycle state of your app's components—such as activities, fragments, and services—and includes cleanup logic to prevent object leaking and excessive memory consumption.

To incorporate the LiveData component into our app, we change the field type in the UserProfileViewModel to LiveData<User>. Now, the UserProfileFragment is informed when the data is updated. Furthermore, because this LiveData field is lifecycle aware, it automatically cleans up references after they're no longer needed.

UserProfileViewModel

public class UserProfileViewModel extends ViewModel {
    ...
    private User user;
    private LiveData<User> user;
    public LiveData<User> getUser() {
        return user;
    }
}

Now we modify UserProfileFragment to observe the data and update the UI:

UserProfileFragment

@Override
public void onActivityCreated(@Nullable Bundle savedInstanceState) {
    super.onActivityCreated(savedInstanceState);
    viewModel.getUser().observe(this, user -> {
      // Update UI.
    });
}

Every time the user profile data is updated, the onChanged() callback is invoked, and the UI is refreshed.

If you're familiar with other libraries where observable callbacks are used, you might have realized that we didn't override the fragment's onStop() method to stop observing the data. This step isn't necessary with LiveData because it's lifecycle aware, which means it doesn't invoke the onChanged() callback unless the fragment is in an active state; that is, it has received onStart() but hasn't yet received onStop()). LiveData also automatically removes the observer when the fragment's onDestroy() method is called.

We also didn't add any logic to handle configuration changes, such as the user rotating the device's screen. The UserProfileViewModel is automatically restored when the configuration changes, so as soon as the new fragment is created, it receives the same instance of ViewModel, and the callback is invoked immediately using the current data. Given that ViewModel objects are intended to outlast the corresponding View objects that they update, you shouldn't include direct references to View objects within your implementation of ViewModel. For more information about the lifetime of a ViewModel corresponds to the lifecycle of UI components, see The lifecycle of a ViewModel.

Fetch data

Now that we've used LiveData to connect the UserProfileViewModel to the UserProfileFragment, how can we fetch the user profile data?

For this example, we assume that our backend provides a REST API. We use the Retrofit library to access our backend, though you are free to use a different library that serves the same purpose.

Here's our definition of Webservice that communicates with our backend:

Webservice

public interface Webservice {
    /**
     * @GET declares an HTTP GET request
     * @Path("user") annotation on the userId parameter marks it as a
     * replacement for the {user} placeholder in the @GET path
     */
    @GET("/users/{user}")
    Call<User> getUser(@Path("user") String userId);
}

A first idea for implementing the ViewModel might involve directly calling the Webservice to fetch the data and assign this data to our LiveData object. This design works, but by using it, our app becomes more and more difficult to maintain as it grows. It gives too much responsibility to the UserProfileViewModel class, which violates the separation of concerns principle. Additionally, the scope of a ViewModel is tied to an Activity or Fragment lifecycle, which means that the data from the Webservice is lost when the associated UI object's lifecycle ends. This behavior creates an undesirable user experience.

Instead, our ViewModel delegates the data-fetching process to a new module, a

.

Repository modules handle data operations. They provide a clean API so that the rest of the app can retrieve this data easily. They know where to get the data from and what API calls to make when data is updated. You can consider repositories to be mediators between different data sources, such as persistent models, web services, and caches.

Our UserRepository class, shown in the following code snippet, uses an instance of WebService to fetch a user's data:

UserRepository

public class UserRepository {
    private Webservice webservice;
    // ...
    public LiveData<User> getUser(int userId) {
        // This isn't an optimal implementation. We'll fix it later.
        final MutableLiveData<User> data = new MutableLiveData<>();
        webservice.getUser(userId).enqueue(new Callback<User>() {
            @Override
            public void onResponse(Call<User> call, Response<User> response) {
                data.setValue(response.body());
            }

            // Error case is left out for brevity.
        });
        return data;
    }
}

Even though the repository module looks unnecessary, it serves an important purpose: it abstracts the data sources from the rest of the app. Now, our UserProfileViewModel doesn't know how the data is fetched, so we can provide the view model with data obtained from several different data-fetching implementations.

Manage dependencies between components

The UserRepository class above needs an instance of Webservice to fetch the user's data. It could simply create the instance, but to do that, it also needs to know the dependencies of the Webservice class. Additionally,UserRepository is probably not the only class that needs a Webservice. This situation requires us to duplicate code, as each class that needs a reference to Webservice needs to know how to construct it and its dependencies. If each class creates a new WebService, our app could become very resource heavy.

You can use the following design patterns to address this problem:

• Dependency injection (DI): Dependency injection allows classes to define their dependencies without constructing them. At runtime, another class is responsible for providing these dependencies. We recommend the Dagger 2 library for implementing dependency injection in Android apps. Dagger 2 automatically constructs objects by walking the dependency tree, and it provides compile-time guarantees on dependencies.
• Service locator: The service locator pattern provides a registry where classes can obtain their dependencies instead of constructing them.

It's easier to implement a service registry than use DI, so if you aren't familiar with DI, use the service locator pattern instead.

These patterns allow you to scale your code because they provide clear patterns for managing dependencies without duplicating code or adding complexity. Furthermore, these patterns allow you to quickly switch between test and production data-fetching implementations.

Our example app uses Dagger 2 to manage the Webservice object's dependencies.

Connect ViewModel and the repository

Now, we modify our UserProfileViewModel to use the UserRepository object:

UserProfileViewModel

public class UserProfileViewModel extends ViewModel {
    private LiveData<User> user;
    private UserRepository userRepo;

    // Instructs Dagger 2 to provide the UserRepository parameter.
    @Inject
    public UserProfileViewModel(UserRepository userRepo) {
        this.userRepo = userRepo;
    }

    public void init(int userId) {
        if (this.user != null) {
            // ViewModel is created on a per-Fragment basis, so the userId
            // doesn't change.
            return;
        }
        user = userRepo.getUser(userId);
    }

    public LiveData<User> getUser() {
        return this.user;
    }
}

Cache data

The UserRepository implementation abstracts the call to the Webservice object, but because it relies on only one data source, it's not very flexible.

The key problem with the UserRepository implementation is that after it fetches data from our backend, it doesn't store that data anywhere. Therefore, if the user leaves the UserProfileFragment, then returns to it, our app must re-fetch the data, even if it hasn't changed.

This design is suboptimal for the following reasons:

• It wastes valuable network bandwidth.
• It forces the user to wait for the new query to complete.

To address these shortcomings, we add a new data source to our UserRepository, which caches the Userobjects in memory:

UserRepository

// Informs Dagger that this class should be constructed only once.
@Singleton
public class UserRepository {
    private Webservice webservice;

    // Simple in-memory cache. Details omitted for brevity.
    private UserCache userCache;

    public LiveData<User> getUser(int userId) {
        LiveData<User> cached = userCache.get(userId);
        if (cached != null) {
            return cached;
        }

        final MutableLiveData<User> data = new MutableLiveData<>();
        userCache.put(userId, data);

        // This implementation is still suboptimal but better than before.
        // A complete implementation also handles error cases.
        webservice.getUser(userId).enqueue(new Callback<User>() {
            @Override
            public void onResponse(Call<User> call, Response<User> response) {
                data.setValue(response.body());
            }
        });
        return data;
    }
}

Persist data

Using our current implementation, if the user rotates the device or leaves and immediately returns to the app, the existing UI becomes visible instantly because the repository retrieves data from our in-memory cache.

However, what happens if the user leaves the app and comes back hours later, after the Android OS has killed the process? By relying on our current implementation in this situation, we need to fetch the data again from the network. This refetching process isn't just a bad user experience; it's also wasteful because it consumes valuable mobile data.

You could fix this issue by caching the web requests, but that creates a key new problem: What happens if the same user data shows up from another type of request, such as fetching a list of friends? The app would show inconsistent data, which is confusing at best. For example, our app might show two different versions of the same user's data if the user made the list-of-friends request and the single-user request at different times. Our app would need to figure out how to merge this inconsistent data.

The proper way to handle this situation is to use a persistent model. This is where the Room persistence library comes to the rescue.

Room is an object-mapping library that provides local data persistence with minimal boilerplate code. At compile time, it validates each query against your data schema, so broken SQL queries result in compile-time errors instead of runtime failures. Room abstracts away some of the underlying implementation details of working with raw SQL tables and queries. It also allows you to observe changes to the database's data, including collections and join queries, exposing such changes using

LiveData

objects. It even explicitly defines execution constraints that address common threading issues, such as accessing storage on the main thread.

To use Room, we need to define our local schema. First, we add the @Entity annotation to our User data model class and a @PrimaryKey annotation to the class's id field. These annotations mark User as a table in our database and id as the table's primary key:

User

@Entity
class User {
  @PrimaryKey
  private int id;
  private String name;
  private String lastName;

  // Getters and setters for fields.
}

Then, we create a database class by implementing RoomDatabase for our app:

UserDatabase

@Database(entities = {User.class}, version = 1)
public abstract class UserDatabase extends RoomDatabase {
}

Notice that UserDatabase is abstract. Room automatically provides an implementation of it. For details, see the Room documentation.

We now need a way to insert user data into the database. For this task, we create a data access object (DAO).

UserDao

@Dao
public interface UserDao {
    @Insert(onConflict = REPLACE)
    void save(User user);
    @Query("SELECT * FROM user WHERE id = :userId")
    LiveData<User> load(int userId);
}

Notice that the load method returns an object of type LiveData<User>. Room knows when the database is modified and automatically notifies all active observers when the data changes. Because Room uses

, this operation is efficient; it updates the data only when there is at least one active observer.

With our UserDao class defined, we then reference the DAO from our database class:

UserDatabase

@Database(entities = {User.class}, version = 1)
public abstract class UserDatabase extends RoomDatabase {
    public abstract UserDao userDao();
}

Now we can modify our UserRepository to incorporate the Room data source:

@Singleton
public class UserRepository {
    private final Webservice webservice;
    private final UserDao userDao;
    private final Executor executor;

    @Inject
    public UserRepository(Webservice webservice, UserDao userDao, Executor executor) {
        this.webservice = webservice;
        this.userDao = userDao;
        this.executor = executor;
    }

    public LiveData<User> getUser(String userId) {
        refreshUser(userId);
        // Returns a LiveData object directly from the database.
        return userDao.load(userId);
    }

    private void refreshUser(final String userId) {
        // Runs in a background thread.
        executor.execute(() -> {
            // Check if user data was fetched recently.
            boolean userExists = userDao.hasUser(FRESH_TIMEOUT);
            if (!userExists) {
                // Refreshes the data.
                Response<User> response = webservice.getUser(userId).execute();

                // Check for errors here.

                // Updates the database. The LiveData object automatically
                // refreshes, so we don't need to do anything else here.
                userDao.save(response.body());
            }
        });
    }
}

Notice that even though we changed where the data comes from in UserRepository, we didn't need to change our UserProfileViewModel or UserProfileFragment. This small-scoped update demonstrates the flexibility that our app's architecture provides. It's also great for testing, because we can provide a fake UserRepositoryand test our production UserProfileViewModel at the same time.

If users wait a few days before returning to an app that uses this architecture, it's likely that they'll see out-of-date information until the repository can fetch updated information. Depending on your use case, you may not want to show this out-of-date information. Instead, you can display

data, which shows dummy values and indicates that your app is currently fetching and loading up-to-date information.

Single source of truth

It's common for different REST API endpoints to return the same data. For example, if our backend has another endpoint that returns a list of friends, the same user object could come from two different API endpoints, maybe even using different levels of granularity. If the UserRepository were to return the response from the Webservice request as-is, without checking for consistency, our UIs could show confusing information because the version and format of data from the repository would depend on the endpoint most recently called.

For this reason, our UserRepository implementation saves web service responses into the database. Changes to the database then trigger callbacks on active

objects. Using this model, the database serves as the single source of truth, and other parts of the app access it using our UserRepository. Regardless of whether you use a disk cache, we recommend that your repository designate a data source as the single source of truth for the rest of your app.

Show in-progress operations

In some use cases, such as pull-to-refresh, it's important for the UI to show the user that there's currently a network operation in progress. It's good practice to separate the UI action from the actual data because the data might be updated for various reasons. For example, if we fetched a list of friends, the same user might be fetched again programmatically, triggering a LiveData<User> update. From the UI's perspective, the fact that there's a request in flight is just another data point, similar to any other piece of data in the User object itself.

We can use one of the following strategies to display a consistent data-updating status in the UI, regardless of where the request to update the data came from:

• Change getUser() to return an object of type LiveData. This object would include the status of the network operation.

  For an example, see the NetworkBoundResource implementation in the android-architecture-components GitHub project.

• Provide another public function in the UserRepository class that can return the refresh status of the User. This option is better if you want to show the network status in your UI only when the data-fetching process originated from an explicit user action, such as pull-to-refresh.

Test each component

In the separation of concerns section, we mentioned that one key benefit of following this principle is testability.

The following list shows how to test each code module from our extended example:

• User interface and interactions: Use an Android UI instrumentation test. The best way to create this test is to use the Espresso library. You can create the fragment and provide it a mock UserProfileViewModel. Because the fragment communicates only with the UserProfileViewModel, mocking this one class is sufficient to fully test your app's UI.

• ViewModel: You can test the UserProfileViewModel class using a JUnit test. You only need to mock one class, UserRepository.

• UserRepository: You can test the UserRepository using a JUnit test, as well. You need to mock the Webservice and the UserDao. In these tests, verify the following behavior:

  • The repository makes the correct web service calls.
  • The repository saves results into the database.
  • The repository doesn't make unnecessary requests if the data is cached and up to date.

  Because both Webservice and UserDao are interfaces, you can mock them or create fake implementations for more complex test cases.

• UserDao: Test DAO classes using instrumentation tests. Because these instrumentation tests don't require any UI components, they run quickly.

  For each test, create an in-memory database to ensure that the test doesn't have any side effects, such as changing the database files on disk.

  Caution:Room allows specifying the database implementation, so it's possible to test your DAO by providing the JUnit implementation of SupportSQLiteOpenHelper. This approach isn't recommended, however, because the SQLite version running on the device might differ from the SQLite version on your development machine.

• Webservice: In these tests, avoid making network calls to your backend. It's important for all tests, especially web-based ones, to be independent from the outside world.

  Several libraries, including MockWebServer, can help you create a fake local server for these tests.

• Testing Artifacts: Architecture Components provides a maven artifact to control its background threads. The android.arch.core:core-testing artifact contains the following JUnit rules:

  • InstantTaskExecutorRule: Use this rule to instantly execute any background operation on the calling thread.
  • CountingTaskExecutorRule: Use this rule to wait on background operations of Architecture Components. You can also associate this rule with Espresso as an idling resource.

Best practices

Programming is a creative field, and building Android apps isn't an exception. There are many ways to solve a problem, be it communicating data between multiple activities or fragments, retrieving remote data and persisting it locally for offline mode, or any number of other common scenarios that nontrivial apps encounter.

Although the following recommendations aren't mandatory, it has been our experience that following them makes your code base more robust, testable, and maintainable in the long run:

Addendum: exposing network status

In the recommended app architecture section above, we omitted network error and loading states to keep the code snippets simple.

This section demonstrates how to expose network status using a Resource class that encapsulate both the data and its state.

The following code snippet provides a sample implementation of Resource:

// A generic class that contains data and status about loading this data.
public class Resource<T> {
    @NonNull public final Status status;
    @Nullable public final T data;
    @Nullable public final String message;
    private Resource(@NonNull Status status, @Nullable T data,
            @Nullable String message) {
        this.status = status;
        this.data = data;
        this.message = message;
    }

    public static <T> Resource<T> success(@NonNull T data) {
        return new Resource<>(Status.SUCCESS, data, null);
    }

    public static <T> Resource<T> error(String msg, @Nullable T data) {
        return new Resource<>(Status.ERROR, data, msg);
    }

    public static <T> Resource<T> loading(@Nullable T data) {
        return new Resource<>(Status.LOADING, data, null);
    }

    public enum Status { SUCCESS, ERROR, LOADING }
}

Because it's common to load data from the network while showing the disk copy of that data, it's good to create a helper class that you can reuse in multiple places. For this example, we create a class called NetworkBoundResource.

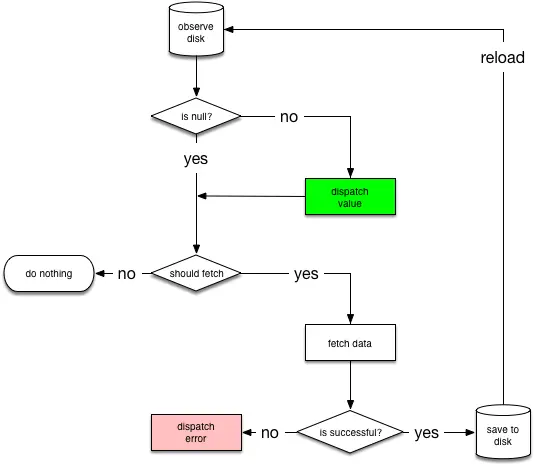

The following diagram shows the decision tree for NetworkBoundResource:

It starts by observing the database for the resource. When the entry is loaded from the database for the first time, NetworkBoundResource checks whether the result is good enough to be dispatched or that it should be re-fetched from the network. Note that both of these situations can happen at the same time, given that you probably want to show cached data while updating it from the network.

If the network call completes successfully, it saves the response into the database and re-initializes the stream. If network request fails, the NetworkBoundResource dispatches a failure directly.

The following code snippet shows the public API provided by NetworkBoundResource class for its children:

// ResultType: Type for the Resource data.
// RequestType: Type for the API response.
public abstract class NetworkBoundResource<ResultType, RequestType> {
    // Called to save the result of the API response into the database.
    @WorkerThread
    protected abstract void saveCallResult(@NonNull RequestType item);

    // Called with the data in the database to decide whether to fetch
    // potentially updated data from the network.
    @MainThread
    protected abstract boolean shouldFetch(@Nullable ResultType data);

    // Called to get the cached data from the database.
    @NonNull @MainThread
    protected abstract LiveData<ResultType> loadFromDb();

    // Called to create the API call.
    @NonNull @MainThread
    protected abstract LiveData<ApiResponse<RequestType>> createCall();

    // Called when the fetch fails. The child class may want to reset components
    // like rate limiter.
    @MainThread
    protected void onFetchFailed();

    // Returns a LiveData object that represents the resource that's implemented
    // in the base class.
    public final LiveData<Resource<ResultType>> getAsLiveData();
}

Note these important details about the class's definition:

• It defines two type parameters, ResultType and RequestType, because the data type returned from the API might not match the data type used locally.
• It uses a class called ApiResponse for network requests. ApiResponse is a simple wrapper around the Retrofit2.Call class that convert responses to instances of LiveData.

The full implementation of the NetworkBoundResource class appears as part of the android-architecture-components GitHub project.

After creating the NetworkBoundResource, we can use it to write our disk- and network-bound implementations of User in the UserRepository class:

UserRepository

class UserRepository {
    Webservice webservice;
    UserDao userDao;

    public LiveData<Resource<User>> loadUser(final int userId) {
        return new NetworkBoundResource<User,User>() {
            @Override
            protected void saveCallResult(@NonNull User item) {
                userDao.insert(item);
            }

            @Override
            protected boolean shouldFetch(@Nullable User data) {
                return rateLimiter.canFetch(userId)
                        && (data == null || !isFresh(data));
            }

            @NonNull @Override
            protected LiveData<User> loadFromDb() {
                return userDao.load(userId);
            }

            @NonNull @Override
            protected LiveData<ApiResponse<User>> createCall() {
                return webservice.getUser(userId);
            }
        }.getAsLiveData();
    }
}
