Dubbo性能调优参数及原理

Java菜分享
378 阅读3分钟

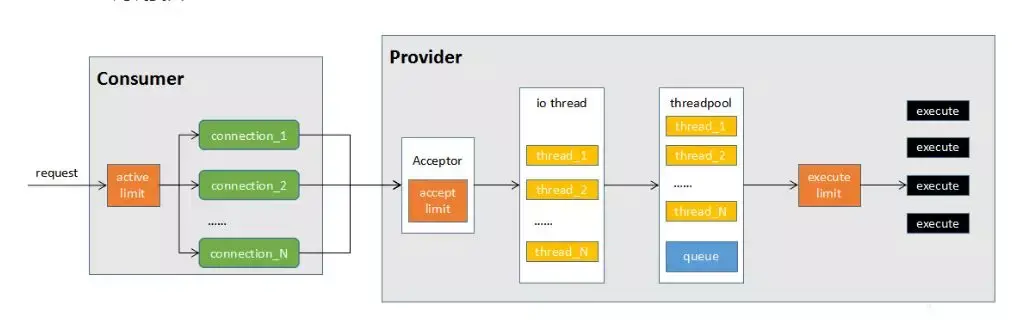

Dubbo调用模型

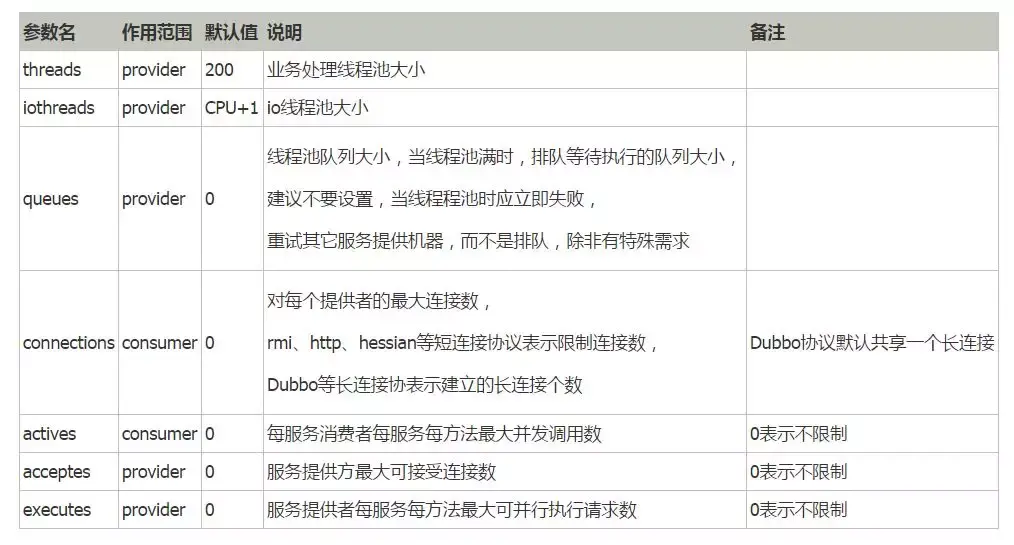

常用性能调优参数

源码及原理分析

threads

FixedThreadPool.java

public Executor getExecutor(URL url) { String name = url.getParameter(Constants.THREAD_NAME_KEY, Constants.DEFAULT_THREAD_NAME); int threads = url.getParameter(Constants.THREADS_KEY, Constants.DEFAULT_THREADS); int queues = url.getParameter(Constants.QUEUES_KEY, Constants.DEFAULT_QUEUES); return new ThreadPoolExecutor(threads, threads, 0, TimeUnit.MILLISECONDS, queues == 0 ? new SynchronousQueue() : (queues < 0 ? new LinkedBlockingQueue() : new LinkedBlockingQueue(queues)), new NamedThreadFactory(name, true), new AbortPolicyWithReport(name, url)); } LimitedThreadPool.java

public Executor getExecutor(URL url) { String name = url.getParameter(Constants.THREAD_NAME_KEY, Constants.DEFAULT_THREAD_NAME); int cores = url.getParameter(Constants.CORE_THREADS_KEY, Constants.DEFAULT_CORE_THREADS); int threads = url.getParameter(Constants.THREADS_KEY, Constants.DEFAULT_THREADS); int queues = url.getParameter(Constants.QUEUES_KEY, Constants.DEFAULT_QUEUES); return new ThreadPoolExecutor(cores, threads, Long.MAX_VALUE, TimeUnit.MILLISECONDS, queues == 0 ? new SynchronousQueue() : (queues < 0 ? new LinkedBlockingQueue() : new LinkedBlockingQueue(queues)), new NamedThreadFactory(name, true), new AbortPolicyWithReport(name, url)); }

其中，Constants.DEFAULT_QUEUES = 200。threads 参数配置的是业务处理线程池的最大（或核心）线程数。

iothreads

NettyServer.java

@Overrideprotected void doOpen() throws Throwable { NettyHelper.setNettyLoggerFactory(); ExecutorService boss = Executors.newCachedThreadPool(new NamedThreadFactory("NettyServerBoss", true)); ExecutorService worker = Executors.newCachedThreadPool(new NamedThreadFactory("NettyServerWorker", true)); ChannelFactory channelFactory = new NioServerSocketChannelFactory(boss, worker, getUrl().getPositiveParameter(Constants.IO_THREADS_KEY, Constants.DEFAULT_IO_THREADS)); bootstrap = new ServerBootstrap(channelFactory);
final NettyHandler nettyHandler = new NettyHandler(getUrl(), this); channels = nettyHandler.getChannels(); bootstrap.setPipelineFactory(new ChannelPipelineFactory() { public ChannelPipeline getPipeline() { NettyCodecAdapter adapter = new NettyCodecAdapter(getCodec() ,getUrl(), NettyServer.this); ChannelPipeline pipeline = Channels.pipeline(); pipeline.addLast("decoder", adapter.getDecoder()); pipeline.addLast("encoder", adapter.getEncoder()); pipeline.addLast("handler", nettyHandler); return pipeline; } }); // bind channel = bootstrap.bind(getBindAddress()); }

queues

分别在FixedThreadPool.java、LimitedThreadPool.java 和 CachedThreadPool.java 中使用，代码详情见 3.2章节。由代码可见，默认值为 0，表示使用同步阻塞队列；如果 queues 设置为小于 0 的值，则使用容量为 Integer.MAX_VALUE 的阻塞链表队列；如果为其他值，则使用指定大小的阻塞链表队列。

connections

DubboProtocol.java

private ExchangeClient[] getClients(URL url){ //是否共享连接 boolean service_share_connect = false; int connections = url.getParameter(Constants.CONNECTIONS_KEY, 0); //如果connections不配置，则共享连接，否则每服务每连接 if (connections == 0){ service_share_connect = true; connections = 1; } ExchangeClient[] clients = new ExchangeClient[connections]; for (int i = 0; i < clients.length; i++) { if (service_share_connect){ clients[i] = getSharedClient(url); } else { clients[i] = initClient(url); } } return clients; }

DubboInvoker.java

@Overrideprotected Result doInvoke(final Invocation invocation) throws Throwable { RpcInvocation inv = (RpcInvocation) invocation; final String methodName = RpcUtils.getMethodName(invocation); inv.setAttachment(Constants.PATH_KEY, getUrl().getPath()); inv.setAttachment(Constants.VERSION_KEY, version);

ExchangeClient currentClient;    if (clients.length == 1) {
    currentClient = clients[0];
} else {
    currentClient = clients[index.getAndIncrement() % clients.length];
}    try {        boolean isAsync = RpcUtils.isAsync(getUrl(), invocation);        boolean isOneway = RpcUtils.isOneway(getUrl(), invocation);        int timeout = getUrl().getMethodParameter(methodName, Constants.TIMEOUT_KEY,Constants.DEFAULT_TIMEOUT);        if (isOneway) {            boolean isSent = getUrl().getMethodParameter(methodName, Constants.SENT_KEY, false);
        currentClient.send(inv, isSent);
        RpcContext.getContext().setFuture(null);            return new RpcResult();
    } else if (isAsync) {
        ResponseFuture future = currentClient.request(inv, timeout) ;
        RpcContext.getContext().setFuture(new FutureAdapter<Object>(future));            return new RpcResult();
    } else {
        RpcContext.getContext().setFuture(null);            return (Result) currentClient.request(inv, timeout).get();
    }
} catch (TimeoutException e) {        throw new RpcException(RpcException.TIMEOUT_EXCEPTION, "Invoke remote method timeout. method: " + invocation.getMethodName() + ", provider: " + getUrl() + ", cause: " + e.getMessage(), e);
} catch (RemotingException e) {        throw new RpcException(RpcException.NETWORK_EXCEPTION, "Failed to invoke remote method: " + invocation.getMethodName() + ", provider: " + getUrl() + ", cause: " + e.getMessage(), e);
}

} 以上可见，默认值为0，表示针对每个 Provider，所有客户端共享一个长连接；否则，建立指定数量的长连接。在调用时，如果有多个长连接，则使用轮询方式获得一个长连接。

actives

ActiveLimitFilter.java

public Result invoke(Invoker<?> invoker, Invocation invocation) throws RpcException { URL url = invoker.getUrl(); String methodName = invocation.getMethodName(); int max = invoker.getUrl().getMethodParameter(methodName, Constants.ACTIVES_KEY, 0); RpcStatus count = RpcStatus.getStatus(invoker.getUrl(), invocation.getMethodName()); if (max > 0) { long timeout = invoker.getUrl().getMethodParameter(invocation.getMethodName(), Constants.TIMEOUT_KEY, 0); long start = System.currentTimeMillis(); long remain = timeout; int active = count.getActive(); if (active >= max) { synchronized (count) { while ((active = count.getActive()) >= max) { try { count.wait(remain); } catch (InterruptedException e) { } long elapsed = System.currentTimeMillis() - start; remain = timeout - elapsed; if (remain <= 0) { throw new RpcException("Waiting concurrent invoke timeout in client-side for service: " + invoker.getInterface().getName() + ", method: " + invocation.getMethodName() + ", elapsed: " + elapsed + ", timeout: " + timeout + ". concurrent invokes: " + active + ". max concurrent invoke limit: " + max); } } } } } try { long begin = System.currentTimeMillis(); RpcStatus.beginCount(url, methodName); try { Result result = invoker.invoke(invocation); RpcStatus.endCount(url, methodName, System.currentTimeMillis() - begin, true); return result; } catch (RuntimeException t) { RpcStatus.endCount(url, methodName, System.currentTimeMillis() - begin, false); throw t; } } finally { if(max>0){ synchronized (count) { count.notify(); } } } } Consumer 调用时，统计服务和方法维度的调用情况，如果并发数超过设置的最大值，则阻塞当前线程，直到前面有请求处理完成。

accepts

AbstractServer.java

@Overridepublic void connected(Channel ch) throws RemotingException { Collection channels = getChannels(); if (accepts > 0 && channels.size() > accepts) { logger.error("Close channel " + ch + ", cause: The server " + ch.getLocalAddress() + " connections greater than max config " + accepts); ch.close(); return; } super.connected(ch); } 当连接数大于最大值时，关闭当前连接。

executes

ExecuteLimitFilter.jvava

public Result invokeOrg(Invoker<?> invoker, Invocation invocation) throws RpcException { URL url = invoker.getUrl(); String methodName = invocation.getMethodName(); int max = url.getMethodParameter(methodName, Constants.EXECUTES_KEY, 0); if (max > 0) { RpcStatus count = RpcStatus.getStatus(url, invocation.getMethodName()); if (count.getActive() >= max) { throw new RpcException("Failed to invoke method " + invocation.getMethodName() + " in provider " + url + ", cause: The service using threads greater than <dubbo:service executes="" + max + "" /> limited."); } } long begin = System.currentTimeMillis(); boolean isException = false; RpcStatus.beginCount(url, methodName); try { Result result = invoker.invoke(invocation); return result; } catch (Throwable t) { isException = true; if(t instanceof RuntimeException) { throw (RuntimeException) t; } else { throw new RpcException("unexpected exception when ExecuteLimitFilter", t); } } finally { RpcStatus.endCount(url, methodName, System.currentTimeMillis() - begin, isException); } }

Provider处理请求时，统计方法维度的调用情况，如果并发数超过设置的最大值，则阻直接抛出异常。
