Android P中对WMS部分有部分重构，其中一个是无锁动画——LockFreeAnimation
LockFreeAnimation对比O以及之前的版本，在系统执行窗口动画的时候是不需要获取WMS的大锁的，这无疑是一件提升系统性能的措施，保证动画的流畅执行。AMS和WMS的大锁是除去硬件性能之外软件层面限制系统性能的一个重要原因，P上的处理方式也提供了一类系统优化的思路。

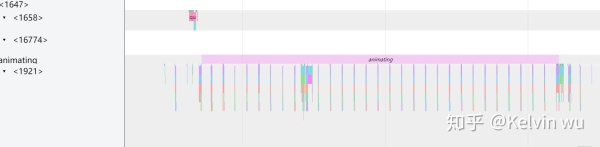

下面先来对比下P的无锁动画对比之前的动画设计方式存在的优势，先不看代码，从一份桌面启动应用的systrace直观感受下
在系统窗口动画的执行都在WindowAnimator的animate函数中，这个函数的执行是需要获得WMS的大锁mWindowMap的
private void animate(long frameTimeNs) {
synchronized (mService.mWindowMap) {
if (!mInitialized) {
return;
}
// Schedule next frame already such that back-pressure happens continuously
scheduleAnimation();
}
// Simulate back-pressure by opening and closing an empty animation transaction. This makes
// sure that an animation frame is at least presented once on the screen. We do this outside
// of the regular transaction such that we can avoid holding the window manager lock in case
// we receive back-pressure from SurfaceFlinger. Since closing an animation transaction
// without the window manager locks leads to ordering issues (as the transaction will be
// processed only at the beginning of the next frame which may result in another transaction
// that was executed later in WM side gets executed first on SF side), we don't update any
// Surface properties here such that reordering doesn't cause issues.
mService.executeEmptyAnimationTransaction();
synchronized (mService.mWindowMap) {
......//这里执行每一帧的窗口Surfacec变换
}因此就会存在风险，就是当其他线程长时间持有WMS大锁的时候，窗口动画的执行就会出现阻塞，导致掉帧。而P上的改进就是为了防止动画被阻塞，窗口动画的执行是不需要去拿WMS大锁的，如下图所示，为一个P上从桌面启动应用的systrace。

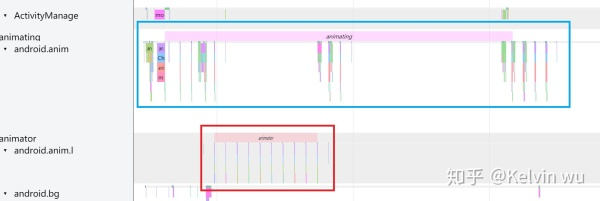

对比O来看，很明显动画由两部分组成，一个还是原先的android.anim线程（也就是WindowAnimator的animate函数中执行），另外一个是android.anima.l(名字应该被截掉了)，第二个才是真正执行窗口动画的线程。对比来看蓝色方框中的"animating"流程中明显对比O少了很多帧，而少掉的帧都跑到红色方框中的"animator"中去执行了，而这个animator中执行窗口动画是无需获得WMS大锁的，所以理论上来讲会比原先的方案更优更加流畅。

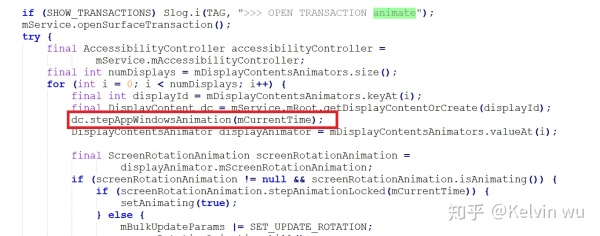

O中在WindowAnimator的animate函数中红色方框的部分是执行每个窗口的窗口动画的地方，所以要想动画执行，必须要拿到锁才行。
对比P，WindowAnimator类还保留着，但是拿掉了红色方框中的代码，也就是去掉了其负责窗口动画的功能。虽然拿掉了窗口动画，个人理解，这个animate函数还需要负责窗口的旋转动画，因此还是保留下来了。
那拿掉了WindowAnimator执行窗口动画的能力之后，窗口动画又由谁来负责呢？
对比了P和O的代码中wm目录下的文件增删，从这里出发找找看新的变化
动画相关的提交从SurfaceAnimator开始
* A class that can run animations on objects that have a set of child surfaces. We do this by
* reparenting all child surfaces of an object onto a new surface, called the "Leash". The Leash
* gets attached in the surface hierarchy where the the children were attached to. We then hand off
* the Leash to the component handling the animation, which is specified by the
* {@link AnimationAdapter}. When the animation is done animating, our callback to finish the
* animation will be invoked, at which we reparent the children back to the original parent.
*/
class SurfaceAnimator {翻译：这个类可以针对那种存在多个child surface的对象进行动画，在执行动画的过程中会创建一个没有Buffer的Surface---“Leash”，将所有child surface绑定到leash上，leash同时也会绑定到原先这些child surface绑定的位置。然后我们将leash给到AnimationAdapter去执行动画，执行动画结束后会将所有child surface重新绑定到原先的父节点上
startAnimation@SurfaceAnimator.java
97 /**
98 * Starts an animation.
99 *
100 * @param anim The object that bridges the controller, {@link SurfaceAnimator}, with the
101 * component responsible for running the animation. It runs the animation with
102 * {@link AnimationAdapter#startAnimation} once the hierarchy with
103 * the Leash has been set up.
104 * @param hidden Whether the container holding the child surfaces is currently visible or not.
105 * This is important as it will start with the leash hidden or visible before
106 * handing it to the component that is responsible to run the animation.
107 */
108 void startAnimation(Transaction t, AnimationAdapter anim, boolean hidden) {
109 cancelAnimation(t, true /* restarting */, true /* forwardCancel */);
110 mAnimation = anim;
//step1.先获取当前需要执行动画的对象的surface
111 final SurfaceControl surface = mAnimatable.getSurfaceControl();
112 if (surface == null) {
113 Slog.w(TAG, "Unable to start animation, surface is null or no children.");
114 cancelAnimation();
115 return;
116 }
//step2.使用step1创建的surface来构建一个leash
117 mLeash = createAnimationLeash(surface, t,
118 mAnimatable.getSurfaceWidth(), mAnimatable.getSurfaceHeight(), hidden);
119 mAnimatable.onAnimationLeashCreated(t, mLeash);
120 if (mAnimationStartDelayed) {
121 if (DEBUG_ANIM) Slog.i(TAG, "Animation start delayed");
122 return;
123 }
//step3.将leash传给AnimationAdapter，启动动画
124 mAnimation.startAnimation(mLeash, t, mInnerAnimationFinishedCallback);
125 }这个startAnimation的第一个参数是Transaction，所以一定是在打开一次transaction的情况下开始启动动画的
step1 这个getSurfaceControl是Animatable这个Interface中的一个接口，所有能够执行动画的对象都需要实现这个interface
401 * @return The surface of the object to be animated.
402 */
403 @Nullable SurfaceControl getSurfaceControl();例如WC的定义，WC是WMS的层次框架的基础类，也就是WMS中很多对象都具有执行动画的能力
60class WindowContainer<E extends WindowContainer> extends ConfigurationContainer<E>
61 implements Comparable<WindowContainer>, Animatable {WC中的实现
1110 @Override
1111 public SurfaceControl getSurfaceControl() {
1112 return mSurfaceControl;
1113 }step2创建Leash（leash的英文就是狗绳的意思，就是用这个leash拴住这些child surface来跑动画，在SF中这些layer的层次结构不会出现异常）
300 private SurfaceControl createAnimationLeash(SurfaceControl surface, Transaction t, int width,
301 int height, boolean hidden) {
302 if (DEBUG_ANIM) Slog.i(TAG, "Reparenting to leash");
//step2.1.通过makeAnimationLeash构造这个Surface
303 final SurfaceControl.Builder builder = mAnimatable.makeAnimationLeash()
304 .setParent(mAnimatable.getAnimationLeashParent())
305 .setName(surface + " - animation-leash")
306 .setSize(width, height);
307 final SurfaceControl leash = builder.build();
//step2.2.设置transaction相关参数，show和reparent
//show：这次transaction中显示leash
//reparent:将leash reparent到当前Surface的父节点上
308 if (!hidden) {
309 t.show(leash);
310 }
311 t.reparent(surface, leash.getHandle());
312 return leash;
313 }step2.1创建leash
同样，例如WC的相关实现 这个流程看样子会递归调用到根节点到DisplayContent中
1143 @Override
1144 public Builder makeAnimationLeash() {
1145 return makeSurface();
1146 }
895 SurfaceControl.Builder makeSurface() {
896 final WindowContainer p = getParent();
897 return p.makeChildSurface(this);
898 }
900 /**
901 * @param child The WindowContainer this child surface is for, or null if the Surface
902 * is not assosciated with a WindowContainer (e.g. a surface used for Dimming).
903 */
904 SurfaceControl.Builder makeChildSurface(WindowContainer child) {
905 final WindowContainer p = getParent();
906 // Give the parent a chance to set properties. In hierarchy v1 we rely
907 // on this to set full-screen dimensions on all our Surface-less Layers.
908 return p.makeChildSurface(child)
909 .setParent(mSurfaceControl);
910 }在DisplayContent中
3855 @Override
3856 SurfaceControl.Builder makeChildSurface(WindowContainer child) {
3857 SurfaceSession s = child != null ? child.getSession() : getSession();
//通过wms来创建实际的SurfaceControl，然后层层返回，最终这个Surface绑定到最早调用启动动画的对象上
3858 final SurfaceControl.Builder b = mService.makeSurfaceBuilder(s);
3859 b.setSize(mSurfaceSize, mSurfaceSize);
3860
3861 if (child == null) {
3862 return b;
3863 }
3864
3865 return b.setName(child.getName())
3866 .setParent(mWindowingLayer);
3867 }Step3.使用AnimationAapter启动动画
54 /**
55 * Requests to start the animation.
56 *
57 * @param animationLeash The surface to run the animation on. See {@link SurfaceAnimator} for an
58 * overview of the mechanism. This surface needs to be released by the
59 * component running the animation after {@code finishCallback} has been
60 * invoked, or after the animation was cancelled.
61 * @param t The Transaction to apply the initial frame of the animation.
62 * @param finishCallback The callback to be invoked when the animation has finished.
63 */
64 void startAnimation(SurfaceControl animationLeash, Transaction t,
65 OnAnimationFinishedCallback finishCallback);LocalAnimationAdapter就是一个对AnimationAdapter的实现
startAnimation@LocalAnimationAdapter.java
61 @Override
62 public void startAnimation(SurfaceControl animationLeash, Transaction t,
63 OnAnimationFinishedCallback finishCallback) {
64 mAnimator.startAnimation(mSpec, animationLeash, t,
65 () -> finishCallback.onAnimationFinished(this));
66 }这里用于执行动画的mAnimator的类型是SurfaceAnimationRunner，在构造AnimationAdapter的时候会传入SurfaceAnimationRunner，这个类会去执行动画.下面接着介绍SurfaceAnimationRunner
41 LocalAnimationAdapter(AnimationSpec spec, SurfaceAnimationRunner animator) {
42 mSpec = spec;
43 mAnimator = animator;
44 }

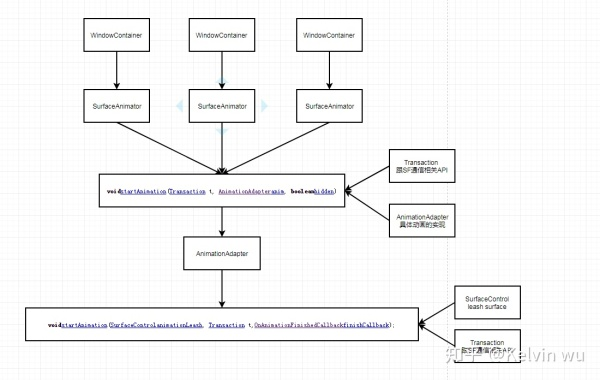

从图可以看出每一个WC对应一个SA，当一个WC需要执行一个特定动画的时候，只需要传入一个AD来指定特定的动画即可，而动画执行需要的线程都是在AD的构造中创建
SurfaceAnimationRunner
void startAnimation(AnimationSpec a, SurfaceControl animationLeash, Transaction t,
Runnable finishCallback) {
synchronized (mLock) {
//step1使用spec，leash，动画结束后的回调构造一个RunningAnimation，这个类相当于是一个动画的记录
final RunningAnimation runningAnim = new RunningAnimation(a, animationLeash,
finishCallback);
mPendingAnimations.put(animationLeash, runningAnim);
//step2往编舞者上抛一个回调
if (!mAnimationStartDeferred) {
mChoreographer.postFrameCallback(this::startAnimations);
}
// Some animations (e.g. move animations) require the initial transform to be applied
// immediately.
applyTransformation(runningAnim, t, 0 /* currentPlayTime */);
}
}从这个来看这个Runner是可以复用的，构造一个然后将多个RunningAnimation放在上面运行，因为Runner中维护了一个列表可以存储多个Animation
往编舞者上面抛的回调是startAnimations
230 private void startAnimations(long frameTimeNanos) {
231 synchronized (mLock) {
232 startPendingAnimationsLocked();
233 }
234 }
154 @GuardedBy("mLock")
155 private void startPendingAnimationsLocked() {
156 for (int i = mPendingAnimations.size() - 1; i >= 0; i--) {
157 startAnimationLocked(mPendingAnimations.valueAt(i));
158 }
159 mPendingAnimations.clear();
160 }从上面可以看出，将pending的动画全部拿出来执行，然后清空掉pending的列表
162 @GuardedBy("mLock")
163 private void startAnimationLocked(RunningAnimation a) {
//step1.创建一个valueanimator
164 final ValueAnimator anim = mAnimatorFactory.makeAnimator();
165 //step2.根据AnimationSpec设置这个VA的属性以及注册回调函数
166 // Animation length is already expected to be scaled.
167 anim.overrideDurationScale(1.0f);
168 anim.setDuration(a.mAnimSpec.getDuration());
169 anim.addUpdateListener(animation -> {//这个是动画更新的回调
170 synchronized (mCancelLock) {
171 if (!a.mCancelled) {
172 final long duration = anim.getDuration();
173 long currentPlayTime = anim.getCurrentPlayTime();
174 if (currentPlayTime > duration) {
175 currentPlayTime = duration;
176 }
177 applyTransformation(a, mFrameTransaction, currentPlayTime);//根据当前的时间进行更新变换
178 }
179 }
180
181 // Transaction will be applied in the commit phase.
182 scheduleApplyTransaction();//在下一次Vsync信号到来的时候使前面的修改生效
183 });
184
185 anim.addListener(new AnimatorListenerAdapter() {
186 @Override
187 public void onAnimationStart(Animator animation) {
188 synchronized (mCancelLock) {
189 if (!a.mCancelled) {
190 mFrameTransaction.show(a.mLeash);//动画开始的时候显示leash这个Surface
191 }
192 }
193 }
194
195 @Override
196 public void onAnimationEnd(Animator animation) {
197 synchronized (mLock) {
198 mRunningAnimations.remove(a.mLeash);
199 synchronized (mCancelLock) {
200 if (!a.mCancelled) {
201
202 // Post on other thread that we can push final state without jank.
203 AnimationThread.getHandler().post(a.mFinishCallback);
204 }
205 }
206 }
207 }
208 });
209 a.mAnim = anim;
//step3.加入到正在运行的动画map中
210 mRunningAnimations.put(a.mLeash, a);
211
//step4.调用VA的start，动画的执行是依赖于VA本身的执行框架（ValueAnimation）
212 anim.start();
213 if (a.mAnimSpec.canSkipFirstFrame()) {
214 // If we can skip the first frame, we start one frame later.
215 anim.setCurrentPlayTime(mChoreographer.getFrameIntervalNanos() / NANOS_PER_MS);
216 }
217
218 // Immediately start the animation by manually applying an animation frame. Otherwise, the
219 // start time would only be set in the next frame, leading to a delay.
220 anim.doAnimationFrame(mChoreographer.getFrameTime());
221 }step1.这里创建的是一个ValueAnimator来执行动画
step2.设置ValueAnimator的回调函数
step3.将该动画加到一个正在运行的animation map中
step4.调用start开始动画
这里VA的startAnimation中就有异步trace，也就是开始时P中执行动画的"animator"这个异步trace(这里的getNameForTrace返回的就是"animator")
1243 /**
1244 * Called internally to start an animation by adding it to the active animations list. Must be
1245 * called on the UI thread.
1246 */
1247 private void startAnimation() {
1248 if (Trace.isTagEnabled(Trace.TRACE_TAG_VIEW)) {
//异步trace开始
1249 Trace.asyncTraceBegin(Trace.TRACE_TAG_VIEW, getNameForTrace(),
1250 System.identityHashCode(this));
1251 }
1252
1253 mAnimationEndRequested = false;
1254 initAnimation();
1255 mRunning = true;
1256 if (mSeekFraction >= 0) {
1257 mOverallFraction = mSeekFraction;
1258 } else {
1259 mOverallFraction = 0f;
1260 }
1261 if (mListeners != null) {
1262 notifyStartListeners();
1263 }
1264 }之后的VA执行动画的原理就不往下看了，再回到是如何发起动画的，这里也是存在差异的
这里的无锁动画主要是针对应用切换的过场动画（其实新的动画框架还支持APP修改窗口切换动画，最近任务动画，但都是依赖于这个无锁动画的框架）
在AppWindowToken的applayAnimationLocked中
boolean applyAnimationLocked(WindowManager.LayoutParams lp, int transit, boolean enter,
1723 boolean isVoiceInteraction) {
1724
......
1733
1734 // Only apply an animation if the display isn't frozen. If it is frozen, there is no reason
1735 // to animate and it can cause strange artifacts when we unfreeze the display if some
1736 // different animation is running.
1737 Trace.traceBegin(TRACE_TAG_WINDOW_MANAGER, "AWT#applyAnimationLocked");
1738 if (okToAnimate()) {
1739 final AnimationAdapter adapter;
1740 final TaskStack stack = getStack();
1741 mTmpPoint.set(0, 0);
1742 mTmpRect.setEmpty();
1743 if (stack != null) {
1744 stack.getRelativePosition(mTmpPoint);
1745 stack.getBounds(mTmpRect);
1746 mTmpRect.offsetTo(0, 0);
1747 }
1748
1749 // Delaying animation start isn't compatible with remote animations at all.
1750 if (mService.mAppTransition.getRemoteAnimationController() != null
1751 && !mSurfaceAnimator.isAnimationStartDelayed()) {
1752 adapter = mService.mAppTransition.getRemoteAnimationController()
1753 .createAnimationAdapter(this, mTmpPoint, mTmpRect);
1754 } else {
1755 final Animation a = loadAnimation(lp, transit, enter, isVoiceInteraction);
1756 if (a != null) {
//先构造AnimationAdapter
1757 adapter = new LocalAnimationAdapter(
1758 new WindowAnimationSpec(a, mTmpPoint, mTmpRect,
1759 mService.mAppTransition.canSkipFirstFrame(),
1760 mService.mAppTransition.getAppStackClipMode(),
1761 true /* isAppAnimation */),
1762 mService.mSurfaceAnimationRunner);
1763 if (a.getZAdjustment() == Animation.ZORDER_TOP) {
1764 mNeedsZBoost = true;
1765 }
1766 mTransit = transit;
1767 mTransitFlags = mService.mAppTransition.getTransitFlags();
1768 } else {
1769 adapter = null;
1770 }
1771 }
1772 if (adapter != null) {
//调用WC的startAnimation启动动画，就回到了前面的分析中了
1773 startAnimation(getPendingTransaction(), adapter, !isVisible());
1774 if (adapter.getShowWallpaper()) {
1775 mDisplayContent.pendingLayoutChanges |= FINISH_LAYOUT_REDO_WALLPAPER;
1776 }
1777 }对比O中的相同函数实现在WindowManagerService中
2357 boolean applyAnimationLocked(AppWindowToken atoken, WindowManager.LayoutParams lp,
2358 int transit, boolean enter, boolean isVoiceInteraction) {
2359 // Only apply an animation if the display isn't frozen. If it is
2360 // frozen, there is no reason to animate and it can cause strange
2361 // artifacts when we unfreeze the display if some different animation
2362 // is running.
2363 Trace.traceBegin(TRACE_TAG_WINDOW_MANAGER, "WM#applyAnimationLocked");
......
2402 if (DEBUG_APP_TRANSITIONS) Slog.d(TAG_WM, "Loading animation for app transition."
2403 + " transit=" + AppTransition.appTransitionToString(transit) + " enter=" + enter
2404 + " frame=" + frame + " insets=" + insets + " surfaceInsets=" + surfaceInsets);
2405 final Configuration displayConfig = displayContent.getConfiguration();
2406 Animation a = mAppTransition.loadAnimation(lp, transit, enter, displayConfig.uiMode,
2407 displayConfig.orientation, frame, displayFrame, insets, surfaceInsets,
2408 stableInsets, isVoiceInteraction, freeform, atoken.getTask().mTaskId);
2409 if (a != null) {
2410 if (DEBUG_ANIM) logWithStack(TAG, "Loaded animation " + a + " for " + atoken);
2411 final int containingWidth = frame.width();
2412 final int containingHeight = frame.height();
//这里是给AppWindowToken对应的AppWindowAnimator设置好Animation
2413 atoken.mAppAnimator.setAnimation(a, containingWidth, containingHeight, width,
2414 height, mAppTransition.canSkipFirstFrame(),
2415 mAppTransition.getAppStackClipMode(),
2416 transit, mAppTransition.getTransitFlags());
2417 }
2418 } else {O中的实现是给需要执行动画的appWindowToken设置好动画，等到WindowAniamtor执行animate的时候去遍历每一个有设置动画的窗口即可，所以之前的动画遇到其他线程持锁是会变卡的
总结起来就是将窗口的动画从WindowAnimator的animate函数中剥离出来，让APP的切换动画不受锁的限制，避免了卡顿的风险。
