系统中有一个采用 Netflix Zuul 实现的网关模块，负责统一的鉴权，然后把请求转到对应的后端模块。基本的配置后，只需要实现一个Filter就可以了。
@Slf4j
@Component
public class AccessTokenFilter extends ZuulFilter {
// Filter 的类型，在路由之前
@Override
public String filterType() {
return "pre";
}
// 比系统的优先级要低些
@Override
public int filterOrder() {
return 7;
}
@Override
public Object run() {
RequestContext requestContext = RequestContext.getCurrentContext();
HttpServletRequest request = requestContext.getRequest();
HttpServletResponse response = requestContext.getResponse();
String token = CookieUtils.getCookieValue("token", request);
log.info("token={}", token);
token = URLDecoder.decode(token, "UTF-8");
// 验证 token
boolean valid = validateToken(token);
// 验证不通过则直接响应
if(!valid){
setFalseZuulResponse(requestContext);
}
return null;
}
/**
* 不再路由，直接响应.
*/
private void setFalseZuulResponse(RequestContext requestContext) {
requestContext.setSendZuulResponse(false);
requestContext.setResponseBody("error");
}
}
一切都OK，可是有一天出现了问题。
环境
Spring Boot 版本：
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>1.4.2.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
Spring Cloud 版本：
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>Brixton.SR5</version>
<type>pom</type>
<scope>import</scope>
</dependency>
问题背景
有一天，新增了一个接口，URL中带有JSON串，发现访问该接口时请求无法到达后端。网关模块抛出了异常 URISyntaxException。
Caused by: java.net.URISyntaxException: Illegal character in query at index 65: http://10.201.169.146:8091/api/.../?param=%7B"a":"","b":"","c":""%7D
at java.net.URI$Parser.fail(URI.java:2848)
at java.net.URI$Parser.checkChars(URI.java:3021)
at java.net.URI$Parser.parseHierarchical(URI.java:3111)
at java.net.URI$Parser.parse(URI.java:3053)
at java.net.URI.<init>(URI.java:588)
at com.sun.jersey.api.uri.UriBuilderImpl.createURI(UriBuilderImpl.java:721)
很慌，然后Goolge后发现这个问题别人也遇到过，说这个版本的Zuul默认使用的是 Ribbon Client，换成 http client 就可以了。
@Bean
public RibbonCommandFactory<?> ribbonCommandFactory(
final SpringClientFactory clientFactory) {
return new HttpClientRibbonCommandFactory(clientFactory);
}
的确解决了这个问题，但是又出现了新的问题：之前的 Multipart/form-data POST 请求转发到后端服务器后出现了 java.io.IOException: Incomplete parts。
2018-10-09 19:04:22.591 WARN 12137 --- [qtp289592183-19] o.e.jetty.server.handler.ErrorHandler : EXCEPTION
org.springframework.web.util.NestedServletException: Request processing failed; nested exception is org.springframework.web.multipart.MultipartException: Could not parse multipart servlet request; nested exception is java.io.IOException: Incomplete parts
at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:982)
at org.springframework.web.servlet.FrameworkServlet.doPost(FrameworkServlet.java:872)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:707)
at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:846)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:790)
at org.eclipse.jetty.servlet.ServletHolder.handle(ServletHolder.java:845)
at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:584)
at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:143)
at org.eclipse.jetty.security.SecurityHandler.handle(SecurityHandler.java:566)
at org.eclipse.jetty.server.session.SessionHandler.doHandle(SessionHandler.java:226)
at org.eclipse.jetty.server.handler.ContextHandler.doHandle(ContextHandler.java:1180)
at org.eclipse.jetty.servlet.ServletHandler.doScope(ServletHandler.java:512)
at org.eclipse.jetty.server.session.SessionHandler.doScope(SessionHandler.java:185)
at org.eclipse.jetty.server.handler.ContextHandler.doScope(ContextHandler.java:1112)
at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:141)
at org.eclipse.jetty.server.Dispatcher.forward(Dispatcher.java:199)
at org.eclipse.jetty.server.Dispatcher.error(Dispatcher.java:79)
at org.eclipse.jetty.server.handler.ErrorHandler.handle(ErrorHandler.java:94)
at org.springframework.boot.context.embedded.jetty.JettyEmbeddedErrorHandler.handle(JettyEmbeddedErrorHandler.java:55)
at org.eclipse.jetty.server.Response.sendError(Response.java:558)
at org.eclipse.jetty.server.Response.sendError(Response.java:497)
at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:651)
at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:143)
at org.eclipse.jetty.security.SecurityHandler.handle(SecurityHandler.java:548)
at org.eclipse.jetty.server.session.SessionHandler.doHandle(SessionHandler.java:226)
at org.eclipse.jetty.server.handler.ContextHandler.doHandle(ContextHandler.java:1180)
at org.eclipse.jetty.servlet.ServletHandler.doScope(ServletHandler.java:512)
at org.eclipse.jetty.server.session.SessionHandler.doScope(SessionHandler.java:185)
at org.eclipse.jetty.server.handler.ContextHandler.doScope(ContextHandler.java:1112)
at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:141)
at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:134)
at org.eclipse.jetty.server.Server.handle(Server.java:534)
at org.eclipse.jetty.server.HttpChannel.handle(HttpChannel.java:320)
at org.eclipse.jetty.server.HttpConnection.onFillable(HttpConnection.java:251)
at org.eclipse.jetty.io.AbstractConnection$ReadCallback.succeeded(AbstractConnection.java:273)
at org.eclipse.jetty.io.FillInterest.fillable(FillInterest.java:95)
at org.eclipse.jetty.io.SelectChannelEndPoint$2.run(SelectChannelEndPoint.java:93)
at org.eclipse.jetty.util.thread.strategy.ExecuteProduceConsume.executeProduceConsume(ExecuteProduceConsume.java:303)
at org.eclipse.jetty.util.thread.strategy.ExecuteProduceConsume.produceConsume(ExecuteProduceConsume.java:148)
at org.eclipse.jetty.util.thread.strategy.ExecuteProduceConsume.run(ExecuteProduceConsume.java:136)
at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:671)
at org.eclipse.jetty.util.thread.QueuedThreadPool$2.run(QueuedThreadPool.java:589)
at java.lang.Thread.run(Thread.java:745)
Caused by: org.springframework.web.multipart.MultipartException: Could not parse multipart servlet request; nested exception is java.io.IOException: Incomplete parts
at org.springframework.web.multipart.support.StandardMultipartHttpServletRequest.parseRequest(StandardMultipartHttpServletRequest.java:111)
at org.springframework.web.multipart.support.StandardMultipartHttpServletRequest.<init>(StandardMultipartHttpServletRequest.java:85)
at org.springframework.web.multipart.support.StandardServletMultipartResolver.resolveMultipart(StandardServletMultipartResolver.java:76)
at org.springframework.web.servlet.DispatcherServlet.checkMultipart(DispatcherServlet.java:1099)
at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:932)
at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:897)
at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:970)
... 42 common frames omitted
Caused by: java.io.IOException: Incomplete parts
at org.eclipse.jetty.util.MultiPartInputStreamParser.parse(MultiPartInputStreamParser.java:781)
at org.eclipse.jetty.util.MultiPartInputStreamParser.getParts(MultiPartInputStreamParser.java:422)
at org.eclipse.jetty.server.Request.getParts(Request.java:2317)
at org.eclipse.jetty.server.Request.extractMultipartParameters(Request.java:519)
at org.eclipse.jetty.server.Request.extractContentParameters(Request.java:441)
at org.eclipse.jetty.server.Request.getParameters(Request.java:365)
at org.eclipse.jetty.server.Request.getParameter(Request.java:996)
at org.springframework.web.filter.HiddenHttpMethodFilter.doFilterInternal(HiddenHttpMethodFilter.java:70)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1699)
at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:197)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1699)
at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:582)
... 21 common frames omitted
异常抛的位置是 org.eclipse.jetty.util.MultiPartInputStreamParser#parse。

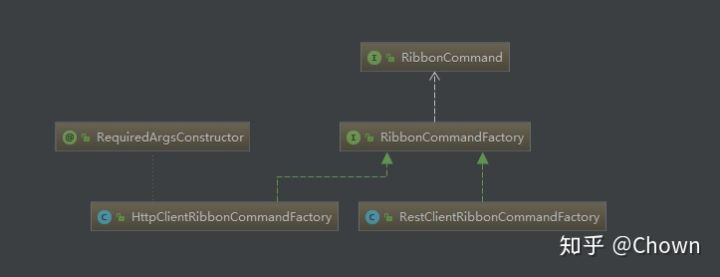

最终没能定位到问题的根本原因。但是问题基本比较清晰了：使用默认的 RibbonCommandFactory（即RestClientRibbonCommandFactory） 可以处理 multipart/form 的请求，但是无法处理URL中含JSON的情况，而如果使用 HttpClientRibbonCommandFactory 则可以处理RUL中含JSON的情况，但是无法正确转发 multipart 的请求。
问题出在路由转发的时候，后来想到能不能换一种思路：自己修改路由转发的逻辑根据请求的类型来指定使用不同的 RibbonCommandFactory？
解决方法
禁掉默认的路由过滤器 RibbonRoutingFilter。
zuul.RibbonRoutingFilter.route.disable: true
然后扩展 RibbonRoutingFilter，修改默认的转发逻辑。
@Slf4j
public class MyRibbonRoutingFilter extends RibbonRoutingFilter {
@Autowired
private RestClientRibbonCommandFactory restClientRibbonCommandFactory;
@Autowired
private HttpClientRibbonCommandFactory httpClientRibbonCommandFactory;
public MyRibbonRoutingFilter(ProxyRequestHelper helper, RibbonCommandFactory<?> ribbonCommandFactory) {
super(helper, ribbonCommandFactory);
}
public MyRibbonRoutingFilter(RibbonCommandFactory<?> ribbonCommandFactory) {
super(ribbonCommandFactory);
}
protected ClientHttpResponse forward(RibbonCommandContext context) throws Exception {
log.info("-------MyRibbonRoutingFilter forward--------");
Map<String, Object> info = this.helper.debug(context.getVerb(), context.getUri(),
context.getHeaders(), context.getParams(), context.getRequestEntity());
RibbonCommandFactory rcf = this.restClientRibbonCommandFactory;
if (!isMultipartForm()) {
log.info("Not multipart/form request use HttpClientRibbonCommandFactory to handle url with json");
rcf = httpClientRibbonCommandFactory;
} else {
log.info("Multipart/form request use default");
}
log.info("RibbonCommandFactory is " + rcf.getClass().getCanonicalName());
RibbonCommand command = rcf.create(context);
try {
ClientHttpResponse response = command.execute();
this.helper.appendDebug(info, response.getStatusCode().value(),
response.getHeaders());
return response;
} catch (HystrixRuntimeException ex) {
return handleException(info, ex);
}
}
private static boolean isMultipartForm() {
RequestContext ctx = RequestContext.getCurrentContext();
HttpServletRequest request = ctx.getRequest();
String contentType = request.getContentType();
if (contentType == null) {
return false;
}
try {
MediaType mediaType = MediaType.valueOf(contentType);
return MediaType.MULTIPART_FORM_DATA.includes(mediaType);
} catch (InvalidMediaTypeException ex) {
return false;
}
}
}
当然这里的两个 RibbonCommandFactory bean 需要配置。
@Configuration
public class RibbonCommandFactoryConfig {
@Bean
public HttpClientRibbonCommandFactory ribbonCommandFactory(final SpringClientFactory clientFactory) {
return new HttpClientRibbonCommandFactory(clientFactory);
}
@Bean
public RestClientRibbonCommandFactory ribbonCommandFactory2(final SpringClientFactory clientFactory) {
return new RestClientRibbonCommandFactory(clientFactory);
}
}
问题解决了，可以看到 Zuul 的扩展性挺好的。
