torch.autograd.backward

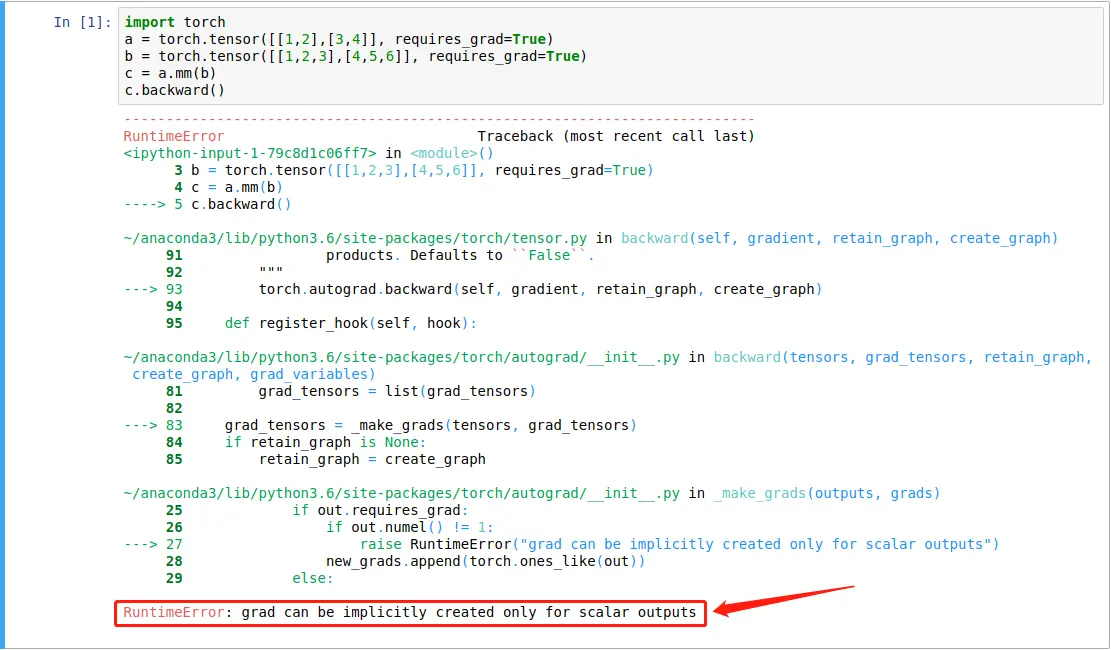

当进行如下操作时，''RuntimeError: grad can be implicitly created only for scalar outputs'' 的错误。

fig1

当改为：

fig2

没有报错。

假设 ${\bf c,a,b}$ 分别是大小为 $m\times n, m\times k, k\times n$ 的矩阵，且有 ${\bf c}^{m\times n} = {\bf a}^{m \times k} \times {\bf b}^{k \times n}$ ，即：

\begin{bmatrix}
c_{1,1} & \cdots & c _{1,n} \\
\vdots & \ddots & \vdots \\
c_{m,1} & \cdots & c _{m,n}
\end{bmatrix}
=
\begin{bmatrix}
a_{1,1} & \cdots & a _{1,k} \\
\vdots & \ddots & \vdots \\
a_{m,1} & \cdots & a _{m,k}
\end{bmatrix}
\times
\begin{bmatrix}
b_{1,1} & \cdots & b _{1,n} \\
\vdots & \ddots & \vdots \\
b_{k,1} & \cdots & b _{k,n}
\end{bmatrix}
\tag{1}

PyTorch的自动求导过程如下：

\frac{\partial{c _{1,1}}}{\partial{\bf b}^{k\times n}} =
\begin{bmatrix}
\frac{\partial{c _{1,1}}}{\partial b _{1,1}} & \cdots & \frac{\partial{c _{1,1}}}{\partial b _{1,n}} \\
\vdots & \ddots & \vdots \\
\frac{\partial{c _{1,1}}}{\partial b _{k,1}} & \cdots & \frac{\partial{c _{1,1}}}{\partial b _{k,n}}
\end{bmatrix}
\tag{2}

\nabla_{{\bf b}^{k\times n}} {\bf c} =
\sum _{i=1}^{m} \sum _{j=1}^{n} \frac{\partial{c _{i,j}}} {\partial{\bf b}^{k\times n}}\tag{3}

回到最开始的代码，有

{\bf a}=
\begin{bmatrix}
a _{1,1} & a _{1,2} \\
a _{2,1} & a _{2,2}
\end{bmatrix}
=
\begin{bmatrix}
1 & 2 \\
3 & 4
\end{bmatrix},\tag{4}

{\bf b}=
\begin{bmatrix}
b _{1,1} & b _{1,2} & b _{1,3} \\
b _{2,1} & b _{2,2} & b _{2,3}
\end{bmatrix}
=
\begin{bmatrix}
1 & 2 & 3 \\
4 & 5 & 6
\end{bmatrix},\tag{5}

{\bf c}=
\begin{bmatrix}
c _{1,1} & c _{1,2} & c _{1,3} \\
c _{2,1} & c _{2,2} & c _{2,3}
\end{bmatrix}\tag{6}

根据(2)式，有：

c _{1,1} = a _{1,1} b _{1,1} + a _{1,2} b _{2,1},\tag{7}

c _{1,2} = a _{1,1}b _{1,2} + a _{1,2}b _{2,2},\tag{8}

c_{1,3} = a_{1,1}b_{1,3} + a_{1,2}b_{2,3},\tag{9}

c_{2,1} = a_{2,1}b_{1,1} + a_{2,2}b_{2,1},\tag{10}

c_{2,2} = a_{2,1}b_{1,2} + a_{2,2}b_{2,2},\tag{11}

c_{2,3} = a_{2,1}b_{1,3} + a_{2,2}b_{2,3},\tag{12}

所以根据(3)式有：

\frac{\partial{c_{1,1}}}{\partial{\bf b}} =
\begin{bmatrix}
a_{1,1} & 0 & 0\\
a_{1,2} & 0 & 0
\end{bmatrix},\tag{13}

\frac{\partial{c_{1,2}}}{\partial{\bf b}} =
\begin{bmatrix}
0 & a_{1,1} & 0\\
0 & a_{1,2} & 0
\end{bmatrix},\tag{14}

\frac{\partial{c_{1,3}}}{\partial{\bf b}} =
\begin{bmatrix}
0 & 0 & a_{1,1}\\
0 & 0 & a_{1,2}
\end{bmatrix},\tag{15}

\frac{\partial{c_{2,1}}}{\partial{\bf b}} =
\begin{bmatrix}
a_{2,1} & 0 & 0\\
a_{2,2} & 0 & 0
\end{bmatrix},\tag{16}

\frac{\partial{c_{2,2}}}{\partial{\bf b}} =
\begin{bmatrix}
0 & a_{2,1} & 0\\
0 & a_{2,2} & 0
\end{bmatrix},\tag{17}

\frac{\partial{c_{2,3}}}{\partial{\bf b}} =
\begin{bmatrix}
0 & 0 & a_{2,1}\\
0 & 0 & a_{2,2}
\end{bmatrix},\tag{18}

将式(13)~(18)加起来即得到b.grad，同理可得到a.grad。其中c.backward(torch.ones_like(c))中backward()的参数是与 ${\bf c}^{m\times n}$ 大小相同且全为1的矩阵，其中矩阵每个位置的值【相对应】的是式(13)~(18)的系数。即：

b.grad=1\times (13) + 1\times(14) + 1\times(15) + 1\times(16) + 1\times(17) + 1\times(18) =
\begin{bmatrix}
4 & 4 & 4 \\
6 & 6 & 6
\end{bmatrix}

【相应的】如果c.backward()的【参数】为任意与矩阵 ${\bf c}^{m\times n}$ 【形状一致】的矩阵都可，所得到的各元素梯度乘上对应位置的系数即可。
