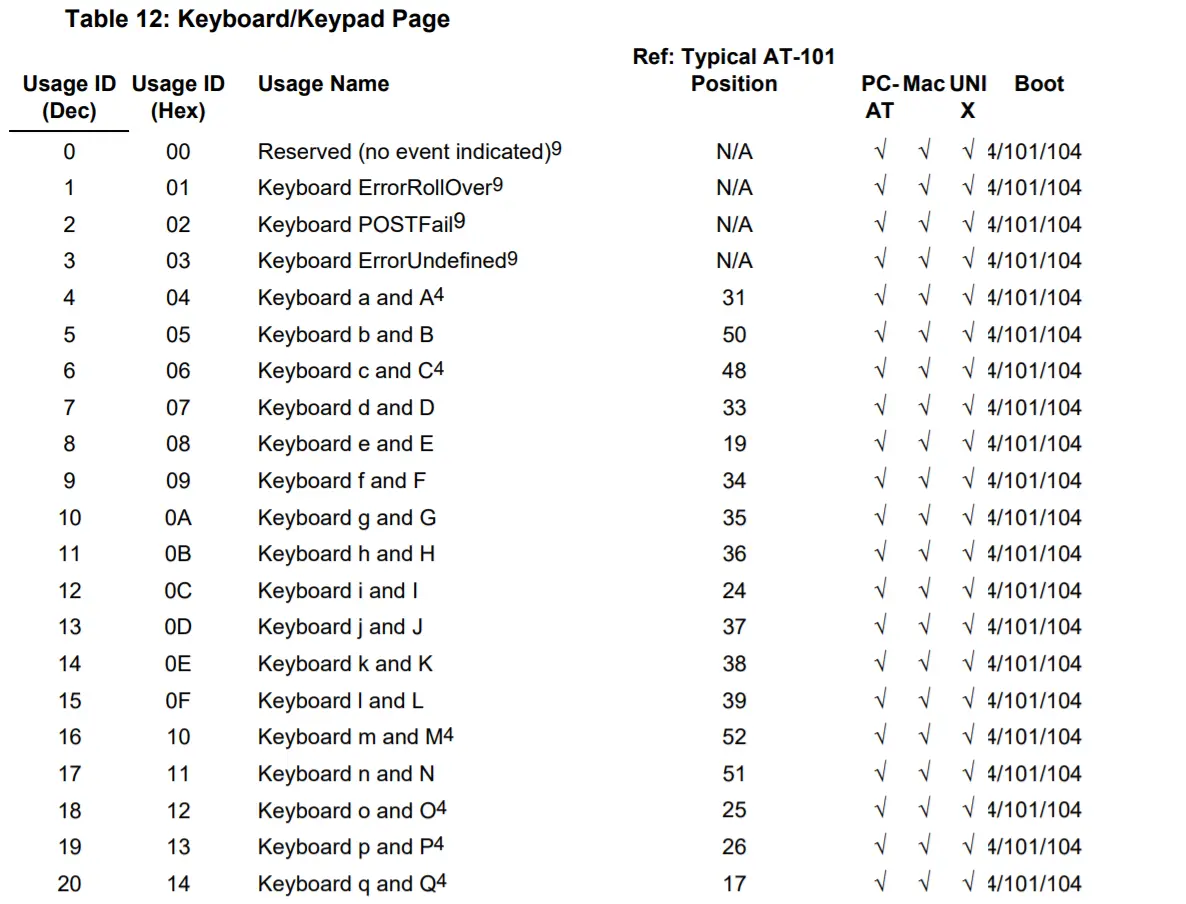

我翻阅了大量的USB协议的文档，在这里我们可以找到这个值与具体键位的对应关系：www.usb.org/developers/…
usb keyboard的映射表 根据这个映射表将第三个字节取出来，对应对照表得到解码：
我们写出如下脚本：
mappings = { 0x04:"A", 0x05:"B", 0x06:"C", 0x07:"D", 0x08:"E", 0x09:"F", 0x0A:"G", 0x0B:"H", 0x0C:"I", 0x0D:"J", 0x0E:"K", 0x0F:"L", 0x10:"M", 0x11:"N",0x12:"O", 0x13:"P", 0x14:"Q", 0x15:"R", 0x16:"S", 0x17:"T", 0x18:"U",0x19:"V", 0x1A:"W", 0x1B:"X", 0x1C:"Y", 0x1D:"Z", 0x1E:"1", 0x1F:"2", 0x20:"3", 0x21:"4", 0x22:"5", 0x23:"6", 0x24:"7", 0x25:"8", 0x26:"9", 0x27:"0", 0x28:"n", 0x2a:"[DEL]", 0X2B:" ", 0x2C:" ", 0x2D:"-", 0x2E:"=", 0x2F:"[", 0x30:"]", 0x31:"\\", 0x32:"~", 0x33:";", 0x34:"'", 0x36:",", 0x37:"." }
nums = []
keys = open('usbdata.txt')
for line in keys:
if line[0]!='0' or line[1]!='0' or line[3]!='0' or line[4]!='0' or line[9]!='0' or line[10]!='0' or line[12]!='0' or line[13]!='0' or line[15]!='0' or line[16]!='0' or line[18]!='0' or line[19]!='0' or line[21]!='0' or line[22]!='0':
continue
nums.append(int(line[6:8],16))
# 00:00:xx:....
keys.close()
output = ""
for n in nums:
if n == 0 :
continue
if n in mappings:
output += mappings[n]
else:
output += '[unknown]'
print('output :n' + output)结果如下：
我们把前面的整合成脚本，得：
#!/usr/bin/env python
import sys
import os
DataFileName = "usb.dat"
presses = []
normalKeys = {"04":"a", "05":"b", "06":"c", "07":"d", "08":"e", "09":"f", "0a":"g", "0b":"h", "0c":"i", "0d":"j", "0e":"k", "0f":"l", "10":"m", "11":"n", "12":"o", "13":"p", "14":"q", "15":"r", "16":"s", "17":"t", "18":"u", "19":"v", "1a":"w", "1b":"x", "1c":"y", "1d":"z","1e":"1", "1f":"2", "20":"3", "21":"4", "22":"5", "23":"6","24":"7","25":"8","26":"9","27":"0","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>","2d":"-","2e":"=","2f":"[","30":"]","31":"\\","32":"<NON>","33":";","34":"'","35":"<GA>","36":",","37":".","38":"/","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}
shiftKeys = {"04":"A", "05":"B", "06":"C", "07":"D", "08":"E", "09":"F", "0a":"G", "0b":"H", "0c":"I", "0d":"J", "0e":"K", "0f":"L", "10":"M", "11":"N", "12":"O", "13":"P", "14":"Q", "15":"R", "16":"S", "17":"T", "18":"U", "19":"V", "1a":"W", "1b":"X", "1c":"Y", "1d":"Z","1e":"!", "1f":"@", "20":"#", "21":"$", "22":"%", "23":"^","24":"&","25":"*","26":"(","27":")","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>","2d":"_","2e":"+","2f":"{","30":"}","31":"|","32":"<NON>","33":"\"","34":":","35":"<GA>","36":"<","37":">","38":"?","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}
def main():
# check argv
if len(sys.argv) != 2:
print "Usage : "
print " python UsbKeyboardHacker.py data.pcap"
print "Tips : "
print " To use this python script , you must install the tshark first."
print " You can use `sudo apt-get install tshark` to install it"
print "Author : "
print " Angel_Kitty <angelkitty6698@gmail.com>"
print " If you have any questions , please contact me by email."
print " Thank you for using."
exit(1)
# get argv
pcapFilePath = sys.argv[1]
# get data of pcap
os.system("tshark -r %s -T fields -e usb.capdata > %s" % (pcapFilePath, DataFileName))
# read data
with open(DataFileName, "r") as f:
for line in f:
presses.append(line[0:-1])
# handle
result = ""
for press in presses:
Bytes = press.split(":")
if Bytes[0] == "00":
if Bytes[2] != "00":
result += normalKeys[Bytes[2]]
elif Bytes[0] == "20": # shift key is pressed.
if Bytes[2] != "00":
result += shiftKeys[Bytes[2]]
else:
print "[-] Unknow Key : %s" % (Bytes[0])
print "[+] Found : %s" % (result)
# clean the temp data
os.system("rm ./%s" % (DataFileName))
if __name__ == "__main__":
main()效果如下：
另外贴上一份鼠标流量数据包转换脚本：
nums = []
keys = open('usbdata.txt','r')
posx = 0
posy = 0
for line in keys:
if len(line) != 12 :
continue
x = int(line[3:5],16)
y = int(line[6:8],16)
if x > 127 :
x -= 256
if y > 127 :
y -= 256
posx += x
posy += y
btn_flag = int(line[0:2],16) # 1 for left , 2 for right , 0 for nothing
if btn_flag == 1 :
print posx , posy
keys.close()键盘流量数据包转换脚本如下：
nums=[0x66,0x30,0x39,0x65,0x35,0x34,0x63,0x31,0x62,0x61,0x64,0x32,0x78,0x33,0x38,0x6d,0x76,0x79,0x67,0x37,0x77,0x7a,0x6c,0x73,0x75,0x68,0x6b,0x69,0x6a,0x6e,0x6f,0x70]
s=''
for x in nums:
s+=chr(x)
print s
mappings = { 0x41:"A", 0x42:"B", 0x43:"C", 0x44:"D", 0x45:"E", 0x46:"F", 0x47:"G", 0x48:"H", 0x49:"I", 0x4a:"J", 0x4b:"K", 0x4c:"L", 0x4d:"M", 0x4e:"N",0x4f:"O", 0x50:"P", 0x51:"Q", 0x52:"R", 0x53:"S", 0x54:"T", 0x55:"U",0x56:"V", 0x57:"W", 0x58:"X", 0x59:"Y", 0x5a:"Z", 0x60:"0", 0x61:"1", 0x62:"2", 0x63:"3", 0x64:"4", 0x65:"5", 0x66:"6", 0x67:"7", 0x68:"8", 0x69:"9", 0x6a:"*", 0x6b:"+", 0X6c:"separator", 0x6d:"-", 0x6e:".", 0x6f:"/" }
output = ""
for n in nums:
if n == 0 :
continue
if n in mappings:
output += mappings[n]
else:
output += '[unknown]'
print 'output :\n' + output上面这个例子的项目链接如下：files.cnblogs.com/files/ECJTU…
那么对于我们开篇提到的问题，我们可以模仿尝试如上这个例子：

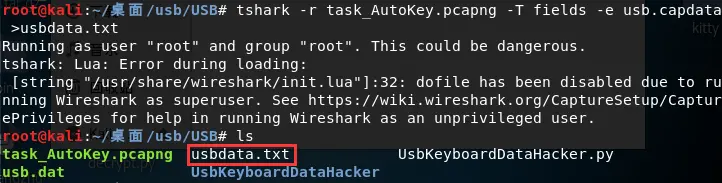

首先我们通过tshark将usb.capdata全部导出：
tshark -r task_AutoKey.pcapng -T fields -e usb.capdata //如果想导入usbdata.txt文件中，后面加上参数：>usbdata.txt我们用上面的python脚本将第三个字节取出来，对应对照表得到解码：
mappings = { 0x04:"A", 0x05:"B", 0x06:"C", 0x07:"D", 0x08:"E", 0x09:"F", 0x0A:"G", 0x0B:"H", 0x0C:"I", 0x0D:"J", 0x0E:"K", 0x0F:"L", 0x10:"M", 0x11:"N",0x12:"O", 0x13:"P", 0x14:"Q", 0x15:"R", 0x16:"S", 0x17:"T", 0x18:"U",0x19:"V", 0x1A:"W", 0x1B:"X", 0x1C:"Y", 0x1D:"Z", 0x1E:"1", 0x1F:"2", 0x20:"3", 0x21:"4", 0x22:"5", 0x23:"6", 0x24:"7", 0x25:"8", 0x26:"9", 0x27:"0", 0x28:"n", 0x2a:"[DEL]", 0X2B:" ", 0x2C:" ", 0x2D:"-", 0x2E:"=", 0x2F:"[", 0x30:"]", 0x31:"\\", 0x32:"~", 0x33:";", 0x34:"'", 0x36:",", 0x37:"." }
nums = []
keys = open('usbdata.txt')
for line in keys:
if line[0]!='0' or line[1]!='0' or line[3]!='0' or line[4]!='0' or line[9]!='0' or line[10]!='0' or line[12]!='0' or line[13]!='0' or line[15]!='0' or line[16]!='0' or line[18]!='0' or line[19]!='0' or line[21]!='0' or line[22]!='0':
continue
nums.append(int(line[6:8],16))
# 00:00:xx:....
keys.close()
output = ""
for n in nums:
if n == 0 :
continue
if n in mappings:
output += mappings[n]
else:
output += '[unknown]'
print('output :n' + output)运行结果如下：
output :n[unknown]A[unknown]UTOKEY''.DECIPHER'[unknown]MPLRVFFCZEYOUJFJKYBXGZVDGQAURKXZOLKOLVTUFBLRNJESQITWAHXNSIJXPNMPLSHCJBTYHZEALOGVIAAISSPLFHLFSWFEHJNCRWHTINSMAMBVEXO[DEL]PZE[DEL]IZ'我们可以看出这是自动密匙解码，现在的问题是在我们不知道密钥的情况下应该如何解码呢？
我找到了如下这篇关于如何爆破密匙：www.practicalcryptography.com/cryptanalys…
爆破脚本如下：
from ngram_score import ngram_score
from pycipher import Autokey
import re
from itertools import permutations
qgram = ngram_score('quadgrams.txt')
trigram = ngram_score('trigrams.txt')
ctext = 'MPLRVFFCZEYOUJFJKYBXGZVDGQAURKXZOLKOLVTUFBLRNJESQITWAHXNSIJXPNMPLSHCJBTYHZEALOGVIAAISSPLFHLFSWFEHJNCRWHTINSMAMBVEXPZIZ'
ctext = re.sub(r'[^A-Z]','',ctext.upper())
# keep a list of the N best things we have seen, discard anything else
class nbest(object):
def __init__(self,N=1000):
self.store = []
self.N = N
def add(self,item):
self.store.append(item)
self.store.sort(reverse=True)
self.store = self.store[:self.N]
def __getitem__(self,k):
return self.store[k]
def __len__(self):
return len(self.store)
#init
N=100
for KLEN in range(3,20):
rec = nbest(N)
for i in permutations('ABCDEFGHIJKLMNOPQRSTUVWXYZ',3):
key = ''.join(i) + 'A'*(KLEN-len(i))
pt = Autokey(key).decipher(ctext)
score = 0
for j in range(0,len(ctext),KLEN):
score += trigram.score(pt[j:j+3])
rec.add((score,''.join(i),pt[:30]))
next_rec = nbest(N)
for i in range(0,KLEN-3):
for k in xrange(N):
for c in 'ABCDEFGHIJKLMNOPQRSTUVWXYZ':
key = rec[k][1] + c
fullkey = key + 'A'*(KLEN-len(key))
pt = Autokey(fullkey).decipher(ctext)
score = 0
for j in range(0,len(ctext),KLEN):
score += qgram.score(pt[j:j+len(key)])
next_rec.add((score,key,pt[:30]))
rec = next_rec
next_rec = nbest(N)
bestkey = rec[0][1]
pt = Autokey(bestkey).decipher(ctext)
bestscore = qgram.score(pt)
for i in range(N):
pt = Autokey(rec[i][1]).decipher(ctext)
score = qgram.score(pt)
if score > bestscore:
bestkey = rec[i][1]
bestscore = score

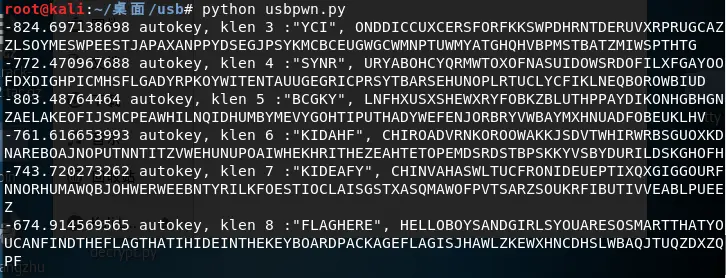

print bestscore,'autokey, klen',KLEN,':"'+bestkey+'",',Autokey(bestkey).decipher(ctext)跑出来的结果如下：
我们看到了flag的字样，整理可得如下：
