什么是EventBus
根据官方介绍，eventbus是一个通过分布/观察者模式实现的消息总线，支持不同线程的调用，能极大的降低代码的耦合度。
EventBus的设计

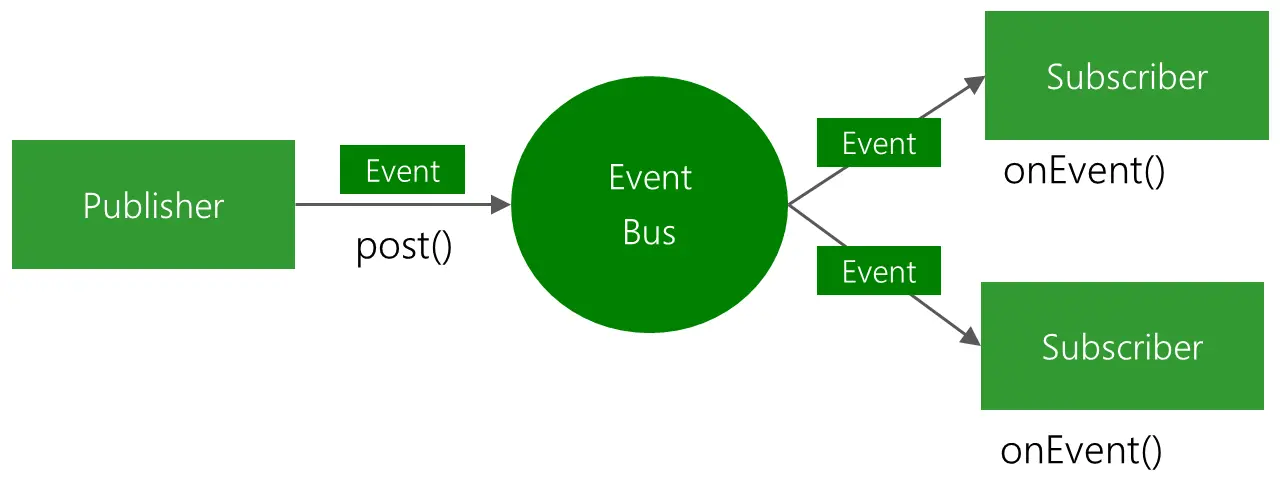

先上图，官方介绍流程图如下
也很简单，就是通过Publisher post事件到eventbus，之后发送给subscriber进行处理。很明显事件的分发处理在eventbus中，那我们就先从eventbus开始看起。
EventBus实现
实例获取方式如下，典型的单例模式：
/** Convenience singleton for apps using a process-wide EventBus instance. */
public static EventBus getDefault() {
if (defaultInstance == null) {
synchronized (EventBus.class) {
if (defaultInstance == null) {
defaultInstance = new EventBus();
}
}
}
return defaultInstance;
}
再来看一下构造方法：
/**
* Creates a new EventBus instance; each instance is a separate scope in which events are delivered. To use a
* central bus, consider {@link #getDefault()}.
*/
public EventBus() {
this(DEFAULT_BUILDER);
}
EventBus(EventBusBuilder builder) {
subscriptionsByEventType = new HashMap<>();
typesBySubscriber = new HashMap<>();
stickyEvents = new ConcurrentHashMap<>();
mainThreadPoster = new HandlerPoster(this, Looper.getMainLooper(), 10);
backgroundPoster = new BackgroundPoster(this);
asyncPoster = new AsyncPoster(this);
indexCount = builder.subscriberInfoIndexes != null ? builder.subscriberInfoIndexes.size() : 0;
subscriberMethodFinder = new SubscriberMethodFinder(builder.subscriberInfoIndexes,
builder.strictMethodVerification, builder.ignoreGeneratedIndex);
logSubscriberExceptions = builder.logSubscriberExceptions;
logNoSubscriberMessages = builder.logNoSubscriberMessages;
sendSubscriberExceptionEvent = builder.sendSubscriberExceptionEvent;
sendNoSubscriberEvent = builder.sendNoSubscriberEvent;
throwSubscriberException = builder.throwSubscriberException;
eventInheritance = builder.eventInheritance;
executorService = builder.executorService;
}
初始化一些成员变量，同时获取builder中的默认参数进行初始化。

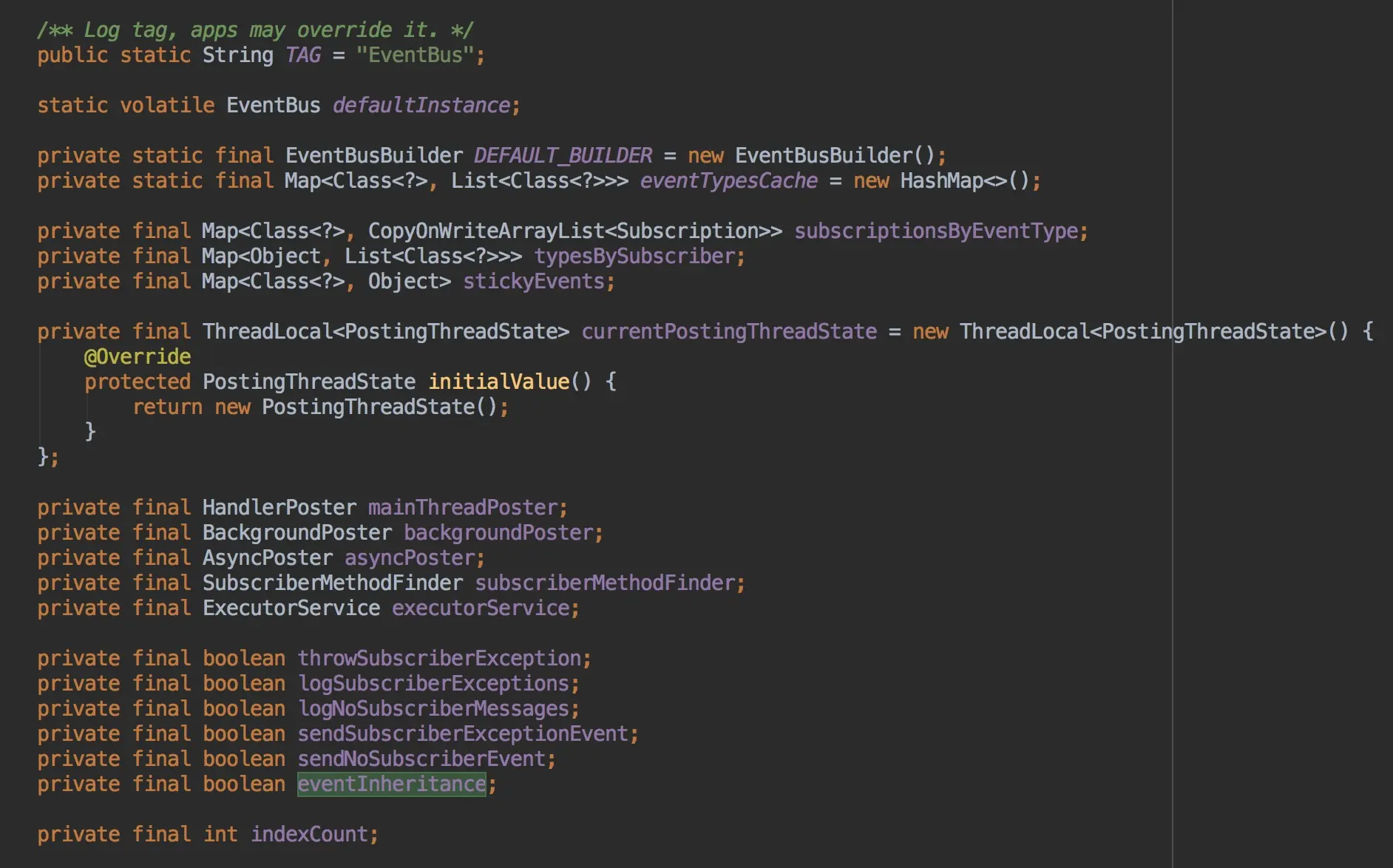

上图是eventbus的成员变量，通过变量名不难知道，主要是做了3部分的缓存：
- 当前发送的事件类型的class(eventTypes)，包含事件的父类以及实现的接口。这意味着当发送事件时，注册了事件父类的方法也会收到回调。
- 事件类型作为Key，Subscription(包含Subscriber和一个SubscriberMethod)的List集合作为Value的Map集合。
- 订阅者(Subscriber)作为Key，事件类型作为Value的Map集合。
Subscriber的注册流程
/**
* Registers the given subscriber to receive events. Subscribers must call {@link #unregister(Object)} once they
* are no longer interested in receiving events.
* <p/>
* Subscribers have event handling methods that must be annotated by {@link Subscribe}.
* The {@link Subscribe} annotation also allows configuration like {@link
* ThreadMode} and priority.
*/
public void register(Object subscriber) {
Class<?> subscriberClass = subscriber.getClass();
List<SubscriberMethod> subscriberMethods = subscriberMethodFinder.findSubscriberMethods(subscriberClass);
synchronized (this) {
for (SubscriberMethod subscriberMethod : subscriberMethods) {
subscribe(subscriber, subscriberMethod);
}
}
}
通过subscriberMethodFinder.findSubscriberMethods()获取到subscriberMethods，并进行了subscribe操作。
订阅方法的查找以及缓存操作
List<SubscriberMethod> findSubscriberMethods(Class<?> subscriberClass) {
//先取缓存中的数据
List<SubscriberMethod> subscriberMethods = METHOD_CACHE.get(subscriberClass);
if (subscriberMethods != null) {
return subscriberMethods;
}
//这是3.0新增的属性，是否强制使用反射的方式获取订阅方法
if (ignoreGeneratedIndex) {
subscriberMethods = findUsingReflection(subscriberClass);
} else {
//这边如果没有配置自定义的MyEventBusIndex还是使用反射的方式获取
subscriberMethods = findUsingInfo(subscriberClass);
}
if (subscriberMethods.isEmpty()) {
throw new EventBusException("Subscriber " + subscriberClass
+ " and its super classes have no public methods with the @Subscribe annotation");
} else {
METHOD_CACHE.put(subscriberClass, subscriberMethods);
return subscriberMethods;
}
}
说一下里面的主要方法findUsingReflection（），这里通过反射的方式获取到有的注册过的方法，并查找父类同样注册过的方法。查找的方式也是比较简单:
- 获取到所有的public修饰的，
- 不包含Modifier.ABSTRACT、Modifier.STATIC、BRIDGE、SYNTHETIC中的修饰
- 只有一个注解就是Subscribe的方法，最后缓存在METHOD_CACHE中。我们来看具体的代码实现
private List<SubscriberMethod> findUsingReflection(Class<?> subscriberClass) {
//这里就是初始化了一个FindState，通过while循环获取订阅类以及其父类的订阅方法，并做了缓存
FindState findState = prepareFindState();
findState.initForSubscriber(subscriberClass);
while (findState.clazz != null) {
findUsingReflectionInSingleClass(findState);
findState.moveToSuperclass();
}
return getMethodsAndRelease(findState);
}
主要的查找实现逻辑其实是在findUsingReflectionInSingleClass()中,也就是开始上面我们说的查找的规则，里面调用到的一个方法需要说一下，就是FindState.checkAddWithMethodSignature()这个方法
private boolean checkAddWithMethodSignature(Method method, Class<?> eventType) {
methodKeyBuilder.setLength(0);
methodKeyBuilder.append(method.getName());
methodKeyBuilder.append('>').append(eventType.getName());
String methodKey = methodKeyBuilder.toString();
Class<?> methodClass = method.getDeclaringClass();
Class<?> methodClassOld = subscriberClassByMethodKey.put(methodKey, methodClass);
//这里判断了父类注册的方法是否被子类注册了
if (methodClassOld == null || methodClassOld.isAssignableFrom(methodClass)) {
// Only add if not already found in a sub class
return true;
} else {
// Revert the put, old class is further down the class hierarchy
subscriberClassByMethodKey.put(methodKey, methodClassOld);
return false;
}
}
这个方法主要是判断了父类注册的方法是否被子类重写，如果被重写根据这个结果会抛出异常，限制了我们的子类去重写父类注册的方法。
注册事件监听以及注销
上面说的方法的查询其实是注册的一部分，下面我们看方法查询完毕之后是怎么被注册上的。
public void register(Object subscriber) {
Class<?> subscriberClass = subscriber.getClass();
List<SubscriberMethod> subscriberMethods = subscriberMethodFinder.findSubscriberMethods(subscriberClass);
synchronized (this) {
for (SubscriberMethod subscriberMethod : subscriberMethods) {
subscribe(subscriber, subscriberMethod);
}
}
}
很简单在subscribe()就是把查询出来的每个方法遍历操作，逐个生成Subscription，进行了缓存。
- 对重复注册的操作进行了抛出异常的处理，防止重复注册
- 在事件注册的同时还根据event注册时的优先级做了排序操作，之后缓存在内存中
- 对于sticky事件，这里在subscriber被注册时直接取出并交由subscriber进行了处理。
相对应的，在unregister()中，传入subscriber，将保存在subscriptionsByEventType已经typesBySubscriber中的缓存清除。
事件的发送
public void post(Object event) {
PostingThreadState postingState = currentPostingThreadState.get();
List<Object> eventQueue = postingState.eventQueue;
eventQueue.add(event);
if (!postingState.isPosting) {
postingState.isMainThread = Looper.getMainLooper() == Looper.myLooper();
postingState.isPosting = true;
if (postingState.canceled) {
throw new EventBusException("Internal error. Abort state was not reset");
}
try {
while (!eventQueue.isEmpty()) {
postSingleEvent(eventQueue.remove(0), postingState);
}
} finally {
postingState.isPosting = false;
postingState.isMainThread = false;
}
}
}
从当前线程中获取PostingThreadState，并将需要发送的event插入队列中。PostingThreadState中保存了一个事件的队列、是否正在发送消息、是否在主线程、当前发送的事件、当前需要同时的订阅对象以及是否取消等的参数。
循环开启发送当个事件的操作，交由postSingleEvent()处理。
private void postSingleEvent(Object event, PostingThreadState postingState) throws Error {
Class<?> eventClass = event.getClass();
boolean subscriptionFound = false;
if (eventInheritance) {
List<Class<?>> eventTypes = lookupAllEventTypes(eventClass);
int countTypes = eventTypes.size();
for (int h = 0; h < countTypes; h++) {
Class<?> clazz = eventTypes.get(h);
subscriptionFound |= postSingleEventForEventType(event, postingState, clazz);
}
} else {
subscriptionFound = postSingleEventForEventType(event, postingState, eventClass);
}
if (!subscriptionFound) {
if (logNoSubscriberMessages) {
Log.d(TAG, "No subscribers registered for event " + eventClass);
}
if (sendNoSubscriberEvent && eventClass != NoSubscriberEvent.class &&
eventClass != SubscriberExceptionEvent.class) {
post(new NoSubscriberEvent(this, event));
}
}
}
这里eventInheritance的一个操作就是是否获取事件的父类并做处理，如果需要则获取所有的父类，并依次处理。
接下来就是事件的发送了
private boolean postSingleEventForEventType(Object event, PostingThreadState postingState, Class<?> eventClass) {
CopyOnWriteArrayList<Subscription> subscriptions;
synchronized (this) {
subscriptions = subscriptionsByEventType.get(eventClass);
}
if (subscriptions != null && !subscriptions.isEmpty()) {
for (Subscription subscription : subscriptions) {
postingState.event = event;
postingState.subscription = subscription;
boolean aborted = false;
try {
postToSubscription(subscription, event, postingState.isMainThread);
aborted = postingState.canceled;
} finally {
postingState.event = null;
postingState.subscription = null;
postingState.canceled = false;
}
if (aborted) {
break;
}
}
return true;
}
return false;
}
这里就是一个循环操作，将之前以eventType为key保存的所有Subscription获取出来，并处理event的过程。
private void postToSubscription(Subscription subscription, Object event, boolean isMainThread) {
switch (subscription.subscriberMethod.threadMode) {
case POSTING:
invokeSubscriber(subscription, event);
break;
case MAIN:
if (isMainThread) {
invokeSubscriber(subscription, event);
} else {
mainThreadPoster.enqueue(subscription, event);
}
break;
case BACKGROUND:
if (isMainThread) {
backgroundPoster.enqueue(subscription, event);
} else {
invokeSubscriber(subscription, event);
}
break;
case ASYNC:
asyncPoster.enqueue(subscription, event);
break;
default:
throw new IllegalStateException("Unknown thread mode: " + subscription.subscriberMethod.threadMode);
}
}
上面就是最后的事件的分发处理的逻辑了，根据注册时指定的线程类型，发送到对应的线程中进行处理。
到此整个Eventbus事件注册，以及发送处理的逻辑都完毕了。
总结
总结几个关键点：
- 事件默认回调的线程是事件发送所在的线程，当然我们可以指定回调的线程；
- 事件回调的方法注意线程同步问题；
- 事件注册时，如果eventInheritance为true，则发送事件时，注册了监听事件的父类的方法也会收到回调，默eventInheritance认值为true；
- 子类在注册时，会遍历所有的父类，并注册父类的监听；
