Testng 集成 ExtentsReports 报告框架

一、pom 依赖引入：

        <dependency>
            <groupId>com.relevantcodes</groupId>
            <artifactId>extentreports</artifactId>
            <version>2.41.2</version>
        </dependency>

        <dependency>
            <groupId>com.vimalselvam</groupId>
            <artifactId>testng-extentsreport</artifactId>
            <version>1.3.1</version>
        </dependency>

        <dependency>
            <groupId>com.aventstack</groupId>
            <artifactId>extentreports</artifactId>
            <version>3.1.5</version>
        </dependency>

创建 Testng 的 Report 监听器：

• 注意：代码可以直接复制使用

import com.aventstack.extentreports.ExtentReports;
import com.aventstack.extentreports.ExtentTest;
import com.aventstack.extentreports.ResourceCDN;
import com.aventstack.extentreports.Status;
import com.aventstack.extentreports.model.TestAttribute;
import com.aventstack.extentreports.reporter.ExtentHtmlReporter;
import com.aventstack.extentreports.reporter.configuration.ChartLocation;
import org.testng.*;
import org.testng.xml.XmlSuite;

import java.io.File;
import java.util.*;

public class ExtentTestNGIReporterListener implements IReporter {
    //生成的路径以及文件名
    private static final String OUTPUT_FOLDER = "test-output/";
    private static final String FILE_NAME = "index.html";

    private ExtentReports extent;

    @Override
    public void generateReport(List<XmlSuite> xmlSuites, List<ISuite> suites, String outputDirectory) {
        init();
        boolean createSuiteNode = false;
        if (suites.size() > 1) {
            createSuiteNode = true;
        }
        for (ISuite suite : suites) {
            Map<String, ISuiteResult> result = suite.getResults();
            //如果suite里面没有任何用例，直接跳过，不在报告里生成
            if (result.size() == 0) {
                continue;
            }
            //统计suite下的成功、失败、跳过的总用例数
            int suiteFailSize = 0;
            int suitePassSize = 0;
            int suiteSkipSize = 0;
            ExtentTest suiteTest = null;
            //存在多个suite的情况下，在报告中将同一个一个suite的测试结果归为一类，创建一级节点。
            if (createSuiteNode) {
                suiteTest = extent.createTest(suite.getName()).assignCategory(suite.getName());
            }
            boolean createSuiteResultNode = false;
            if (result.size() > 1) {
                createSuiteResultNode = true;
            }
            for (ISuiteResult r : result.values()) {
                ExtentTest resultNode;
                ITestContext context = r.getTestContext();
                if (createSuiteResultNode) {
                    //没有创建suite的情况下，将在SuiteResult的创建为一级节点，否则创建为suite的一个子节点。
                    if (null == suiteTest) {
                        resultNode = extent.createTest(r.getTestContext().getName());
                    } else {
                        resultNode = suiteTest.createNode(r.getTestContext().getName());
                    }
                } else {
                    resultNode = suiteTest;
                }
                if (resultNode != null) {
                    resultNode.getModel().setName(suite.getName() + " : " + r.getTestContext().getName());
                    if (resultNode.getModel().hasCategory()) {
                        resultNode.assignCategory(r.getTestContext().getName());
                    } else {
                        resultNode.assignCategory(suite.getName(), r.getTestContext().getName());
                    }
                    resultNode.getModel().setStartTime(r.getTestContext().getStartDate());
                    resultNode.getModel().setEndTime(r.getTestContext().getEndDate());
                    //统计SuiteResult下的数据
                    int passSize = r.getTestContext().getPassedTests().size();
                    int failSize = r.getTestContext().getFailedTests().size();
                    int skipSize = r.getTestContext().getSkippedTests().size();
                    suitePassSize += passSize;
                    suiteFailSize += failSize;
                    suiteSkipSize += skipSize;
                    if (failSize > 0) {
                        resultNode.getModel().setStatus(Status.FAIL);
                    }
                    resultNode.getModel().setDescription(String.format("Pass: %s ; Fail: %s ; Skip: %s ;", passSize, failSize, skipSize));
                }
                buildTestNodes(resultNode, context.getFailedTests(), Status.FAIL);
                buildTestNodes(resultNode, context.getSkippedTests(), Status.SKIP);
                buildTestNodes(resultNode, context.getPassedTests(), Status.PASS);
            }
            if (suiteTest != null) {
                suiteTest.getModel().setDescription(String.format("Pass: %s ; Fail: %s ; Skip: %s ;", suitePassSize, suiteFailSize, suiteSkipSize));
                if (suiteFailSize > 0) {
                    suiteTest.getModel().setStatus(Status.FAIL);
                }
            }

        }
//        for (String s : Reporter.getOutput()) {
//            extent.setTestRunnerOutput(s);
//        }

        extent.flush();
    }

    private void init() {
        //文件夹不存在的话进行创建
        File reportDir = new File(OUTPUT_FOLDER);
        if (!reportDir.exists() && !reportDir.isDirectory()) {
            reportDir.mkdir();
        }
        ExtentHtmlReporter htmlReporter = new ExtentHtmlReporter(OUTPUT_FOLDER + FILE_NAME);

        // 加载 CDN ， 处理 CSS 加载不出来问题
        htmlReporter.config().setResourceCDN(ResourceCDN.EXTENTREPORTS);
        htmlReporter.config().setDocumentTitle("api自动化测试报告");
        htmlReporter.config().setReportName("api自动化测试报告");
        htmlReporter.config().setChartVisibilityOnOpen(true);
        htmlReporter.config().setTestViewChartLocation(ChartLocation.TOP);
        // htmlReporter.config().setTheme(Theme.STANDARD);
        htmlReporter.config().setResourceCDN(ResourceCDN.EXTENTREPORTS);
        htmlReporter.config().setCSS(".node.level-1  ul{ display:none;} .node.level-1.active ul{display:block;}");
        extent = new ExtentReports();
        extent.attachReporter(htmlReporter);
        extent.setReportUsesManualConfiguration(true);
    }

    private void buildTestNodes(ExtentTest extenttest, IResultMap tests, Status status) {
        //存在父节点时，获取父节点的标签
        String[] categories = new String[0];
        if (extenttest != null) {
            List<TestAttribute> categoryList = extenttest.getModel().getCategoryContext().getAll();
            categories = new String[categoryList.size()];
            for (int index = 0; index < categoryList.size(); index++) {
                categories[index] = categoryList.get(index).getName();
            }
        }

        ExtentTest test;

        if (tests.size() > 0) {
            //调整用例排序，按时间排序
            Set<ITestResult> treeSet = new TreeSet<ITestResult>(new Comparator<ITestResult>() {
                @Override
                public int compare(ITestResult o1, ITestResult o2) {
                    return o1.getStartMillis() < o2.getStartMillis() ? -1 : 1;
                }
            });
            treeSet.addAll(tests.getAllResults());
            for (ITestResult result : treeSet) {
                Object[] parameters = result.getParameters();
                String name = "";
                //如果有参数，则使用参数的toString组合代替报告中的name
                for (Object param : parameters) {
                    name += param.toString();
                }
                if (name.length() > 0) {
                    if (name.length() > 50) {
                        name = name.substring(0, 49) + "...";
                    }
                } else {
                    name = result.getMethod().getMethodName();
                }
                if (extenttest == null) {
                    test = extent.createTest(name);
                } else {
                    //作为子节点进行创建时，设置同父节点的标签一致，便于报告检索。
                    test = extenttest.createNode(name).assignCategory(categories);
                }
                //test.getModel().setDescription(description.toString());
                //test = extent.createTest(result.getMethod().getMethodName());
                for (String group : result.getMethod().getGroups())
                    test.assignCategory(group);

                List<String> outputList = Reporter.getOutput(result);
                for (String output : outputList) {
                    //将用例的log输出报告中
                    test.debug(output);
                }
                if (result.getThrowable() != null) {
                    test.log(status, result.getThrowable());
                } else {
                    test.log(status, "Test " + status.toString().toLowerCase() + "ed");
                }

                test.getModel().setStartTime(getTime(result.getStartMillis()));
                test.getModel().setEndTime(getTime(result.getEndMillis()));
            }
        }
    }

    private Date getTime(long millis) {
        Calendar calendar = Calendar.getInstance();
        calendar.setTimeInMillis(millis);
        return calendar.getTime();
    }
}

三、在 Testng 配置文件中添加监听器

<listeners>
  <!-- class-name 的值填写 ExtentTestNGIReporterListener 监听类的路径 -->
 <listener class-name="ExtentTestNGIReporterListener"/>
</listeners>

四、例子：

4.1. case ：

package com.tester.extend.demo;

import org.testng.Assert;
import org.testng.Reporter;
import org.testng.annotations.Test;

public class TestMethodDemo {

    @Test
    public void test01(){
        Assert.assertEquals(1,2);
    }

    @Test
    public void test02(){
        Assert.assertEquals(1,1);
    }

    @Test
    public void test03(){
        Assert.assertEquals("aaa","aaa");
    }

    @Test
    public void logDemo(){
        Reporter.log("这是我们自己写的日志");
        throw new RuntimeException("这我我们自己拋的异常~~~~");
    }
}

4.2. 配置文件：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE suite SYSTEM "http://testng.org/testng-1.0.dtd" >

<suite name="我自己的接口测试套件">
    <test name="这些是测试模块">
        <classes>
            <class name="com.tester.extend.demo.TestMethodDemo">
                <methods>
                    <include name="test01"/>
                    <include name="test02"/>
                    <include name="test03"/>
                    <include name="logDemo"/>
                </methods>
            </class>
        </classes>
    </test>
    <listeners>
        <!-- extent reports 监听类路径 -->
        <listener class-name="ExtentTestNGIReporterListener"/>
    </listeners>

</suite>

4.3. 执行结果：打开 test-output 文件夹中的 index.html

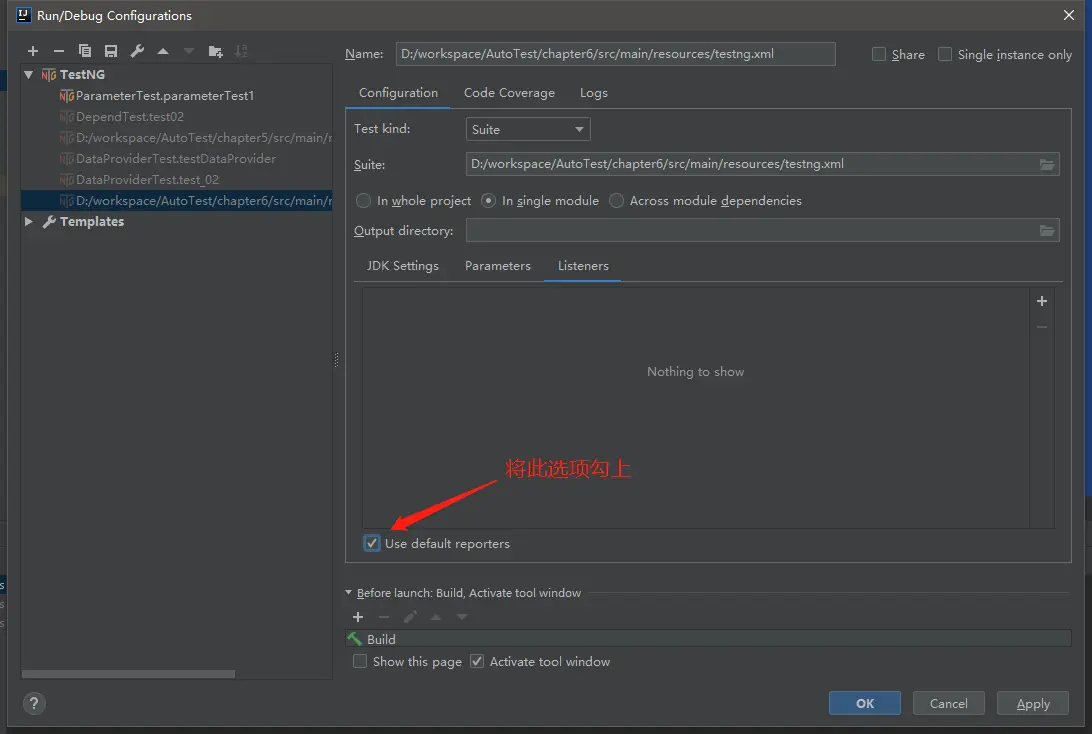

• 注意：如果没有找到该文件夹，请到配置文件中设置



• 勾选上以后，再次运行配置文件就可以看到 test-output 文件夹了



4.4. testng.xml 配置多个 suite

<!DOCTYPE suite SYSTEM "http://testng.org/testng-1.0.dtd" >
<suite name="多个suite测试" verbose="1" preserve-order="true" parallel="false">
    <suite-files>
        <suite-file path="testng-suite1.xml"></suite-file>
        <suite-file path="testng-suite2.xml"></suite-file>
    </suite-files>
    <listeners>
        <listener class-name="test.sen.example.ExtentTestNGIReporterListener"></listener>
    </listeners>
</suite>
